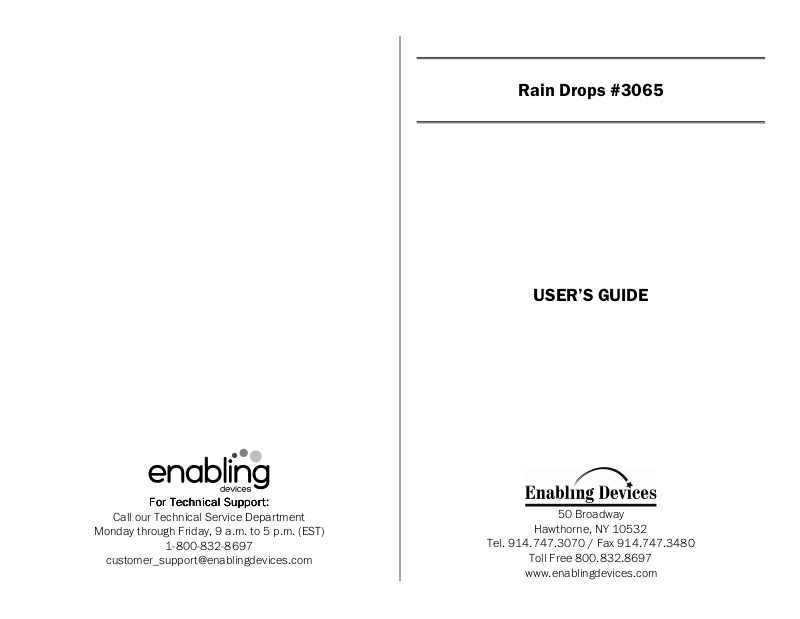

Rain Drops #3065
USER’S GUIDE
For Technical Support:
For Technical Support:
For Technical Support:For Technical Support:
Call our Technical Service Department
Monday through Friday, 9 a.m. to 5 p.m. (EST)
1-800-832-8697
customer_support@enablingdevices.com
50 Broadway
Hawthorne, NY 10532
Tel. 914.747.3070 / Fax 914.747.3480
Toll Free 800.832.8697
www.enablingdevices.com
Splish splash!
Fill the water tray and when you activate your capability switch,
watch the water trickle down the bead chains while you play in the
water tray. A wonderful tactile experience for all. Works with or
without a capability switch. Size: 15"H x 14"W x 13"D. Requires 4 D
Batteries. Weight: 4½ lbs.
Operation:
Operation:
Operation:Operation:
1. To install the batteries, carefully turn the unit over to reveal the
battery compartment. Next remove the two screws from the
cover and lift off. Lift the battery holder out from the
compartment, the holder is attached with a chain to prevent the
wiring from breaking. Next install 4 D cell batteries into the
holder. Use alkaline batteries only (e.g. Duracell or Energizer
brand). Do not use rechargeable batteries or any other type of
batteries because they supply lower voltage and the unit will not
perform properly. Never mix old and new batteries together or
different brands or types together. Please note to follow proper
(+) & (-) battery polarity. Replace cover and screws.
2. Fill the Rain Drops with water from the tap, up to the fill line.
Plug your external capability switch (Not Included) into the
female 1/8" jack located on the side of the unit. Activating your
switch will start the water flowing down the bead chains. Once
the switch is released the water will stop. For continuous play
without an external switch, turn the built in ON/OFF switch to
ON.
Troubleshooting:
Troubleshooting:
Troubleshooting:Troubleshooting:
Problem:
Problem: Rain Drops does not turn on when switch is depressed.
Problem: Problem:
Action #1:
Action #1: Make sure that you press all connections firmly together.
Action #1: Action #1:
Any gaps may interrupt electrical connection.
Action #2:
Action #2: Make sure batteries are fresh.
Action #2: Action #2:
Action #3:
Action #3: Try a different switch with Rain Drops to rule it out as the
Action #3: Action #3:
source of the problem.
Problem:
Problem: The water does not flow.
Problem:Problem:
Action #1
Action #1: Check and or replace the 4 D cell batteries with fresh
Action #1Action #1
batteries.
Action #2:
Action #2: Check to make sure nothing is blocking or pinching the
Action #2: Action #2:
water outlet hose.
Care of Unit:
Care of Unit:
Care of Unit:Care of Unit:
Empty the water from The Rain Drops when you are finished using it,
and then wipe the inside with a paper towel or cloth, and let air dry.
Rain Drops can be wiped clean with any household multi-purpose
cleaner and disinfectant.
Do not submerge
Do not submerge the unit in any fluids, as it will damage the
Do not submergeDo not submerge
contents and the electrical components.
Do not use abrasive cleaners,
Do not use abrasive cleaners, as they will scratch the surface of
Do not use abrasive cleaners,Do not use abrasive cleaners,
the unit.
