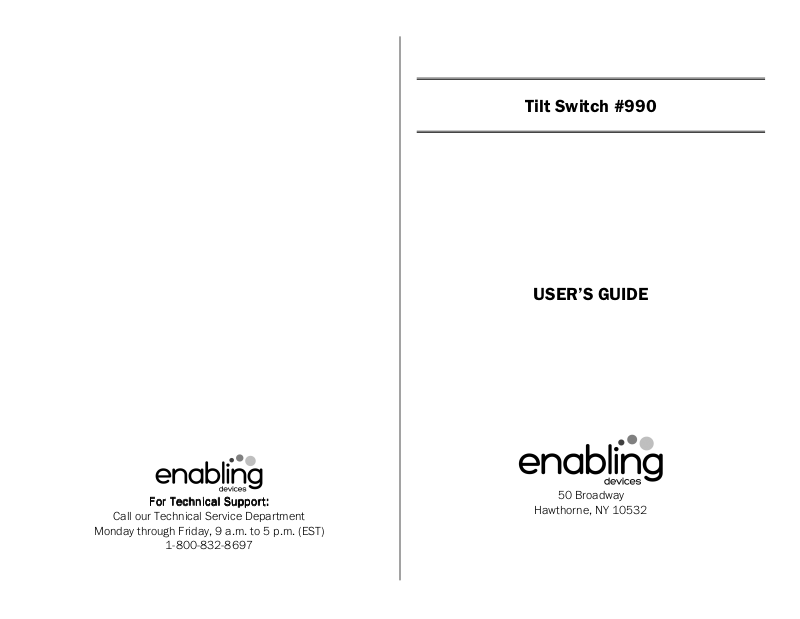

Tilt Switch #990
USER’S GUIDE
For Technical Support:
For Technical Support:
For Technical Support:For Technical Support:
Call our Technical Service Department
Monday through Friday, 9 a.m. to 5 p.m. (EST)
Tel. 914.747.3070 / Fax 914.747.3480
1-800-832-8697
customer_support@enablingdevices.com
www.enablingdevices.com
50 Broadway
Hawthorne, NY 10532
Toll Free 800.832.8697
Page 2
Perfect for posture tr
Perfect for posture trPerfect for posture tr
Perfect for posture tr
aining!
aining!aining!
aining!
multi
-
purpose cleaner a
nd disinfectant
Attach this gravity-sensitive switch to a head, arm or leg
and when the body part is tilted, it will activate (or
deactivate) a toy or device. The switch can be adjusted
for tilt sensitivity and can be used for posture training.
Comes complete with an adjustable Velcro strap. Size:
3"L x 2"W x 1"H. Weight: 2 oz.
SET UP AND OPERATION:
SET UP AND OPERATION:
SET UP AND OPERATION:SET UP AND OPERATION:
1. Attach the tilt switch to the body extremity (e.g. head)
via the provided adjustable black band, taking note of
the small Velcro section on the band, that is where
you will place the tilt switch.
2. Attach the tilt switch to the toy or device you want to
use via the 1/8th cord jack.
3. The tilt switch has no on/off button, it’s neutral setting
is achieved by having the black cord attached to the
switch facing the floor, meaning the switch will not
activate the toy or device attached to it in this
position. A forward or backward tilt from this position
with cause activation of the device or toy. Sensitivity
can be adjusted by changing the angle of the switch in
either direction.
4. A finger band is also included with this switch, and is
adjustable. The tilt switch attaches on the outside of
the finger band (the fuzzy side) of the band.
Care of Unit:
Care of Unit:
Care of Unit:Care of Unit:
The tilt Switch can be wiped clean with any household
Troubleshooting:
Troubleshooting:
Troubleshooting:Troubleshooting:
Problem:
Problem: Tilt switch does not work.
Problem:Problem:
Action:
Action: Make sure that there is a TIGHT connection
Action:Action:
between the switch and the device or toy (there should be
NO gaps). Especially check this out when using adapters
(if applicable). Any gaps will cause the unit to function
incorrectly or not work at all.
Rev
Rev 2/16
2/16 /1
Rev Rev
2/162/16
/17777
/1/1
