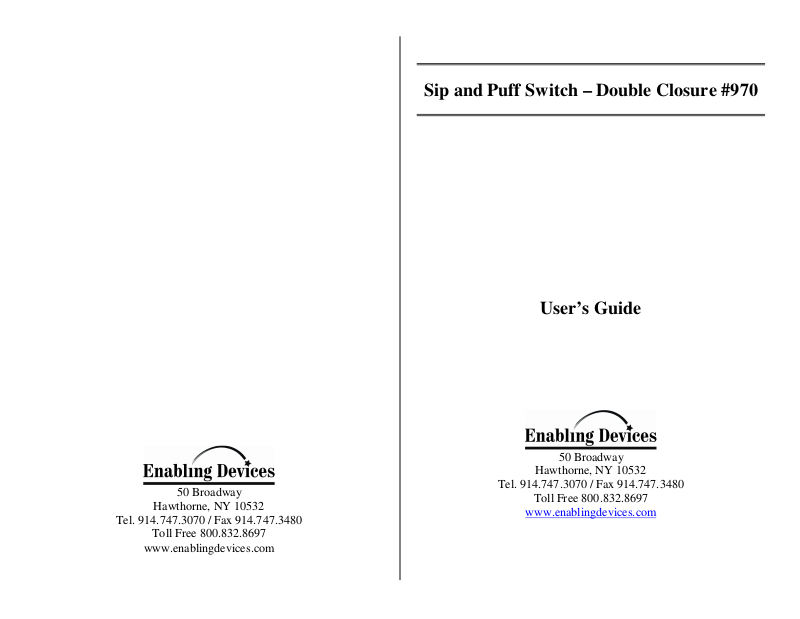

Sip and Puff Switch – Double Closure #970
User’s Guide
Page 2
The Sip and Puff Switch – Double Closure is used to activate two toys or
devices with a single switch. Sipping on the tube will activate one
toy/device, while puffing on the tube will activate a second toy/device. The
switch is mounted on a 19” gooseneck and can be easily attached to most flat
or tubular surfaces with the 3-way mounting clamp. Useful for when other
possibilities for switch activation are exhausted. Extra straws can be ordered
as well. Item # 960-S is a set of 20 straws. Lastly, the #970 is compatible
with items #966-F and #977, the Anticontamination filters.
Operation:
1. This unit does not require any batteries to run.
2. Using the 3-way mounting clamp, secure the unit onto the wheelchair or
bedrail or table, etc. Once it is clamped on, adjust the gooseneck so that
the tube is positioned appropriately.
3. Attach the provided straw at the end of the tube simply by sliding it in.
4. Connect the Sip and Puff switch with one or two toys/devices using the
male to male cords provided.
5. Insert the straw into your mouth. Sip to activate one toy/device or puff
to activate the other toy/device. The toy/device will only remain
activated as long as the sip or puff is sustained. Once you cease sipping
or puffing the device/toy will go off.
Important Notes:
• This device requires a moderate strength sip or puff to operate.
• This switch is extremely sensitive and may remain in the “ON” position
when the atmospheric pressure changes. If this occurs, reset the switch
by separating the clear tubing where it is joined together by the white
plastic connector, then reconnect.
Troubleshooting:
Problem: The unit fails to operate, or operates incorrectly.
Action #1: Make sure all of the connections are tight (between straws and
tubing, between adapter and switch, between adapter and device/toy, etc.).
Action #2: Temporarily disconnect the clear tubing at the white connector to
equalize the air pressure in the clear tubing, then reconnect.
Action #4: With time and use, the straw and/or the Anticontamination filter
will become clogged. It is best to change these components before they
become 100% clogged, as this could damage the unit. If possible, it is also a
good idea to keep the switch box above the level of the user’s mouth. This
limits the amount of saliva that enters the tubes.
Action #5: Try a different switch with your toy/device to rule out the
toy/device as the source of the problem.
Care of the Unit:
The Sip and Puff Switch – Double Closure can be wiped clean with any
household multi-purpose, non-abrasive cleaner and disinfectant.
Change your filter and straw regularly.
Do not use abrasive cleaners, as they will scratch the surface of the unit.
Do not submerge the unit, as it will damage the electrical components.
Rev 7/29/10
