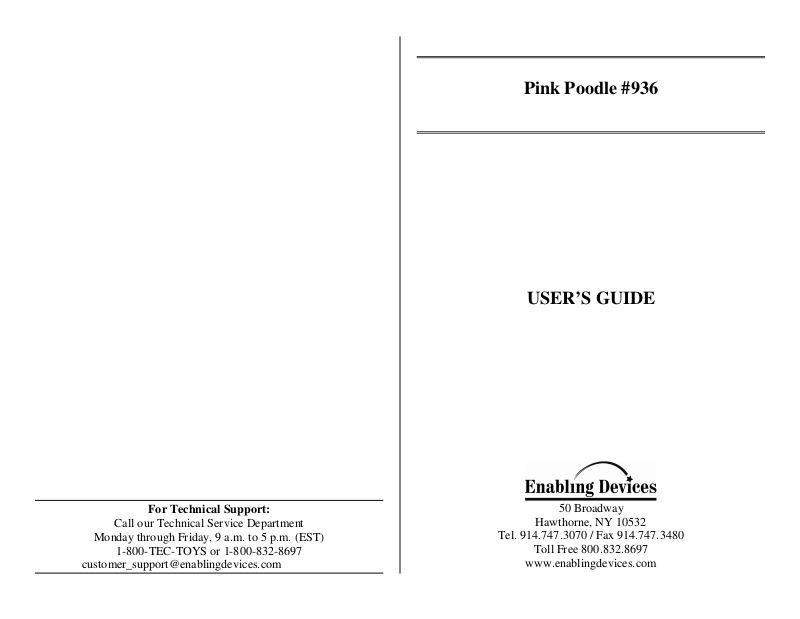

Pink Poodle #936
USER’S GUIDE
Page 2
Woof, Woof!
Take your baby poodle for a walk by activating your capability switch
and it will move about forward and backwards raising its head and
making cute barking sounds. Size: 5½"L x 6 ½ x "W x 3"H. Requires
2 AA Batteries.
Operation:
1. Pink Poodle requires 2 AA Batteries to operate. Alkaline batteries
must be used (e.g. Duracell or Energizer Brands). Do not use
rechargeable batteries because they supply a lower voltage and the
unit may not perform as well. Never mix old and new batteries
together or different brands or types together.
2. Turn Pink Poodle upside down to reveal the battery compartment.
Remove the small screw with a Phillips Head screwdriver. Install 2
AA batteries paying close attention to proper battery polarity.
Replace the battery compartment cover and screw.
3. Connect Pink Poodle to any external capability switch (not
included) via the jack located at the end of Pink Poodle’s cord.
Pink Poodle is equipped with a 1/8" jack for use with external
capability switches with a 1/8"plug. Make sure to have a tight
connection. There should be no gaps.
4. Actuate your external capability switch and Pink Poodle will
spring to life! She will walk forward; raise her head, bark and then
backup.
5. Pink Poodle will remain on while the external capability switch
continues to be actuated. Once you release the external capability
switch, there will be a brief delay, and then Pink Poodle will turn
off.
Troubleshooting:
Problem: Pink Poodle does not function correctly.
Action #1: Replace the batteries paying close attention to proper (+) &
(-) battery polarity.
Action #2: Make sure that the connection between the external
capability switch and the jack is TIGHT. There should be NO gaps.
Action #3: Try your switch with another switch operated toy/device in
an effort to rule out your switch as the source of the problems.
Care of Unit:
• Do not inhibit Pink Poodle’s movement, as this may cause
irreversible damage.
• Do not lift Pink Poodle up by her head, tail or legs, or drop Pink
Poodle.
• If you will not be using Pink Poodle for an extended amount of
time, we recommend removing the batteries.
Do not submerge the unit in water, as it will damage the electrical
components. Pink Poodle is surface washable only.
Rev 7/29/10
