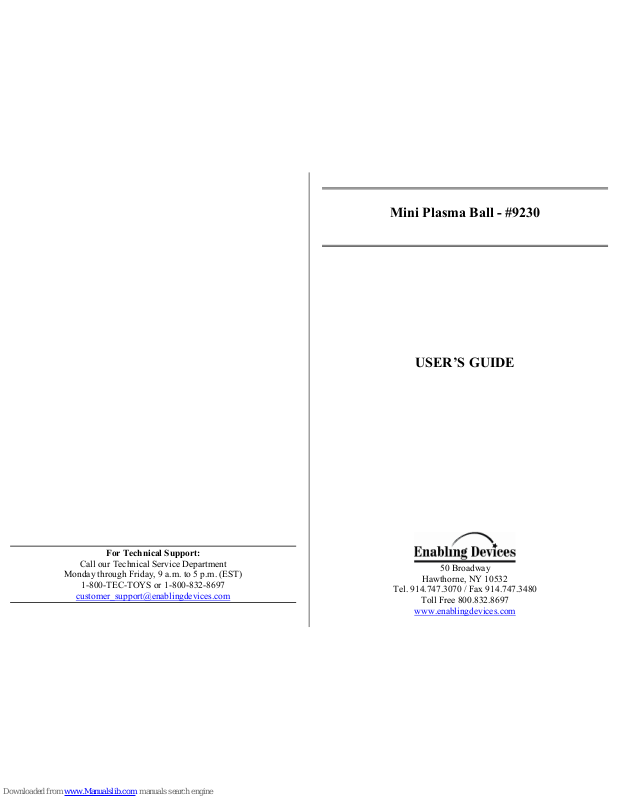

Mini Plasma Ball - #9230

USER’S GUIDE

50 Broadway

Hawthorne, NY 10532

Tel. [phone] / Fax [phone]

Toll Free 800.832.8697

www.enablingdevices.com

Create a dazzling interactive light show. Great for learning cause
and effect and to increase visual attention. Choose two different
modes: Continuous – creates non-stop random waves of bolts; or
Touch activated – bolts follow the movement of your fingers. Works
with or without a capability switch. Size: 3½"L x 3½"W x 5"H.
Requires 4 AAA Batteries. Weight: 1¼ lbs.

PLEASE NOTE: Color may vary.

Operation:

1. The Mini Plasma Ball requires 4 AAA batteries (not included).
Use alkaline batteries only (e.g. Duracell or Energizer brand).
Do not use rechargeable batteries or any other type of batteries
because they supply lower voltage and the unit will not perform
properly. Never mix old and new batteries together or different
brands or types together.

2. Carefully turn the Mini Plasma Ball over and slide the battery
compartment cover off. Observing polarity, install four AAA size
batteries (Not included) into the holder. Replace the battery
compartment cover.

3. Plug any capability switch into the 1/8" jack located on the side
of the Mini Plasma Ball, make sure the switch is plugged in all
the way. There should be no gaps between the connections, if
there is a gap the Mini Plasma Ball will stay ON and your switch
will have no control over it.

4. There are two different modes: Continuous – creates non-stop
random waves of bolts; or switch activated – For switch use set
the ON/OFF switch to OFF. Works with or without a capability
switch.

Troubleshooting:

Problem: Mini Plasma Ball does not function correctly.

Action #1: Try re-installing the batteries paying close attention to

proper battery polarity.

Action #2: Make sure that your switch is plugged in all the way.
There should be NO gaps.

Action #3: Try your switch with another switch operated toy/device
in an effort to rule out your switch as the source of the problems.

Action #4: Replace the batteries paying close attention to proper
battery polarity.

Care of Unit:

If you will not be using Mini Plasma Ball for an extended amount of
time, we recommend removing the batteries.

The Mini Plasma Ball can be wiped clean with any mild household
multi-purpose, non-abrasive cleaner and disinfectant. We
recommend Simple Green, which is a non-toxic biodegradable all­purpose cleaner.

Do not use abrasive cleaners, as they will scratch the surface
of the unit.
Do not submerge the unit, as it will damage the electrical
components.

Rev 2/26/15
