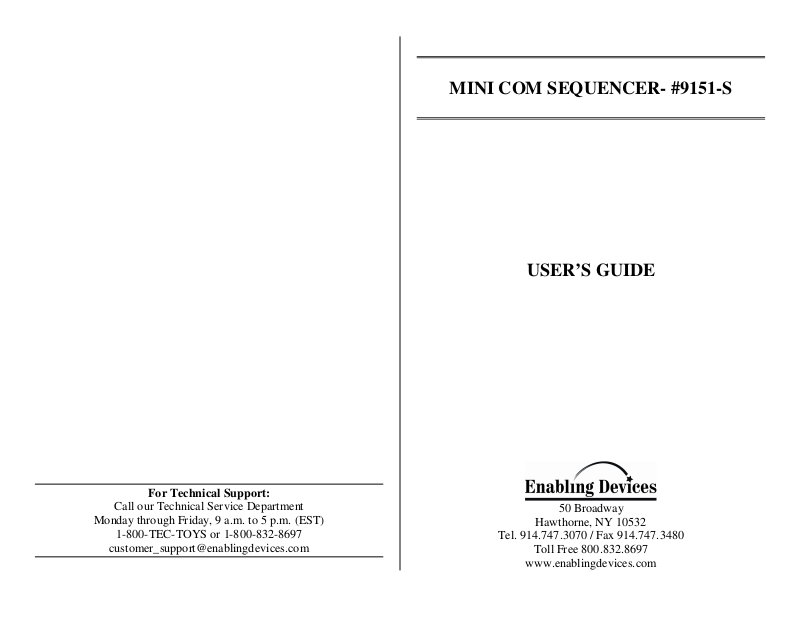

MINI COM SEQUENCER- #9151-S
USER’S GUIDE
Page 2
Use this communicator individually or join it with our basic MiniComs for sequencing, storytelling, sing-a-longs, telling a joke or
carrying on a conversation. Hit the switch the first time and the first
message is spoken; hit it again and the second message is heard; etc.
Easy to use picture clip allows you to change icons easily. Device has
300 seconds of recording time. Re-record at the touch of a button!
Size: 5½"L x 6"W x 3"H. Requires 4 AA Batteries.
OPERATION:
1. Carefully turn over unit to reveal battery compartments. Install 4
AA batteries (Not included), observing proper polarity (+/-), in
battery holders. Use a good brand of alkaline batteries; do not use
rechargeable batteries because they do not provide enough voltage
to power this device.
2. The MICROPHONE, VOLUME ON/OFF knob and the
RECORD/PLAY switch are located on the back panel of the unit.
First turn the unit on by truing the VOLUME knob in a clockwise
direction. Make sure it is set to an audible level. To record, flip the
RECORD/PLAY switch to the RECORD position. Depress the
switch plate and speak the first message. When you are finished
recording the first message, release the switch plate. Please note
do not depress the switch plate while turning the unit ON,
doing so will erase any pre-recorded messages. To record all
subsequent messages, simply depress the switch plate, speak into
the microphone, releasing the switch plate after each message.
3. Messages can vary in length and the total record time is 300
seconds.
4. To play the messages, flip the RECORD/PLAY switch to the
PLAY position. Activation of the switch plate will play the first
message; the second activation will play the second message, and
so on. To interrupt the messages and start at the beginning of the
sequence, press the RESET button on the back of the unit.
5. The unit will retain recorded information indefinitely, even if the
battery is disconnected. Previously stored information will be
erased only when new recording is performed.
6. Please Note: When re-recording messages, all messages on the
unit will be erased.
7. To turn the unit off, turn the volume control knob counter-
clockwise until you hear an audible “click”
IMPORTANT NOTES:
The memory of this unit is capable of holding up to 300 seconds of
speech information total.
If the unit fails to operate, or performs incorrectly, the following steps
should be performed:
Disconnect the batteries for 30 seconds to reset the unit. If the unit
still does not work after batteries are reconnected, replace the
batteries with new ones.
Make sure there are no obstacles between the switch plate and the
housing of the unit.
If you have any problems or questions about this unit or any of our
products, please call our Technical Assistance Department
Care of Unit:
The Mini Comm. Sequencer can be wiped clean with any mild household
multi-purpose cleaner and disinfectant. We recommend Simple Green, which
is a non toxic biodegradable all-purpose cleaner.
Do not submerge the unit, as it will damage the contents and the electrical
components.
Do not use abrasive cleaners, as they will scratch the surface of the unit.
Rev 7/29/10
