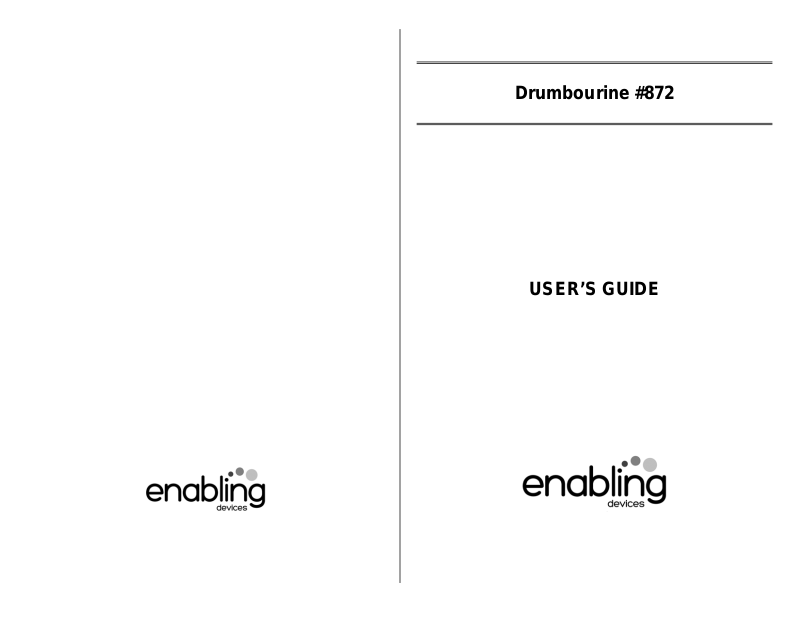

Drumbourine #872
USER’S GUIDE
For Technical Support:
Call our Technical Service Department
Monday through Friday, 9 a.m. to 5 p.m. (EST)
1-800-832-8697
customer_support@enablingdevices.com
50 Broadway
Hawthorne, NY 10532
Tel. 914.747.3070 / Fax 914.747.3480
Toll Free 800.832.8697
www.enablingdevices.com
Page 2
Rock out with this adapted tambourine featuring eight pairs of
jingles on a durable shell and a fixed head with radiant light
graphics. Just activate your switch and the striker will hit the
tambourine playing a strong, steady beat. Encourages music
participation and appreciation. Size: 10"L x 7½"W x 12"H.
Requires 4 AA Batteries. Weight: 1 lb.
Operation:
1. The Drumbourine requires 4 AA batteries. Use alkaline
batteries only (e.g. Duracell or Energizer brand). Do not use
rechargeable batteries or any other type of batteries because
they supply lower voltage and the unit will not perform
properly. Never mix old and new batteries together or different
brands or types of batteries together.
2. The battery compartments are located under the
Drumbourine’s base. Remove the Philips head screw from
each battery case and lift covers off. Install new batteries,
being careful to observe proper battery polarity. Replace
covers and screws.
3. Activate the built-in switch or connect the unit to any external
capability switch via the jack, located on the back of the unit.
The Drumbourine is equipped with a 1/8-inch jack, for use
with capability switches with a 1/8-inch plug. If you need to
use a 1/4- to 1/8-inch adapter, it must be a mono adapter, (our
No.1170) not stereo.
4. Make sure to plug your switch all the way in. There should be
no gaps.
5. Activate your external capability switch to begin the drum rolls.
The Drumbourine will continue beating while the switch
continues to be activated. Once you release the switch, the
Drumbourine will stop.
Troubleshooting:
Problem: The Drumbourine fails to operate.
Action #1: Be sure drumstick is not stuck against the face of the
drum. If it is, gently pull it away from the face of the drum and
gently straighten spring.
Action #2: If the drumstick is not stuck against the face of the
drum, replace the batteries paying attention to proper polarity.
Problem: The drum stick spins, but either (a) does not strike the
drum, or (b) does not strike the drum properly.
Action #1: Gently bend the drumstick slightly at the spring to the
appropriate position for optimal play.
Care of the Unit:
The base and sides of the Drum can be wiped clean with any
mild household multi-purpose, non-abrasive cleaner and
disinfectant. We recommend Simple Green, which is a non toxic
biodegradable all-purpose cleaner.
Do not use abrasive cleaners, as they will scratch the
surface of the unit.
Do not submerge the unit, as it will damage the electrical
components.
Rev 8/29/17
