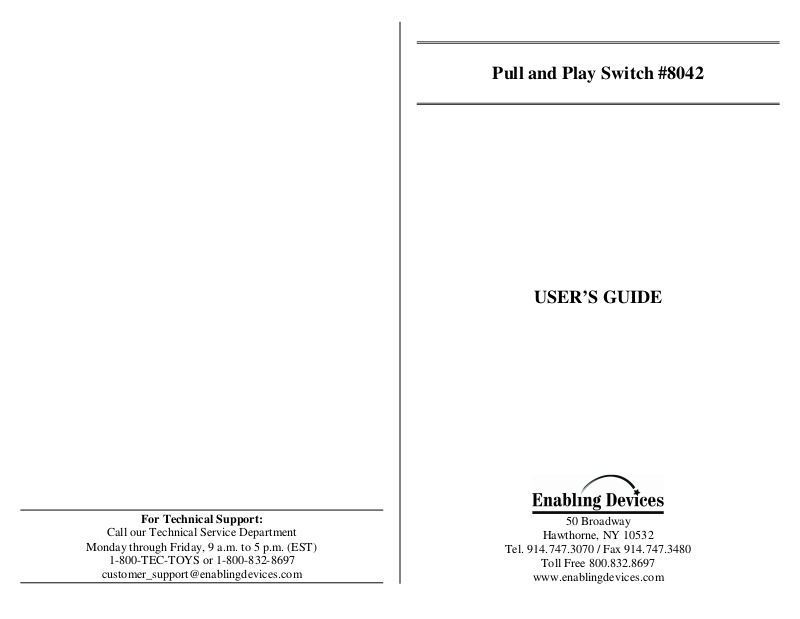

Pull and Play Switch #8042
USER’S GUIDE
Page 2
3 Interchangeable grips!
Mount this switch to tabletop, wheelchair tray or bedrail for easy access.
It comes with 3 interchangeable grips which are a 1 inch multi-colored
tactile ball, 4 inch ball with holes and a 3 inch T grip...C- Clamp
included. Size: 21"H x 7.5"W x 7.5"D.
Operation:
1. The Pull and Play Switch does not require any batteries to operate.
The switch is table top or wheelchair mountable with the included CClamp. When mounting the switch take care not to over tighten the
C-Clamp, as this can cause damage to the surface you are mounting
to and also the Switch base.
2. Plug the Pull and Play Switch into the jack on your switch-adapted
toy/device. If it is necessary for you to use an adapter, make sure that
you use a MONO adapter, not a STEREO adapter.
3. Make sure that the connection between the Pull and Play Switch and
your toy/device is tight. There should be no gaps.
4. Chose one of the three included interchangeable grips. Once a grip
has been chosen, connect it to the chain via the spring loaded clip.
5. Simply pull on the switch’s grip, to activate your toy/device.
6. The toy/device will only remain activated while the Pull and Play
Switch continues to be actuated. Once you release the switch, the
toy/device will turn off.
Troubleshooting:
Problem: The Pull and Play Switch does not activate your toy/device.
Action #1: Make sure that the Pull and Play is on a flat surface (not tilted
or horizontal). This provides for optimal functioning.
Action #2: Make sure that the connection between the Pull and Play
Switch and your toy/device is tight. There should be no gaps. This is a
common error and an easy fix.
Action #3: Try a different switch with your toy/device to rule out the
toy/device as the source of the problem.
Action #4: Try a different adapter (if applicable) to rule this out as the
source of the problem.
Care of Unit:
The Pull and Play Switch can be wiped clean with any household multipurpose cleaner and disinfectant.
Do not submerge the unit, as it will damage the contents and the
electrical components.
Do not use abrasive cleaners, as they will scratch the surface of the unit.
Rev 7/28/10
