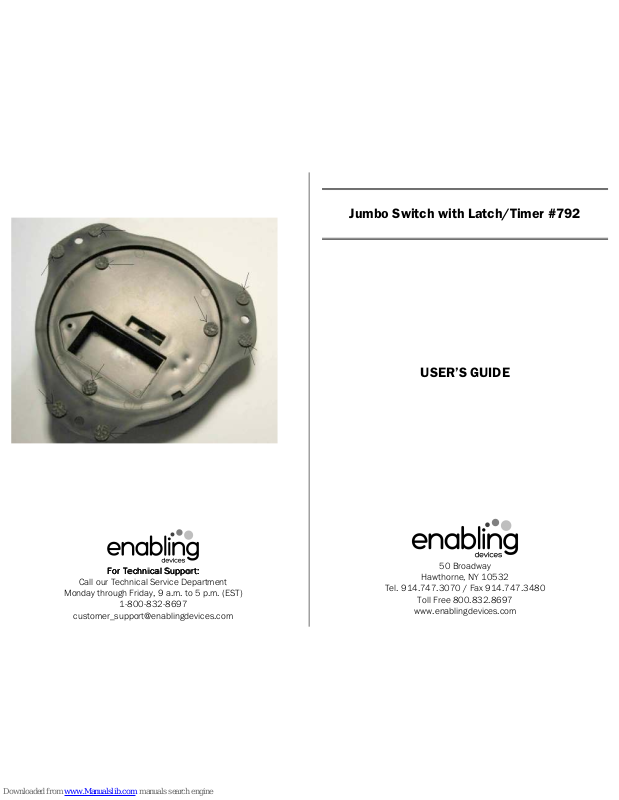

Jumbo Switch with Latch/Timer #792
USER’S GUIDE
50 Broadway
Hawthorne, NY 10532
Tel. 914.747.3070 / Fax 914.747.3480
Toll Free 800.832.8697
www.enablingdevices.com
Now with intention!
We’ve added an intention adjustment to our popular latch timer Jumbo Switch. Great for
those with uncontrolled movements or tremors. This feature requires the user to hold
the switch for a specific amount of time (1-15 seconds) before the device is triggered.
Once the intention time is set, you can select momentary, latch or timed output (0-120
seconds). Mounting plate is removable. Includes two free clear covers for placing your
icons: one with a lip and one without. Size: 5"D x ½"H. Requires 1 9-Volt Battery.
Weight: 1 lb.
OOOOperation
perationperation
peration::::
1. Carefully turn over unit to reveal the setting controls and battery holder. Remove
the Phillips Head screw from the battery compartment cover. Next Observing
polarity insert one 9-Volt battery into the holder. Alkaline batteries must be used
only (e.g. Duracell or Energizer brand). Do not use rechargeable batteries or any
other type of batteries because they supply lower voltage and the unit will not
perform properly.
2. Turn the power on by sliding the ON/OFF
ON/O FFON/O FF
ON/O FF control button located on the bottom of
the unit to the ON
ONON
ON position.
3. The Mo m/Time/Latch
Mom/Time/La tch Mom/Time/La tch
Mom/Time/La tch button is located next to the O N/O FF
ON/O FFON/O FF
ON/O FF button on the side of
the unit. Select the mode by sliding the button to the desired mode.
4. Plug the cord connected to the Jumbo Switch into the switch input jack of the
toy/device you wish to operate.
Avai lable
Avai lableAvai lable
Avai lable MMMMod es
odesodes
odes:
Momentary:
Momentary:Momentary:
Momentary:
In this mode, the unit operates as a momentary switch. The toy or device stays on as
long as the Jumbo switch is activated. One you release the switch the toy or device will
turn off.
Timed:
Timed:Timed:
Timed:
In this Mode, the unit operates as a timed switch. The toy or device will run for a set
amount of time (1-120 seconds) when the Jumbo Switch is activated.
Latch:
Latch:Latch:
Latch:
In this mode, the Jumbo Switch operates as an On/Off Switch. The toy or device turns
On with the first activation is made and stays On until a second activation is made. This
will turn the toy or device off.
Usin g the Jumbo Switch (Intention M ode):
Usin g the Jumbo Switch (Intention M ode):Usin g the Jumbo Switch (Intention M ode):
Usin g the Jumbo Switch (Intention M ode):
Intention Mode:
Intention Mode:Intention Mode:
Intention Mode: allows the user to activate the device as in the Standard Mode above
only
after pressing
the switch for a preset amount of time. The intention time can be
adjusted from a fraction of a second to 15 seconds. The time is adjusted by rotating the
small knob on the side of the unit. Note that this knob is the same knob used to adjust
time when the Jumbo Switch is set for Time function. Therefore, if you will use the
Jumbo Switch Time function when in Intention Mode, you must
first
set the time in
Standard Mode
before
switching to Intention Mode. The Jumbo Switch will "remember"
the time setting indefinitely until the Time is readjusted in Standard Mode.
Switching to Inten tion Mode:
Switching to Inten tion Mode:Switching to Inten tion Mode:
Switching to Inten tion Mode:
1. Connect the Jumbo Switch and device as detailed above. Make sure the Jumbo
Switch is off for approximately 10 seconds. Failure to wait 10 seconds may prevent
the Jumbo Switch from switching in and out of Standard and Intention Mode.
2. Press the Jumbo Switch
before
turning it ON and keep it pressed. Then, turn ON
Jumbo Switch. Continue to keep the Jumbo Switch pressed for 5 seconds. The
Jumbo Switch should now be in Intention Mode.
3. Set the Time/Momentary/Latch Switch to the function you wish to use.
4. Adjust the knob to adjust Intention Time. This is the amount of time needed for the
capability switch to be constantly pushed before the device will activate. Rotating
the knob fully clockwise will allow the device to activate immediately, while full
counterclockwise will take a full 15 seconds before the device will activate. The
Momentary/Latch/Time functions are as outlined in the Standard Mode
instructions above.
Moun ting Pl ate Options:
Moun ting Pl ate Options:Moun ting Pl ate Options:
Moun ting Pl ate Options:
The Jumbo Switch has a removable mounting base option. To use without the base,
simple remove the two small Phillips Head screws holding the base from sides of the
switch body. Included are a set of 9 self-adhesive Non-Skid feet. When using the Jumbo
Switch without the base only 3 feet are needed. (See Photo for proper placement). If
using with the base all 9 feet are needed. (See Photo).
Troubleshooting:
Troubleshooting:Troubleshooting:
Troubleshooting:
Problem:
Problem:Problem:
Problem: The Jumbo Switch does not activate your toy/device.
Action #1:
Action #1: Action #1:
Action #1: Make sure that the connection between the Jumbo Switch and your
toy/device is tight. There should be
no
no no
no
gaps. This is a common error and an easy fix.
Action #2:
Action #2: Action #2:
Action #2: Try a different switch with your toy/device to rule out the toy/device as the
source of the problem.
Action #3:
Action #3: Action #3:
Action #3: Try a different adapter (if applicable) to rule this out as the source of the
problem.
Action #4:
Action #4: Action #4:
Action #4: Make sure the batteries are fresh; this switch will not work without
batteries.
Care of the Unit:
Care of the Unit:Care of the Unit:
Care of the Unit:
The Jumbo Switch can be wiped clean with any household multi-purpose, non-abrasive
cleaner and disinfectant. We recommend Simple Green, which is a non toxic
biodegradable all-purpose cleaner.
Do n ot use
Do n ot useDo not use
Do n ot use abrasive cleaners, as they will scratch the surface of the unit.
Do n ot submerge
Do n ot submergeDo n ot submerge
Do n ot submerge the unit, as it will damage the electrical components.
Re
ReRe
Rev
v v
v 2222/14
/14/14
/14/1
/1/ 1
/17777
