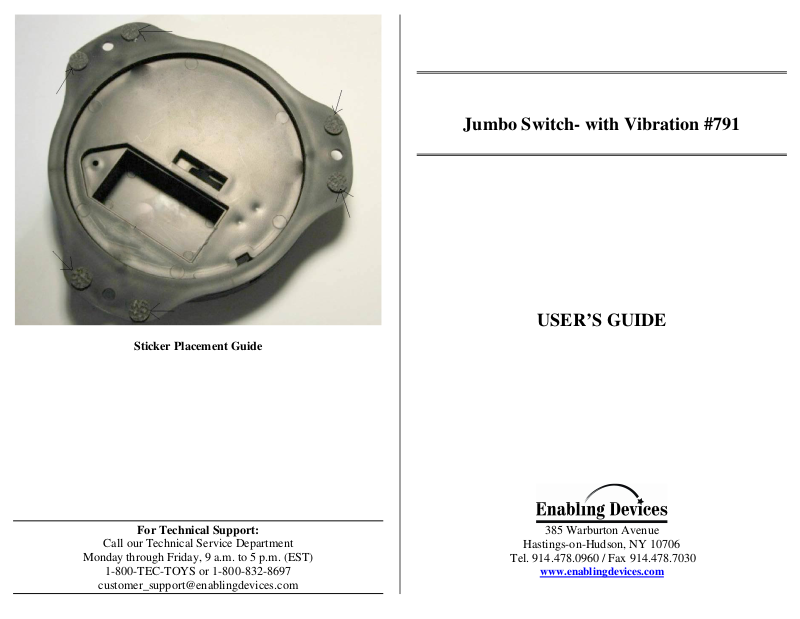

Jumbo Switch- with Vibration #791
Sticker Placement Guide
USER’S GUIDE
Page 2
Push anywhere on the 5" round plate to feel vibration as well as activate a
toy or device. This jumbo switch is an improved version of similar round
switches. We have also made the mounting plate detachable since many
users do not need the plate. Size: 5 1/8"Diameter x 1"H. Requires 2 AAA
batteries.
Operation:
1. The Jumbo Switch requires 2 AAA batteries to operate (Not included).
Use alkaline batteries only (e.g. Duracell or Energizer brand). Do not
use rechargeable batteries or any other type of batteries because they
supply lower voltage and the unit will not perform properly. Never mix
old and new batteries together or different brands or types together.
2. Gently turn the unit over to face the black battery compartment cover.
Carefully remove the small screw from the battery compartment cover
using a Phillips head screwdriver, and lift the cover off, it may be
necessary to use the end of the screwdriver to lift one edge of the
cover. Observing proper (+) & (-) battery polarity, install 2 AAA size
batteries into the holder. Replace the battery compartment cover and
screw.
3. Plug the Jumbo Switch into the jack on your switch-adapted
toy/device.
3. If it is necessary for you to use an adapter, make sure that you use a
MONO adapter, not a STEREO adapter.
4. Make sure that the connection between the Jumbo Switch and your
toy/device is tight. There should be no gaps.
5. Simply press anywhere on the Jumbo Switch’s colored top to activate
your toy/device.
6. The toy/device will only remain activated while the Jumbo Switch
continues to be actuated. Once you release the switch, the toy/device
will turn off. The user will feel a gentle vibration from the switch as
long as the switch is being activated.
7. Please Note: There is no ON/OFF switch for the vibration, keep this in
mind when storing the switch. Never lay the switch face down or in a
way that the switch plate will be depressed. Doing so will cause the
batteries to go dead. For prolonged storage we recommend removing
the batteries to prevent this from happening. This switch will not work
if the batteries are removed, weak or dead. Batteries are needed for
switch to work.
Mounting Plate Options:
The Jumbo Switch has a removable mounting base option. To use without
the base, simple remove the two small Phillips Head screws holding the
base from sides of the switch body. Included are a set of 9 self-adhesive
Non-Skid feet. When using the Jumbo Switch without the base only 3 feet
are needed. (See Photo for proper placement). If using with the base all 9
feet are needed. (See Photo).
Troubleshooting:
Problem: The Jumbo Switch does not activate your toy/device.
Action #1: Make sure that the connection between the Jumbo Switch and
your toy/device is tight. There should be no gaps. This is a common error
and an easy fix.
Action #2: Try a different switch with your toy/device to rule out the
toy/device as the source of the problem.
Action #3: Try a different adapter (if applicable) to rule this out as the
source of the problem.
Action #4: Make sure the batteries are fresh, this switch will not work
without batteries.
Care of Unit:
The Jumbo Switch can be wiped clean with any household multi-purpose
cleaner and disinfectant. We recommend Simple Green, which is a non
toxic biodegradable all-purpose cleaner.
Do not submerge the unit, as it will damage the contents and the electrical
components.
Do not use abrasive cleaners, as they will scratch the surface of the unit.
Rev 12/22/09
