Jumbo Switch- #787-R, Y, B, G, & P
(Set of 5 Switches) #789

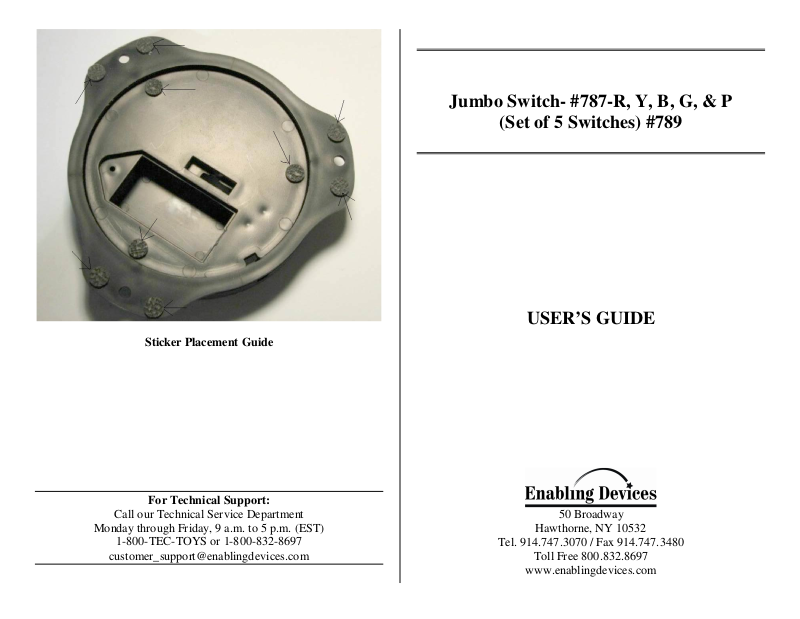

Sticker Placement Guide
USER’S GUIDE
Page 2
This jumbo switch is an improved version of similar round switches.
We have also made the mounting plate detachable since many users do
not need the plate. Size: 5 1/8"Diameter x 1"H.
Operation:
1. The Jumbo Switch does not require any batteries to operate.
2. Plug the Jumbo Switch into the jack on your switch-adapted
toy/device.
3. If it is necessary for you to use an adapter, make sure that you use
a MONO adapter, not a STEREO adapter.
4. Make sure that the connection between the Jumbo Switch and your
toy/device is tight. There should be no gaps.
5. Simply press anywhere on the Jumbo Switch’s colored top to
activate your toy/device.
6. The toy/device will only remain activated while the Jumbo Switch
continues to be actuated. Once you release the switch, the
toy/device will turn off.
Mounting Plate Options:
The Jumbo Switch has a removable mounting base option. To use
without the base, simple remove the two small Phillips Head screws
holding the base from sides of the switch body. Included are a set of 9
self-adhesive Non-Skid feet. When using the Jumbo Switch without
the base only 3 feet are needed. (See Photo for proper placement). If
using with the base all 9 feet are needed. (See Photo).
Troubleshooting:
Problem: The Jumbo Switch does not activate your toy/device.
Action #1: Make sure that the connection between the Jumbo Switch
and your toy/device is tight. There should be no gaps. This is a
common error and an easy fix.
Action #2: Try a different switch with your toy/device to rule out the
toy/device as the source of the problem.
Action #3: Try a different adapter (if applicable) to rule this out as the
source of the problem.
Care of Unit:
The Jumbo Switch can be wiped clean with any household multipurpose cleaner and disinfectant. We recommend Simple Green, which
is a non toxic biodegradable all-purpose cleaner.
Do not submerge the unit, as it will damage the contents and the
electrical components.
Do not use abrasive cleaners, as they will scratch the surface of the
unit.
Rev 7/28/10
