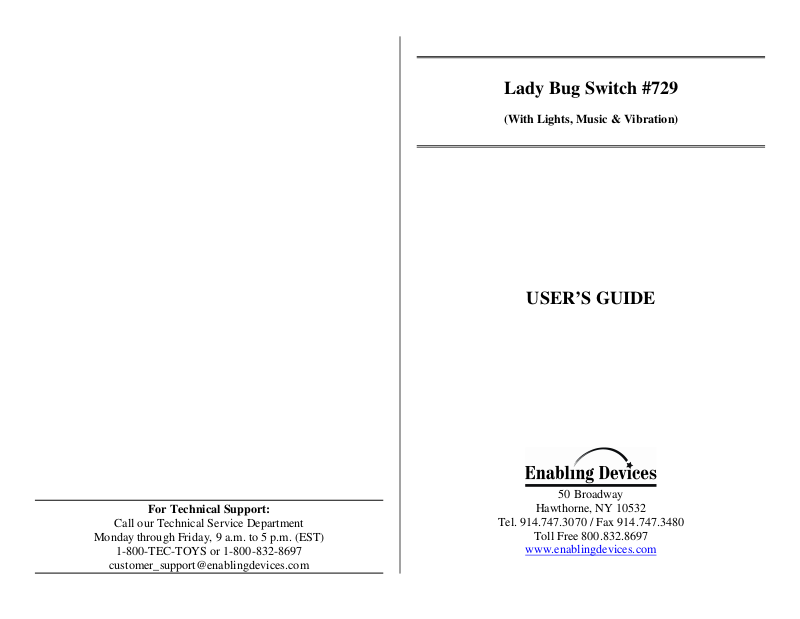

Page 1
Lady Bug Switch #729
(With Lights, Music & Vibration)
USER’S GUIDE
Page 2
Cute and colorful!
Everyone is drawn to this colorful lady bug. The slightest touch rewards
the user with a choice of lights, vibration and/or music. This item has a
special control which allows the user to select any or all of the rewards.
Size: 9"L x 6¼"W x 4"H. Requires 2 AA Batteries.
Operation:
1. The Lady Bug Switch requires two AA batteries (Not included).
The battery compartment is located under the base of the unit.
Carefully turn the switch over, and then remove the battery cover
with a small Philips screwdriver. Install new batteries, being
careful to observe proper battery polarity. Use alkaline batteries
only (e.g. Duracell or Energizer brand). Do not use rechargeable
batteries or any other type of batteries because they supply lower
voltage and the unit will not perform properly. Never mix old and
new batteries together or different brands or types together.
2. Replace the battery case cover and secure it with the small screw.
Do not over-tighten.
3. To turn on or off the desired stimuli (1-vibration; 2-music; 3lights), push the small white rocker switches to the on or (open
position). Open position means off. Please see Fig 1.
Figure 1.
4. Press anywhere on the Lady Bug’s back and you will be rewarded
with the selected stimuli vibration, lights or music.
5. To operate as a switch connect an external toy or device via the
double ended male 1/8-inch to 1/8-inch cord , one end plugs into
the 1/8-inch female jack on the side of the Lady Bug. Plug the
other end into your toy/device. If you need to use a ¼" adaptor, it
must be a mono adaptor, not stereo. Press anywhere on the Lady
Bug’s back to activate your toy or device. Once you release
pressure from the switch your toy or device will turn off.
6. When using as a switch you can turn On or Off any of the three
stimuli.
Troubleshooting:
Problem: The Lady Bug Switch does not operate properly.
Action # 1: Make sure the batteries are in the battery compartment properly,
and making good contact.
Action # 2: Make sure you have the desired stimuli selected as explained in
operation No.3
Action # 3: If the unit still does not work properly, replace the batteries.
Problem: The Lady Bug Switch does not activate a connected toy/device.
Action #1: Make sure all connections are tight.
Action #2: Check batteries in toy/device, replace if weak or dead.
Care of Unit:
The Lady Bug Switch can be wiped clean with any household multi-purpose
cleaner and disinfectant. We recommend Simple Green, which is a non
toxic biodegradable all-purpose cleaner.
Do not submerge the unit, as it will damage the contents of the top and the
electrical components.
Rev 8/30/10
