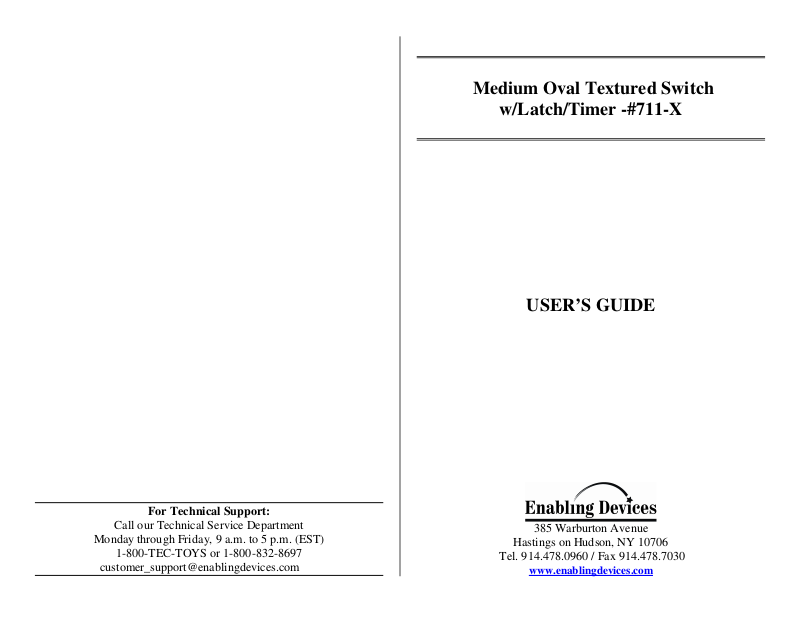

Medium Oval Textured Switch
w/Latch/Timer -#711-X
USER’S GUIDE
Page 2
AVAILABLE MODES
Triples your options! This ingenious box turns any
momentary switch into a latch or timed switch. In the
momentary mode, your toy or device will stay on as long as
you maintain pressure on the switch. In the latch mode,
your device will turn on when the switch is pressed once
and will turn off when the switch is pressed again. In timed
mode, your toy or device will stay on for a preset amount
of time (0 to 120 seconds). The time can be adjusted from
0-120 seconds by turning a knob. Size: 4½" x 2½" x 1".
Requires 1 9-V Battery
OPERATION:
1. Carefully turn over unit to reveal battery compartment.
Insert one 9 Volt battery into the holder.
2. Turn the power on by sliding the ON/OFF control
button located on the side of the unit to the ON
position.
3. The Mom/Time/Latch button is located next to the
ON/OFF button on the side of the unit. Select the
mode by sliding the button to the desired mode.
4. Plug a switch into the cord jack marked SWITCH, and
insert the DEVICE cord into the jack of the toy/device
you wish to operate.
:
Momentary:
In this mode, the unit operates as a momentary switch. The
toy or device stays on as long as the switch is activated.
Timed:
In this Mode, the unit operates as a timed switch. The toy
or device goes on for a set amount of time (1-120 seconds)
when the switch is activated.
If the unit fails to operate, or operates incorrectly, the
following steps should be performed:
Turn the unit off and replace the battery.
Replace with a new alkaline battery only (e.g. Duracell,
Energizer brand). Do not use rechargeable or non
alkaline batteries in this device. The do not provide
enough power for the Switch Modifier to work.
Latch:
In this mode, the unit operates as an On/Off Switch. The
toy or device goes On with the first activation and stays On
until the second activation of the switch.
Rev 7/26/06
