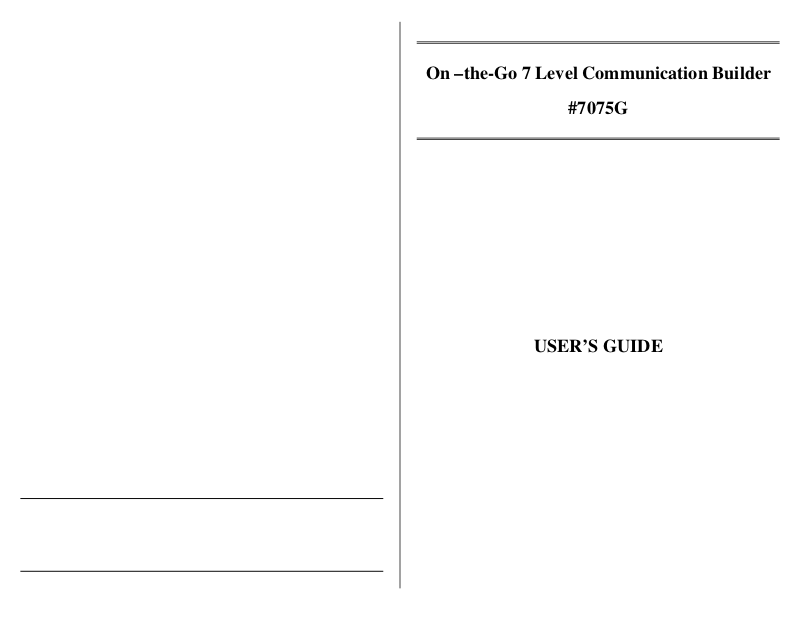

On –the-Go 7 Level Communication Builder
#7075G
USER’S GUIDE
Page 2
We have created a truly portable version of our best and most affordable
communicators. The On-the-Go product line comes with a sturdy handle and 36"
adjustable strap. Now you can take your communicator anywhere!
The On-The-Go Communication Builder allows the user to record and play back from 1,
2, 4, 8, or 16 different messages per level. There are seven levels for recordings, giving
you a total of up to 112 messages (in the 16 window setting) at the touch of a button!
Total record time is 300 seconds. The unit comes equipped with 5 sturdy frame/overlays
in 1, 2, 3, 4, 8 and 16 windows, which will retain your icon sheet (not included) and
provide a separation between icon pads. It is necessary to re-record all messages when
you switch your windows. The breakdown is as follows: Time per level by window
setting, using all seven levels. (Picture overlays not included).
1 Window setting = 42 seconds per segment per level;
2 Window setting = 21 seconds per segment per level;
4 Window setting = 10½ seconds per segment per level;
8 Window setting = 5¼ seconds per segment per level;
16 Window setting= 2½ seconds per segment per level
Frame size is 8½" x 7". Size: 12½"L x 9¼"W x 4"H. Requires 4 AA Batteries
OPERATION:
1. Carefully turn the device over to reveal the battery compartment. A small Phillips
head screw must be removed from the battery compartment cover in order to slide it
off. Observing proper polarity, install four AA alkaline batteries (Not included) into
the holder. Replace battery compartment cover and screw.
2. Place your icon grid over the black message pad area then install the appropriate
Velcro backed window frame. Next turn your Frame selector knob to the
appropriate setting. Please note pre-made grid layouts can be made with MayerJohnson’s Boardmaker program. Our Item No. 4008 for Macintosh computers and
item No. 4009 for PC computers. If you have older versions of Boardmaker you can
download the pre-made grids from
on Boardmaker is the Laptop Communicator.
3. Turn the unit on by turning the “ON/OFF/VOLUME” knob into the “ON”
position. You will hear a slight audible click as you turn the knob.
4. The microphone is located on the bottom of the unit next to the red “RECORD”
button. To record, depress and hold the “RECORD” button first, then depress one
of the message pads holding both simultaneously and speak into the microphone
(your mouth should be approximately 4-6” from the microphone). Release both
buttons once recording is over. Playback your message by pressing and releasing
the same pad used to record. Each of the remaining message pads can be
“programmed” in the same manner. (The unit will retain recorded information
indefinitely, even if the batteries are disconnected. Previously stored information
will be erased only when a new recording is performed on the pad.)
5. Adjust playback volume by rotating the on/off “VOLUME” control knob to desired
level. Turn the unit off by rotating the “VOLUME” control knob counterclockwise
until you hear an audible “click”.
6. Using the “LEVEL” knob, select level 2. Repeat steps 2 and 3.
7. Repeat procedures for remaining levels.
www.MayerJohnson.com. The Template to use
IMPORTANT NOTES:
You must use the same window setting for all seven levels. (E.G.) you cannot use a
four-window grid on level one and then go to level two and use a 16-window grid. If
you did when you went back to level one, your messages would not play back
properly.
This unit has a total record time of 300 seconds. The breakdown is as
follows. Time per level by window setting.
1 Window setting = 42 seconds per segment per level
2 Window setting = 21 seconds per segment per level
4 Window setting = 10.5 seconds per segment per level
8 Window setting = 5.25 seconds per segment per level
16 Window setting = 2.5 seconds per segment per level
The On –the-Go 7 Level Communication Builder
Will shut off automatically after playback to preserve battery life. However, this
device still drains a very small current in this “sleep” mode. Turn the power off
when not in use. Doing this can extend overall battery life. Batteries should be
removed during long time storage as they may leak and damage the unit.
The unit may be wiped clean using mild detergent and water on a damp cloth. Do
not submerge the unit in water.
TROUBLESHOOTING:
If the unit fails to operate, or operates incorrectly, try the following
suggestions:
♦ Disconnect the power by removing all of the batteries for 20
seconds to reset the unit. If the unit still does not work correctly
after batteries are reinstalled replace with new alkaline batteries.
Make sure proper polarity is observed or damage to unit may occur.
♦ Make sure unit is on and volume is set at an audible level.
♦ Try to record again to see if the unit will “accept” the new recordings.
Care of the Unit:
The On-the Go 7 Level Communicator can be wiped clean with any mild household
multi-purpose, non-abrasive cleaner and disinfectant. We recommend Simple Green,
which is a non toxic biodegradable all-purpose cleaner.
Do not use abrasive cleaners, as they will scratch the surface of the unit.
Do not submerge the unit, as it will damage the electrical components.
Rev 10/7/08
