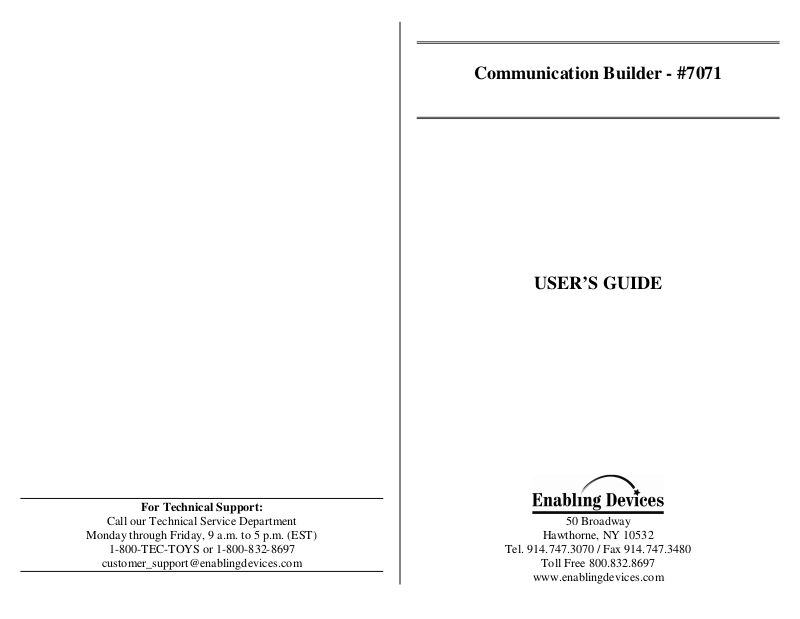

Communication Builder - #7071
USER’S GUIDE
Page 2
The Communication Builder is equipped with three (3) easy to change frames
which allows you to refine communication choices as the child develops new
skills. Using state of the art digital recording the technology allows this unit to
program in a variety of manners: 2, 4 and 16 message capacities. The 2message setting provides two 60 second long messages. The 4-message setting
provides four 60 second long messages. And the 16-message setting provides
sixteen 18 second long messages.
Operation:
1. Install 4 brand new “AA” alkaline batteries into the compartments. Replace
the battery covers and screws. Replace batteries regularly. Weak batteries
will cause the Communication Builder to act erratically, such as shutting off
while playing messages.
Use brand name ALKALINE batteries ONLY (e.g. Duracell or Eveready
Energizer). Do NOT use rechargeable batteries. Do NOT mix new and old
batteries. Do NOT over tighten the battery compartment screw.
To extend battery life, always shut the Phrase Maker OFF when not in use.
Always remove batteries when the unit will not be used for extended periods
of time. Dead batteries often leak acid and can cause permanent damage to
the communicator.
2. Select your frame and icon sheet (not provided). Place sheet over the bare
switch face and insert frame into the face of the unit.
3. Select the proper number of messages for your frame on the Message Select
Knob.
4. Turn unit on and set volume with the Volume Control Knob.
5. To change the number of messages for a different frame choice, turn off
unit. Replace with different frame. Select the new message setting on the
Message Select Knob. Turn unit back on.
6. Record your messages: press and hold the red Record Button, and then press
and hold the framed message switch on the front of the unit. Talk into the
Microphone located next to the Record Button.
Note: If you have changed frames, you must record all new messages for
each frame. Make sure you have followed the procedure in step #5 above.
Important Notes:
If you press the Record Button while a message is in the process of playing
back, it will erase that message. Simply re-record your message by following
the appropriate steps listed above under the operating instructions.
Care of Unit:
The Communication Builder can be wiped clean with any household multipurpose cleaner and disinfectant.
Do not allow liquids to seep into the unit under the message switch membrane.
Do not submerge the unit as it will damage the electrical components.
Do not use abrasive cleaners as they will scratch the surface of the unit.
Troubleshooting:
Problem: The unit fails to operate, or operates incorrectly.
Action #l: Turn the unit off and then on again. This will reset the electronics
and software.
Action #2: Disconnect the power, by removing one of the batteries for 20
seconds, to reset the unit. Reconnect the battery. If the unit still does not work
correctly, replace all batteries.
Care of the Unit:
The Communication Builder can be wiped clean with any mild household multipurpose, non-abrasive cleaner and disinfectant. We recommend Simple Green,
which is a non toxic biodegradable all-purpose cleaner.
Do not use abrasive cleaners, as they will scratch the surface of the unit.
Do not submerge the unit, as it will damage the electrical components.
Rev 7/28/10
7. Playback your message in order to check recording by activating the
message switch on the front of the unit. (Do not press the record button
during this operation.)
8. Record all of the messages for your frames. The unit is now ready for use.
