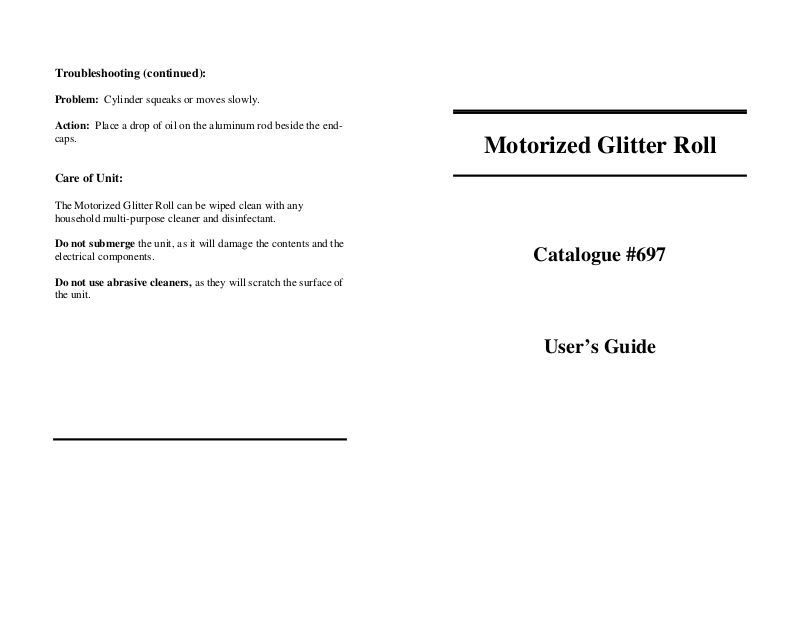

Page 1
Troubleshooting (continued):
Problem: Cylinder squeaks or moves slowly.
Action: Place a drop of oil on the aluminum rod beside the end-
caps.
Care of Unit:
The Motorized Glitter Roll can be wiped clean with any
household multi-purpose cleaner and disinfectant.
Do not submerge the unit, as it will damage the contents and the
electrical components.
Do not use abrasive cleaners, as they will scratch the surface of
the unit.
Motorized Glitter Roll
Catalogue #697
User’s Guide
Page 2
Motorized Glitter Roll
The Motorized Glitter Roll is an innovative toy that will provide
hours of multi-sensory stimulation. When activated by a
capability switch, the clear cylindrical roller turns, tumbling a
colorful array of sparkling pompoms and glitter as music plays.
Operation:
1. The Motorized Glitter Roll requires two C batteries (not
included). Alkaline batteries are recommended because they last
longer. Do not use rechargeable batteries because they supply
lower voltage and the unit may not perform as well. The battery
compartment is located in the bottom of the unit. When
installing new batteries, always be careful to observe battery
polarity.
2. Connect the unit to any capability switch via the jack, which
is located to the left on the front of the unit. This unit is equipped
with a 1/8-inch jack, for use with capability switches with a 1/8inch connector. If you need to a use 1/4- to 1/8-inch adaptor, it
must be a mono adaptor, not stereo.
Troubleshooting:
Problem: No music, or music becomes slow or distorted.
Action: Turn unit over so batteries are at top of unit. Replace
the right battery.
Problem: Cylinder stops turning.
Action: Turn unit over so batteries are at top of unit. Replace
left battery.
If replacing battery does not correct the problem, check the
elastic band located on the right side of the cylinder.
Problem: Elastic band breaks.
Action: Remove the bolt, located on the right side of the front
of the unit, using a Philips screwdriver to turn the bolt and a pair
of pliers (or a 3/8-inch wrench) to hold the locknut (located
under the unit).
Lift the roller cylinder out of the unit.
Slip a #19 rubber band (available at any stationery store) over
the end of the aluminum rod with the chain attached, and then
over the end of the cylinder.
Reinstall cylinder and bolt, making sure to put chain connector
over the bolt before attaching locknut.
Tighten locknut, making sure chain connector points away from
the corner of the unit, towards the aluminum rod.
Slip the rubber band over the glitter roll’s cylinder at the back of
the unit. Be sure the rubber band rides between the red end-cap
and the blue ribs on the cylinder, and that the cylinder is set in
the mold correctly. Also make sure the rubber band is between
the motor and the round metal disk on the motor shaft. Failure to
do this will cause the rubber band to fall of the motor shaft
during operation.
