Enabling Devices 3286 USER'S MANUAL

Jelly Fish Lamp #3286

USER’S GUIDE

For Technical Support:

Call our Technical Service Department

Monday through Friday, 9 a.m. to 5 p.m. (EST)

1-800-832-8697

[e-mail]

50 Broadway

Hawthorne, NY 10532

Tel. [phone] / Fax [phone]

Toll Free 800.832.8697

www.enablingdevices.com

Watch in amazement as two life-like jellyfish gently float and sway
in the water when you activate your switch. Just fill the tower with
distilled water, add the plastic jellyfish and a steady flow of air will
circulate and animate the jellyfish. Great for teaching cause and
effect and for encouraging visual attention. Size: 2¾"L x 2¾"W x
9"H. Requires 3 AA Batteries. Weight: 2 lbs.

WARNING: Choking hazard. Small parts. Not for children
under 3 years.

Operation:

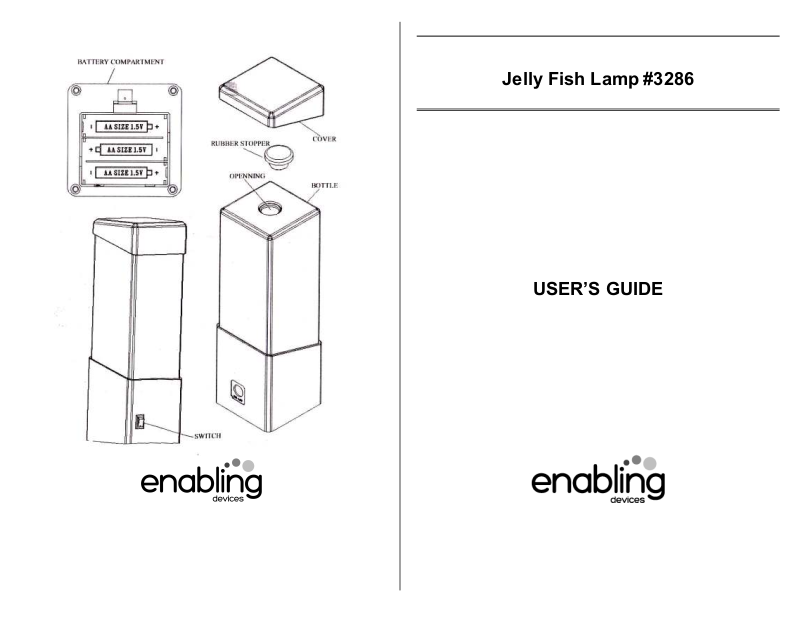

1. Jelly Fish Lamp requires 3 AA batteries. The battery
compartment is located under the base of the unit. Carefully
turn the unit over, and remove the battery cover. Install new
batteries, being careful to observe proper battery polarity.
Alkaline batteries must be used only (e.g. Duracell or Energizer
brand). Do not use rechargeable batteries or any other type of
batteries because they supply lower voltage and the unit will
not perform properly. Never mix old, new or different types of
batteries together. Replace the battery compartment cover.

2. Lift off the black cover of the bottle and the rubber stopper at
the top of the bottle and fill the bottle with 75% distilled water
only. Do not use tap water.

3. Please Note: The Jelly Fish are extremely delicate. Handle
very carefully. Carefully and slowly place them into the bottle.

4. Fill the container the rest of the way with water and replace the
rubber stopper and black cover.

5. Next plug in your external capability switch into the female 1/8"
jack, located in the side of the unit. If your switch has a ¼" male
plug, then order one of our #1170 ¼" to 1/8" adapters. Make
sure the male plug is pressed firmly into the female jack, there
should be not gaps. Set the Jelly Ball Lamp’s ON/OFF switch to
OFF for external switch use. You can now activate the Jelly
Fish Lamp with your switch.

6. When you activate your switch the Jelly Fish will float
accompanied by illuminating light. Once you release your
switch the Jelly Fish with sink and light will stop.

7. The Jelly Fish Lamp can be used normally without the use of a
switch.

Troubleshooting:

Problem: The Jelly Fish Lamp does not turn on when switch is

depressed.

Action #1: Make sure that you press all connections firmly
together. Any gaps may interrupt electrical connection. The Jelly
Fish Lamp’s ON/OFF switch needs to be set to OFF for external
switch use.

Action #2: Make sure batteries are fresh.

Action #3: Try a different switch with your Jelly Fish Lamp to rule it

out as the source of the problem.

Notes:

• If the Jelly Fish Lamp is not used for an extended period,

make sure to remove the batteries and empty the water.

• This unit is intended for indoor use only.

Care of Unit:

The Jelly Fish Lamp can be wiped clean with any mild household
multi-purpose, non-abrasive cleaner and disinfectant. We
recommend Simple Green, which is a non-toxic biodegradable all­purpose cleaner.

Do not submerge the unit in any fluids, as it will damage the
contents and the electrical components.

Do not use abrasive cleaners, as they will scratch the surface of
the unit.

Rev 3/7/17
