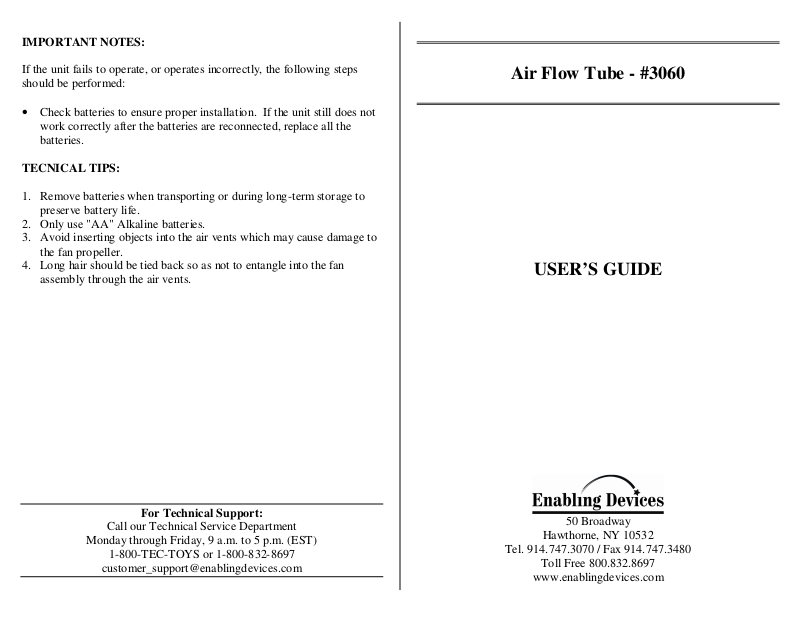

Page 1
IMPORTANT NOTES:
If the unit fails to operate, or operates incorrectly, the following steps
should be performed:
• Check batteries to ensure proper installation. If the unit still does not
work correctly after the batteries are reconnected, replace all the
batteries.
TECNICAL TIPS:
1. Remove batteries when transporting or during long-term storage to
preserve battery life.
2. Only use "AA" Alkaline batteries.
3. Avoid inserting objects into the air vents which may cause damage to
the fan propeller.
4. Long hair should be tied back so as not to entangle into the fan
assembly through the air vents.
Air Flow Tube - #3060
USER’S GUIDE
Page 2
The Air Flow Tube is an easy-to-use and durable solution to providing
many hours of sensory stimulation. The device activates simply by
tilting the tube to a vertical position. The Air Flow Tube is constructed
of shatter proof plastics and vinyl, and is designed to withstand the impact
of occasionally being dropped on the floor.

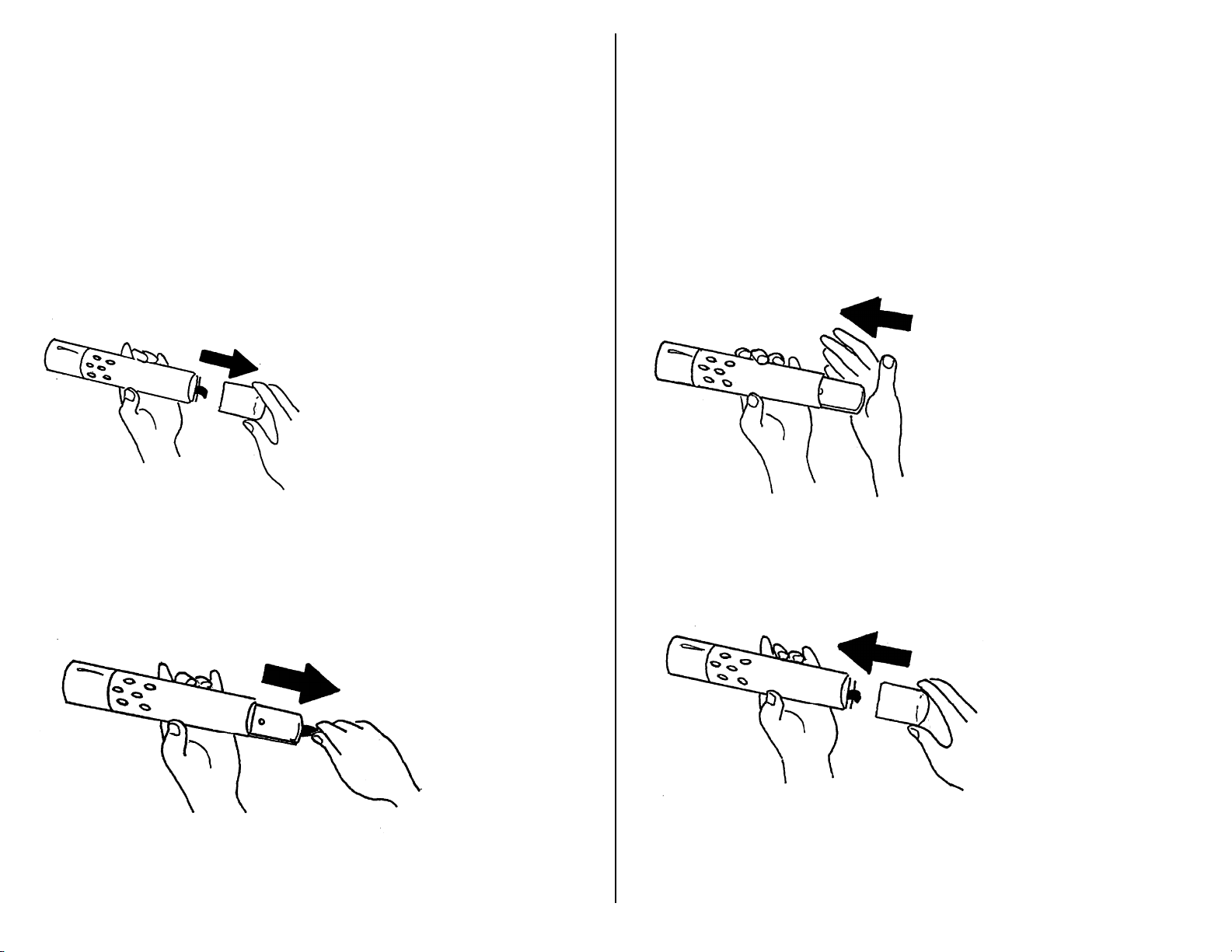

OPERATING INSTRUCTIONS:
1. Remove the vinyl end cap furthest from the air holes by grasping the
tube and the end cap and pulling apart.
Remove the screw from the battery case. Using your thumbs,
carefully slide the cover off the battery compartment. Observing
proper polarity, install 2AA alkaline batteries. Reinstall battery
compartment cover. Please Note: The fan will activate if the tube is
tilted in a vertical position. Keep the tube assembly horizontal to
avoid the fan from activating. The fan should only be activated when
the fan assembly is fully inserted into the tube.
3. Using the palm of your hand, slowly press the fan assembly back into
the tube so the end is flush with the end of the yellow rim of the tube.
(1)
2. Expose the battery compartment on the fan assembly by pulling on
the black tab. You only need to pull the fan assembly out half way to
expose the battery case.
(2)
Install batteries:
(3)
4. Replace the vinyl end cap. Your Air Tube will now blow a soothing
breeze when tilted in a vertical position!
(4)
Rev 7/27/10
