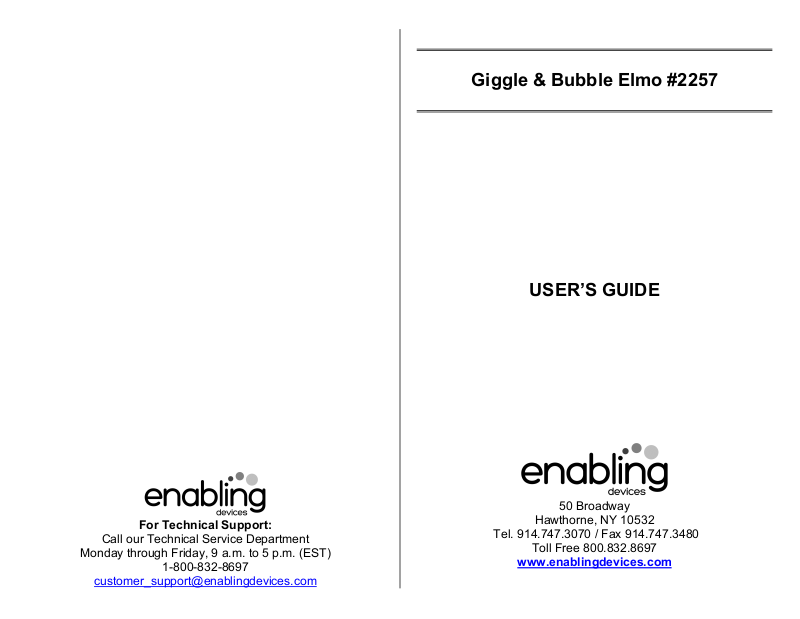

Giggle & Bubble Elmo #2257
USER’S GUIDE
For Technical Support:
Call our Technical Service Department
Monday through Friday, 9 a.m. to 5 p.m. (EST)
1-800-832-8697
50 Broadway
Hawthorne, NY 10532
Tel. 914.747.3070 / Fax 914.747.3480
Toll Free 800.832.8697
www.enablingdevices.com
Page 2
Blow tons of bubbles while Elmo sings, talks, counts and giggles.
Just press his nose or activate your adaptive switch and hear 15
different phrases while bubbles continuously blow out of his
mouth. Great for teaching cause and effect and tracking. Size:
7"L x 7"W x 10"H Weight: 1½ lbs. Battery: 3 AA Works with or
without a capability switch (Not Included).
Operation:
1. Giggle & Bubble Elmo requires 3 AA batteries (Not included)
to operate. Use alkaline batteries only (e.g. Duracell or
Energizer brand). Do not use rechargeable batteries or any
other type of batteries because they supply lower voltage and
the unit will not perform properly. Never mix old and new
batteries together or different brands or types together.
2. The battery compartment is located on the back of Giggle &
Bubble Elmo. Carefully turn the Elmo over to reveal the
battery compartment cover. Using a Phillips head screwdriver
unscrew the cover screws and install 3 AA batteries, paying
close attention to proper (+) and (-) battery polarity.
3. Replace the battery compartment cover and secure with the
screws. Connect to any external capability switch (not
included) via the jack located on the side of Elmo. Giggle &
Bubble Elmo is equipped with a 1/8″ jack for use with external
capability switches with a 1/8″ plug. Make sure you have your
switch plugged in all the way. There should be no gaps.
4. The Bubble solution container screws into the bottom of Elmo.
Follow the original manufactures instructions for installing. Do
not discard the original bubble container as you will refill it with
bubble solution when it runs out and re-use it.
4. Giggle & Bubble Elmo can be used with or without an external
switch. The ON/OFF switch is Elmo’s nose. When using an
external capability switch, the ON/OFF switch needs to be set
in the OFF position. Actuate your external capability switch
and the bubbles will start to flow! Once you release your
switch the bubbles will stop.
5. When finished playing with Giggle & Bubble Elmo turn him
OFF to prevent battery drain.
Troubleshooting:
Problem: Giggle & Bubble Elmo does not function correctly.
Action #1: Check that all the batteries are installed, following
proper (+) & (-) polarity. Also check that all batteries are fresh.
Action #2: Replace the batteries paying close attention to proper
(+) and (-) battery polarity.
Action # 3: Make sure you have enough Bubble solution in the
bubble solution bottle.
Action #4: Make sure that your switch is plugged into the jack all
the way. There should be NO gaps.
Action #5: Try your switch with another switch operated
toy/device in an effort to rule out your switch as the source of the
problems.
Care of Unit:
If you will not be using Giggle & Bubble Elmo for an extended
amount of time, we recommend removing the batteries.
Giggle & Bubble Elmo can be wiped clean with any household
multi-purpose cleaner and disinfectant. We recommend Simple
Green, which is a non toxic biodegradable all-purpose cleaner.
Do not submerge the unit, as it will damage the contents and the
electrical components.
Do not use abrasive cleaners, as they will scratch the surface
of the unit.
Rev 5/2/19
