Sensational Textured Activity Center
#2251

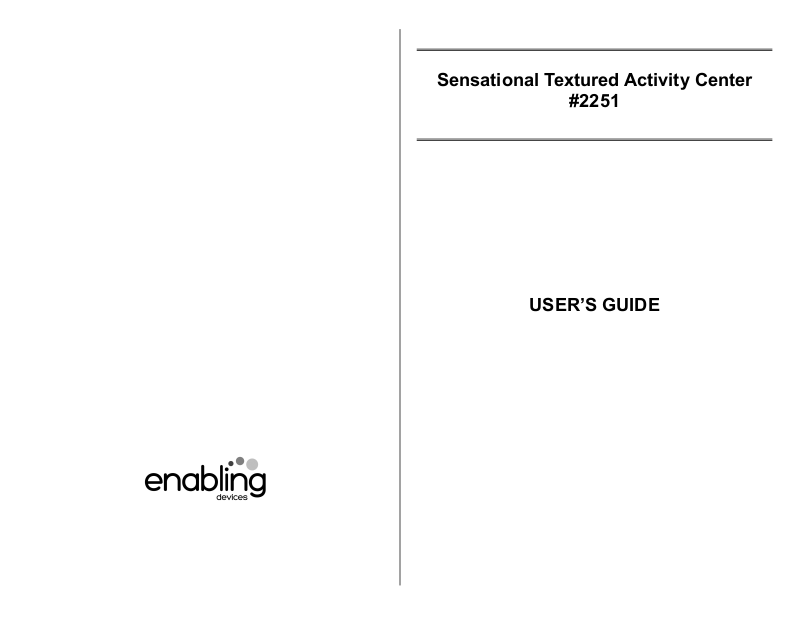

USER’S GUIDE
For Technical Support:
Call our Technical Service Department
Monday through Friday, 9 a.m. to 5 p.m. (EST)
1-800-832-8697
customer_support@enablingdevices.com
50 Broadway
Hawthorne, NY 10532
Tel. 914.747.3070 / Fax 914.747.3480
Toll Free 800.832.8697
www.enablingdevices.com
Page 2
Great for parallel play!
Just spin this wonderful busy box and go on an adventure of
textures, sights and sounds. Six different activation plates which
operate independently encourage parallel play for two or more
children. Mirrors, fans, music, lights, sound effects, and spinning
beads are just some of the wonderful sensory sensations this
activity center provides. High contrast colors are great for a user
with visual impairments. Comes with on/off volume control. Size:
17½" Diameter x 8½"H. Requires 6 C Batteries. Weight: 6½ lbs.
1. The Sensational Textured Carousel Busy Box requires 6 C
batteries. Use alkaline batteries only (e.g. Duracell or
Energizer brand). Do not use rechargeable batteries or any
other type of batteries because they supply lower voltage and
the unit will not perform properly. Never mix old and new
batteries together or different brands or types together.
2. The battery compartments are located on the underside of the
unit. To install the batteries, turn the activity Center over and
remove the small Phillips head screws from the black battery
cases. Next slide the covers off.
3. Install the batteries, following proper (+) & (-) battery polarity.
Replace covers and screws. Mounted on a Lazy Susan base
allows users the ability to spin the activity center for easy
access to all of the sensory plates. Turn the On/Off switches
on each battery compartment to ON.
4. Touch the Orange plate to see spinning colored glitter, and
hear wonderful music in the background.
5. Push the black plate to feel air on the palm of your hand as
blue LED lights light up while hearing howling wind in the
background.
6. Activate the textured green plate to experience spinning
colored beads.
7. Press the blue textured plate to watch and feel spinning red
cloths on your fingers while observing multi-colored lights
flash.
8. Hit the red plate to see spinning Pom Pom colored balls, while
hearing delightful music in the background
9. Look at yourself in the round mirror and push the bumpy
brown plate at which time the mirror turns into a picture of
mountains while you hear the music play.
10. Each of the sensory stimuli will only remain activated as long
as pressure is maintained on the corresponding colored plate.
Once you release the plate, the stimuli will stop.
Troubleshooting:
Problem: The units sounds melodies, fan, vibration or lights fails
to operate, or operates incorrectly.
Action #1: Make sure the battery compartment On/Off switches
are turned ON.
Action # 2: Check all batteries making sure they are installed
with proper (+) & (-) battery polarity.
Problem: One plate seems to be stuck / jammed.
Action: visually inspect the switch plate area, making sure there
is nothing obstructing or blocking the plate from moving freely.
Care of Unit:
The Sensational Textured Activity Center can be wiped clean with
any household multi-purpose cleaner or disinfectant. Use caution
not to get cleaning fluid or any liquid under the plate areas.
Do not submerge the unit, as it will damage the electrical
components.
Do not use abrasive cleaners, as they will scratch the surface
of the unit.
Rev 4/12/17
