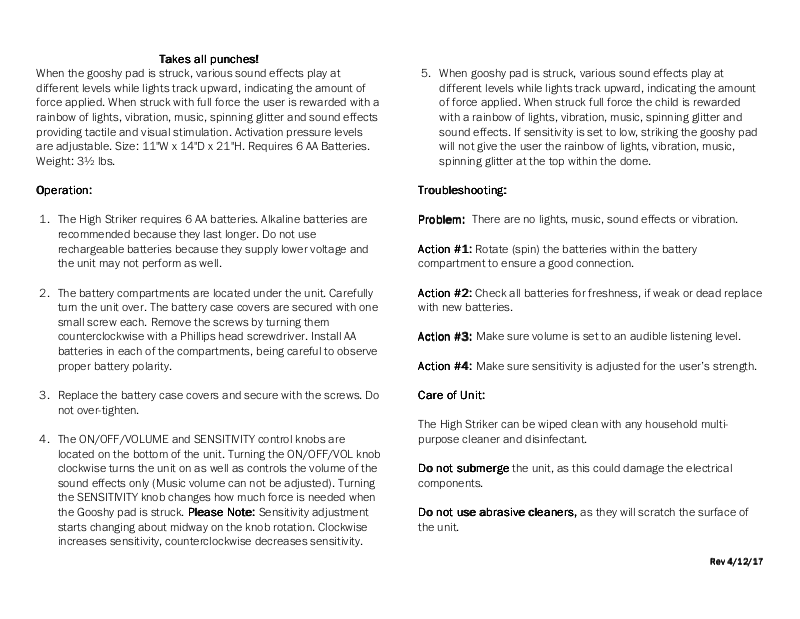

Page 1
Takes all punches!
Takes all punches!
Takes all punches!Takes all punches!
When the gooshy pad is struck, various sound effects play at
different levels while lights track upward, indicating the amount of
force applied. When struck with full force the user is rewarded with a
rainbow of lights, vibration, music, spinning glitter and sound effects
providing tactile and visual stimulation. Activation pressure levels
are adjustable. Size: 11"W x 14"D x 21"H. Requires 6 AA Batteries.
Weight: 3½ lbs.
Operation:
Operation:
Operation:Operation:
1. The High Striker requires 6 AA batteries. Alkaline batteries are
recommended because they last longer. Do not use
rechargeable batteries because they supply lower voltage and
the unit may not perform as well.
2. The battery compartments are located under the unit. Carefully
turn the unit over. The battery case covers are secured with one
small screw each. Remove the screws by turning them
counterclockwise with a Phillips head screwdriver. Install AA
batteries in each of the compartments, being careful to observe
proper battery polarity.
3. Replace the battery case covers and secure with the screws. Do
not over-tighten.
4. The ON/OFF/VOLUME and SENSITIVITY control knobs are
located on the bottom of the unit. Turning the ON/OFF/VOL knob
clockwise turns the unit on as well as controls the volume of the
sound effects only (Music volume can not be adjusted). Turning
the SENSITIVITY knob changes how much force is needed when
the Gooshy pad is struck. Please Note:
Please Note: Sensitivity adjustment
Please Note:Please Note:
starts changing about midway on the knob rotation. Clockwise
increases sensitivity, counterclockwise decreases sensitivity.
5. When gooshy pad is struck, various sound effects play at
different levels while lights track upward, indicating the amount
of force applied. When struck full force the child is rewarded
with a rainbow of lights, vibration, music, spinning glitter and
sound effects. If sensitivity is set to low, striking the gooshy pad
will not give the user the rainbow of lights, vibration, music,
spinning glitter at the top within the dome.
Troubleshooting:
Troubleshooting:
Troubleshooting:Troubleshooting:
Problem:
Problem: There are no lights, music, sound effects or vibration.
Problem: Problem:
Action #1:
Action #1: Rotate (spin) the batteries within the battery
Action #1:Action #1:
compartment to ensure a good connection.
Action #2:
Action #2: Check all batteries for freshness, if weak or dead replace
Action #2:Action #2:
with new batteries.
Action #3:
Action #3: Make sure volume is set to an audible listening level.
Action #3: Action #3:
Action #4:
Action #4: Make sure sensitivity is adjusted for the user’s strength.
Action #4: Action #4:
Care of Unit:
Care of Unit:
Care of Unit:Care of Unit:
The High Striker can be wiped clean with any household multipurpose cleaner and disinfectant.
Do not submerge
Do not submerge the unit, as this could damage the electrical
Do not submergeDo not submerge
components.
Do not use abrasive cleaners,
Do not use abrasive cleaners, as they will scratch the surface of
Do not use abrasive cleaners,Do not use abrasive cleaners,
the unit.
Rev
Rev 4/12
4/12 /1
4/124/12
/17777
/1/1
Rev Rev
Page 2
High Striker #2242
USER’S GUIDE
For Technical Support:
For Technical Support:
For Technical Support:For Technical Support:
Call our Technical Service Department
Monday through Friday, 9 a.m. to 5 p.m. (EST)
1-800-832-8697
customer_support@enablingdevices.com
Tel. 914.747.3070 / Fax 914.747.3480
www.enablingdevices.com
50 Broadway
Hawthorne, NY 10532
Toll Free 800.832.8697
