For Technical Support:
For Technical Support:For Technical Support:
For Technical Support:
Call our Technical Service Department
Monday through Friday, 9 a.m. to 5 p.m. (EST)
1-800-832-8697
customer_support@enablingdevices.com

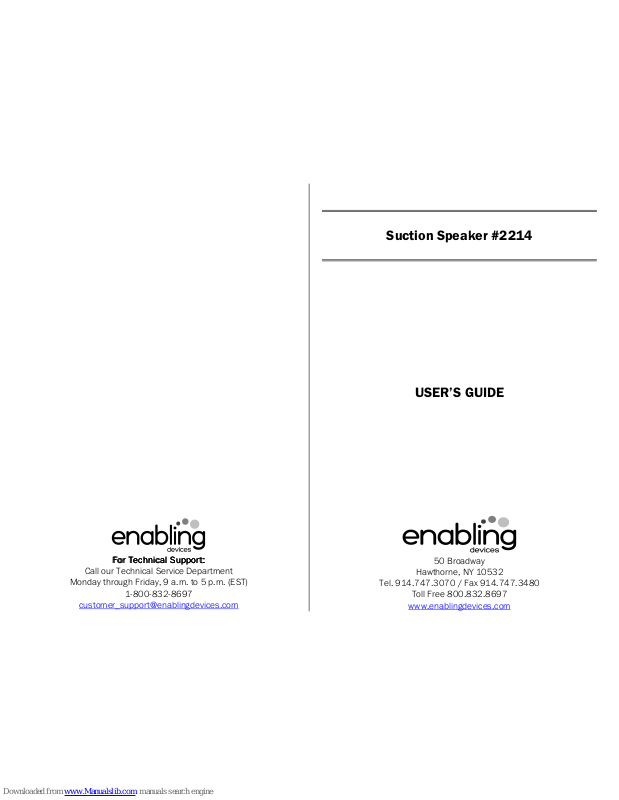

Suction Speaker #2214
USER’S GUIDE
50 Broadway
Hawthorne, NY 10532
Tel. 914.747.3070 / Fax 914.747.3480
Toll Free 800.832.8697
www.enablingdevices.com
Big sound!
Big sound!Big sound!
Big sound!
We’ve adapted this fabulous water resistant speaker for your iPhone,
Android smartphone or Bluetooth enabled devices. Activate your
switch and the speaker plays, press it again and it pauses your music.
Wireless functionality works up to 30 feet. Rechargeable battery lasts
up to 4 hours. Also has a jack for connecting non-Bluetooth devices.
Size: 2½"L x 2½"W x 2½"H. Requires Rechargeable Lithium Ion
Battery (included). Weight: ¼ lb.
1. Before using the adapted speaker please charge the unit by
plugging it into the included USB charging cable and charge via
your computers USB port or with your Bluetooth device’s USB/AC
wall charging wart. The LED light on the adapted speaker will light
up during charging and turn off when charging is complete. It will
take approximately 3 hours to fully charge the unit. Please
reference the OEM Guide for more charging options and features.
2. Now that your adapted speaker is full charged you can pair it with
iPhone, Android smartphone or Bluetooth enabled devices.
Pairing your Speaker
Pairing your SpeakerPairing your Speaker
Pairing your Speaker
1. Turn on the Bluetooth connection on your iPhone, Android
smartphone or Bluetooth enabled device and enable the pairing
mode of the Bluetooth connection. Make sure your device and the
speaker are no more than 3 feet apart.
2. Turn on your speaker and look for the blinking light. When the
adapted speaker is found, your device will display “HMDX
Neutron” from the list of devices, and may be asked to enter the
pairing code. Enter“0000” and press OK to establish the
connection. To clear the paring hold the Play/Pause button for 5
seconds.
3. Note:
Note:Note:
Note: If the pairing process cannot be completed within 2 minutes
after pairing mode is activated, the Adapted speaker will power off
automatically. Please repeat above steps again to pair your
Bluetooth enabled device and the adapted speaker.
4. Plug any external capability Switch into the 1/8" jack located on
the side of the adapted speaker. Make sure your switch is plugged
in all the way, there should be no gaps. Your switch will do the
same function as the Play/Pause button on the speaker itself.
Hooking Up Old School Audio
Hooking Up Old School AudioHooking Up Old School Audio
Hooking Up Old School Audio
1. Plug one end of the cord into the speaker and the other into the
headphone, line out or AUX jack on your device.
2. Turn on the speaker.
3. Hit Play on your device and adjust the volume.
4. You will have to control Play/Paus from your device, not the
speaker or your switch.
Charging Info
Charging InfoCharging Info
Charging Info
Flashing RED: Low Battery
RED (when plugged in): Charging
Light turns off (when plugged in) Charged
Quick Flash BLUE: Pairing Mode
Slow Flash BLUE: Connected
RED: Hooking up old-school with a cord
Troubleshooting:
Troubleshooting:Troubleshooting:
Troubleshooting: See OEM guide.
