For Technical Support:
Call our Technical Service Department
Monday through Friday, 9 a.m. to 5 p.m. (EST)
1-800-832-8697
customer_support@enablingdevices.com

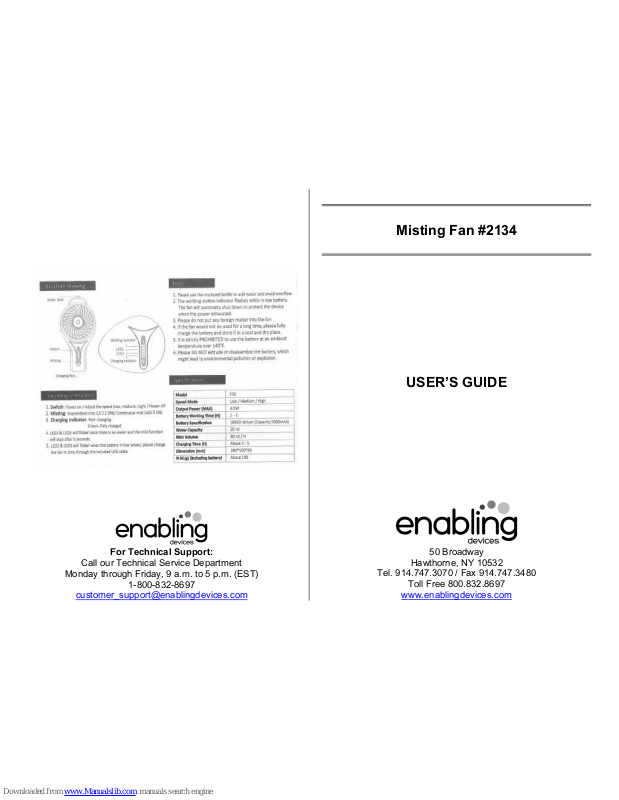

Misting Fan #2134
USER’S GUIDE
50 Broadway
Hawthorne, NY 10532
Tel. 914.747.3070 / Fax 914.747.3480
Toll Free 800.832.8697
www.enablingdevices.com
Our adapted Misting Fan provides a fine mist of water and a powerful
fan at the touch of your switch. Fan has three speeds. Misting has two
modes: continuous or intermittent. Two jacks allow you to activate the
fan and mist separately using two of your switches. Three suction cups
hold the fan in place. Comes with ¼-20 socket for mounting. Size: 5"L
x 5"W x 8"H. Battery rechargeable with USB. Weight: ¾ lb.
Operation:
1. The Misting Fan has a non-removable rechargeable battery. Use
the included USB charging cable with any 5 volt USB wall
charger. Charging time is between 4 to 5 hours. The charging port
is located on the bottom of the fan. Charging indicator, Red
charging, Green fully charged.
2. Please use the included bottle for adding water to the fan. This
will prevent leaking while refilling, as the fan is not water proof.
We recommend using distilled water. The fan is filled by opening
the fill cap on top of the fan. Fill with water and replace cap.
3. The Misting Fan can be used with or without switches. Plug your
switch into the Fan’s jacks. Make sure that the connection
between your switch and the Fan is plugged in all the way. There
should be no gaps. The Fan’s top switch or your own switch
controls the fan’s speed (Low/Medium/High) and also turns it
OFF. First activation is Low, second is Medium, third is High, forth
is OFF.
4. The second jack controls the Fan’s misting function. First press of
the built in button or your own switch, Intermittent (LED 2),
Continuous (LED 3), third Misting Off. LED 2 & LED 3 will flicker
once there is no more water in the tank and the mist function will
stop after 5 seconds.
5. The Misting Fan comes with a removable Velcro attached base
with suction cups for smooth surface use. The base also has a ¼ 20 threaded socket on the bottom for attaching to most mounting
arms. There is also a cutout for the charging port in the base to
allow for charging with the base still attached.
Troubleshooting:
Problem: The Misting Fan does not work.
Action #1: Check that the fan is full charged. See charging in
operation # 1.The fan’s LED lights will flash when the battery charge
is low. The fan will automatically shut down to protect the device when
the power is exhausted.
Action #2: Make sure that the connection between the Fan and your
switches are plugged in all the way. There should be no gaps. This
is a common error and an easy fix.
Action #3: Try a different switch with your Fan to rule out the Misting
Fan as the source of the problem.
Problem: Misting Fan does not mist.
Action: Check water tank is full. Wipe white center disk in the front of
the fan with a damp cloth or wet paper towel to clean.
Care of Unit:
The Misting Fan can be wiped clean with any household multipurpose cleaner and disinfectant. We recommend Simple Green,
which is a nontoxic biodegradable all-purpose cleaner.
Do not submerge the unit, as it will damage the contents and the
electrical components.
Do not use abrasive cleaners, as they will scratch the surface of the
unit.
Rev 3/15/17
