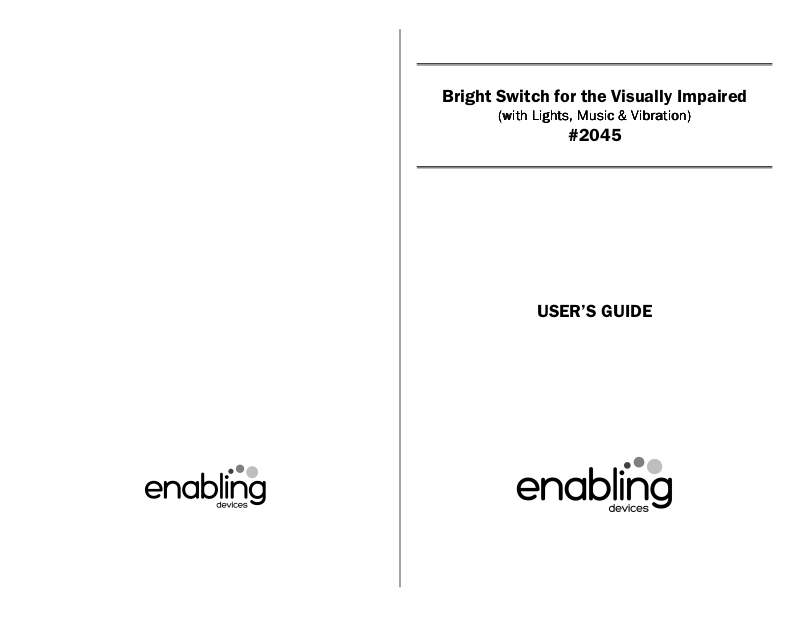

Enabling Devices 2045 USER MANUAL

Bright Switch for the Visually Impaired

(with Lights, Music & Vibration)

(with Lights, Music & Vibration)

(with Lights, Music & Vibration)(with Lights, Music & Vibration)

#2045

USER’S GUIDE

For Technical Support:

For Technical Support:

For Technical Support:For Technical Support:

Call our Technical Service Department

Monday through Friday, 9 a.m. to 5 p.m. (EST)

1-800-832-8697

[e-mail]

50 Broadway

Hawthorne, NY 10532

Tel. [phone] / Fax [phone]

Toll Free 800.832.8697

www.enablingdevices.com

www.enablingdevices.com

www.enablingdevices.comwww.enablingdevices.com

Blinker flashes!

The flashing blinker helps visually impaired individuals locate the
switch. When the switch is activated, the yellow textured lens lights
brightly while music plays and the switch vibrates. A switch set on the
bottom allows you to choose any or all stimuli. The bright blinker can
also be turned off. Size: 7"D x 3¾"H. Requires 2 AA Batteries. Weight:
1 lb.

Operation:

1. The Bright Switch requires two AA batteries. The battery
compartment is located under the base of the unit. Carefully turn the
switch over, and then remove the battery cover with a small Philips
screwdriver. Install new batteries, being careful to observe proper
battery polarity. Alkaline batteries are recommended because they
last longer.

2. Replace the battery case cover and secure with the small screw. Do
not over-tighten.

3. To turn on or off the desired stimuli (1-vibration; 2-music; 3- lights),
push the small white rocker switches to the ON or OFF (open
position). Open position means off. Please see Fig 1.

Figure 1.

4. To turn the flashing Light ON turn the ON/OFF switch to ON.
When the amber lens is depressed the flashing locator light will go
out. Once the lens is released the light resumes flashing.

5. Press anywhere on the amber lens and you will be rewarded with the
selected stimuli lights, music & vibration.

To operate as a switch connect an external toy or device via the included
double ended 1/8-inch cord jack. Make sure all connections are tight,
there should be no gaps. If you need to use a ¼" adaptor, it must be a
mono adaptor, not stereo. Press anywhere on the amber lens to activate
your toy or device. Once you release pressure from the lens your toy or
device will turn off.

Important Notes:

When the Bright switch is not in use make sure that all of the control
switches are in the off position.

Troubleshooting:

Problem: The Bright Switch does not operate properly.

Action # 1: Make sure the batteries are in the battery compartment

properly, and making good contact.

Action # 2: Make sure you have the desired stimuli selected as
explained in operation No.3 & 4.

Action # 3: If the unit still does not work properly, replace the batteries.

Problem: The Bright Switch does not activate a connected toy/device.

Action #1: Make sure all connections are tight.

Action #2: Check batteries in toy/device, replace if weak or dead.

Care of Unit:

The Bright Switch can be wiped clean with any household multi­purpose cleaner and disinfectant.

Do not submerge the unit, as it will damage the contents of the top and
the electrical components.
