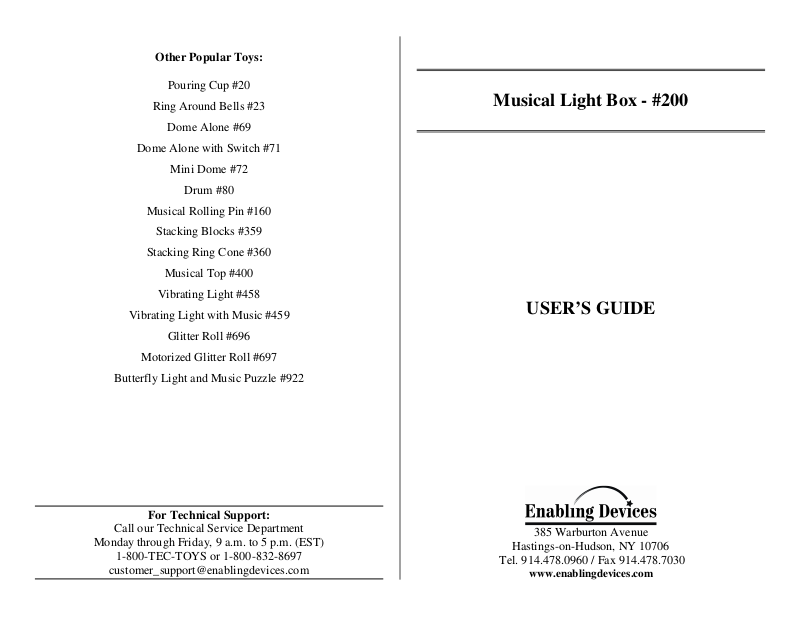

Musical Light Box - #200
USER’S GUIDE
Page 2
When activated by any of our external capability switches, this multipurpose musical light box can be used as a backlight for tracing or as a
light source for people with visual impairments.
Operation:
1. The Musical Light Box requires two-D size batteries. Alkaline
batteries are required (Duracell or Energizer brands). Do not
use rechargeable batteries because they supply lower voltage
and the unit may not perform as well.
2. The battery holder is located under the unit. When installing
new batteries, always be careful to observe proper battery
polarity.
3. Connect the unit to any external capability switch via the jack,
located on the back of the unit. The Musical Light Box #200 is
equipped with a 1/8-inch jack, for use with capability switches
with a 1/8-inch plug.
4. Make sure that the connections between the external capability
switch and the adapter AND the adapter and the jack on the
Musical Light Box are tight. There should be no gaps.
5. Activate the external capability switch to light up the box and
begin the music.
6. The light and music will only remain on while the external
switch continues to be activated. Once you release the switch,
the light and music will go off.
Troubleshooting:
Problem: The lights and/or music do not turn on, or are not operating
at full strength.
Action #1: Replace the batteries, paying close attention to proper
battery polarity.
Action #2: Make sure that the connections between the switch and the
adapter AND the adapter and the jack are tight
.
Problem: A light bulb burns out.
Action: Remove the large, rectangular, opaque cover by gently pulling
up on it to release the Velcro hold. Unscrew the light bulb and replace
it with a 2.47-volt bulb. Replace the cover.
Note: If you cannot purchase this bulb from your local hardware store,
call our Technical Service Department at 1-800-832-8697 for a
replacement.
Care of Unit:
The Musical Light Box can be wiped clean with any household multipurpose cleaner and disinfectant.
Do not submerge the unit, as it will damage the electrical
components.
Do not use abrasive cleaners, as they will scratch the surface of the
unit.
Rev 5/5/06
