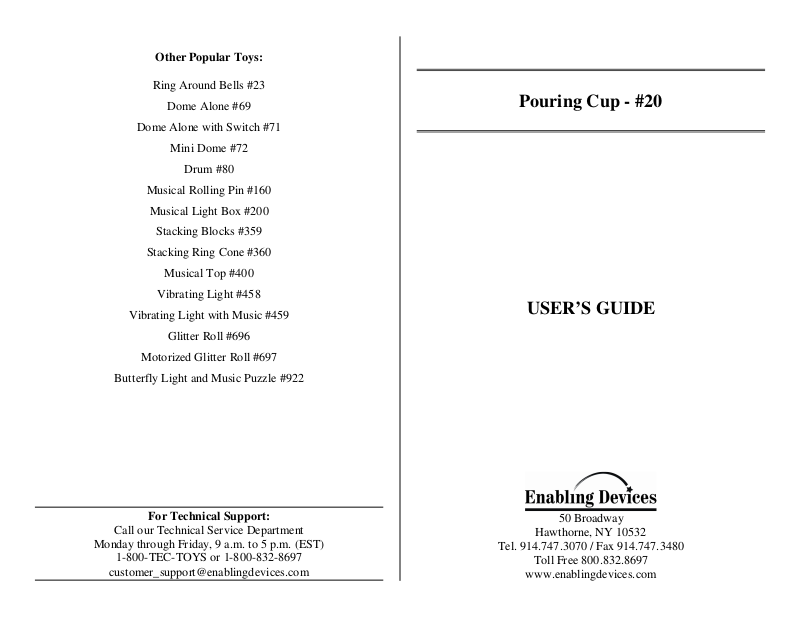

Page 1
Other Popular Toys:
Ring Around Bells #23
Dome Alone #69
Dome Alone with Switch #71
Mini Dome #72
Drum #80
Musical Rolling Pin #160
Musical Light Box #200
Stacking Blocks #359
Stacking Ring Cone #360
Musical Top #400
Vibrating Light #458
Vibrating Light with Music #459
Glitter Roll #696
Motorized Glitter Roll #697
Butterfly Light and Music Puzzle #922
Pouring Cup - #20
USER’S GUIDE
Page 2
The Pouring Cup is an innovative toy that will provide hours of
dramatic play. When activated by a capability switch, the top cup turns
counterclockwise and pours liquid into the bottom cup. When
activated by a second switch, the cup turns in the opposite direction,
returning to the upright position.
Operation:
1. The Pouring Cup requires four AA batteries. Alkaline batteries
are recommended because they last longer. Do not use
rechargeable batteries because they supply lower voltage and
the unit may not perform as well. The battery compartment is
located at the back of the unit. When installing new batteries,
always be careful to observe battery polarity.
2. Connect the unit to a double switch, such as the rocking plate
switch (#860-large or #870-small), or to any two capability
switches via the jacks, located on the back of the unit above the
battery compartment. The Pouring Cup #20 is equipped with
1/8-inch jacks for use with capability switches with 1/8-inch
connectors. If you need to use 1/4- to 1/8-inch adaptors, they
must be mono adaptors, not stereo.
Troubleshooting:
Problem: The cup will not turn.
Action: Replace the batteries.
Care of Unit:
The Pouring Cup can be wiped clean with any household multipurpose cleaner and disinfectant.
Do not submerge the unit, as it will damage the electrical
components.
Do not use abrasive cleaners, as they will scratch the surface of the
unit.
Rev 6/1/06
