Care of Unit:
Care of Unit:Care of Unit:
Care of Unit:
The unit can be wiped clean with any household multi-purpose cleaner and
disinfectant. We recommend Simple Green, which is a non toxic biodegradable allpurpose cleaner.
When finished using the communicator turn the ON/OFF switch to OFF to help
prevent battery drain. For prolonged storage we recommend removing the
batteries.
Do n ot submerge
Do n ot submergeDo n ot submerge
Do n ot submerge the unit, as it will damage the contents and the electrical
components.
Do n ot use abrasiv e cleaners,
Do n ot use abrasiv e cleaners,Do n ot use abrasiv e cleaners,
Do n ot use abrasiv e cleaners, as they will scratch the surface of the unit.
TTTTrouble shootin g
roubleshootingroubleshooting
roubleshooting ::::
Problem:
Problem: Problem:
Problem: The unit fails to operate or operates incorrectly.
Action #1:
Action #1: Action #1:
Action #1: Make sure that there is no obstacle between the switch plates and the
housing such as food or dirt. The plates should move freely.
Action #2
Action #2Action #2
Action #2
Disconnect power by removing one of the batteries for 20 seconds. Re-install the
battery. If the unit still does not work correctly, replace with all fresh batteries.
Problem:
Problem:Problem:
Problem: The sound level is low (Model 1910 only).
Action #1
Action #1Action #1
Action #1:
: :
: Speak closer to the microphone when recording.
Ac
AcAc
Action #2
tion #2tion #2
tion #2 :
: :
: Adjust On/Off/Volume control clockwise to increase volume.
Action #3
Action #3Action #3
Action #3 Batteries may be low, replace with fresh batteries
For Tech
For TechFor Tech
For Technical Support:
nical Support:nical Support:
nical Support:
Call our Technical Service Department
Monday through Friday, 9 a.m. to 5 p.m. (EST)
1-800-832-8697

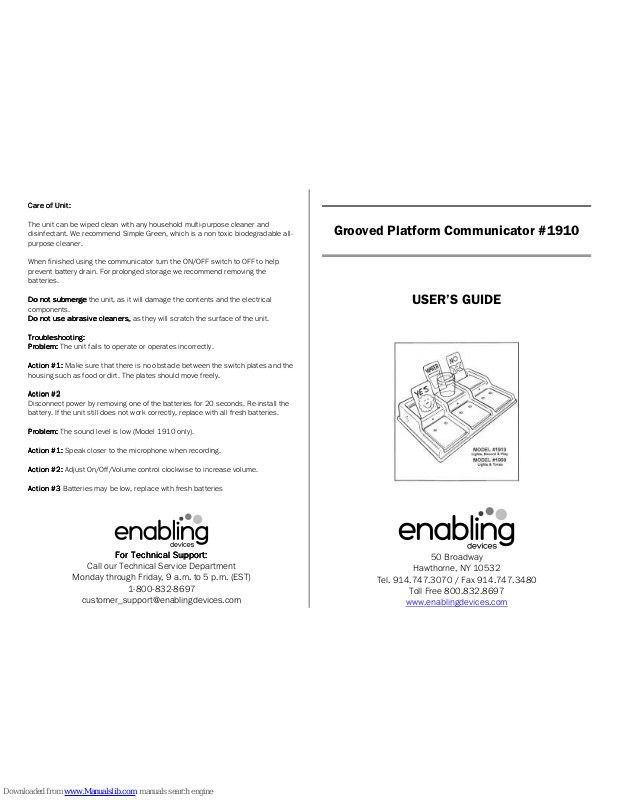

Grooved Platform Communicator #1910
USER’S GUIDE
50 Broadway
Hawthorne, NY 10532
Tel. 914.747.3070 / Fax 914.747.3480
Toll Free 800.832.8697
www.enablingdevices.com
Page 2
Operated by direct
Operated by direct Operated by direct
Operated by direct touch !
touch!touch!
touch!
This colorful, creative tool is ideal for teaching communication skills and
object/word relationships. Place objects, words or pictures on the raised platform,
press the appropriate switch plate and lights and a 5-second pre-recorded voice
message will play for each switch plate. The unit comes with six grooved picture
holders on the front or back of the platform. Size: 16½" x 12" x 3½". Requires 4 AA
Batteries. Weight: 2½ lbs.
Model 1910
Model 1910 Model 1910
Model 1910 with L ights, Rec ord and Play:
with Lights , Record and Play:with Lights , Record and Play:
with Lights , Record and Play:
Depressing one of the 3 switch plates activates a light behind the switch plate and
plays a pre-recorded message of up to 5 seconds each, the unit has a built-in high
quality microphone, audio speaker, on-off/volume control knob and record button.
Recorded messages are retained in memory indefinitely even if batteries are
removed.
Operation:
Operation:Operation:
Operation:
1. Carefully turn the device over to reveal the battery compartment. A small silver
screw must be removed from the battery compartment cover in order to slide
it off. Observing proper polarity, install four AA alkaline batteries into the
holder Use alkaline batteries only (e.g. Duracell or Energizer brand). Do not
use rechargeable batteries or any other type of batteries because they supply
lower voltage and the unit will not perform properly. Never mix old and new
batteries together or different brands or types of batteries together. Replace
the battery compartment cover and screw.
2. A picture card contains pictures or symbols and is inserted into a front or rear
slot behind the switch plate on the communicator. Three shatter-proof blank
picture cards come with your unit. Customize the cards by attaching your own
pictures or symbols or writing directly on the cards. "White Board" markers
available at any office supply store can be used to write and erase messages.
RECORDING (Available on
RECORDING (Available on RECORDING (Available on
RECORDING (Available on Model 1910 only)
only)only)
only)
3. Label the first switch plate. (Using picture card and/ or a small object.) Turn
on the on/off volume control knob clockwise to about mid-point. (Clockwise is
louder.) Press and hold down the record button .Press and hold down the
switch plate and speak a word or phrase into the microphone for up to 5
seconds. Release both plate and record button as soon as the word or phrase
is spoken.
4. Check your message by pressing the plate. If not satisfied, repeat procedure.
Adjust volume if necessary. Repeat steps 1 through 6 for the remaining switch
plates.
Basic Opera tion:
Basic Opera tion:Basic Oper ation:
Basic Opera tion:
Model 1910 with L ights, Record and Pla y:
with Lights , Record and P lay:with Lights , Record and P lay:
with Lights , Record and P lay:
1. Label the three switch plates using picture cards and/or objects.
2. Locate the unit within reach by the user.
3. Turn on the on/off volume control knob to about mid-point for medium volume
speaker level. (Clockwise is louder).
4. Press any of the switch plates.
5. Switch plate light is activated and previously recorded words or phrases will be
heard.
Important Notes:
Important Notes: Important Notes:
Important Notes:
Model 1910 with L ights, Record and Pla y
with Lights , Record and P laywith Lights , Record and P lay
with Lights , Record and P lay
1. The unit will retain recorded information in its memory even though the
batteries are disconnected. Previously recorded information will be erased only
when a new phrase is recorded.
2. Each plate holds up to 5 seconds of memory for a total of 15 seconds for all 3
plates.
3. Once a plate is activated, the entire phrase or message must finish before
another plate can be selected.
Rev
Rev Rev
Rev 4444/3
/3/3
/3/1 7
/17/17
/17
