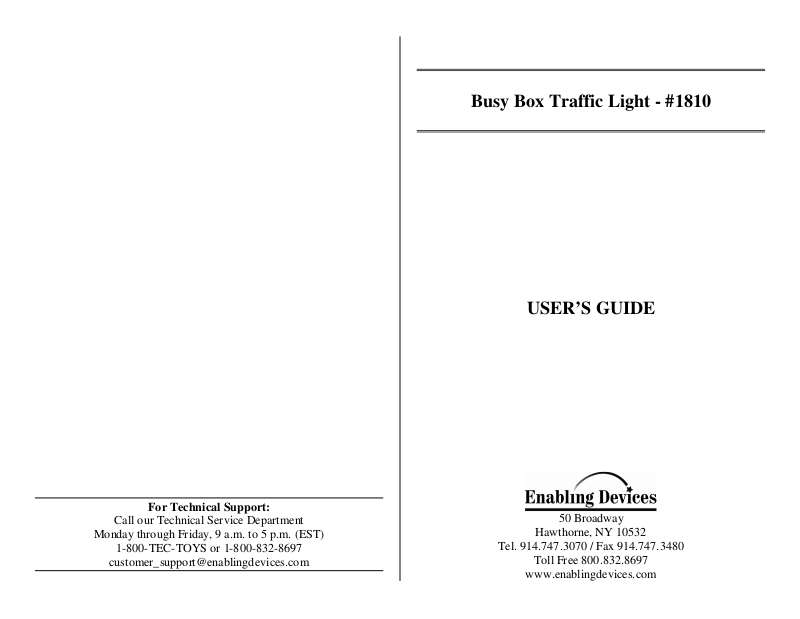

Page 1
Busy Box Traffic Light - #1810
USER’S GUIDE
Page 2
The Busy Box Traffic Light offers three colored plate switches (red,
yellow and green) designed like a traffic light. As well as turning on
lights, when lightly touched the red plate activated music; the yellow
plate, a vibrator; and the green plate a buzzer.
Operation:
1. The battery holder is located under the blue cover at the bottom
of the unit. Remove this cover by turning the screws
counterclockwise with a screwdriver. Observing polarity,
install two C batteries into the battery holders. Alkaline
batteries are required (Duracell or Energizer brands). Do not
use rechargeable batteries because they supply lower voltage
and the unit may not perform as well.
2. Replace the battery case cover. Snug down the screws, but do
not over tighten.
Troubleshooting:
Problem: The unit fails to operate, or operates incorrectly.
Action: Make sure there are no obstacles or dirt between the colored
plates and the housing of the unit.
Problem: A light bulb burns out.
Action: Unscrew the four screws on the white cover of the unit. Lift
the white cover off. Carefully reach under the colored plate covering
the burned out light bulb. Unscrew the light bulb, counterclockwise,
and replace with a 2.47 volt bulb. If you cannot purchase the bulb from
your local hardware, call our Technical Service Department at 1-800832-8697 for a replacement.
Set the white cover back in place and attach it with the four screws. Be
careful not to over tighten, as the pressure of the white plate will
activate the switches. If this occurs, loosen the screws slightly.
Care of Unit:
The Busy Box Traffic Light can be wiped clean with any household
multi-purpose cleaner and disinfectant.
Do not submerge the unit, as it will damage the electrical
components.
Do not use abrasive cleaners, as they will scratch the surface of the
unit.
Page 3
Rev 5/5/06
