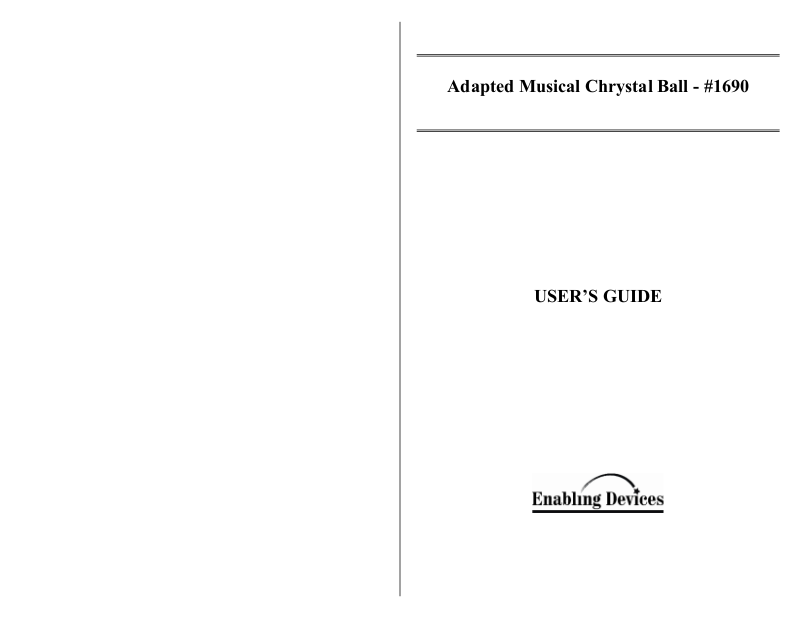

Adapted Musical Chrystal Ball - #1690
USER’S GUIDE
Page 2
Activate your switch and the dome will rotate and project a moving
kaleidoscope of colorful shapes while soothing music plays. Works with or
without a capability switch. Size: 3"L x 3"W x 4½"H. Requires 3 AA
Batteries. Weight: ½ lb.
Operation:
1. Musical Chrystal Ball requires 3 AA batteries. Use alkaline batteries
only (e.g. Duracell or Energizer brand). Do not use rechargeable
batteries or any other type of batteries because they supply lower
voltage and the unit will not perform properly. Never mix old and
new batteries together or different brands or types together.
2. Turn the unit to over reveal the battery compartment. Carefully
remove the screw from the battery compartment cover, and lift the
cover off. Observing proper (+) & (-) battery polarity, install 3 AA
size batteries into the holder. Replace the battery compartment cover
and screw.
3. Set the Musical Chrystal Ball to OFF for external switch use via the
ON/OFF switch on the bottom of the unit. Please Note: The Musical
Chrystal can work with or without the use of external switches.
1. Connect Musical Chrystal Ball to any external capability switch via
the input jack located on the side of the unit. Make sure you plug
your switch in all the way. There should be no gaps. Actuate your
switch and the dome will rotate and project a moving kaleidoscope of
colorful shapes while soothing music plays. Once you release your all
will stop. Musical Chrystal Ball is equipped with a 1/8" jack. If you
need to use a 1/4" to 1/8" adapter use our No.1170 adapter. If
purchased elsewhere, it must be a mono adapter, not stereo.
Troubleshooting:
Problem: Musical Chrystal Ball Machine does not light up and/or there is
no music.
Action #1: Check the ON/OFF switch
Action #2: Rotate (spin) the batteries within the battery compartment to
ensure a good connection. Check that all batteries are installed properly.
Action #3: Check all batteries for freshness, if weak or dead replace with
new batteries. Use an alkaline battery (E.G. Duracell or Energizer brand).
Action #4: Make sure that you have your switch plugged in all the way.
There should be no gaps.
Action #5: Try your external capability switches with another toy/device
to rule out the switch as the source of the problem.
Care of the Unit:
The Musical Chrystal Ball Machine can be wiped clean with any mild
household multi-purpose, non-abrasive cleaner and disinfectant. We
recommend Simple Green, which is a non toxic biodegradable allpurpose cleaner.
Do not use abrasive cleaners, as they will scratch the surface of the
unit.
Do not submerge the unit, as it will damage the electrical
components.
Rev 10/26/16
