Magic Arm Mounting System - #1631
USER’S GUIDE
Page 2
To adjust the Magic Arm:
1. Turn the large black knob counter clockwise until arms move freely.
This should only require about one turn of the knob. At this point
you can move the arms to the desired position. (Note: Trying to
move the arms when the knob is tightened will damage the mating
surfaces of the arms, and cause the knob to break.)
2. Once the arms are in the position you want, tighten the black knob
clockwise. This will set the arms in place. The arms should be able to
handle a static load of 20 lbs., without moving. Even if the arms are
locked in place, if a force greater than 20 lbs. is applied, the arms
will move. This is meant to prevent injury in case of fall or
unintended contact with the arms.
After a long period of usage, the ball joints at the end of the magic arms may
need to be adjusted to compensate for wear. This rarely happens, but if it
should need adjustment, follow these steps;
1. Loosen upper lock nut (A) with an adjustable wrench, by turning it
counterclockwise.

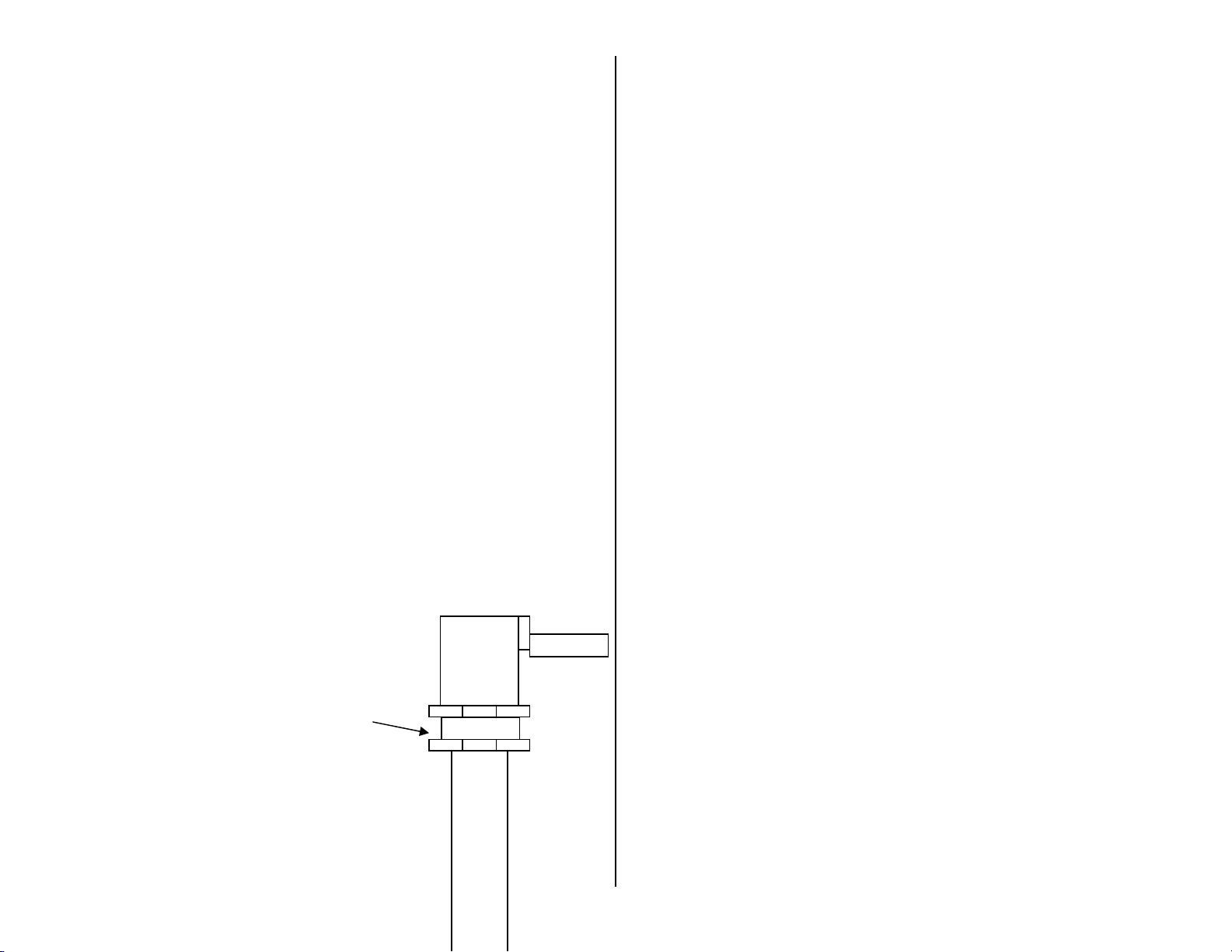

2. Put ball joint stud in downward position, so that it
fits in slot.
3. Using the ball joint stud for leverage, turn the
upper assembly clockwise until it is tight. At
this point the ball joint should be difficult to
move.
A
4. Retighten lock nut with wrench.
Easily adjustable and can be mounted in any position This unique mounting
system allows capability switch placement in virtually any position. The
adjustable arm attaches to a table or wheelchair using a one-piece base
clamp. Infinitely adjustable, the Magic Arm locks in place with a simple
twist of a knob. Comes with threaded circular and rectangular platforms onto
which most of our capability switches can be secured. Fully extended, the
arm length is 20½". The arm supports up to 20 lbs of static load.
Caution:
Do not over tighten the center adjusting knob, or try to move or adjust
the mounting plate after you have tightened the center adjusting knob.
Doing so will damage the Magic Arm Mounting System and void your
warranty.
Care of Unit:
The Magic Arm Mounting System can be wiped clean with any mild
household multi-purpose cleaner and disinfectant.
Do not use abrasive cleaners, as they will scratch the surface of the unit.
