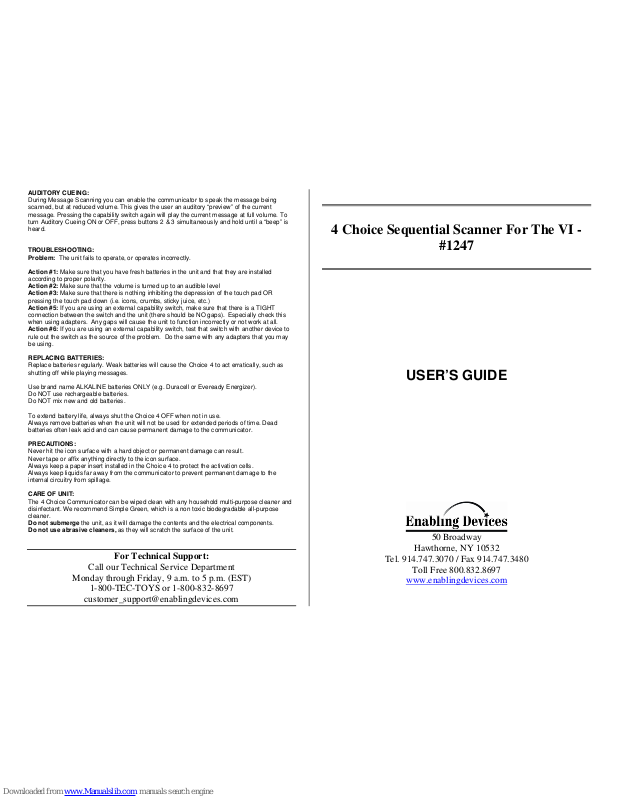

AUDITORY CUEING:
During Message Scanning you can enable the communicator to speak the message being
scanned, but at reduced volume. This gives the user an auditory “preview” of the current
message. Pressing the capability switch again will play the current message at full volume. To
turn Auditory Cueing ON or OFF, press buttons 2 & 3 simultaneously and hold until a “beep” is
heard.
TROUBLESHOOTING:
Problem: The unit fails to operate, or operates incorrectly.
Action #1: Make sure that you have fresh batteries in the unit and that they are installed
according to proper polarity.
Action #2: Make sure that the volume is turned up to an audible level
Action #3: Make sure that there is nothing inhibiting the depression of the touch pad OR
pressing the touch pad down (i.e. icons, crumbs, sticky juice, etc.)
Action #5: If you are using an external capability switch, make sure that there is a TIGHT
connection between the switch and the unit (there should be NO gaps). Especially check this
when using adapters. Any gaps will cause the unit to function incorrectly or not work at all.
Action #6: If you are using an external capability switch, test that switch with another device to
rule out the switch as the source of the problem. Do the same with any adapters that you may
be using.
REPLACING BATTERIES:
Replace batteries regularly. Weak batteries will cause the Choice 4 to act erratically, such as
shutting off while playing messages.
Use brand name ALKALINE batteries ONLY (e.g. Duracell or Eveready Energizer).
Do NOT use rechargeable batteries.
Do NOT mix new and old batteries.
To extend battery life, always shut the Choice 4 OFF when not in use.
Always remove batteries when the unit will not be used for extended periods of time. Dead
batteries often leak acid and can cause permanent damage to the communicator.
PRECAUTIONS:
Never hit the icon surface with a hard object or permanent damage can result.
Never tape or affix anything directly to the icon surface.
Always keep a paper insert installed in the Choice 4 to protect the activation cells.
Always keep liquids far away from the communicator to prevent permanent damage to the
internal circuitry from spillage.
CARE OF UNIT:
The 4 Choice Communicator can be wiped clean with any household multi-purpose cleaner and
disinfectant. We recommend Simple Green, which is a non toxic biodegradable all-purpose
cleaner.
Do not submerge the unit, as it will damage the contents and the electrical components.
Do not use abrasive cleaners, as they will scratch the surface of the unit.
For Technical Support:
Call our Technical Service Department
Monday through Friday, 9 a.m. to 5 p.m. (EST)
1-800-TEC-TOYS or 1-800-832-8697
customer_support@enablingdevices.com
4 Choice Sequential Scanner For The VI -
#1247
USER’S GUIDE
50 Broadway
Hawthorne, NY 10532
Tel. 914.747.3070 / Fax 914.747.3480
Toll Free 800.832.8697
www.enablingdevices.com
Brightly illuminated icons!
Our new unique state-of-the-art communicator provides powerful illumination of your icons. It is also
extremely flexible – four scan modes, choice of the number of fields to use, and two mounting systems.
Features:
• 12 levels
• 300 seconds of recording time
• Recordable level announcer
• Work in fields of 1, 2, 3, or 4
• Two jacks for one or two switch scanning
• 4 modes of scanning – Inverse, Automatic, Two Switch, and Step
• Adjustable scanning speed (1-12 seconds)
• On/Off Auditory Cueing
• Volume Control
• Two mounting systems – 19 inch gooseneck with clamp or base for tabletop use
• Storage compartment in base
• 4 Icon Holders
• Voice Recording Quality
Communicator Size: 16"L x 2 1/2"W x 6"H; Base Size: 17"L x 5 3/4"W x 4"H. Requires 2C and 4AA
Batteries.
BATTERY INSTALLATION:
Make sure unit is in the OFF position by rotating the ON-OFF-VOLUME control located on the
bottom of the unit counter clockwise until a "click" is heard. The battery compartments are
located on the bottom of unit. Carefully turn the unit over to reveal the battery compartments.
Remove the small Phillip’s Head screws from the covers, and then slide the covers off.
Observing polarity, install 2 C size batteries into the one holder and 4 AA into the other. Alkaline
batteries must be used only (e.g. Duracell or Energizer brand). Do not use rechargeable
batteries or any other type of batteries because they supply lower voltage and the unit will not
perform properly. Never mix brands, types or old and new batteries together. Replace covers
and screws.
OPERATION:
Rotate the ON-OFF-VOLUME control to approximately its' midway position. After one second,
you will hear a sound or a verbal message from the speaker. This is the Level Announcement
Message. The unit is now on Level One of the twelve levels provided in the Communicator.
PLAYING MESSAGES:
At this time, you can access each of the 4 messages on Level One by pressing any one of the
four icons, one at a time.
RECORDING MESSAGES:
Using one hand, press and hold the Record button on the underside of the unit. Using your other
hand, press the icon you wish to record and speak into the microphone. Releasing the icon or
Record button will cancel recording. If you are going to record more than one message, you may
press and hold the record button while pressing the appropriate icons to record your messages.
RECORDING LEVEL ANNOUNCEMENT MESSAGE:
Your Level Announcement Message may be changed at any time. There are 12 levels (a level is
a set or group of messages).
Turn the unit on by turning the ON/OFF/VOLUME knob located on the bottom panel of the unit.
(Please Note: When the unit is first turned ON it will default to Level 1 and speak the
recorded message for that level). To record your level announcements do the following. Press
and HOLD the red record button on the bottom of the unit first. Next press and HOLD the Level
Changer button also on the bottom of the unit. Speak the name of your level clearly, (for
example "Food") with your mouth preferably about 6" from the microphone (the small “fuzzy”
circle on the bottom of the unit) then release both. To record the next level announcement first
press the Level changer cell. It will play a previous message (if one was recorded). Now you can
record the next level by first pressing and holding the REC button and then pressing the Level
changer cell and finally speaking the name of your next level. Release both buttons. Record all
remaining Level announcements this way.
CHANGING LEVELS:
Each time the Level button is pressed, the communicator will advance to the next level. Pressing
the Level button on Level Twelve will return the communicator to Level One. Simply follow the
instructions above to record each of the four communicator messages or your Level
Announcement Message for each level. You MUST cycle through all remaining levels and return
to that particular level to hear that Level Announcement Message.
BLOCKING MESSAGE FIELDS:
With the unit ON:
• Press message buttons 1 & 2 simultaneously to block message 2.
• Press Message buttons 1 & 3 simultaneously to block message 3.
• Press Message buttons 1 & 4 simultaneously to block message 4.
• Repeat procedure to unblock, or turn the unit off to clear all blocked cells.
MESSAGE SCANNING:
The communicator has four different scan modes, two modes for single-switch scanning and two
modes for two-switch scanning. When turning the unit ON from the OFF position, the
communicator will reset automatically to Scan Mode 1. To change scan modes, press push
buttons 2 & 4 simultaneously and hold until a beep is heard and release. The unit will beep to
indicate what mode of scan it is on. (E.G. once for scan mode 1, twice for scan mode 2 and so
on). The following is a description of each scan mode and its function:
Scan Mode 1: Inverse scanning. Plug a capability switch into Jack 1 located on the rear of the
unit. Press and hold the capability switch to scan each of the 4 compartments. Upon release of
the switch, the communicator will play the message of the compartment currently illuminated.
Scan Mode 2: Automatic scanning. Plug a capability switch into Jack 1 located on the rear of
the unit. Press the capability switch for a moment and release.
The unit will automatically scan each of the compartments and continue scanning until the next
press of the capability switch. It will then play the message of the compartment currently
illuminated.
Scan Mode 3: Two switch automatic scanning. Plug a capability switch into Jack 1 and another
capability switch into Jack 2 located on the rear of the unit. Press the capability switch plugged
into Jack 1 for a moment and release. The unit will automatically scan each of the compartments
and continue scanning until the capability switch that is plugged into Jack 2 is pressed. It will
then play the message of the compartment currently illuminated.
Scan Mode 4: Step scanning. Plug a capability switch into Jack 1 and another capability switch
into Jack 2 located on the rear of the Talk 8. Each time the capability switch that is plugged into
Jack 1 is pressed, it will advance your selected message to the next icon one at a time. Pressing
the capability switch that is plugged into Jack 2 will play the message of the icon currently
illuminated by the red LED.
SCAN SPEED:
You can control the speed of the Message Scanning by adjusting the Scan Speed knob.
Clockwise slows the scan speed and counter clockwise increases scan speed. The range of
speed is between ½ a second to 12 seconds.
(Continued)
Rev 7/23/10
