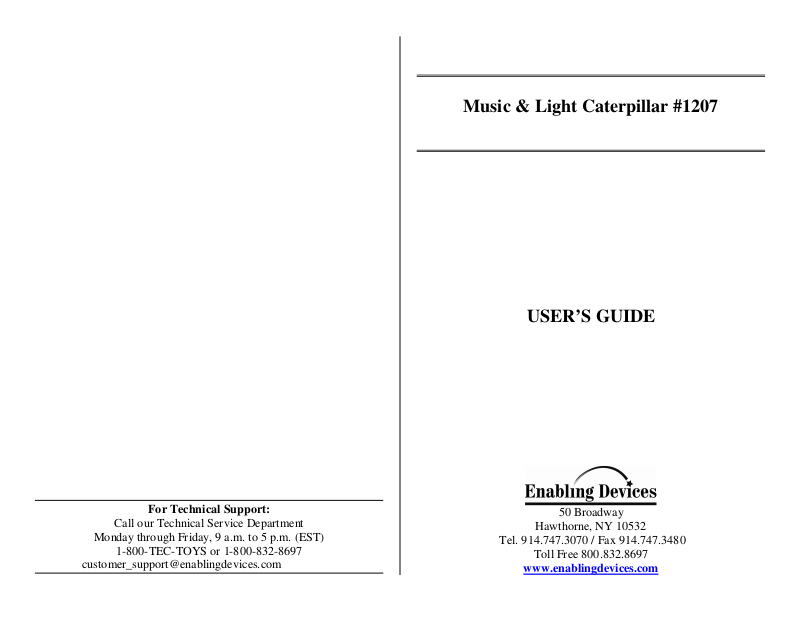

Page 1
Music & Light Caterpillar #1207
USER’S GUIDE
Page 2
Plays 16 songs!
Activate your capability switch and play 16 different children’s songs
while 4 colored flashing lights flash in tune to the music. Also works
by pushing the pink button on the caterpillar’s back. Size: 10 1/2"L x
3"W x 5"H. Requires Capability Switch and 2 AA Batteries.
Operation:
1. Gently turn the Caterpillar over to reveal the battery compartment.
Carefully remove the small screw from the battery compartment
cover using a Phillips head screwdriver, and slide the battery
compartment cover off. Observing polarity, install two AA size
batteries into the holder. Alkaline batteries must be used only (e.g.
Duracell or Energizer brand). Do not use rechargeable batteries or
any other type of batteries because they supply lower voltage and
the unit will not perform properly. Replace the battery
compartment cover and replace the screw.
2. Plug any capability switch into the 1/8" jack located on the side of
the Caterpillar, make sure the switch is plugged in all the way.
There should be no gaps between the connections, if there is a gap
the Caterpillar will stay ON and your switch will have no control
over the Caterpillar.
2. Each time you activate your switch you will be rewarded with a
well know children’s song accompanied by flashing colored lights
in tune with the music. The song will play between 15 and twenty
seconds depending on the song. If your switch is activated during
the playing of a song, it will advance to the next song. You can
also play with the Caterpillar by pushing the pink button on the
caterpillar’s back. Some of the songs you may here are BINGO,
Mary Had a Little Lamb, The Farmer and the Dell, This Old Man
ect…
Troubleshooting:
Problem: The unit fails to operate, or operates incorrectly.
Action #1: Disconnect the power by removing one of the batteries for
20 seconds in order to reset the unit. Re-install the batteries.
Action #2: Check your batteries – There is a 99% chance that either
one is installed incorrectly and/or one is weak/dead.
Please Note: When you are finished using Music & Light Caterpillar
remove your external switch as there is no ON/OFF power switch.
This will help prevent false activations and conserve battery life. For
prolonged storage we recommend removing the batteries to prevent
battery drain and or battery leakage which can cause damage to Music
& Light Caterpillar’s electronics.
Care of the Unit:
Music & Light Caterpillar can be wiped clean with any household
multi-purpose, non-abrasive cleaner and disinfectant. We recommend
Simple Green, which is a non toxic biodegradable all-purpose cleaner.
Do not use abrasive cleaners, as they will scratch the surface of the
unit.
Do not submerge the unit, as it will damage the electrical
components.
Rev 3/209
