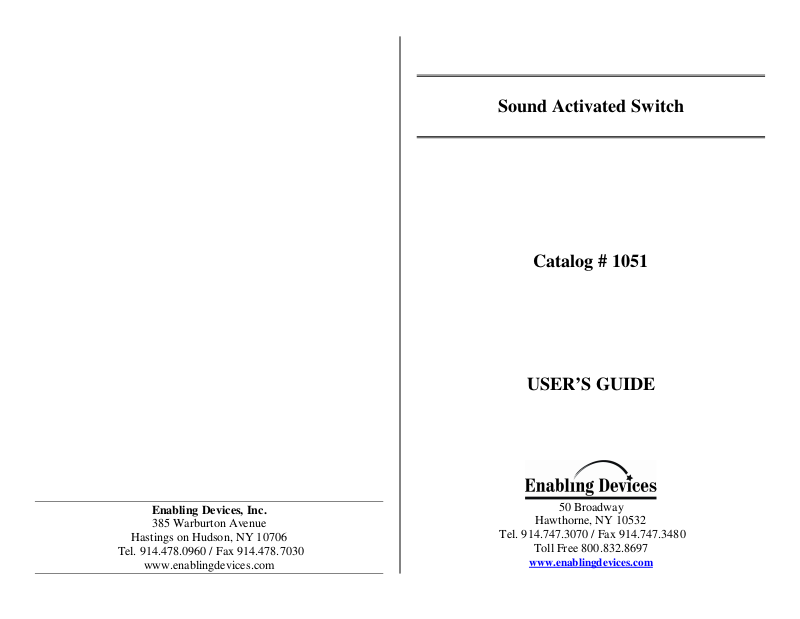

Sound Activated Switch
Catalog # 1051
USER’S GUIDE
Page 2
This ultra-sensitive switch responds to a whisper or a loud clap. You
can easily set the sound threshold level to which the switch will
respond. Plus, you can also adjust the length of time the switch will
stay on after the initial activation. In the latching mode, the first sound
will activate a switch closure and the second will disable it.
Size: 5½"L x 2¼"W x 1¼"H. Requires 1 9-V Battery
DESCRIPTION OF FEATURES:
ON-OFF/SENSITIVITY CONTROL
: The left-hand knob is used to
turn the unit on and off, and to adjust the sensitivity of the voiceactivated switch. You will hear an audible click when the unit is
turned on and off. Turn the knob clockwise to increase sensitivity and
counter-clockwise to decrease.
MODE SELECTOR/TIMING CONTROL:
The right-hand knob is
used to select one of the 3 modes of operation: Latch mode,
Momentary mode, or Timed mode (See “Set up and operation”). In
Timed mode this control is also used to select the amount of time
(from 0 to 30 seconds) that you wish the device to remain on after
activation of the switch. Turn the knob clockwise to increase the
duration and counter-clockwise to decrease.
MICROPHONE:
near the front of the top panel. This is where the voice output will be
sensed.
DEVICE OUTPUT JACK:
connect a toy/device that has been modified for external switch use.
SET UP AND OPERATION:
1) Turn unit over carefully to reveal the battery compartment. Install
one 9-volt battery, observing polarity, and secure by pressing down
into the clip.
The microphone is the small black circle located
The cord with the 1/8" plug is used to
2) Connect the toy/device to be controlled with the voice-activated
switch via the cord with the 1/8” plug. An adapter is provided for
use if needed. If you do use the adapter make certain that there are
TIGHT connections between the toy/device and the adapter AND
between the adapter and the voice-activated switch. Any gaps in
the connections will result in malfunctioning of the switch.
3) Turn the unit on and adjust the sensitivity to the desired level.
Experiment with different settings until switch action is easily
controlled.
4) Select Mode of operation:
a. Latch Mode: Turn right-hand knob fully counter-clockwise
until it clicks into “Latch” position. Device will turn on with
first voice activation and remain on until turned off by the next
voice activation.
b. Momentary Mode: Starting from the “Latch” position, turn
knob clockwise until it clicks. Set “Timing” pointer to “MIN”
position. Device will turn on with voice activation and remain
on only while the noise is sustained. Once the sound ceases,
the toy/device will immediately turn off.
c. Timed Mode: Starting from the “MIN” position in Momentary
Mode, turn knob clockwise until the desired timed cycle, from
0 to 30 seconds, is selected. Device will turn on with voice
activation, remain on for the duration of the cycle, and then
automatically turn off.
TURN THE CONTROL UNIT OFF AFTER USE TO
PRESERVE THE BATTERY.
