CHAPTER 1 INTRODUCTION

5

1.1 PACKAGE CONTENTS

5

1.2 FEATURES

5

1.3 SPECIFICATIONS

7

CHAPTER 2 HARDWARE INSTALLATION

9

2.1 FRONT PANEL

9

2.1.1 CONNECTORS

9

2.1.2 LED INDICATORS

10

2.1.3 RESET BUTTON

10

2.2 PIN ASSIGNMENT OF THE RJ-21 CABLE

11

CHAPTER 3 WEB CONFIGURATION

12

3.1 ADMINISTRATION

15

3.1.1 IP ADDRESS

15

3.1.2 SWITCH SETTING

16

3.1.3 CONSOLE PORT INFORMATION

19

3.1.4 PORT CONFIGURATION

19

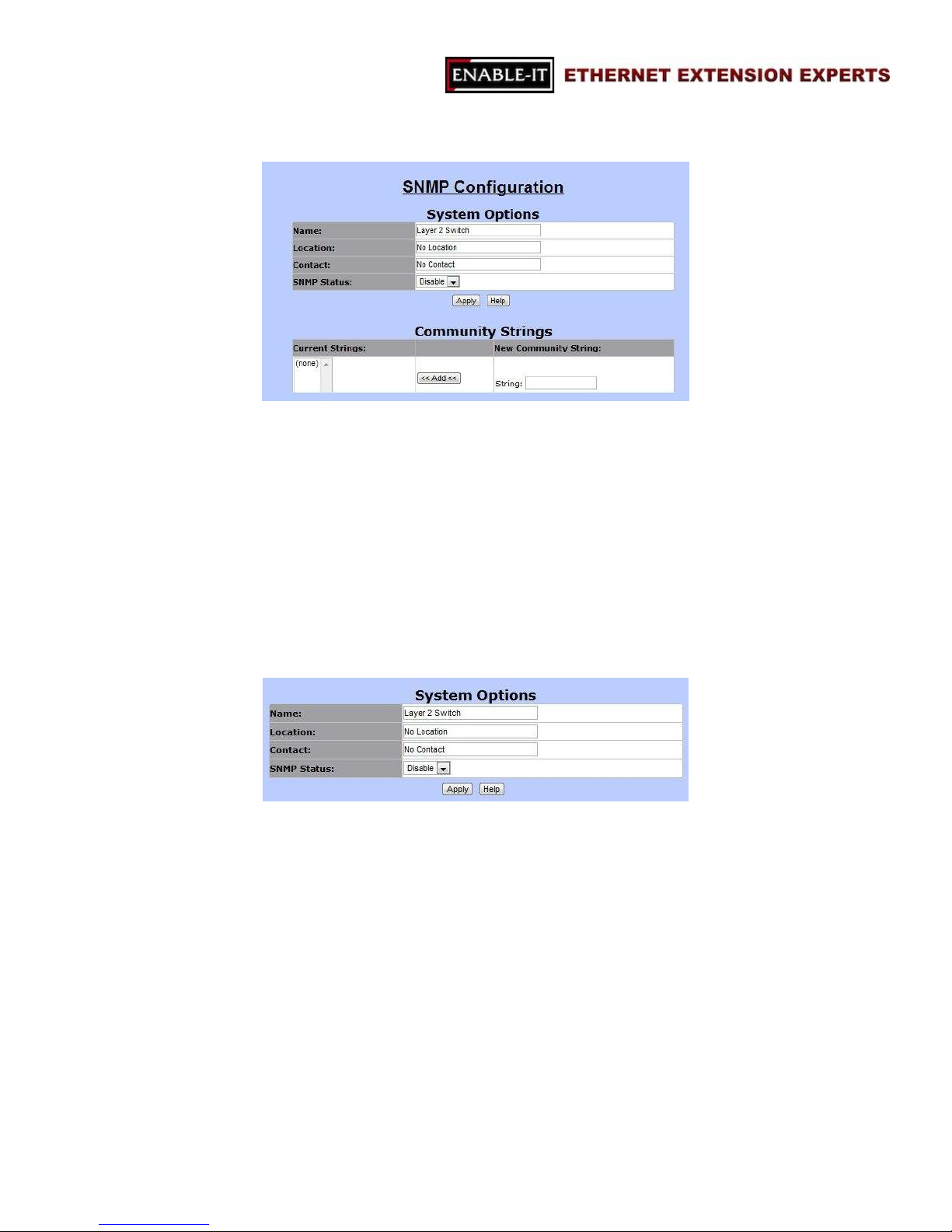

3.1.5 SNMP CONFIGURATION

23

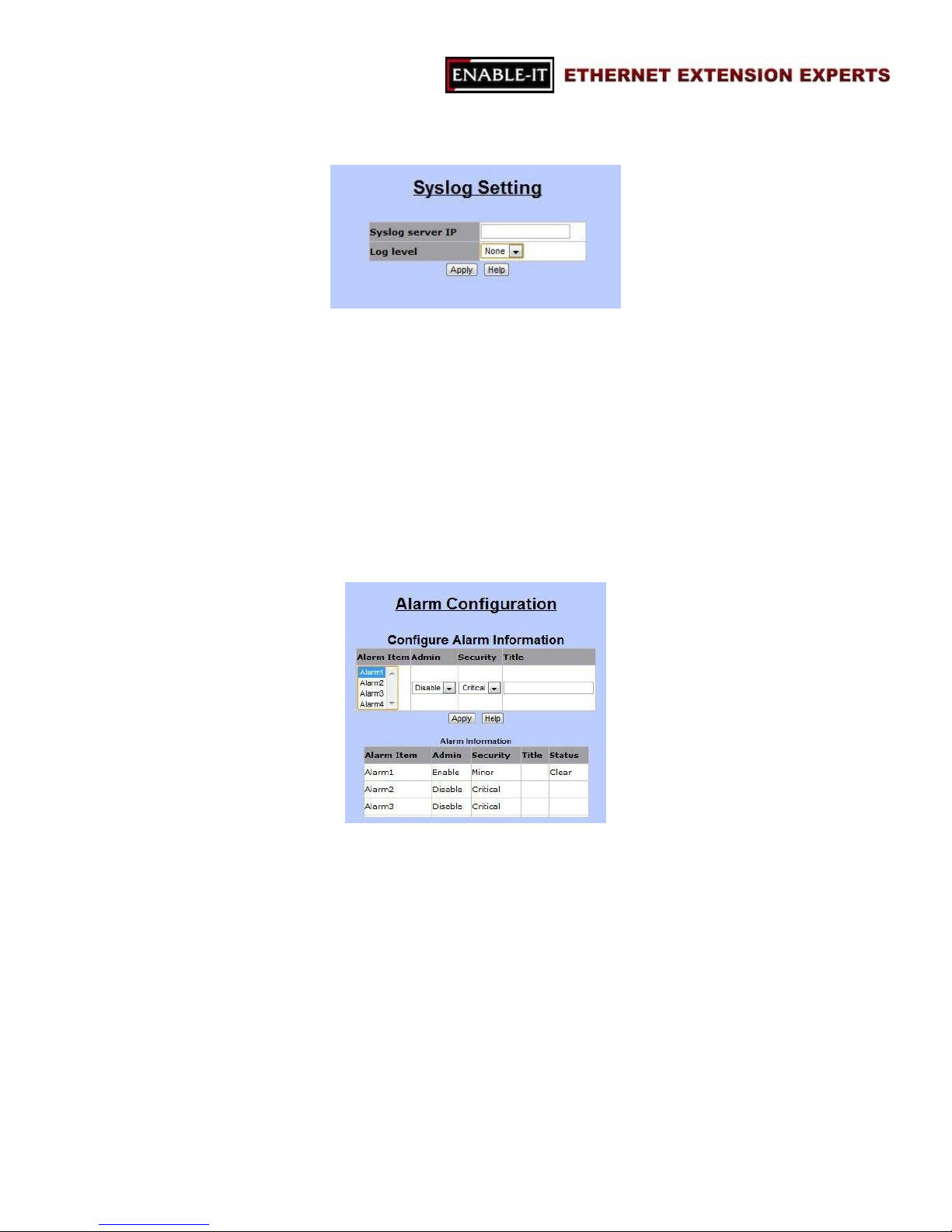

3.1.6 SYSLOG SETTING

28

3.1.7 ALARM CONFIGURATION

28

3.1.8 TEMPERATURE & FAN STATUS

29

3.1.9 FIRMWARE UPDATE

29

3.1.10 CONFIGURATION BACKUP

30

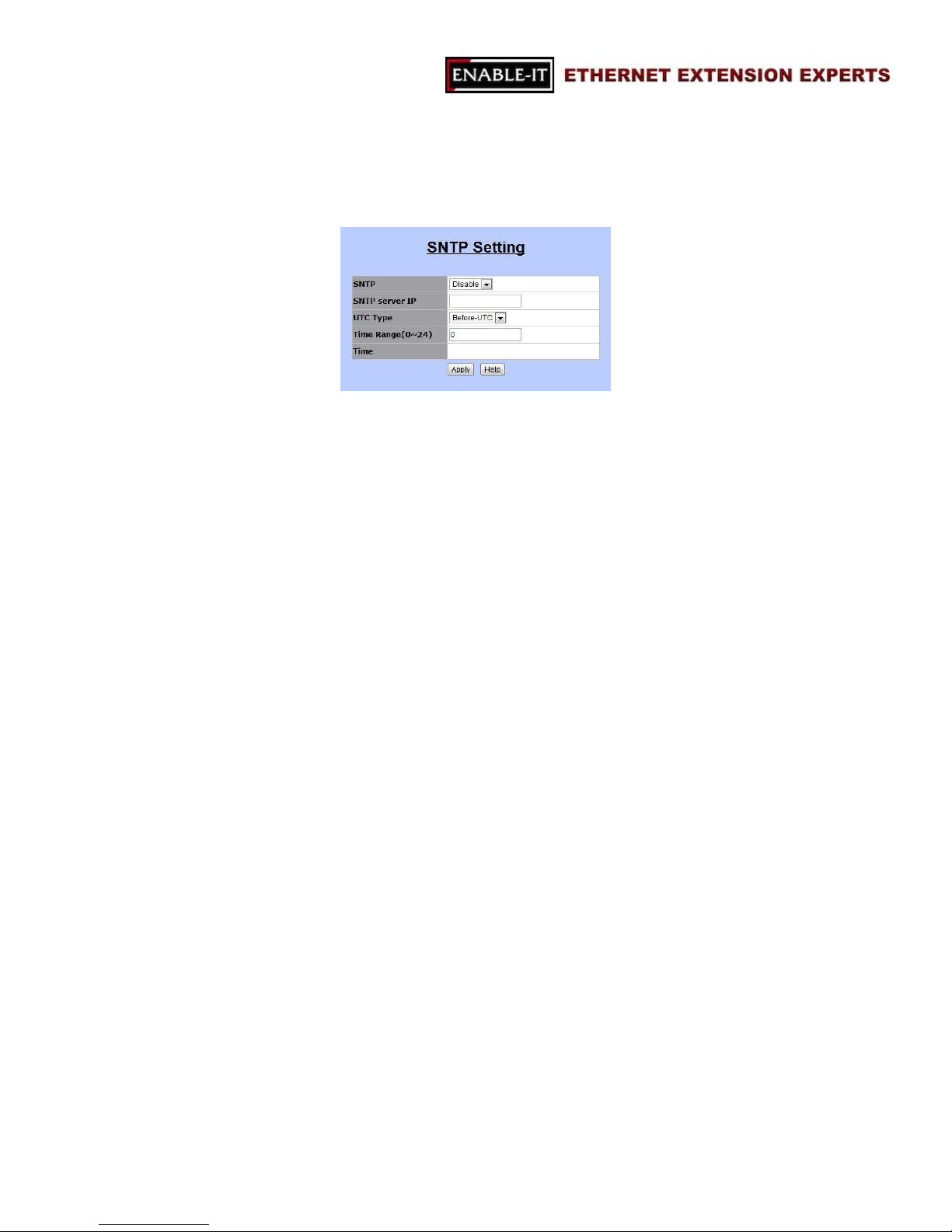

3.1.11 SNTP SETTING

31

3.2 L2 FEATURES

32

3.2.1 VLAN CONFIGURATION

32

3.2.1.1 STATIC VLAN

33

3.2.1.2 GVRP VLAN

35

3.2.1.3 QINQ VLAN

38

3.2.2 TRUNKING

40

3.2.2.1 FORWARDING & FILTERING

42

3.2.3.1 IGMP SNOOPING

44

3.2.4.1 SPANNING TREE

45

3.2.5.1 SYSTEM CONFIGURATION

46

3.2.6.1 PERPORT CONFIGURATION

48

3.2.6.2 INSTANCE

48

3.2.6.3 INTERFACE

49

3.2.6.4.1 DHCP RELAY & OPT.82

49

3.2.6.5 DHCP OPTION 82

50

3.2.6.6 DHCP RELAY

50

3.2.6.7 DHCP OPTION 82 ROTUER PORT

51

3.2.6.8 DHCP OPT. 82 PORT TABLE

51

3.3 ACL

51

3.3.1 IPV4

53

3.3.2 NON-IPV4 54

3.3.3 BINDING

54

3.4 SECURITY

56

3.4.1 SECURITY MANAGER

56

3.4.2 MAC LIMIT 57

3.4.3 802.X CONFIGURATION

58

3.5 QOS

60

3.5.1QOS CONFIGURATION

61

3.5.2 TOS/DSCP

63

3.6 MONITORING

63

3.6.1PORT STATUS

64

3.6.2 PORT STATISTICS

65

3.7 VDSL

66

3.7.1 CONFIGURATION

66

3.7.2 PROFILE TABLE

68

3.8 RESET SYSTEM

69

3.9 REBOOT

69

TECHNICAL SUPPORT

70

WARRANTY REPAIR

70

RETURN POLICY

70

LIMITED WARRANTY

71

CONTACT US 73

1. Introduction

1.1 Package Contents

 (1) Enable-IT 8924 VDSL2 DSLAM Concentrator

 (1) Enable-IT 8924 User Manual

 (1) Country Specific Power Cord

 (1) DB9-RJ-45 Serial Console Cable

 (1) 19” Set of Rack Mountable Brackets and Screws

 (4) Rubber Feet for storage

1.2 Features

 (24) 10/100BaseX Ethernet ports (2) 10/100/1,000BaseX Ethernet ports and

 Supports SMII for 10/100BaseX ports

 Supports GMII/MII/TBI for 10/100/1,000BaseX ports

 All packet buffer and control data memory embedded

 Flow control support:

o 802.3x pause frame uses for full-duplex ports

o Collision-based back-pressure for half-duplex ports, carrier-based

 Half and full-duplex operations:

o

Full-duplex operation supported on 10/100/1,000Mbps ports

o

Half-duplex operation supported on 10/100Mbps ports only

 Supports 802.1D bridge self-learning, storing up to8L + 256 unicast or

 Supports automatic age-out period between 1 to 1,000,000 seconds

 Broadcast storm filtering based on ingress port bandwidth

 HOL blocking prevention

 Deadlock relief

Thank you for choosing the Enable-IT 8924 Extended Ethernet DSLAM. These products are the cost-effective switching solution ideal for small businesses, Telecom, ISP (Internet Service Provider), or SI (System Integration) for a competitive network edge. The 8924 VDSL2 DSLAM is a 24-port solution with a 2-port Gigabit Ethernet combo interface (TP and SFP) in a 1.5U height design. This concentrator offers the benefits of high speed connectivity with an intuitive management system, robust layer 2 features with advanced security settings, and a reliable hardware design with monitoring system integration.

The Enable-IT 8924 Extended Ethernet DSLAM includes the following items:

Ethernet switch controller

back-pressure not supported

multicast addresses

 Auto-polling via MDC/MDIO management interface for auto-configuration of

speed, duplex mode, and flow control capability of all Ethernet ports

 9K+ jumbo packets supported on per port and per VLAN basis

 Supports layer 2 source filtering

 Supports 802.1D Spanning Tree Algorithm and Protocol, 802.1w Rapid

 Flexible per-port VLAN classification option supports port-based VLAN

 Supports independent VLAN Learning (IVL) and Shared VLAN Learning (SVL)

 Supports 802.1X Port-based Network Access Control

 Supports 802.3ad Aggregation of Multiple Link Segments

o Statistical load-balancing algorithm may be configured to be the

 Supports BPDU, LACP, EAPOL suppression based on per port configuration

 Supports 64 VLAN-dependent Spanning Trees

 Supports IP multicast and snooping of IGMP and IP multicast routing protocol

o Including IGMP, CBT, OSPF, and PIM v2

 IP multicast packets may be forwarded within single VLAN or across multiple

o Cross-VLAN mode allows each egress port to have its own tag rule

 Port mirroring

 Supports 802.1p Traffic Priority

 ToS-to-802.1p priority mapping is enabled on per-VLAN basis

 Flexible per-port prioritization option:

o The prioritization result can be made to other switches in the network

 Four priority egress queues per port

 Scheduling algorithms: strict priority or weighted round robin

 Four RMON groups (1,2,3,9)

 Supports MIB of RFC1213, 1573, 11757, 1643, 2233

 Programmable LED output provides:

o

Serial LED output provides basic status of all Ethernet ports, or

o

Port 24/25 link status and broadcast storm indicator

 MAC address table synchronization assistance

 Asymmetric VLAN membership for better network security:

o Distinguish ingress VLAN member and egress VLAN member

o Prevents a station to sneak in VLANs set up for common servers

 Improved VLAN ingress rules may specify:

o Filtering untagged packets or VLAN tagged packets

o Filtering packets received on non-ingress VLAN member ports

 Supports insertion of 2ndtag with different TPIC to VLAN-tagged packets

Reconfiguration

domain and 802.1Q VLAN domain simultaneously

function of source and destination MAC addresses, ingress port ID, source and destination IP addresses, and TCP/UDP source and destination ports

PDU

VLANs

and VID for IP multicast packets

by replacing priority field in VLAN tag

 Port-based ingress rate policing and egress rate pacing

 Supports Layer 2/3/4 (Layer 2+) classification:

o Standard-length IPv4 packets can use layer 2 VLAN-tag ID, IP protocol,

Source IP, Destination IP, TCP/UDP Destination Port and Source Port,

o Non-standard or non-IPv4 packets use part of layer 2/3 header for

o Up to 256 different classification rules supported

o Each classification rule is associated with an action code

o Packet and byte counters for all classification rules to record match

 Supports Layer 2+ based VLAN classification scheme:

o

IP subnet based and Protocol-based VLAN achievable by means of

o

May override VID in VLAN-tag

 Supports filtering, redirecting, and/or mirroring of packets based on Layer 2+

o Redirects IPv6 packets to IPv6-capable network devices

 SMAC/SIP binding for IPv4 packets can be implemented

 Layer 2+ packet classification result ay be used to define packet priority

 Priority adjustment based on per port profile and per VLAN property

o Priority of a packet can be upgraded or downgraded based on setting

 Supports protected port, protected port group, and unprotected port group

 VID in transmitted packets can be replaced by a fixed VID associated with the

o

The VID to be swapped in by egress port can be different than the

 CPU interface: alternatively

o

32-bit 33MHz PCI interface

o

16-bit PIO interface with three DMA controllers

 Programmable byte-swap capability of MIB counter memory access

 Programmable event triggered interrupts allowing software to respond to or

 332-ball PBGA package

 1.8V core and SRAM voltage, and 3.3V pad voltage

and TCP SYN field for classification

classification

statistics

layer 2+ classification

classification result

of the ingress port and VLAN

egress port

default VID for untagged ingress packets

ignore an array of exceptions

1.3 Specifications

Hardware

 1.5U High Pizza-Box Type Enclosure

 24 VDSL2 Ports

 (2) RJ-45 100/1,000Mbps Ethernet Combo Ports

 Management Ethernet

 (1) RS-232 Serial Console

 POTS Splitter

 SYS, ALM, LINK, ACT

 (24) VDSL LEDs

 VDSL2 ITU-T G.993.2

 VDSL2 Profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a

 802.d L2 Bridging

 DHCP Server/Client/Relay

 IEEE 802.1q VLAN (port-based VLAN and Protocol-Based VLAN)

 VLAN Stacking (Q-in-Q)

 IEEE 802.1p Spanning Tree Protocol (STP)

 IEEE 802.3ad Link Aggregation

 IGMP Snooping/Proxy v1, v2 and v3

 Multicast Forwarding with IGMP Snooping v1 and v2 (RFC 1112 and RFC

 Multicast MAC address mapping

 Up to 512 Multicast Channels

 Profile-based Multicast Access Control (up to 24 profiles)

 Fast and Normal Leave Modes  L2 Frame Filtering by MAC Addresses

 L3 Frame Filtering by IP Addresses, protocol ID, and TCP/UDP

 DHCP and ARP Broadcasting Frames Filtering

 Support Secured Forwarding

Case:

Interface:

LED Indicators:

Standards Support:

Protocol Support:

2236)

Security:

Management:

 Support OAM&P Functions

 Support VLAN Priority Queue (IEEE 802.1p)

 Support CoS, ToS, DSCP, etc.

 Support SNMP v1/v2/v3 and MIB I/II

 Web-based Graphical User Interface, Telnet, CLI and SSH  Operating Temperature: 14°F to 122°F (-10°C to 50°C)

 Storage Temperature: -40°F to 158°F (-40°C to 70°C)

 Relative Humidity: Up to 95% (non-condensing)

2. Hardware Installation

2.1 Front Panel

2.1.1 Connectors

 POTS – The 8924 DSLAM includes (24) built-in splitters, POTS, with a

 LINE – Line is for connecting (24) VDSL2 ports with a Telco-50/RJ-21

 ALARM – For alarm inputs and outputs.

 CONSOLE – Users are able to access the 8924 DSLAM locally with the

Operating Requirements:

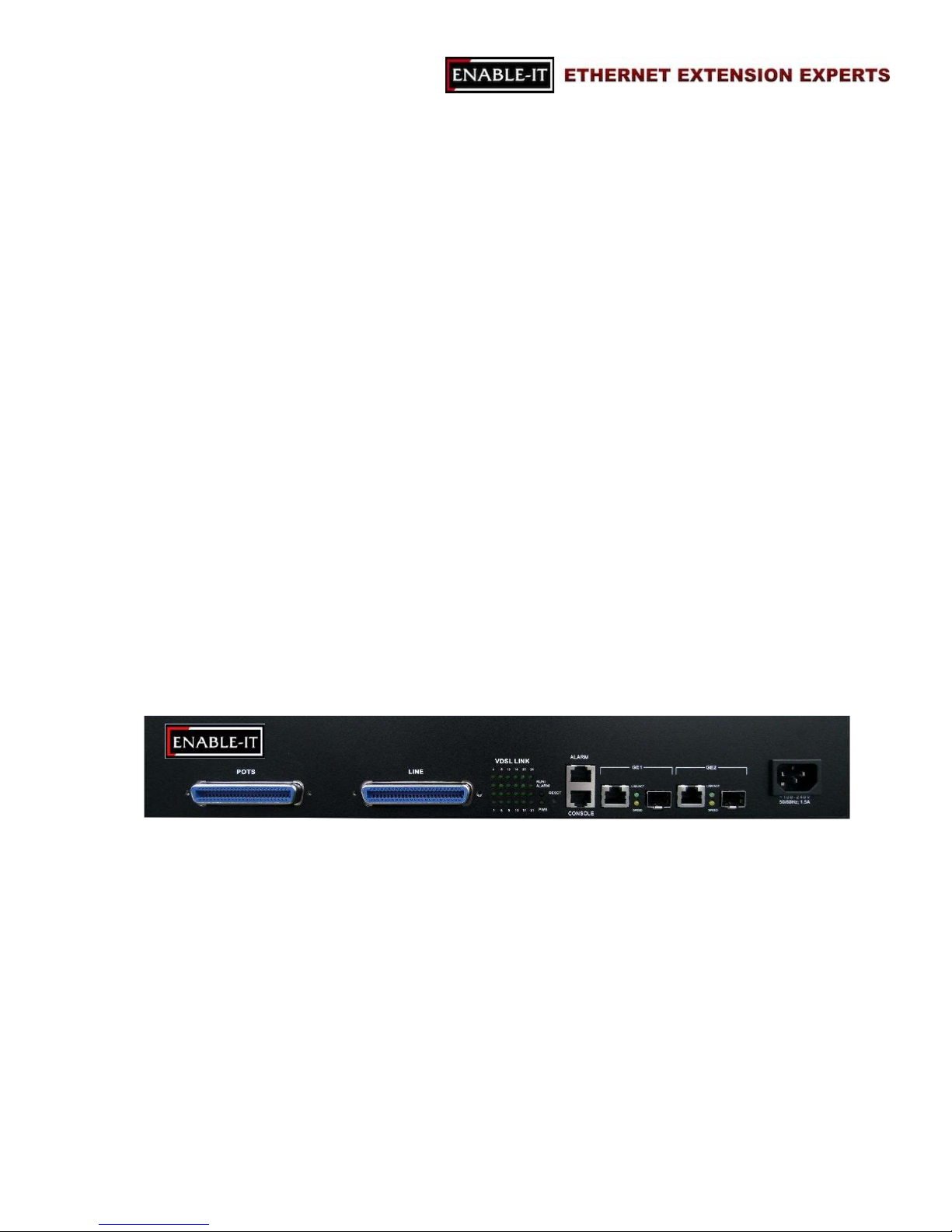

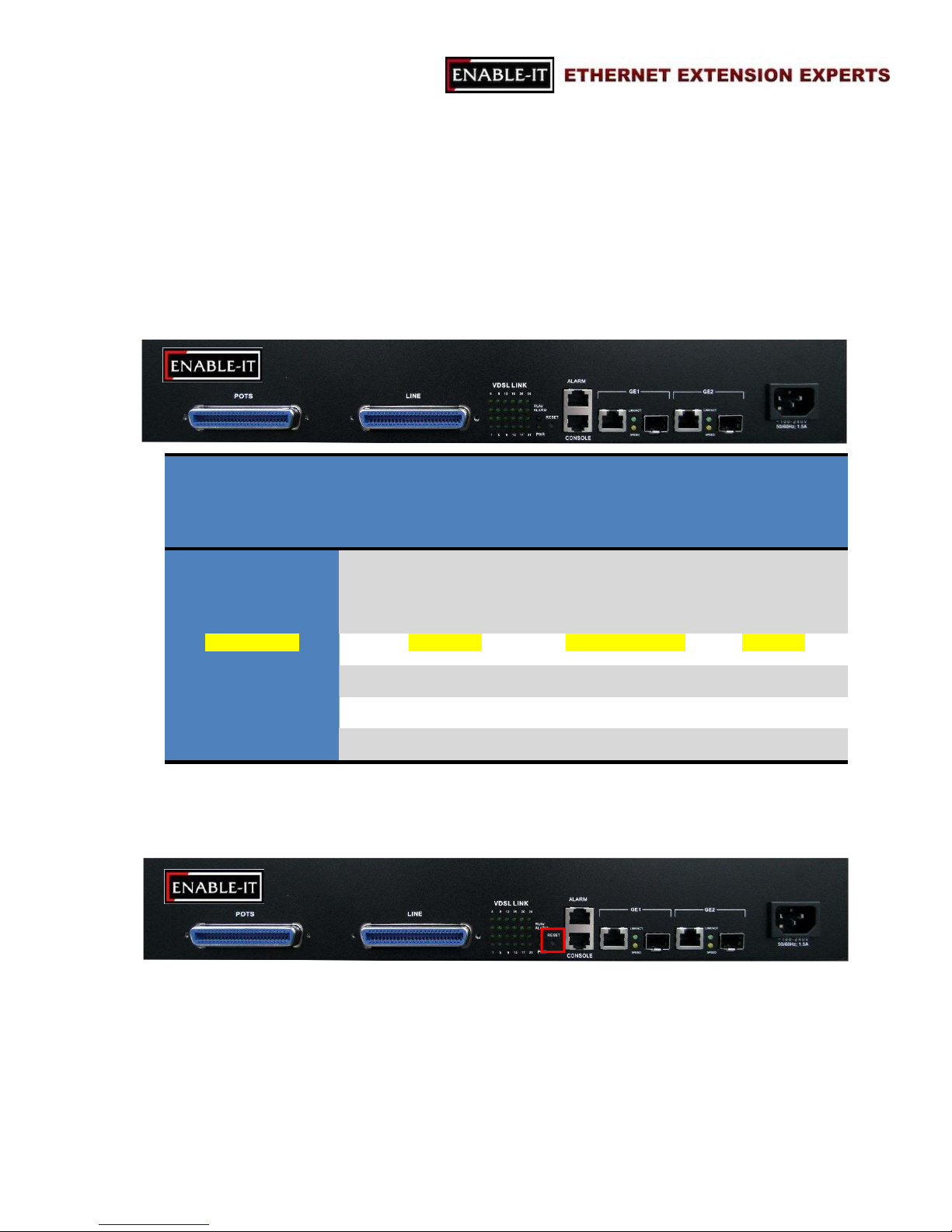

This section shows the front image of the 8924 DSLAM and how to install the hardware.

The 8924 DSLAM includes all connectors and LED indicators on its front panel so only a few installation steps are required to build the network solution.

Telco-50/RJ-21 cable for telephone services.

cable.

CONSOLE port. Via the CONSOLE ports, users are able to configure the 8924 DSLAM with menu-driven interface with any terminal emulation program, such as, Hyperterminal and Terterm. (115200, 8, None, 1, None)

 GE1 & GE2 (Gigabit Ethernet 1 & 2) – For connecting Gigabit Ethernet,

the 8924 DSLAM provides Gigabit Ethernet combo interfaces, TP and

o TP: 10/100/1,000 BaseT copper (RJ-45 connector).

o SFP: 1000 Base-SX/LX mini-GBIC slot.

 POWER – The connector is for 100V ~ 240V AC power inputs

2.1.2 LED Indicators



Blinking



On



Off

VDSL LINK (1 ~ 24) VDSL2 link is active

(transmitting data or

training)

VDSL2 link is

ready

VDSL2 link is

down

RUN/ALARM

System up

Alarm is detected

No alarm

PWR

Power On

Power Off

GE1/GE2

LINK/ACT

SPEED

SFP.

(50Hz~60Hz, 1.5A).

2.1.3 Reset Button

The reset button allows the users to reboot the 8924 DSLAM or load the default settings.

2.2 Pin Assignment of the RJ-21 Cable

PIN COLOR PORT PIN COLOR PORT PIN COLOR PORT

26

Orange

34

Brown

42

Gray

2

Black

P2310White

P1518Red

P7

27

Blue

35

Green

43

Blue

3

Red

P2211White

P1419Red

P6

28

Gray

36

Orange

44

Orange

4

Red

P2112White

P1320Red

P5

29

Brown

37

Blue

45

Green

5

Red

P2013White

P1221Red

P4

30

Green

38

Blue

46

Brown

6

Red

P1914White

P1122Red

P3

31

Orange

39

Orange

47

Gray

7

Red

P1815White

P1023Black

P2

62

Blue

40

Green

48

Blue

8

White

P1716White

P924Black

P1

Press the reset button for Action

1 ~ 5 seconds Reboot the IP DSLAM

Load the default settings

1 Black P24 9 White P16 17 White P8

33 Gray 41 Brown 49 Orange

3. Web Configuration

The 8924 DSLAM allows users to manage and change configurations with a

Default User Name

admin

web browser interface. Users are able to login to the web management system with any standard web browser, such as, Internet Explorer, Firefox, Safari, Chrome, etc.

Default IP Address 192.168.0.100

Default Password admin

Table 1 Default Login Information

Note: Please make sure the IP address is correct once the IP of the management web site is changed.

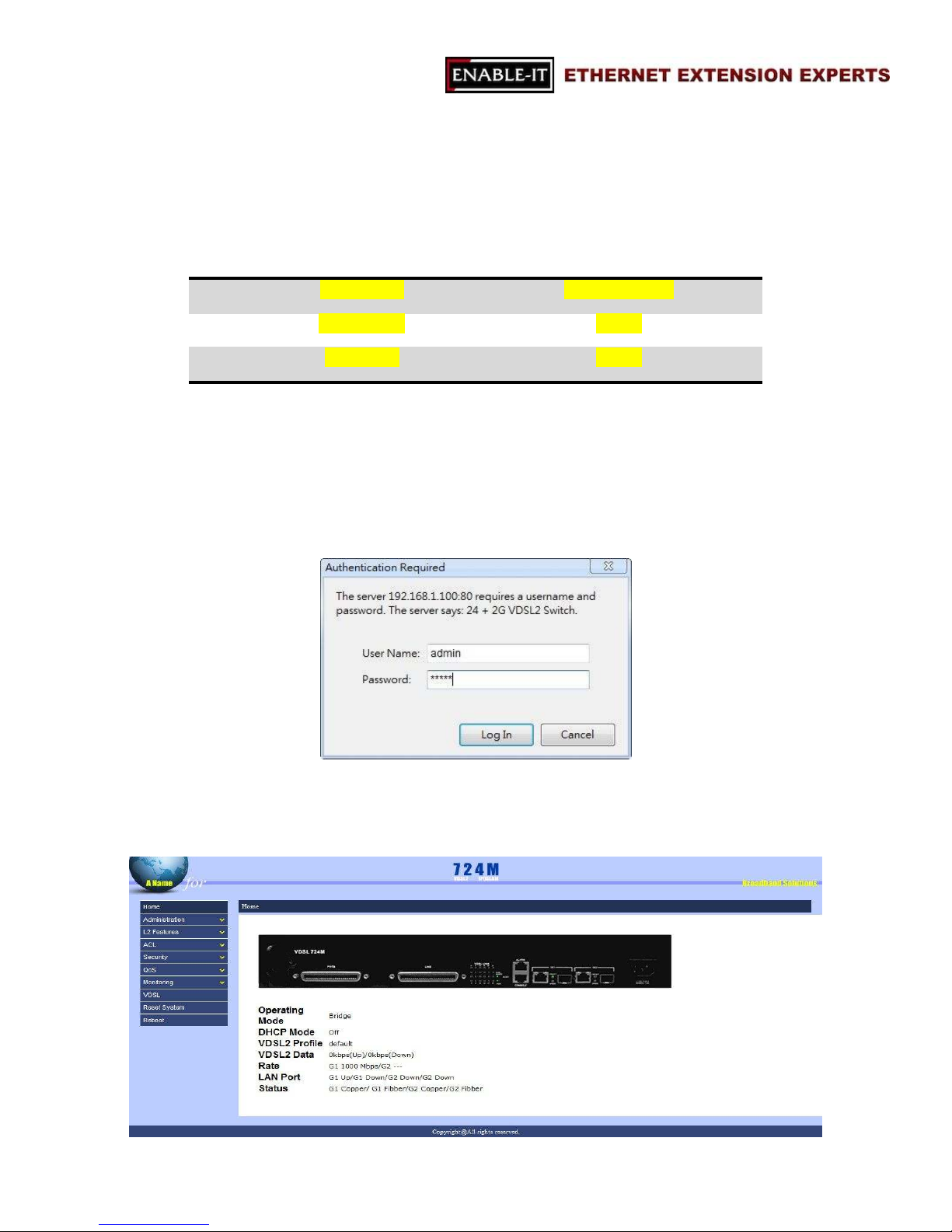

Once users are able to login to the web management page successfully, the login message box will pop up as the following image.

Once the correct login authentication information is inputted, the main page of the management system will appear like the following image.

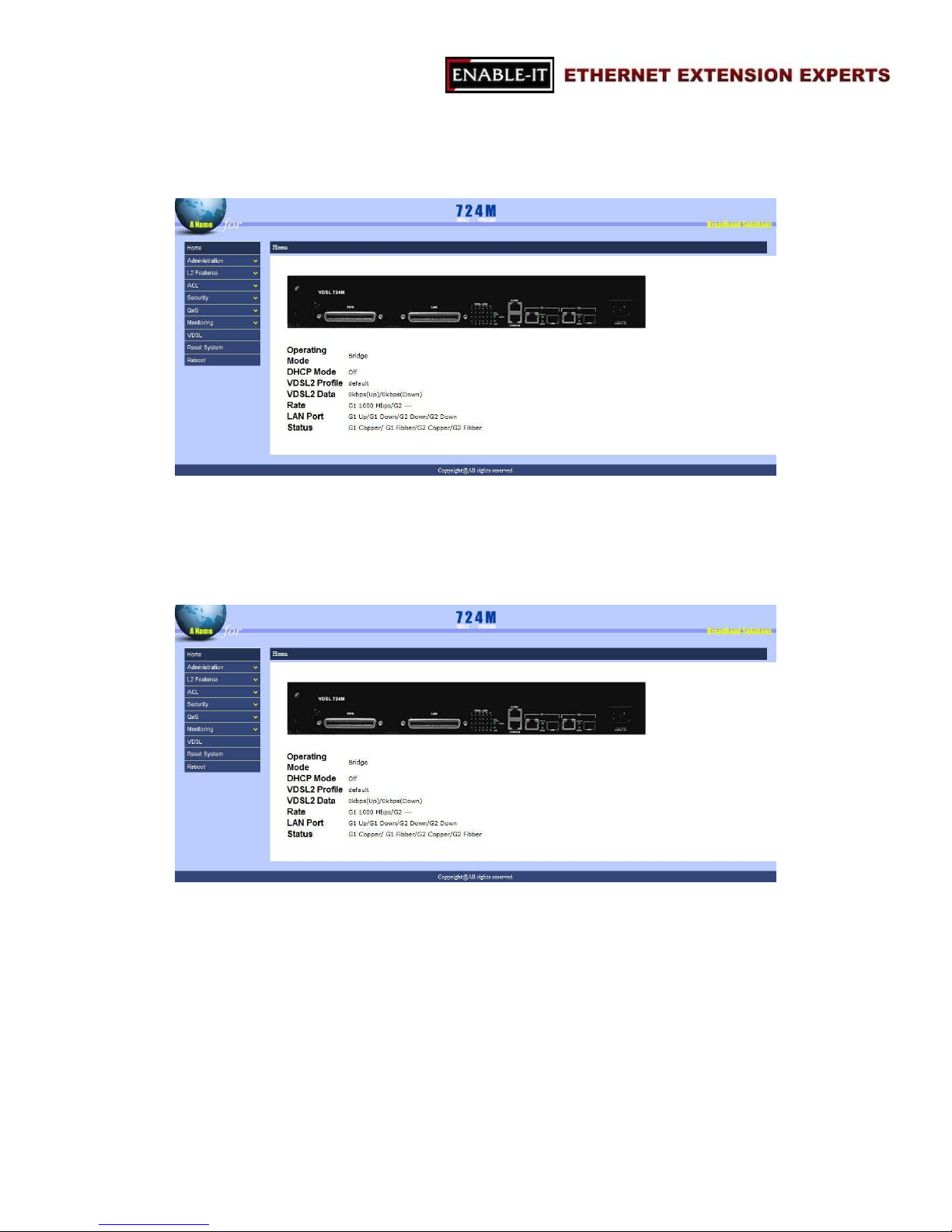

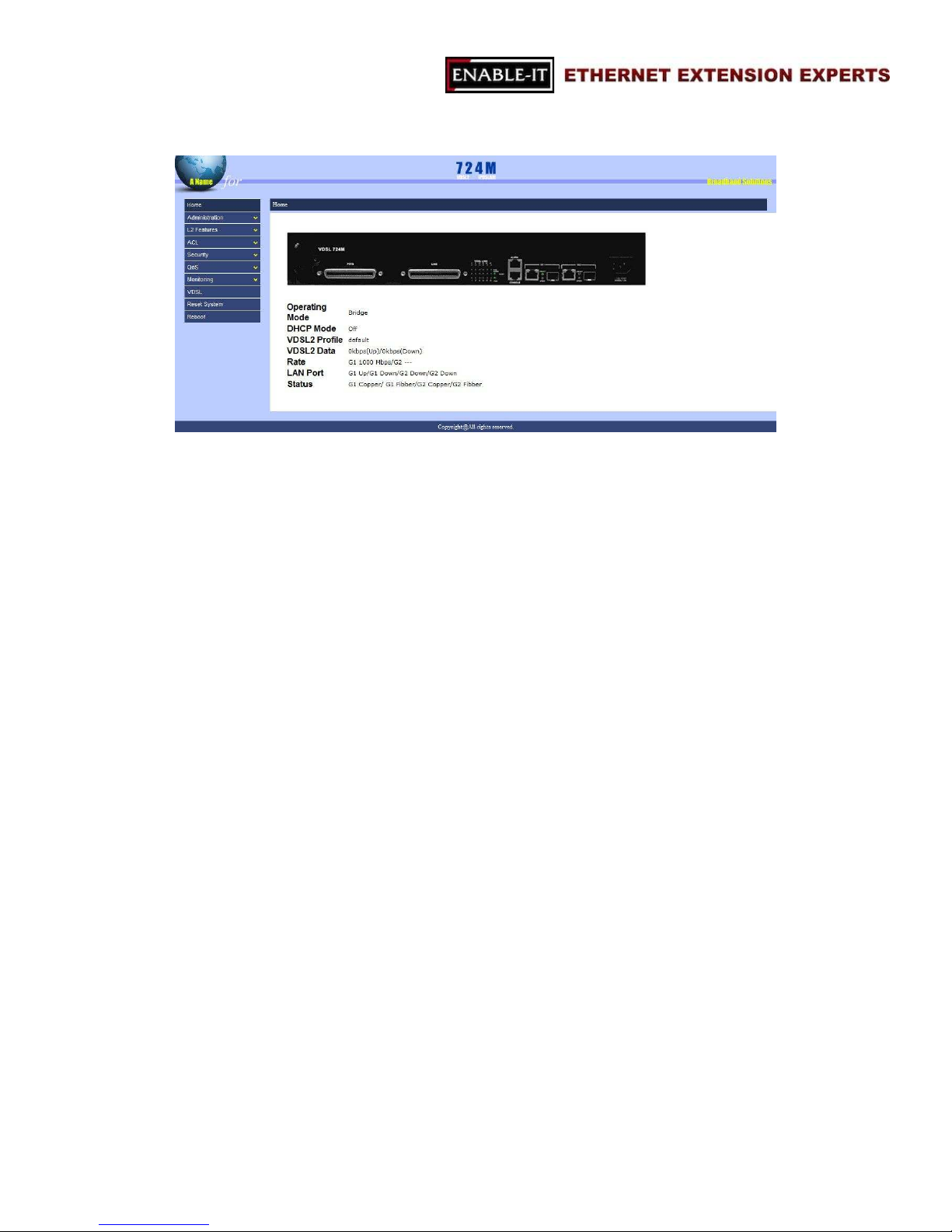

The Home page of the management system includes three major sections.

1. Title Section

2. Menu Section

This section indicated the model name of the device.

The Menu section is located on the left hand side of the page and users are allowed to change the configuration and review the status of the device by interacting with this section.

3. Information Section

The Information section present the real-time LED status and the current status

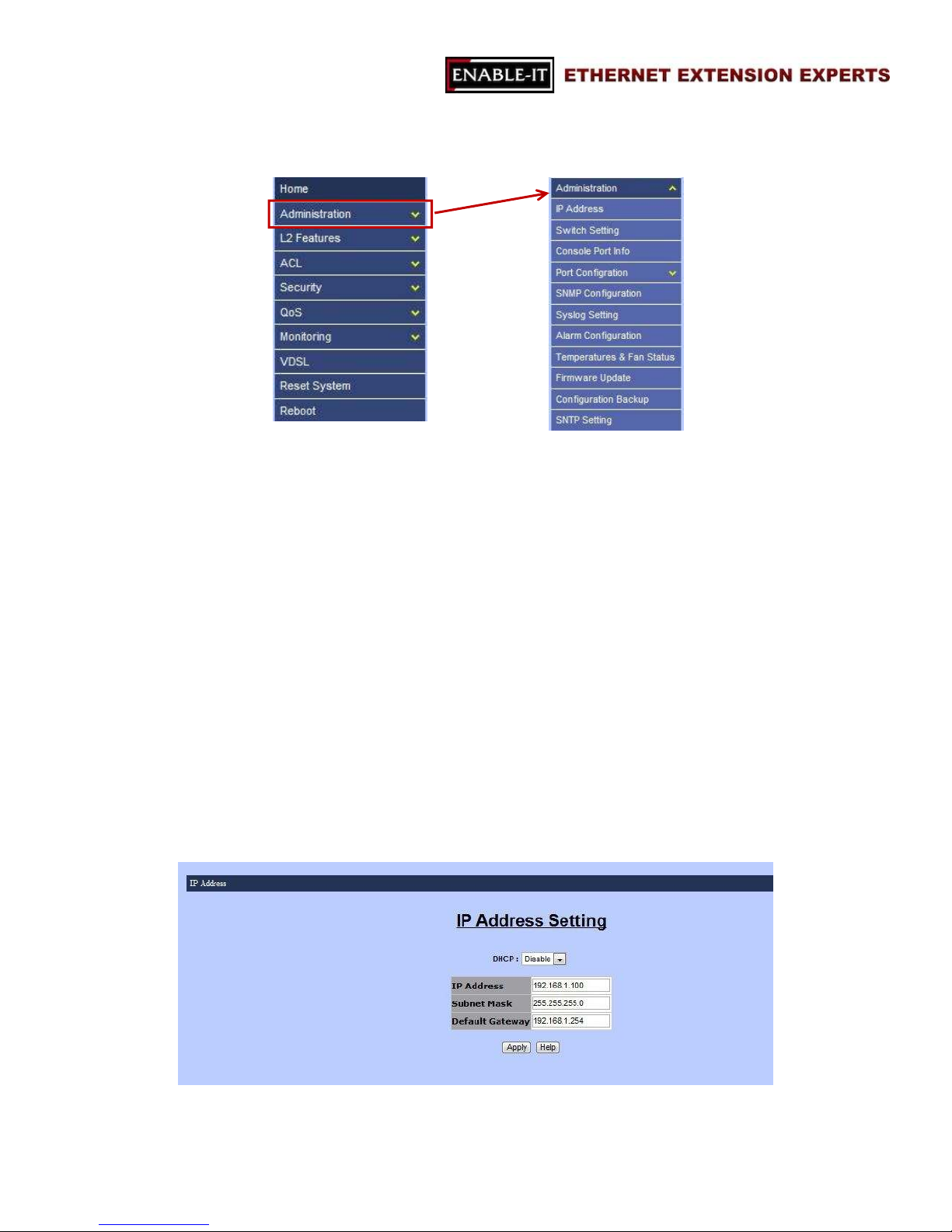

 Administration (3.1)

 L2 Features (3.2)

 ACL (3.3)

 Security (3.4)

 QoS (3.5)

 Monitoring (3.6)

 VDSL (3.7)

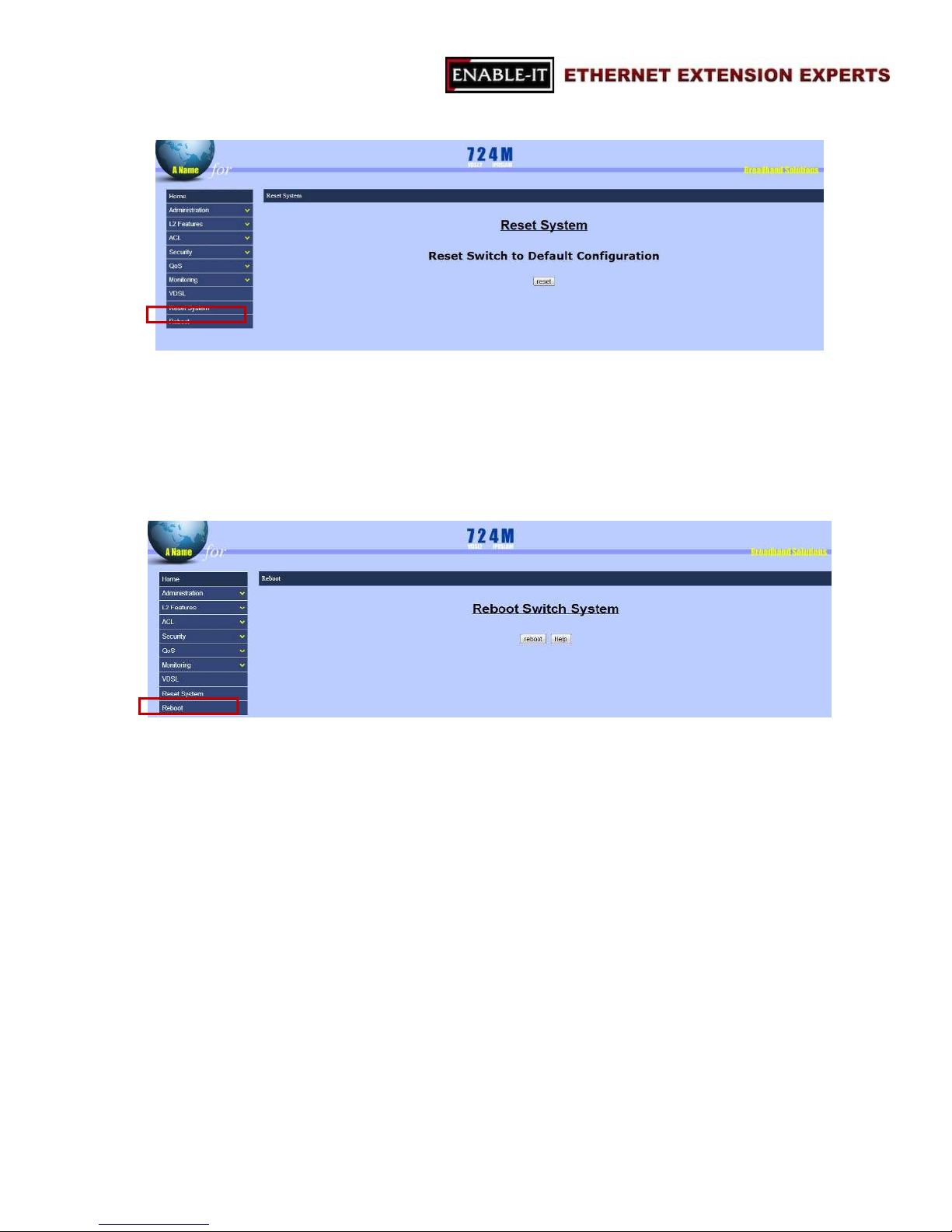

 Reset System (3.8)

 Reboot (3.9)

of the 8924 DSLAM.

The following sections will introduce users to the features of the 8924 DSLAM.

3.1 Administration

The Administration section is for users to manage the 8924 DSLAM, including

 IP Address

 Switch Setting

 Console Port Info

 Port Configuration

 SNMP Configuration

 Syslog Settings

 Alarm Configuration

 Temperatures & Fan Status

 Firmware Update

 Configuration Backup

 SNTP Setting

3.1.1 IP Address

the IP address, switch settings, port configuration, etc. It includes the following detailed functions:

The IP Address function includes four criteria which users are allowed to change.

 DHCP mode

o Disable or enable DHCP mode

o The value of this mode will decide whether the IP address is a

 IP Address

 Subnet Mask

 Default Gateway

3.1.2 Switch Setting

 Basic

o Model Name

o Description

o MAC Address

o Firmware Version

o Board Type

o Hardware Version

static IP address or a dynamic IP address.

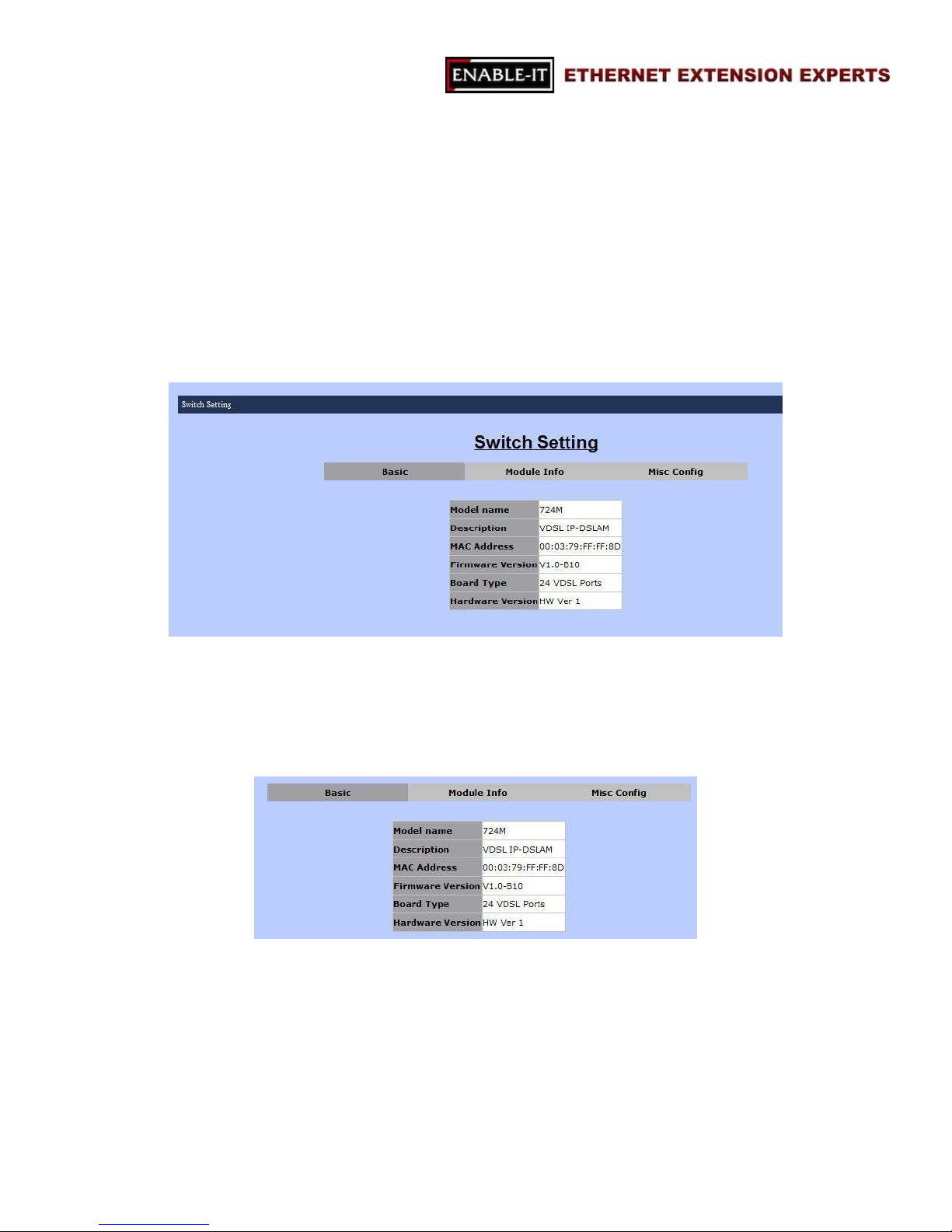

The Switch Setting present information of the switch in the following subfunctions. Note only the Misc Config section allows users to change the settings of the switch.

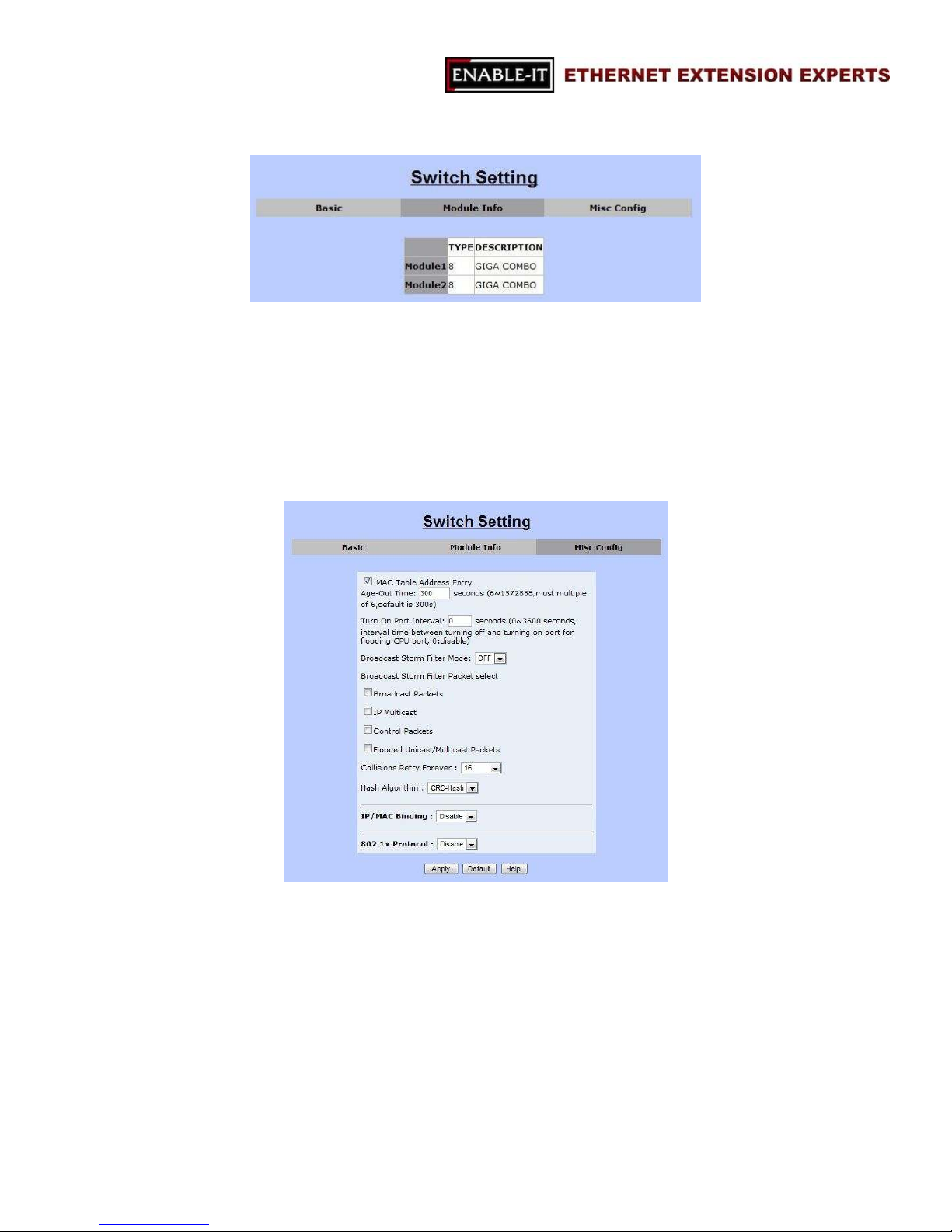

In the Basic tab, the basic information of the 8924 DSLAM is presented.

 Module Info

The Module section shows the information of the Gigabit uplink ports, Gigabit

 Misc Config

o

MAC address age-out time

 This value is for setting up how many seconds that an inactive

o

Turn on port interval

 This value for setting up the time interval that the CPU port should

o

Broadcast storm filter mode

Ethernet 1 and Gigabit Ethernet 2.

Note: in the following contents, these two uplinks will be called Mod1 and Mod2.

Users are allowed to modify the following details of the switch.

MAC address remains.

be enabled after flooding attacks. Note: 0 means never enable the CPU port.

 This feature is to set up the threshold value of broadcast traffic for

ports.

 Options: off, 1/2, 1/4, 1/8, 1/16 (Note: the value is the percentage

o Broadcast storm filters packets select

 This option allows users to choose the type of the target packet for

 If there is no type chosen, this means broadcast storm filter mode

 Options: broadcast packets, IP multicast, control packets, and

o Collisions retry forever

 This function will allow users to choose how many times the 8924

 Disable, 16, 32 or 48 collision number.

 Note: when the function is disabled, this means the 8924 DSLAM

o Hash algorithm

 This option is for choosing a hash algorithm for MAC address table.

 CRC-Hash or DirectMap.

o IP/MAC binding

 This feature allows user to enable or disable IP/MAC binding

 Enable or disable.

o 802.1x protocol

 802.1x protocol is able to enable or disable via this option.

 Enable or disable.

3.1.3 Console Port Information

of the ports ingress bandwidth used by broadcast traffic.

broadcast storm filter mode.

is off.

flooded unicast/multicast packets.

DSLAM should retry when a packet meets a collision.

will retry for 6 times before packets are dropped. Otherwise, it will retry continuously until the packet is sent successfully.

function.

Users are able to save the modified settings by clicking on the “Apply” button. “Default” button is for restoring the default settings. The “Help” button will provide some information about the features with another window.

This section is for users to review the settings of the console port, which allows

3.1.4 Port Configuration

 Port Controls

 Port Sniffer

 Protected Port

 VDSL Port Status

 Port Controls

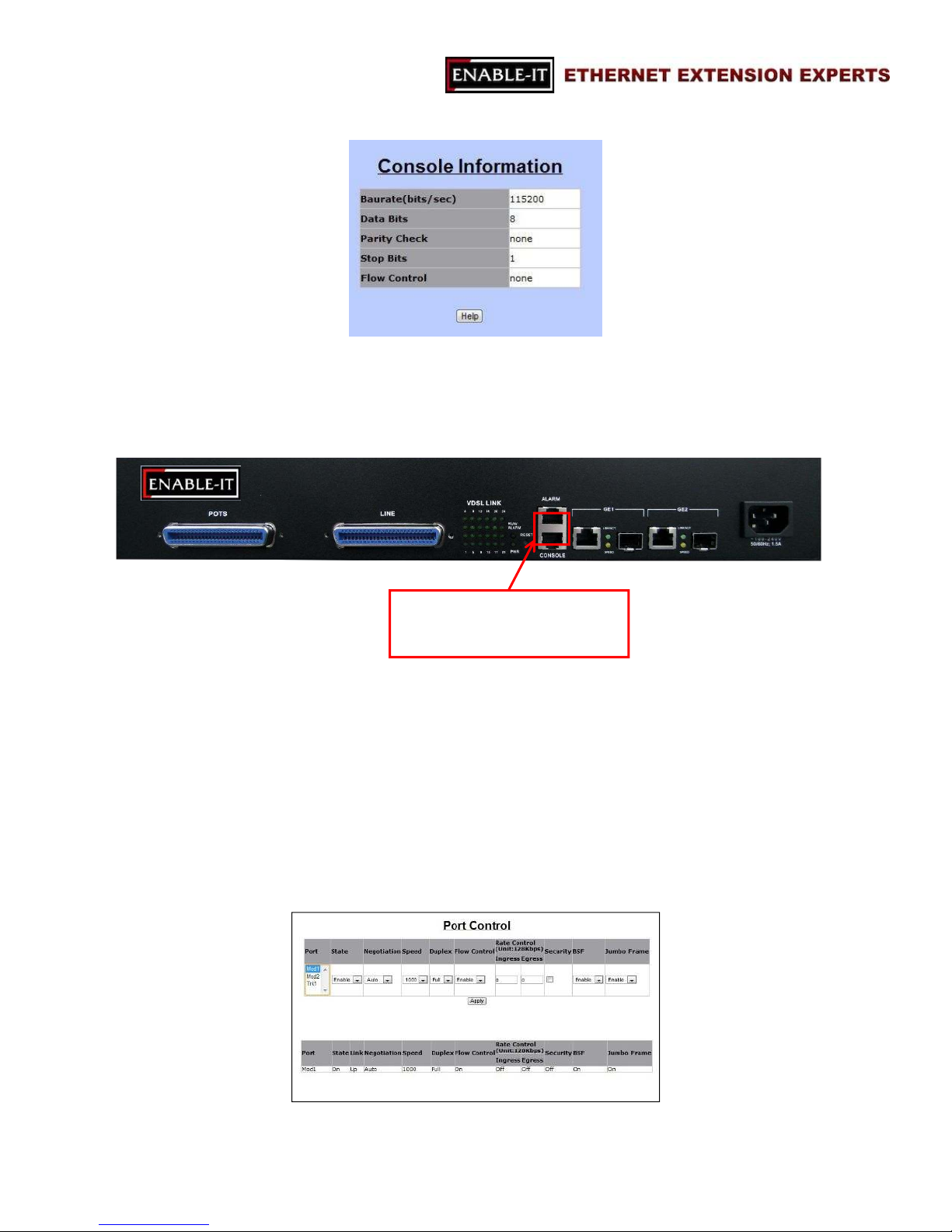

Connect to PC via DB9-RJ45 console cable.

users to connect and manage the 8924 DSLAM I the Command Line Interface (CLI) mode.

The Port Configuration section includes four detailed functions of the 8924 VDSL2 ports and Gigabit Ethernet uplink ports:

The Port Control allows users to configure the Gigabit Ethernet uplink ports and

o State

 This option will enable or disable the selected port.

 Enable or Disable.

 Note: Disable means to turn off the selected port; and this means

o Negotiation

 Users are able to decide whether the Gigabit Ethernet uplink ports

 Options: auto or force

 Note: If force mode is selected, users have to provide the

o Speed

 Users can setup the speed of the Gigabit Ethernet uplink ports in

 10, 100, 1000Mbps

o Duplex

 Half or Full

o Flow Control

 Options: enable or disable

 Enable: send a PAUSE signal to the sender and halts the traffic for

 Disable: drop the exceed packets when there are too any packets

o Rate Control

 Users are able to set up the specific rate for both ingress and

 Note: the valid rate range is 0 ~ 8000; and the unit is 128Kbps.

o Security

 This function is to decide whether the 8924 DSLAM will forward all

 Options: enable or disable

 Enable: only packets from secured MAC addresses will forwarded.

 Disable: all packets will be forwarded.

o BSF

 BSF stands for Broadcast Storm Filtering. It is able to enable or

 Options: enable or disable

o Jumbo Frame

 Uses are able to choose whether the 8924 DSLAM forwards jumbo

 Options: enable or disable

trunking ports if there exists any. The following parameters can be adjusted:

there will be no traffic going through this port.

should be auto-negotiable or not.

information of Speed and Duplex.

this function.

a period of time.

to process.

egress ports. Therefore, the 8924 DSLAM will control the rate to meet the specified rate.

incoming packets from both secured MAC addresses and unknown MAC addresses.

disable this function by port.

frame packets or not.

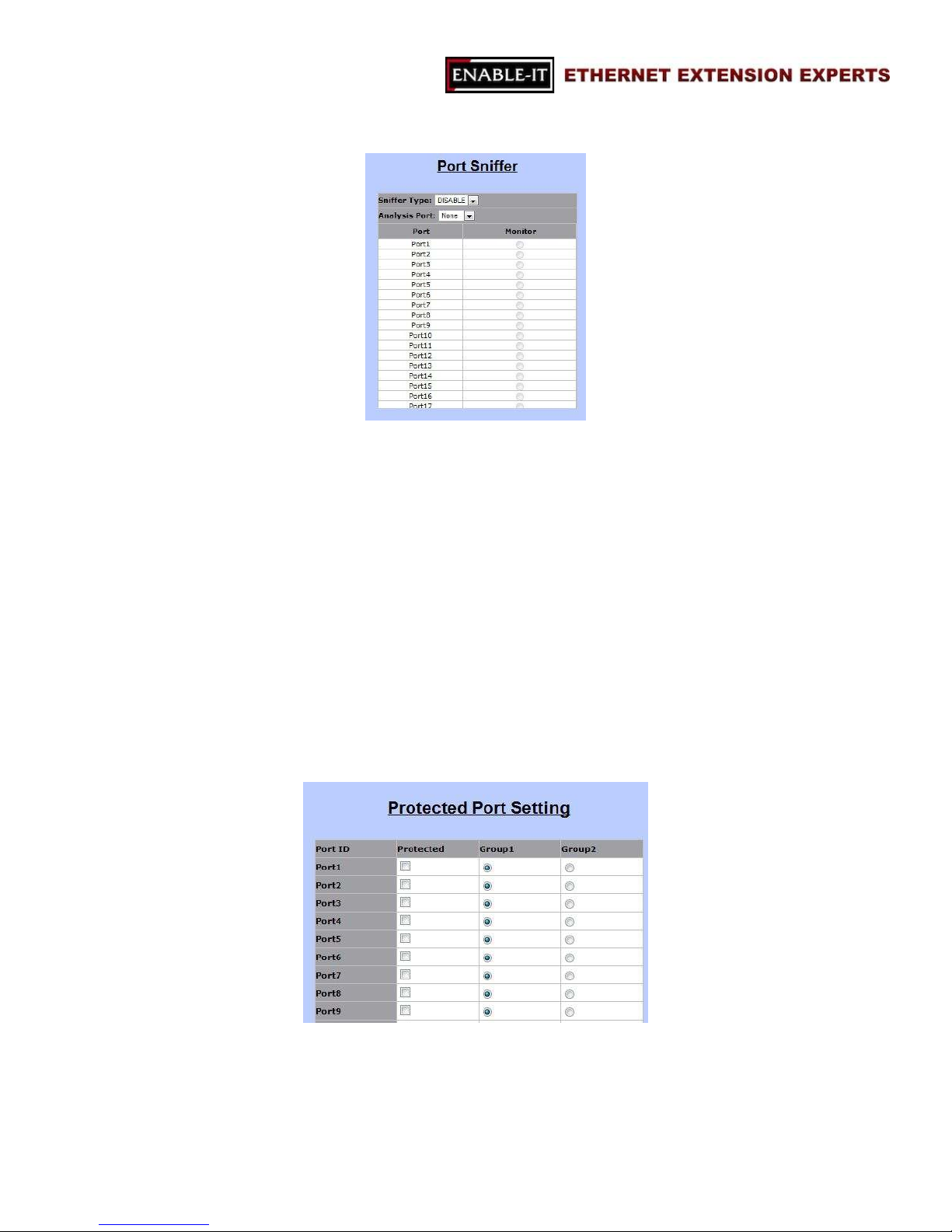

 Port Sniffer

The Port Sniffer setting is for monitoring a target port by mirroring or copying

o

Sniffer Type

 Options: Disable, Rx, TT, or Both.

 Users are able to choose what kind of data they would like to

o

Analysis Port

 This port is for assigning the port which should receive the data.

 The analysis port will accept only copied packets from the

o

Port & Monitor

 This port is for assigning what port the users would like to monitor.

 Protected Port

the data of the port and forwarding to an assigned port.

monitor.

monitored port.

The Protected Port isolated a protected port from its neighbor ports and other ports in different protected groups. However, it is allowed for a protected port to communicate with other unprotected ports. By setting up protected ports, it

is able to ensure that there is no traffic, such as unicast, broadcast, or

o Options:

 Protected

- Click on the corresponding checkbox to select a port.

 Group 1

- Click on the corresponding radio button for assigning a group.

 Group 2

- Click on the corresponding radio button for assigning a group.

 VDSL Port Status

multicast, between ports on the 8924 DSLAM.

This function provides two protected port groups. Uses are able to choose ports and assign to either group 1 or group 2.

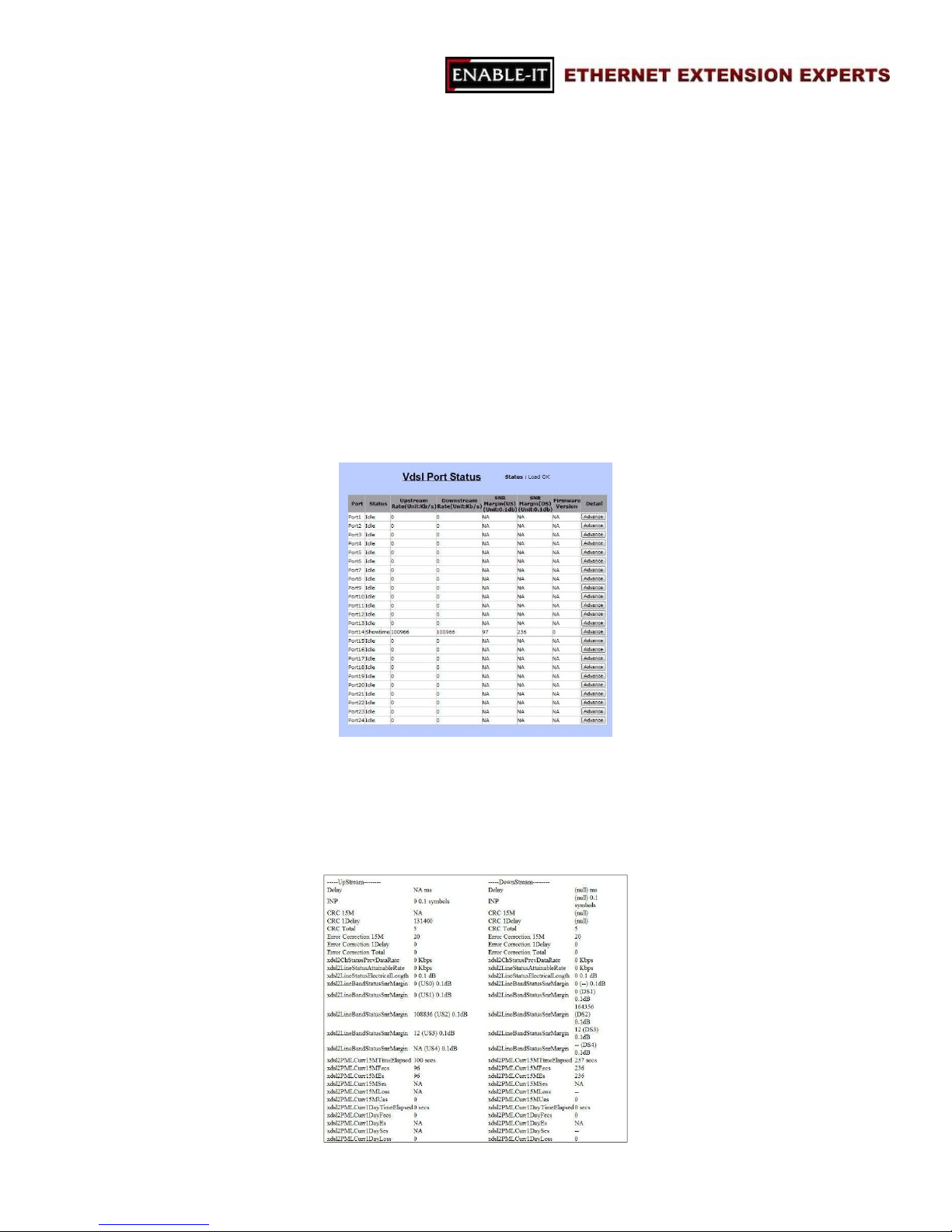

The VDSL Port Status allows the users to monitor the current information of each VDSL port, such as, status, upstream rate, downstream rate, SNR margins for upstream and downstream, and firmware version. In addition, it includes the Advance button for checking the details of the selected port in another window, as the following.

3.1.5 SNMP Configuration

The SNMP setting stands for Simple Network Management Protocol, which is a

 System Options

o Name

 The name of the 8924 DSLAM

o Location

 The location of the switch

o Contact

 The contact information (the name of a person or organization)

o SNMP Status

 Options: Enable or disable

 This option is for enabling or disabling SNMP function.

standard protocol for managing network devices. SNMP is used commonly in Network Management Systems (known as NMS) to monitor network devices. In addition, MIBs (Management Information Bases) is a kind of file which is used to store all the data of managed network devices in NMS according to SNMP standard protocols.

The 8924 DSLAM supports three version of SNMP: SNMPv1, SNMPv2c, and SNMPv3. In the SNMP Configuration page, it includes the following sections.

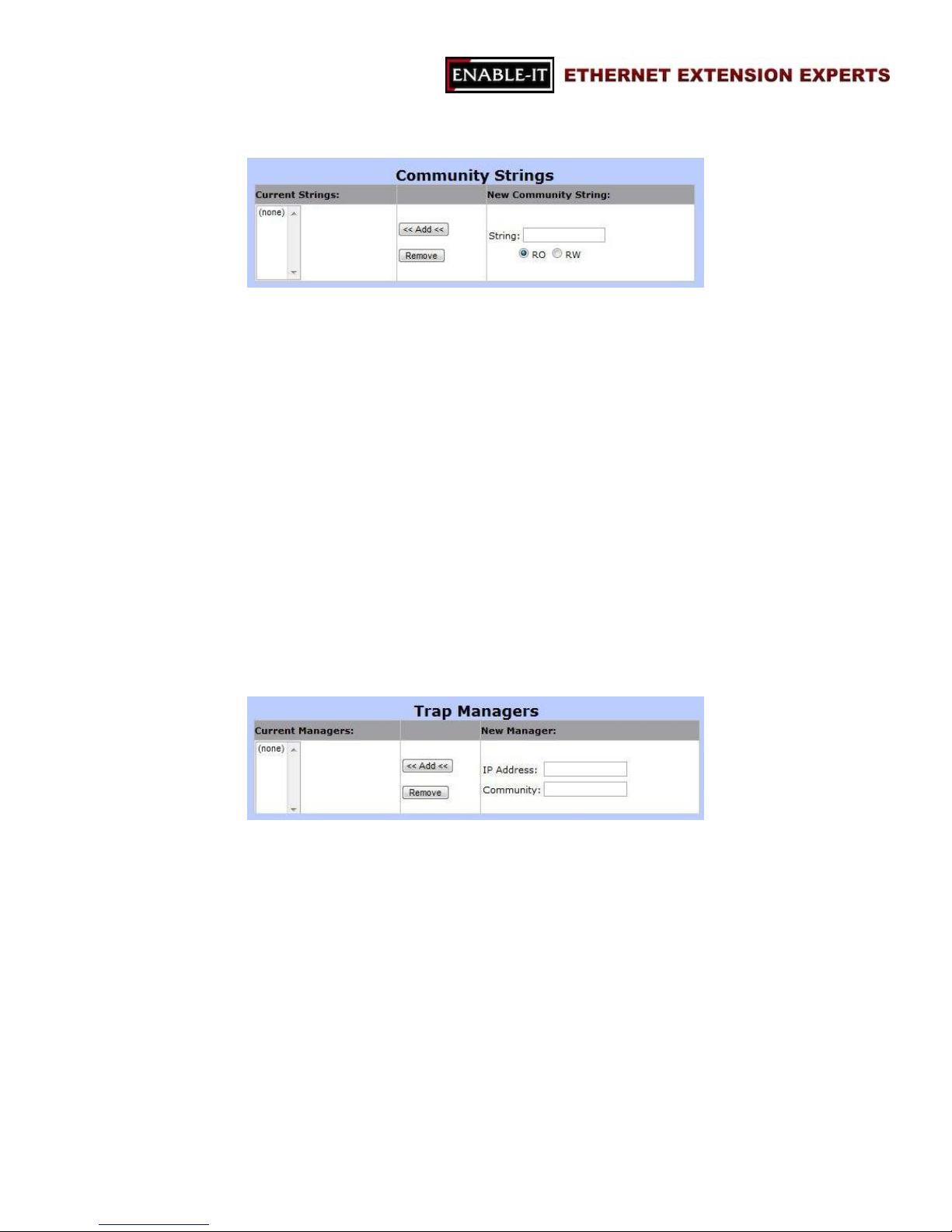

 Community Strings

The Community Strings section is for setting up the password for accessing

o Current Strings

 The list of existing password strings

o New Community String

 Information on a new password

 String: password

 Options: RO (read only) or RW (read and write)

o Add

 Add button: for adding new information on the right hand side of the

o Remove

 Remove button: for removing a password from the left hand side of

 Trap Manager

o

Current Managers

 The list of existing SNMP servers.

o

New Manager

 The information of a new trap manager.

 IP Address: the IP address of the trap manager.

 Community: the password for accessing the trap manager.

o

Add

 For adding new manager.

o

Remove

 For removing the information of the existing manager.

SNMP system.

table to the community list.

the table.

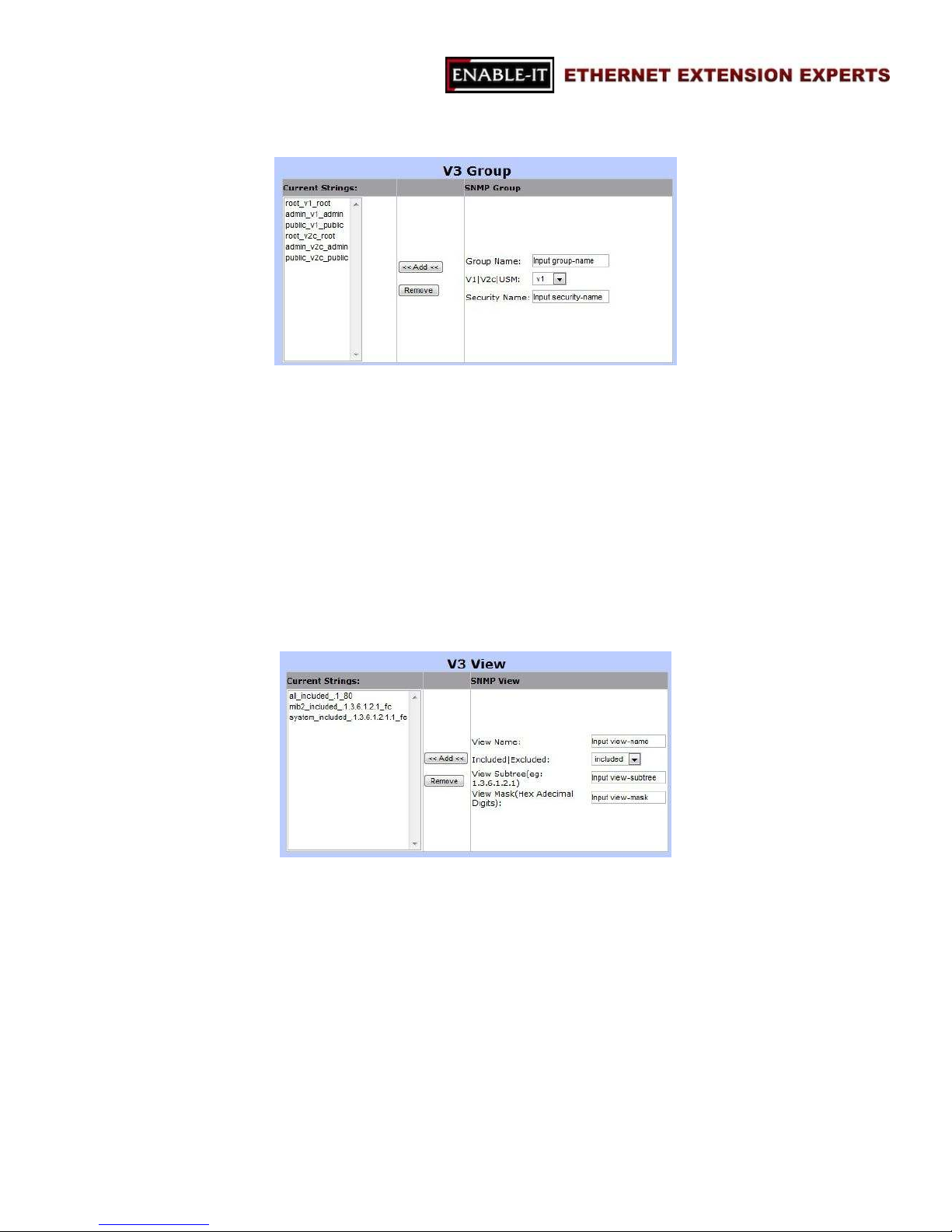

 SNMPv3 Group

o Current Strings

 The list of current SNMPv3 groups.

o SNMP Group

 Group Name: the name of the SNMPv3 group.

 V1/V2c/USM: the security model of this group.

 Security Name: the security name string of this group.

o Add

 For adding new a SNMPv3 group.

o Remove

 For removing an existing SNMPv3 group.

 SNMPv3 View

The SNMPv3 View is to offer or deny access to the complete features list or parts

o

Current Strings

 The name of the current SNMPv3 views.

o

SNMP View

 View Name: the name of the new SNMPv3 view.

 Included/Excluded: the OID should be included or excluded for the

 View Subtree: the feature OID of this view.

 View Mask: the subnet mask of this view.

of features list of the 8924 DSLAM.

SNMP view.

o

Add

 For adding the new SNMPv3 view.

o Remove

 For removing a selected SNMPv3 view from the current strings

table.

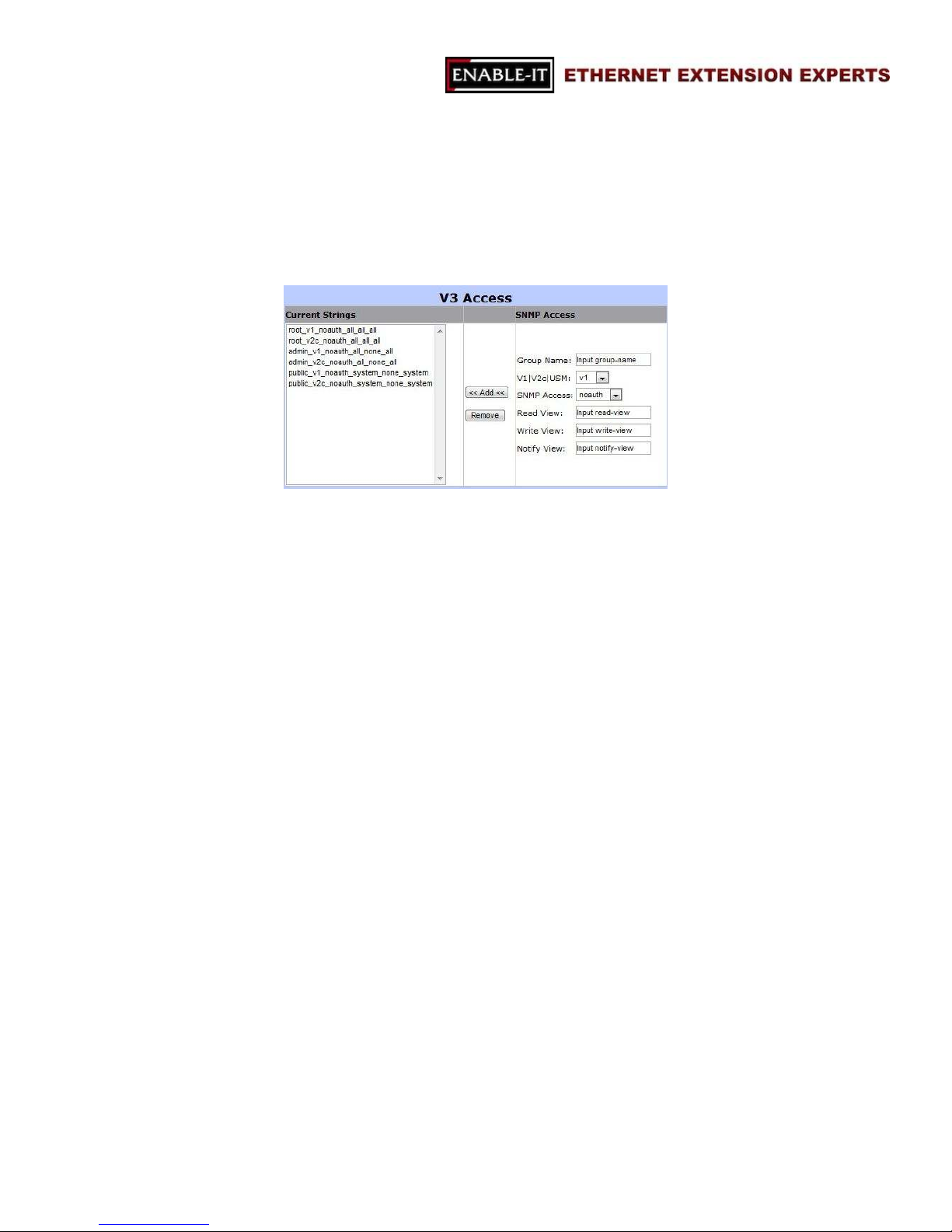

 SNMPv3 Access

o Current Strings

 The list of current SNMPv3 access list

o SNMP Access

 Group Name: the group name of the new SNMPv3 access

 V1/V2c/USM: the security model

- V1: Reserved for SNMPv1

- V2c: Reserved for SNMPv2c

- USM: User-based Security Model

 SNMP Access: the security model

- Options: NoAuth/ Auth/ Authpriv

- NoAuth: None authentication and none privacy

- Auth: Authentication and none privacy

- Authpriv: Authentication and privacy

 Read View: the view name for each group that defines the list of

 Write View: the view name for each group that defines the list of

 Notify View: the view name for each group that defines the list of

o Add

 For adding the new SNMPv3 access

o Remove

The SNMPv3 Access section is for managing SNMPv3 access control, which is different from the access control defined by SNMPv1 and SNMPv2. SNMPv3 access sets up SNMP access levels based on contexts, groups and users, rather than on IP addresses and community strings.

OIDs that are accessible for reading by users belonging to the group.

OIDs that are able to be created or modified by users of the group.

notifications that can be sent to each user in the group.

 For removing an access from Current Strings list

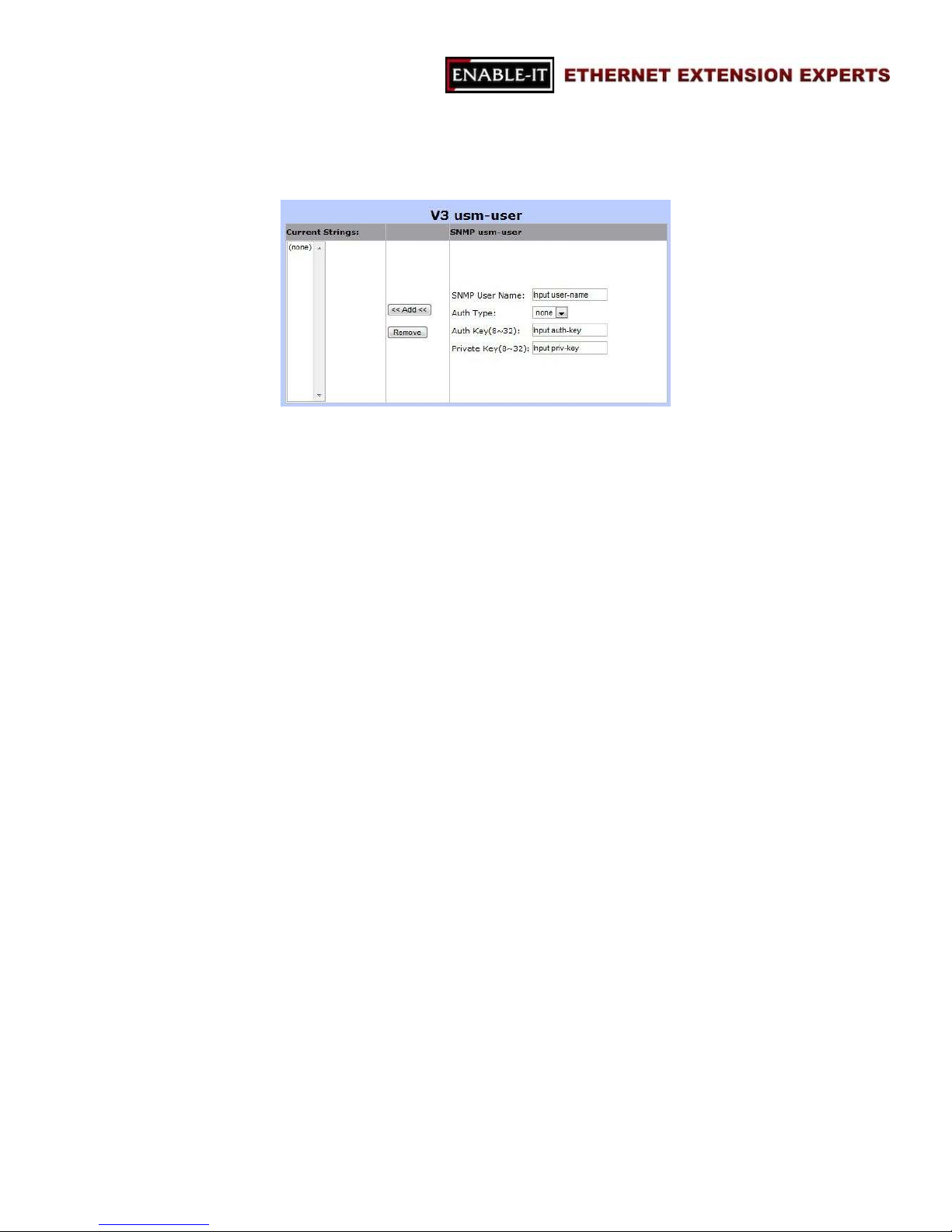

 SNMPv3 USM-User

The SNMPv3 USM-User section is for setting up the details of USM (User-based

o Current Strings

 The list of current SNMPv3 USM-user.

o SNMP USM-user

 SNMP User Name

- The name of new USM user

 Auth Type

- The authentication type

- Options: none or md5

 Auth Key

- The authentication password of the USM user

 Private Key

- The password for the privacy protocol type

o Add

 For adding the new SNMPv3 USM-user

o Remove

 For removing a SNMPv3 USM-user from the current list

Security Model) security model. USM provides different types of security levels using various authentication and privacy protocols.

3.1.6 Syslog Setting

Syslog function is supported in this 8924 DSLAM system. The system will

 Syslog server IP: the IP address of the remote syslog server IP.

 Log level:

o Options: None, Major, or All

3.1.7 Alarm Configuration

 Configure Alarm Information (configuration section)

o

Alarm Item

 Total of four alarms can be set in the 8924 DSLAM

o

Admin

 Options: Disable or Enable

o

Security

 The level of the alarm

o

Title

 The name of the alarm

The send logs to a remote log system. In this system, three events will be reported to the remote log system: cold start, warm start and link change. The following are necessary for connecting the remote syslog server.

The Alarm Configuration is distinguished into two tables: Configure Alarm Information and Alarm Information. Users are able to setup alarms and monitor alarm status.

 Alarm Information (monitor section)

o Alarm Item

o Admin

o Security

o Title

3.1.8 Temperature & Fan Status

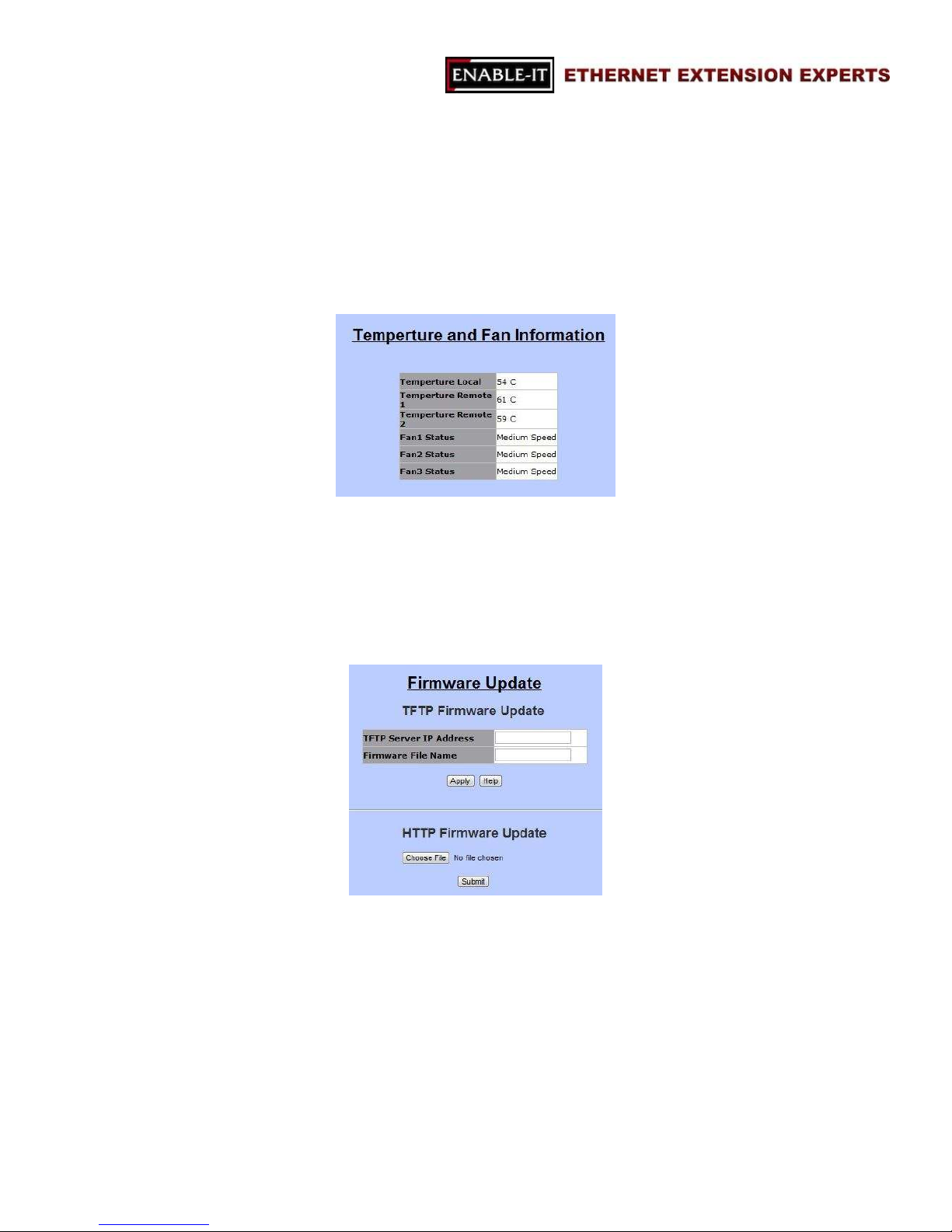

The Temperatures & Fan Status allows users to monitor the real-time information

3.1.9 Firmware Update

of the 8924 DSLAM’s temperatures and FANs.

The Firmware Update allows users to upgrade firmware by themselves. Users are able to choose upgrading firmware through TFTP or HTTP.

3.1.10 Configuration Backup

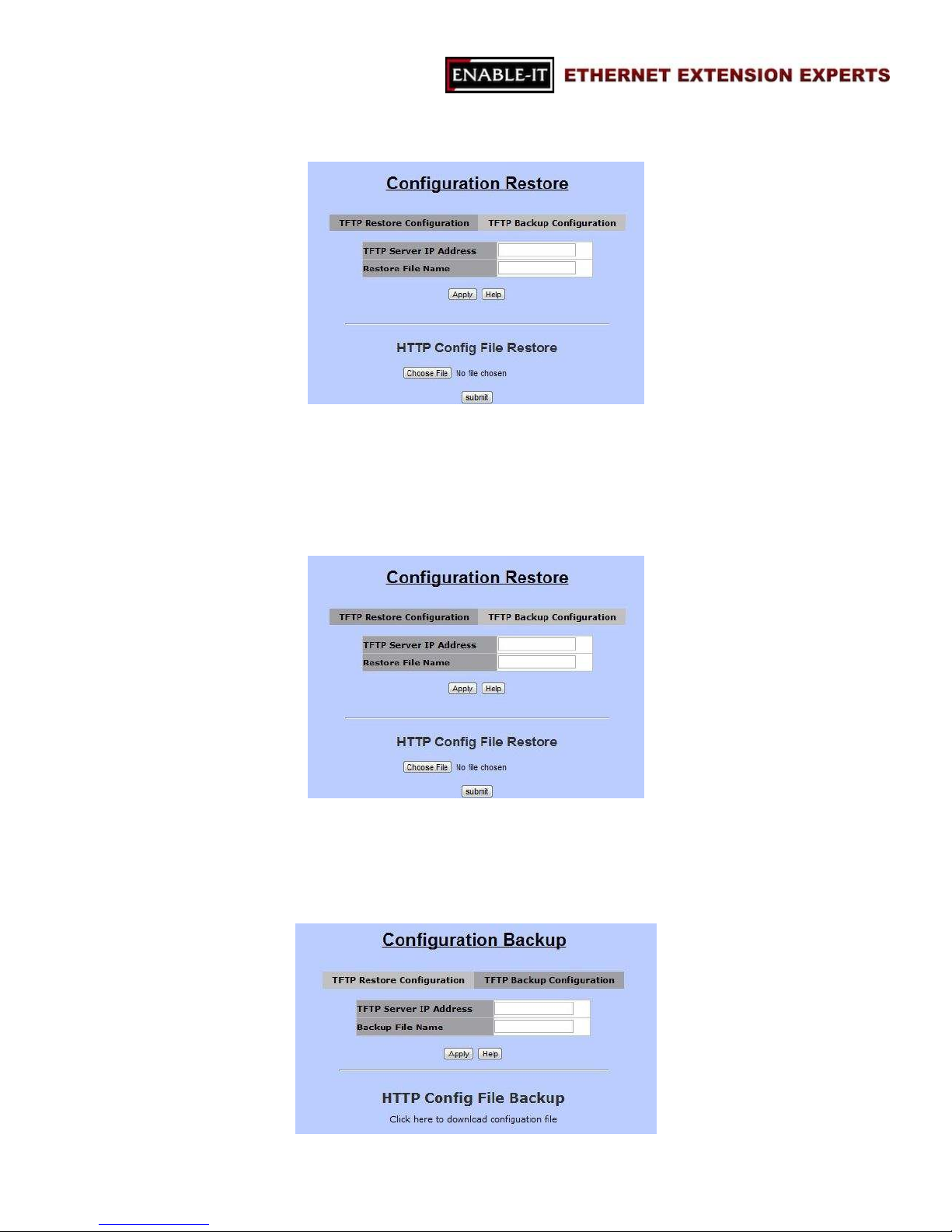

Users are able to load or backup configurations via the Configuration Restore

 TFTP Restore Configuration

 TFTP Backup Configuration

function. This function includes two tabs: TFTP Restore Configuration and TFTP Backup Configuration.

This section is for load the settings from a configuration file. Users are able to upload the settings by TFTP or HTTP.

This area allows users to download the current configuration through TFTP or

3.1.11 SNTP Setting

 SNTP

o To enable or disable SNTP feature.

o Options: Enable or Disable.

 SNTP server IP

o The IP address of the assigned SNTP server.

 UTC Type

o To decide the time zone.

o Options:

 After-UTC: UTC+hh (hh: hours)

- For example, Taipei (UTC+08), choose “After-UTC”.

 Before-UTC: UTC-hh (hh: hours)

- For example, San Francisco (UTC-08), choose “Before-UTC”.

 Time Range

o

This field is for setting up the hour data in “UTC-hh/UTC+hh”.

 For example, UTC-08, then, choose “Before-UTC” in UTC type and

 Time

o This section is for displaying the current time once the switch is connected

HTTP.

SNTP stands for Simple Network Time Protocol. SNTP is a simpler version of Network Time Protocol (NTP), which is a system for synchronizing the clocks of network computer systems. By enabling SNTP function, users are able to configure this switch to send time synchronization requests to the assigned servers with servers’ IP addresses.

fill in “8” in Time Range.

to the assigned NTP server.

3.2 L2 Features

The 8924 DSLAM offers flexible L2 Features with the following functions:

 VLAN Configuration

 Trunking

 Forwarding & Filtering

 IGMP Snooping

 Spanning Tree

 DHCP Relay & Opt.82

3.2.1 VLAN Configuration

 Static VLAN

 GVRP VLAN

 QinQ VLAN

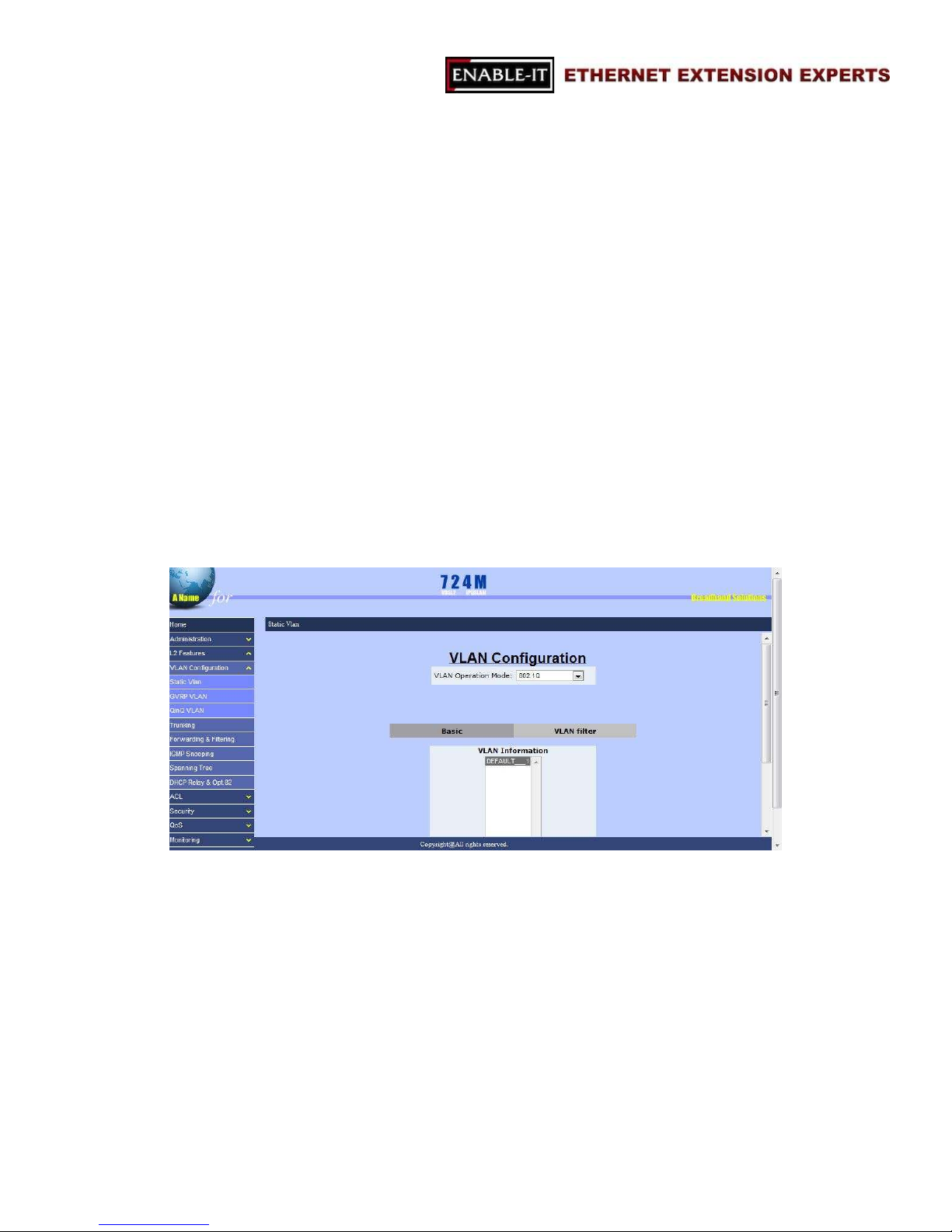

VLAN stands for Virtual Local Area Network or virtual LAN. It is a concept of separating and grouping LAN segments by a common set of requirements. VLAN presents some benefits, such as, simplifying network design and enhancing or improving bandwidth performance.

The 8924 DSLAM supports three kinds of VLAN algorithms:

3.2.1.1 Static VLAN

Static VLAN function allows users to setup and manage VLAN groups manually.

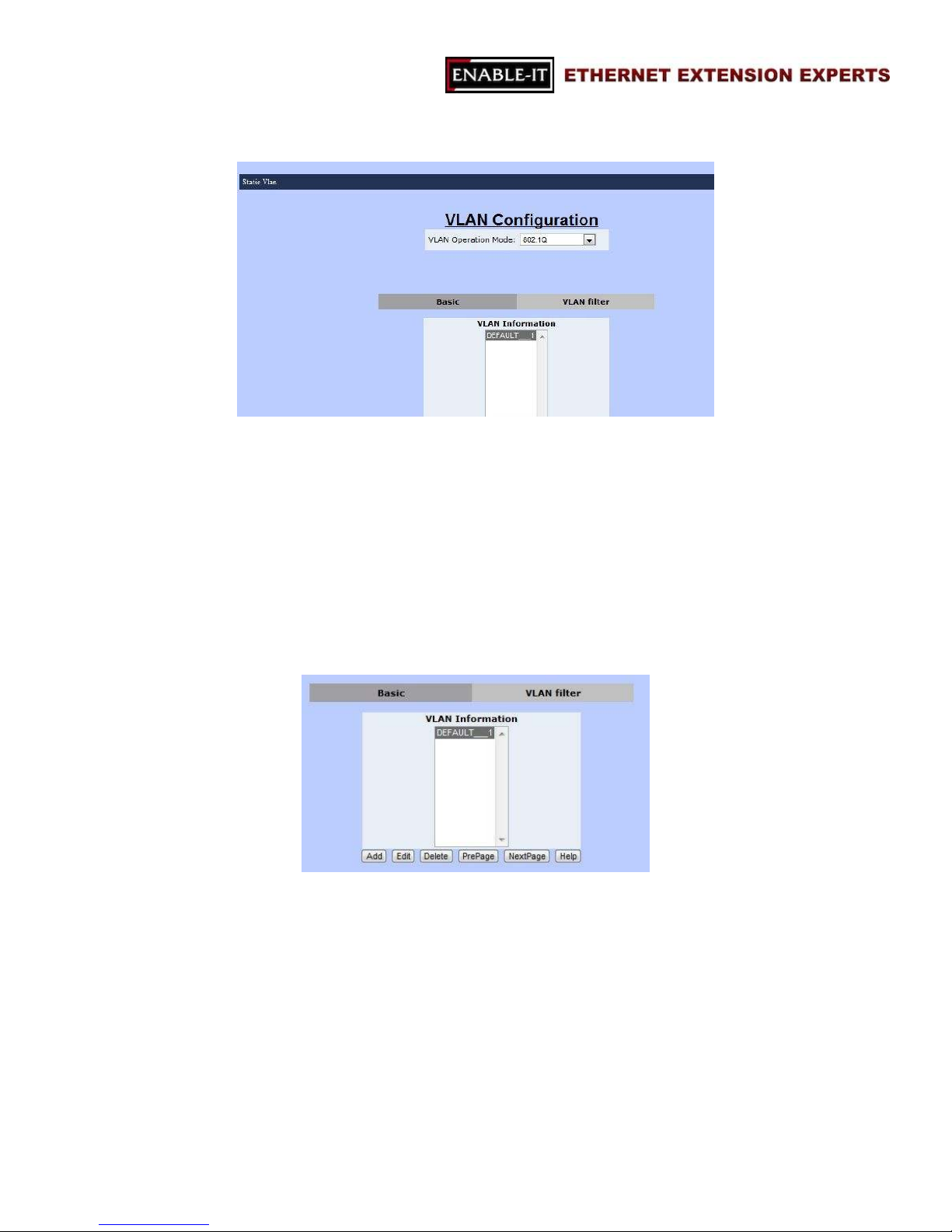

 VLAN Operation Mode

o No VLAN

 To disable VLAN mode.

o Port-Based VLAN

 To setup VLAN groups by ports.

o 802.1Q VLAN

 To setup VLAN groups by 802.1Q VLAN tags.

 Basic

VLAN Information displays all VLAN groups stored already. The following buttons allow users to manage VLAN groups.

Note: The VLAN mode of VLAN operation mode is the global setting of Basic and VLAN Filter.

o

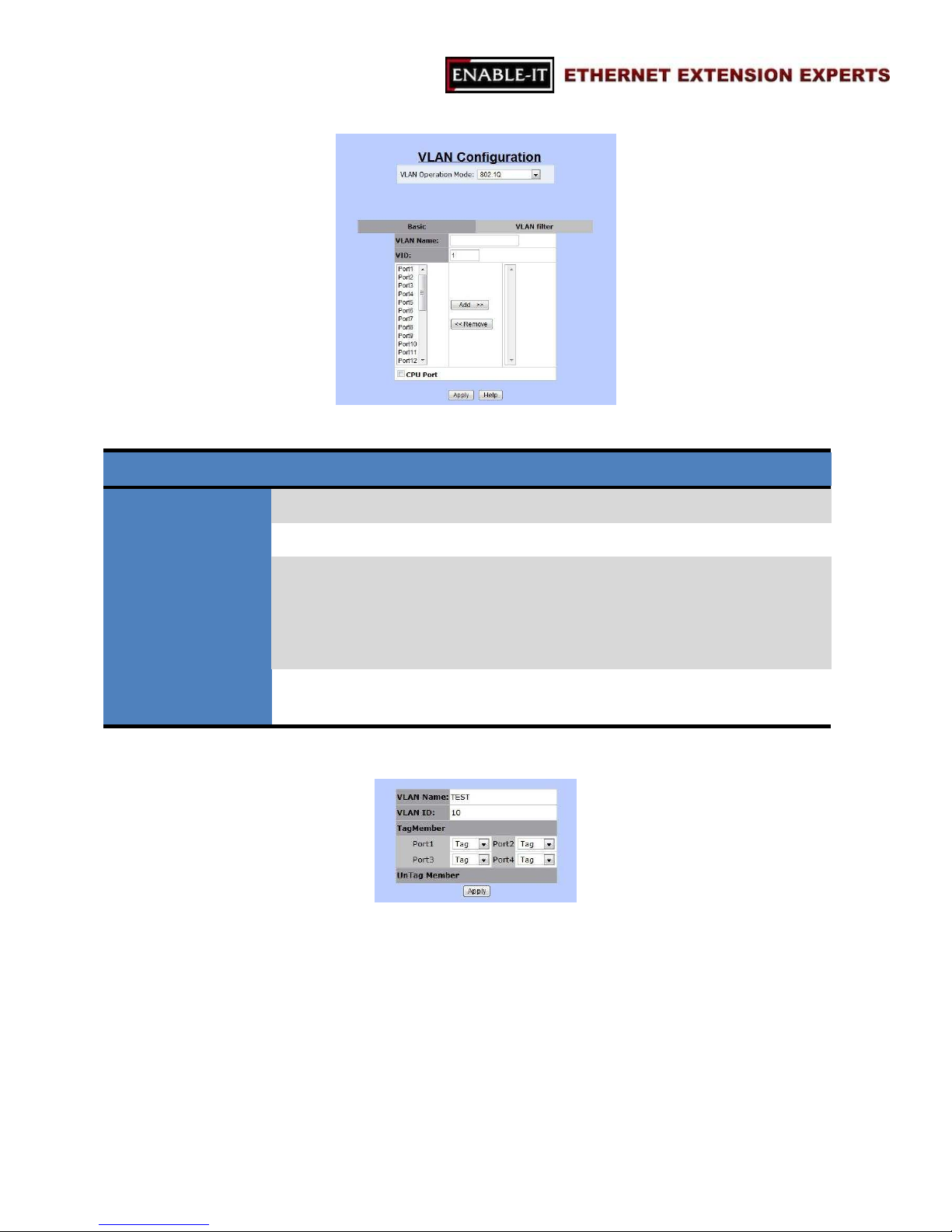

Add

 To create a new VLAN group.

 Click Apply to set up tag mode.

o Edit

 To change the settings of an existing VLAN group.

o Delete

 To remove an existing VLAN group.

o PrePage

 To move to the previous page of VLAN information table.

o NextPage

 To move to the following page of VLAN information table.

o Help

 To open FAQ page of VLAN configuration.

Name Description

VLAN Name The name of this VLAN group

VID

VLAN ID

VLAN Members There are three columns in this section.

 Ports (left-hand side): Port1 ~ Port24, Mod1, Mod2

 Add or Remove (middle): for adding or removing a port

 Selected Ports (right-hand side): the VLAN group members

CPU Port Click on this checkbox to choose this VLAN group as the management

group of this 8924 DSLAM.

 VLAN Filter

o NO

 The list of available ports.

 Click on a port to change the details. In addition, the current setups

will show in a different table right next to the setup table.

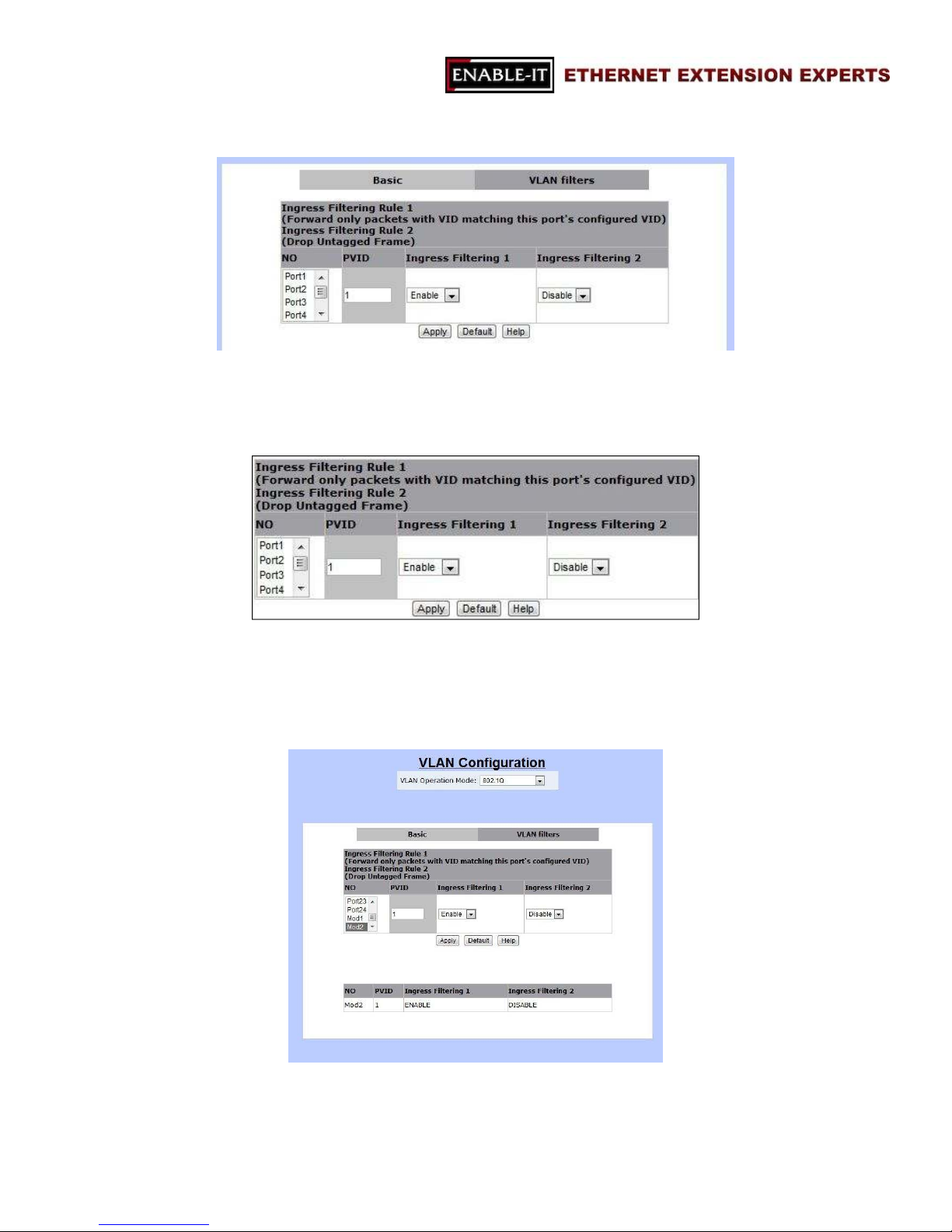

VLAN filter function is for setting the filtering rules for all ports (Port1 ~ Port24, Mod1 and Mod2).

Users are able to define filtering rules for each port.

o

PVID

 The VLAN ID of ingress packets.

Two filtering rules are available in VLAN Filtering function of this 8924 DSLAM.

o Ingress Filtering 1

 Only these ingress packets with the assigned VLAN ID are able to

 Options: Enable or Disable (disable filtering function)

o Ingress Filtering 2

 Enabling this rule will drop all untagged packets.

 Options: Enable (only packets with the assigned VLAN ID can pass

3.2.1.2 GVRP VLAN

pass through this port.

through this port) or Disable (accept all packets)

GVRP stands for GARP (Generic Attribute Registration Protocol) VLAN Registration Protocol or Generic VLAN Registration Protocol. GVRP VLAN method follows IEEE

802.1Q specification and defines tagging frames with VLAN configuration data. This meaning allows VDSL2 IP DSLAM to exchange VLAN configuration information with other network devices dynamically.

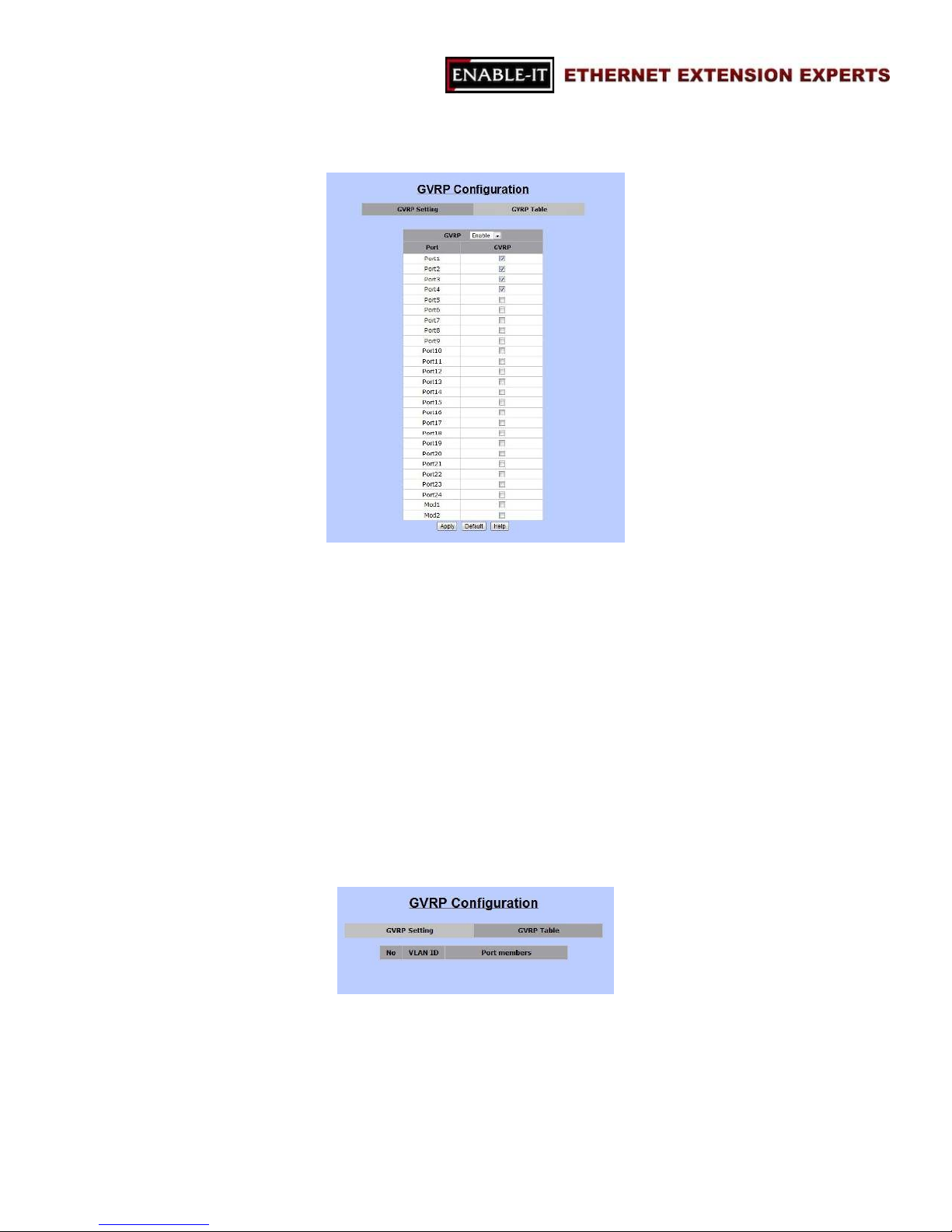

 GVRP Setting

o For setting up GVRP configurations

 GVRP

- Options: Enable or Disable

 Port & GVRP

- Port1 ~ Port24, Mod1, Mod2 & corresponding checkbox.

- Click on the checkboxes to choose GVRP group members.

 Apply

- To save the modifications.

 Default

- To restore default settings.

 Help

- To open the FAQ page of GVRP VLAN.

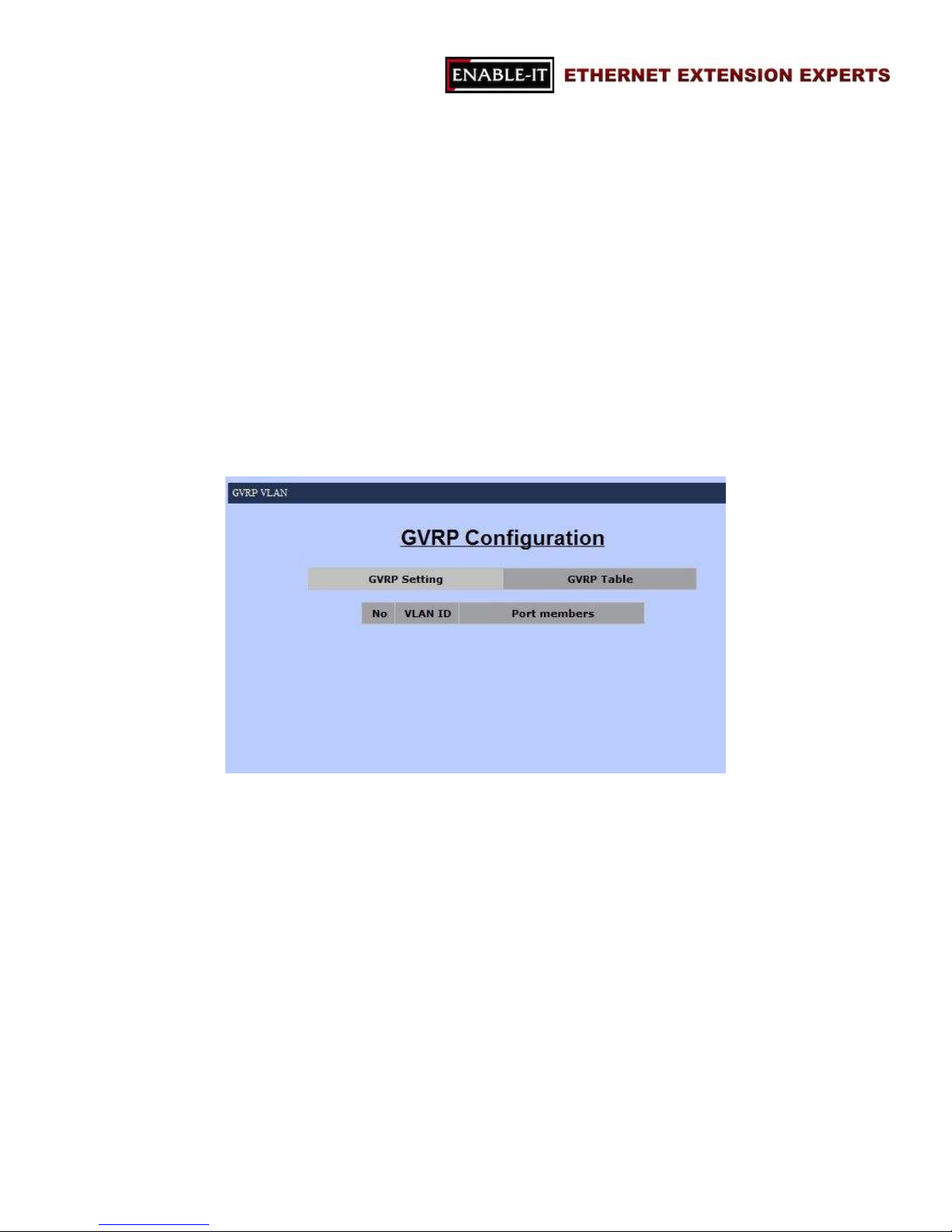

 GVRP Table

o

This table is for displaying current GVRP VLAN information.

GVRP will learn VLAN ID and its group member automatically. This table will show this information.

3.2.1.3 QinQ VLAN

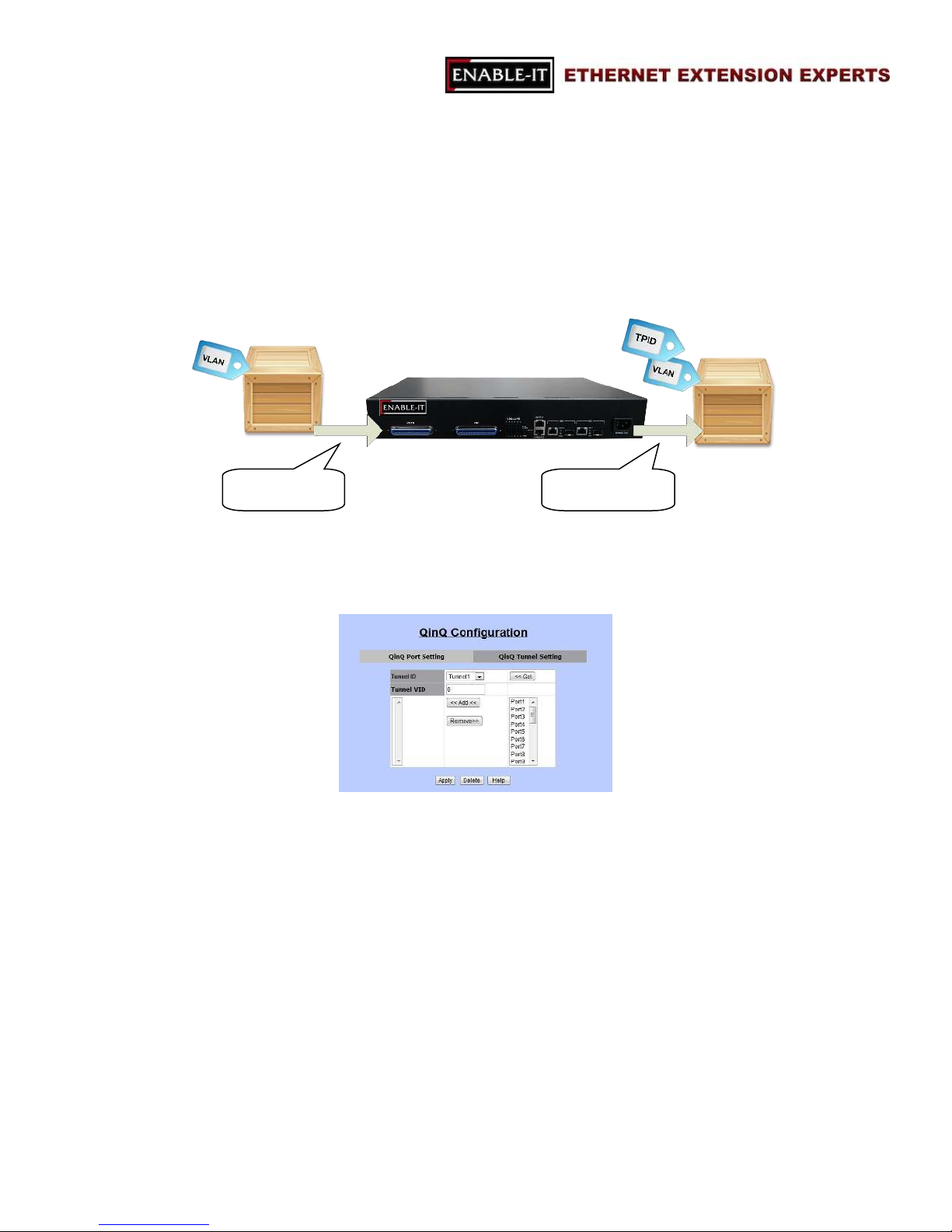

QinQ VLAN function allows users or service providers to separate traffic service for

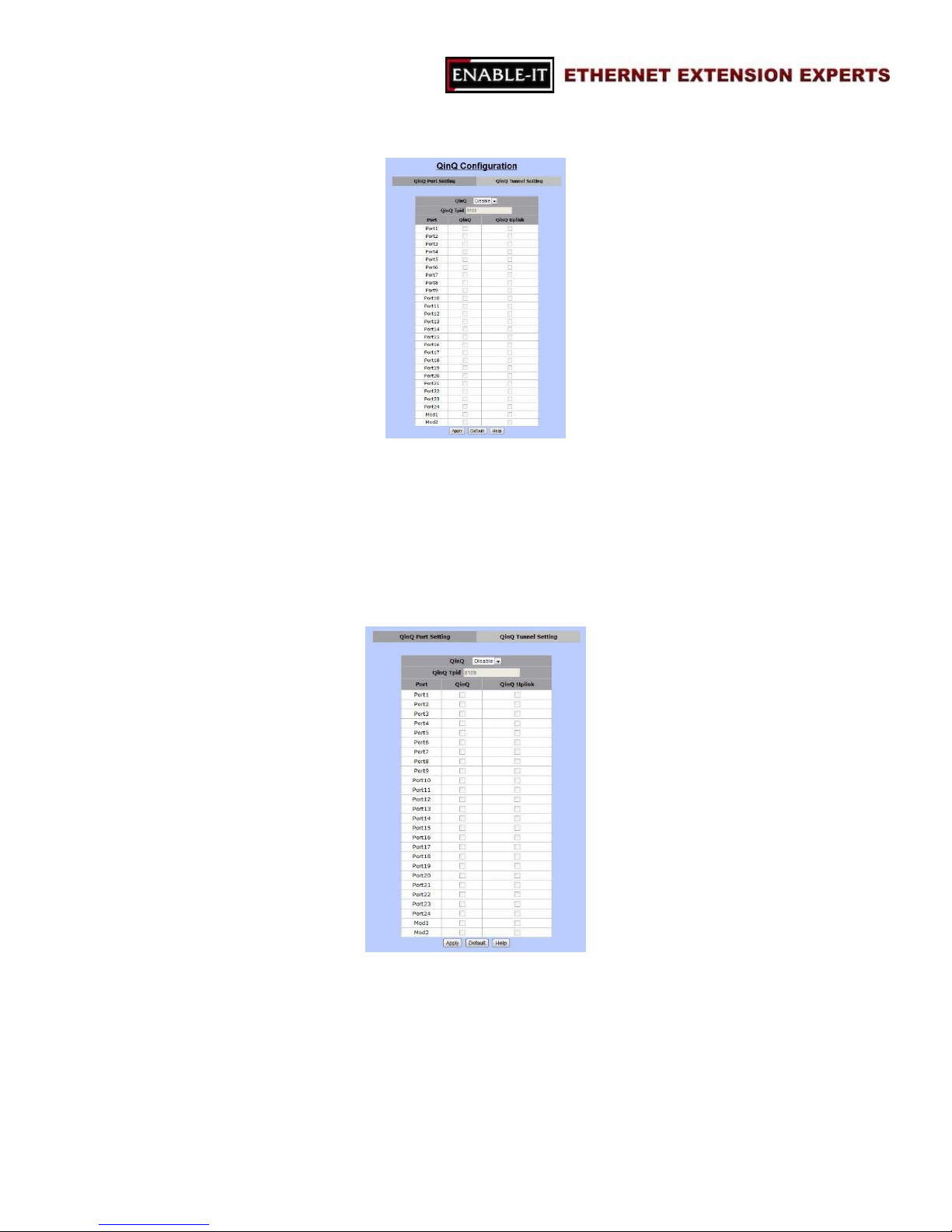

 QinQ Port Setting

 QinQ Tunnel Setting

 QinQ Port Setting

o This section is for setting up QinQ mode, TPID, and group members.

o The followings are the details that are required to be filled in for setting

 QinQ: Disable or Enable

 QinQ TPID:

- TPID stands for Tag Protocol Identifier.

different customers by adding service provide VLAN tags and customer VLAN IDs. In this function, settings are divided into two parts:

QinQ function.

- TPID is the Ethertype value for 802.1Q encapsulation.

- Standard Ethertype value: 0x8100 (Default value)

- Range: 0x0800 ~ 0xFFFF (hexadecimal value).

 Port Table:

- QinQ: for choosing which port should be enabled with QinQ mode.

- QinQ Uplink: for setting up an uplink port of this QinQ group.

 QinQ Tunnel Setting

o Tunnel ID

o

Tunnel VID

3.2.2 Trunking

QinQ Port

QinQ Uplink

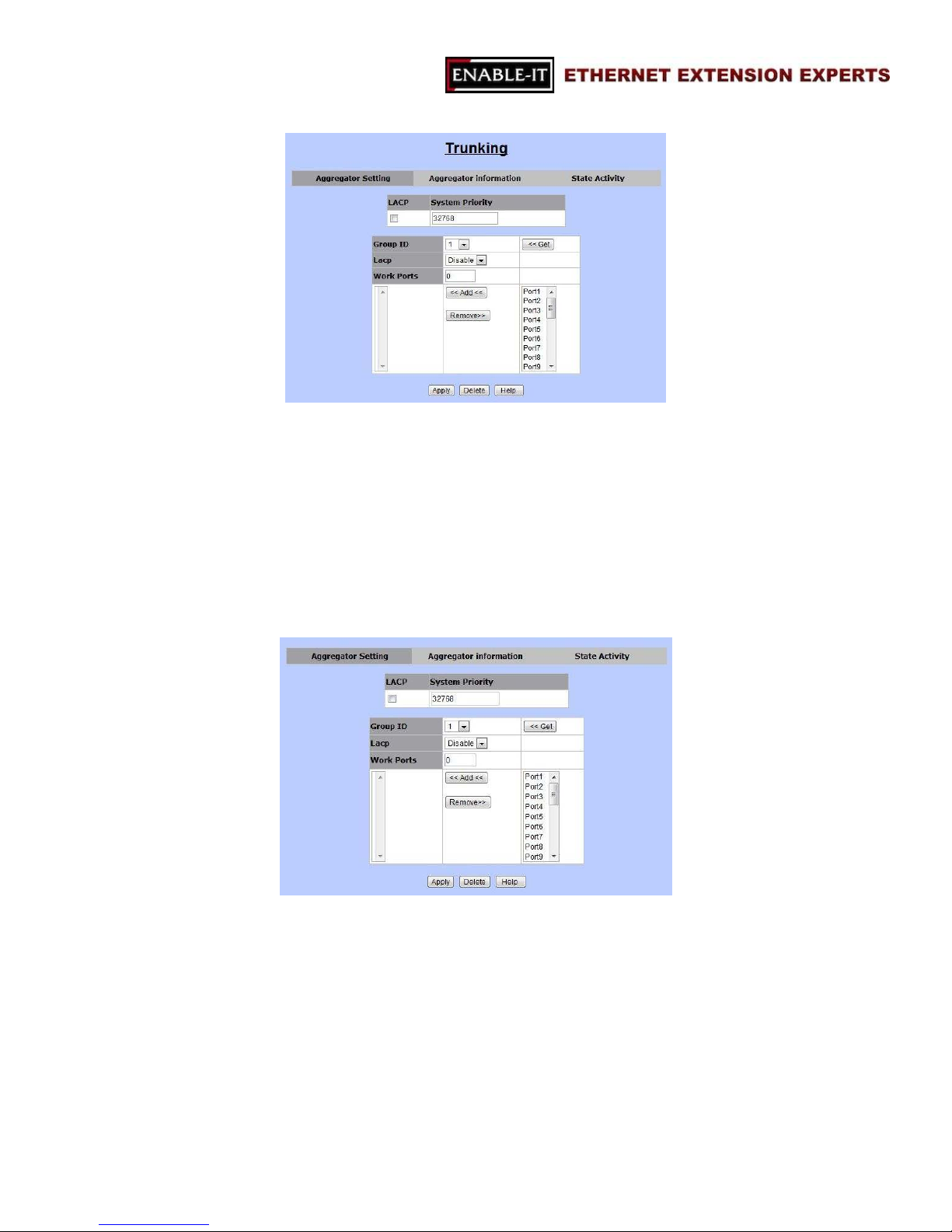

The Trunking function allows users to combine several ports or connections together

 Static Trunk

 LACP

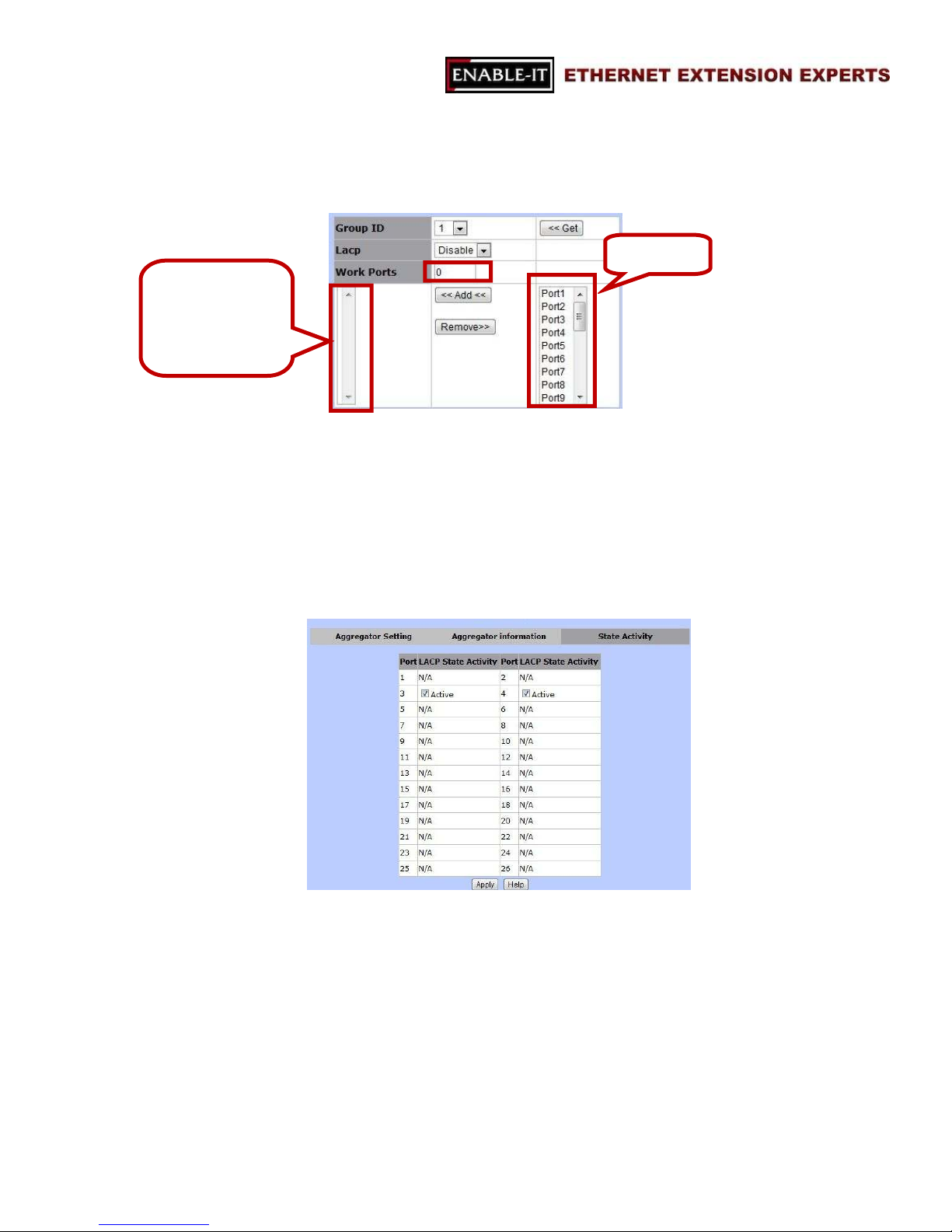

o Aggregator Setting

 This section allows users to setup trunking groups and details.

 The following information is needed for setting up a trunk group.

- LACP (checkbox): for enable or disable LACP algorithm by check

- System Priority: this value is for identifying the active LACP of this

- Trunk Group Table

 Group ID: the trunk group ID (1~13)

 LACP: Enable or Disable LACP algorithm for this trunk

to create one single connection which has a higher and faster connection speed. Trunking is also called Link Aggregation. Two trunking techniques are available in this 8924 DSLAM:

on the checkbox.

8924 DSLAM. (Note: the lowest value presents the highest priority.)

group.

 Work Ports: the total port number of the group member.

o Aggregator information

 This section allows users to review trunk information.

 Two data are reviewed in this section:

- Group Key: the trunk group ID.

- Port No: the port member of this trunk group. (Port1 ~ Port24,

o Static Activity

 This area is for setting up LACP mode (active or passive)

- Active: the active port will send LACP packets automatically.

- Passive: the passive port will not send LACP packets but it will

Port List

The selected port list. The number should be matched to the value of “Work

(Please select the group number in the following port list.)

Mod1, Mod2)

respond if and only if it receives LACP packets from the other end.

3.2.2.1 Forwarding & Filtering

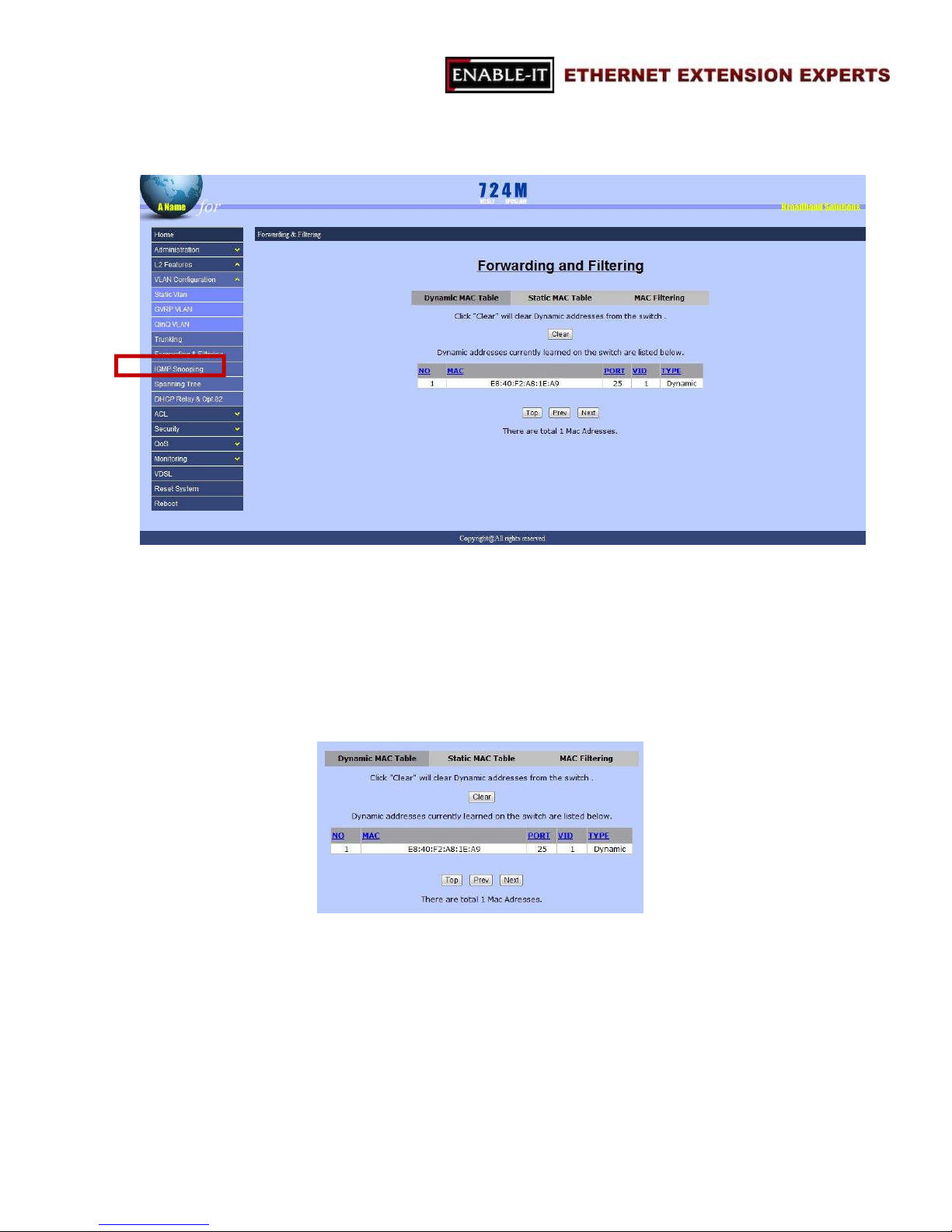

The Forwarding & Filtering function is for users to setup rules about packets.

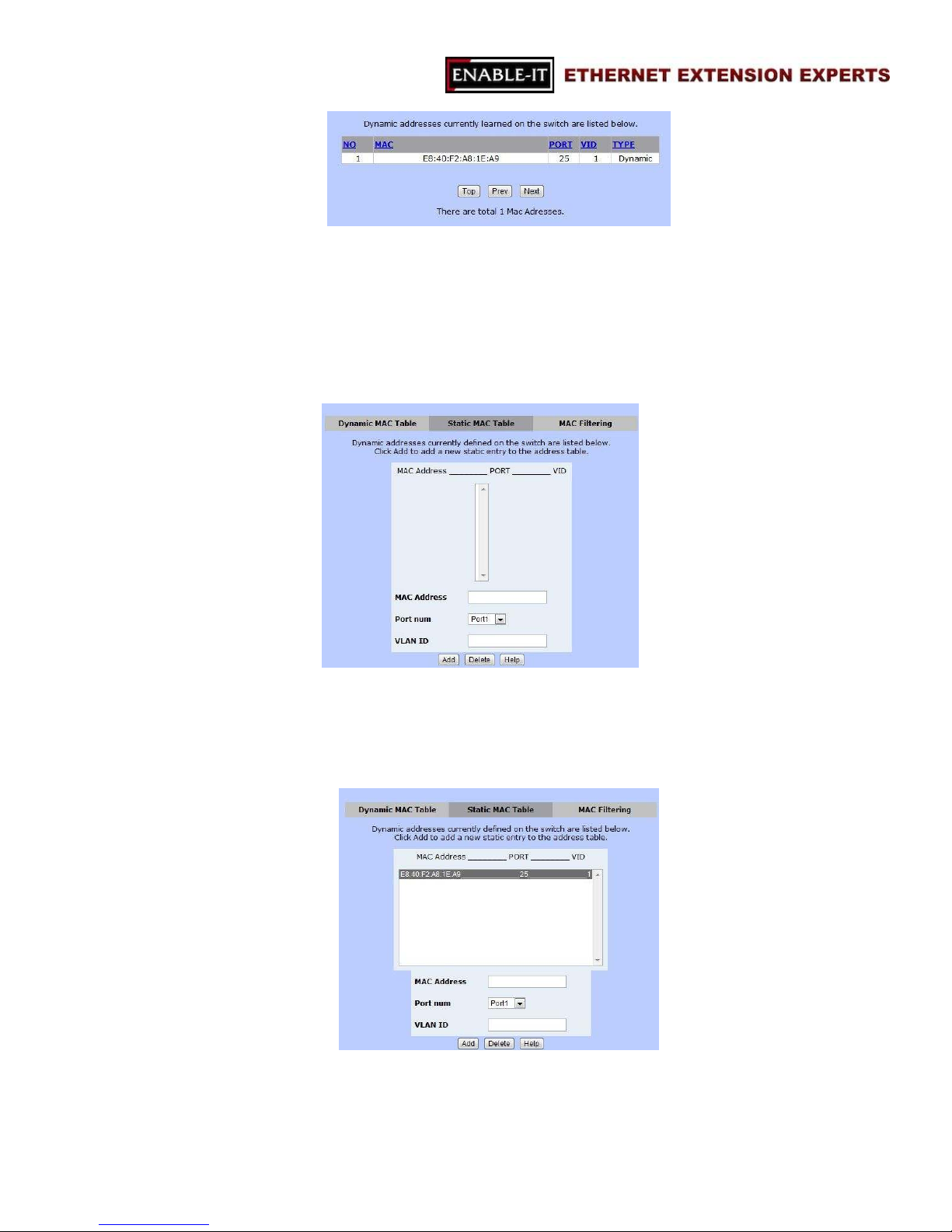

 Dynamic MAC Table

 Static MAC Table

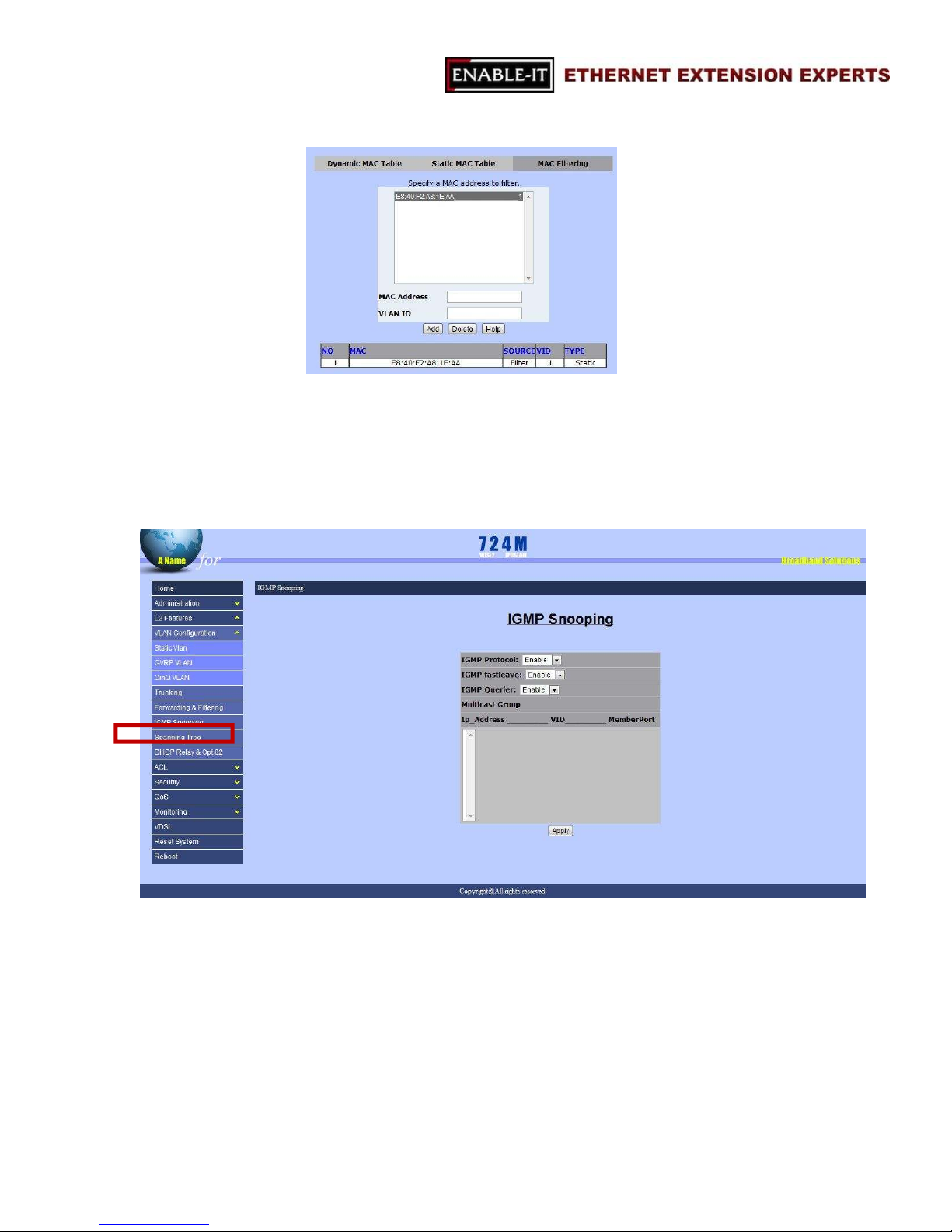

 MAC Filtering

o

Dynamic MAC Table

 The VDSL2 IP DSLAM will learn devices’ MAC addresses

Four ways to setup these rules:

dynamically and record these addresses into MAC address table. This section will show all the found MAC addresses as the following table.

 Clear: to clear the dynamic MAC address table.

 Top: to show the first page of the MAC address table.

 Prev: to go to the previous page of the MAC address table.

 Next: to go to the next page of the MAC address table. (Note: if

there is nothing showed, it means this is the end page.)

o

Static MAC Table

 Users are able to fill up the MAC addresses of devices

connected to the switch. By adding a static MAC address, the switch will save the information permanently and will not attend to learn the MAC address of this device when the device is online.

MAC Filtering

 Users are able to define and drop unwanted traffic in “MAC

Filtering” function.

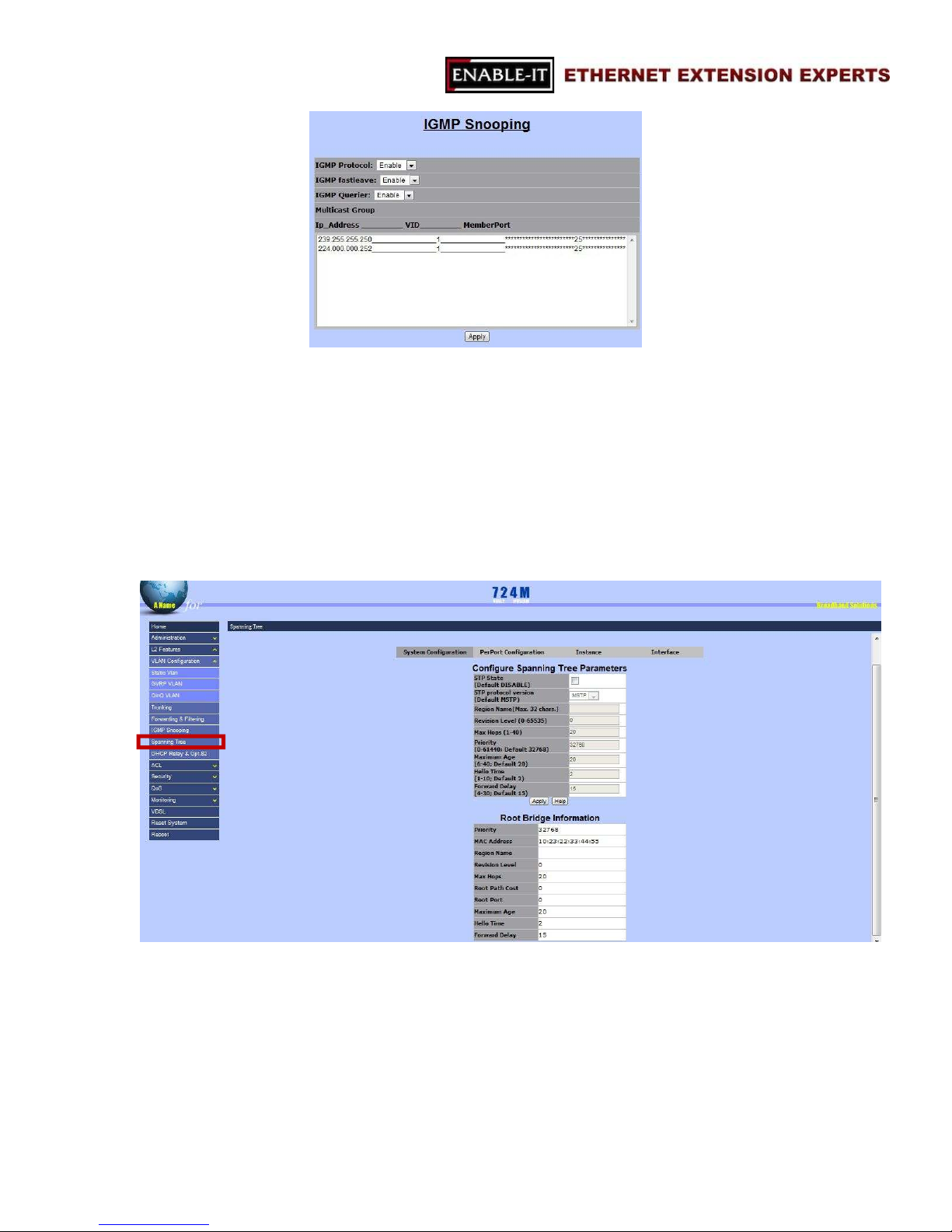

3.2.3.1 IGMP Snooping

“IGMP” stands for “Internet Group Management Protocol”. IGMP allows hosts and routers to build multicast group memberships. IGMP snooping presents the process of IGMP network traffic listening. With this feature, VDSL2 IP DSLAM is able to listen to IGMP conversation between hosts and routers. The switch is able to maintain a relation map of links and IP multicast streams.

The following settings are needed in order to allow IGMP snooping work

 IGMP Protocol: to enable or disable IGMP function.

 IGMP Fastleave: to enable or disable IGMP Fastleave mode.

 IGMP Querier: to enable or disable IGMP Querier mode.

 Multicast Group: the multicast group list table.

properly.

3.2.4.1 Spanning Tree

Spanning Tree (also known as, STP) is a network protocol which is defined by IEEE 802.1 D standards for preventing bridge loops and broadcast radiation. In addition, STP allows redundant links to provide automatic backups. Most commonly known STP algorithms are STP (Spanning Tree Protocol), RSTP (Rapid Spanning Tree Protocol), and MSTP (Multiple Spanning Tree Protocol). This VDSL2 IP DSLAM supports both STP and MSTP. In addition, in this

Switch, users are able to set up STP either for the whole system of the Switch or

o

System Configuration

o

PerPort Configuration

o

Instance

o

Interface

for each individual port.

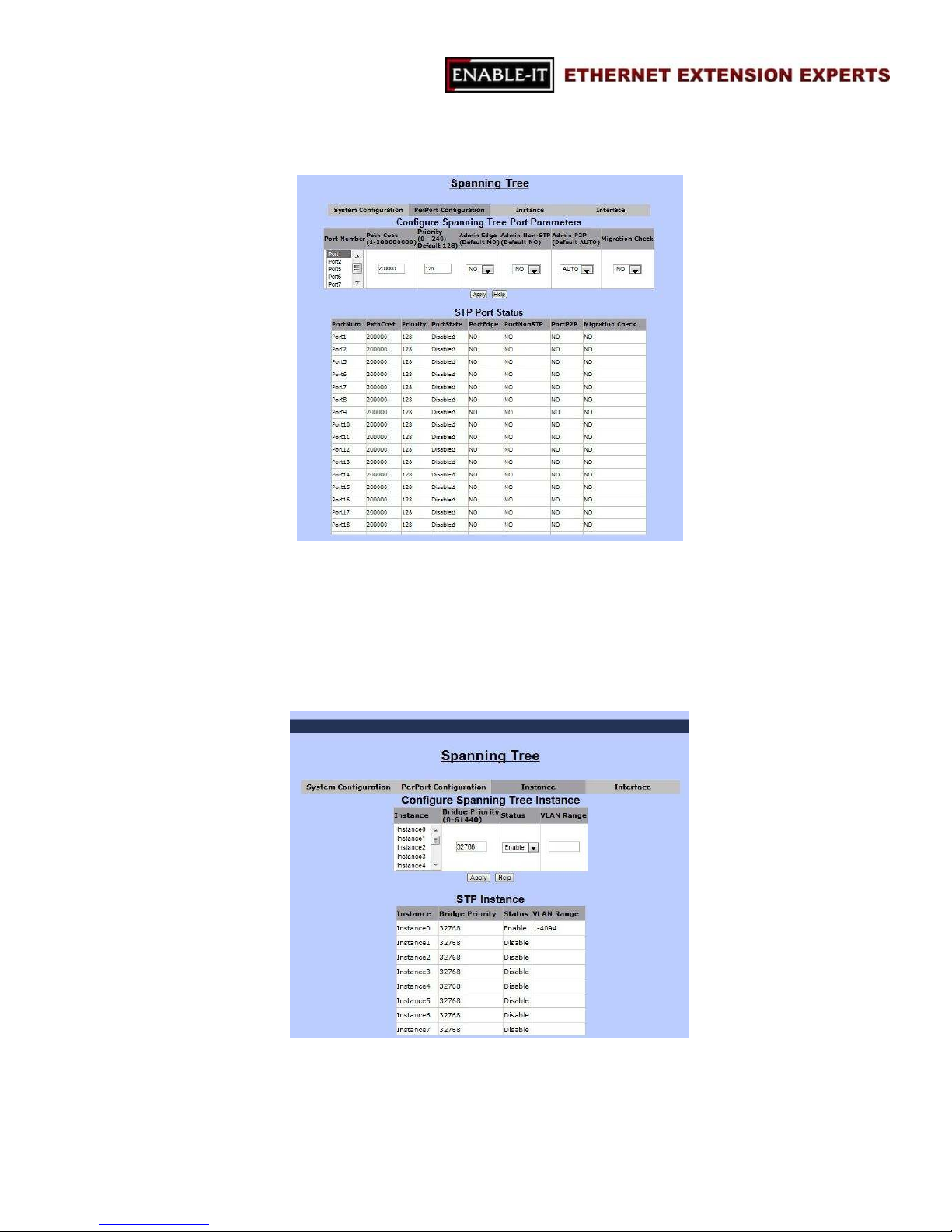

In Spanning Tree function, there are four major setup pages as the following sections.

3.2.5.1 System Configuration

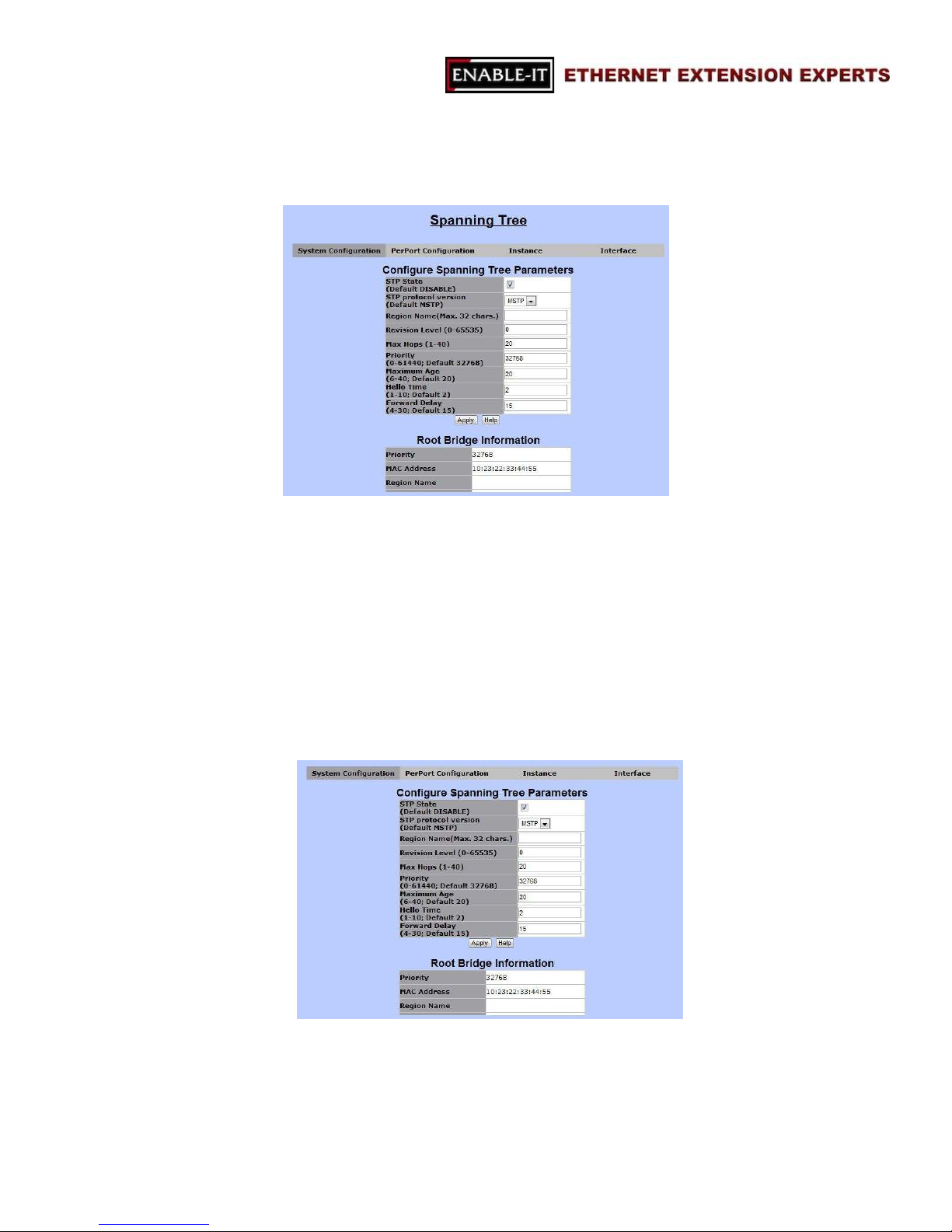

“System Configuration” allows users setting up the details of STP function. In addition, the information of the root node of the STP will be displayed in this page.

 Configure Spanning Tree Parameters

o STP State

 To enable or disable STP function.

 Note: to enable STP function, users are required to click on this

checkbox and press “Apply” button. Then, after the saving

o STP protocol version

 STP or MSTP

o Region Name

 Name of STP tree

o Revision Level

 The level of STP tree

o Max Hops

 Hop number

o Priority

o Maximum Age

 The waiting time (seconds) before the switch attempts to

o Hello Time

 The time (seconds) the switch will send BPDU packets to

o Forward Delay

 Root Bridge Information

o

Priority

o

MAC Address

o

Region Name

o

Revision Level

o

Max Hops

o

Root Path Cost

o

Maximum Age

o

Hello Time

o

Forward Delay

process is completed, users are able to fill up the rest of the information.

reconfigure.

check STP current status.

3.2.6.2 PerPort Configuration

“PerPort Configuration” is for setting up Spanning Tree mode for each individual

3.2.6.3 Instance

port.

3.2.6.4 Interface

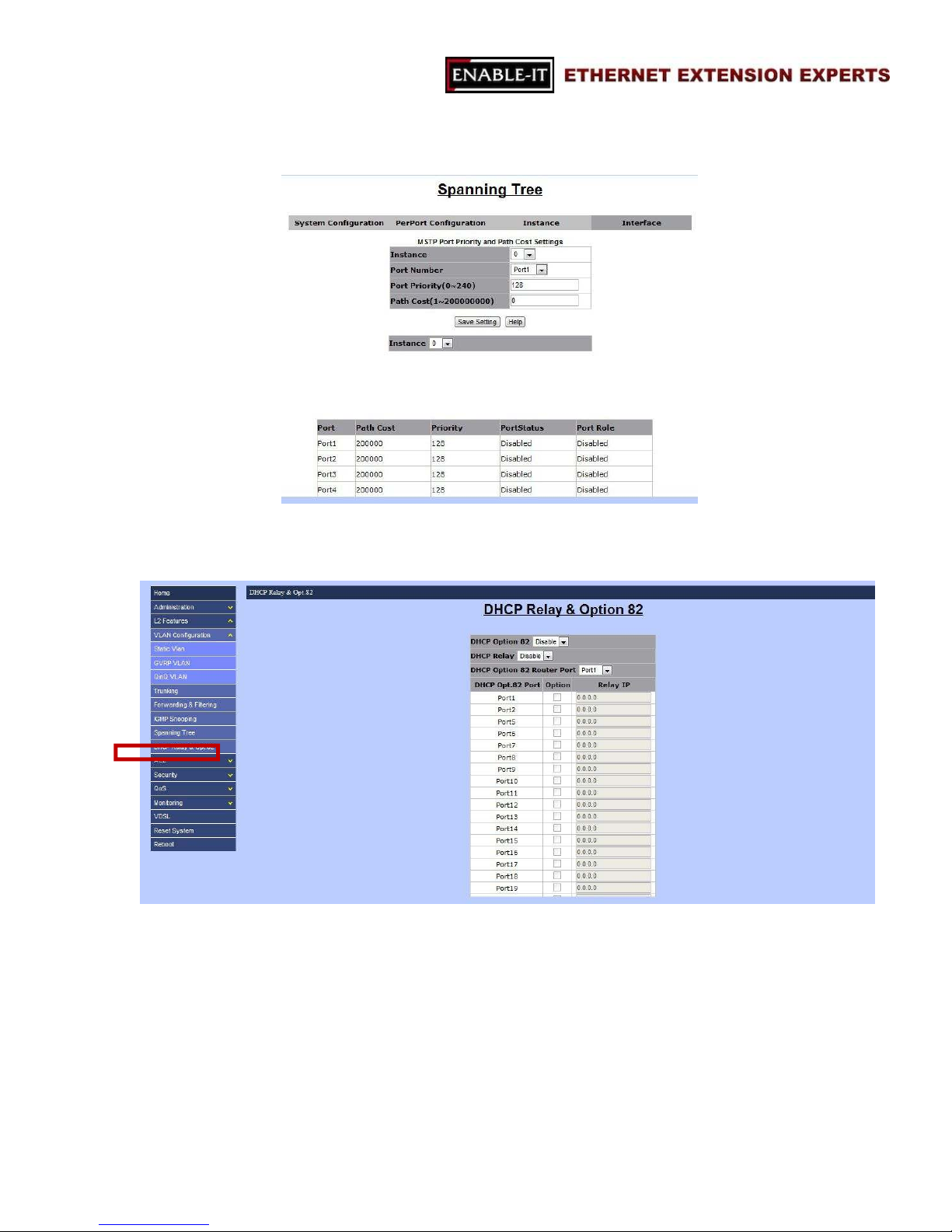

3.2.7 DHCP Relay & Opt.82

“DHCP” stands for “Dynamic Host Configuration Protocol”, which is a network protocol that is for configuring network devices dynamically so these devices can communicate on an IP network. It is a service that runs at the application layer of TCP/IP protocol stack to assign IP addresses to its clients dynamically.

“DHCP Relay” will forward DHCP broadcasts to multiple DHCP servers in

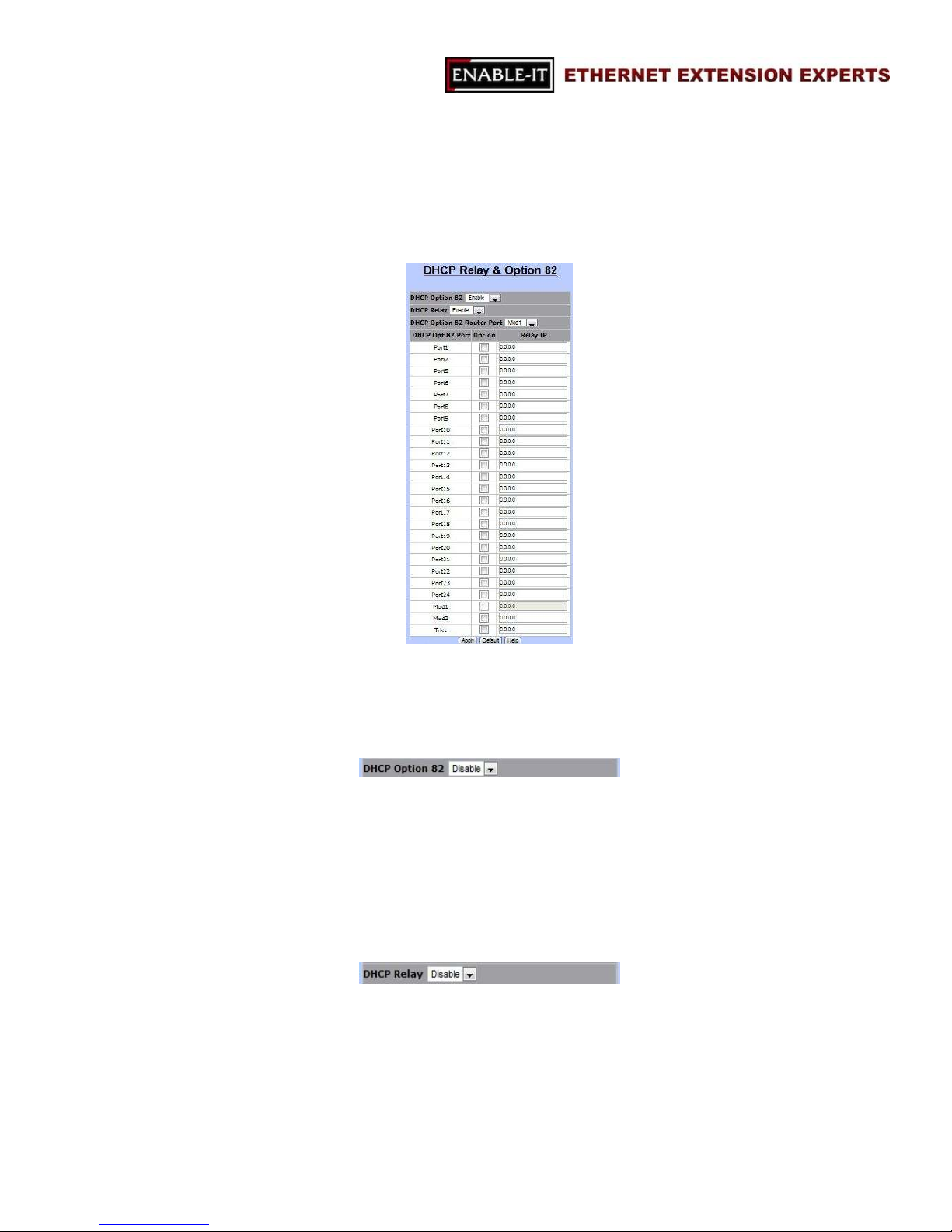

3.2.7.2 DHCP Option 82

3.2.7.3 DHCP Relay

different subnets using unicasts. By doing so, DHCP clients on subnets not directly served by DHCP servers can communicate with DHCP servers. In addition, “DHCP Relay Information Options 82”, is defined in RFC 3046 and RFC 3993, allows a DHCP Relay agent to insert circuit specific information to a request which is forwarded to a DHCP server.

Users are allowed to enable or disable DHCP Option 82 by choosing the options in the dropdown menu. To setup DHCP Option 82 for this switch, users are required to enable this option first.

DHCP Relay is for enabling or disabling DHCP Relay function.

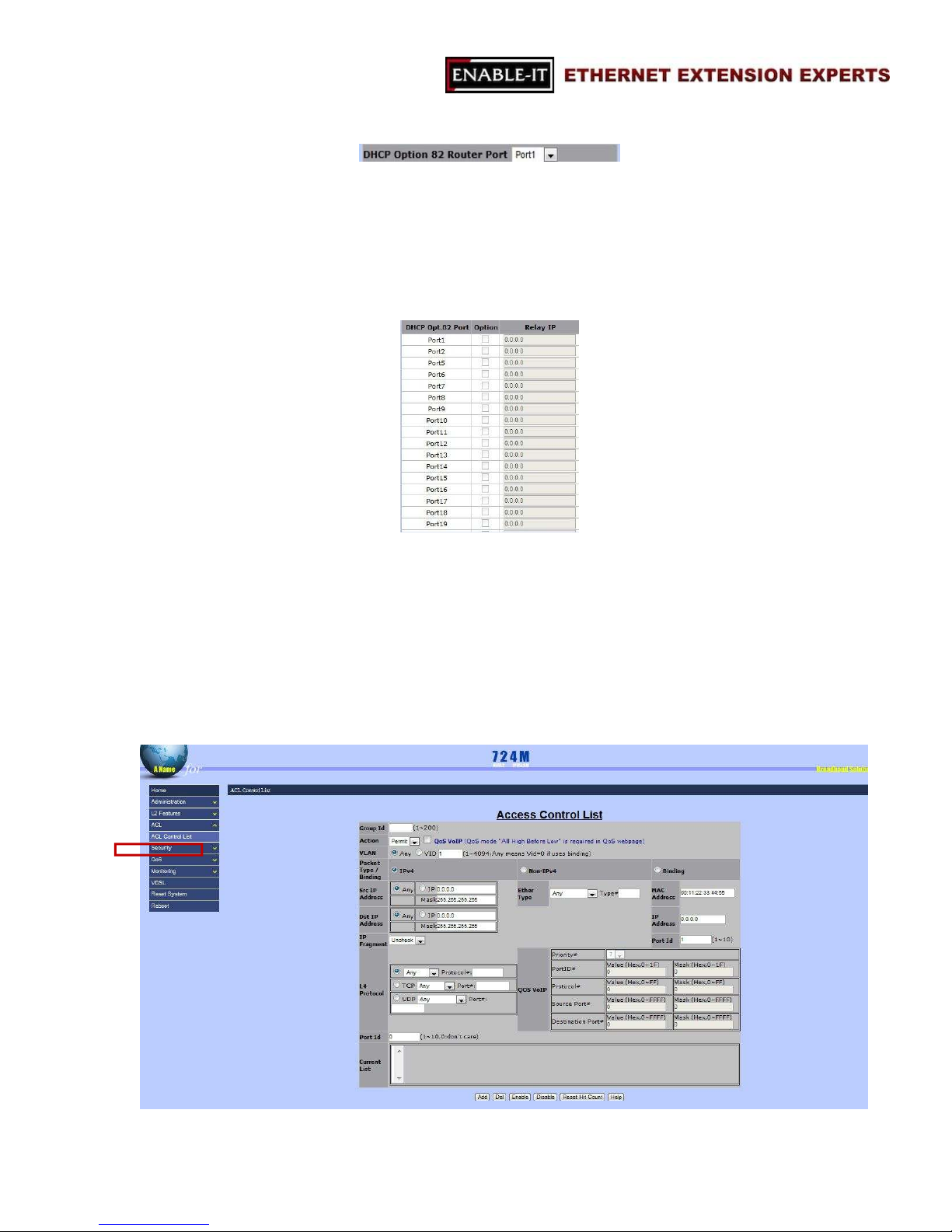

3.2.7.4 DHCP Option 82 Router Port

“DHCP Option 82 Router Port” allows users to choose the relay port for DHCP

3.2.7.5 DHCP Opt. 82 Port Table

 Option: the checkbox for enabling or disabling DHCP Relay Information

 Relay IP: for assign the IP address of the port.

3.3 ACL

Option 82 feature. Users are able to specific one port between Port1 to Port24 or Mod1 to Mod2.

This section is for defining DHCP Option 82 and port information.

Option 82 function.

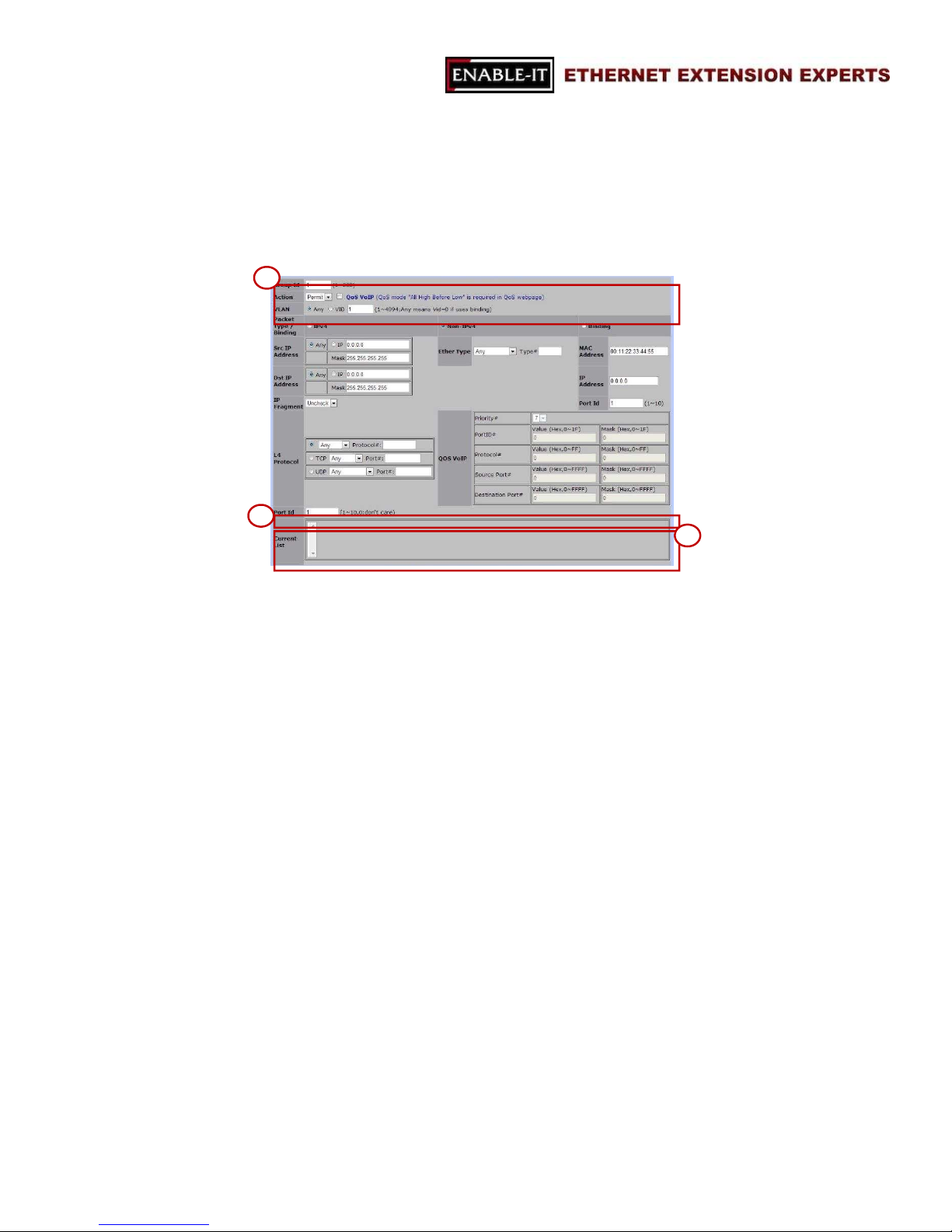

Packets can be forwarded or dropped by ACL rules include IPv4 or non-IPv4. The

 Group ID: the ID of this Access Control List (1 ~ 200).

 Action: Permit or Deny the access

 VLAN: Any or VID (a specific VLAN ID)

 Port ID: the target port of this access control list should be applied to. (0:

 Current List: the current list of all access control lists.

1

2

3

switch can be used to block packets by maintaining a table of packet fragments indexed by source and destination IP address, protocol, and so on.

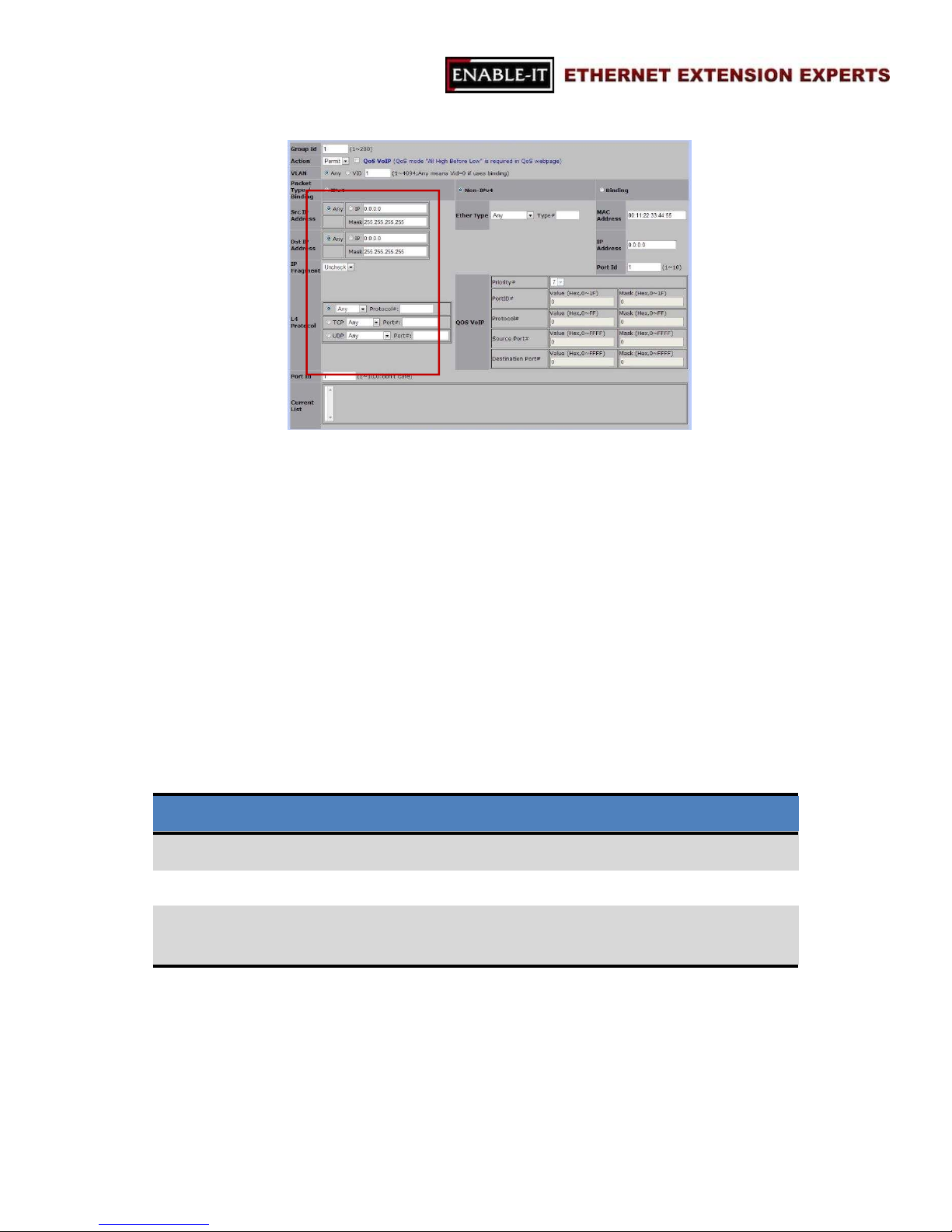

There are 2 main ACL rule types to setup: Packet Type (IPv4 and Non-IPv4) and Binding (SIP-SMAC-Port).

Section 1:

Section 2:

don’t care/1 ~ 10)

Section 3:

3.3.6 IPv4

 Packet Type/ Binding

o

The option of “IPv4” is selected.

 SRC IP Address

o Options: Any or a specific IP address

o The rule should be applied on these packets from which IP address or any

IP address.

 DST IP Address

o Options: Any or a specific IP address

o The rule should be applied on these packets with an assigned destination

 IP Fragment

o

Options: Uncheck or Check

o

To decide whether IP fragment should be checked or not.

 L4 Protocol

o Options are as the following table

TCP

Any, FTP, or HTTP

Port No.

IP address or any IP address.

L4 Protocol Type Options Data

Any Any, ICMP, or IGMP Protocol No.

UDP Any, DHCP, TFTP,

Port No.

NetBIOS

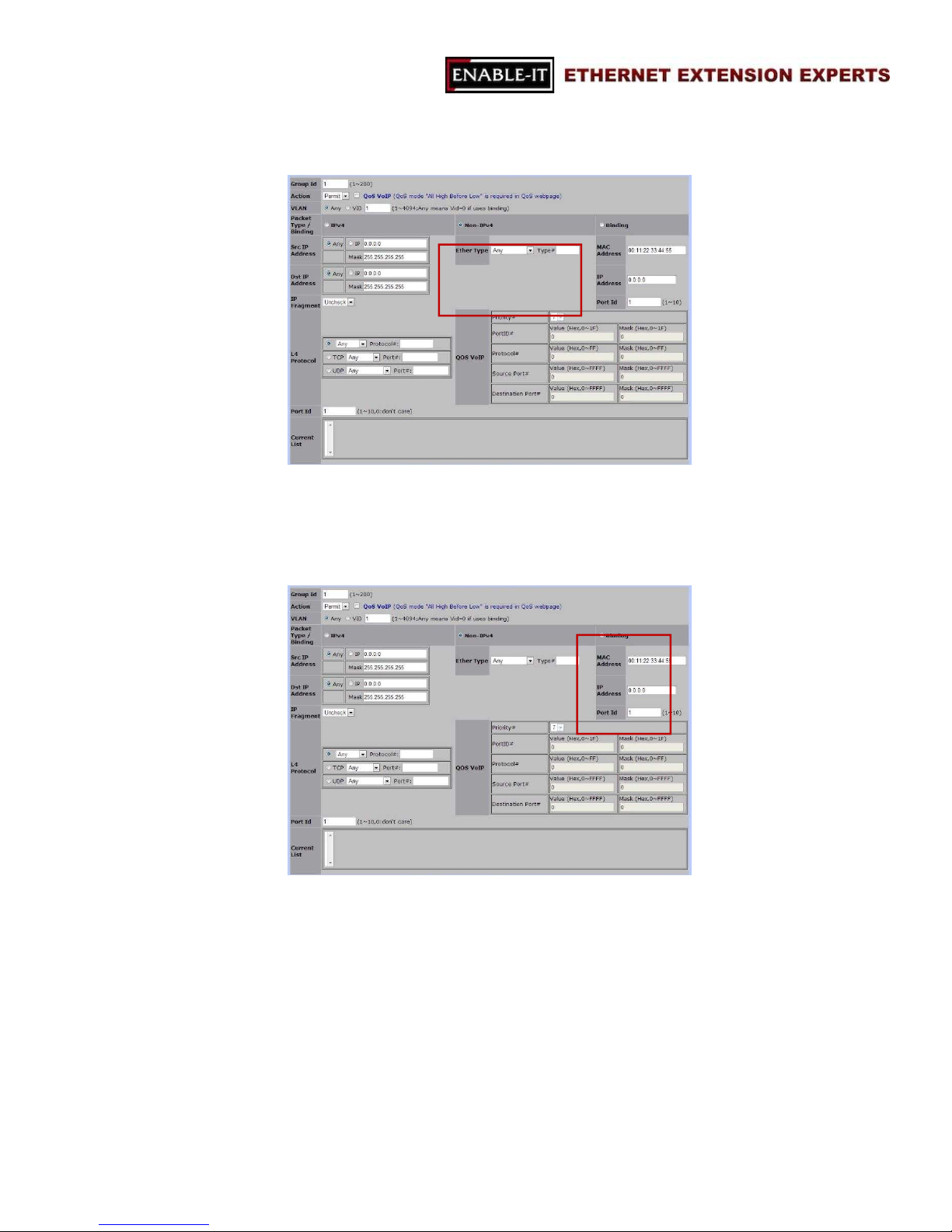

3.3.7 Non-IPv4

 Ether Type

o Options: Any, ARP, or IPX

3.3.8 Binding

 MAC Address

 IP Address

 Port ID (1 ~ 10)

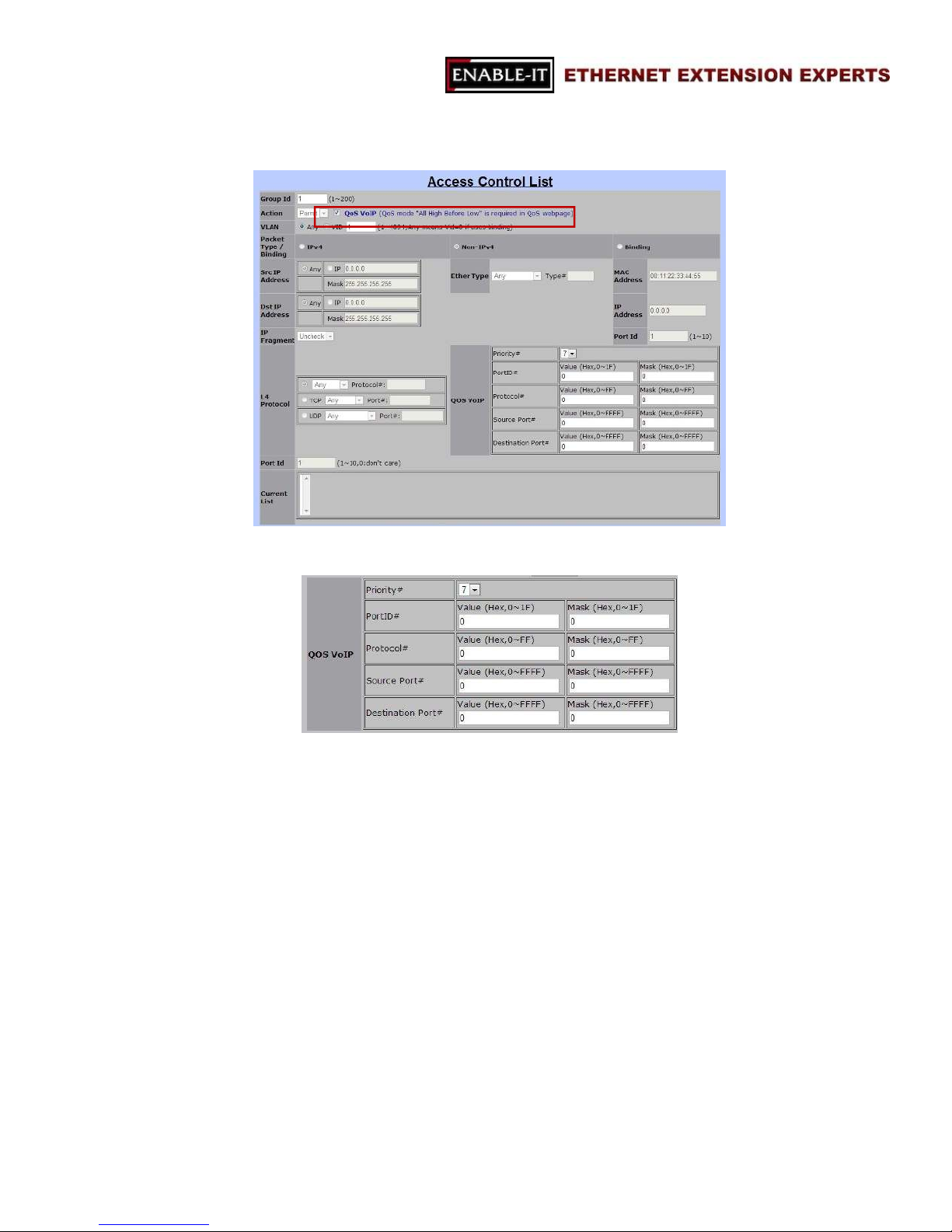

If the checkbox of QoS VoIP is selected, the following information should be

o Priority

 The priority of QoS VoIP

 Options: 0 ~ 7

o Port ID

 Value

 Mask

o Protocol

 Value

 Mask

o Source Port

 Value

 Mask

o Destination Port

 Value

 Mask

provided.

QoS VoIP:

Note: all values are in HEX format.

3.4 Security

“Security” section allows users to enhance the security level of this VDSL2 IP

 Security Manager

 MAC Limit

 802.1x Configuration

3.4.6 Security Manager

 User Name

 Assign/Change Password

 Reconfirm Password

DSLAM. It includes the following functions:

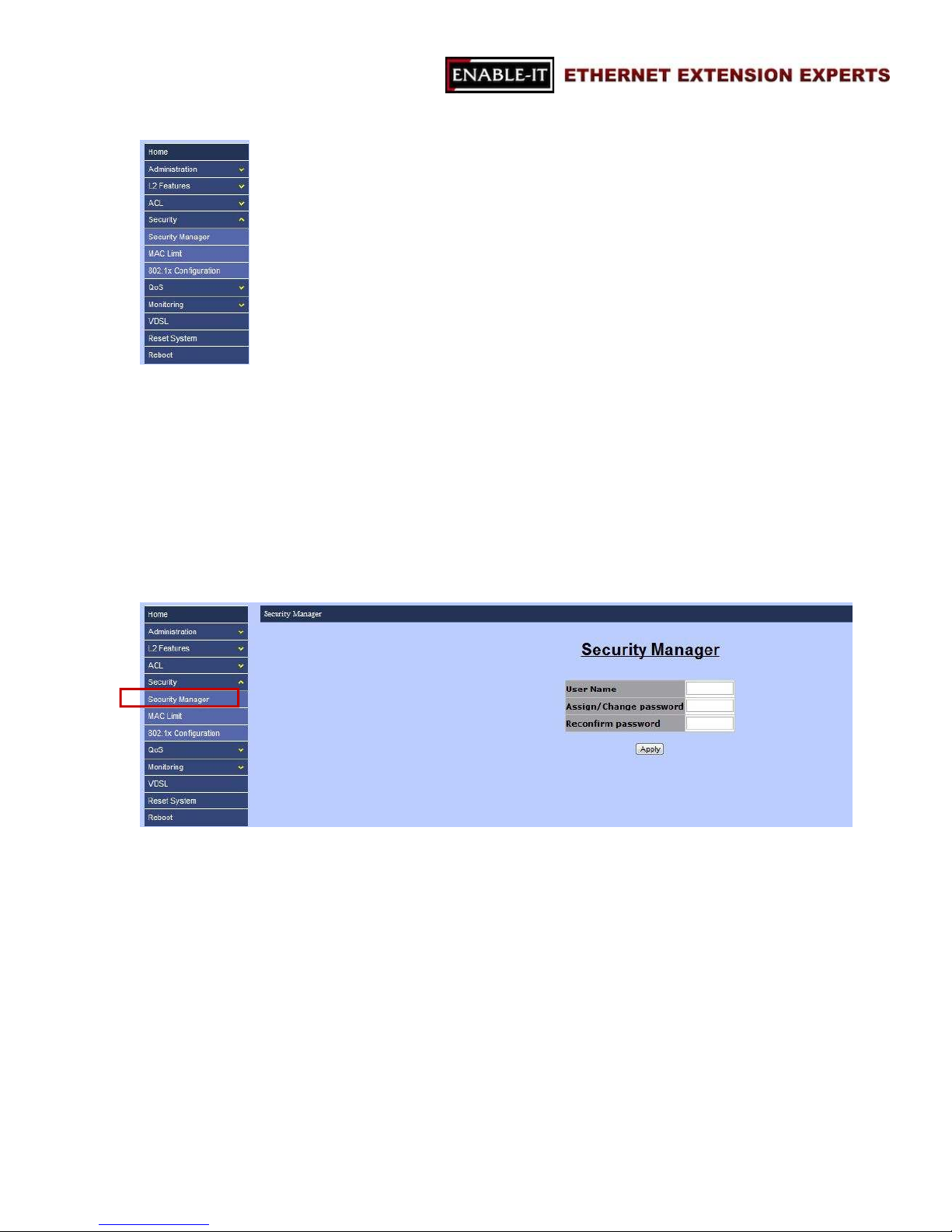

“Security Manager” allows users to change the user name and password for login purpose. Only one set of user name and password is stored in the Switch. The followings are the necessary information for this section.

Note: the default user name and password are “admin” and “admin”.

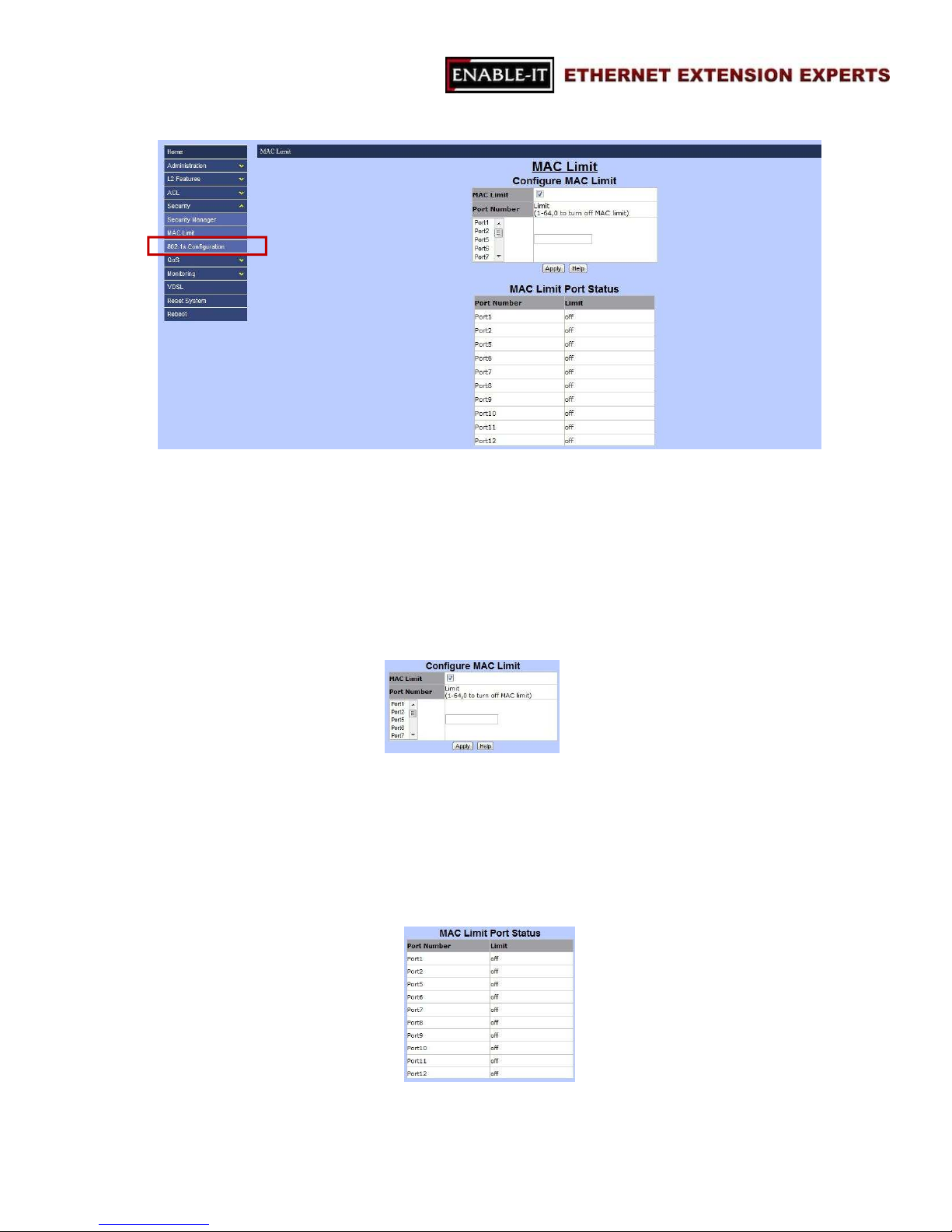

3.4.7 MAC Limit

MAC limit allows users to set a maximum number of MAC addresses to be

 Configure MAC Limit

o MAC Limit: enable or disable MAC limit function.

o Limit: the maximum number of MAC addresses should be blocked.

 MAC Limit Port Status

stored in the MAC address table. The MAC addresses chosen to be stored in MAC address table is the result of first-come-first-save policy. Once a MAC address is stored in the MAC address table, it stays in until it is aged out. When an “opening” is available, the switch stored the first new MAC address it sees in that opening. All packets from MAC addresses not in the MAC address table should be blocked. Two sections are in MAC Limit page:

Users are able to setup MAC limit rules for each port in this section by providing the information as the followings:

This section allows users to review the status of ports and MAC limits.

3.4.8 802.1x Configuration

802.1x makes use of the physical access characteristics of IEEE 802 LAN

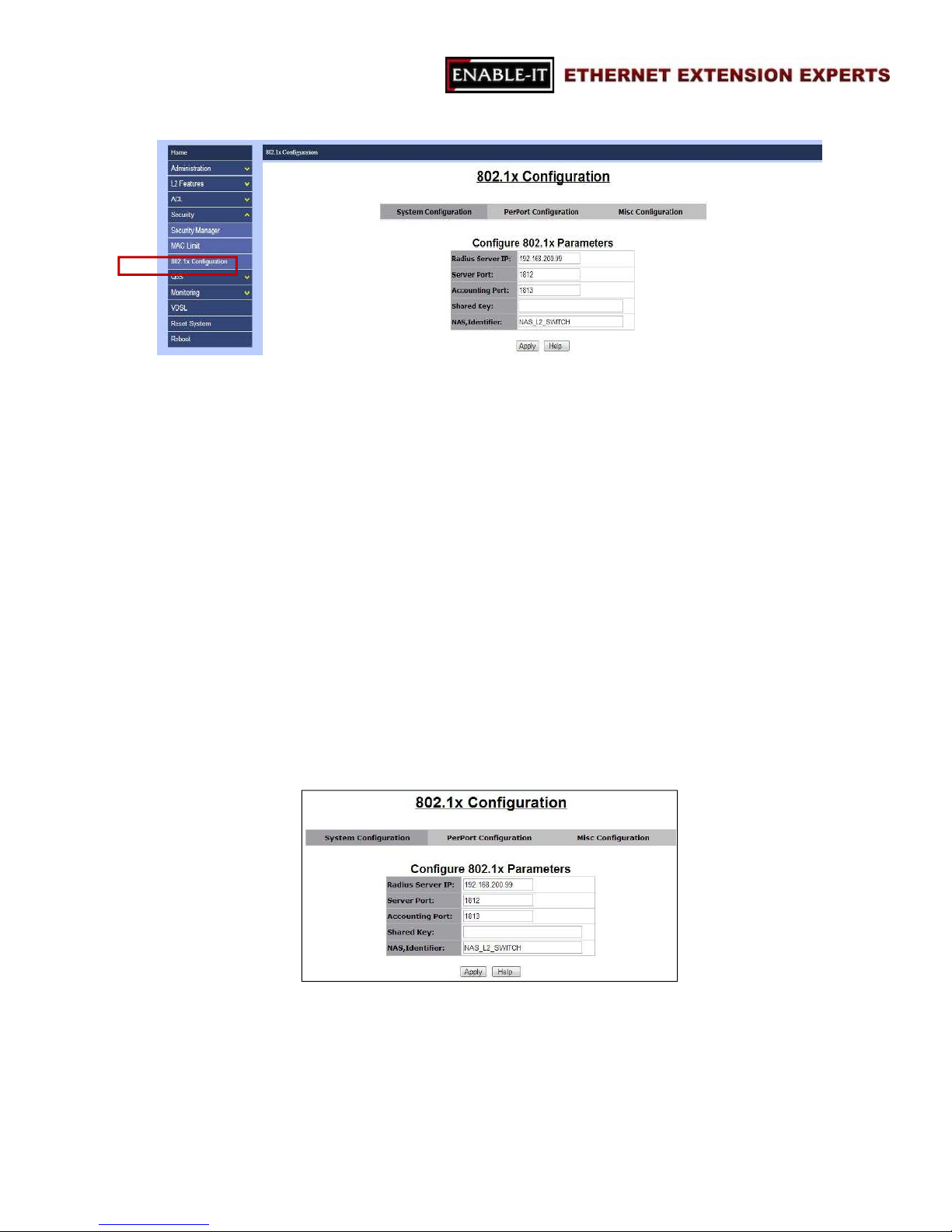

 System Configuration

o Radius Server IP: the IP address of the authentication server.

o Server Port: the UDP port number used by the authentication server

o Accounting Port: the UDP port number used by the authentication

infrastructures in order to provide a means of authenticating and authorizing devices attached to a LAN port that has point-to-point connection characteristics, and of preventing access to that port in cases in which the authentication and authorization process fails.

Note: The default 802.1x setup is disabled, hence, users will not be able to see “802.1x Configuration” page as showed above. To enable 802.1x, go to “Administration  Switch setting  Misc Configs” page to enable the 802.1x protocol field. After enable the function, the 802.1x configuration page will be shown up.

Three sections are in 802.1x configuration function:

to authenticate (default: 1812).

server to retrieve accounting information (default: 1813).

o

Shared Key: the password between the switch and the authentication

server.

o NAS, Identifier: the name of this switch.

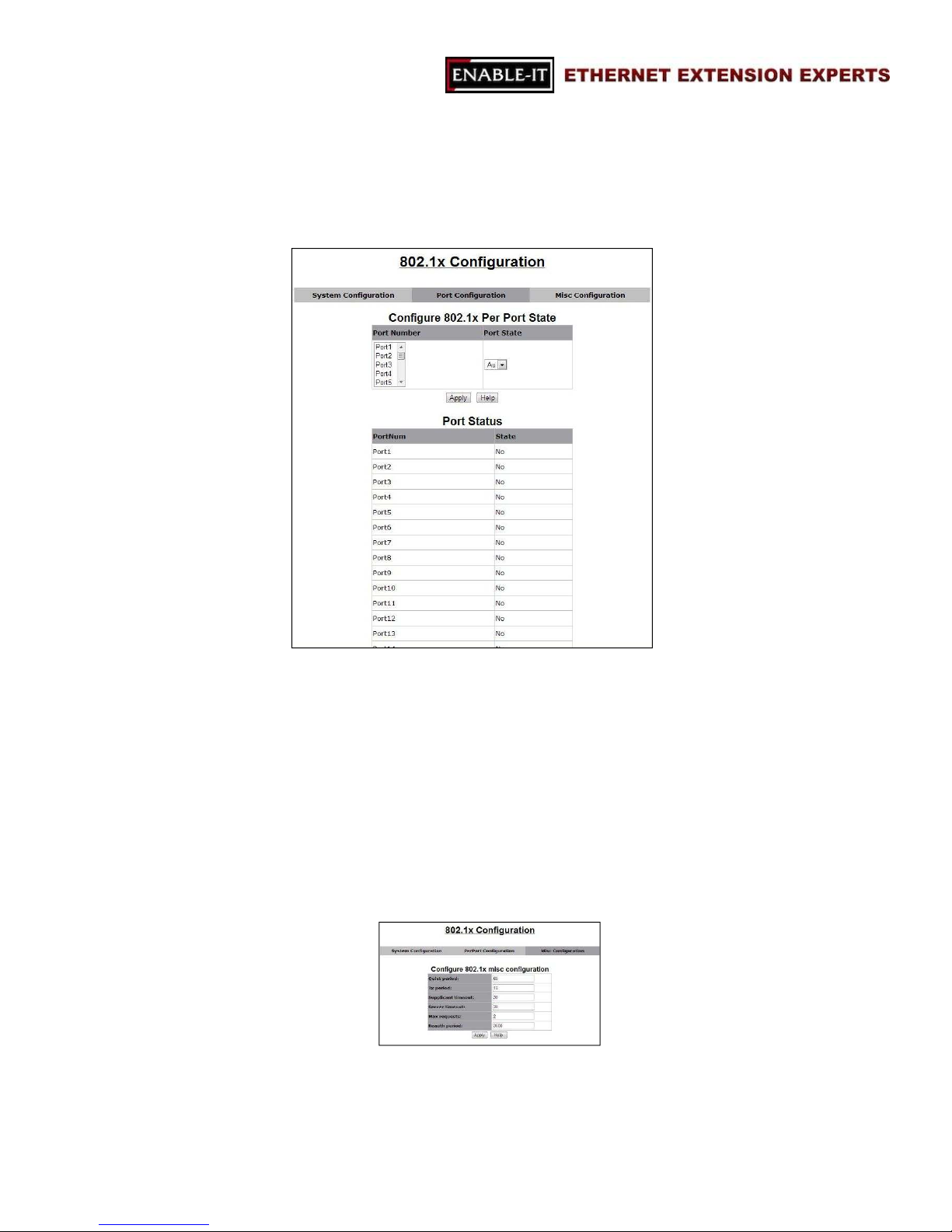

 PerPort Configuration

o

FU: force the specific port to be unauthorized.

o

FA: force the specific port to be authorized.

o

AU: the state of the selected port was determined by the outcome of

o

NO: the selected port didn’t support 802.1x function.

 Misc Configuration

“PerPort Configuration” allows users to setup the authorization mode of 802.1x for each port and review the authorization status of each port.

The VDSL2 IP DSLAM allows users to setup four authorization modes:

the authentication.

“Misc Configuration” page allows users to change miscellaneous setups of

802.1x function.

o Quiet Period: Used to define periods of time during which it will not

attempt to acquire a supplicant (default time: 60 seconds).

o Tx Period: Used to determine when an EAPOL PDU is to be

o Supplicant Timeout: Used to determine timeout conditions in the

o Server Timeout: Used to determine timeout conditions in the

o ReAuthMax: Used to determine the number of re-authentication

o Reauth Period: Used to determine a nonzero number of seconds

3.5 QoS

transmitted (Default value is 30 seconds).

exchanges between the supplicant and authentication server (default value: 30 seconds).

exchanges between the authenticator and authentication server (default value: 30 seconds).

attempts that are permitted before the specific port becomes unauthorized (default value: 2 times).

between periodic re-authentication of the supplications (default value: 3600 seconds).

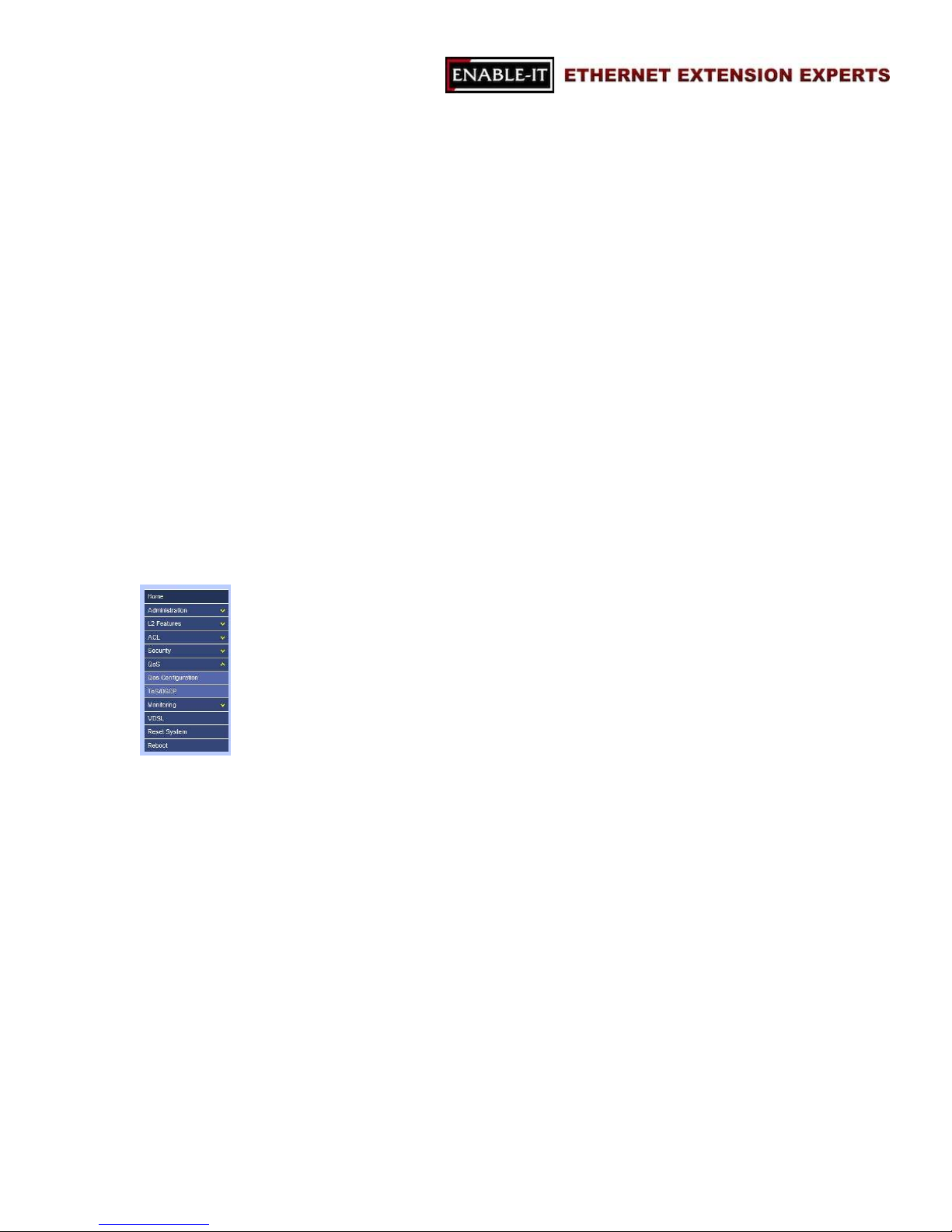

This switch provides quality of service (QoS) to prioritize the packet forwarding when traffic congestion happens. This switch supports two QoS functions: portbased (4-level output queue) and 802.1p (8-level priority to 4-level queue mapping). In addition, Strict and weight Round Robin (WRR) QoS modes are supported.

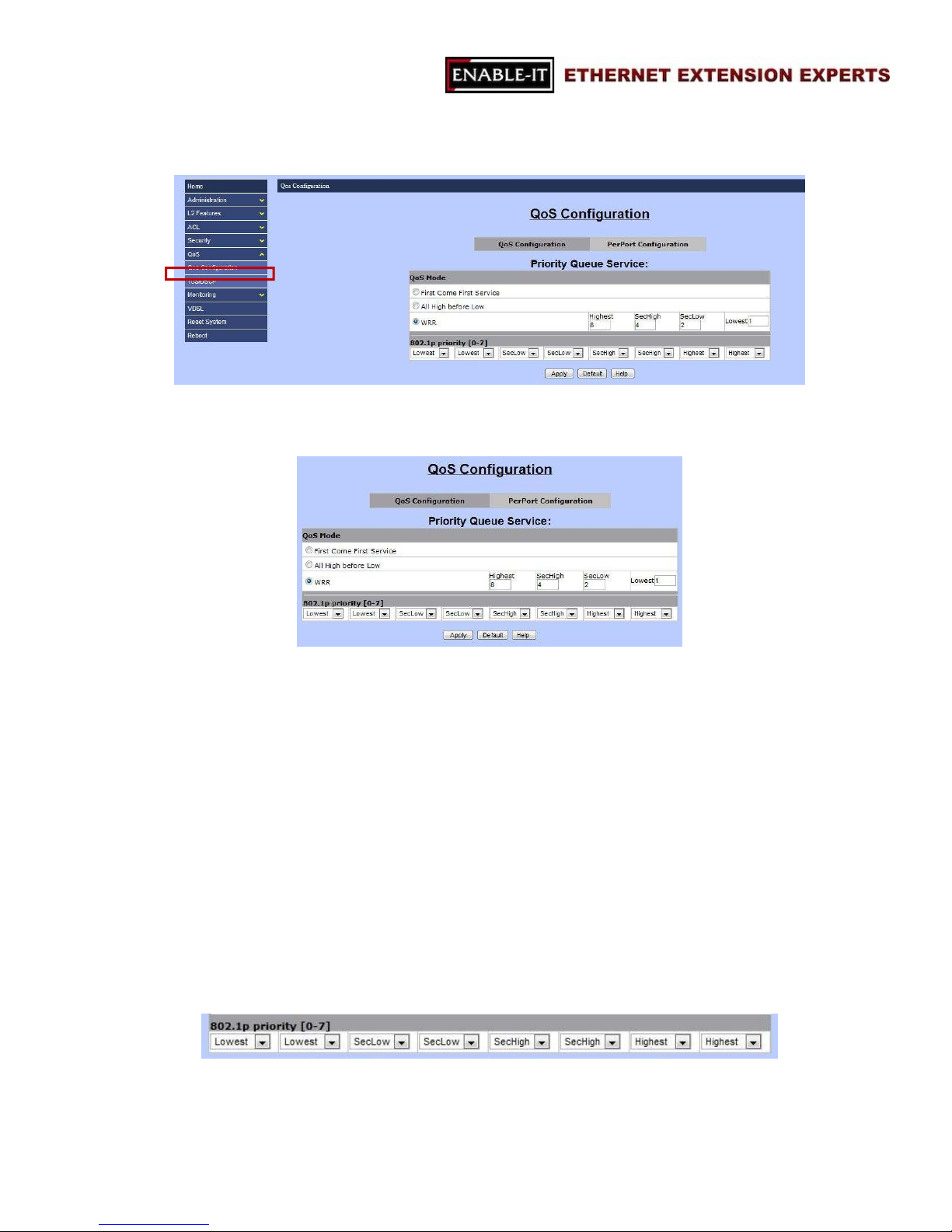

3.5.6 QoS Configuration

“QoS Configuration” page includes two sections as the followings:

 QoS Configuration

o

First Come First Service

 The sequence of packets sent is depending on arrive orders.

o

All High before Low

 The high priority packets sent before low priority packets.

o

WRR

 Weighted Round Robin. Select the preference given to packets

 For example, 8 Highest：4 second-high means that the switch

o 802.1p priority

 The switch supports 8 802.1p priority queues with 4 priority

Three QoS modes are supported in this switch:

This mode can be regarded as QoS is disabled.

in the switch's high-priority queue. These options represent the number of higher priority packets sent before one lower priority packet is sent.

sends 8 highest-priority packets before sending 4 second-high priority packets.

levels (Highest, Second-High, Second-Low, and Lowest). This

 PerPort Configuration

o

Port Priority:

 Options: Disable, 0 ~ 7.

section is for setting up the maps of priority queues and priority levels.

“PerPort Configuration” section allows users to setup the priority level for each port. Users are able to setup QoS algorithm with Port-Based algorithm in this page.

3.5.7 ToS/DSCP

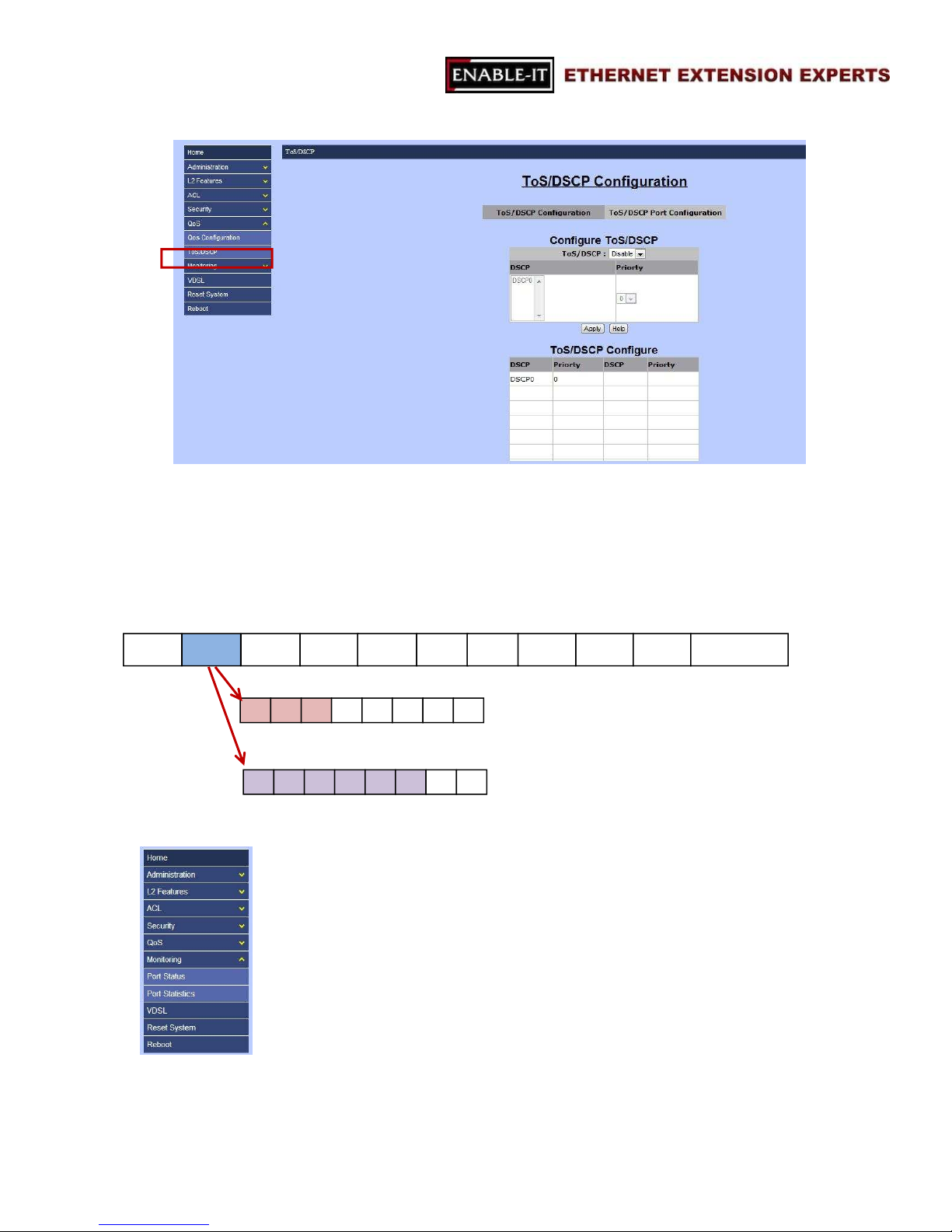

“ToS/DSCP” page is where users can set up priority algorithm for each queue

3.6 Monitoring

DSCP

ToS IP

Versio

ToS

LenIDFlags/

TTL

Prot

IP-SA

FCS

IP-DA

DATA

IPv4 Packet

and packets. In IPv4 packet header, there is a ToS byte. “ToS” stands for “Type of Service”, and ToS algorithm uses first 3 bits for priority level. However, for DSCP algorithm, it will take first 6 bits for priority level.

“Monitoring” function is for users to review current status and statistics of each port (Port1 ~ Port24, Mod1 and Mod2).

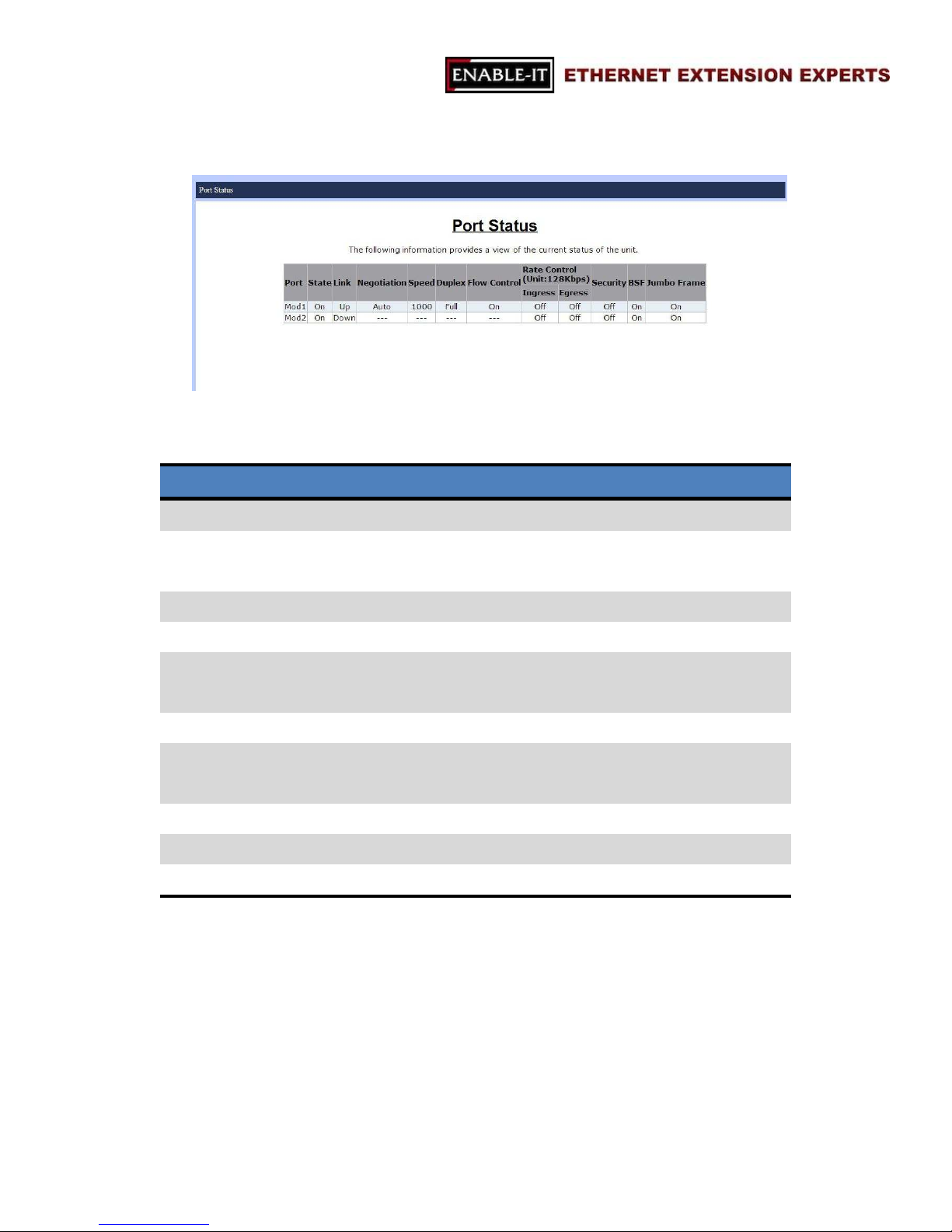

3.6.6 Port Status

“Port Status” displays current status of linked ports. This page is for review only.

On

(Only linked port will be showed)

Link

Up / Down

Negotiation

Auto / Force

10 / 100 Mbps (Port1 ~ Port24)

10 / 100 / 1000 Mbps (Mod1 ~ Mod2)

Duplex

Full / Half

Rate Control

(both Ingress and Egress)

Security

On / Off

BSF

On / Off

The information will be showed are as the followings.

Item Data

Port Port No.

State

Speed

On / Off

Jumbo Frame On / Off

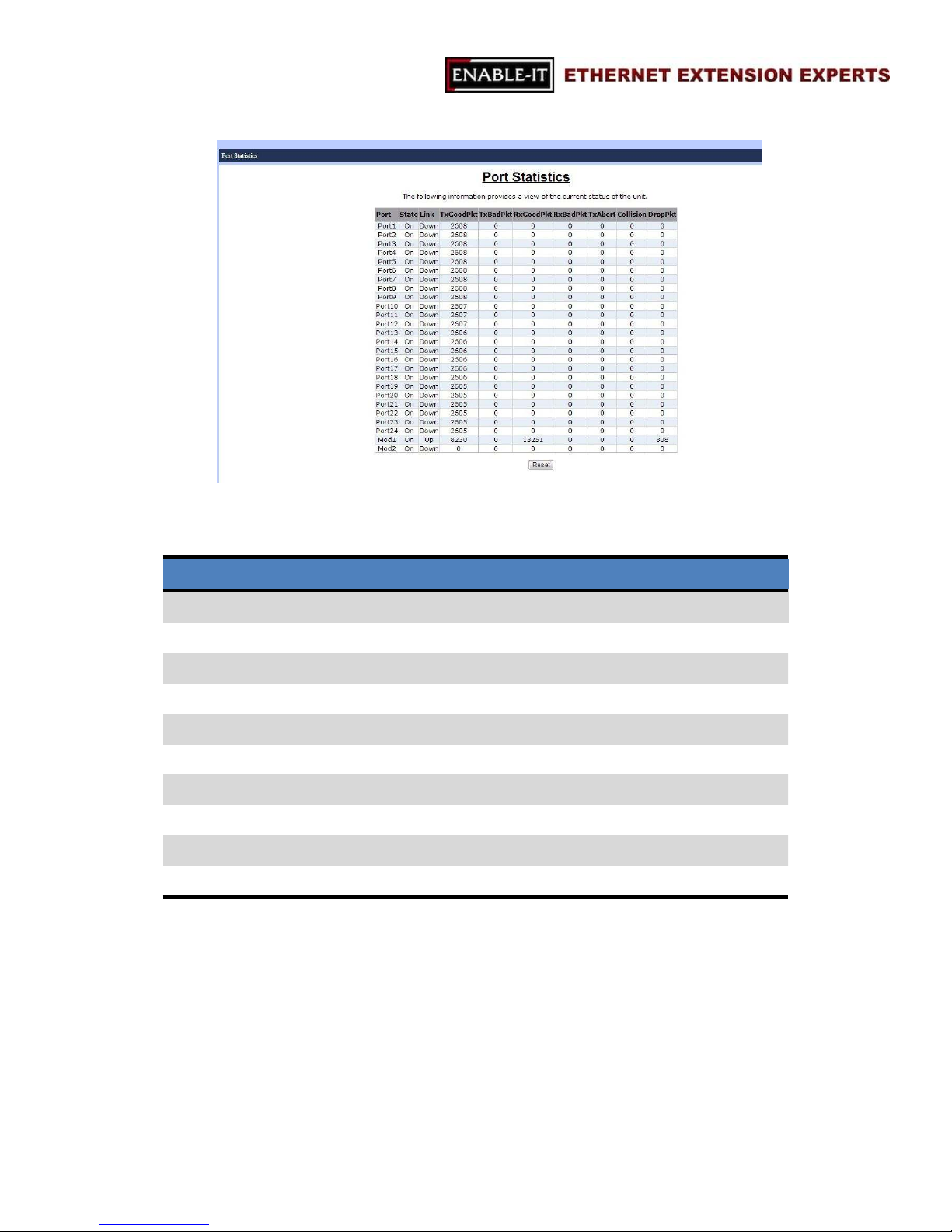

3.6.7 Port Statistics

“Port Statistics” allows users to review the statistics data of each port with the

State

On / Down

Link

On / Down

TxGoodPkt

The total bytes of good packets which were transmitted

TxBadPkt

The total bytes of bad packets which were transmitted

RxGoodPkt

The total bytes of good packets which were received

RxBadPkt

The total bytes of bad packets which were received

TxAbort

The total bytes of packets which were aborted.

Collision

following details.

Item Data

Port Port No

DropPkt The total bytes of packets dropped

3.7 VDSL

“VDSL” page is where users are able to setup and review VDSL profiles. Two

 Configuration

 Profile Table

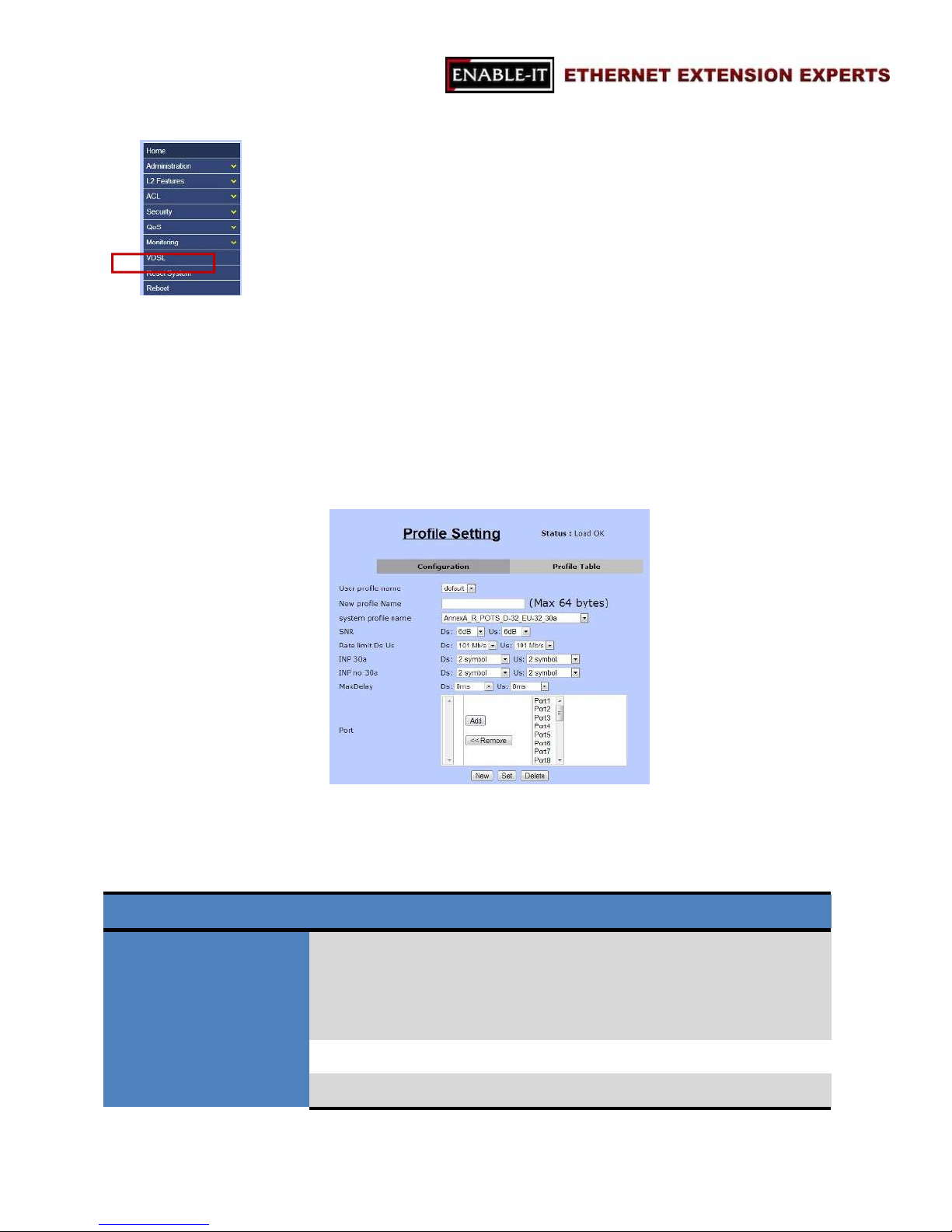

3.7.6 Configuration

New Profile Name

New profile name (up to 64 bytes)

System Profile Name

sections are included in VDSL page:

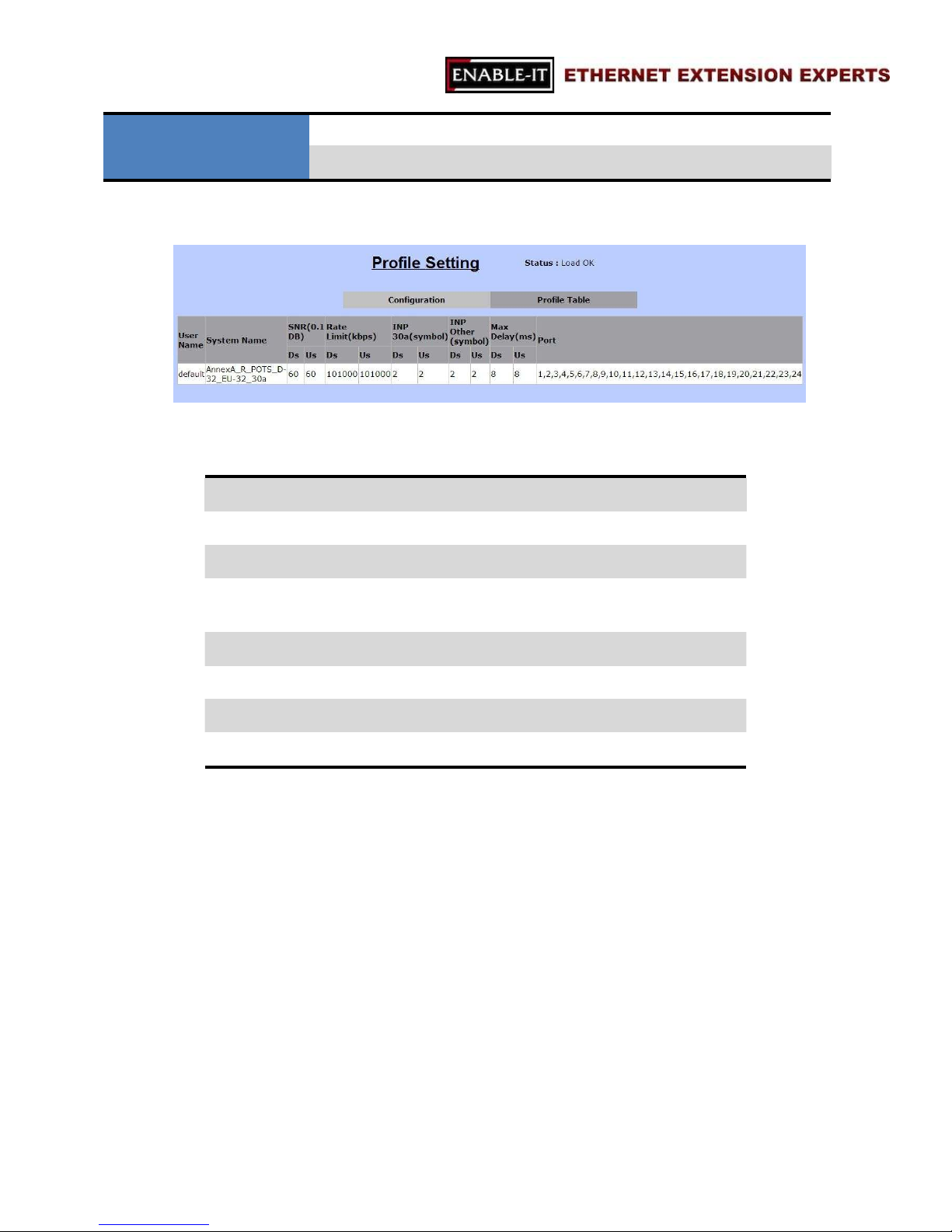

“Configuration” is where users set up VDSL profiles and store these profiles into the system. The followings are the details of each VDSL profile users can set up.

Item Description

User Profile Name The name of user-defined profile.

Note: There are 21 pre-defined profiles. These names are not changeable. Users are allowed to save new profiles with “New” button.

This option is for setting up VDSL band profile. Different profile

results in different connection status of data rate and distance.

1. AnnexA_R_POTS_D-64_EU-64_30a

2. AnnexA_R_POTS_D-32_EU-32_17a

3. AnnexA_R_POTS_D-32_EU-32_12b

4. AnnexA_R_POTS_D-32_EU-32_12a

5. AnnexA_R_POTS_D-32_EU-32_8a

6. AnnexA_R_POTS_D-32_EU-32_8b

7. AnnexA_R_POTS_D-32_EU-32_8c

8. AnnexA_R_POTS_D-32_EU-32_8d

9. AnnexA_R_POTS_D-32_EU-64_30a_NUS0

10. AnnexA_R_POTS_D-32_EU-64_17a

11. AnnexB_B7-1_997-M1c-A-7

12. AnnexB_B7-2_997-M1x-M-8

13. AnnexB_B7-3_997-M1x-M

14. AnnexB_B7-4_997-M2x-M-8

15. AnnexB_B7-5_997-M2x-A

16. AnnexB_B7-6_997-M2x-M

17. AnnexB_B7-9_997E17-M2x-A

18. AnnexB_B7-10_997E30-M2x-NUS0

19. AnnexB_B8-1_998-M1x-A

20. AnnexB_B8-1_998-M1x-B

21. AnnexB_B8-4_998-M2x-A

22. AnnexB_B8-5_998-M2x-M

23. AnnexB_B8-6_998-M2x-B

24. AnnexB_B8-8_998E17-M2x-NUS0

25. AnnexB_B8-9_998E17-M2x-NUS0-M

26. AnnexB_B8-10_998ADE17-M2x-NUS0-M

27. AnnexB_B8-11_998ADE17-M2x-A

28. AnnexB_B8-12_998ADE17-M2x-B

29. AnnexB_B8-13_998E30-M2x-NUS0

30. AnnexB_B8-14_998E30-M2x-NUS0-M

31. AnnexB_B8-15-998ADE30-M2x-NUS0-M

32. AnnexB_B8-16-998ADE30-M2x-NUS0-A

33. AnnexC_POTS_25-138_b

34. AnnexC_POTS_25-276_b

35. AnnexC_TCM_ISDN

SNR

SNR values for both downstream and upstream (6dB ~ 24dB)

Rate Limit Ds Us

The data rates for both downstream and upstream

INP 30a

INP levels for VDSL2 profile 30a for both downstream and upstream

INP levels for other VDSL2 profiles (8a, 8b, 8c, 8d, 12a, 12b, and 17a) for both downstream and upstream

Max Delay

The maximum delay time for both downstream and upstream

INP no 30a

Options: No limit, No delay, 1ms ~ 63ms

Port For assigning which ports should be applied the profile to.

3.7.7 Profile Table

System Name

VDSL2 Band profile

SNR (Ds / Us)

SNR value

Rate Limit (Ds /

Us)

INP 30a (Ds / Us)

INP level for VDSL2 profile 30a

INP Other (Ds / Us)

INP level for the other VDSL2 profiles

Max Delay

Maximum delay

“Profile Table” is for users to review the details of existing profiles in the following details.

User Name The profile name

The data rate

Port The port members of this profile

3.8 Reset System

“Reset System” is for restoring all configurations back to the default factory

3.9 Reboot

configurations. All the settings will be changed back to the original state.

“Reboot” allows users to reboot the switch without turning off the power.

TECHNICAL SUPPORT

Enable-IT, Inc.’s Customer Care Team support is available directly to customers and distributors. All support requests are processed through the online support portal. This allows us to provide assigned support ticket numbers in order to bring closure to any technical issues.

Online Technical Services

The Enable-IT Support Portal is available 24/7 to open a ticket or check the status of one. Please use this support website as your first source for help as it contains an on-line knowledge base of articles, documentation, FAQ's and other problem-solving resources. This web-based support resource provides the quickest solution to the most common technical support issues.

World Wide Web Site

http://support.enableit.com

Returning Products for Warranty Repair

Enable-IT, Inc. warrants to the original purchaser of the Product ("you" or the "End User") that, for the four (4) year period commencing on the date the Product was purchased (the "Warranty Period"), the Product will be substantially free from defects in materials and workmanship under normal use and conditions.

that is covered under this warranty, extended warranties or Advanced Replacement Program (AREP).

In order to obtain an authorized RMA approval, the End User must complete the required information online located at or difficulty completing this information you may contact the Customer Care Team at 888-309-0910 between the hours of 8:00 a.m. and 5:00 p.m. PT.

Electrical damage is not an item

http://support.enableit.com. If you have questions

Please ship Authorized RMAs to:

Enable-IT Processing Facility 16600 Harbor Blvd, Suite I Fountain Valley, CA 92708-1363

ENABLE-IT, INC. LIMITED WARRANTY

Enable-IT, Inc. warrants the Enable-IT 8924 24 Port IP DSLAM solely pursuant to the following terms and conditions.

1. PRODUCT WARRANTY.

a. Express Warranty.

Enable-IT warrants to the original purchaser of the Product ("you" or the "End User") that, for the four (4) year period commencing on the date the Product was purchased (the "Warranty Period"), the Product will be substantially free from defects in materials and workmanship under normal use and conditions. This warranty does not apply to Products, which are resold as used, repaired or reconditioned, or consumables (such as batteries) supplied with the Product.

covered under this warranty or extended warranties.

any warranty with respect to any third party product, software or accessory supplied with or used in connection with the Product and such third party products, software and accessories, if any, are provided "AS IS." Warranty claims related to such third party products, software and accessories must be made to the applicable third party manufacturer.

b. Remedies for Breach of Warranty.

Electrical damage is not an item that is

Enable-IT does not make

In the event of a breach of the foregoing warranty, Enable-IT will, in its sole discretion and at its cost, and subject to the terms of the following paragraph, repair the nonconforming Product, replace the non-conforming Product with a new or reconditioned Product or refund the purchase price for the Product. Any new or reconditioned Product provided pursuant to this paragraph is warranted as provided herein for the remainder of the original Warranty Period. THE REMEDY SET FORTH IN THIS PARAGRAPH SHALL BE THE END USER’S SOLE AND EXCLUSIVE REMEDY FOR BREACH OF THE FOREGOING WARRANTY.

c. Conditions for Warranty Qualification.

If authorized by Enable-IT to return a Product which does not conform to the warranty set forth above, the End User must: (1) obtain a return materials authorization (RMA) number from Enable-IT by contacting the Customer Service Dept. at 888-309-0910 between the hours of 8:00 a.m. and 5:00 p.m. PST and otherwise fully comply with Enable-IT’s then-current RMA policy; (2) return the Product to Enable-IT in its original packaging freight pre-paid; and (3) provide to Enable-IT the original receipt or bill of sale establishing the date on which the Product was purchased. Products returned to Enable-IT without an RMA number will be returned to the End User. Enable-IT shall not be responsible for damage or loss during shipment of the returned Product to Enable-IT.

d. Voiding of Warranty.

The express warranty set forth above shall not apply to failure of the Product if the Product has been subjected to: (i) physical abuse, misuse, improper installation, abnormal use, power failure or surge, or use not consistent with the operating

instructions provided by Enable-IT; (ii) modification (including but not limited to opening the Product housing) or repair by any party in any manner other than as approved by Enable-IT in writing; (iii) fraud, tampering, unusual physical or electrical stress, unsuitable operating or physical conditions, negligence or accidents; (iv) removal or alteration of the Product serial number tag; (v) improper packaging of Product returns; or (vi) damage during shipment (other than during the original shipment of the Product to the End User from Enable-IT, if applicable).

e. Warranty Disclaimers.

THE EXPRESS WARRANTY SET FORTH ABOVE IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER WRITTEN, ORAL, EXPRESS OR IMPLIED. ENABLE-IT DISCLAIMS, TO THE MAXIMUM EXTENT PERMITTED BY LAW, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF THIRD PARTY RIGHTS. NO PERSON (INCLUDING WITHOUT LIMITATION, ENABLE-IT’S EMPLOYEES, AGENTS, RESELLERS, OEMS OR DISTRIBUTORS) IS AUTHORIZED TO MAKE ANY OTHER WARRANTY OR REPRESENTATION CONCERNING THE PRODUCT. IF THE DISCLAIMER OF ANY IMPLIED WARRANTY IS NOT PERMITTED BY LAW, THE DURATION OF ANY SUCH IMPLIED WARRANTY IS LIMITED TO ONE (1) YEAR FROM THE DATE OF PURCHASE. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY MAY LAST, SO SUCH LIMITATIONS OR EXCLUSIONS MAY NOT APPLY. THIS WARRANTY GIVES THE END USER SPECIFIC LEGAL RIGHTS AND THE END USER MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM JURISDICTION TO JURISDICTION. ENABLE-IT DOES NOT WARRANT THAT THE OPERATION OF THE PRODUCT WILL BE UNINTERRUPTED OR ERROR FREE. ENABLE-IT IS NOT RESPONSIBLE FOR ANY DAMAGE TO OR LOSS OF ANY PROGRAMS, DATA, OR OTHER INFORMATION STORED ON OR TRANSMITTED USING THE PRODUCT.

2. LIMITATION OF LIABILITY.

IN NO EVENT SHALL ENABLE-IT BE LIABLE TO THE END USER, OR ANY THIRD PARTY, FOR ANY INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH OR ARISING OUT OF THE SALE OR USE OF THE PRODUCT (INCLUDING BUT NOT LIMITED TO LOSS OF PROFIT, USE, DATA, OR OTHER ECONOMIC ADVANTAGE), HOWEVER IT ARISES, INCLUDING WITHOUT LIMITATION BREACH OF WARRANTY, OR IN CONTRACT OR IN TORT (INCLUDING NEGLIGENCE), OR STRICT LIABILITY, EVEN IF ENABLE-IT HAS BEEN PREVIOUSLY ADVISED OF THE POSSIBILITY OF SUCH DAMAGE AND EVEN IF A LIMITED REMEDY SET FORTH IN THIS AGREEMENT FAILS OF ITS ESSENTIAL PURPOSE. IN NO EVENT SHALL ENABLE-IT’S LIABILITY TO THE END USER, OR ANY THIRD PARTY, EXCEED

THE PRICE PAID FOR THE PRODUCT. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO THE END USER.

3. LICENSE AND LIMITATIONS.

The firmware and software embedded in the Product (the "Embedded Software") are licensed to you. Your use of the Product is your acceptance of the warranty terms above and the terms below. You may use the Embedded Software solely in conjunction with your use of the Product. All worldwide right, title and interest in and to the Product, or any portion thereof (including but not limited to the Embedded Software), including all copyrights, patent rights, trademarks, trade secrets, and other intellectual property rights therein and thereto, are and shall remain the exclusive property of Enable-IT and/or its licensors. You acknowledge and agree that you may not, and may not allow any third party to, (i) use the Embedded Software in a manner that is inconsistent with the above express right granted to you or (ii) modify, distribute, reproduce, decompile, disassemble, reverse engineer or otherwise attempt to discover the source code for the Embedded Software.

CONTACT US

Sales and Customer Care:

Toll Free US and Canada 888 309-0910

Other International +1 702 924-0402

E Mail sales@enableit.com

RMA Support: http://support.enableit.com

866 389-8605 Fax

+1 702 800-2711 Fax

support@enableit.com

Enable-IT 8924 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
