Page 1

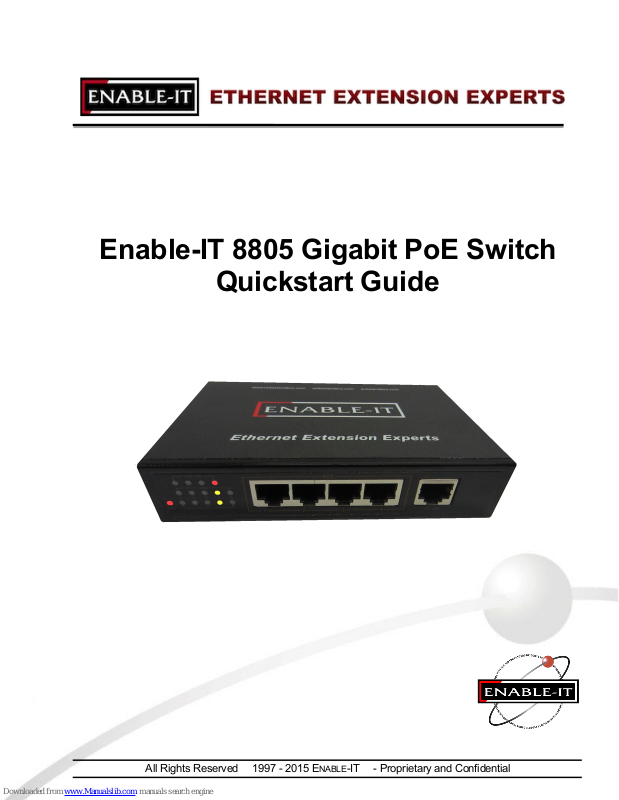

Enable-IT 8805 Gigabit PoE Switch

Quickstart Guide

Page 2

INSTALLING THE 8805 GIGABIT POE SWITCH

 (5) 10/100/1000Mbps Auto-Negotiation RJ-45 ports with PoE auto detect



Complies with IEEE802.3af standards

 Each port supports full duplex auto-negotiation -10/20, 100/200, 1000/2000Mbps



Maximum Bandwidth backplane 10Gbps

 Supports PoE power up to 30W for each PoE port

 Supports automatic-detect function to protect the system when the system power is

 LED indicators for monitoring PoE power, Physical link, LAN activity and LAN speed



48V 2A power adapter included



(1) Enable-IT 8805 (5) port Gigabit PoE switch

 48V 2A DC power adapter, power cord

 Enable-IT 8805 Quickstart Guide

The Enable-IT 8805 Gigabit PoE Switch is a unique product. It can automatically detect any LAN device and determine if it is a PoE device and supply power with IEEE 802.3af standard voltage and watts.

The Enable-IT 8805 Gigabit PoE Switch is a 5 port 10/100/1000Mbps Auto-Negotiation RJ-45 LAN ports with each port PoE auto detect enabled. Auto detect PoE uses IEEE

802.3 PoE PD. There is no need to worry about the damage of PoE being applied to Non-PoE Devices and PoE connected devices are supplied with up to 30W per port. The Enable-IT 8805 supplies PoE electrical power on industry standard 2-pair (RJ-45 pins 4/5 positive and 7/8 negative) along with Ethernet data in one single cable allowing you to expand your network where there are no power lines or outlets. This enable you to deploy PoE devices such as WiFi Access Points, PoE IP Cameras, Poe Access controls or PoE IP Phones.

FEATURES

overloaded or there is a non-PoE device

PACKAGE

Page 3

TECHNICAL SPECIFICATIONS

 IEEE802.3, 802.3u, 802.3af, 802.3x



CSMA/CD, TCP/IP

 Wire-speed Performance



MAC addresses Auto-Learning and Auto-aging



IEEE802.3x flow control for Full-Duplex Mode and

backpressure for Half-Duplex Mode

 10Gbps



Max power: 30W for each PoE port

 48V 2A Power adapter

 Store-and-Forward

 10/100/1000Mbps Auto-Negotiation RJ-45 PoE ports

(Auto MDI/MDIX)



10Base-T:UTP category 3, 4, 5 cable (maximum 100m)

 EIA/TIA-568 100U STP (maximum 100m)

 100Base-Tx: UTP category 5, 5e cable (maximum 100m)

 EIA/TIA-568 100U STP (maximum 100m)

 1000Base-T: UTP category 5, 5e cable (maximum 100m

 PoE Power

 Physical Link

 LAN Activity,

 LAN Speed (10/100/1000Mbps)

 FCC, CE, RoHS

 Operating Temperature: 0

C ~ 50 C

 Storage Temperature: -10

C ~ 70 C

 Operating Humidity: 10%~90% non-condensing

 Storage Humidity: 5%~90% non-condensing

 Length 4.09in (104mm)

 Width 3.58in (91mm)

 Height 1.10in (28 mm)

 CE/LV

 4 years

Standards & Protocols:

Basic Function:

Backplane Bandwidth:

Power Support:

Transmission Method:

Ports:

Network Media:

LED Indicators:

Safety & Emission:

Environment:

Dimensions:

Security Standard:

Warranty Period:

Page 4

ENABLE-IT, INC. LIMITED WARRANTY

Enable-IT, Inc. warrants the Enable-IT 8805 Gigabit PoE Switch solely pursuant to the following terms and conditions.

1. PRODUCT WARRANTY.

a. Express Warranty. Enable-IT warrants to the original purchaser of the Product ("you" or the "End User") that, for the four (4) year period commencing on the date the Product was purchased (the "Warranty Period"), the Product will be substantially free from defects in materials and workmanship under normal use and conditions. This warranty does not apply to Products, which are resold as used, repaired or reconditioned, or consumables (such as batteries) supplied with the Product. Electrical damage is not an item that is covered under this warranty or

extended warranties. Enable-IT does not make any warranty with respect to any third party

product, software or accessory supplied with or used in connection with the Product and such third party products, software and accessories, if any, are provided "AS IS." Warranty claims related to such third party products, software and accessories must be made to the applicable third party manufacturer.

b. Remedies for Breach of Warranty. In the event of a breach of the foregoing warranty, Enable-IT will, in its sole discretion and at its cost, and subject to the terms of the following paragraph, repair the non-conforming Product, replace the non-conforming Product with a new or reconditioned Product or refund the purchase price for the Product. Any new or reconditioned Product provided pursuant to this paragraph is warranted as provided herein for the remainder of the original Warranty Period. THE REMEDY SET FORTH IN THIS PARAGRAPH SHALL BE THE END USER’S SOLE AND EXCLUSIVE REMEDY FOR BREACH OF THE FOREGOING WARRANTY.

c. Conditions for Warranty Qualification. If authorized by Enable-IT to return a Product which does not conform to the warranty set forth above, the End User must: (1) obtain a return materials authorization (RMA) number from Enable-IT by contacting the Customer Service Dept. at 888-309-0910 between the hours of 8:00 a.m. and 5:00 p.m. PST and otherwise fully comply with Enable-IT’s then-current RMA policy; (2) return the Product to Enable-IT in its original packaging freight pre-paid; and (3) provideto Enable-IT the original receipt or bill of sale establishing the date on which the Product was purchased. Products returned to Enable-IT without an RMA number will be returned to the End User. Enable-IT shall not be responsible for damage or loss during shipment of the returned Product to Enable-IT.

d. Voiding of Warranty. The express warranty set forth above shall not apply to failure of the Product if the Product has been subjected to: (i) physical abuse, misuse, improper installation, abnormal use, power failure or surge, or use not consistent with the operating instructions provided by Enable-IT; (ii) modification (including but not limited to opening the Product housing) or repair by any party in any manner other than as approved by Enable-IT in writing; (iii) fraud, tampering, unusual physical or electrical stress, unsuitable operating or physical conditions, negligence or accidents; (iv) removal or alteration of the Product serial number tag; (v) improper packaging of Product returns; or (vi) damage during shipment (other than during the original shipment of the Product to the End User from Enable-IT, if applicable).

Page 5

e. Warranty Disclaimers. THE EXPRESS WARRANTY SET FORTH ABOVE IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER WRITTEN, ORAL, EXPRESS OR IMPLIED. ENABLE-IT DISCLAIMS, TO THE MAXIMUM EXTENT PERMITTED BY LAW, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF THIRD PARTY RIGHTS. NO PERSON (INCLUDING WITHOUT LIMITATION, ENABLE-IT’S EMPLOYEES, AGENTS, RESELLERS, OEMS OR DISTRIBUTORS) IS AUTHORIZED TO MAKE ANY OTHER WARRANTY OR REPRESENTATION CONCERNING THE PRODUCT. IF THE DISCLAIMER OF ANY IMPLIED WARRANTY IS NOT PERMITTED BY LAW, THE DURATION OF ANY SUCH IMPLIED WARRANTY IS LIMITED TO ONE (1) YEAR FROM THE DATE OF PURCHASE. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY MAY LAST, SO SUCH LIMITATIONS OR EXCLUSIONS MAY NOT APPLY. THIS WARRANTY GIVES THE END USER SPECIFIC LEGAL RIGHTS AND THE END USER MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM JURISDICTION TO JURISDICTION. ENABLE-IT DOES NOT WARRANT THAT THE OPERATION OF THE PRODUCT WILL BE UNINTERRUPTED OR ERROR FREE. ENABLE-IT IS NOT RESPONSIBLE FOR ANY DAMAGE TO OR LOSS OF ANY PROGRAMS, DATA, OR OTHER INFORMATION STORED ON OR TRANSMITTED USING THE PRODUCT.

2. LIMITATION OF LIABILITY. IN NO EVENT SHALL ENABLE-IT BE LIABLE TO THE END USER, OR ANY THIRD PARTY, FOR ANY INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH OR ARISING OUT OF THE SALE OR USE OF THE PRODUCT (INCLUDING BUT NOT LIMITED TO LOSS OF PROFIT, USE, DATA, OR OTHER ECONOMIC ADVANTAGE), HOWEVER IT ARISES, INCLUDING WITHOUT LIMITATION BREACH OF WARRANTY, OR IN CONTRACT OR IN TORT (INCLUDING NEGLIGENCE), OR STRICT LIABILITY, EVEN IF ENABLE-IT HAS BEEN PREVIOUSLY ADVISED OF THE POSSIBILITY OF SUCH DAMAGE AND EVEN IF A LIMITED REMEDY SET FORTH IN THIS AGREEMENT FAILS OF ITS ESSENTIAL PURPOSE. IN NO EVENT SHALL ENABLE-IT’S LIABILITY TO THE END USER, OR ANY THIRD PARTY, EXCEED THE PRICE PAID FOR THE PRODUCT. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO THE END USER.

3. LICENSE AND LIMITATIONS. The firmware and software embedded in the Product (the "Embedded Software") are licensed to you. Your use of the Product is your acceptance of the warranty terms above and the terms below. You may use the Embedded Software solely in conjunction with your use ofthe Product. All worldwide right, title and interest in and to the Product, or any portion thereof (including but not limited to the Embedded Software), including all copyrights, patent rights, trademarks, trade secrets, and other intellectual property rights therein and thereto, are and shall remain the exclusive property of Enable-IT and/or its licensors. You acknowledge and agree that you may not, and may not allow any third party to, (i) use the Embedded Software in a manner that is inconsistent with the above express right granted to you or (ii) modify, distribute, reproduce, decompile, disassemble, reverseengineer or otherwise attempt to discover the source code for the Embedded Software.

Page 6

Sales and Customer Care:

Toll Free US and Canada 888 309-0910

Other International +1 702 924-0402

E Mail [email protected]

RMA Support:

866 389-8605 Fax

+1 702 800-2711 Fax

[email protected]

http://support.enableit.com
