Enable-IT 860 Series

Extended Ethernet

User Manual

P a g e 2 o f

1 3

Copyright © 1997- 2008 Enable-IT, Inc. All rights reserved. No part of this documentation
may be reproduced in any form or by any means or used to make any derivative work (such
as translation, transformation, or adaptation) without written permission from Enable-IT, Inc.

Enable-IT, Inc reserves the right to revise this documentation and to make changes in
content from time to time without obligation on the part of Enable-IT, Inc to provide
notification of such revision or change.

Enable-IT, Inc provides this documentation without warranty, term, or condition of any kind,
either implied or expressed, including, but not limited to, the implied warranties, terms or
conditions of merchantability, satisfactory quality, and fitness for a particular purpose.
Enable-IT, Inc may make improvements or changes in the product(s) and/or the
program(s) described in this documentation at any time.

If there is any software on removable media described in this documentation, it is furnished
under a license agreement included with the product as a separate document, in the hard
copy documentation. If you are unable to locate a copy, please contact Enable-IT, Inc and a
copy will be provided to you.

UNITED STATES GOVERNMENT LEGEND
If you are a United States government agency, then this documentation and the software
described herein are provided to you subject to the following:

All technical data and computer software are commercial in nature and developed solely at
private expense. Software is delivered as "Commercial Computer Software" as defined in
DFARS 252.227-7014 (June 1995) or as a "commercial item" as defined in FAR 2.101 (a)
and as such is provided with only such rights as are provided in Enable-IT, Inc's standard
commercial license for the Software.

Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov

1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or
deface any portion of any legend provided on any licensed program or documentation
contained in, or delivered to you in conjunction with, this User Guide.

Unless otherwise indicated, Enable-IT, Inc registered trademarks are registered in the
United States and may or may not be registered in other countries

P a g e 3 o f

1 3

CONTENTS

A

BOUT THIS GUIDE

4

1

I

NTRODUCING THE ENABLE

-IT 860 E

XTENDED ETHERNET UNIT

5

About the 860 Extended Ethernet Unit 5
Key Benefits 6
Summary of Features 6
Typical Applications 7

2

I

NSTALLING THE E

NABLE

-IT 860 E

XTENDED ETHERNET UNIT

8

Site Plan – Installation Design Considerations 8
Unpacking the 860 Extended Ethernet Kit 8
Performing the On-Site Installation 9
Mounting the 860 Extended Ethernet Units 9

A

T

ECHNICAL SUPPORT

Online Technical Services 10
World Wide Web Site 10
Returning Products for Repair 10

B

Enable-IT Inc. L

IMITED WARRANTY 10

P a g e 4 o f

1 3

ABOUT THIS GUIDE

This guide provides all the information needed to install and use the Enable-IT
860 Extended Ethernet Unit. This guide is intended for use by technicians who
are responsible for installing and setting up network equipment. Consequently, it
is assumed that the installer has a basic working knowledge of LANs (Local Area
Networks) and voice telecom wiring.

If the information in the release notes that are shipped with your product differs
from the information in this guide, follow the instructions in the release notes.

Most user guides and release notes are available in Adobe Acrobat
Reader Portable Document Format (PDF) or HTML on the Enable-IT World Wide

Web site: http://www.ethernetextender.com/manuals/860 Manual.pdf

P a g e 5 o f

1 3

I

NTRODUCING THE

860 E

XTENDED ETHERNET UNIT

Congratulations on purchasing the Enable-IT’s 860 Extended Ethernet Unit — the
simplest method to stretch your broadband solutions for in-building deployment in
commercial office buildings, hotels, and multi-tenant residential units.

The 860 Extended Ethernet Unit offers the Lowest Cost Solution in a simple design for
rapid install using existing 1 pair Telco wiring.

This chapter contains introductory information about The 860 Extended Ethernet Unit
and how it can be used in your network. It covers the following topics:

• About the 860 Extended Ethernet Unit

• Key Benefits

• Summary of Features

• Typical Applications

About the 860 Extended Ethernet Unit

The 860 Extended Ethernet Unit solves the problem of high costs associated with
stretching your backbone with traditional fiber or a series of hubs/repeaters.

In many office buildings, preferred network access is a dedicated Ethernet line,
however Ethernet over twisted pair wiring has its distance limitations of just 328 ft. In
order to drive Ethernet signal further, one would have to add repeaters to each
segment of 328ft twisted pair cabling; this is often insufficient and to costly in multi­story buildings. Fortunately, the Enable-IT 860 Series Extended Ethernet can push
the reach of Ethernet to more than (19) nineteen times the typical Ethernet distance
over a 1-pair Telco wiring infrastructure.
A simple design methodology would be to think of the 860 extending a standard Ethernet
line up to 6,000 (1,828m) and can also include a PABX voice line simultaneously.

To increase the durability and extended use of the product providing maximum future
technology protection, 860 Extended Ethernet Unit meets the challenge of modern
switched LANs and allows you to add features and capacity as your network expands.
The Enable-IT 860 Extended Ethernet has been tested to provide full duplex transport
up to 90MB/s over CAT2, and up to 100MB/s over CAT5e cabling.

U p t o 7 0 0 f t ( 2 0 0 m ) - 1 0 0 M b p s
7 0 0 f t ( 2 0 0 m ) t o 1 , 3 5 0 f t ( 4 0 0 m ) - 9 0 M b p s
1 , 3 5 0 f t ( 4 0 0 m ) t o 1 , 9 7 0 f t ( 6 0 0 m ) - 7 0 M b p s
1 , 9 7 0 f t ( 6 0 0 m ) t o 2 , 6 2 5 f t ( 8 0 0 m ) - 5 2 M b p s
2 , 6 2 5 f t ( 8 0 0 m ) t o 3 , 2 8 0 f t ( 1 0 0 0 m ) - 4 2 M b p s
3 , 3 0 0 f t ( 1 0 0 5 m ) t o 6 , 0 0 0 ( 1 , 8 2 8 m ) - 3 0 M b p s

* A c t u a l d a t a r a t e w i l l v a r y o n t h e q u a l i t y o f t h e c o p p e r w i r e , t w i s t e d p a i r a n d e n v i r o n m e n t a l f a c t o r s

U n i t M o d e l

W i r i n g

M i n D a t a R a t e

M a x . D i s t a n c e

860

(1) pair CAT 2 up to CAT5e

100Mbps FD

6,000ft / 1,828m

P a g e 6 o f

1 3

Key Benefits

The following list identifies the 860 Extended Ethernet Unit key benefits.

• Dramatic cost reduction over any competing technology.

• Broadband technology that delivers in-building Ethernet access over 1 pair of

existing Category 2 up to Category 5e wiring up to 6,000’, whether spare or
actively in use for analog or digital voice. This means no new wiring is required.

• Provides one scalable infrastructure for Internet access, POTS, VoIP, video, and
virtual private networking.

• Rapid installation with small box profile, no programming and no firmware to
upgrade.

• Low profile box with POTS line and single 10/100MB Ethernet port.

Summary of Features

The Enable-860 Extended Ethernet Unit has the following hardware features:

• 1 Extended Ethernet line over existing CAT 2 (Telco) up to CAT5e / CAT6 wiring

• Uses RJ-11 Telco style patch cord for 1-pair transport (pins 2 & 3)

• Rapid Telco style installation – no programming required

• Supports digital VoD channels

• Drives Ethernet 10/100 Mbps full-duplex service delivery up to 6,000ft / 1,828m

• Network Equipment independence – Transparent to protocols/applications/MAC

• Maintains lifeline POTS

Specifications: Functionality:

Power Indicator Data Rates 100Mbps Full Duplex
10/100Mbps Link status/Activity Full Duplex/Half Duplex status/Collisions
VDSL2 Link Status/Activity Protocol independent
Dimensions:
Height: 1" (25mm)
Depth: 3" (76mm)
Width: 2” (51mm)

Interfaces Environment
(1) 5v DC power Adapter Operating temp: -20° to 70°C/-4° - 160°F
(2) RJ-11 POTS (Pins 2 & 3) Storage temp: -25° to 70°C/-13° - 160°F
(1) RJ-45 10/100MB LAN Auto negotiate Humidity 5% to 95%, non-condensing

P a g e 7 o f

1 3

Typical Applications

Enable-IT 860 Extended Ethernet Units are usually installed into telephone wiring
infrastructures where extension of backbone services is required and expensive fiber
options are prohibitive. The 860 Extended Ethernet Units allow a standard Ethernet
segment to be deployed quickly over existing 1 pair Telco Copper Wiring in combination
with existing POTS voice signals. The innermost pins (2 & 3) are used for transport for
both voice and data. The pins (2 & 3) are flipped in straight though cabling. Using the
provided telephone patch cords, this flip is already performed.

Installers have the convenience of a 10/100Mbps LAN Ethernet unit for peace of mind
connectivity and no device maintenance. Rapid installation allows for minimal
interruption and the Broadband technology allows for investment protection up to 10 -15
years with no firmware or replacement issues. Bandwidth can be scaled according to
the Broadband Access Provider needs. The 860 Extended Ethernet Unit is a passive
device so interruption of Internet service does not affect POTS services. Carriers and
Access Providers can came and go, but the 860 Extended Ethernet Unit technologies
continue to provide lasting value such as the other utilities like Water, gas and electricity.

The Enable-860 Extended Ethernet Unit is suited for the following key environments:

•

Commercial Buildings (Multi-Tenant Units)

•

Business Parks (Multi-Tenant Units)

•

Apartments (Multi-Residential Units)

•

Hotels (Multi-Hospitality Units)

•

Business Suites (Multi-Hospitality Units)

•

School Campuses (University, K-12)

•

College Housing (Multi-Residential Units)

•

Mining Operations – Quarries, Mine shafts

•

Nautical Infrastructure – Cruise ships, Marinas, dive operations, subs

•

Video Surveillance/Security

•

WiFi Deployment – ISP’s, RV Parks, Construction sites

•

Manufacturing – Foundries, pharmaceutical, aerospace, automotive,
petroleum, concrete plants, etc.

•

Retail POS – Department stores, Bars, restaurants, retail spaces

•

Government – Naval ships, FEMA, Housing, USGS, National Parks, Forestry,
Research stations, NASA, utilities, etc.

•

Education – outdoor camps, college campuses

•

Healthcare – Hospitals, elder care, outpatient facilities

•

Entertainment – Movie theaters, home entertainment, fairs, outdoor venues

P a g e 8 o f

1 3

I

NSTALLING THE

860 E

XTENDED ETHERNET UNITS

The Enable-IT 860 Extended Ethernet Units have a distance restriction of 6,000ft or
1,828m over 1-pair of Category 2 up to Category 5e / CAT6 wiring from device extension
to device extension. Therefore quick, simple site surveys and installation planning are
highly recommended.

This chapter describes the recommended installation process for the Enable-IT 860
Extended Ethernet Unit. It covers the following topics:

• Site Plan – Installation Design Considerations

• Unpacking the Enable-IT 860 Extended Ethernet Units

• Performing the On-Site Installation

Site Plan - Installation Design Considerations

The planning process should involve a site walkthrough and discovery survey. Electrical
Cable measurement tools are the most reliable method to determine the longest run of
hidden wiring. Estimate the best locations to position the Broadband Concentrators to
adequately reach desired connectivity on each floor. Document your findings to use in
designing a network topology to support the Ethernet Switches and backbone
connectivity. Key points to remember in the Site Survey.

• Total distance limitation of 6,000ft over CAT2 up to CAT5e/CAT6 wiring from end
to end.

• 1 Pair CAT-2 Telco wiring .30 Gage or better cabling is required for transmission.

• We highly recommend a quick test to ensure the working order of you 860

units. To do this, please use one of the telephone patch cords provided
and attach each end to the VDSL port on the 860 units. Power up until you
see a Green VDSL Link light on each unit. This confirms proper operation
of the units.

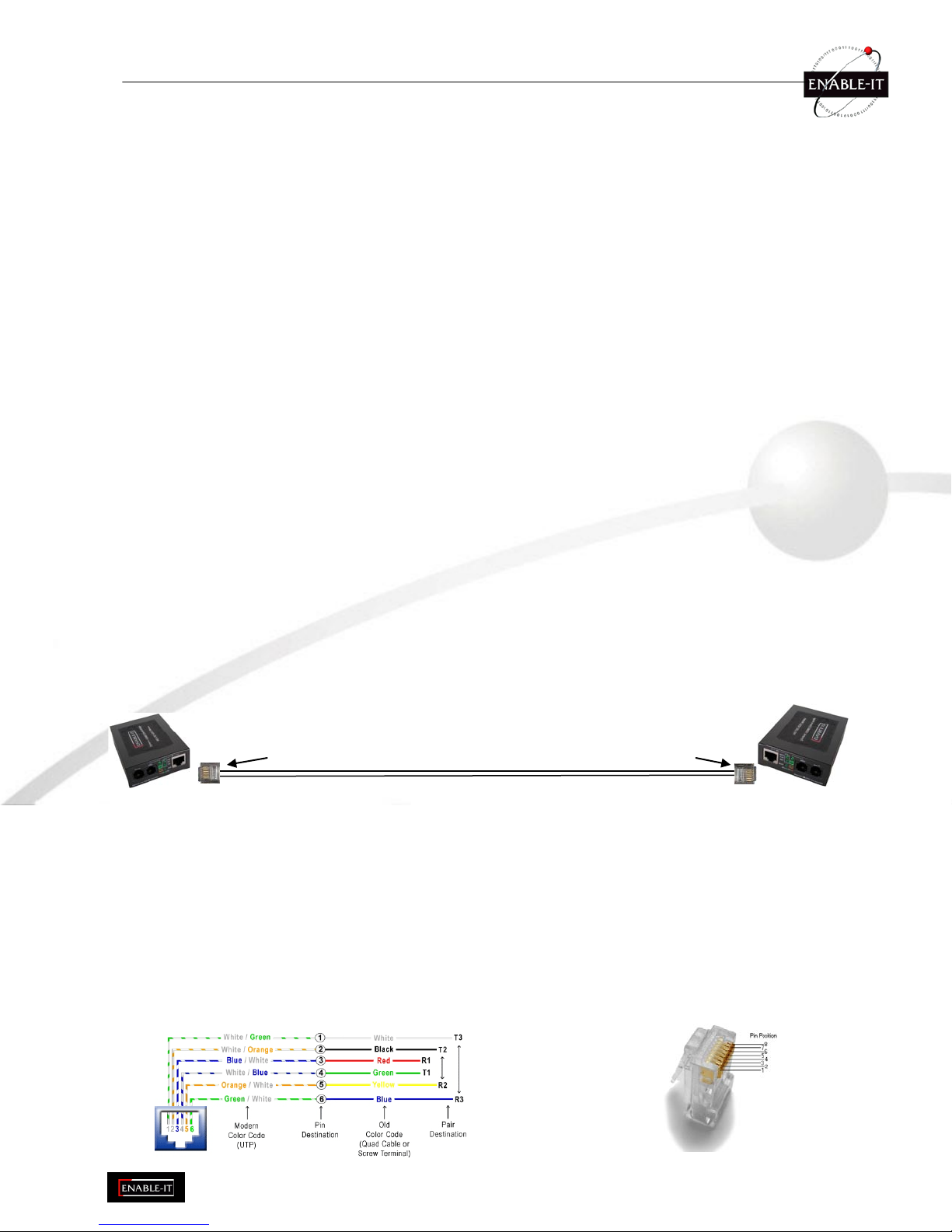

Note: The innermost pins (3&4) in a 6 pin head or (2&3) in a 4 pin head are used for
transport for both voice and data. The 860’s perform an automatic flip of the pins if
needed as long as you use the same wire pair on each end of the run. The provided
telephone patch cord can be used for your test and understanding of the wiring pins.
Crimp a blank RJ-11 male head to 1-pair of your existing CAT rated cabling on each end
and insert directly into the VDSL port of the 860 unit.

If you already have terminated CAT rated wiring you can use 1-pair by making an
adapter cable. Using the provided telephone patch cord, cut (1) RJ-11 head off and
replace with a Male RJ-45 head using the inside pins (4 & 5) on the RJ-45 Plug. Repeat
for the remote end telephone patch cord.

V D S L P o r t R J -1 1

V D S L P o r t R J -1 1

C r i m p P i n s 3 & 4 ( c e n t e r 2 ) o n a 6 -p i n h e a d o r p i n s ( 2 & 3 ) o n a 4 p i n h e a d f o r b o t h s i d e s o f y o u r w i r e r u n

1-P a i r o f w i r i n g ( t w i s t e d P a i r o r t e l e p h o n e ) s t r a i g h t t h r o u g h

L A N – C o n n e c t t o y o u r N e t w o r k

L A N – C o n n e c t t o y o u r N e t w o r k

P a g e 9 o f

1 3

Unpacking the Enable-IT 860 Extended Ethernet Unit Kit

Carefully remove the Enable-IT 860 Extended Ethernet Units all packing materials from
the box. Verify that the items listed below are present. Make sure that the equipment
supplied matches what you ordered. If any items are missing or damaged, please
contact your Enable-IT or your distributor for assistance.

• (2) The Enable-IT 860 Extended Ethernet Units

o 5v AC/DC Power adapter
o Telephone patch cable
o LAN patch cable

• (1) Enable-IT 860 Extended Ethernet Unit User Manual (this manual)

Performing the On-Site Installation

After removing the Enable-IT 860 Extended Ethernet Units from the box all that remains
to install the unit on-site is to mount the unit, connect the wiring, cross connect voice
lines if needed and attach the end device patch cord cabling.

Mounting the Enable-IT 860 Extended Ethernet Units
The Enable-IT 860 Extended Ethernet Units are designed for quick wall mounting.

Choose a location to mount each of the Enable-IT 860’s where the maximum distance
does not exceed 6,000ft or 1,828m total between devices to be connected.

When wall-mounting the Enable-IT 860 Extended Ethernet Unit it is recommended that
you use the appropriate screw anchors for your mounting surface. If mounting on
existing plywood use wood screws; if mounting onto drywall or sheetrock, use plastic
drywall anchors to secure your installation.



Prior to performing a remote link install, test your setup and equipment.
Connect your LAN to the Ethernet port of the primary 860 unit and power adapter.
Using the provided telephone patch cord connect each end of the cord into the
VDSL port on both 860 units. Connect your remote end device or LAN to the
Ethernet port of the remote 860 unit and power adapter. Power on all equipment
and test your connectivity and throughput. The Power, Activity and Link
lights will initially come on. After the VDSL Sync light illuminates green your units
are in sync and connectivity is established.

Note: The innermost pins (3&4) in a 6 pin head or (2&3) in a 4 pin head are used for
transport for both voice and data. The 860’s perform an automatic flip of the pins if
needed as long as you use the same wire pair on each end of the run. The provided
telephone patch cord can be used for your test and understanding of the wiring pins.
Crimp a blank RJ-11 male head to 1-pair of your existing CAT rated cabling on each
end and insert directly into the VDSL port of the 860 unit.

If the VDSL Sync light illuminates flashing, then the wiring between each 860 unit is
not able to provide synchronization between each end. Items to check are:

1) Make sure your wiring is straight through and not connected to any Telco punch
down block; use Telco butt clips to bridge wire.

2) Check for a firm connection of telephone patch cord in each 860 unit and power
applied and each 860 unit switched on.

P a g e 1 0 o f

1 3



Once testing is completed, the remote 860 unit can be located to its permanent
location. Insert the telephone patch cord into the VDSL port Insert into the back of
the remote 860 unit and the other end into the wallplate connected to your remote
pair of backbone wiring. Connect your remote end device to the Ethernet port of
the remote 860 unit and power adapter. Perform the same operation on the
primary 860 unit for connecting cabling and power to the unit. Make sure the
backbone wiring pair (1-pair) match each other on each end of your connection.
Power on all equipment and test your connectivity and throughput.



F o r t r o u b l e s h o o t i n g , f i r s t e x a m i n e t h e b a c k b o n e w i r i n g p a i r a n d m a k e s u r e y o u h a v e s o l i d
c o n n e c t i o n s . T h e V D S L L i n k w i l l b e l i t o n e a c h 8 6 0 u n i t t o s h o w p r o p e r c o n n e c t i o n a n d
p a i r i n g . I f t h e V D S L L i n k i s f l a s h i n g –

1) Make sure your wiring is straight through and not connected to any Telco punch
down block; use Telco butt clips to bridge wire.

2) Check for a firm connection of telephone patch cord in each 860 unit and power
applied and each 860 unit switched on.

3) If your installation has performance issues not resolved by the first two steps, you
can change the 860 CO DIP Switches (2 & 4) to off position.

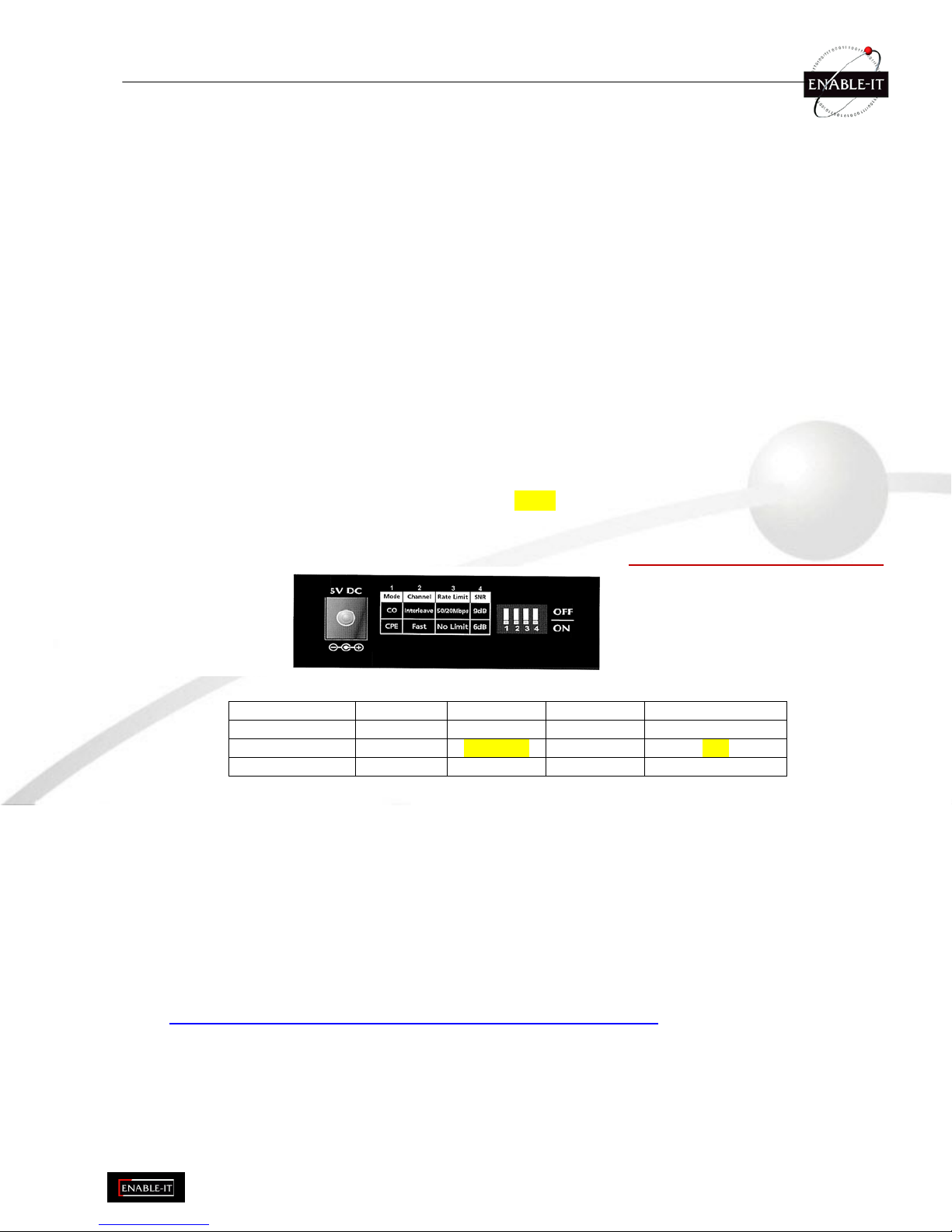

8 6 0 C O D I P S w i t c h s e t t i n g s 8 6 0 C P E D I P S w i t c h s e t t i n g s

N e v e r c h a n g e t h e C P E D I P s w i t c h e s

Technical Support

E n a b l e -I T O E M T e c h n i c a l S u p p o r t i s a v a i l a b l e d i r e c t l y t o c u s t o m e r s a n d d i s t r i b u t o r s . A l l s u p p o r t
r e q u e s t s a r e p r o c e s s e d t h r o u g h t h e o n l i n e s u p p o r t p o r t a l . T h i s a l l o w s u s t o p r o v i d e a s s i g n e d s u p p o r t
t i c k e t n u m b e r s i n o r d e r t o b r i n g c l o s u r e t o a n y t e c h n i c a l i s s u e s .

Online Technical Services
T h e E n a b l e -I T S u p p o r t P o r t a l i s a v a i l a b l e 2 4 / 7 . N o p a s s w o r d o r u s e r a c c o u n t i s n e c e s s a r y . P l e a s e
u s e t h i s s u p p o r t w e b s i t e a s y o u r f i r s t s o u r c e f o r h e l p a s i t c o n t a i n s a n o n l i n e k n o w l e d g e b a s e o f
a r t i c l e s , d o c u m e n t a t i o n , F A Q ' s a n d o t h e r p r o b l e m -s o l v i n g r e s o u r c e s . T h i s w e b -b a s e d s u p p o r t
r e s o u r c e p r o v i d e s t h e q u i c k e s t s o l u t i o n t o t h e m o s t c o m m o n t e c h n i c a l s u p p o r t i s s u e s .

http://www.ethernetextender.com/support/support_overview.php

D I P -1

D I P -2

D I P -3

D I P -4

M o d e

C h a n n e l

R a t e L i m i t

S i g n a l N o i s e R a t i o

O F F

C O

I n t e r l e a v e

5 0 / 2 0 M b p s

9 d B

O N ( D e f a u l t )

C P E

F a s t

N o L i m i t

6 d B

P a g e 1 1 o f

1 3

Returning Products for Warranty Repair

E n a b l e -I T , I n c . w a r r a n t s t o t h e o r i g i n a l p u r c h a s e r o f t h e P r o d u c t ( " y o u " o r t h e " E n d U s e r " )
t h a t , f o r t h e o n e ( 1 ) y e a r p e r i o d c o m m e n c i n g o n t h e d a t e t h e P r o d u c t w a s p u r c h a s e d ( t h e
" W a r r a n t y P e r i o d " ) , t h e P r o d u c t w i l l b e s u b s t a n t i a l l y f r e e f r o m d e f e c t s i n m a t e r i a l s a n d
w o r k m a n s h i p u n d e r n o r m a l u s e a n d c o n d i t i o n s . E l e c t r i c a l d a m a g e i s n o t a n i t e m t h a t i s
c o v e r e d u n d e r t h i s w a r r a n t y o r e x t e n d e d w a r r a n t i e s . O p t i o n a l t w o ( 2 ) y e a r a n d t h r e e ( 3 ) y e a r
w a r r a n t i e s a r e a v a i l a b l e t o e x t e n d t h i s c o v e r a g e i f p u r c h a s e d d u r i n g t h e f i r s t y e a r o f
c o v e r a g e .

I f a u t h o r i z e d b y E n a b l e -I T t o r e t u r n a P r o d u c t w h i c h d o e s n o t c o n f o r m t o t h e w a r r a n t y s e t
f o r t h a b o v e , t h e E n d U s e r m u s t : ( 1 ) o b t a i n a r e t u r n m a t e r i a l s a u t h o r i z a t i o n ( R M A ) n u m b e r
f r o m E n a b l e -I T b y c o n t a c t i n g t h e C u s t o m e r S e r v i c e D e p t . a t 8 8 8 -3 0 9 -0 9 1 0 b e t w e e n t h e
h o u r s o f 8 : 0 0 a . m . a n d 5 : 0 0 p . m . P S T a n d o t h e r w i s e f u l l y c o m p l y w i t h E n a b l e -I T ’ s t h e n ­c u r r e n t R M A p o l i c y ; ( 2 ) r e t u r n t h e P r o d u c t t o E n a b l e -I T , I n c . i n i t s o r i g i n a l p a c k a g i n g f r e i g h t
p r e -p a i d ; a n d ( 3 ) p r o v i d e t o E n a b l e -I T t h e o r i g i n a l r e c e i p t o r b i l l o f s a l e e s t a b l i s h i n g t h e d a t e
o n w h i c h t h e P r o d u c t w a s p u r c h a s e d .

Please ship Authorized RMAs to:
Enable-IT Processing Facility

16600 Harbor Blvd, Ste G
Fountain Valley, CA 92708

Returning Products for Refund

30-Day refund applies to single kit Ethernet Extenders only and is subject to a 25%
Restocking Fee. Shipments without valid / authorized RMA number or sent to our
corporate Las Vegas Address can be refused and or billed for additional shipping.

E

NABLE

-IT L

IMITED WARRANTY

E n a b l e -I T w a r r a n t s t h e Enable-IT 860 Extended Ethernet Kits s o l e l y p u r s u a n t t o t h e
f o l l o w i n g t e r m s a n d c o n d i t i o n s .

1 . P R O D U C T W A R R A N T Y

a . E x p r e s s W a r r a n t y E n a b l e -I T w a r r a n t s t o t h e o r i g i n a l p u r c h a s e r o f t h e P r o d u c t ( " y o u " o r t h e
" E n d U s e r " ) t h a t , f o r t h e o n e ( 1 ) y e a r p e r i o d c o m m e n c i n g o n t h e d a t e t h e P r o d u c t w a s
p u r c h a s e d ( t h e " W a r r a n t y P e r i o d " ) , t h e P r o d u c t w i l l b e s u b s t a n t i a l l y f r e e f r o m d e f e c t s i n
m a t e r i a l s a n d w o r k m a n s h i p u n d e r n o r m a l u s e a n d c o n d i t i o n s . T h i s w a r r a n t y d o e s n o t a p p l y
t o P r o d u c t s w h i c h a r e r e s o l d a s u s e d , r e p a i r e d o r r e c o n d i t i o n e d o r c o n s u m a b l e s ( s u c h a s
b a t t e r i e s ) s u p p l i e d w i t h t h e P r o d u c t . E n a b l e -I T d o e s n o t m a k e a n y w a r r a n t y w i t h r e s p e c t t o
a n y t h i r d p a r t y p r o d u c t , s o f t w a r e o r a c c e s s o r y s u p p l i e d w i t h o r u s e d i n c o n n e c t i o n w i t h t h e
P r o d u c t a n d s u c h t h i r d p a r t y p r o d u c t s , s o f t w a r e a n d a c c e s s o r i e s , i f a n y , a r e p r o v i d e d " A S I S . "
W a r r a n t y c l a i m s r e l a t e d t o s u c h t h i r d p a r t y p r o d u c t s , s o f t w a r e a n d a c c e s s o r i e s m u s t b e m a d e
t o t h e a p p l i c a b l e t h i r d p a r t y m a n u f a c t u r e r .

b . R e m e d i e s f o r B r e a c h o f W a r r a n t y I n t h e e v e n t o f a b r e a c h o f t h e f o r e g o i n g w a r r a n t y ,
E n a b l e -I T w i l l , i n i t s s o l e d i s c r e t i o n a n d a t i t s c o s t a n d s u b j e c t t o t h e t e r m s o f t h e f o l l o w i n g
p a r a g r a p h , r e p a i r t h e n o n -c o n f o r m i n g P r o d u c t , r e p l a c e t h e n o n -c o n f o r m i n g P r o d u c t w i t h a
n e w o r r e c o n d i t i o n e d P r o d u c t o r r e f u n d o f t h e p u r c h a s e p r i c e f o r t h e P r o d u c t . A n y n e w o r
r e c o n d i t i o n e d P r o d u c t p r o v i d e d p u r s u a n t t o t h i s p a r a g r a p h i s w a r r a n t e d a s p r o v i d e d h e r e i n
f o r t h e r e m a i n d e r o f t h e o r i g i n a l W a r r a n t y P e r i o d . T H E R E M E D Y S E T F O R T H I N T H I S
P A R A G R A P H S H A L L B E T H E E N D U S E R ’ S S O L E A N D E X C L U S I V E R E M E D Y F O R
BR E A C H O F T H E F O R E G O I N G W A R R A N T Y .

P a g e 1 2 o f

1 3

c . C o n d i t i o n s f o r W a r r a n t y Q u a l i f i c a t i o n I f a u t h o r i z e d b y E n a b l e -I T t o r e t u r n a P r o d u c t w h i c h
d o e s n o t c o n f o r m t o t h e w a r r a n t y s e t f o r t h a b o v e , t h e E n d U s e r m u s t : ( 1 ) o b t a i n a r e t u r n
m a t e r i a l s a u t h o r i z a t i o n ( R M A ) n u m b e r f r o m E n a b l e -I T b y c o n t a c t i n g t h e C u s t o m e r S e r v i c e
D e p t . a t 8 8 8 -3 0 9 -0 9 1 0 b e t w e e n t h e h o u r s o f 8 : 0 0 a . m . a n d 5 : 0 0 p . m . P S T a n d o t h e r w i s e f u l l y
c o m p l y w i t h E n a b l e -I T ’ t h e n -c u r r e n t R M A p o l i c y ; ( 2 ) r e t u r n t h e P r o d u c t t o E n a b l e -I T i n i t s
o r i g i n a l p a c k a g i n g f r e i g h t p r e -p a i d ; a n d ( 3 ) p r o v i d e t o E n a b l e -I T t h e o r i g i n a l r e c e i p t o r b i l l o f
s a l e e s t a b l i s h i n g t h e d a t e o n w h i c h t h e P r o d u c t w a s p u r c h a s e d .
P r o d u c t s r e t u r n e d t o E n a b l e -I T w i t h o u t a n R M A n u m b e r w i l l b e r e t u r n e d t o t h e E n d U s e r .
E n a b l e -I T s h a l l n o t b e r e s p o n s i b l e f o r d a m a g e o r l o s s d u r i n g s h i p m e n t o f t h e r e t u r n e d
P r o d u c t t o E n a b l e -I T .

d . V o i d i n g o f W a r r a n t y . T h e e x p r e s s w a r r a n t y s e t f o r t h a b o v e s h a l l n o t a p p l y t o f a i l u r e o f t h e
P r o d u c t i f t h e P r o d u c t h a s b e e n s u b j e c t e d t o : ( i ) p h y s i c a l a b u s e , m i s u s e , i m p r o p e r
i n s t a l l a t i o n , a b n o r m a l u s e , p o w e r f a i l u r e o r s u r g e , o r u s e n o t c o n s i s t e n t w i t h t h e o p e r a t i n g
i n s t r u c t i o n s p r o v i d e d b y E n a b l e -I T ; ( i i ) m o d i f i c a t i o n ( i n c l u d i n g b u t n o t l i m i t e d t o o p e n i n g t h e
P r o d u c t h o u s i n g ) o r r e p a i r b y a n y p a r t y i n a n y m a n n e r o t h e r t h a n a s a p p r o v e d b y E n a b l e -I T
i n w r i t i n g ; ( i i i ) f r a u d , t a m p e r i n g , u n u s u a l p h y s i c a l o r e l e c t r i c a l s t r e s s , u n s u i t a b l e o p e r a t i n g o r
p h y s i c a l c o n d i t i o n s , n e g l i g e n c e o r a c c i d e n t s ; ( i v ) r e m o v a l o r a l t e r a t i o n o f t h e P r o d u c t s e r i a l
n u m b e r t a g ; ( v ) i m p r o p e r p a c k a g i n g o f P r o d u c t r e t u r n s ; o r ( v i ) d a m a g e d u r i n g s h i p m e n t ( o t h e r
t h a n d u r i n g t h e o r i g i n a l s h i p m e n t o f t h e P r o d u c t t o t h e E n d U s e r f r o m E n a b l e -I T , i f
a p p l i c a b l e ) .

e . W a r r a n t y D i s c l a i m e r s T H E E X P R E S S W A R R A N T Y S E T F O R T H A B O V E I S I N L I E U O F
A L L O T H E R W A R R A N T I E S , W H E T H E R W R I T T E N , O R A L , E X P R E S S O R I M P L I E D .
E N A B L E -I T D I S C L A I M S , T O T H E M A X I M U M E X T E N T P E R M I T T E D B Y L A W , T H E
I M P L I E D W A R R A N T I E S O F M E R C H A N T A B I L I T Y , F I T N E S S F O R A P A R T I C U L A R
P U R P O S E O R N O N I N F R I N G E M E N T O F T H I R D P A R T Y R I G H T S . N O P E R S O N
( I N C L U D I N G W I T H O U T L I M I T A T I O N , E N A B L E -I T ’ E M P L O Y E E S , A G E N T S , R E S E L L E R S ,
O E M S O R D I S T R I B U T O R S ) I S A U T H O R I Z E D T O M A K E A N Y O T H E R W A R R A N T Y O R
R E P R E S E N T A T I O N C O N C E R N I N G T H E P R O D U C T . I F T H E D I S C L A I M E R O F A N Y
I M P L I E D W A R R A N T Y I S N O T P E R M I T T E D B Y L A W , T H E D U R A T I O N O F A N Y S U C H
I M P L I E D W A R R A N T Y I S L I M I T E D T O O N E ( 1 ) Y E A R F R O M T H E D A T E O F P U R C H A S E .
S O M E J U R I S D I C T I O N S D O N O T A L L O W T H E E X C L U S I O N O F I M P L I E D W A R R A N T I E S
O R L I M I T A T I O N S O N H O W L O N G A N I M P L I E D W A R R A N T Y M A Y L A S T , S O S U C H
L I M I T A T I O N S O R E X C L U S I O N S M A Y N O T A P P L Y . T H I S W A R R A N T Y G I V E S T H E E N D
U S E R S P E C I F I C L E G A L R I G H T S A N D T H E E N D U S E R M A Y A L S O H A V E O T H E R
R I G H T S W H I C H V A R Y F R O M J U R I S D I C T I O N T O J U R I S D I C T I O N . E N A B L E -I T D O E S
N O T W A R R A N T T H A T T H E O P E R A T I O N O F T H E P R O D U C T W I L L B E
U N I N T E R R U P T E D O R E R R O R F R E E .
E N A B L E -I T I S N O T R E S P O N S I B L E F O R A N Y D A M A G E T O O R L O S S O F A N Y
P R O G R A M S , D A T A , O R O T H E R I N F O R M A T I O N S T O R E D O N O R T R A N S M I T T E D
U S I N G T H E P R O D U C T .

2 . L I M I T A T I O N O F L I A B I L I T Y I N N O E V E N T S H A L L E N A B L E -I T B E L I A B L E T O T H E E N D
U S E R O R A N Y T H I R D P A R T Y F O R A N Y I N D I R E C T , S P E C I A L , P U N I T I V E , I N C I D E N T A L
O R C O N S E Q U E N T I A L D A M A G E S I N C O N N E C T I O N W I T H O R A R I S I N G O U T O F T H E
S A L E O R U S E O F T H E P R O D U C T ( I N C L U D I N G B U T N O T L I M I T E D T O L O S S O F
P R O F I T , U S E , D A T A , O R O T H E R E C O N O M I C A D V A N T A G E ) , H O W E V E R I T A R I S E S ,
I N C L U D I N G W I T H O U T L I M I T A T I O N B R E A C H O F W A R R A N T Y , O R I N C O N T R A C T O R I N
T O R T ( I N C L U D I N G N E G L I G E N C E ) , O R S T R I C T L I A B I L I T Y , E V E N I F E N A B L E -I T H A S
B E E N P R E V I O U S L Y A D V I S E D O F T H E P O S S I B I L I T Y O F S U C H D A M A G E A N D E V E N I F
A L I M I T E D R E M E D Y S E T F O R T H I N T H I S A G R E E M E N T F A I L S O F I T S E S S E N T I A L
P U R P O S E . I N N O E V E N T S H A L L E N A B L E -I T ’ L I A B I L I T Y T O T H E E N D U S E R O R A N Y

P a g e 1 3 o f

1 3

T H I R D P A R T Y E X C E E D T H E P R I C E P A I D F O R T H E P R O D U C T . B E C A U S E S O M E
J U R I S D I C T I O N S D O N O T A L L O W T H E E X C L U S I O N O R L I M I T A T I O N O F L I A B I L I T Y F O R
C O N S E Q U E N T I A L O R I N C I D E N T A L D A M A G E S , T H E A B O V E L I M I T A T I O N S M A Y
N O T A P P L Y T O T H E E N D U S E R .

3 . L I C E N S E A N D L I M I T A T I O N S . T h e f i r m w a r e a n d s o f t w a r e e m b e d d e d i n t h e P r o d u c t ( t h e
" E m b e d d e d S o f t w a r e " ) a r e l i c e n s e d t o y o u . Y o u r u s e o f t h e P r o d u c t i s y o u r a c c e p t a n c e o f t h e
w a r r a n t y t e r m s a b o v e a n d t h e t e r m s b e l o w . Y o u m a y u s e t h e E m b e d d e d S o f t w a r e s o l e l y i n
c o n j u n c t i o n w i t h y o u r u s e o f t h e P r o d u c t . A l l w o r l d w i d e r i g h t , t i t l e a n d i n t e r e s t i n a n d t o t h e
P r o d u c t , o r a n y p o r t i o n t h e r e o f ( i n c l u d i n g b u t n o t l i m i t e d t o t h e Em b e d d e d S o f t w a r e ) ,
i n c l u d i n g a l l c o p y r i g h t s , p a t e n t r i g h t s , t r a d e m a r k s , t r a d e s e c r e t s , a n d o t h e r i n t e l l e c t u a l
p r o p e r t y r i g h t s t h e r e i n a n d t h e r e t o , a r e a n d s h a l l r e m a i n t h e e x c l u s i v e p r o p e r t y o f E n a b l e -I T
a n d / o r i t s l i c e n s o r s . Y o u a c k n o w l e d g e a n d a g r e e t h a t y o u m a y n o t , a n d m a y n o t a l l o w a n y
t h i r d p a r t y t o , ( i ) u s e t h e E m b e d d e d S o f t w a r e i n a m a n n e r t h a t i s i n c o n s i s t e n t w i t h t h e a b o v e
e x p r e s s r i g h t g r a n t e d t o y o u o r ( i i ) m o d i f y , d i s t r i b u t e , r e p r o d u c e , d e c o m p i l e , d i s a s s e m b l e ,
r e v e r s e e n g i n e e r o r o t h e r w i s e a t t e m p t t o d i s c o v e r t h e s o u r c e c o d e f o r t h e E m b e d d e d
S o f t w a r e .

C

ONTACT US

European Sales: North American Sales: Asia Pacific Sales:

[phone] [phone] [phone]

[phone] fax [phone] fax [phone] fax

http://www.enable-it.eu

http://www.enableit.com

http://www.enable-it.com.au

[e-mail]

[e-mail]

[e-mail]

Middle East Sales: Other International:

[phone] + 1 ( 6 1 9 ) 7 9 5 -1 6 9 7

http://www.enableit.com

[phone] fax

[e-mail]
