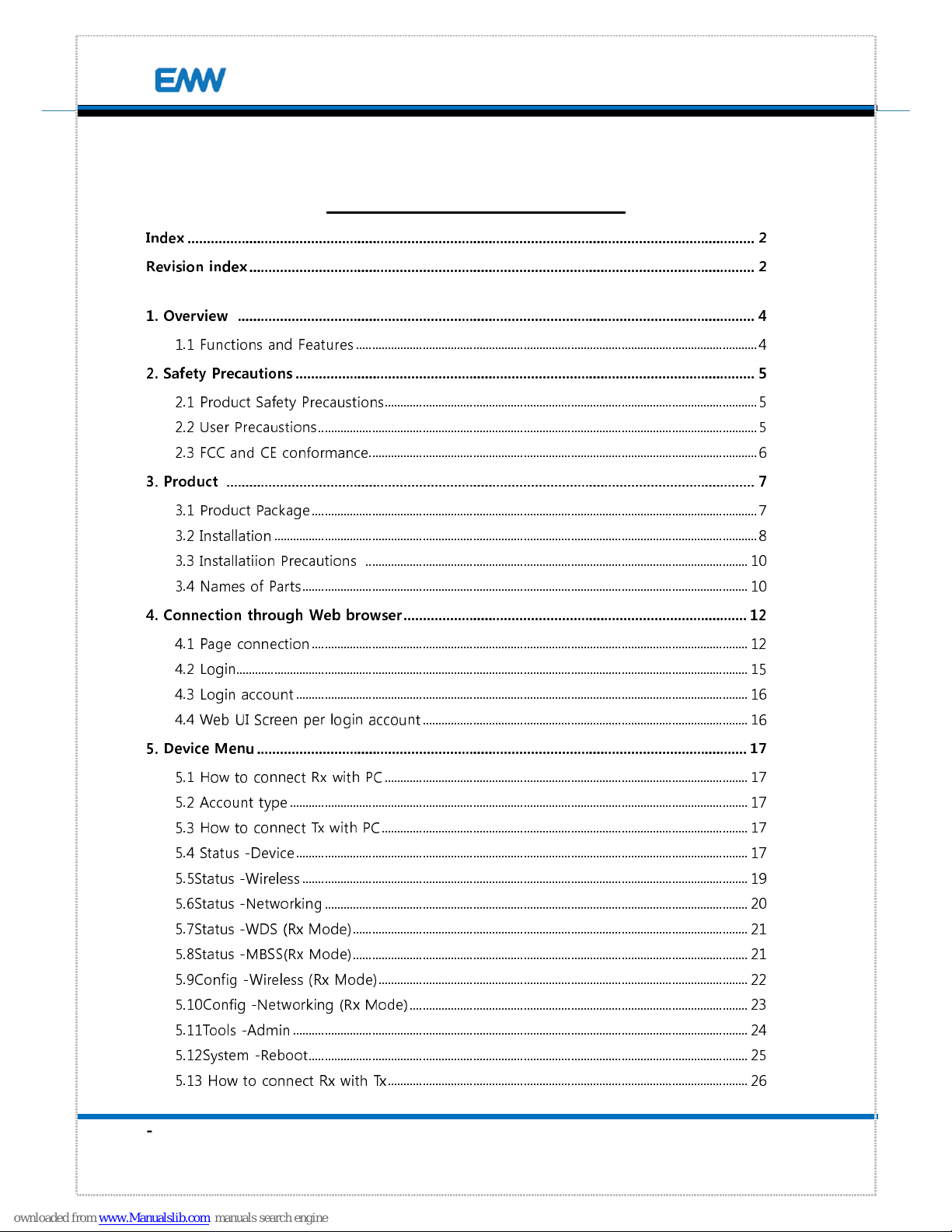

Table of Contents
Index ................................................................................................................................................... 2
Revision index ................................................................................................................................... 2
1. Overview ...................................................................................................................................... 4
1.1 Functions and Features ............................................................................................................................... 4
2. Safety Precautions ....................................................................................................................... 5
2.1 Product Safety Precaustions ...................................................................................................................... 5
2.2 User Precaustions ........................................................................................................................................... 5
2.3 FCC and CE conformance ........................................................................................................................... 6
3. Product ......................................................................................................................................... 7
3.1 Product Package ............................................................................................................................................. 7
3.2 Installation ......................................................................................................................................................... 8
3.3 Installatiion Precautions ......................................................................................................................... 10
3.4 Names of Parts ............................................................................................................................................. 10
4. Connection through Web browser ......................................................................................... 12
4.1 Page connection .......................................................................................................................................... 12
4.2 Login .................................................................................................................................................................. 15
4.3 Login account ............................................................................................................................................... 16
4.4 Web UI Screen per login account ....................................................................................................... 16
5. Device Menu ............................................................................................................................... 17
5.1 How to connect Rx with PC ................................................................................................................... 17
5.2 Account type ................................................................................................................................................. 17
5.3 How to connect Tx with PC .................................................................................................................... 17
5.4 Status -Device ............................................................................................................................................... 17
5.5Status -Wireless ............................................................................................................................................. 19
5.6Status -Networking ...................................................................................................................................... 20
5.7Status -WDS (Rx Mode) ............................................................................................................................. 21
5.8Status -MBSS(Rx Mode) ............................................................................................................................. 21
5.9Config -Wireless (Rx Mode) ..................................................................................................................... 22
5.10Config -Networking (Rx Mode) ........................................................................................................... 23
5.11Tools -Admin ................................................................................................................................................ 24
5.12System -Reboot ........................................................................................................................................... 25
5.13 How to connect Rx with Tx .................................................................................................................. 26
- 3 -
EMW Co., Ltd.
EVB
-
A100
User
Manual
6. Change Settings ......................................................................................................................... 28
6.1 Change Tx / Rx settings ........................................................................................................................... 28
6.2 Change Tx / Rx settings ........................................................................................................................... 28
6.3 Change Channel ........................................................................................................................................... 29
6.4 Change Rx ESSID ......................................................................................................................................... 29
6.5 Change Tx ESSID .......................................................................................................................................... 29
6.6 Change Passphrase ..................................................................................................................................... 30
6.7 Menu ................................................................................................................................................................. 30
6.8 Tools -Admin ................................................................................................................................................. 31
6.9 System Reboot .............................................................................................................................................. 32
7. How to set up and check WDS (Rx Mode) ........................................................................ 33
7.1 WDS function .............................................................................................................................................. 33
7.2 Details of Tx and Rx setting ................................................................................................................. 33
7.3 Order of WDS Setup .................................................................................................................................. 33
7.4 How to set up WDS on Web UI screen ............................................................................................ 34
8
. Fault diagnosis and measures ................................................................................................. 36
9. Terminology ................................................................................................................................ 37
10. Specification Table .................................................................................................................. 39
11. Customer services .................................................................................................................... 41
Revision history
Versions Dates Description
v1.0.0 2016-05-24 Korean Manual
V10.1 2016-05-25 UI modification
- 4 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

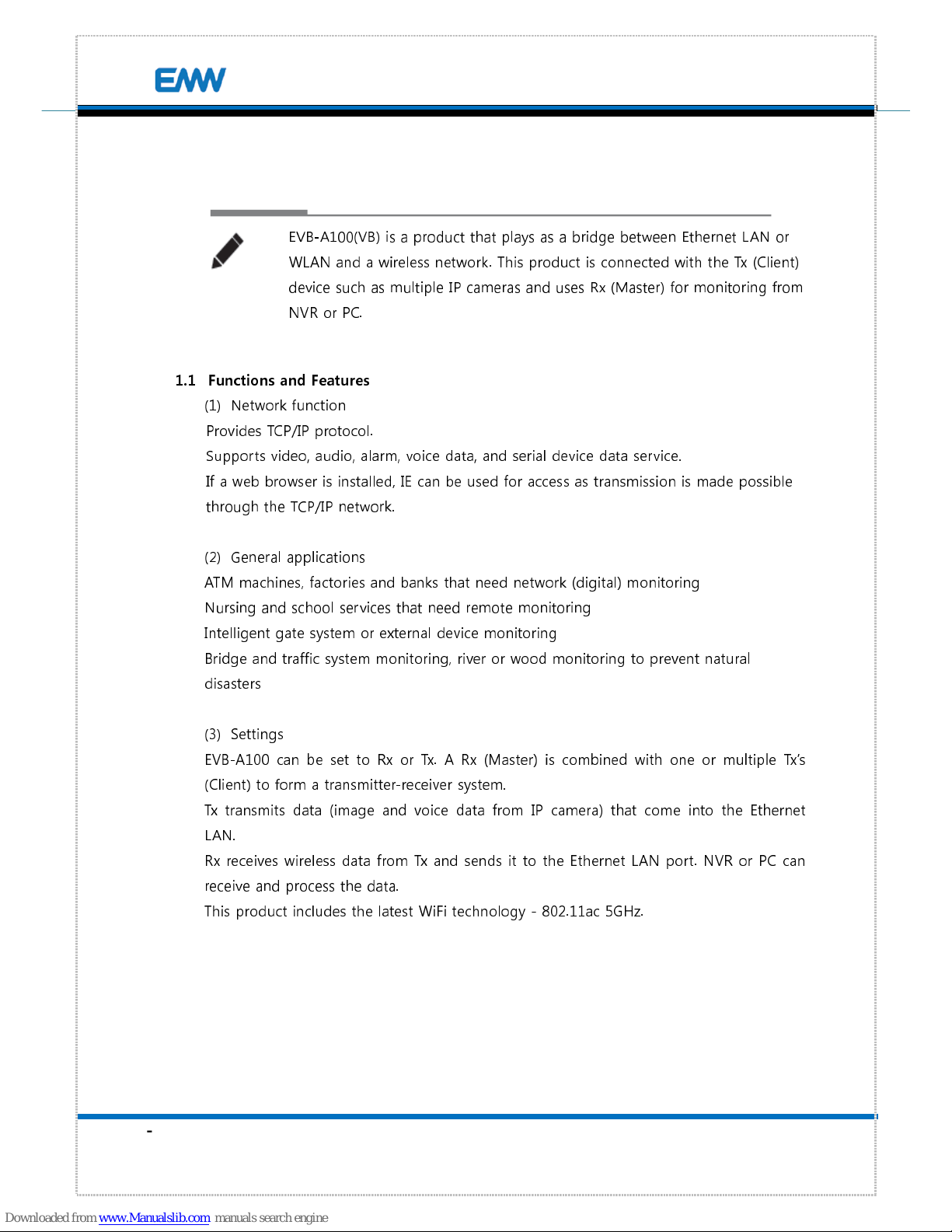

1. Overview
EVB-A100(VB) is a product that plays as a bridge between Ethernet LAN or
WLAN and a wireless network. This product is connected with the Tx (Client)
device such as multiple IP cameras and uses Rx (Master) for monitoring from
NVR or PC.
1.1 Functions and Features
(1) Network function
Provides TCP/IP protocol.
Supports video, audio, alarm, voice data, and serial device data service.
If a web browser is installed, IE can be used for access as transmission is made possible
through the TCP/IP network.
(2) General applications
ATM machines, factories and banks that need network (digital) monitoring
Nursing and school services that need remote monitoring
Intelligent gate system or external device monitoring
Bridge and traffic system monitoring, river or wood monitoring to prevent natural
disasters
(3) Settings
EVB-A100 can be set to Rx or Tx. A Rx (Master) is combined with one or multiple Tx’s
(Client) to form a transmitter-receiver system.
Tx transmits data (image and voice data from IP camera) that come into the Ethernet
LAN.
Rx receives wireless data from Tx and sends it to the Ethernet LAN port. NVR or PC can
receive and process the data.
This product includes the latest WiFi technology - 802.11ac 5GHz.
- 5 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

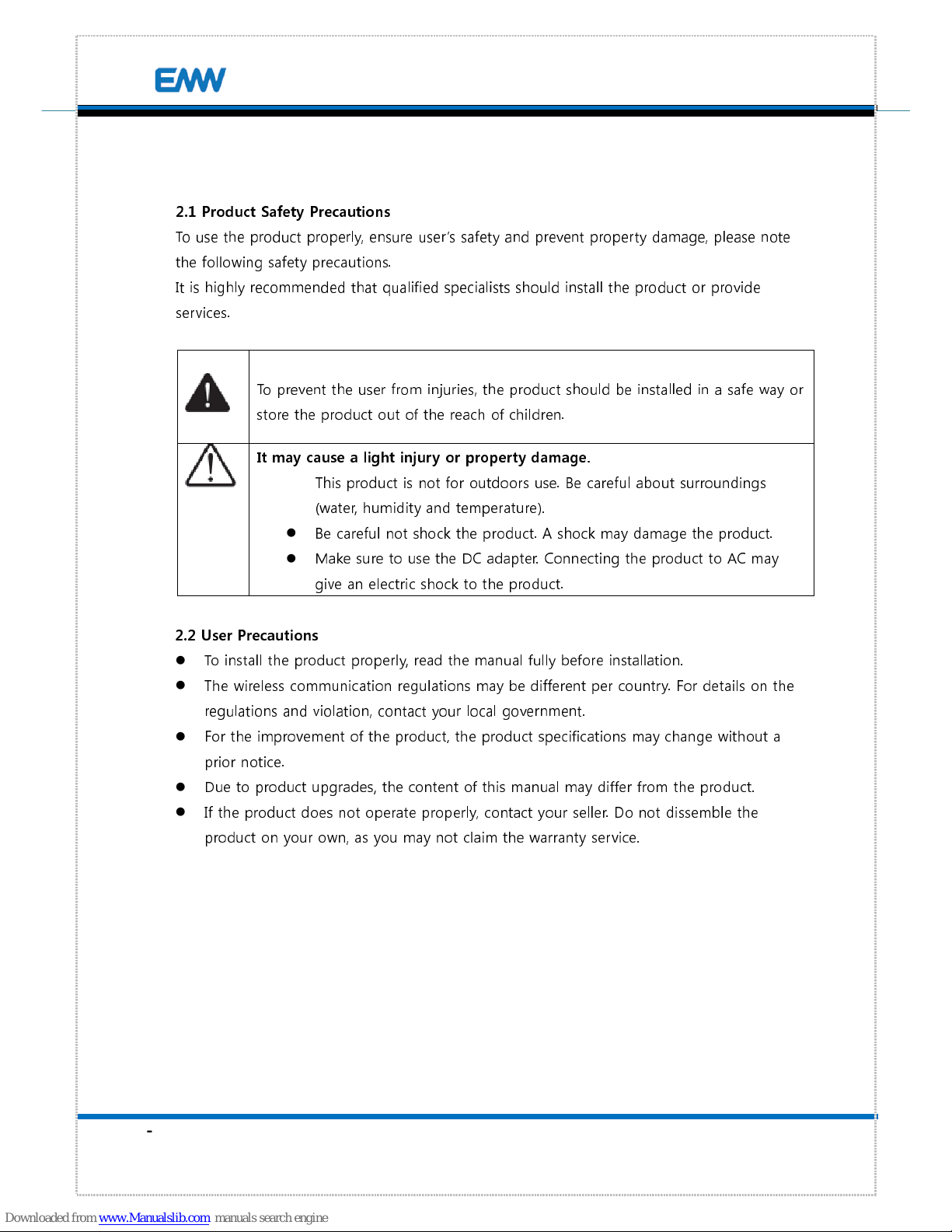

2. Safety Precautions
2.1 Product Safety Precautions
To use the product properly, ensure user’s safety and prevent property damage, please note
the following safety precautions.
It is highly recommended that qualified specialists should install the product or provide
services.
To prevent the user from injuries, the product should be installed in a safe way or
store the product out of the reach of children.
It may cause a light injury or property damage.
This product is not for outdoors use. Be careful about surroundings
(water, humidity and temperature).
Be careful not shock the product. A shock may damage the product.
Make sure to use the DC adapter. Connecting the product to AC may
give an electric shock to the product.
2.2 User Precautions
To install the product properly, read the manual fully before installation.
The wireless communication regulations may be different per country. For details on the
regulations and violation, contact your local government.
For the improvement of the product, the product specifications may change without a
prior notice.
Due to product upgrades, the content of this manual may differ from the product.
If the product does not operate properly, contact your seller. Do not dissemble the
product on your own, as you may not claim the warranty service.
- 6 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

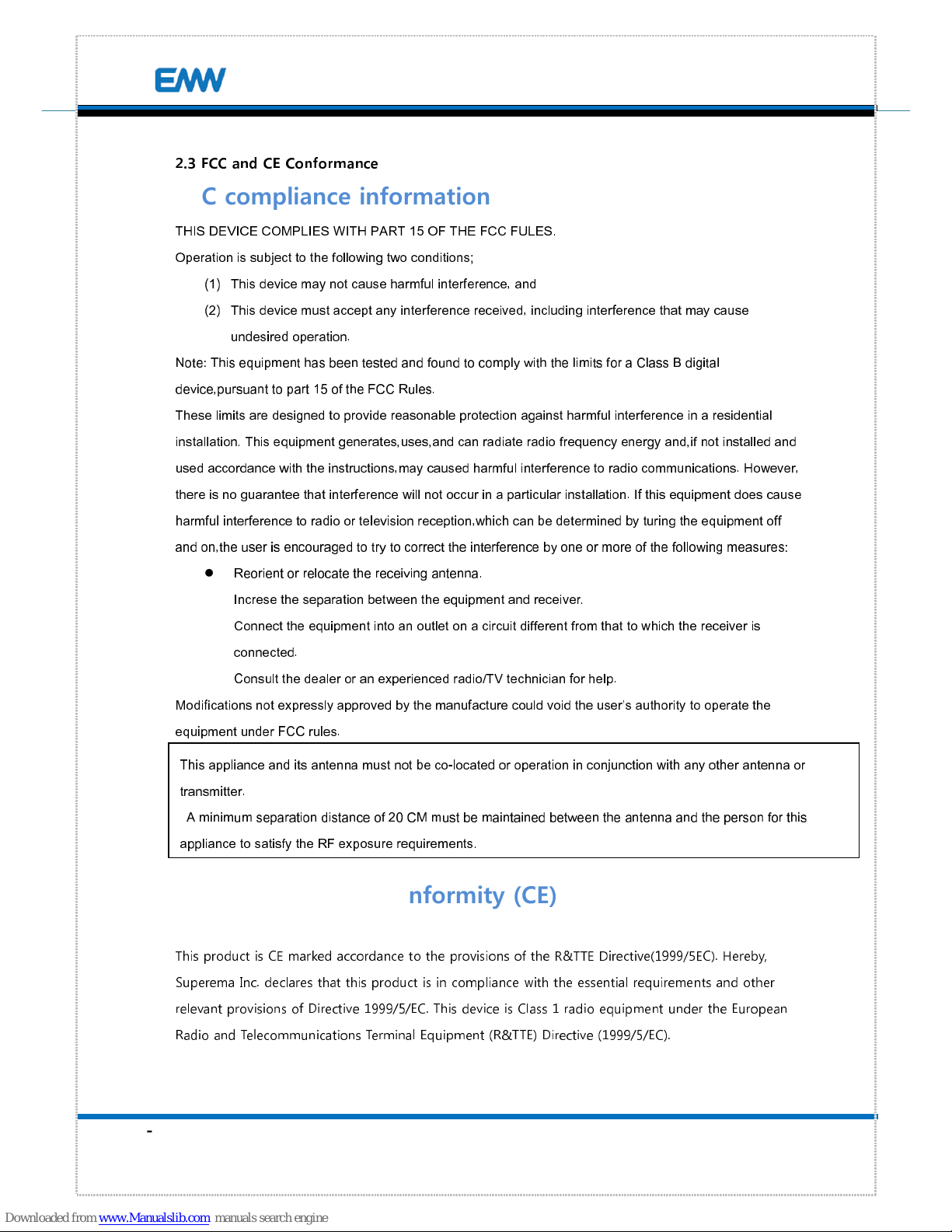

2.3 FCC and CE Conformance
FCC compliance information
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC FULES.
Operation is subject to the following two conditions;
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device,pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates,uses,and can radiate radio frequency energy and,if not installed and
used accordance with the instructions,may caused harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception,which can be determined by turing the equipment off
and on,the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increse the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacture could void the user’s authority to operate the
equipment under FCC rules.
EU Declaration of Conformity (CE)
This product is CE marked accordance to the provisions of the R&TTE Directive(1999/5EC). Hereby,
Superema Inc. declares that this product is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC. This device is Class 1 radio equipment under the European
Radio and Telecommunications Terminal Equipment (R&TTE) Directive (1999/5/EC).
This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or
transmitter.
A minimum separation distance of 20 CM must be maintained between the antenna and the person for this
appliance to satisfy the RF exposure requirements.
- 7 -
EMW Co., Ltd.
EVB
-
A100
User
Manual
3. Product

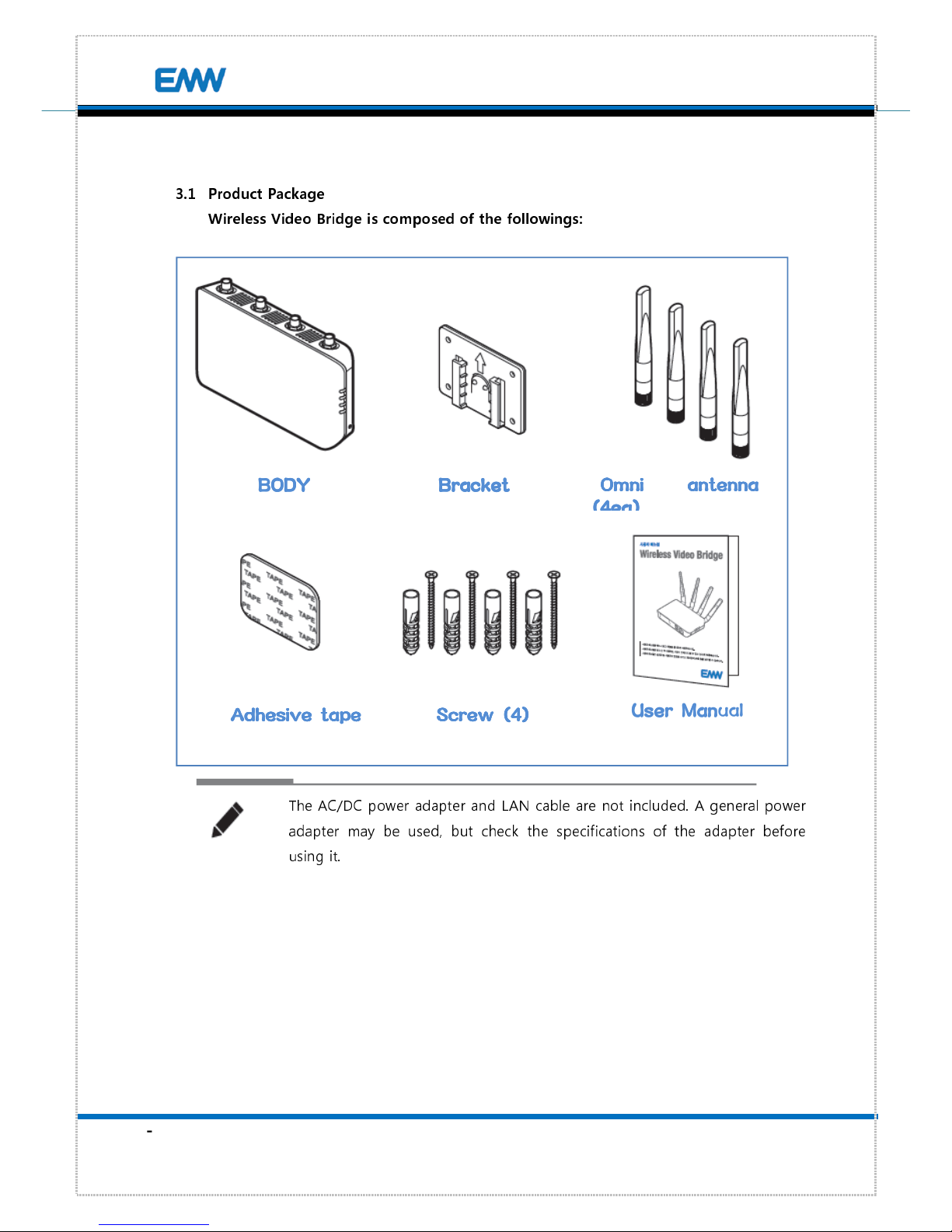

3.1 Product Package
Wireless Video Bridge is composed of the followings:
The AC/DC power adapter and LAN cable are not included. A general power
adapter may be used, but check the specifications of the adapter before
using it.
BODY
BODYBODY
BODY Bracket
BracketBracket
Bracket
Omni
Omni Omni
Omni antenna
antenna antenna
antenna
Adhesive tape
Adhesive tapeAdhesive tape
Adhesive tape Screw
ScrewScrew
Screw (4)
(4)(4)
(4)
User Manual
User ManualUser Manual
User Manual
- 8 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

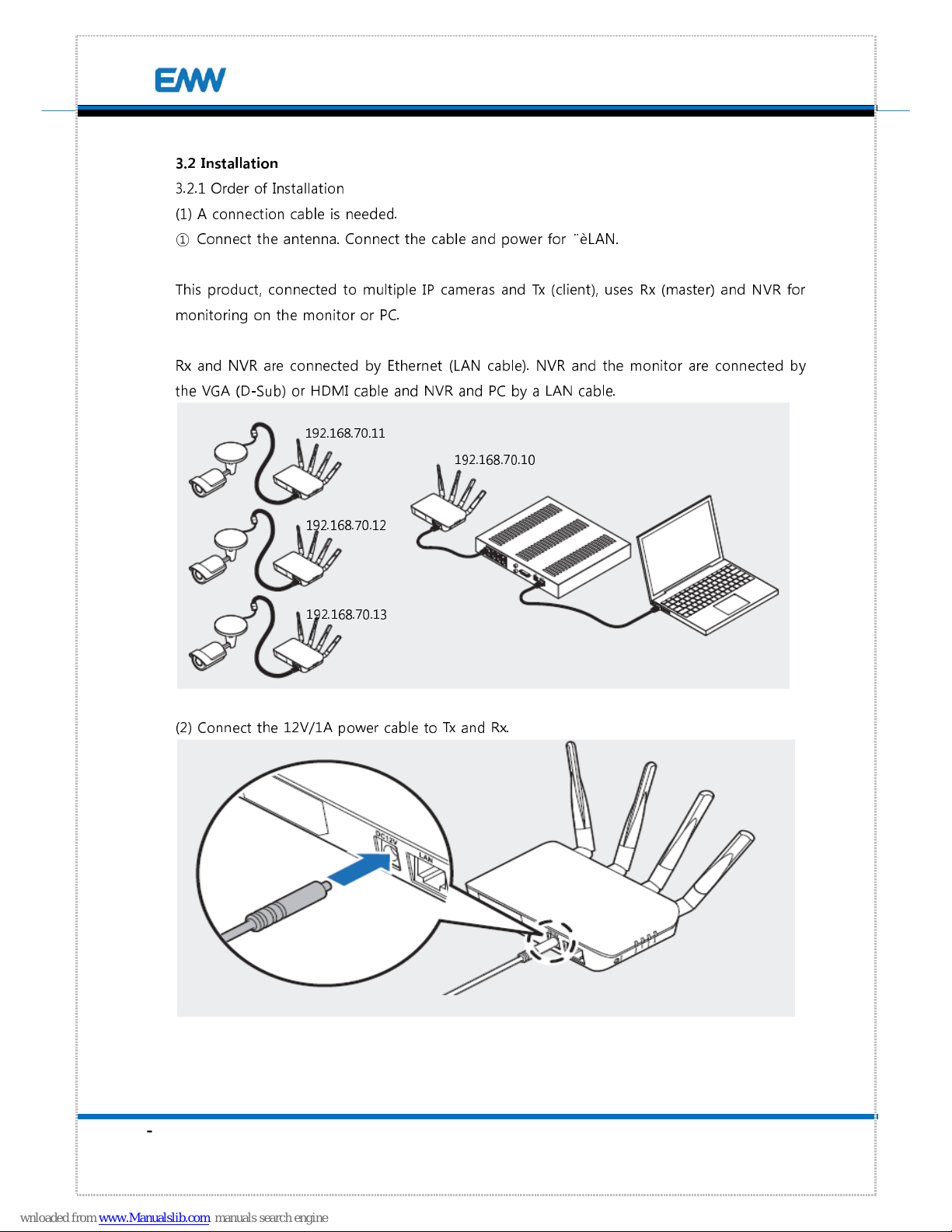

3.2 Installation
3.2.1 Order of Installation
(1) A connection cable is needed.
① Connect the antenna. Connect the cable and power for ¨èLAN.
This product, connected to multiple IP cameras and Tx (client), uses Rx (master) and NVR for
monitoring on the monitor or PC.
Rx and NVR are connected by Ethernet (LAN cable). NVR and the monitor are connected by
the VGA (D-Sub) or HDMI cable and NVR and PC by a LAN cable.
(2) Connect the 12V/1A power cable to Tx and Rx.
192.168.70.11
192.168.70.12
192.168.70.13
192.168.70.10
- 9 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

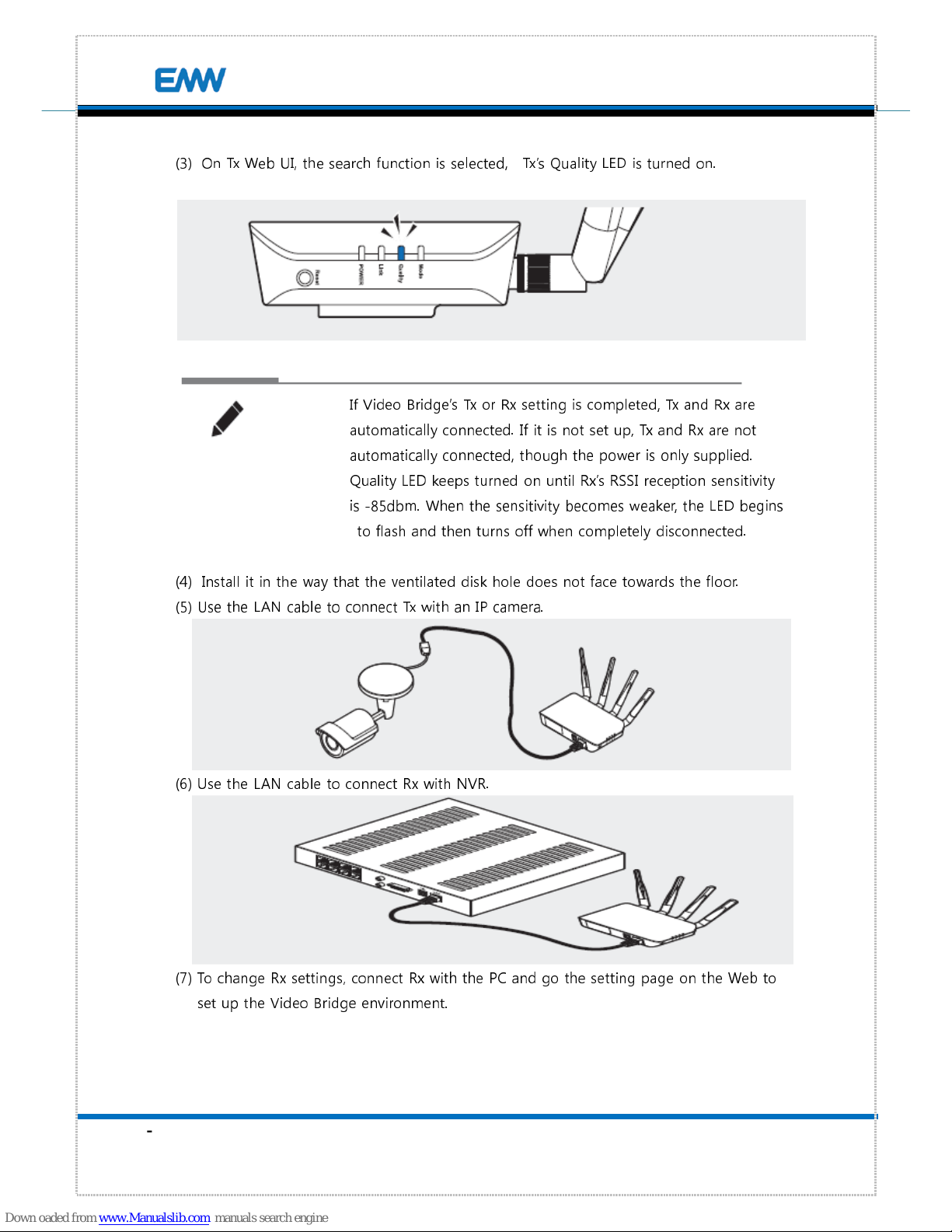

(3) On Tx Web UI, the search function is selected, Tx’s Quality LED is turned on.
If Video Bridge’s Tx or Rx setting is completed, Tx and Rx are
automatically connected. If it is not set up, Tx and Rx are not
automatically connected, though the power is only supplied.
Quality LED keeps turned on until Rx’s RSSI reception sensitivity
is -85dbm. When the sensitivity becomes weaker, the LED begins
to flash and then turns off when completely disconnected.
(4) Install it in the way that the ventilated disk hole does not face towards the floor.
(5) Use the LAN cable to connect Tx with an IP camera.
(6) Use the LAN cable to connect Rx with NVR.
(7) To change Rx settings, connect Rx with the PC and go the setting page on the Web to
set up the Video Bridge environment.
- 10 -
EMW Co., Ltd.
EVB
-
A100
User
Manual
3.3 Installation Precautions.
Read the followings carefully to make the most of the functions of the product before installing the
product. Use the product properly to protect the user safely and prevent property damage.
Keep the place dry during installation.
Do not install the product on a place subject to vibration or shock.
Use the power that fits the device.

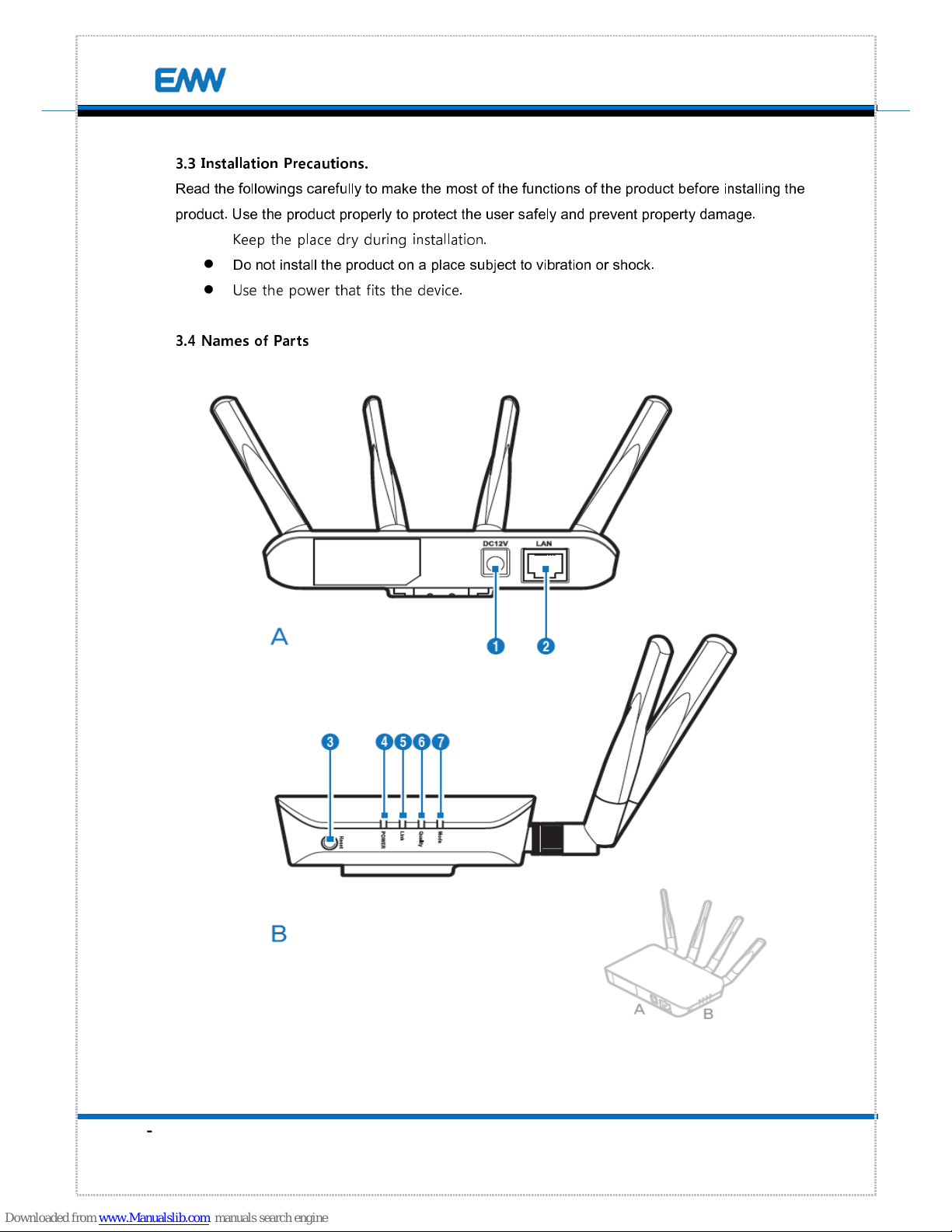

3.4 Names of Parts
- 11 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

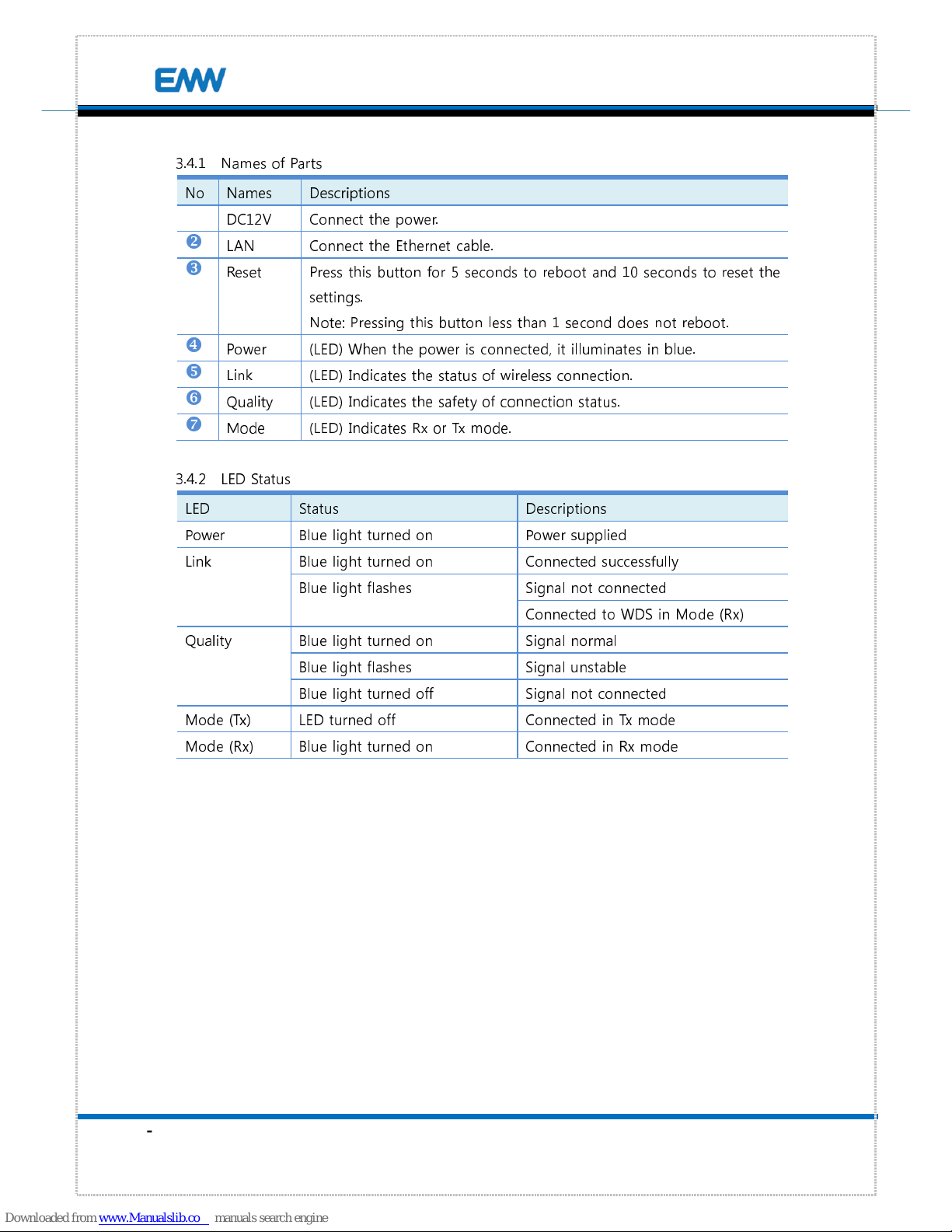

3.4.1 Names of Parts
No Names Descriptions
DC12V Connect the power.
LAN Connect the Ethernet cable.
Reset Press this button for 5 seconds to reboot and 10 seconds to reset the
settings.
Note: Pressing this button less than 1 second does not reboot.
Power (LED) When the power is connected, it illuminates in blue.
Link (LED) Indicates the status of wireless connection.
Quality (LED) Indicates the safety of connection status.
Mode (LED) Indicates Rx or Tx mode.
3.4.2 LED Status
LED Status Descriptions
Power Blue light turned on Power supplied
Link Blue light turned on Connected successfully
Blue light flashes Signal not connected
Connected to WDS in Mode (Rx)
Quality Blue light turned on Signal normal
Blue light flashes Signal unstable
Blue light turned off Signal not connected
Mode (Tx) LED turned off Connected in Tx mode
Mode (Rx) Blue light turned on Connected in Rx mode
- 12 -
EMW Co., Ltd.
EVB
-
A100
User
Manual
4. Connection through Web browser

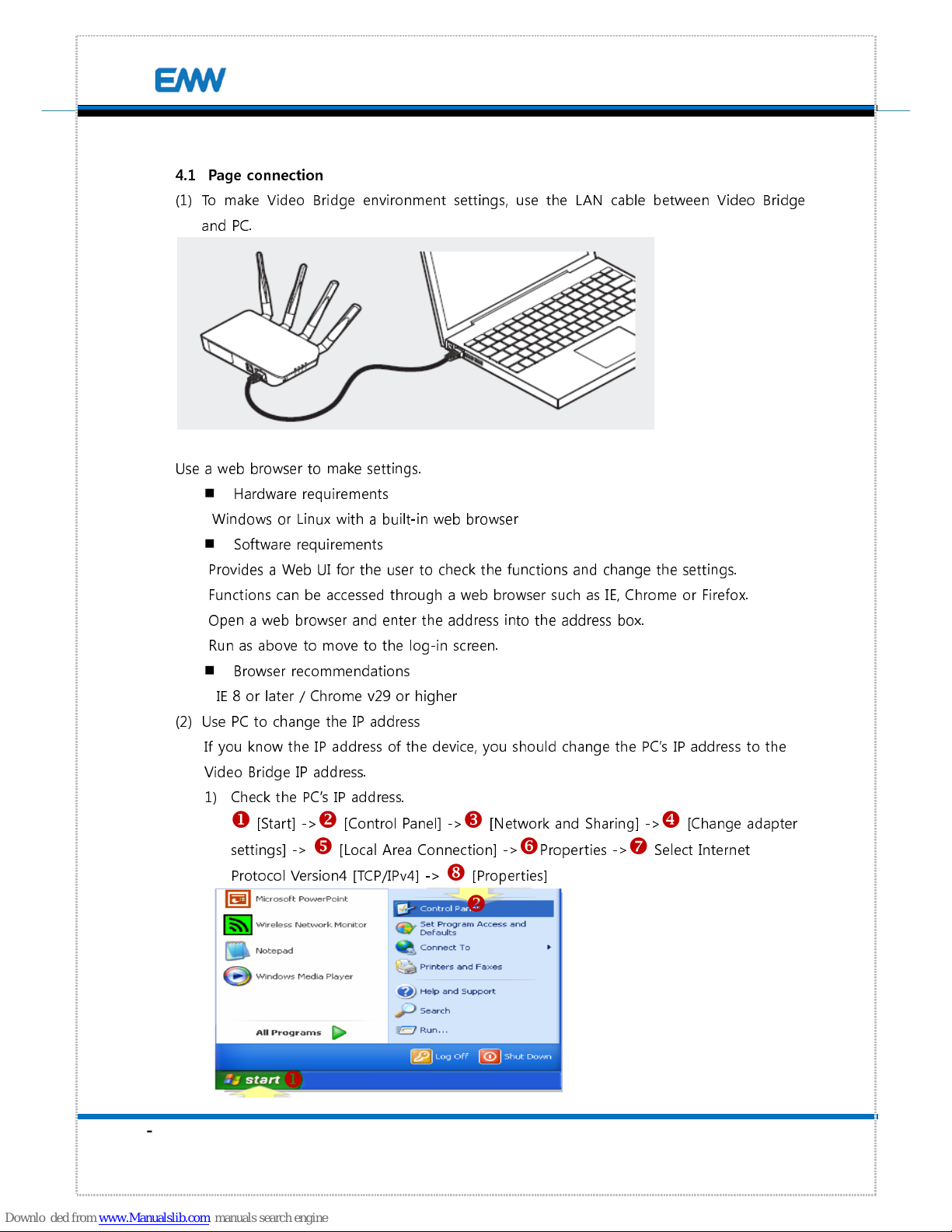

4.1 Page connection
(1) To make Video Bridge environment settings, use the LAN cable between Video Bridge
and PC.
Use a web browser to make settings.
Hardware requirements
Windows or Linux with a built-in web browser
Software requirements
Provides a Web UI for the user to check the functions and change the settings.
Functions can be accessed through a web browser such as IE, Chrome or Firefox.
Open a web browser and enter the address into the address box.
Run as above to move to the log-in screen.
Browser recommendations
IE 8 or later / Chrome v29 or higher
(2) Use PC to change the IP address
If you know the IP address of the device, you should change the PC’s IP address to the
Video Bridge IP address.
1) Check the PC’s IP address.
[Start] -> [Control Panel] -> [Network and Sharing] -> [Change adapter
settings] -> [Local Area Connection] ->Properties -> Select Internet
Protocol Version4 [TCP/IPv4] -> [Properties]
- 13 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

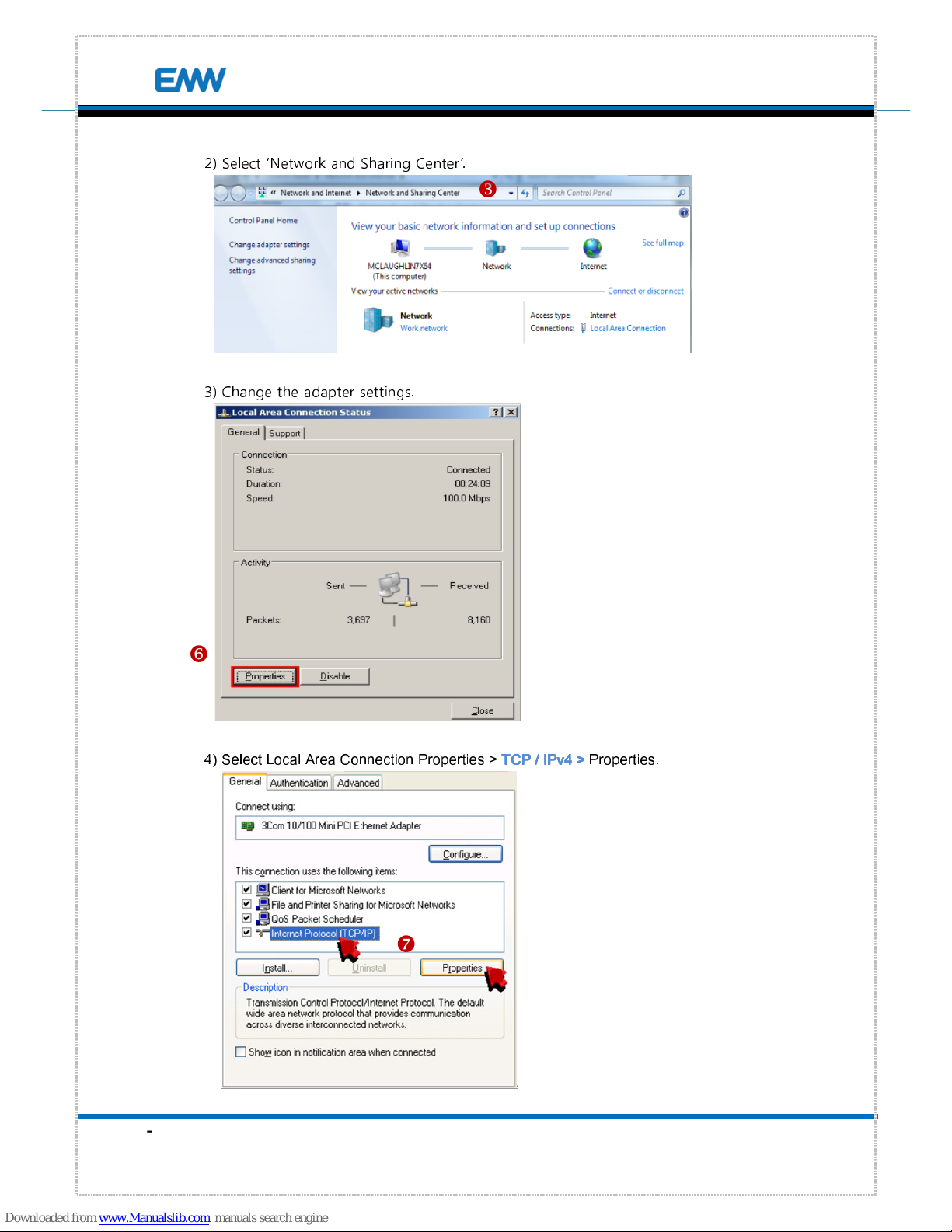

2) Select ‘Network and Sharing Center’.
3) Change the adapter settings.
4) Select Local Area Connection Properties >
TCP / IPv4 >
TCP / IPv4 >TCP / IPv4 >
TCP / IPv4 >
Properties.
- 14 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

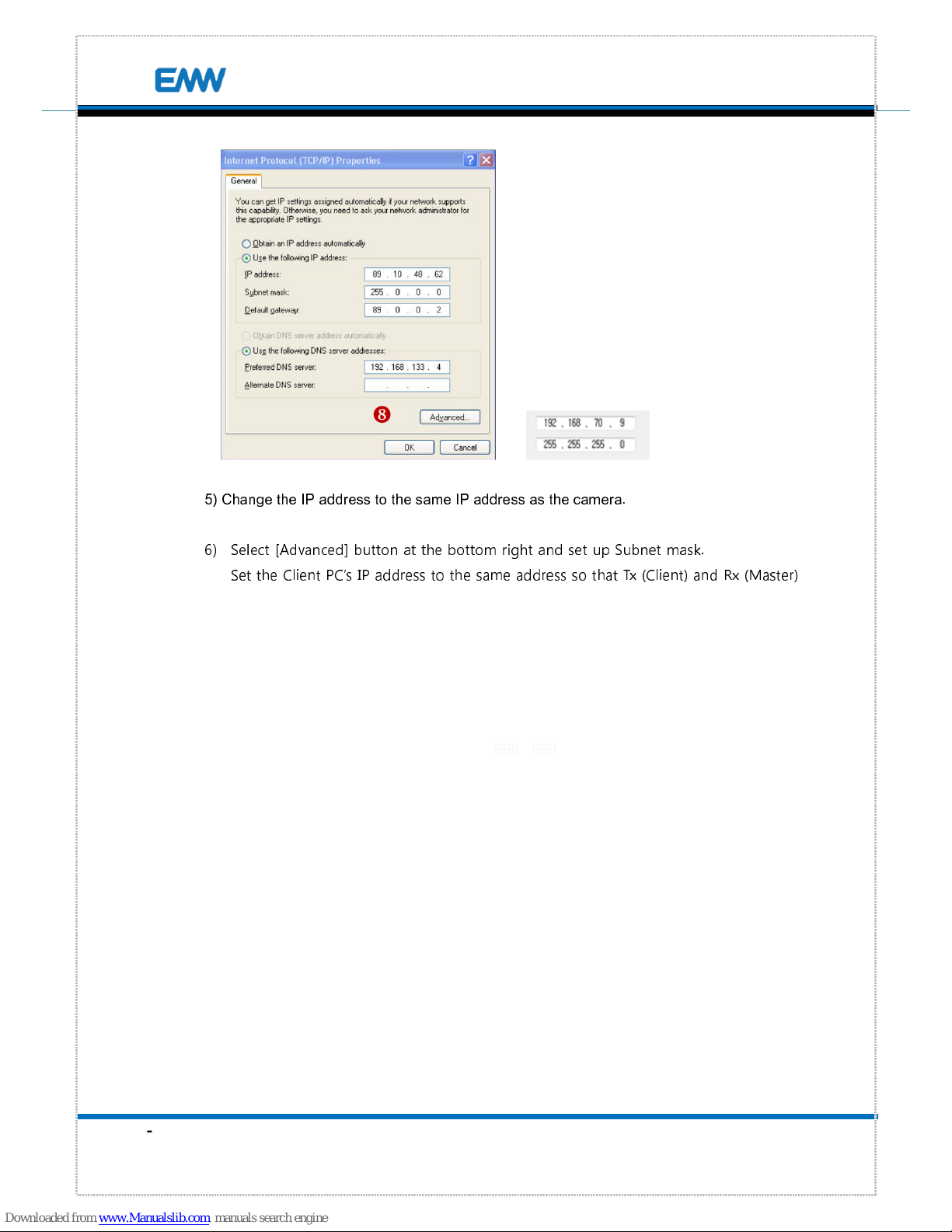

5) Change the IP address to the same IP address as the camera.
6) Select [Advanced] button at the bottom right and set up Subnet mask.
Set the Client PC’s IP address to the same address so that Tx (Client) and Rx (Master)
- 15 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

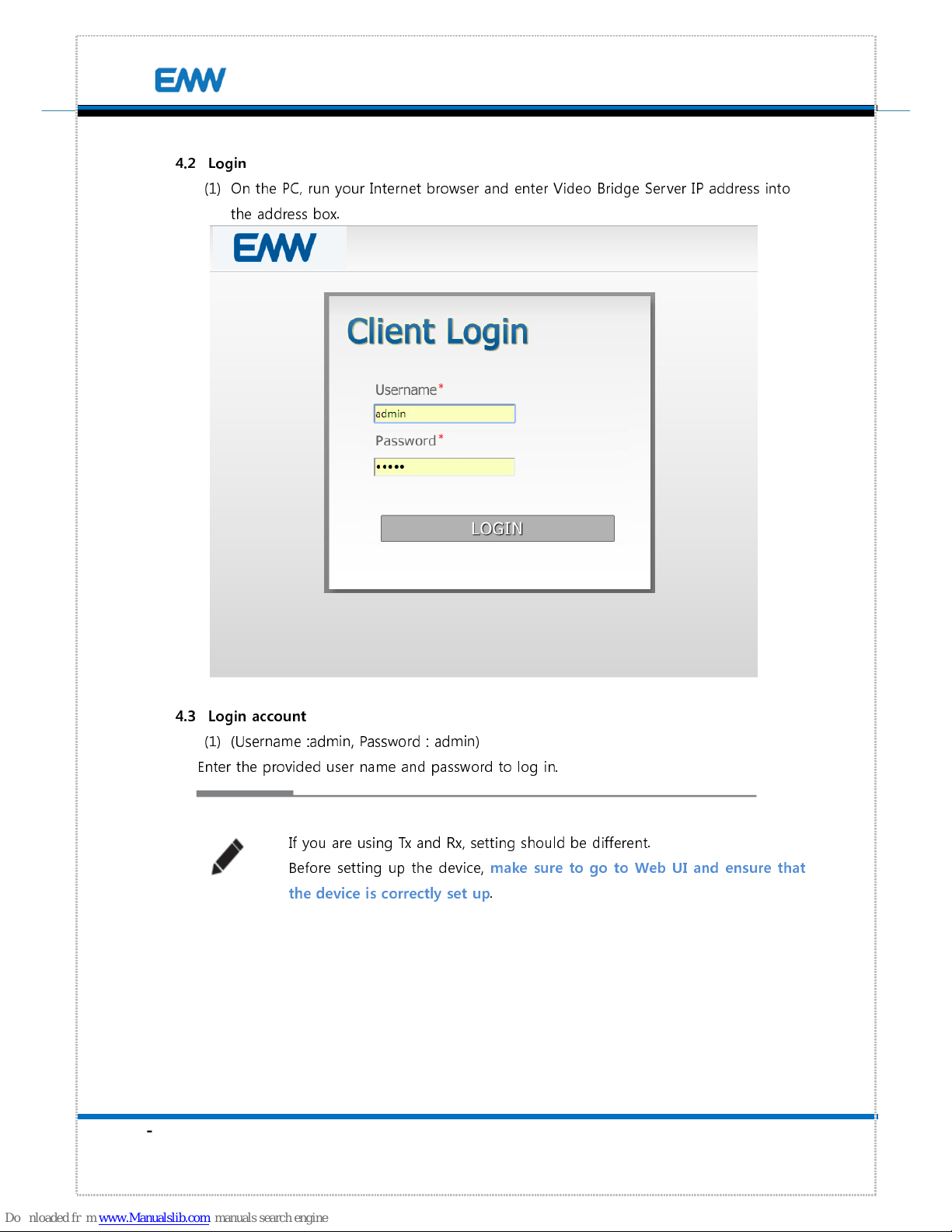

4.2 Login
(1) On the PC, run your Internet browser and enter Video Bridge Server IP address into
the address box.
4.3 Login account
(1) (Username :admin, Password : admin)
Enter the provided user name and password to log in.
If you are using Tx and Rx, setting should be different.
Before setting up the device,
make sure to go to Web UI and ensure that
the device is correctly set up.
- 16 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

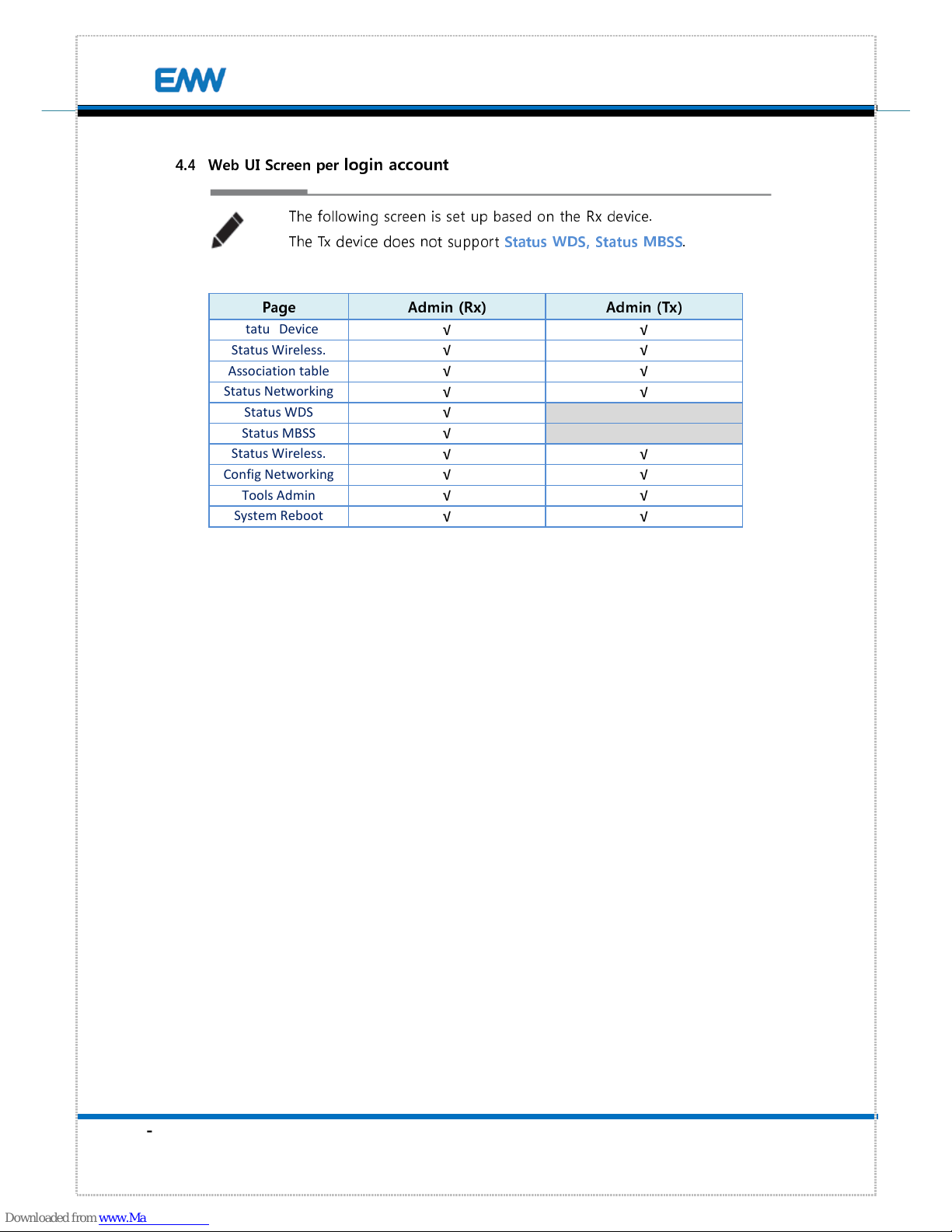

4.4 Web UI Screen per
login account
The following screen is set up based on the Rx device.
The Tx device does not support
Status WDS, Status MBSS
.
Page Admin (Rx) Admin (Tx)
Status Device
√ √
Status Wireless.
√ √
Association table
√ √
Status Networking
√ √
Status WDS
√
Status MBSS
√
Status Wireless.
√ √
Config Networking
√ √
Tools Admin
√ √
System Reboot
√ √
- 17 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

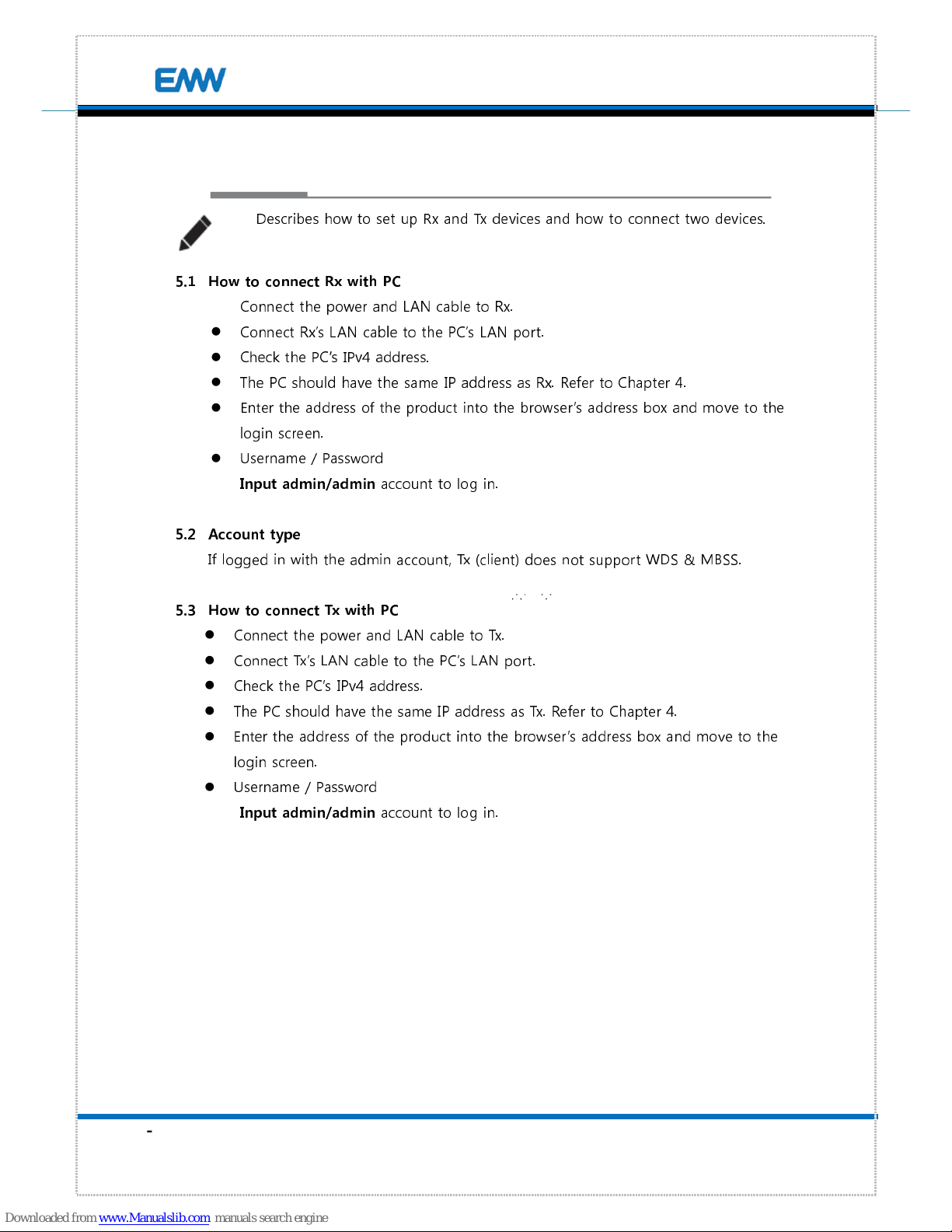

5. Device Menu
Describes how to set up Rx and Tx devices and how to connect two devices.
5.1 How to connect Rx with PC
Connect the power and LAN cable to Rx.
Connect Rx’s LAN cable to the PC’s LAN port.
Check the PC’s IPv4 address.
The PC should have the same IP address as Rx. Refer to Chapter 4.
Enter the address of the product into the browser’s address box and move to the
login screen.
Username / Password
Input admin/admin
account to log in.
5.2 Account type
If logged in with the admin account, Tx (client) does not support WDS & MBSS.
5.3 How to connect Tx with PC
Connect the power and LAN cable to Tx.
Connect Tx’s LAN cable to the PC’s LAN port.
Check the PC’s IPv4 address.
The PC should have the same IP address as Tx. Refer to Chapter 4.
Enter the address of the product into the browser’s address box and move to the
login screen.
Username / Password
Input admin/admin
account to log in.
- 18 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

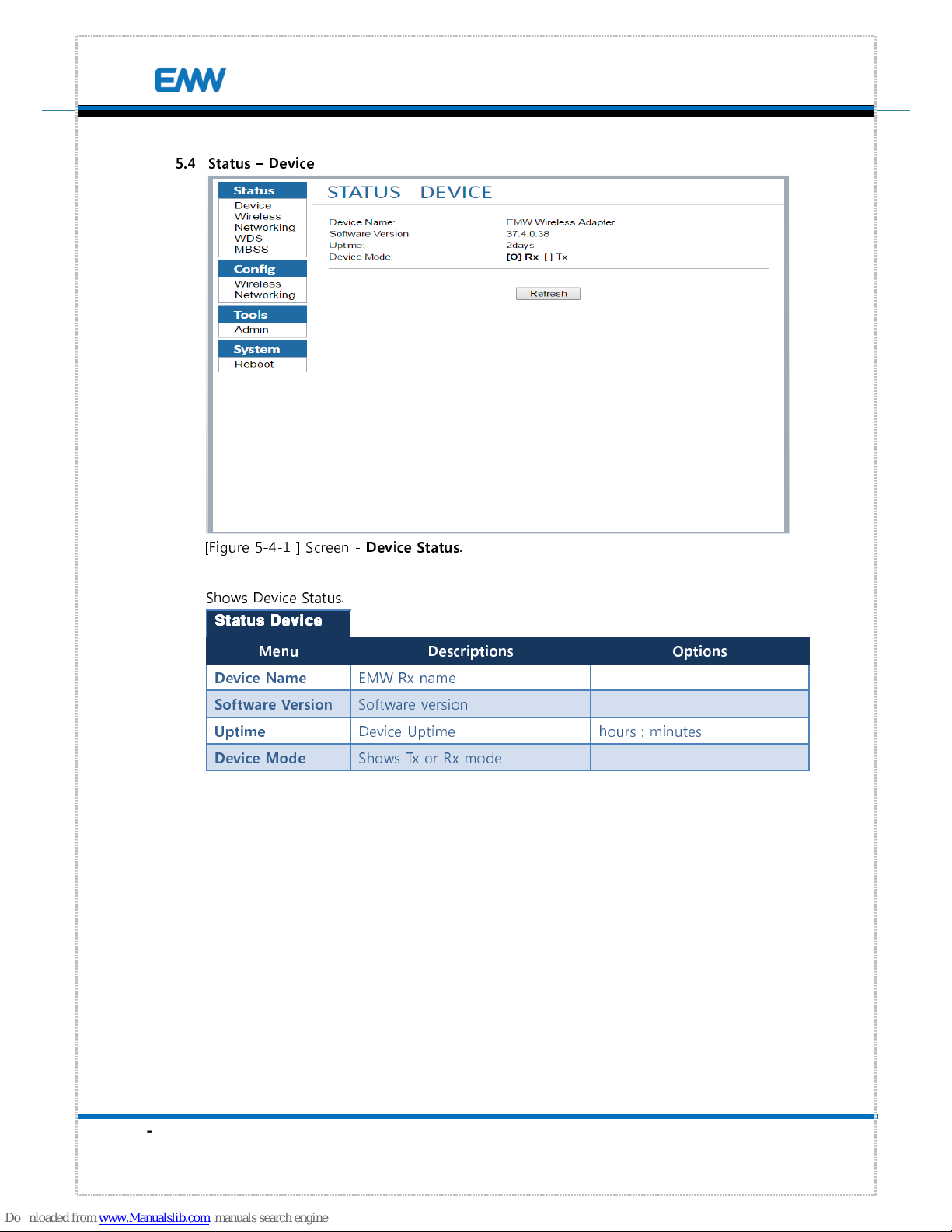

5.4 Status – Device
[Figure 5-4-1 ] Screen -
Device Status
.
Shows Device Status.
Status Device
Status DeviceStatus Device
Status Device
Menu Descriptions Options
Device Name
EMW Rx name
Software Version Software version
Uptime
Device Uptime hours : minutes
Device Mode
Shows Tx or Rx mode
- 19 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

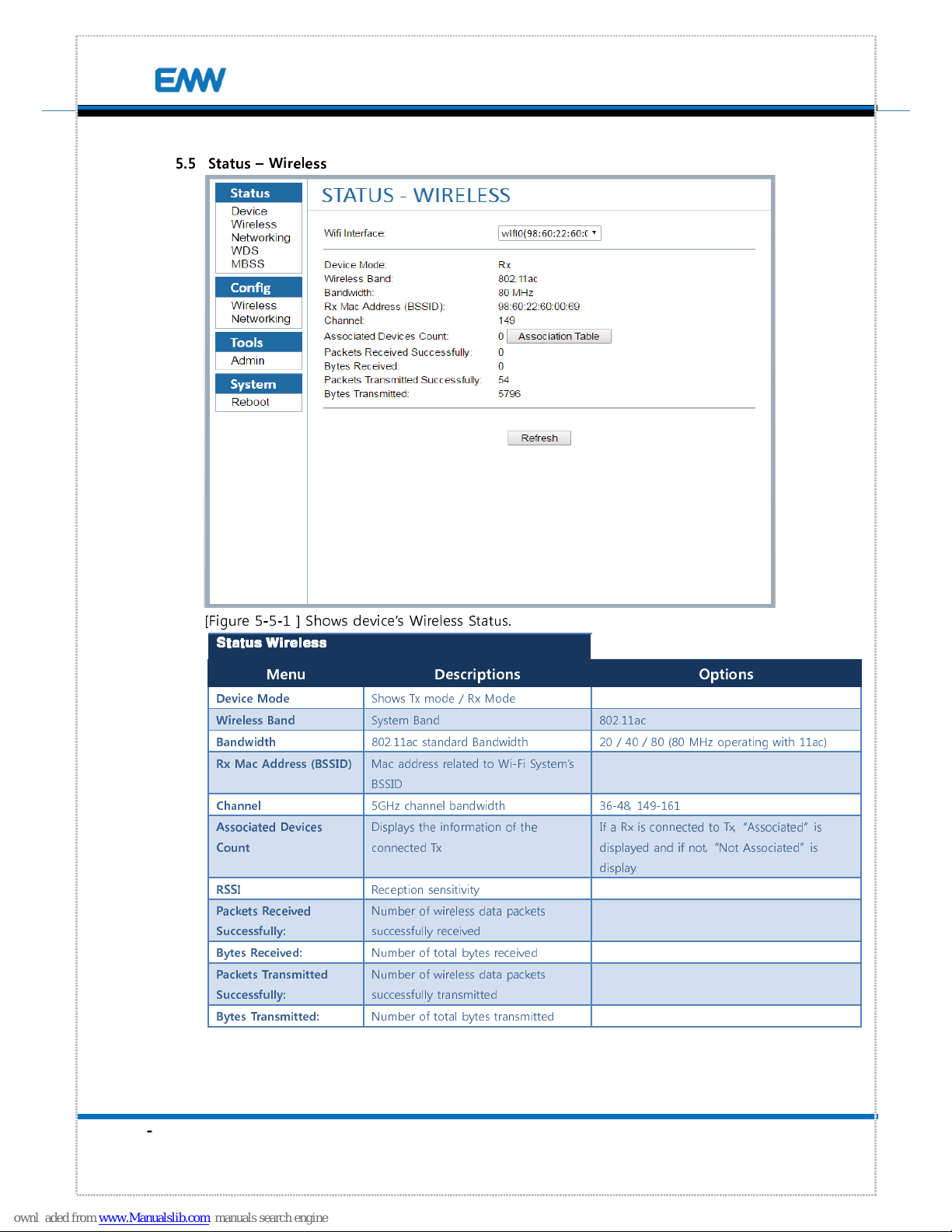

5.5 Status – Wireless
[Figure 5-5-1 ] Shows device’s Wireless Status.
Status Wireless
Status WirelessStatus Wireless
Status Wireless
Menu Descriptions Options
Device Mode
Shows Tx mode / Rx Mode
Wireless Band
System Band 802.11ac
Bandwidth
802.11ac standard Bandwidth 20 / 40 / 80 (80 MHz operating with 11ac)
Rx Mac Address (BSSID) Mac address related to Wi-Fi System’s
BSSID
Channel
5GHz channel bandwidth 36-48, 149-161
Associated Devices
Count
Displays the information of the
connected Tx
If a Rx is connected to Tx, “Associated” is
displayed and if not, “Not Associated” is
display.
RSSI
Reception sensitivity
Packets Received
Successfully:
Number of wireless data packets
successfully received
Bytes Received:
Number of total bytes received
Packets Transmitted
Successfully:
Number of wireless data packets
successfully transmitted
Bytes Transmitted:
Number of total bytes transmitted
- 20 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

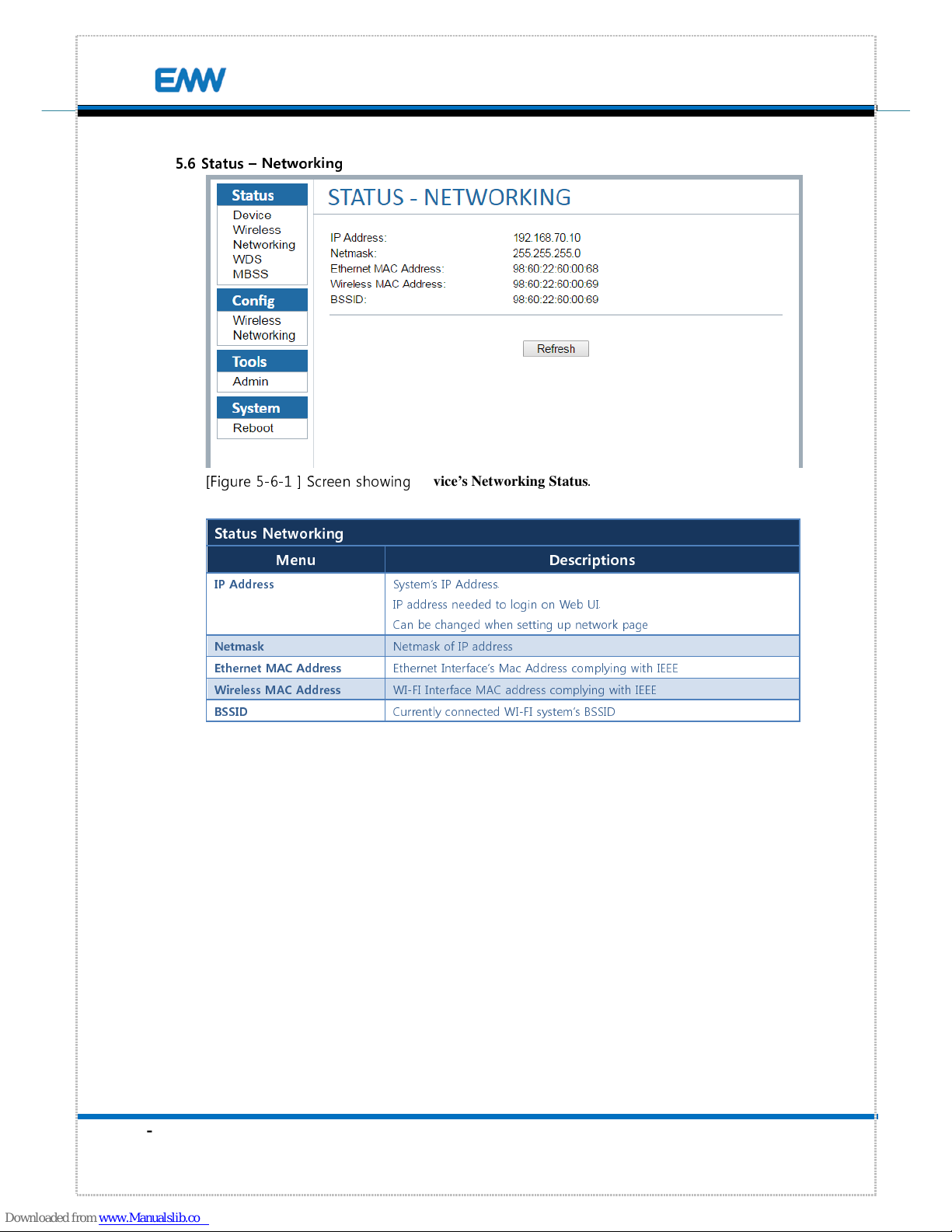

5.6 Status – Networking
[Figure 5-6-1 ] Screen showing
Device’s Networking Status
.
Status Networking
Menu Descriptions
IP Address
System’s IP Address.
IP address needed to login on Web UI.
Can be changed when setting up network page
Netmask
Netmask of IP address
Ethernet MAC Address
Ethernet Interface’s Mac Address complying with IEEE
Wireless MAC Address
WI-FI Interface MAC address complying with IEEE
BSSID
Currently connected WI-FI system’s BSSID
- 21 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

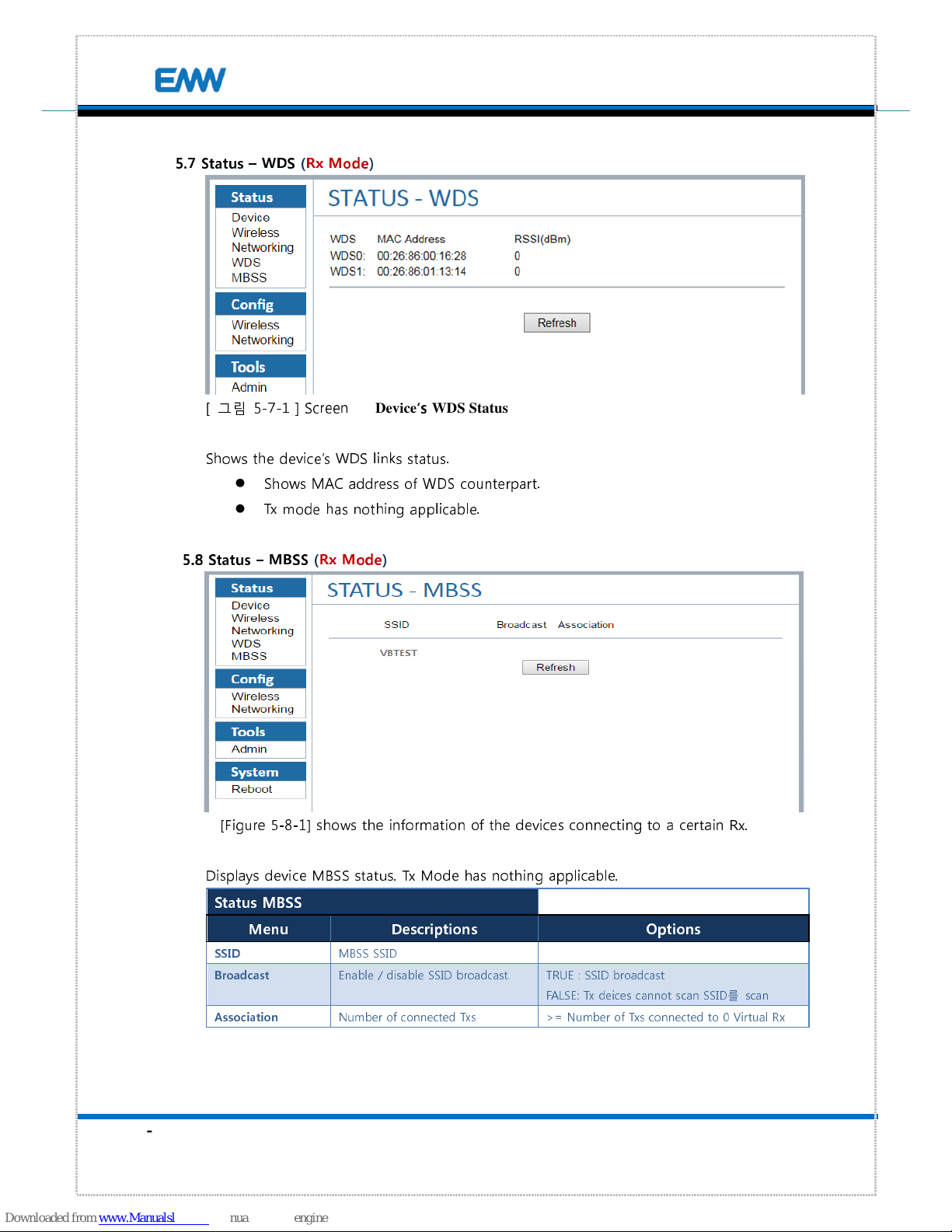

5.7 Status – WDS (Rx Mode)
[ 그림 5-7-1 ] Screen
Rx Device
‘s
WDS Status
Shows the device’s WDS links status.
Shows MAC address of WDS counterpart.
Tx mode has nothing applicable.
5.8 Status – MBSS (Rx Mode)
[Figure 5-8-1] shows the information of the devices connecting to a certain Rx.
Displays device MBSS status. Tx Mode has nothing applicable.
Status MBSS
Menu Descriptions Options
SSID
MBSS SSID
Broadcast
Enable / disable SSID broadcast. TRUE : SSID broadcast
FALSE: Tx deices cannot scan SSID를 scan
Association
Number of connected Txs >= Number of Txs connected to 0 Virtual Rx
- 22 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

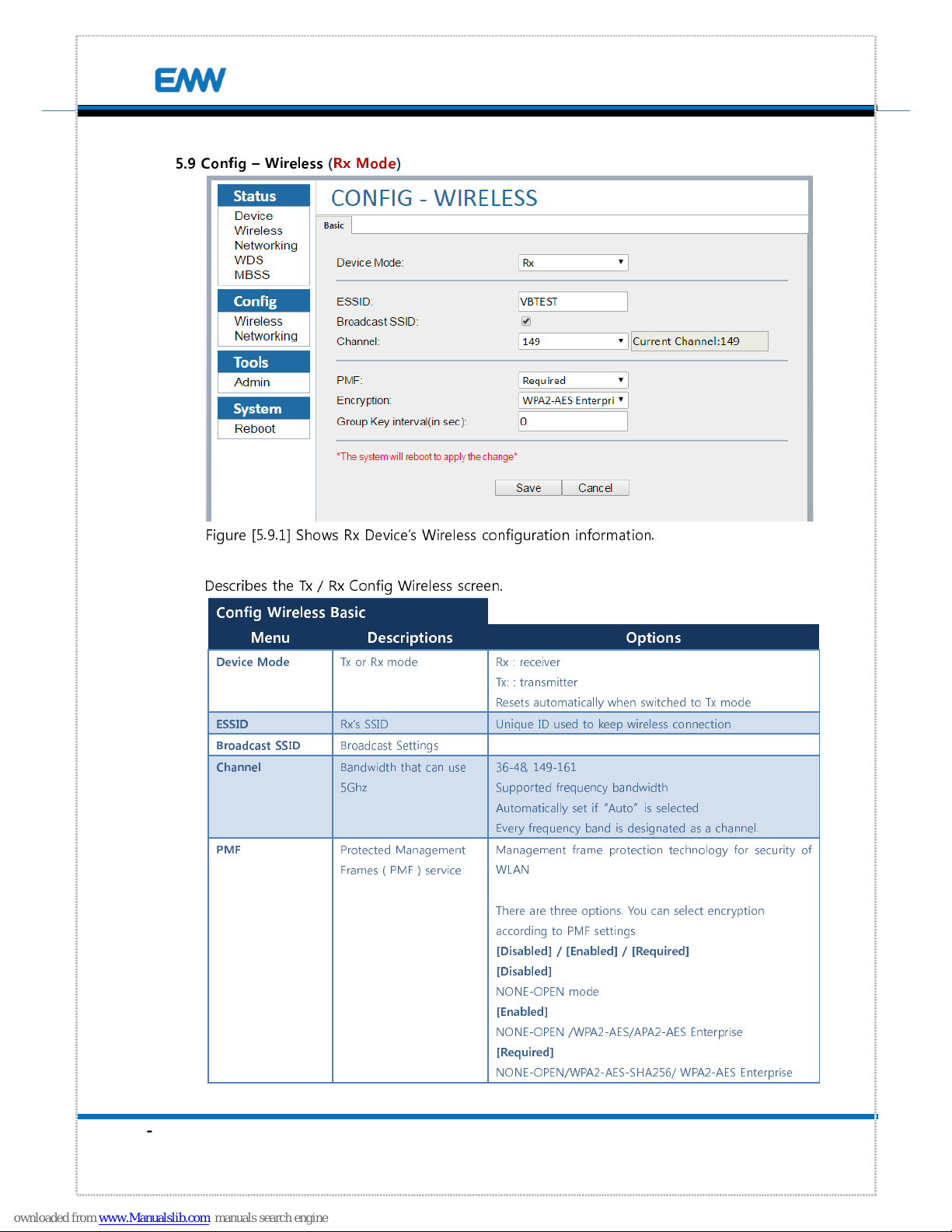

5.9 Config – Wireless (Rx Mode)
Figure [5.9.1] Shows Rx Device’s Wireless configuration information.
Describes the Tx / Rx Config Wireless screen.
Config Wireless Basic
Menu Descriptions Options
Device Mode
Tx or Rx mode Rx : receiver
Tx: : transmitter
Resets automatically when switched to Tx mode
ESSID
Rx’s SSID Unique ID used to keep wireless connection
Broadcast SSID
Broadcast Settings
Channel
Bandwidth that can use
5Ghz
36-48, 149-161
Supported frequency bandwidth
Automatically set if “Auto” is selected
Every frequency band is designated as a channel.
PMF
Protected Management
Frames ( PMF ) service
Management frame protection technology for security of
WLAN
There are three options. You can select encryption
according to PMF settings
[Disabled] / [Enabled] / [Required]
[Disabled]
NONE-OPEN mode
[Enabled]
NONE-OPEN /WPA2-AES/APA2-AES Enterprise
[Required]
NONE-OPEN/WPA2-AES-SHA256/ WPA2-AES Enterprise
- 23 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

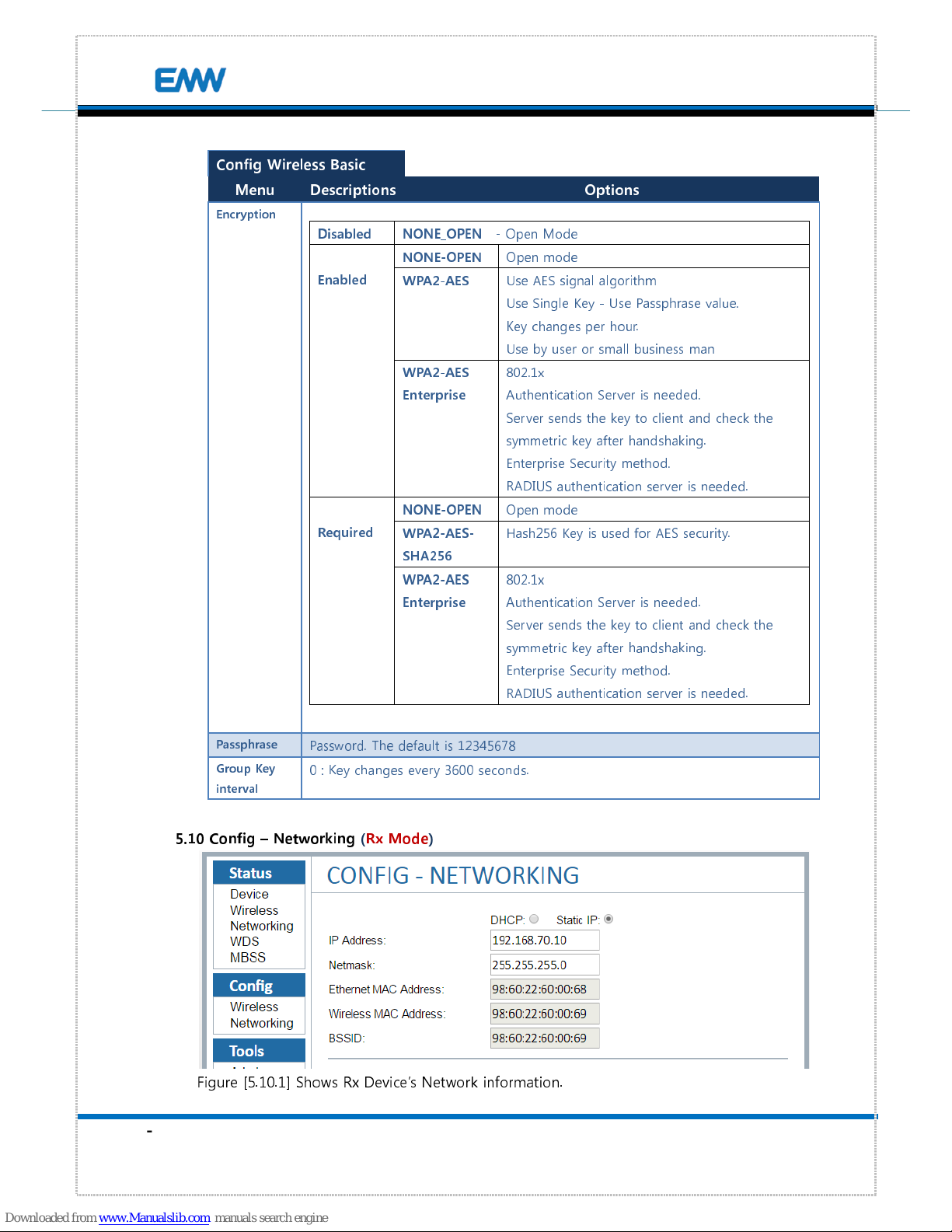

Config Wireless Basic
Menu Descriptions
Options
Encryption
Disabled NONE_OPEN
- Open Mode
Enabled
NONE-OPEN
Open mode
WPA2-AES
Use AES signal algorithm
Use Single Key - Use Passphrase value.
Key changes per hour.
Use by user or small business man
WPA2-AES
Enterprise
802.1x
Authentication Server is needed.
Server sends the key to client and check the
symmetric key after handshaking.
Enterprise Security method.
RADIUS authentication server is needed.
Required
NONE-OPEN
Open mode
WPA2-AES-
SHA256
Hash256 Key is used for AES security.
WPA2-AES
Enterprise
802.1x
Authentication Server is needed.
Server sends the key to client and check the
symmetric key after handshaking.
Enterprise Security method.
RADIUS authentication server is needed.
Passphrase
Password. The default is 12345678
Group Key
interval
0 : Key changes every 3600 seconds.
5.10 Config – Networking (Rx Mode)
Figure [5.10.1] Shows Rx Device’s Network information.
- 24 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

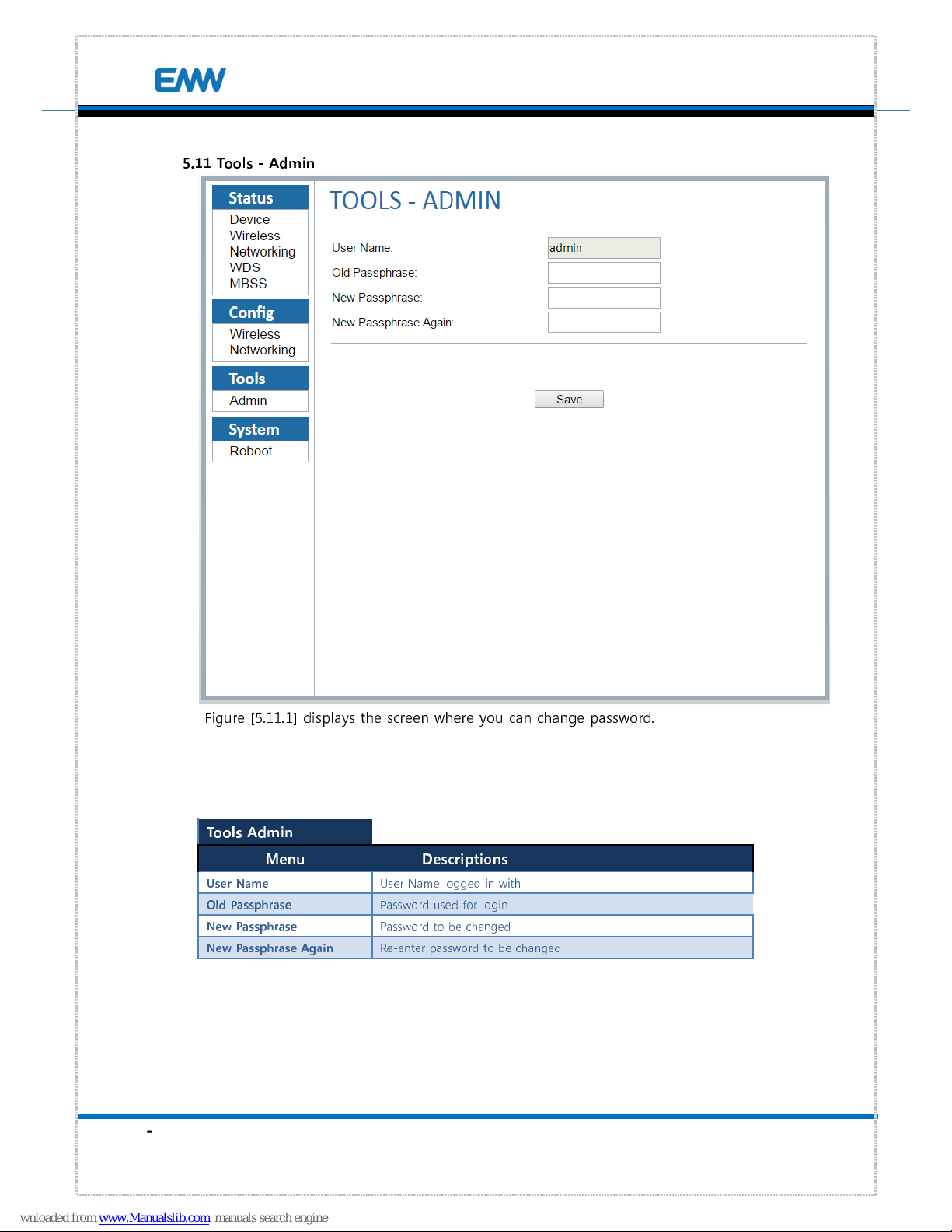

5.11 Tools - Admin
Figure [5.11.1] displays the screen where you can change password.
Tools Admin
Menu Descriptions
User Name
User Name logged in with
Old Passphrase
Password used for login
New Passphrase
Password to be changed
New Passphrase Again
Re-enter password to be changed
- 25 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

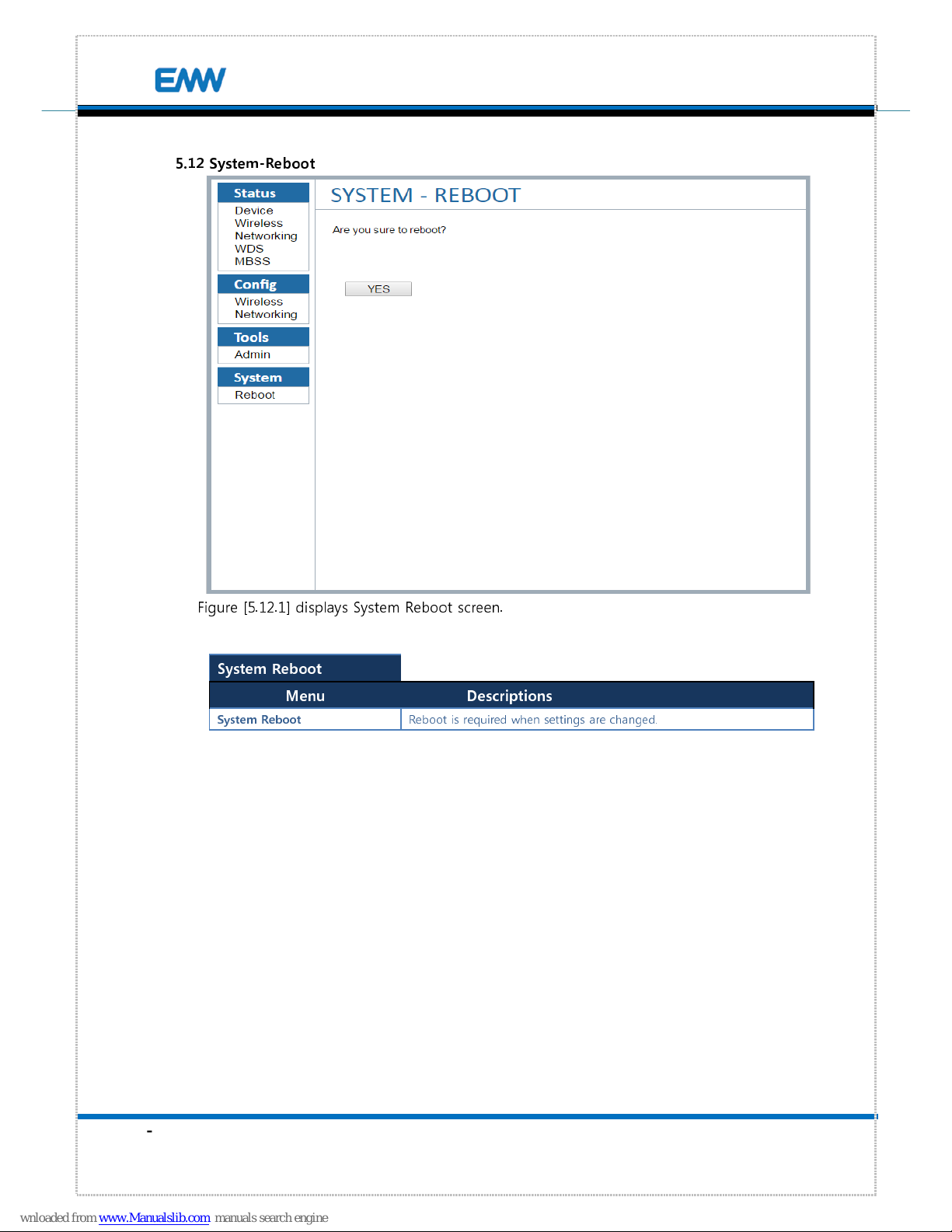

5.12 System-Reboot
Figure [5.12.1] displays System Reboot screen.
System Reboot
Menu Descriptions
System Reboot
Reboot is required when settings are changed.
- 26 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

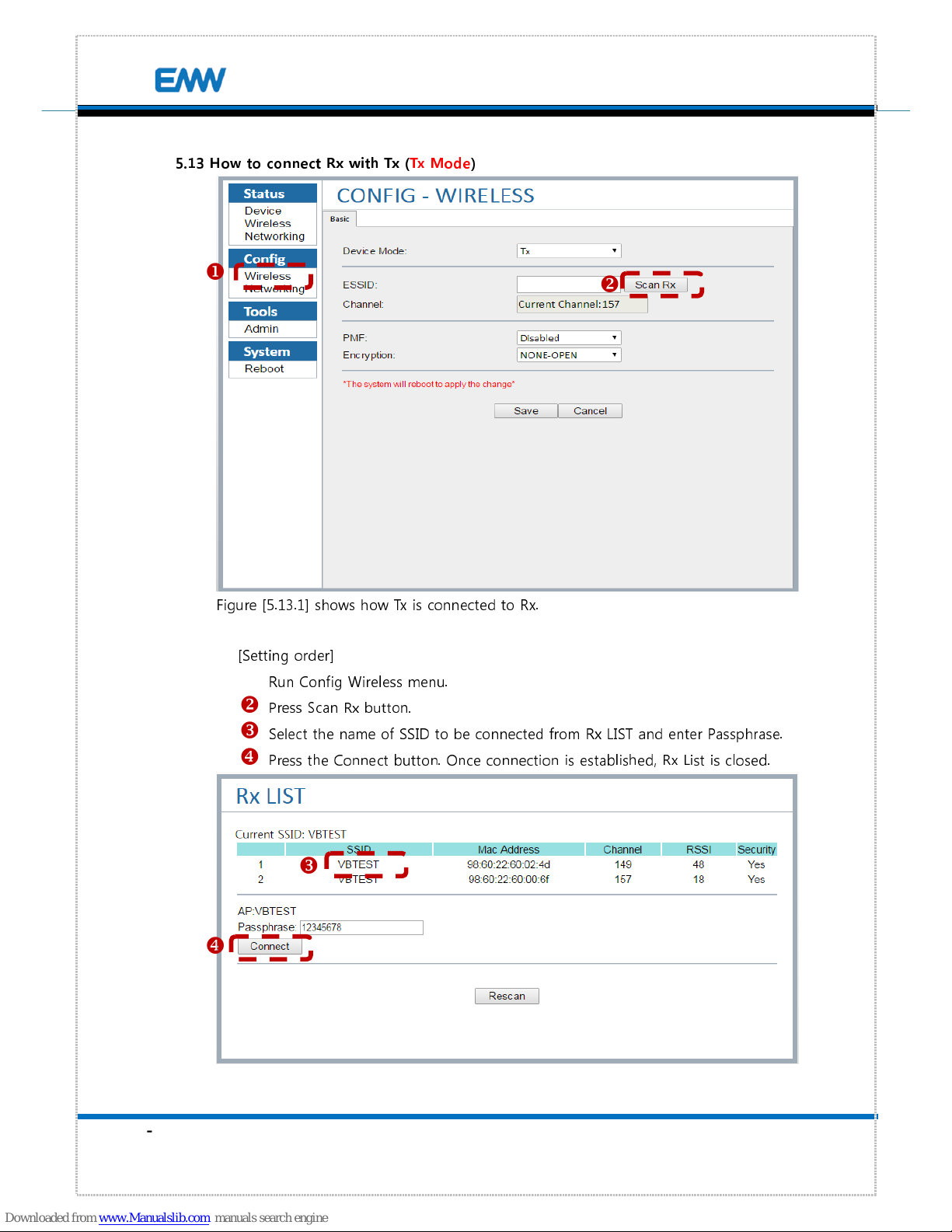

5.13 How to connect Rx with Tx (Tx Mode)
Figure [5.13.1] shows how Tx is connected to Rx.
[Setting order]
Run Config Wireless menu.
Press Scan Rx button.
Select the name of SSID to be connected from Rx LIST and enter Passphrase.
Press the Connect button. Once connection is established, Rx List is closed.
- 27 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

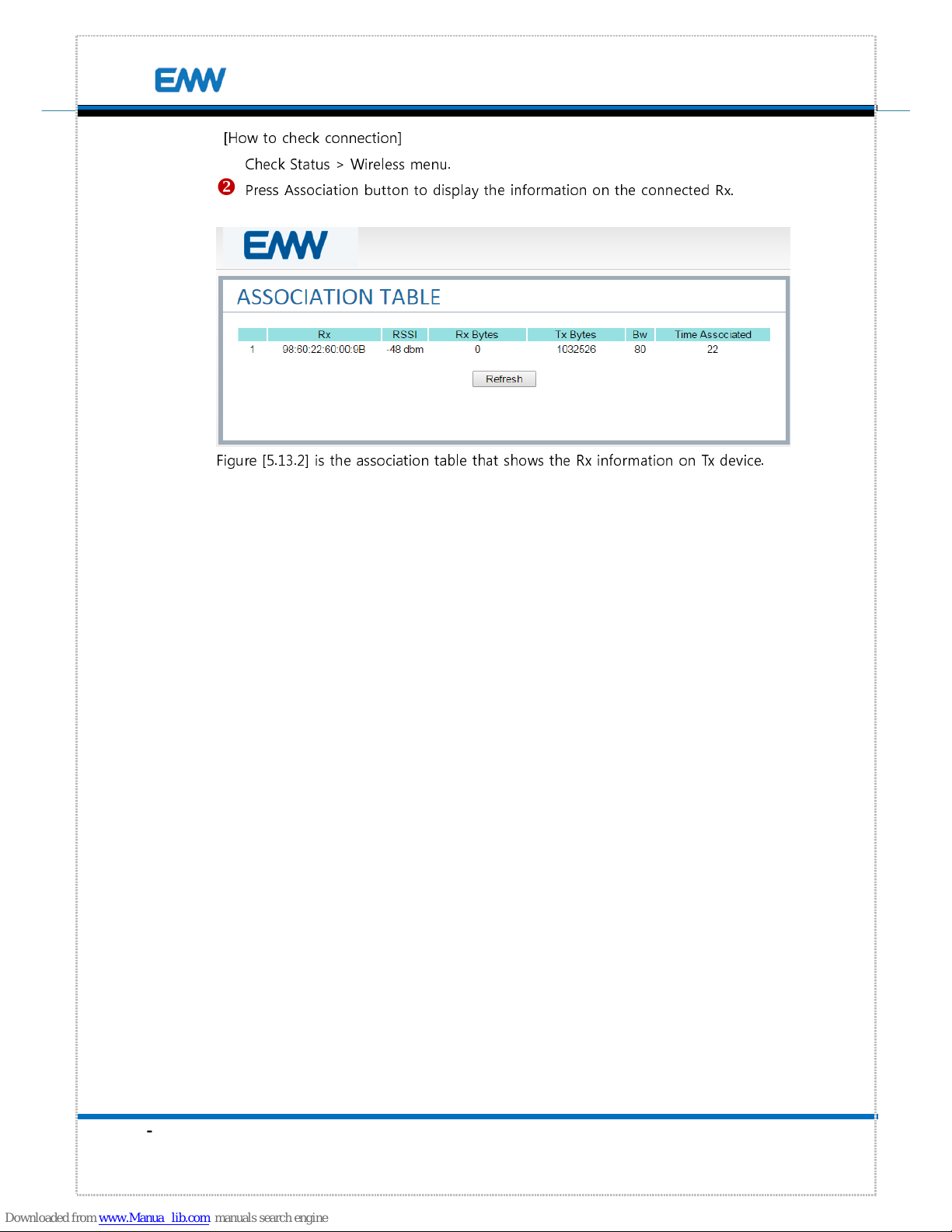

[How to check connection]
Check Status > Wireless menu.
Press Association button to display the information on the connected Rx.
Figure [5.13.2] is the association table that shows the Rx information on Tx device.
- 28 -
EMW Co., Ltd.
EVB
-
A100
User
Manual
6. Change Settings
Change settings and press
[Save]
button at the bottom to the changed
settings. Click
[ System > Reboot ]
to start reboot.

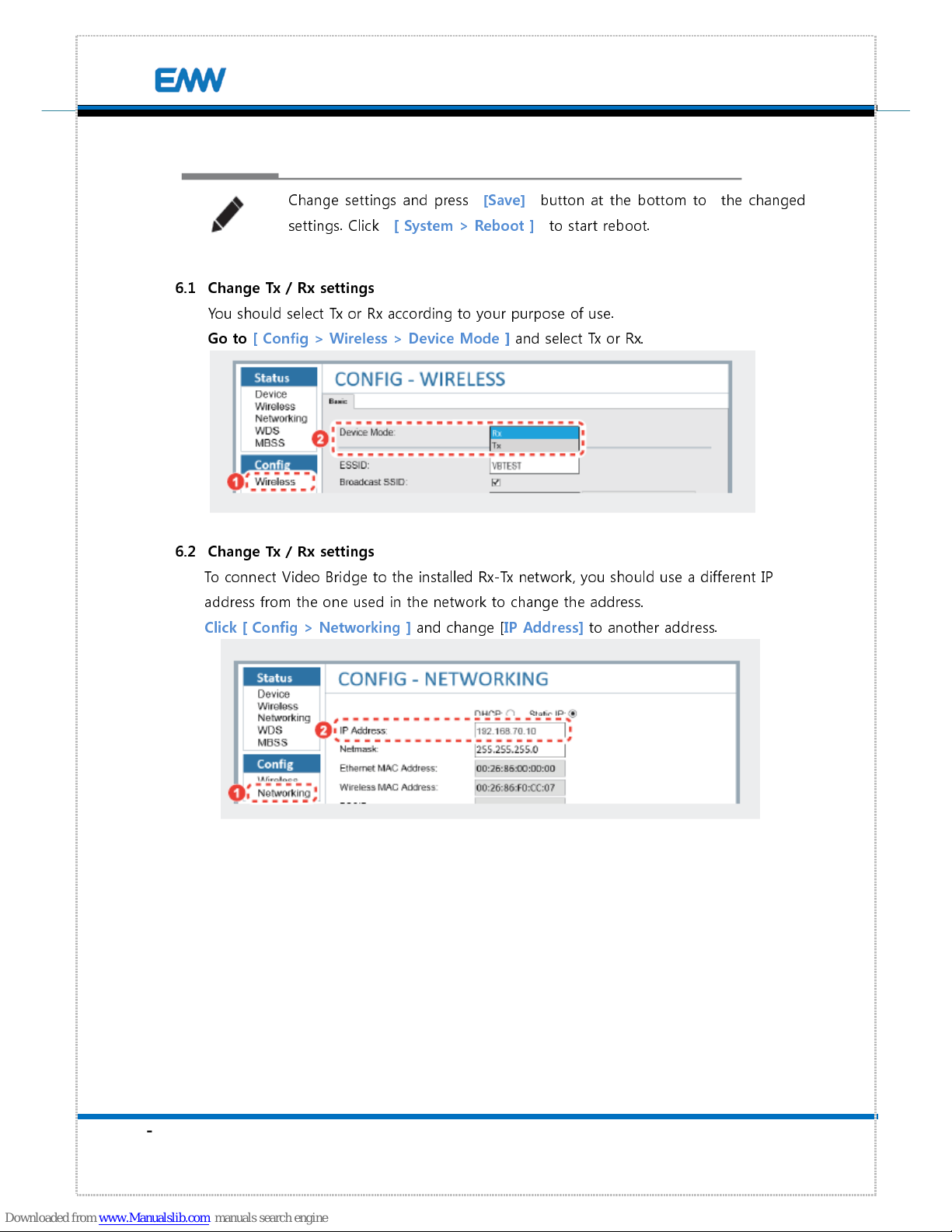

6.1 Change Tx / Rx settings
You should select Tx or Rx according to your purpose of use.
Go to [ Config > Wireless > Device Mode ]
and select Tx or Rx.
6.2 Change Tx / Rx settings
To connect Video Bridge to the installed Rx-Tx network, you should use a different IP
address from the one used in the network to change the address.
Click [ Config > Networking ]
and change [
IP Address]
to another address.
- 29 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

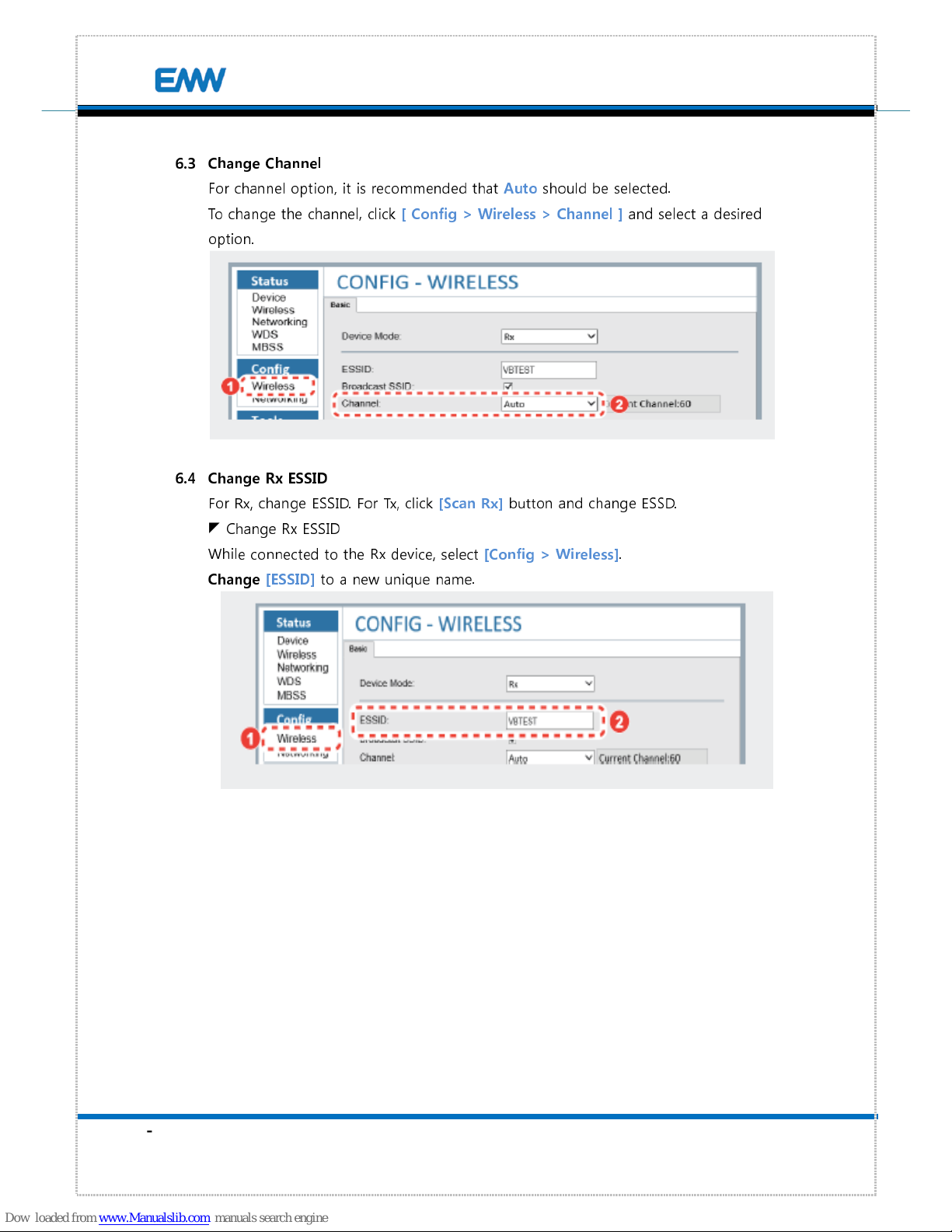

6.3 Change Channel
For channel option, it is recommended that
Auto
should be selected.
To change the channel, click
[ Config > Wireless > Channel ]
and select a desired
option.
6.4 Change Rx ESSID
For Rx, change ESSID. For Tx, click
[Scan Rx]
button and change ESSD.
Change Rx ESSID
While connected to the Rx device, select
[Config > Wireless]
.
Change [ESSID]
to a new unique name.
- 30 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

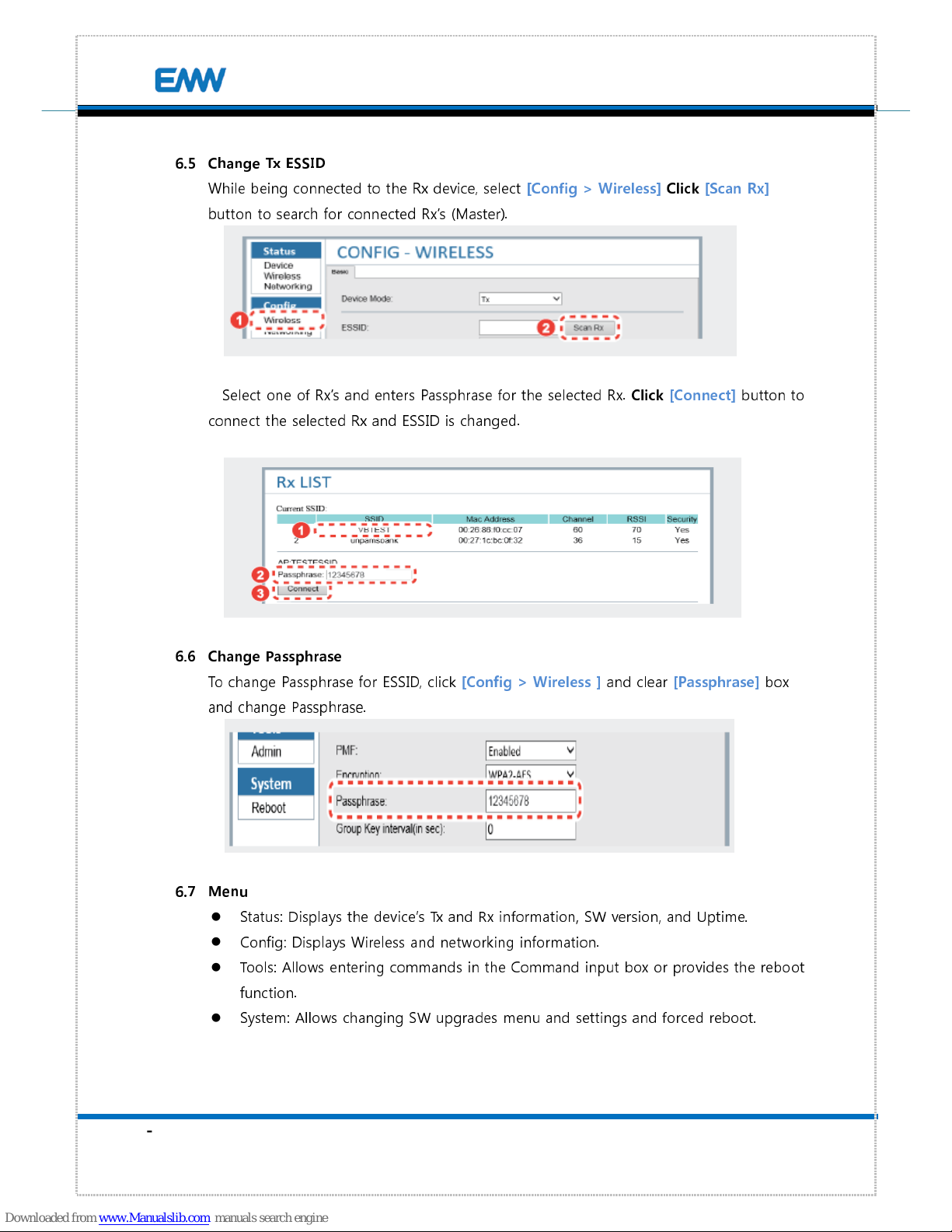

6.5 Change Tx ESSID
While being connected to the Rx device, select
[Config > Wireless] Click [Scan Rx]
button to search for connected Rx’s (Master).
Select one of Rx’s and enters Passphrase for the selected Rx.
Click [Connect]
button to
connect the selected Rx and ESSID is changed.
6.6 Change Passphrase
To change Passphrase for ESSID, click
[Config > Wireless ]
and clear
[Passphrase]
box
and change Passphrase.
6.7 Menu
Status: Displays the device’s Tx and Rx information, SW version, and Uptime.
Config: Displays Wireless and networking information.
Tools: Allows entering commands in the Command input box or provides the reboot
function.
System: Allows changing SW upgrades menu and settings and forced reboot.
- 31 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

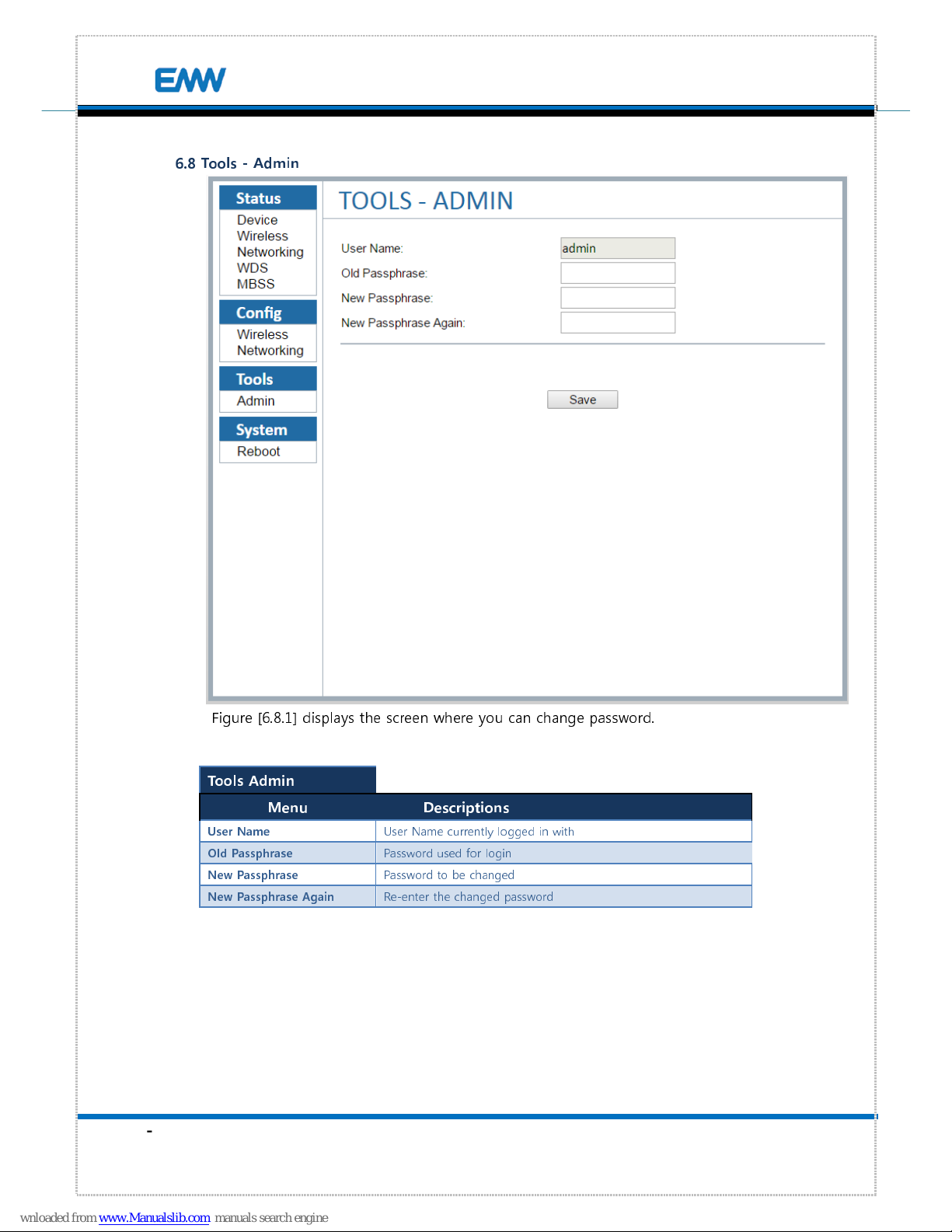

6.8 Tools - Admin
Figure [6.8.1] displays the screen where you can change password.
Tools Admin
Menu Descriptions
User Name
User Name currently logged in with
Old Passphrase
Password used for login
New Passphrase
Password to be changed
New Passphrase Again
Re-enter the changed password
- 32 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

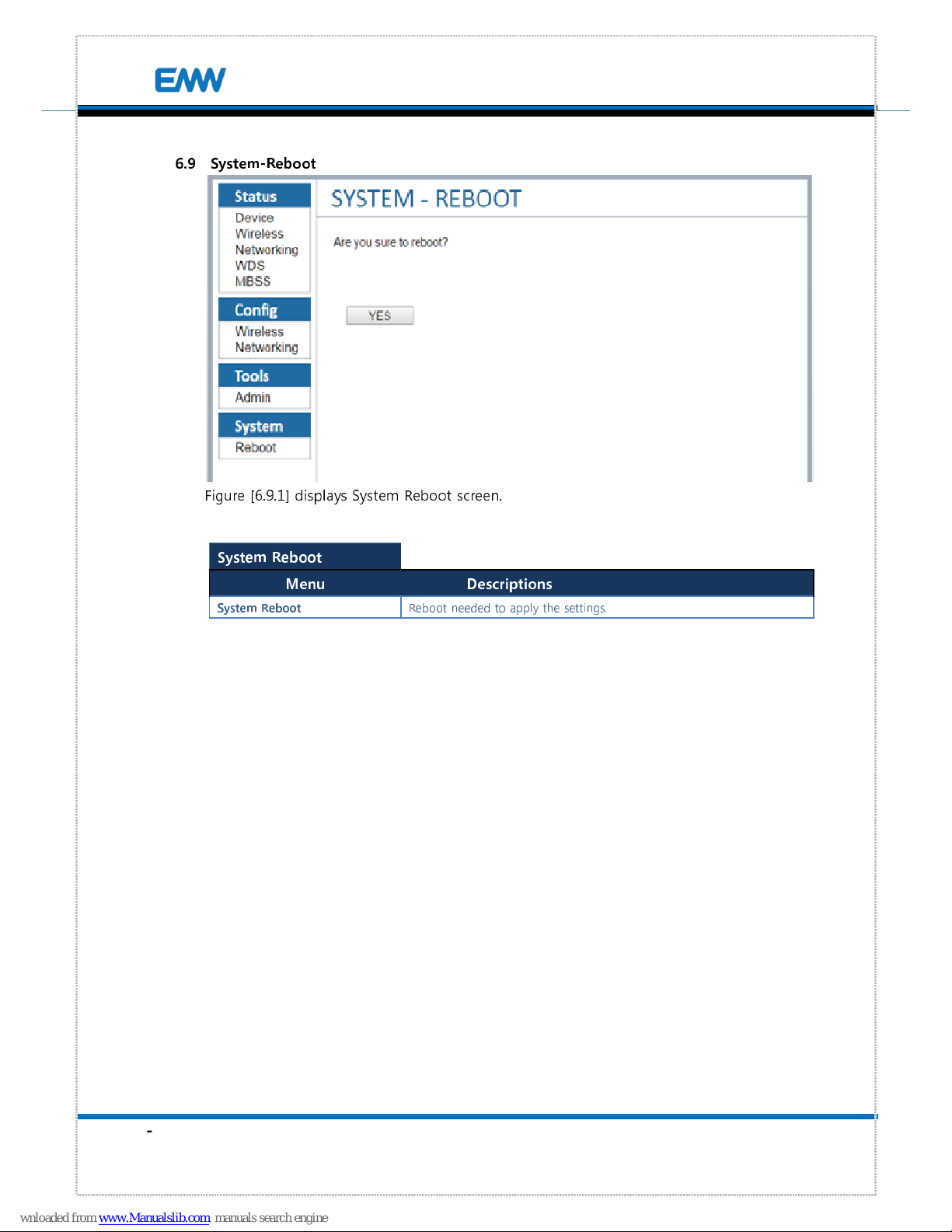

6.9 System-Reboot
Figure [6.9.1] displays System Reboot screen.
System Reboot
Menu Descriptions
System Reboot
Reboot needed to apply the settings.
- 33 -
EMW Co., Ltd.
EVB
-
A100
User
Manual
7. How to set up and check WDS ( Rx Mode)

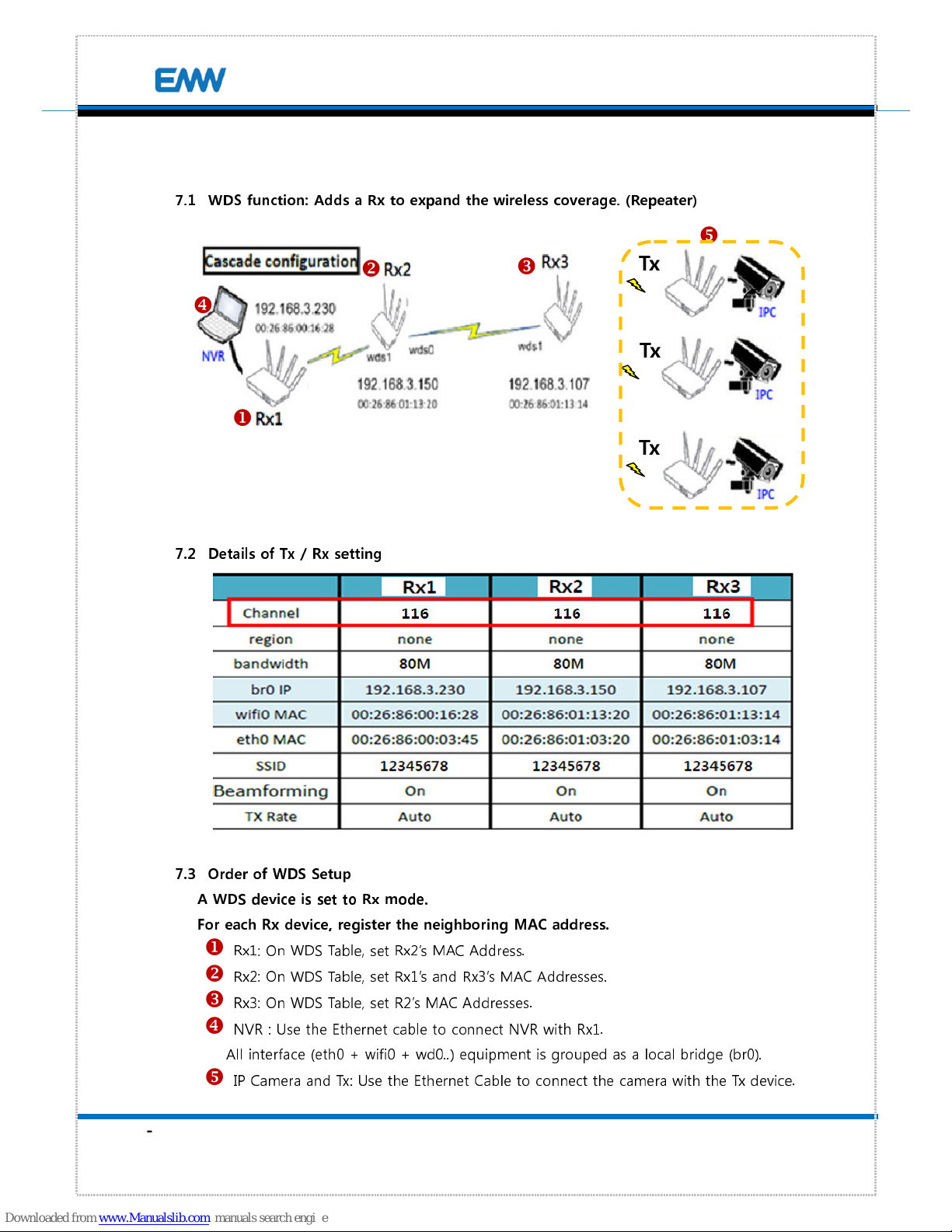

7.1 WDS function: Adds a Rx to expand the wireless coverage. (Repeater)
7.2 Details of Tx / Rx setting
7.3 Order of WDS Setup
A WDS device is set to Rx mode.
For each Rx device, register the neighboring MAC address.
Rx1: On WDS Table, set Rx2’s MAC Address.
Rx2: On WDS Table, set Rx1’s and Rx3’s MAC Addresses.
Rx3: On WDS Table, set R2’s MAC Addresses.
NVR : Use the Ethernet cable to connect NVR with Rx1.
All interface (eth0 + wifi0 + wd0..) equipment is grouped as a local bridge (br0).
IP Camera and Tx: Use the Ethernet Cable to connect the camera with the Tx device.
Tx
Tx
Tx
- 34 -
EMW Co., Ltd.
EVB
-
A100
User
Manual
And find and connect a correct Rx device with the Tx device.
Go to Web UI
[Config-> Wireless->Search Rx]
and find and connect Rx with Tx.
If Password input box opens, enter the passphrase of Rx.

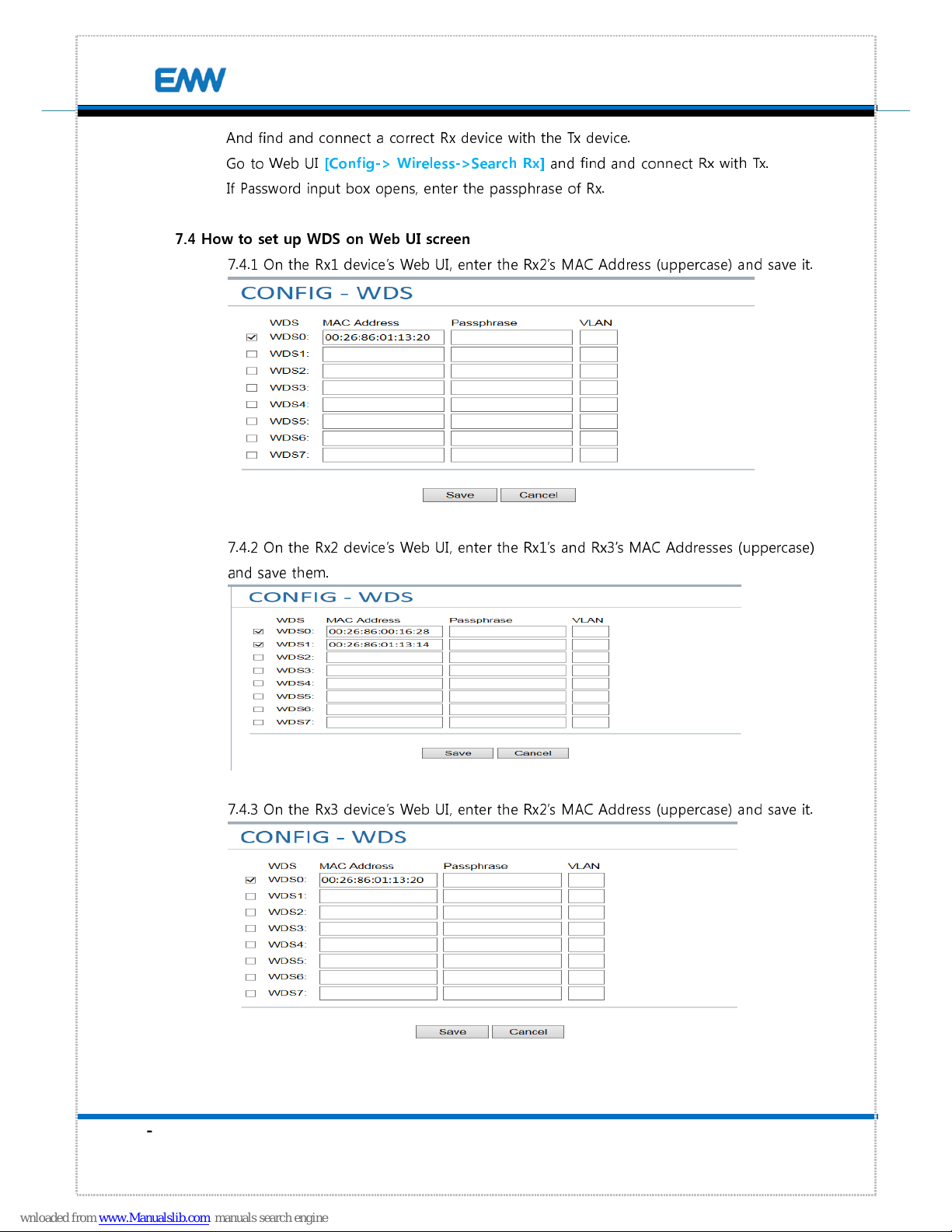

7.4 How to set up WDS on Web UI screen
7.4.1 On the Rx1 device’s Web UI, enter the Rx2’s MAC Address (uppercase) and save it.
7.4.2 On the Rx2 device’s Web UI, enter the Rx1’s and Rx3’s MAC Addresses (uppercase)
and save them.
7.4.3 On the Rx3 device’s Web UI, enter the Rx2’s MAC Address (uppercase) and save it.
- 35 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

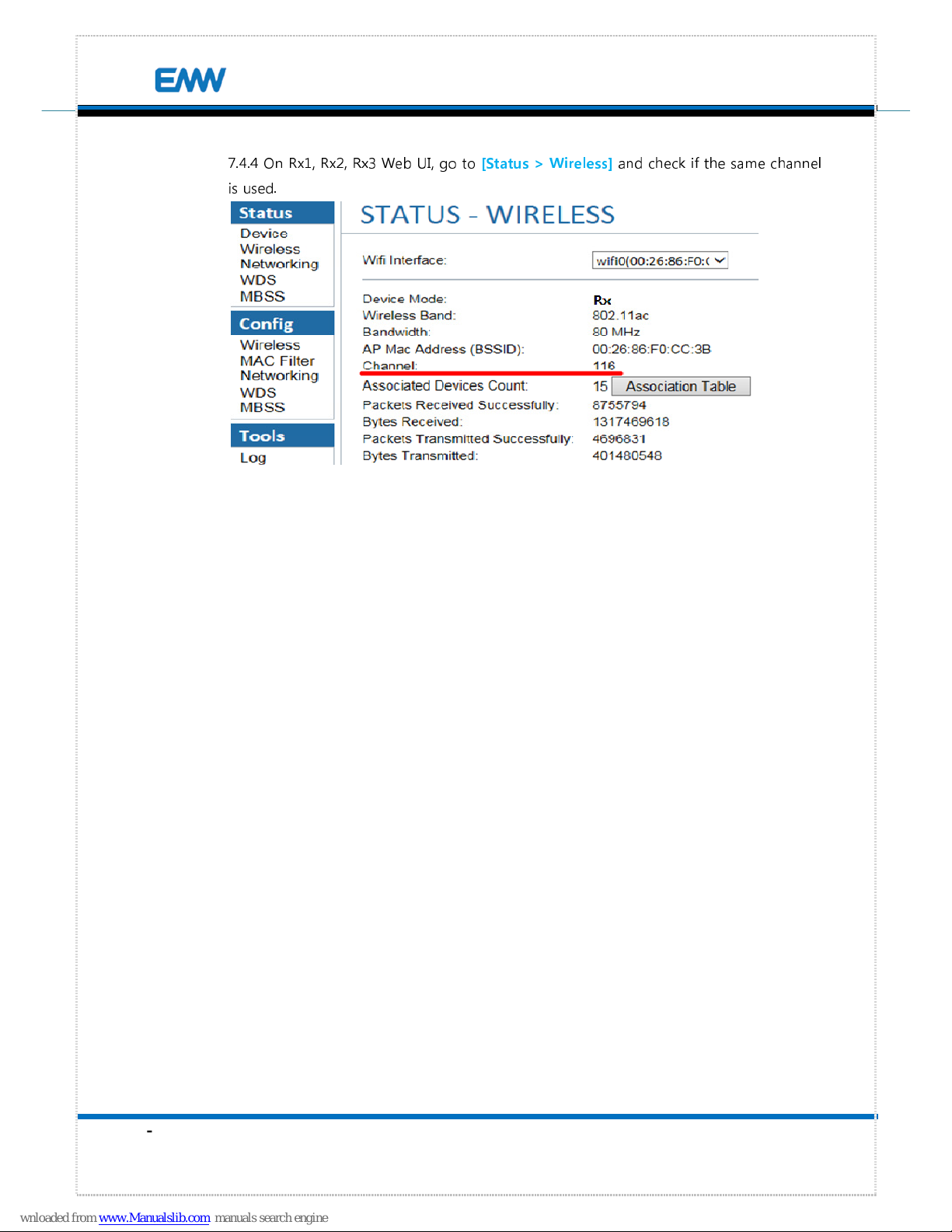

7.4.4 On Rx1, Rx2, Rx3 Web UI, go to
[Status > Wireless]
and check if the same channel
is used.
- 36 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

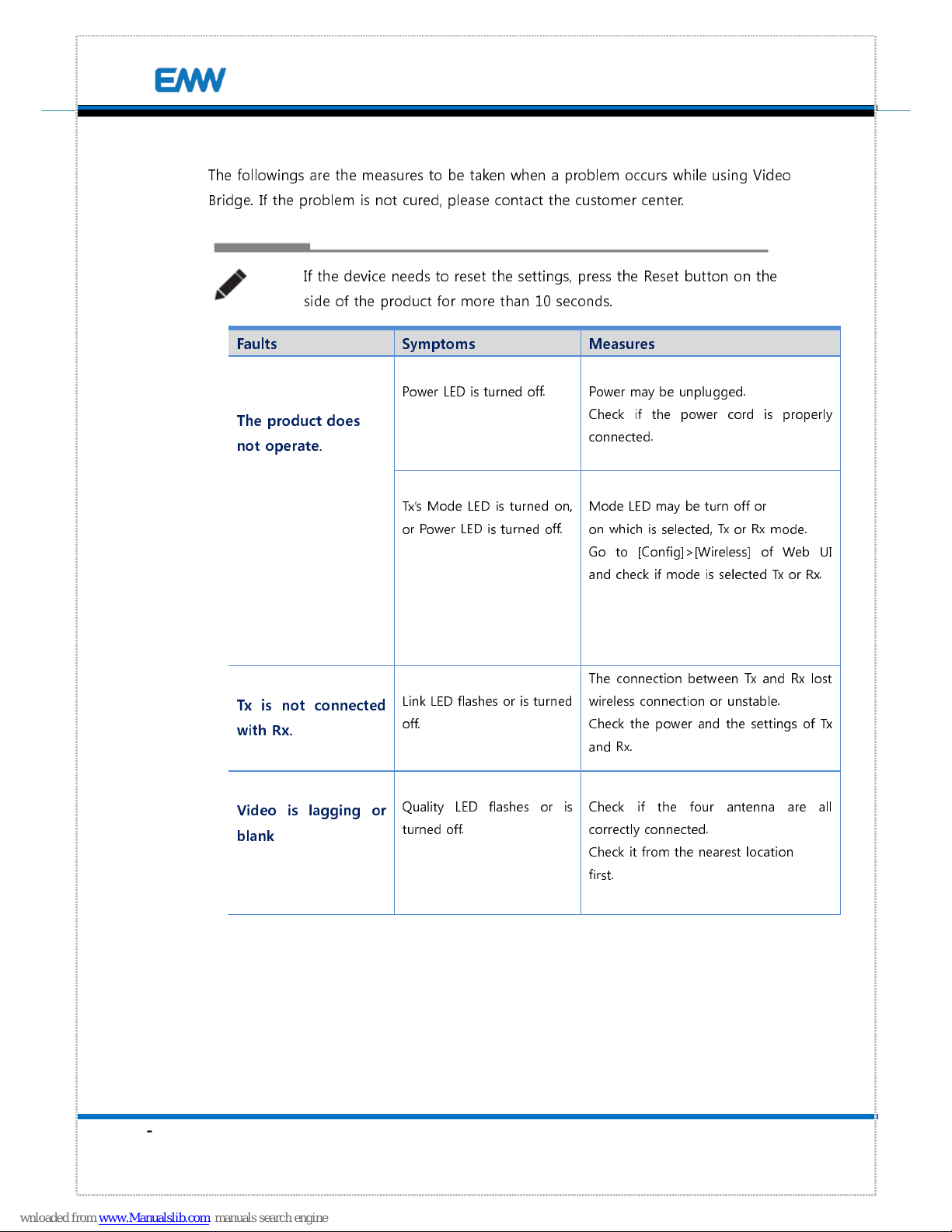

8. Fault diagnosis and measures
The followings are the measures to be taken when a problem occurs while using Video
Bridge. If the problem is not cured, please contact the customer center.
If the device needs to reset the settings, press the Reset button on the
side of the product for more than 10 seconds.
Faults Symptoms Measures
The product does
not operate.
Power LED is turned off.
Power may be unplugged.
Check if the power cord is properly
connected.
Tx’s Mode LED is turned on,
or Power LED is turned off.
Mode LED may be turn off or
on which is selected, Tx or Rx mode.
Go to [Config]>[Wireless] of Web UI
and check if mode is selected Tx or Rx.
Tx is not connected
with Rx.
Link LED flashes or is turned
off.
The connection between Tx and Rx lost
wireless connection or unstable.
Check the power and the settings of Tx
and Rx.
Video is lagging or
blank
Quality LED flashes or is
turned off.
Check if the four antenna are all
correctly connected.
Check it from the nearest location
first.
- 37 -
EMW Co., Ltd.
EVB
-
A100
User
Manual
9. Terminology
Rx(
Master
)
Rx is a receiver which connects wired and wireless connectivity.
Tx (Client)
A transmitter is connected to a receiver.
SCS
Smart Channel Selection
VSP
Video Stream Protection
RSSI
Received Signal Strength Indication
Wi-Fi
A mark for WECA to check linking between wireless products. The name is originated
from "Wireless Fidelity". WECA carries out an elaborate test and grants a Wi-Fi logo to a
product that satisfies the linking standards.
Wireless Bridge
Tx (Client) or Rx ( Master) that uses a wireless network to connect between two different
wired networks.
Association
Has a table that controls the packet route between Rx and Tx
Maintains Rx and Tx.
SSID
Service Set Identifier
SSID is a unique identifier of 32 bytes length added to the header of a packet
transmitted through a WLAN. It is used like a password when Tx connects to BSS (basic
service set). Rx or Tx must the same SSID. A Tx that does not know the unique of a
certain BSS cannot access the BSS.
WEP
WEP (Wired Equivalent Privacy): An encryption standards prepared by IEEE 802.11 for
WLAN security. There are various types of application developed to use encryption keys
to strength security.
B
andwidth
Refers to the difference between the highest and lowest frequencies of a signal usable in
a network. It means, commonly, the highest transmission speed or a capacity to transmit
information and uses ‘bps’ its unit.
DHCP
DHCP allows the network administrator to manage and allocate IP addresses and to send
new IP addresses when the computer connects to a different location of the network.
Static IP
Can use fixed IP addresses. There is no need for the administrator to allocate IP
addresses.
802.11ac
802.11ac operates at 5G Hz’s V10.1 frequency bandwidth.
PHY
The lowest sub layer of the physical layer and a block for connection with the
outside. It changes a protocol layer into a physical layer.
WDS
Wireless Distribution System
WDS forms a wireless network between Rx’s to provide the larger support range of
wireless network than when one Rx is used.
BSS
Base Service Set
Refer to a minimal size of WLAN formed based on a Rx if a wire network consists of
multiple wireless Rx’s in the infrastructure mode.
- 38 -
EMW Co., Ltd.
EVB
-
A100
User
Manual
MBSS
Multiple BSS
AES
Advanced Encryption Standard
CCMP
Counter Mode Encryption With CBC-MAC Protocol
EAP
Extensible Authentication Protocol
ESS
Extended Service Set
Refers to a WLAN that consists of multiple Rxs.
FAST
Flexible Authentication via Secure Tunneling
IV
Initialization Vector
PEAP
Protected EAP
PSK
Pre-Shared Key
TKI
Temporal Key Integrity Protocol
TLS
Transport Layer Protocol
WPA
WiFi Protected Access
WIFI security Protagoras WEP -> WPA - WPA2
Wi-Fi Protected Access (WPA, WPA2 ) is an authentication program carried out under
the monitoring of Wi-Fi Alliance. It is a security protocol that indicates that the network
equipment satisfies the security protocol established by Wi-Fi Alliance. WPA indicates
that the existing LAN card operation complies with the expansion protocol standards
completely and WPA2 mark indicates that the relevant device does the same.
WPS
WiFi Protected Setup
Press the WPS buttons of the wireless Rx and wireless device (during the 120 seconds of
waiting time) to establish connection without entering password: there are PBC, PIN,
and NFC type.
PMF
Protected Management Frames
Protects the frame.
RADIUS
Remote Authentication Dial-in User Service
NSS
Number of Spatial Streams
DTIM
Delivery traffic indication message
Short GI
Short Guard Interval
The guard interval is a waiting time between sending data continuously in a wireless
network to reduce the impact of data. For 802.11 a/g, it is 800 nsec, but for 802.11n, it is
set to 400n sec so that the sub carrier can be used to compensate for the reduced guard
interval to make the total throughout to reach 72Mbps. Reducing the guard is provided
as a optional when a WLAN is established as interval needs agreement between the
transmission and reception ends.
OFDM
Orthogonal Frequency Division Multiplexing
MIMO
Multi Input Multi Output
MIMO is a multi I/O technology. The wireless quality depends on how far the signal is
and which route the signal is received. MIMO uses multiple antennas to receive signals
coming in along multiple paths (multipath) and operate data and recover them to
original signals. 802.11g/b/g uses a single antenna or SISO (Single Input Output).
Passphrase
It is used instead of password to mean that the password should long enough.
- 39 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

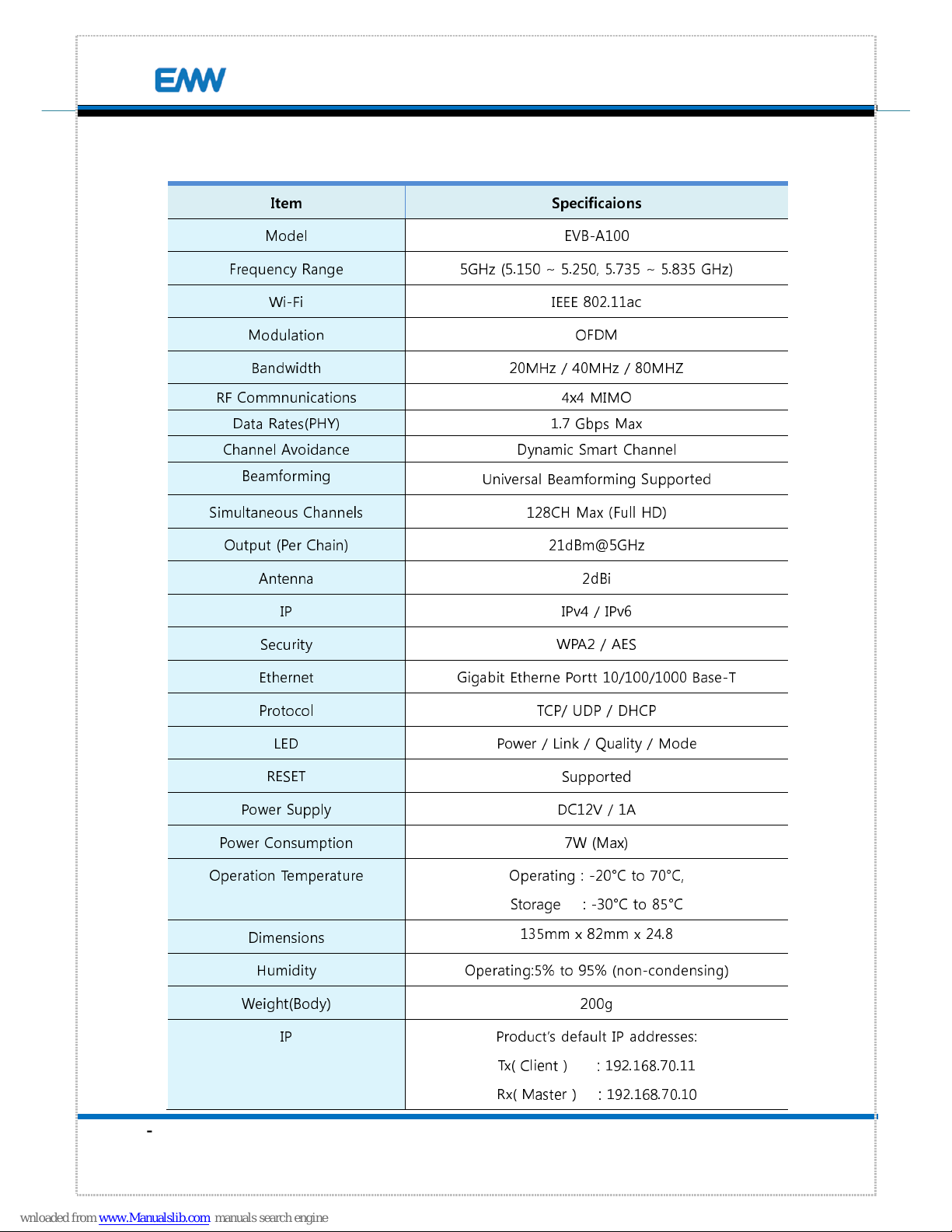

10. Specification Table
Item Specificaions
Model EVB-A100
Frequency Range 5GHz (5.150 ~ 5.250, 5.735 ~ 5.835 GHz)
Wi-Fi IEEE 802.11ac
Modulation OFDM
Bandwidth 20MHz / 40MHz / 80MHZ
RF Commnunications 4x4 MIMO
Data Rates(PHY) 1.7 Gbps Max
Channel Avoidance Dynamic Smart Channel
Beamforming
Universal Beamforming Supported
Simultaneous Channels 128CH Max (Full HD)
Output (Per Chain) 21dBm@5GHz
Antenna 2dBi
IP IPv4 / IPv6
Security WPA2 / AES
Ethernet Gigabit Etherne Portt 10/100/1000 Base-T
Protocol TCP/ UDP / DHCP
LED Power / Link / Quality / Mode
RESET Supported
Power Supply DC12V / 1A
Power Consumption 7W (Max)
Operation Temperature Operating : -20°C to 70°C,
Storage : -30°C to 85°C
Dimensions
135mm x 82mm x 24.8
Humidity Operating:5% to 95% (non-condensing)
Weight(Body) 200g
IP Product’s default IP addresses:
Tx( Client ) : 192.168.70.11
Rx( Master ) : 192.168.70.10
- 40 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

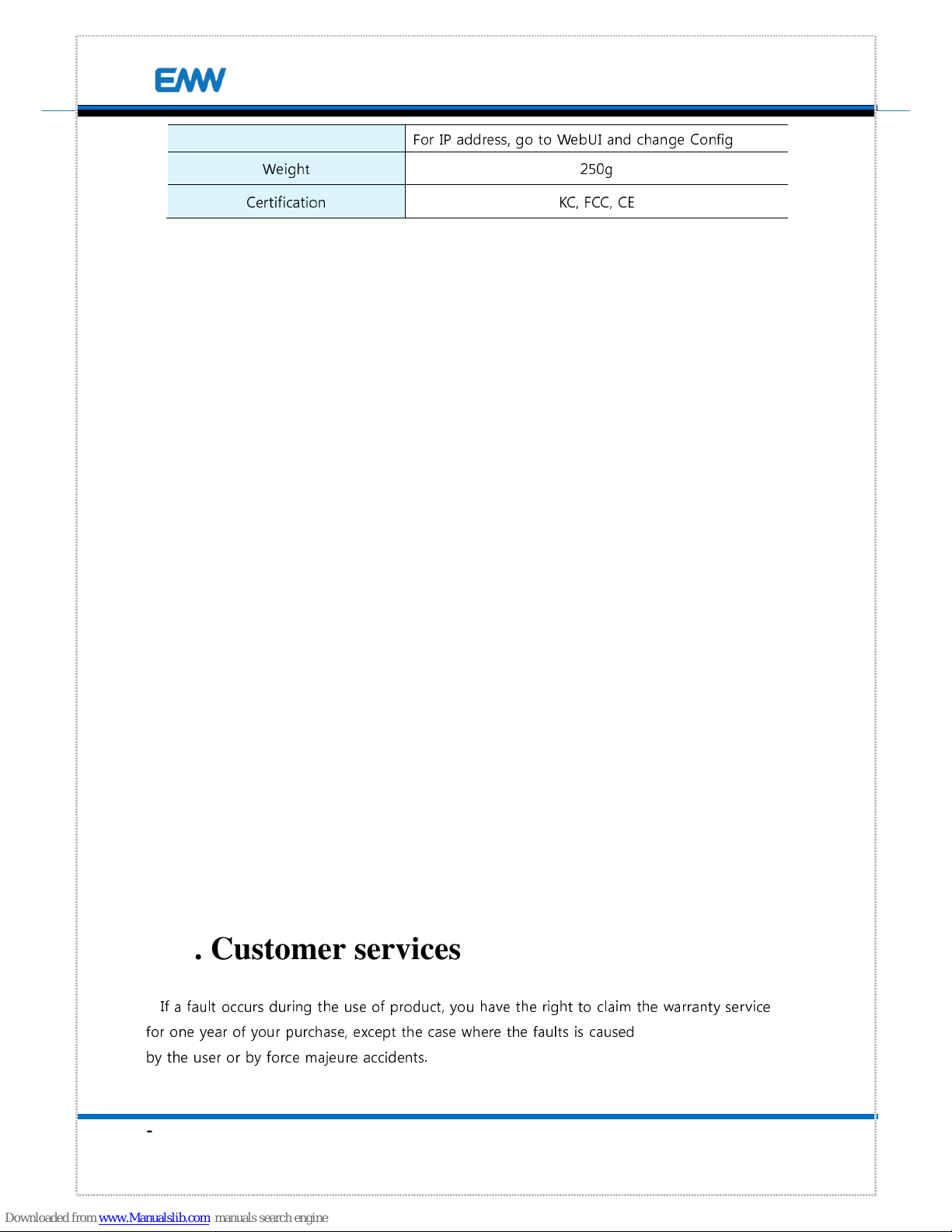

For IP address, go to WebUI and change Config
Weight 250g
Certification KC, FCC, CE
11. Customer services
If a fault occurs during the use of product, you have the right to claim the warranty service
for one year of your purchase, except the case where the faults is caused
by the user or by force majeure accidents.
- 41 -
EMW Co., Ltd.
EVB
-
A100
User
Manual

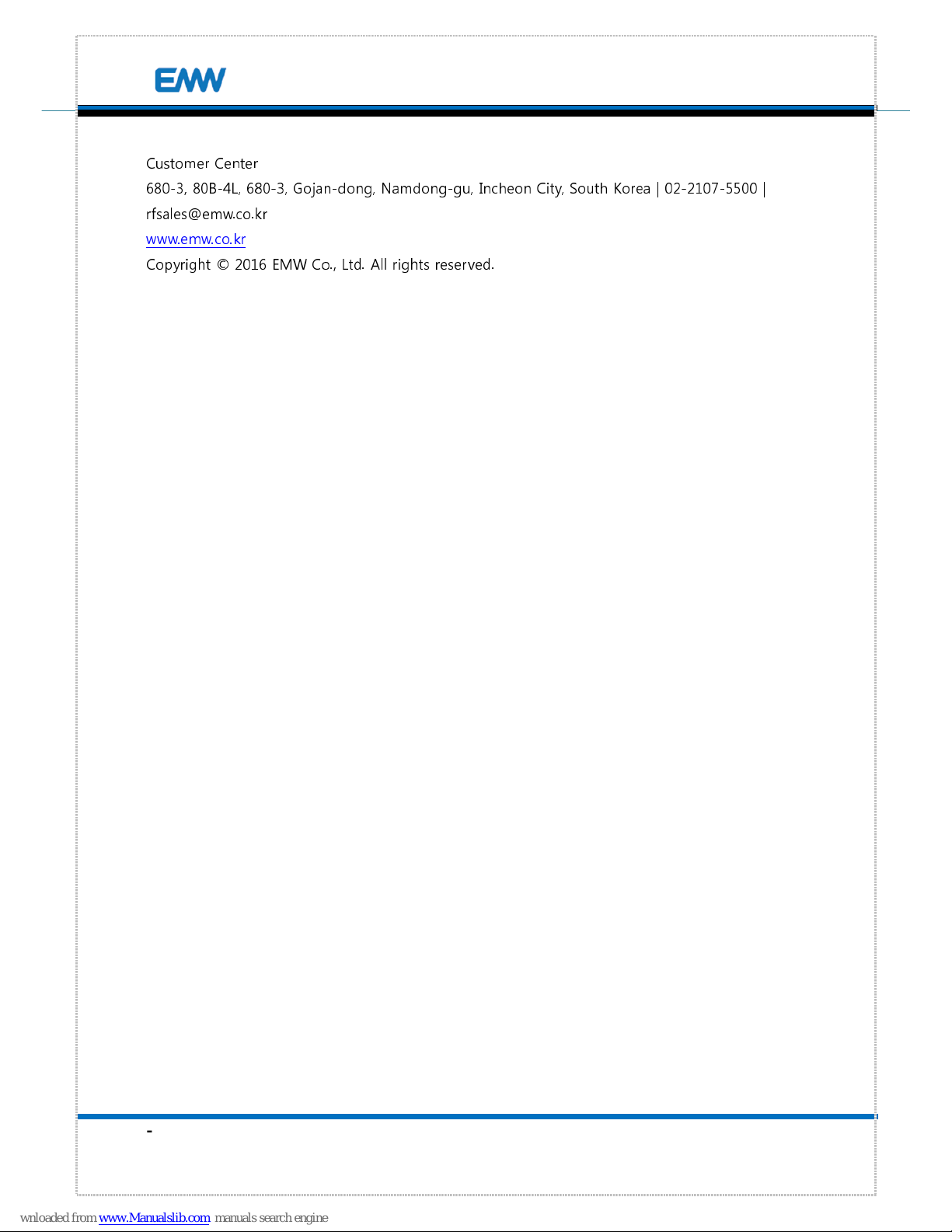

Customer Center
680-3, 80B-4L, 680-3, Gojan-dong, Namdong-gu, Incheon City, South Korea | 02-2107-5500 |
rfsales@emw.co.kr
www.emw.co.kr
Copyright © 2016 EMW Co., Ltd. All rights reserved.
Loading...
