INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 1 INTRODUCTION
USER’S GUIDE
CHAPTER 1INTRODUCTION
Overview......................................................................1
Features ......................................................................2
InSpeed™ Technology .................................................2
Switch Applications ......................................................3
Note: Important safety, electromagnetic compatibility, and regulatory information is contained in the
Safety & Regulatory Guide
the information provided in that guide.
This guide is designed to provide users with the necessary information to install and manage the
InSpeed™ SAN Storage Switch Model 355 for use in Fibre Channel applications in typical entry-level
Storage Area Networks (SANs).
. The installation and use of this product must be in accordance with
OVERVIEW
The InSpeed™ SAN Storage Switch Model 355 is designed for entry-level Storage Area Networks
(SANs), which provide the following advantages over direct attached storage:
• Greater application availability
• Higher performance between servers and storage devices
• Improved storage asset utilization
• Lower storage management and support costs
• Incremental scalability to keep up with difficult to estimate storage growth
This switch is ideal for storage pooling and consolidation, high-performance shared tape library backup
and recovery, server clustering, and streaming rich media applications.
Enclosed in a 1U, half-rack form factor enclosure, the switch is built around the InSpeed™ SOC 320 and
is controlled by firmware loaded into the on-board Flash.
The switch is designed as a central interconnect following the ANSI FC-AL standard. Devices are
connected to the switch through Small Form-factor Pluggable (SFP) transceivers and cables. Each
attached node has 1 or 2 Gigabits per second (Gb/s) of Fibre Channel bandwidth. The switch operates
at full switching bandwidth that reaches speeds of 4 Gb/s per port and up to 48 Gb/s of aggregate
bandwidth.
Complete switch configuration and management is available through the intuitive, graphical-based Web
Manager interface. A variety of network configurations are easily established using the switch’s Port
Smart Settings, One-Step Zoning, Automatic Trunking, and Load Balancing features. In addition, the
switch features granular change notification management, retained system configuration parameters,
and a Command Line Interface (CLI) for advanced users.
1
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 1 INTRODUCTION
USER’S GUIDE
FEATURES
The InSpeed™ SAN Storage Switch Model 355 has the following features:
• High Performance Fibre Channel Switching:
• Wire speed non-blocking Crossbar switch core
• Single 12-port InSpeed SOC 320 ASIC with embedded SERDES
• Multiple simultaneous conversations between ports
• Traffic routed directly to destination ports
• 2 Gb/s or 1 Gb/s performance across all ports
• Aggregate bandwidth of 48 Gb/s
• Supports cascades up to 3 switches and up to 126 host and storage devices
• No complex fabric services or buffers
• Effortlessly connects to any vendor’s fabric
• Patent-pending technology:
• Fairness and Prioritization–ensures devices all have guaranteed access, or explicitly
have prioritized access, over all other devices in a system.
• Stealth
elimination of state and change notification system disruptions and unprecedented
control of disruptive events.
• Automatic Trunking–enables fully-multiplied throughput and bandwidth, failover pathing,
and dynamic load balancing and device prioritization.
• Advanced diagnostics, performance monitoring, and fault isolation including continuous switch
and port monitoring and automatic bypass of problematic or unused ports.
• Port Smart Settings, which are predefined port-level configurations that optimize switch
performance and stability.
• One-Step Zoning, including overlapping/non-overlapping zones with port or AL_PA-based
zoning.
• Switch management using the embedded http-based web server, Command Line Interface
(CLI), or Simple Network Management Protocol (SNMP).
• Half-rack, 1U size for easy installation (optional 19" rack-mounting kits available).
• Fibre Channel ANSI Standards Compliance
TM
Intelligent Change Manager–delivers maximum stability through automatic
INSPEED™ TECHNOLOGY
InSpeed™ technology is an advanced switching architecture that couples a non-blocking crossbar
switch with a unique switch port logic and per-port SERDES. This results in the industry’s highest
density Fibre Channel switch on a chip (SOC). The port logic is based on Fibre Channel-Arbitrated Loop
(FC-AL), an ANSI standard (X3T11) designed to provide shared bandwidth over low-cost media.
This architecture enables the switch’s router to send data directly from one port to another, allowing for
multiple, simultaneous conversations between ports—effectively multiplying bandwidth. InSpeed™
provides the same performance as complex fabric switches that support FC-SW2. InSpeed™ can even
exceed fabric switch performance in entry-level SAN environments, where the overhead associated with
longer name addressing and services is not beneficial.
2
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 1 INTRODUCTION
USER’S GUIDE
SWITCH APPLICATIONS
The InSpeed™ SAN Storage Switch Model 355 is ideal for consolidation and shared storage pooling,
high-performance shared tape library backup and recovery, server clustering, and streaming rich media
applications. The following sections provide examples of these applications.
Storage Consolidation and Shared Storage Pooling
In this configuration, the switch enables multiple hosts to share single or multiple storage systems. This
application replaces direct-attached configurations that require multiple storage systems to be attached
to separate servers, which often results in difficult to manage multiple systems and trapped, unused
storage islands (storage cannot be shared with other servers).
Figure 1-1: Before storage consolidation...
Benefits include:
• Improved incremental scalability–connect up to 12 hosts and/or other storage devices, including
tape libraries, to a single switch.
• Lower storage management support costs.
• Improved capacity utilization that enables effective use of both servers and storage.
For larger system environments, multiple switches can be connected and Automatic Trunking can be
used to keep performance and availability at high levels. As a best practice when using multiple
switches, connect servers and their related storage devices through the same switch to optimize
performance.
and after storage consolidation.
Figure 1-2: Multiple switch storage consolidation diagram
3
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 1 INTRODUCTION
USER’S GUIDE
Figure 1-2 depicts a sample multiple switch storage consolidation configuration in which multiple servers
communicate with storage devices and zoning is incorporated. The zoning in Figure 1-2 might be set up
to configure a multiple operating system environment. For example, Zone 1 might be Windows-based,
Zone 2 might be Linux-based, and Zone 3 might be Unix-based. Zoning can also be used to improve
security by masking storage devices or files. For example, a finance department could secure financial
files from viewing by the engineering department, which in turn could secure engineering files from
viewing by the finance department.
Tape Library Consolidation
Another switch application is the consolidation of multiple tape libraries attached to individual servers
into a single library for all servers for backup and restore purposes.
Benefits include:
• Improved cost effectiveness.
• Improved availability for performing system backups:
• Off-LAN System Backups often reduce the amount of time it takes backups (and
recovery) to occur because SANs run at higher performance bandwidth than LANs.
• Server-less backups enable applications to remain fully active during backup and
recovery processes, when combined with the appropriate backup software solution.
Figure 1-3 depicts a sample tape library consolidation configuration.
Figure 1-3: Before consolidation, backup and restore data must
travel on the LAN, congesting traffic and operating at slow
speeds.
After consolidation, backup and restore data
travels on the high speed SAN separate from
LAN traffic.
4
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 1 INTRODUCTION
USER’S GUIDE
Rich Media
For rich media applications, the switch provides improved storage and file sharing from a single storage
pool for multiple workstations.
Figure 1-4 depicts a sample rich media configuration.
Figure 1-4: Rich media diagram
Server Clustering
In this configuration, the switch helps deliver improved application availability when combined with a
server clustering software solution, like Microsoft Cluster Server or Veritas Cluster Server. This prevents
system downtime in case of failure to one of the application servers.
Figure 1-5 depicts a sample server clustering configuration.
Figure 1-5: Server clustering diagram
5
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 2 SWITCH INSTALLATION
USER’S GUIDE
CHAPTER 2SWITCH INSTALLATION
Installation Preparation ................................................ 6
Switch Installation ........................................................7
Switch LEDs ................................................................9
SFP Compatibility ...................................................... 11
Booting the Switch and SAN ......................................12
INSTALLATION PREPARATION
After receiving the switch, perform the following steps to ensure the switch and other contents arrived
safely.
To unpack the switch:
1. Inspect the outer shipping container for any damage that may have occurred in shipping. Report
any sign of damage to the appropriate shipping agency.
2. Remove the switch and cables from the shipping container; save the shipping container, foam,
and antistatic bags—returning the switch in any other container is not advised.
Make sure the following parts are included:
• Switch unit
• RS-232 null-modem serial cable
• Power cable
• Self-adhesive pads (4)
• InSpeed™ SAN Storage Switch Model 355 Quick Install Card
• Product Release Notes
• Safety and Regulatory Guide
• Additional documentation, including warranty information and the End User License
Agreement.
3. Inspect the switch thoroughly. (If any signs of damage are seen, notify a sales representative
and/or the shipping agency.)
6
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 2 SWITCH INSTALLATION
USER’S GUIDE
SWITCH INSTALLATION
The switch may be placed on a desktop or installed in a rack.
Desktop Installation
To place the switch on a desktop:
1. Turn the switch upside down so the case bottom is facing up.
2. Install a self-adhesive pad (included) on each corner of the switch bottom approximately 1 inch
from each side (prevents surface damage).
3. Turn the switch right-side up so the case bottom is facing down and place the switch on a stable
table or platform.
Note: Important safety, electromagnetic compatibility, and regulatory information is
contained in the
must be in accordance with the information given in that guide.
For information on environmental requirements, see “Operating Conditions” on page 61.
Safety & Regulatory Guide
Rack Installation
Installing the switch in an equipment rack requires an optional rack mount kit (sold separately). The rack
mount kit holds two switches. Contact a sales representative for more information or assistance in
purchasing a kit.
. The installation and use of this product
Installing the switch(es) in a rack requires the following items:
• Rack mount kit (Part Number 00651359-701)
• 4 thread forming screws, 6-32 x 1/4 100
• No. 2 Phillips screwdriver
To install the switch(es) in the tray:
1. Turn the switch(es) over (upside-down) on a flat surface.
2. Turn the tray over (upside-down) and place it on top of the switch(es).
3. Align the tray and the switch(es) using the four holes indicated in Figure 2-1. Make sure the back
lip of the tray is aligned with the back side of the switch(es).
° (included in the Rack Mount Kit)
7
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 2 SWITCH INSTALLATION
USER’S GUIDE
Figure 2-1: Diagram Depicting Switch Installation into Tray (Note: Switches and tray are displayed
upside-down to facilitate proper installation.)
4. Using a No. 2 Phillips screwdriver, attach the switch(es) to the tray by installing the 4 thread
forming screws (6-32 x 1/4 100
Note: While there are eight holes on each side of the tray, only the four holes indicated on
each side of the tray in Figure 2-1 should be used for the switch.
° ) into the aligned holes.
5. Turn the tray over with the attached switch(es) now on the top of the tray.
Install the tray with the switch(es) attached into a rack following the instructions provided with the rack
mount kit.
UL Guidelines for Mounting Equipment in a Rack
When installing equipment in a rack, give careful consideration to the following factors:
• The operating ambient temperature of rack-mounted equipment must not exceed the maximum
rated ambient temperature, which is indicated in this installation guide. (See “Operating
Conditions” on page 61.)
• The air flow clearances specified in this installation guide must be maintained within the rack.
(See “Operating Conditions” on page 61.)
• The AC supply circuit for rack-mounted equipment must be capable of supplying the total current
specified on all the labels of the rack-mounted equipment.
• All AC power supply connections must be properly earthed. To ensure the integrity of the earth
connection, special attention must be given to connections that are not directly connected to the
branch circuit (for example, power strips).
• The rack-mounting hardware has been carefully selected to properly support the equipment.
Any alternate rack-mounting hardware must provide equal or superior support.
8
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 2 SWITCH INSTALLATION
USER’S GUIDE
SWITCH LEDS
The switch incorporates three sets of Light-Emitting Diodes (LEDs) to indicate ethernet, switch, and port
status:
1. Ethernet LEDs – two separate LEDs indicating the network connection status.
2. System LEDs – four separate LEDs indicating the switch’s status.
3. Port LEDs – two LEDs per port indicating the port’s status.
Ethernet LEDs
Port LEDs
Figure 2-2: Switch View Depicting Ethernet, Port, and System LEDs
Ethernet LEDs
The Ethernet LEDs indicate the network connection status:
Ethernet Activity
Figure 2-3: Ethernet LEDs
Ethernet Link
Ethernet LEDs Indication
Ethernet Activity
(green LED)
Ethernet Link
(green LED)
• When flashing, the ethernet port is receiving data.
• When flashing rapidly, the traffic level is high.
When lit, the switch is connected to an operational ethernet.
System LEDs
The System LEDs indicate the switch’s status, independent of the port LEDs.
System LEDs
Fault
2 Gb/s
Figure 2-4: System LEDs
Power
Switch Operational
9
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 2 SWITCH INSTALLATION
USER’S GUIDE
System LEDs Indication
Fault
(yellow LED)
Power
(green LED)
2 Gb/s
(green LED)
Switch
Operational
(green LED)
• When lit, one or more of the ports has failed or the internal temperature has
exceeded acceptable levels.
• When flashing, all ports are operational but another error has occurred. Errors appear
in an event log. The level of error severity that will cause flashing to start can be
controlled using the config sys fault command in the CLI. The default is level 3,
Critical.
Note: Whether lit or flashing, the switch will continue to operate. Switch functionality
may be impaired depending on the event that triggered the Fault LED. Regardless of
the cause, the switch requires immediate attention.
When lit, the switch is plugged in and the internal power supply is functional.
When lit, the switch is set to operate at a speed of 2 Gb/s. When off, the switch is set to
1 Gb/s.
• When lit, indicates that the switch has completed initialization for ports with inserted
SFPs and that the switch is operational.
• When flashing, the switch has been configured for multiple zones, and one or more
zones are up with at least one zone down.
If no zones (excluding hard zones) are operational, the LED turns off.
Port LEDs
The Port LEDs indicate the port’s status. Each port has two LEDs:
• SFP Status LED
• Port Bypassed LED
SFP Status
Port Bypassed
Figure 2-5: Ethernet LEDs
SFP Status
LED
(green LED)
Off Off Normal port operational status when an SFP is not installed.
Off On or Flashing The port is bypassed due to a faulty or improperly seated SFP. After
Flashing Off Activity. Data is being transferred between the port and device.
On Off Normal operation but no activity. Port and device are fully operational.
On Flashing Manually bypassed. A port can be manually bypassed using the Web
On On Bypassed. SFP is installed but the port is not receiving a valid signal or
Flashing Flashing Beaconing. This is set manually using the Web Manager or CLI.
Port Bypassed
LED
(yellow LED)
Indication
fixing this problem, power may need to be cycled before the LED
indication will change.
Manager’s Bypass Port feature.
is receiving an F8 Failure notification from the attached device.
10
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 2 SWITCH INSTALLATION
USER’S GUIDE
SFP COMPATIBILITY
SFPs are “hot-pluggable” into the switch, which allows host computers, servers, and storage devices to
be added dynamically without requiring power removal from the switch or any connected devices.
The switch supports Small Form-Factor Pluggable (SFP) modules that comply with the SFP
specification as produced by the MSA consortium and have passed Emulex Corporation’s qualification
testing.
The following manufacturers of 1-2Gb optical, shortwave SFPs are recommended:
•Finisar
•JDS Uniphase
Contact a customer service representative to request the certified part numbers for these vendors.
Installing an SFP
If the Change Notification on Insertion policy is enabled, plugging an SFP into the switch will
automatically send an F7 Initialization notification to indicate the device is ready to begin initialization.
Caution: Forcing an SFP into a port may damage the SFP and/or port.
To insert an SFP:
1. Remove dust covers or plugs from the SFPs, if provided.
2. Slide the SFP into the port, ensuring correct polarity, until the latch clicks into place.
Removing an SFP
To extract an SFP:
Determine what kind of extraction mechanism the SFP has and remove the SFP as follows:
If the SFP has a removal tag,
and toward the side of the SFP with the tag.
If the SFP has a small plastic slider on the top or bottom
push in the slider and hold while pulling out the SFP.
If the SFP has a bale (small metal clasp)
and pull the bale.
remove the cable from the SFP and then pull the removal tag outward
, remove the cable from the SFP and then
, remove the cable from the SFP and then unlatch, pivot,
Attaching a Device to the Switch
To attach a device:
1. Make sure that the device is FC-AL compatible.
2. Attach a cable to the device.
3. Attach the other end of the cable to an SFP.
4. Make sure that the device and switch are operational and set to the same speed.
11
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 2 SWITCH INSTALLATION
USER’S GUIDE
BOOTING THE SWITCH AND SAN
The following procedure is recommended when booting the switch and SAN. Before powering on the
switch and SAN, read the Release Notes, included with the switch contents, to determine any
modifications that may be required for a specific installation.
To boot the switch and SAN:
1. Power on the storage devices (such as JBODs, tape libraries, and RAIDs).
2. Insert the plug end of the switch’s power cord to a properly grounded power source.
3. Insert the power cord’s IEC connector end into the switch’s power receptacle.
The switch powers on and runs Power-On Self-Test (POST) diagnostics to verify the
fundamental integrity of the switch ports. All switch LEDs turn on (LEDs illuminate). Then,
excluding the Ethernet Link and Power LEDs, the LEDs turn off (LEDs extinguish). Once the
switch is operational, the LEDs display current status as described in “Switch LEDs” on page 9.
Note: The power cord’s IEC connector plug serves as the switch’s disconnect device. To
cycle power to the switch, remove and reconnect the switch’s power cord.
4. Power on any other switches connected to the SAN.
5. For certain applications, switch configuration must be completed before continuing with the next
step. For information regarding switch configuration, see Chapter 3: Switch Management.
6. After all switches have initialized, power on the hosts.
The network initializes.
Note: FC-AL compatible nodes must perform initialization procedures upon power-up in
order to function properly. It is the responsibility of the Fibre Channel driver software
on FC-AL nodes to perform this initialization.
7. Check all port LEDs.
The SAN should be fully operational at this point. However, it is appropriate to ensure proper
discovery has taken place and all required devices are participating in the network. Some host
bus adapters may provide this level of functionality or it might be resident in the application
software on the host operating system.
12
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 3 SWITCH MANAGEMENT
USER’S GUIDE
CHAPTER 3SWITCH MANAGEMENT
Getting Started...........................................................14
Managing the Switch.................................................. 19
Monitoring the Switch.................................................47
This chapter is divided into three sections providing information on how to manage and monitor the
switch:
• Getting Started – Describes how to configure the network interface, use the Web Manager, and
perform a basic initial setup of the switch.
• Managing the Switch - Describes how to configure the switch and port settings, manage
firmware versions and configuration files, set switch thresholds, and configure One-Step Zoning,
Automatic Trunking, and Load Balancing.
• Monitoring the Switch – Describes how to view switch information, the event log, port
information, and port diagnostics.
The switch incorporates two distinct interfaces for managing and monitoring purposes:
• The Web Manager interface provides an intuitive graphical user interface that enables users to
quickly check switch status or modify switch settings in a visual environment.
• The Command Line Interface (CLI) provides flexibility and additional functionality for advanced
users.
Both of these interfaces provide nearly identical functionality; however, for the purposes of this guide,
the Web Manager interface is used for switch and port configuration unless otherwise noted.
For a list of CLI commands, see Appendix B: CLI Quick Reference on page 62. For additional
information on the CLI, see the
InSpeed Storage Switch CLI Reference Guide
.
13
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 3 SWITCH MANAGEMENT
USER’S GUIDE
GETTING STARTED
This section explains how to configure the switch’s ethernet network settings prior to using the Web
Manager. Once the switch’s network settings are configured, use the Web Manager to perform a quick
switch setup.
Configuring the Network Interface
Before using the Web Manager, ensure the switch’s ethernet network parameter settings are correct for
the network configuration. The switch ships with the following default IP settings:
• IP Address: 169.254.10.10
• Netmask: 255.255.0.0
• Gateway: 0.0.0.0
To adjust these settings to open the Web Manager, connect to the switch using the provided serial
interface cable and follow the instructions below.
To connect through a serial interface:
1. Attach one end of the included RS-232 null modem cable to the computer’s DB-9 serial port and
attach the other end to the switch’s DB-9 serial port.
2. Open a terminal session through a serial terminal emulation program (such as HyperTerminal®)
with the appropriate serial port (for example, COM1) and the following serial port parameters:
• Bits per second: 19200
• Data bits: 8
• Parity: None
• Stop bits: 1
• Flow control: None
3. If using HyperTerminal, press E
If using the tip command on a UNIX workstation, do the following:
a. View the /etc/remote file and create an alias similar to Hardware but with the serial port
parameters above. (Suggested name: Switch)
b. Use the tip command to establish a connection through the created alias, for example
tip switch. (For more information, see the tip command Manual page.)
4. Type the password at the prompt and press E
5. From the serial terminal emulation program, type config network ip and press E
The switch’s current IP parameters are displayed with a prompt for entering the IP address.
6. Change the IP address and press E
7. Use the mask and gateway commands to change the subnet mask and default gateway
respectively.
8. Type save and press E
NTER.
9. Type root reset and press E
10. Type y and press E
NTER to reset the switch.
11. Attach the computer to the switch’s 10/100 ethernet connector by doing one of the following:
• Attach an ethernet RJ-45 cross-over cable directly between the computer and the
switch.
• Attach two ethernet RJ-45 twisted pair cables from the computer and the switch into an
operational ethernet patch panel or hub.
NTER to receive a prompt.
NTER. (The default password is password.)
NTER.
NTER.
NTER.
14
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 3 SWITCH MANAGEMENT
USER’S GUIDE
Connecting to the Web Manager
The Web Manager displays current port utilization and health, enables easy to use Port Smart Settings
and One-Step Zoning, and several additional features discussed later in this chapter.
Note: The Web Manager supports the Microsoft Internet Explorer version 5.5 or later web browser
on Windows or Apple OS-X operating systems.
To connect to the Web Manager:
1. Ensure the workstation has access to the network on which the switch is connected.
2. Open Microsoft Internet Explorer, version 5.5 or later.
3. In the address bar, type the switch’s DNS name or IP address and press E
NTER.
Web Manager Overview
The Web Manager enables users to view and configure switch and port settings using an intuitive,
graphical user interface. The main page is the Switch Information page. This page displays general
switch status and continually refreshes to display the most current switch status. For more information
on the Switch Information page, see “Switch Information” on page 47.
To return to this page at any time, click the InSpeed™ Storage Switch menu item.
Command
buttons
Navigation Menu
Current page
information
Figure 3-1: Web Manager interface
Note: The web browser’s appearance and information depends on the switch’s active firmware
version and may change without notice in subsequent firmware versions.
The Web Manager interface consists of a series of command buttons, an expandable navigation menu,
and the displayed information area. The command buttons and navigation menu are always present on
the page.
Command Button Description
Submit Saves any changes made to the switch configuration. This button is disabled
until a configuration setting is changed or new information is entered. This
button appears green to notify the user of a change to the switch
configuration. Click this button to accept the configuration change.
Cancel Cancels a request. This button is disabled until a configuration setting is
changed or new information is entered. This button appears green to notify the
user of a change to the switch configuration. Click this button to cancel the
configuration change.
15
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 3 SWITCH MANAGEMENT
USER’S GUIDE
Command Button Description
Reboot Resets the switch.
Login/Logout Logs in to and out of the switch.
Refresh Redraws the currently displayed web page.
The expandable navigation menu provides several options for configuring and monitoring the switch.
The menu uses a tree-based navigation structure with a list of menu options and items. Clicking a menu
option with a "+" next to it expands the menu option and displays additional menu items. Clicking a menu
item displays the selected Web Manager page.
To ensure that the most current information is displayed, use the navigation menu instead of the
browser’s Back and Next buttons, which usually display cached copies and may not reflect current
switch information.
To log out of the Web Manager, click Logout, or simply close the browser window.
Note: The Web Manager will automatically log users out after 15 minutes of inactivity, unless the
Switch Information page is currently displayed. The Switch Information page automatically
updates to display the most current switch status.
Documentation
The Web Manager’s Help menu provides links to online product documentation and firmware
downloads.
To access product documentation:
1. Click Help > Documentation.
2. Click Product Docs.
A documentation request web page appears.
3. Enter the appropriate information and click Submit Request.
An email message is sent to the provided email address with the web page location for the
requested product documentation.
To view Technical Brief documentation, click Technical Briefs.
To download firmware:
1. Click Help > Downloads.
A download request web page appears.
2. Enter the appropriate information and click Submit Request.
An email message is sent to the provided email address with the web page location for the
requested firmware download.
16
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 3 SWITCH MANAGEMENT
USER’S GUIDE
Initial Switch Setup
Once a network connection has been established with the switch and an instance of the Web Manager is
open, some basic switch configuration tasks are recommended:
• Log in to the switch.
• Change the switch’s password.
• Verify the switch’s date and time settings.
• Change the switch’s name.
For additional information on Web Manager features and functionality, see “Managing the Switch” on
page 19 and “Monitoring the Switch” on page 47.
Step 1: Log in to the Switch
The switch incorporates a password-level security system to prevent unwanted changes to the current
switch configuration. In order to make any changes to the switch, users must be logged in to the switch.
To log in to the switch:
1. Click Login on any Web Manager page.
A message box appears confirming the login request.
2. Click OK.
The switch login page appears.
3. Enter the switch’s password.
The default password is "password".
4. Click Log In.
A message page appears while the page is loading. If the page fails to load in the indicated time,
click Continue.
See “Logging in to the Switch” on page 20 for additional information.

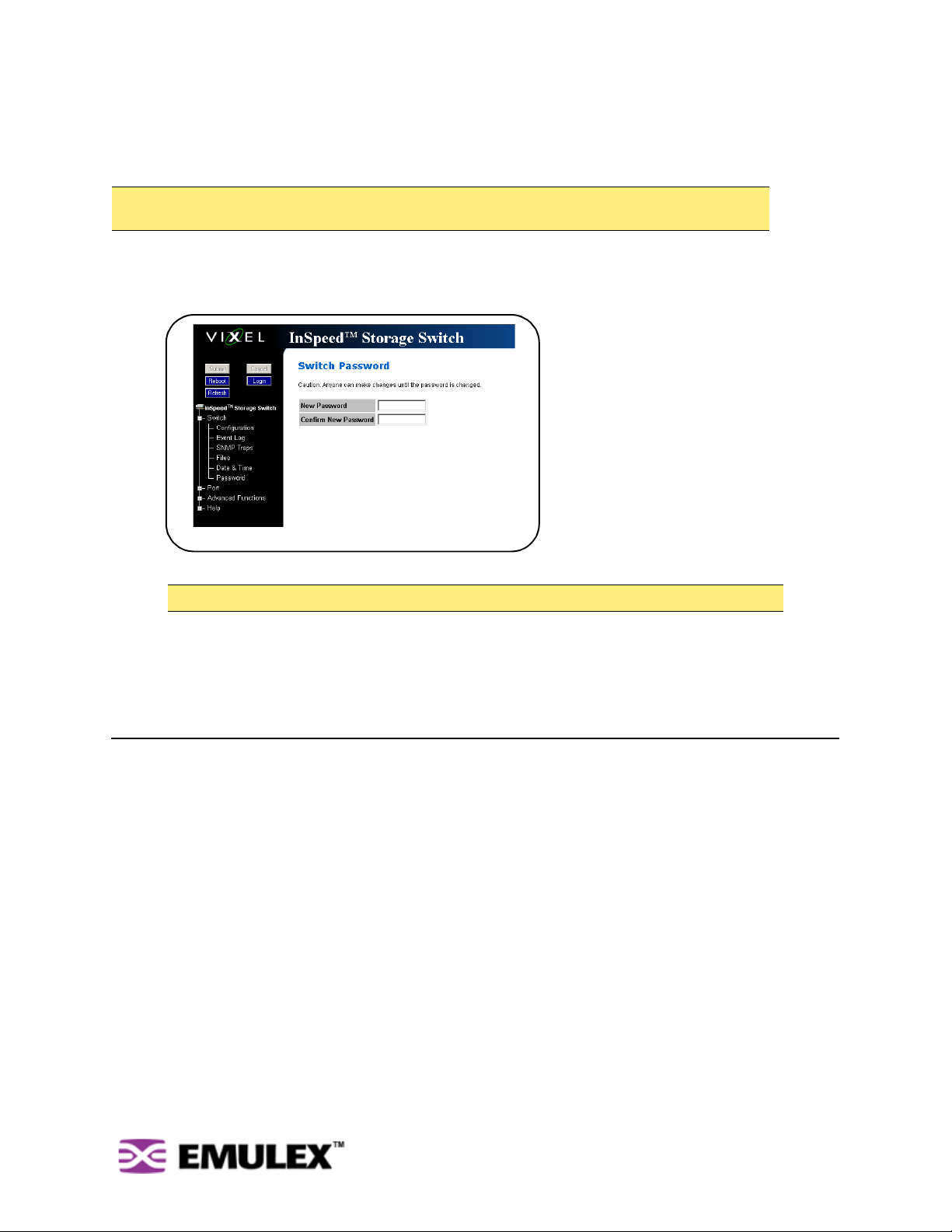

Step 2: Change the Password
The default password is set at the factory to "password". Change the default password to secure the
switch and guarantee that any configuration changes are only performed by registered users.
To change the password:
1. Click Switch > Password.
The Switch Password page appears.
2. Enter the new password in the New Password text box.
Note: The password must be between 6 and 25 characters in length and is case sensitive.
3. Enter the new password again in the Confirm New Password text box.
4. Click Submit.
A message box appears confirming the change to the switch’s configuration.
5. Click OK.
The Password set success message appears confirming that the new password was saved and
activated.
See “Changing the Password” on page 25 for additional information.
17
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 3 SWITCH MANAGEMENT
USER’S GUIDE
Step 3: Verify the Date and Time
During the initial Web Manager session, the date and time for the switch are set based on the host
system’s current settings.
To view the current date and time:
1. Click Switch > Date & Time.
The Switch Date & Time page appears.
To set the date and time settings:
1. Enter the new date and time settings in the appropriate fields.
2. Click Submit.
The new date and time appear under Current Date & Time.
To synchronize the current date and time settings with the host system:
1. Click Host Time.
The date and time of the current host system appear in the New Date & Time text box.
2. Click Submit.
The new date and time appear under Current Date & Time.
See “Configuring Date and Time Settings” on page 24 for additional information.
Step 4: Change the Switch Name
While not required, changing the switch’s name is recommended for identification and troubleshooting
purposes.
To change the switch name:
1. Click Switch > Configuration.
The Switch Configuration page appears.
2. Enter the new name in the Name text box.
3. Click Submit.
The new name appears in the Name text box and also appears in the title bar after the
"InSpeed™" label.
Note: The web page may have to be refreshed before seeing the name change. Press F5
to refresh the web browser instance or open a new web browser instance.
See “Switch Identification” on page 21 for additional information.
18
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 3 SWITCH MANAGEMENT
USER’S GUIDE
MANAGING THE SWITCH
The InSpeed™ SAN Storage Switch Model 355 provides several options for managing and configuring
the switch to meet the needs of the network environment.
This section describes how to log in to the switch, configure switch and port settings, manage firmware
and configuration files, and configure One-Step Zoning, Automatic Trunking, and Load Balancing.
Frequent Switch Configuration Tasks
A list of frequent switch configuration-related tasks is provided below. The list displays the task, the
corresponding Web Manager command, and a reference to where more information may be found in this
guide.
To… Click… In this guide, see...
View switch status InSpeed™ Storage Switch “Viewing Switch Status” on page 47.
Change general switch
configuration
Change the IP Address Switch > Configuration “Network Location” on page 21
Change the switch speed Switch > Configuration “Switch Speed” on page 22.
View the event log Switch > Event Log “Viewing the Event Log” on page 49.
Configure traps Switch > SNMP Traps “Setting SNMP Traps” on page 23.
Upgrade the firmware Switch > Files “Switch Firmware Files” on page 35.
Change the Port Smart
Settings
Configure One-Step Zoning Advanced Functions >
Configure Automatic
Trunking
Configure Load Balancing Advanced Functions >
Reset the switch Reboot “Configuring the Switch Settings” on page 20.
Switch > Configuration “Configuring the Switch Settings” on page 20.
Port > Smart Settings “Configuring the Port Smart Settings” on
page 27.
“One-Step Zoning” on page 36.
One-Step Zoning
Advanced Functions >
Automatic Trunking
Load Balancing
“Automatic Trunking” on page 44.
“Load Balancing” on page 45.
For information on viewing switch status and information, see “Monitoring the Switch” on page 47.
19
INSPEED™ SAN STORAGE SWITCH MODEL 355 CHAPTER 3 SWITCH MANAGEMENT
USER’S GUIDE
Logging in to the Switch
The Web Manager requires users to log in to the switch when changes are made to the switch’s
configuration. Log in is not required for viewing switch information.
To log in to the switch:
1. Click Login on any Web Manager page.
A message box appears confirming the login request.
2. Click OK.
The Switch Login page appears.
Figure 3-2: Switch Login page
3. Enter the switch’s password.
Note: If you do not remember the password, contact a customer service representative.
4. Click Log In.
A message page appears while the page is loading. If the page fails to load in the indicated time,
click Continue.
Configuring the Switch Settings
Several switch configuration settings may be changed to customize the switch to the network
environment. To make a change to the current switch configuration, users must be logged in to the
switch or know the switch password (the switch prompts users for the password before accepting
changes to any configuration settings).
To change a switch setting:
1. Enter new information or make changes to current settings.
2. Click Submit.
The Web Manager page displays the new settings or information.
Changes to certain switch settings require that the switch be reset for those changes to occur. Users
must be logged in to the Web Manager to reset the switch.
To reset the switch:
1. Ensure any changes to the current switch configuration have been saved.
2. Click Reboot on the Web Manager page.
The switch will reset.
20
Loading...
