Emtek Keypad Leverset Locksets User Manual

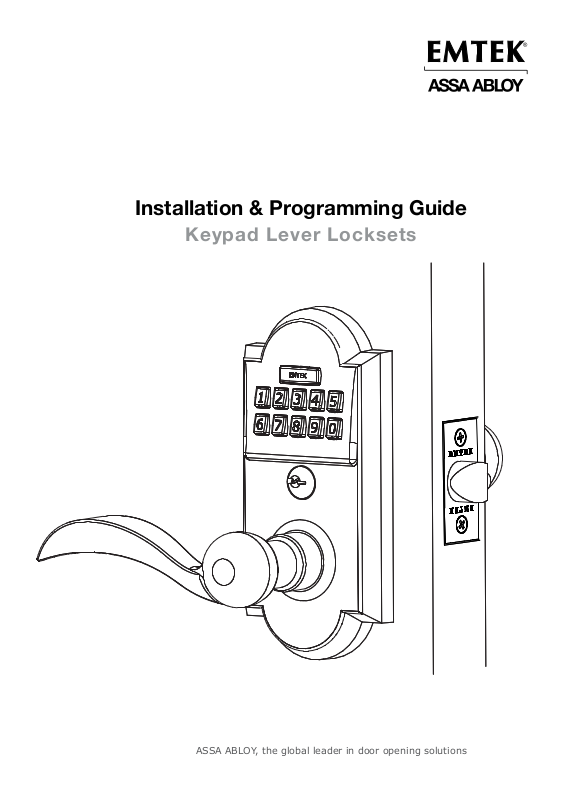

Installation & Programming Guide

Keypad Lever Locksets

ASSA ABLOY, the global leader in door opening solutions

What’s in the Box

4a

2

1

6

4b

5

4c

4d

3

4

6

7

8

ITEM NO. DESCRIPTION QTY.

1 Metal Key 2

2 Outside Trim Plate Assembly 1

3 Latch Assembly

2 ⁄” or 2 ¾” Backset

1

4 Inside Trim Plate Assembly 1

4a Inside Chassis 1

4b Inside Trim Plate 1
4c #8-32 x ⁄" Flat Head Machine Screw 2

4d 9V Alkaline Battery - Type 6LR61 1

5 #8-32 x 1½" Flat Head Machine Screw 2

6 #8 x ¾" Wood Screw 4

7 Strike Plate 1
8 Plastic Extender 1

2

Preparation

1. Conrm Handing

HANDING OF DOOR IS ALWAYS DETERMINED FROM THE OUTSIDE

In-Swing Doors

Out-Swing Doors

Hinge is on the left.

Door is Left Hand (LH).

Hinge is on the right.

Door is Right Hand (RH).

2. Door Prep

⁄” Deep

2 ¼”

1 “

3. Remove Screws from Inside Trim Plate

3. Door Jamb Prep

⁄” Deep

Hinge is on the left.

Door is Left Hand (LH).

outsideoutside

2 ⁄” or 2 ¾” Backset

2 ⁄” Diameter Bore

1” Diameter Edge Bore

Hinge is on the right.

Door is Right Hand (RH).

2-3/4"

1 ½”

1-1/8"

2 ¼”

3

How to Install

1. Install Strike Plate & Latch

Step 1: Fasten Strike Plate using two
#8 x ¾” Wood Screws (item #6).

Step 2: Fasten Latch using two #8 x ¾”
Wood Screws (item #6).

2. Remove Screws from Inside Trim Plate

Use a Phillips head screwdriver to remove screws (item #4c) shown below and detach
Inside Trim Plate from the Inside Chassis.

Screws

!

REMOVE INSIDE
CHASSIS FROM
TRIM PLATE BEFORE
INSTALLING THE
OUTSIDE TRIM.
THUMBTURN MUST
BE IN LOCKED
POSITION.

(item #4c)

UnlockedLocked

4
