Emtek Keyed Pocket Door Mortise Lock Installation Manual

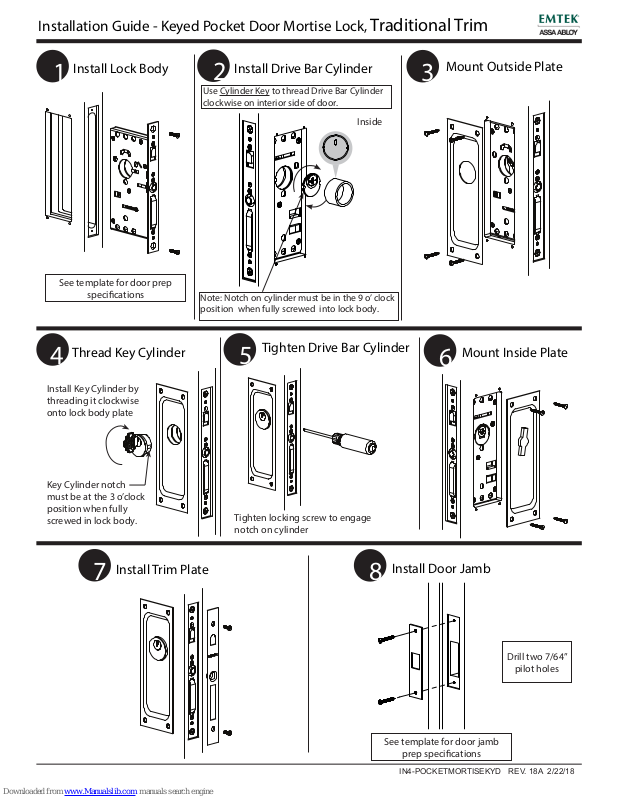

Installation Guide - Keyed Pocket Door Mortise Lock, Traditional Trim

Install Lock Body Install Drive Bar Cylinder

1

See template for door prep

specications

Thread Key Cylinder

4

2

Use Cylinder Key to thread Drive Bar Cylinder
clockwise on interior side of door.

Note: Notch on cylinder must be in the 9 o’ clock
position when fully screwed into lock body.

Tighten Drive Bar Cylinder

5

Mount Outside Plate

3

Inside

Mount Inside Plate

6

Install Key Cylinder by
threading it clockwise
onto lock body plate

Key Cylinder notch
must be at the 3 o’clock
position when fully
screwed in lock body.

Install Trim Plate

7

Tighten locking screw to engage
notch on cylinder

Install Door Jamb

8

Drill two 7/64”

pilot holes

See template for door jamb

prep specications

IN4-POCKETMORTISEKYD REV. 18A 2/22/18

Installation Guide - Keyed Pocket Door Mortise Lock, Modern Trim

Mount Outside Plate

Install Lock Body Install Drive Bar Cylinder

1

2

Use Cylinder Key to thread Drive Bar Cylinder
clockwise on interior side of door.

Inside

Install Key Cylinder by
threading it clockwise
onto lock body plate

and Thread Key Cylinder

3

Outside

See template for door prep

specications

Tighten Drive Bar Cylinder

4

Tighten locking screw to engage

notch on cylinder

Install Trim Plate

6

Note: Notch on cylinder must be in the
9 o’ clock position when fully screwed
into lock body.

5

7

Key Cylinder notch must be at the 3
o’clock position when fully screwed
in lock body.

Mount Inside Plate

Inside

Install Door Jamb

Drill two 7/64”

pilot holes

See template for door jamb

prep specications

IN4-POCKETMORTISEKYD REV. 18A 2/22/18
