Emtek EMTM1790 Specifications

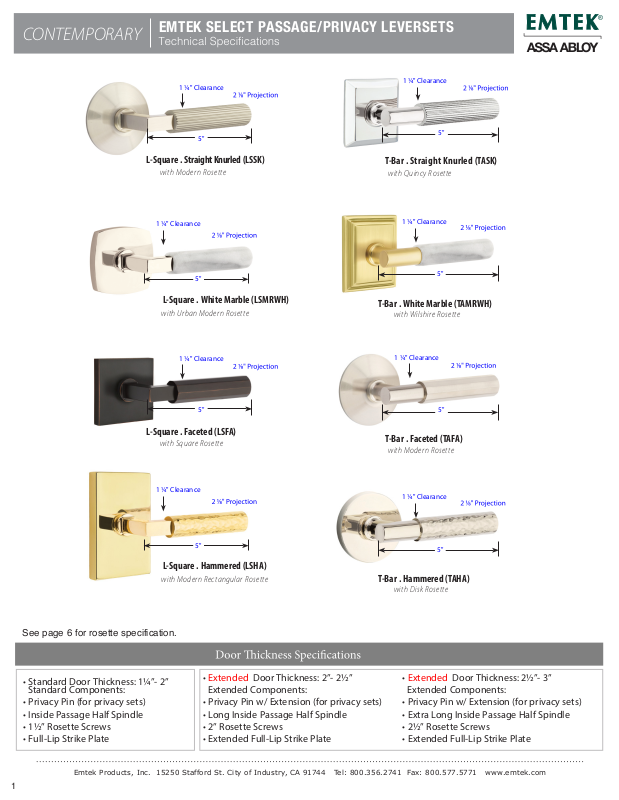

CONTEMPORARY

EMTEK SELECT PASSAGE/PRIVACY LEVERSETS

1 ¼" Clearance

5"

L-Square . Straight Knurled (LSSK)

with Modern Rosett e

1 ¼" Clearance

5"

L-Square . White Marble (LSMRWH)

with Urban Modern Rosett e

1 ¼" Clearance

1 ¼" Clearance

5"

T-Bar . Straight Knurled (TASK)

with Quincy Rosette

1 ¼" Clearance

5"

T-Bar . White Marble (TAMRWH)

with Wilshire Rosett e

1 ¼" Clearance

L-Square . Faceted (LSFA)

with S quare Rosett e

1 ¼" Clearance

L-Square . Hammered (LSHA)

with Modern R ectangular Rosette

See page 6 for rosette specification.

• Standard Door Thickness: 1¼”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

• 1½” Rosette Screws

• Full-Lip Strike Plate

5" 5"

T-Bar . Faceted (TAFA)

with Modern Rosette

1 ¼" Clearance

5"

T-Bar . Hammered (TAHA)

with D isk Rosett e

• Extended Door Thickness: 2”- 2½”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

• Extended Door Thickness: 2½”- 3”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

• 2½” Rosette Screws

• Extended Full-Lip Strike Plate

5"

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

1

CONTEMPORARY

EMTEK SELECT PASSAGE/PRIVACY LEVERSETS

1 ¼" Clearance

1 ¼" Clearance

5"

L-Square . Knurled (LSKN)

with D isk Rosette

1 ¼" Clearance

5"

L-Square . Tribeca (LSTR)

with Urban Modern Ro sette

5"

T-Bar . Knurled (TAKN)

with S quare Rosett e

1 ¼" Clearance

5"

T-Bar . Tribeca (TATR)

with Neos Rosette

See page 6 for rosette specification.

• Standard Door Thickness: 1¼”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

• 1½” Rosette Screws

• Full-Lip Strike Plate

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

2

• Extended Door Thickness: 2”- 2½”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

• Extended Door Thickness: 2½”- 3”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

• 2½” Rosette Screws

• Extended Full-Lip Strike Plate

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

CONTEMPORARY

BRASS MODERN PASSAGE/PRIVACY LEVERSETS

Technical Specications

2 ¼" Projection

1 ½" Clearance

4 ½"

2" Projection

1 ⁄" Clearance

5 ½"

Aireon (A) Argos (AG)

with Modern Rosette with Modern Rectangular Rosette

1 ⁄" Clearance

1 ½" Clearance

5"

Athena (ATN)

with Disk Rosette

2 ¾" Projection

Aston (AST)

with Square Rosette

2 ⁄" Projection

4 ⁄"

1 ¾" Clearance

4 ⁄”

Basel (BA)

with Square Rosette

See page 6 for rosette specification.

• Standard Door Thickness: 1¼”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

• 1½” Rosette Screws

• Full-Lip Strike Plate

2 ⁄" Projection

Door ickness Specications

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

Door Thickness: 2”- 2½”

1 ⁄" Clearance

2 ⁄” Projection

5”

Overall

Breslin (BRL)

with Neos Rosette

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

• 2½” Rosette Screws

• Extended Full-Lip Strike Plate

Door Thickness: 2½”- 3”

3

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

CONTEMPORARY

BRASS MODERN PASSAGE/PRIVACY LEVERSETS

Technical Specications

1 ½" Clearance

1 ⁄” Projection

5”

Overall

Dumont (DT)

with Urban Modern Rosette

1 ½" Clearance

2 ⁄" Projection

1” Clearance

2 ⁄” Projection

5 ⁄”

Geneva (GV)

with Square Rosette

2 ⁄" Projection

1 ½" Clearance

5"

Helios (HLO)

with Square Rosette

Hermes (HER)

with Square Rosette

See page 6 for rosette specification.

• Standard Door Thickness: 1¼”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

• 1½” Rosette Screws

• Full-Lip Strike Plate

1 ⁄" Clearance

5 ⁄"

Door ickness Specications

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

2 ¾" Projection

Door Thickness: 2”- 2½”

Hercules (HEC)

with Modern Rectangular Rosette

1

½” Clearance

2¼” Projection

4 ¾"

Luzern (LU)

with Modern Rosette

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

• 2½” Rosette Screws

• Extended Full-Lip Strike Plate

Door Thickness: 2½”- 3”

4

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

CONTEMPORARY

BRASS MODERN PASSAGE/PRIVACY LEVERSETS

Technical Specications

¾” Clearance

1 ⁄" Clearance

1 ¼” Clearance1

2 ⁄” Projection2 ⁄” Projection

5"

5 ⁄”

Myles (MYL)Mercury (MC)

with Modern Rosettewith Square Rosette

1 ½” Clearance

2 ⁄" Projection

5"

4 ⁄”

2 ¼” Projection

Poseidon (POS)

with Square Rosette

¾” Clearance

1

Spencer (SPN)

with Urban Modern Rosette

See page 6 for rosette specification.

• Standard Door Thickness: 1¼”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

• 1½” Rosette Screws

• Full-Lip Strike Plate

1 ⁄” Projection

4 ⁄”

Door ickness Specications

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

Door Thickness: 2”- 2½”

Sion (SIO)

with Disk Rosette

1 ¼" Clearance

2" Projection

5 ½"

Stuttgart (STU)

with Disk Rosette

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

• 2½” Rosette Screws

• Extended Full-Lip Strike Plate

Door Thickness: 2½”- 3”

5

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

CONTEMPORARY

BRASS MODERN PASSAGE/PRIVACY LEVERSETS

Technical Specications

Rosettes

⁄” Thick

1 ¼" Clearance

3" Projection

4 ¾"

Triton (TRT)

with Disk Rosette

Disk

2½” Dia.

Modern

Rectangular

2½” x 4”

1 ½" Clearance

2 ⁄” Projection

5 ⁄”

Urban Modern

Freestone (FRL)

with Urban Modern Rosette

Square

2½” x 2½”

Urban Modern

2½” x 2½”

½” Thick

Modern

2¾” Dia.

Neos

• Standard Door Thickness: 1¼”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

• 1½” Rosette Screws

• Full-Lip Strike Plate

Door ickness Specications

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

Door Thickness: 2”- 2½”

2⁄” x 4”

• Extended

Door Thickness: 2½”- 3”

Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

• 2½” Rosette Screws

• Extended Full-Lip Strike Plate

6

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

CONTEMPORARY

BRASS MODERN PASSAGE/PRIVACY KNOBSETS

Technical Specications

1” Stem

21⁄8” Projection

21⁄4” Dia.

21⁄4” Projection

2”

Bern (BN)

with Square Rosette

7

⁄8”

Stem

21⁄2” Projection

1

2

⁄4” Dia.

21⁄4” Projection

1

⁄8”

2

21⁄8”

Urban Modern Freestone (FRK)

with Urban Modern Rosette

2” Dia.

23⁄4” Projection

7

⁄8”

Stem

with Modern Rectangular Rosette

See page 6 for rosette specification.

• Standard Door Thickness: 1¼”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

• 1½” Rosette Screws

• Full-Lip Strike Plate

Laurent (LAU)

1” Stem

1” Stem

21⁄4” Dia.

211⁄16” Projection

Octagon (OCT)

with Square Rosette

1” Stem

Round (ROU)

with Modern Rosette

Door ickness Specications

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

Door Thickness: 2”- 2½”

1

⁄2” Stem

25⁄8” Projection

21⁄4”

21⁄4”

Orb (OR)

with Modern Rosette

Square (SQU)

with Square Rosette

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

• 2½” Rosette Screws

• Extended Full-Lip Strike Plate

Door Thickness: 2½”- 3”

7

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

CONTEMPORARY

33⁄8” Projection

21⁄8” Dia.

BRASS MODERN CRYSTAL PASSAGE/PRIVACY KNOBSETS

Technical Specications

1

⁄4” Projection

3

3

2

⁄4” Dia.

2 ¼" Dia

1” Stem

1 ⁄"

13⁄8” Stem

2 ½" Projection

1 ⁄" Stem

Bristol - Modern (BL)

with Square Rosette

2"

Modern Square Crystal (MSC)

2 ½" Projection

with Disk Rosette

Hampton - Modern (HT)

with Neos Rosette

29⁄16”

1 ⁄" Stem

Modern Disc Crystal (MDC)

with Disk Rosette

3

2

⁄4” Projection

1 ⁄"

13⁄16” Dia. Stem

Windsor - Modern (WS)

with Modern Rectangular Rosette

See page 6 rosette specification.

• Standard Door Thickness: 1-1⁄4”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

• 1-1⁄2” Rosette Screws

• Full-Lip Strike Plate

Door ickness Specications

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

Door Thickness: 2”- 2-1⁄2”

• Extended Door Thickness: 2-1⁄2”- 3”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle
⁄2” Rosette Screws

• 2-1

• Extended Full-Lip Strike Plate

8

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

CONTEMPORARY

STAINLESS STEEL PASSAGE/PRIVACY LEVERSETS

Technical Specications

Athena (AT)

with Square Rosette

Cologne (CO)

with Disk Rosette

Clearance 11⁄2”

Dresden (DD)

with Square Rosette

See page 13 for rosette specification.

Ø

0.76

0.75

2.35

5.50

Clearance 15⁄8”

Ø

0.75

Clearance 1⁄”

• Standard Door Thickness: 13⁄8”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

1

⁄2” Socket Head Machine Screws

• 1

• Full-Lip Strike Plate

9

Door ickness Specications

• Extended Door Thickness: 2”- 21⁄2”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Socket Head Machine Screws

• Extended Full-Lip Strike Plate

• Extended Door Thickness: 2
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

1

⁄2” Socket Head Machine Screws

• 2

• Extended Full-Lip Strike Plate

1

⁄2”- 23⁄4”

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

CONTEMPORARY

STAINLESS STEEL PASSAGE/PRIVACY LEVERSETS

Technical Specications

5”

Helios (HL)

with Square Rosette

Hercules (HS)

with Square Rosette

Ø

⁄”

2 ⁄”

⁄”

⁄”

1

Clearance 1

1”

Ø

Clearance 1

1

⁄2”

⁄2”

Hermes (HES)

with Beveled Rosette

See page 13 for rosette specification.

• Standard Door Thickness: 13⁄8”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

1

⁄2” Socket Head Machine Screws

• 1

• Full-Lip Strike Plate

Door ickness Specications

• Extended Door Thickness: 2”- 21⁄2”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Socket Head Machine Screws

• Extended Full-Lip Strike Plate

Clearance 1

• Extended Door Thickness: 2
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

1

⁄2” Socket Head Machine Screws

• 2

• Extended Full-Lip Strike Plate

3

⁄8”

1

⁄2”- 23⁄4”

10

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

CONTEMPORARY

STAINLESS STEEL PASSAGE/PRIVACY LEVERSETS

Technical Specications

6.55

Kiel (KL)

with Beveled Rosette

5.625

Clearance:1¼”

Poseidon (PO)

with Beveled Rosette

Stuttgart (STT)

with Disk Rosette

Clearance:1⁄”

Clearance: 1¼”

See page 13 for rosette specification.

• Standard Door Thickness: 13⁄8”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

1

⁄2” Socket Head Machine Screws

• 1

• Full-Lip Strike Plate

11

Door ickness Specications

• Extended Door Thickness: 2”- 21⁄2”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Socket Head Machine Screws

• Extended Full-Lip Strike Plate

• Extended Door Thickness: 2
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

1

⁄2” Socket Head Machine Screws

• 2

• Extended Full-Lip Strike Plate

1

⁄2”- 23⁄4”

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

CONTEMPORARY

Functions:

Passage: Lever operates from either side of door.
Privacy:

privacy and retracts latchbolt.
Dummy Pair:

Door Prep Specifications:

• Fits standard door prep--21⁄8” face bore & 1” edge bore.

• Fits a range of door thickness from 13⁄8” to 2”. Thicker doors--please specify.

Push button on the interior engages privacy. Turning the inside lever releases

STAINLESS STEEL LEVERSET

Technical Specications

Surface mounted on threaded spindle. Requires no door prep.

Privacy Function Shown

4

11

Latches:

• 28º retraction

• 7MM hub

• Split spindles

3

⁄8” backset standard

• 2

3

⁄4” backset available--please specify

• 2

• Stainless steel nosebolt

Strike & Face Plates:

• Strike Plate--11⁄2”W x 21⁄4”H

• Face Plate--1”W x 2

• Full Lip strike is standard

• “T” strike optional--please specify

• Strike & faceplates are square cornered

1

⁄4”H

1

Legend

1) Latch (Passage/Privacy)

2) Lever Handles

3) Spindles

4) Face Plate Wood Screws

5) Socket Hex Head Machine Screws

6) Inside Rosette

7) Privacy Pin (for Privacy Sets)

8) Outside Rosette

9) Set Screws

10) Spindle Spring

11) Latch Face Plate

12

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

CONTEMPORARY

21⁄4” Dia.

STAINLESS STEEL PASSAGE/PRIVACY KNOBSETS

Technical Specications

Rosettes

⁄” Thick

Beveled

211⁄16” Projection

2⁄” Dia.

Disk

1” Stem

Round (RNK)

with Square Rosette

2½” Dia.

21⁄4”

Square

21⁄2” Projection

2½” x 2½”

1” Stem

Octagon (OK)

with Beveled Rosette

• Standard Door Thickness: 13⁄8”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

1

⁄2” Socket Head Machine Screws

• 1

• Full-Lip Strike Plate

13

Door ickness Specications

• Extended Door Thickness: 2”- 21⁄2”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Socket Head Machine Screws

• Extended Full-Lip Strike Plate

• Extended Door Thickness: 2
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

1

⁄2” Socket Head Machine Screws

• 2

• Extended Full-Lip Strike Plate

1

⁄2”- 23⁄4”

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

AMERICAN HERITAGE

BRASS CLASSIC PASSAGE/PRIVACY LEVERSETS

Technical Specications

1” Clearance

3

⁄8”

4

Cortina (C)

with Regular Rosette

1

1

⁄4” Clearance

21⁄4” Projection

1

2

⁄4” Projection

7

1

⁄8” Clearance

5

4

⁄8”

Milano (M)

with #8 Rosette

2” Clearance

1

2

⁄4” Projection

3

⁄4” Projection

2

Rustic (R)

with Rope Rosette

See page 16 for rosette specification.

• Standard Door Thickness: 1¼”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

• 1½” Rosette Screws

• Full-Lip Strike Plate

1

⁄4”

4

Door ickness Specications

• Extended Door Thickness: 2”- 2½”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

1

⁄2”

4

Turino (T)

with Lancaster Rosette

• Extended Door Thickness: 2½”- 3”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

• 2½” Rosette Screws

• Extended Full-Lip Strike Plate

14

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

AMERICAN HERITAGE

11⁄4” Clearance

21⁄8”

BRASS DESIGNER PASSAGE/PRIVACY LEVERSETS

Technical Specications

21⁄2” Projection

1” Clearance

21⁄4” Projection

45⁄8”

Coventry (CV)

with Rope Rosette

1” Clearance

25⁄16” Projection

Merrimack (ME)

with Rectangular Rosette

43⁄4”

Elan (EN)

with #8 Rosette

13⁄4” Clearance

21⁄2” Projection

43⁄4”51⁄8”

Ribbon & Reed (RBL)

with Lancaster Rosette

See page 16 for rosette specification.

• Standard Door Thickness: 1¼”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

• 1½” Rosette Screws

• Full-Lip Strike Plate

15

Door ickness Specications

• Extended Door Thickness: 2”- 2½”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

• Extended Door Thickness: 2½”- 3”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

• 2½” Rosette Screws

• Extended Full-Lip Strike Plate

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

AMERICAN HERITAGE

BRASS DESIGNER PASSAGE/PRIVACY LEVERSETS

Technical Specications

Rosettes

Rope (RL)

with Rope Rosette

11⁄8”

Santa Fe (SF)

with Regular Rosette

11⁄8” Clearance

27⁄8” Projection

47⁄16”

21⁄4” Clearance

23⁄4” Projection

45⁄8”

⁄” Thick

Regular Rope

2¾” Dia.

Lancaster

2¾” Dia.

⁄” Thick

Oval

Rectangular

2¾” Dia.

Ribbon & Reed

2¾” Dia.

Wilshire Hammered Porcelain

3” x 2 ½” 2¾” x 2¾”4½” x 2½”

4⁄” x 2⁄”

#8

4⁄” x 2⁄”

2½” x 2½”

2½” x 2½”

Quincy

Wembley (WM)

with Regular Rosette

• Standard Door Thickness: 1¼”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

• 1½” Rosette Screws

• Full-Lip Strike Plate

1

⁄2” Clearance

41⁄2”

½” Thick

Arts & Crafts
Rectangular

23⁄4” Projection

4” x 2½”

Door ickness Specications

• Extended Door Thickness: 2”- 2½”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

• Extended Door Thickness: 2½”- 3”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

• 2½” Rosette Screws

• Extended Full-Lip Strike Plate

16

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

AMERICAN HERITAGE

BRASS CLASSIC PASSAGE/PRIVACY KNOBSETS

Technical Specications

21⁄2”

23⁄4” Projection

11⁄2”

Egg (E)

with Regular Rosette

1” Stem

21⁄4” Dia.

23⁄8” Dia.

Melon (MN)

with Rectangular Rosette

23⁄8” Projection

27⁄8”
Projection

1” Stem

21⁄4” Dia.

21⁄4”

Norwich (NW)

with #8 Rosette

21⁄4” Projection

23⁄8” Projection

7

⁄8” Stem

See page 16 for rosette specification.

• Standard Door Thickness: 1¼”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

• 1½” Rosette Screws

• Full-Lip Strike Plate

1” Stem

Providence (P)

with Regular Rosette

Door ickness Specications

• Extended Door Thickness: 2”- 2½”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

1” Stem

Waverly (W)

with Regular Rosette

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

• 2½” Rosette Screws

• Extended Full-Lip Strike Plate

Door Thickness: 2½”- 3”

17

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

AMERICAN HERITAGE

BRASS DESIGNER PASSAGE/PRIVACY KNOBSETS

Technical Specications

25⁄16”

11⁄2”

Beaded Egg (BE)

with Regular Rosette

21⁄4” Dia.

213⁄16”
Projection

1” Stem

21⁄8”
Projection

25⁄16” Dia.

Belmont (BT)

with Lancaster Rosette

23⁄8” Dia.

21⁄2” Projection

1” Stem

21⁄4” Projection

27⁄16” Dia.

21⁄2”
Projection

1” Stem

Lancaster (LN)

with Lancaster Rosette

23⁄8” Projection

21⁄4”

1” Stem

Ribbon & Reed (RBK)

with Ribbon & Reed Rosette

See page 16 for rosette specification.

• Standard Door Thickness: 1¼”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

• 1½” Rosette Screws

• Full-Lip Strike Plate

1” Stem

Rope (RK)

with Rope Rosette

Door ickness Specications

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

Door Thickness: 2”- 2½”

11⁄2”

Victoria (V)

with Rope Rosette

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

• 2½” Rosette Screws

• Extended Full-Lip Strike Plate

Door Thickness: 2½”- 3”

18

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

AMERICAN HERITAGE

ARTS & CRAFTS PASSAGE/PRIVACY LOCKSETS

Technical Specications

7

1

⁄8” Clearance

2” Clearance

43⁄8”

Arts & Crafts (AC)

with Arts & Crafts

Rectangular Rosette

2

1

⁄2” Projection

2

1

⁄2”

1

2

⁄2” Projection

3

4

⁄8”

Hammered (HM)

with Hammered Rosette

3

⁄4” Projection

2

1

1

⁄2”

1” Stem

See page 16 for rosette specification.

• Standard Door Thickness: 1¼”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

• 1½” Rosette Screws

• Full-Lip Strike Plate

19

Hammered Egg (HE)

with Hammered Rosette

Door ickness Specications

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

Door Thickness: 2”- 2½”

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

• 2½” Rosette Screws

• Extended Full-Lip Strike Plate

Door Thickness: 2½”- 3”

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

AMERICAN HERITAGE

2” Dia.

BRASS CRYSTAL PASSAGE/PRIVACY KNOBSETS

Technical Specications

3

3

⁄8” Projection

5

⁄8” Projection

2

3

2

⁄32” Dia.

Astoria Clear (AS)

with Rope Rosette

21⁄4” Dia.

11

⁄16” Stem

23⁄4” Projection

11

⁄16” Stem

1” Stem

Bristol (BL)

with Rectangular Rosette

2 ⁄” Projection

21⁄4” Dia.

13⁄4” Stem

See page 16 for rosette specification.

• Standard Door Thickness: 11⁄4”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 1

• Full-Lip Strike Plate

20

Diamond (CK)

with Regular Rosette

Door ickness Specications

• Extended Door Thickness: 2”- 21⁄2”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

Georgetown (GT)

with Lancaster Rosette

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 2

• Extended Full-Lip Strike Plate

Door Thickness: 21⁄2”- 3”

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

AMERICAN HERITAGE

BRASS CRYSTAL PASSAGE/PRIVACY KNOBSETS

Technical Specications

1

3

⁄4” Projection

21⁄4” Dia.

23⁄4”

3

⁄4” Projection

2

1 ⁄"

13⁄8” Stem

Hampton (HT)

with #8 Rosette

21⁄4” Dia.

3

⁄4” Projection

2

23⁄16” Dia.

1

⁄2” Projection

2

3

1

Lowell Crystal (LW)

with Quincy Rosette

29⁄16”

⁄8” Stem

3

2

⁄4” Projection

11

⁄16” Stem

Old Town - Clear (OT)

with #8 Rosette

See page 16 for rosette specification.

• Standard Door Thickness: 11⁄4”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 1

• Full-Lip Strike Plate

11⁄8” Stem

Providence Crystal (PC)

with Quincy Rosette

Door ickness Specications

• Extended Door Thickness: 2”- 21⁄2”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

1 ⁄"

13⁄16” Dia. Stem

Windsor (WS)

with Rectangular Rosette

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 2

• Extended Full-Lip Strike Plate

Door Thickness: 21⁄2”- 3”

21

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

AMERICAN HERITAGE

PORCELAIN PASSAGE/PRIVACY KNOBSETS

Technical Specications

PORCELAIN KNOBSETS WITH PORCELAIN ROSETTES

1

2

3

⁄8” Dia.

2

⁄4” Projection

11⁄4” Stem

Ice White (IW)

with Porcelain Rosette

PORCELAIN KNOBSETS WITH BRASS ROSETTES

3

⁄8” Dia.

2

1

2

⁄4” Projection

23⁄8” Dia.

21⁄4” Projection

11⁄4” Stem

Ebony (EB)

with Porcelain Rosette

23⁄8” Dia.

21⁄4” Projection

with Ribbon & Reed Rosette

See page 16 for rosette specification.

• Standard Door Thickness: 11⁄4”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 1

• Full-Lip Strike Plate

22

1

⁄4” Stem

1

Ebony (EB)

with Regular Rosette

Door ickness Specications

• Extended Door Thickness: 2”- 21⁄2”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

Ice White (IW)

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 2

• Extended Full-Lip Strike Plate

1

1

⁄4” Stem

Door Thickness: 21⁄2”- 3”

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

RUSTIC LIVING

SANDCAST BRONZE PASSAGE/PRIVACY LEVERSETS

Technical Specications

3

⁄4”

Thick

15⁄8” Clearance 11⁄4” Clearance

27⁄16”
Projection

51⁄8” 53⁄16”

21⁄4”
Projection

7

⁄8”

Thick

Aurora (AR)

with #6 Rosette

13⁄8” Clearance

23⁄4” Projection

Bryce (BR)

with #6 Rosette

3” Projection

13

Thick

13⁄4” Clearance

19⁄16” Clearance

23⁄8”
Projection

⁄16”

47⁄8”

Cimarron (CR)

with #2 Rosette

See page 25 for rosette specification.

• Standard Door Thickness: 13⁄8”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 1

• Full-Lip Strike Plate

5”

Cody (CD)

with #2 Rosette

5”

Durango (D)

with #1 Rosette

Door ickness Specications

• Extended Door Thickness: 2”- 21⁄2”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 2

• Extended Full-Lip Strike Plate

Door Thickness: 21⁄2”- 3”

23

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

RUSTIC LIVING

SANDCAST BRONZE PASSAGE/PRIVACY LEVERSETS

Technical Specications

2” Clearance 13⁄8” Clearance

23⁄4” Projection 21⁄4” Projection

9

⁄16”

Thick

5”

13

⁄16”

Thick

Lariat (LR)

with #2 Rosette

15⁄8” Clearance

23⁄8” Projection

5

⁄16”

5

Mariposa (MA)

with #2 Rosette

23⁄4” Projection

23⁄8” Projection

13

⁄16”

Thick

2” Clearance

19⁄16” Clearance

47⁄8”

Montrose (MT)

with #4 Rosette

See page 25 for rosette specification.

• Standard Door Thickness: 13⁄8”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 1

• Full-Lip Strike Plate

13

⁄16” Thick

47⁄8”

Teton (TT)

with #2 Rosette

Door ickness Specications

• Extended Door Thickness: 2”- 21⁄2”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

51⁄4”

Yuma (YM)

with #6 Rosette

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 2

• Extended Full-Lip Strike Plate

Door Thickness: 21⁄2”- 3”

24

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

RUSTIC LIVING

23⁄4” Projection

SANDCAST BRONZE PASSAGE/PRIVACY KNOBSETS

Technical Specications

Rosettes

⁄” Thick

#1

3” Projection

11⁄2”

25⁄16” Dia.

4½” x 2 ½”

11⁄2” Stem

25⁄8” Projection

1” Stem

Butte (BU)

with #4 Rosette

21⁄4” Dia.

11⁄8” Stem

23⁄4” Projection

11⁄4” Stem

Bronze Egg (BZE)

with #2 Rosette

23⁄8” Dia.

23⁄4”

#2

2¾” Dia.

#3

4½” x 2½”

½” Thick

#4

4½” x 2 ⁄”

⁄” Thick

#6

Round (BZRN)

with #2 Rosette

• Standard Door Thickness: 13⁄8”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 1

• Full-Lip Strike Plate

25

Winchester (WC)

with #2 Rosette

Door ickness Specications

• Extended Door Thickness: 2”- 21⁄2”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

2½” x 2½”

• Extended

Door Thickness: 21⁄2”- 3”

Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 2

• Extended Full-Lip Strike Plate

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

RUSTIC LIVING

SANDCAST BRONZE CRYSTAL PASSAGE/PRIVACY KNOBSETS

Technical Specications

33⁄8” Projection

5

2

⁄8” Projection

2” Dia.

23⁄32” Dia.

21⁄4” Dia.

11

⁄16” Stem

Astoria (AS)

with #6 Rosette

3

⁄4” Projection

2

11

⁄16” Stem

1” Stem

Bristol (BL)

with #2 Rosette

2 ⁄” Projection

21⁄4” Dia.

13⁄4” Stem

See page 25 for rosette specification.

• Standard Door Thickness: 11⁄4”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 1

• Full-Lip Strike Plate

26

Diamond Crystal (CK)

with #3 Rosette

Door ickness Specications

• Extended Door Thickness: 2”- 21⁄2”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

Georgetown (GT)

with #4 Rosette

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 2

• Extended Full-Lip Strike Plate

Door Thickness: 21⁄2”- 3”

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

RUSTIC LIVING

SANDCAST BRONZE CRYSTAL PASSAGE/PRIVACY KNOBSETS

Technical Specications

1

⁄2” Projection

31⁄4” Projection

2

21⁄4” Dia.

23⁄4”

23⁄4” Projection

1 ⁄"

Hampton (HT)

with #1 Rosette

13⁄8” Stem

23⁄4” Projection

21⁄4” Dia.

23⁄16” Dia.

Lowell (LW)

with #4 Rosette

29⁄16”

3

1

⁄8” Stem

215⁄16” Projection

11

⁄16” Stem

Old Town - Clear (OT)

with #1 Rosette

See page 25 for rosette specification.

• Standard Door Thickness: 11⁄4”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 1

• Full-Lip Strike Plate

11⁄8” Stem

Providence (PC)

with #2 Rosette

Door ickness Specications

• Extended Door Thickness: 2”- 21⁄2”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

1 ⁄"

13⁄16” Stem

Windsor (WS)

with #1 Rosette

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 2

• Extended Full-Lip Strike Plate

Door Thickness: 21⁄2”- 3”

27

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

RUSTIC LIVING

WROUGHT STEEL PASSAGE/PRIVACY LEVERSETS

Technical Specications

Rosettes

⁄” Thick

#1

1

3” Projection

1

⁄2” Clearance

6”

Lafayette (L)

with #1 Rosette

3” Projection

3

⁄8” Clearance

2

3

⁄4” Projection

2

2” Clearance

4 ⁄” x 2 ⁄”

#2

41⁄2”

Normandy (N)

with #2 Rosette

2⁄” Dia.

#3

4⁄” x 2⁄”

• Standard Door Thickness: 13⁄8”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 1

• Full-Lip Strike Plate

28

3

4

⁄4”

San Carlos (SC)

with #3 Rosette

Door ickness Specications

• Extended Door Thickness: 2”- 21⁄4”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

• Extended

Door Thickness: 21⁄4”- 3”

Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 2

• Extended Full-Lip Strike Plate

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

RUSTIC LIVING

WROUGHT STEEL PASSAGE/PRIVACY KNOBSETS

Technical Specications

1

⁄4” Stem

1

Projection

3

2

⁄8”

Projection

21⁄4” Dia.

3

⁄4” Stem

21⁄2”

5

⁄8”

2

5

⁄8”

2

Projection

1

⁄2”

1

Jamestown (J)

with #3 Rosette

1

⁄4” Dia.

2

Savannah (SV)

with #3 Rosette

3

2

⁄8”

1

⁄4” Dia.

2

Projection

1” Stem

Madison Black (MB)

with #2 Rosette

See page 28 for rosette specification.

• Standard Door Thickness: 13⁄8”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 1

• Full-Lip Strike Plate

1” Stem

Madison Ivory (MI)

with #1 Rosette

Door ickness Specications

• Extended Door Thickness: 2”- 21⁄4”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

• Extended

Door Thickness: 21⁄4”- 3"

Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 2

• Extended Full-Lip Strike Plate

29

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

EUROPEAN TRADITIONS

TUSCANY BRONZE PASSAGE/PRIVACY LEVERSETS

Technical Specications

3

⁄4” Clearance

1

Medici (MDI)

with #14 Rosette

3

1

23⁄4” Projection

13

⁄16”

4

1

⁄4” Projection

2

⁄8” Clearance

1

1

25⁄8” Projection

13⁄8” Clearance

3

1

⁄4”

⁄2” Clearance

1

⁄2”

4

with #12 Rosette

Napoli (NA)

5

⁄8” Projection

2

Octagon (OCL)

with #15 Rosette

See page 31 for rosette specification.

• Standard Door Thickness: 13⁄8”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 1

• Full-Lip Strike Plate

1

4

⁄2”

Door ickness Specications

• Extended Door Thickness: 2”- 21⁄2”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

3

⁄4”

4

Padua (PD)

with #11 Rosette

• Extended
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 2

• Extended Full-Lip Strike Plate

Door Thickness: 21⁄2”- 3”

30

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: [phone] Fax: [phone] www.emtek.com

EUROPEAN TRADITIONS

TUSCANY BRONZE PASSAGE/PRIVACY KNOBSETS

Technical Specications

Rosettes

⁄” Thick

#11

5

1

⁄16” Stem

27⁄8” Projection

21⁄4” Dia.

Octagon (OCK)

with #15 Rosette

7

⁄8” Stem

25⁄8” Projection

23⁄8” Projection

11⁄2”

Parma (PA)

with #12 Rosette

4½” x 2 ½”

1

⁄2”

2

#12

2⁄” Dia.

#14

4½” x 2⁄”

1” Stem

• Standard Door Thickness: 13⁄8”- 2”
Standard Components:

• Privacy Pin (for privacy sets)

• Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 1

• Full-Lip Strike Plate

21⁄4” Dia.

Petal (PT)

with #12 Rosette

Door ickness Specications

• Extended Door Thickness: 2”- 21⁄2”
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Long Inside Passage Half Spindle

• 2” Rosette Screws

• Extended Full-Lip Strike Plate

#15

2 ½” x 2 ½”

• Extended Door Thickness: 21⁄2”- 3"
Extended Components:

• Privacy Pin w/ Extension (for privacy sets)

• Extra Long Inside Passage Half Spindle

1

⁄2” Rosette Screws

• 2

• Extended Full-Lip Strike Plate

TS-PP REV19 2/11/2019

31
