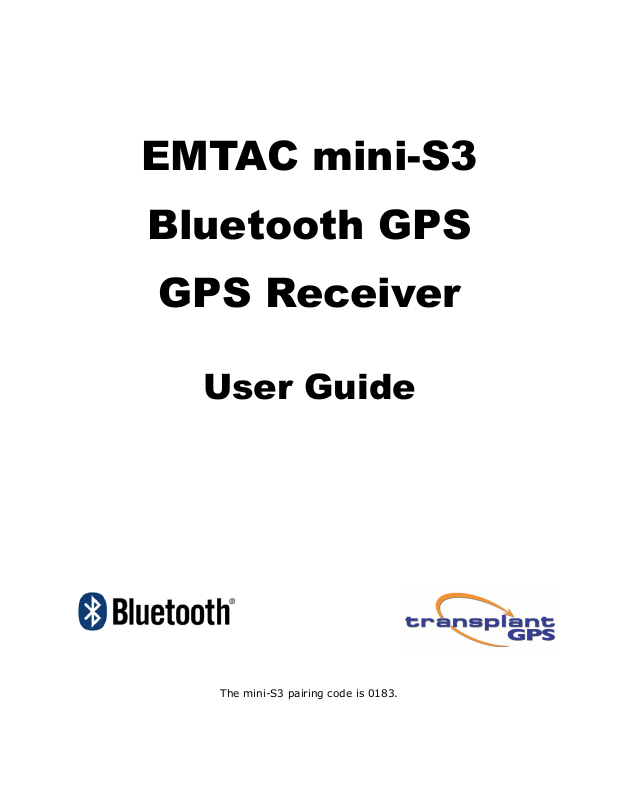

Emtac mini-S3 User Manual
EMTAC mini-S3
Bluetooth GPS
GPS Receiver
User Guide
The mini-S3 pairing code is 0183.
Notice
We suggest that you carefully review the User Guide prior to using your GPS
receiver. The mini-S3 BTGPS receiver is a highly sensitive piece of electrical
equipment that can be easily damaged through misuse. In order to help you fulfill
any warranty obligations, read the User Guide in its entirety. The mini-S3 passkey
is 0183.
Congratulations on your purchase of the mini-S3 BTGPS!
The mini-S3 is an excellent navigation and positioning aid when used with a
Bluetooth enabled host device and GPS application software. Your package should
contain the mini-S3 BTGPS Receiver, car charger, AC (wall) charger, lanyard, and a
product CD containing this manual and the Crux-View test software.
Utilizing the User Guide
This User Guide is an important part of the mini-S3 BTGPS. Reading the User
Guide will help you get the best performance from your receiver. In addition to
helpful operating information, the User Guide brings attention to potential safety
concerns and warranty obligations regarding the receiver. The mini-S3 BTGPS
Receiver is a highly sensitive piece of electrical equipment that can be easily
damaged through misuse. The warranty will not cover failure if the product is
abused, misused or used for other than the intended purpose. Read all the
information carefully to avoid damage to the GPS receiver. The mini-S3 pairing
code is 0183.
2
Table of Contents
What You Need to Get Started 4
Parts of the mini-S3 & What They Do 5
Power Switch 6
LED indicators 6
Antennae façade 7
Power Jack 7
Power jack 8
Battery 8
Charger 8
Getting Started 9
Basic Use Guidelines 11
Frequently Asked Questions 12
Care & Maintenance 13
How GPS Works 15
Warranty 16
Disclaimers & Liability 18
Warnings 19
Glossary 23
The mini-S3 pairing code is 0183.
3
What You Need to Get Started
1. A Host Device
A Bluetooth enabled host device (i.e. PDA, smartphone, laptop, etc.) is needed
to receive GPS input data. Each host device receives GPS input differently.
Consult the instructions of your particular host device on how to enable your
device to receive GPS input.
2. GPS or Mapping Software
Before you begin using your mini-S3 BTGPS Receiver you must complete the
application software installation tasks on your host device. Different software
programs configure the GPS input differently. Consult your software’s user
manual to configure the software to accept GPS input.
If you do not have mapping software, in this User Guide CD-ROM, there is the
“Crux-View Test Program” (trial version) for testing purpose. Please follow the
step-by-step operation guide indicated and described in the Crux-View (Trial)
Manual file (in .pdf format). This will give you the basic GPS information
needed to proceed.
Note: The Crux-View Test Program is helpful to have installed if you need
additional technical support.
Note:
(a) The Crux-View Test Program is a trial version program and is available only
for testing purposes.
(b) The Crux-View program is only to be used with EMTAC BTGPS units.
(c) The Current version of Crux-View supports ARM (StrongARM/X Scale) based
PPC.
3. The mini-S3 BTGPS Receiver
The mini needs to be fully charged prior to using it for the first time.
CAUTION: Use only an EMTAC branded charger with the mini to charge
the receiver. Use of other chargers can result in failure of the unit
and/or its Lithium-ion battery.
4
Parts of the mini-S3 BTGPS Receiver
& What They Do
mini-S3 BTGPS at a Glance
Antenna Facade
LED Indicators
LED Indicators
Power Switch
Power Jack
5
Power Switch
Slide the switch sideways to turn power on and off.
represents power ON represents power OFF
Status LED Indicators:
Blue Orange/Red Green
Switch to power-on
position:
“
”
LED Indicators
The three LED lights indicate the operational status of Bluetooth, GPS, and battery.
Symbol: Blue LED Light indicates Bluetooth pair/connect status
Flashing every 1 second: mini-S3 powered-on and waiting to pair/connect.
Flashing every 2 seconds: mini-S3 is connected and paired with the host.
Symbol: Green LED Light indicates GPS status
Constant on: miniFlashing: mni-
Symbol: Orange /Red LED Light indicates Battery status
Red light constant on: Battery low.
Orange light constant on: Battery under charging.
No light (light off): Battery fully charged
S3 is powered on, attempting a location fix.
S3 has a location fix.
6
Antenna Façade
Your mini-S3 is integrated with a highly sensitive internal 1.5GHz GPS antenna and
a 2.4GHz Bluetooth radio. These internal components provide satellite signal
reception for position fix as and data communication between the mini-S3 and your
Bluetooth enabled host device.
The antenna facade is the top surface of the mini-S3. Keep this surface clean and
with an unobstructed view to the sky while operating the mini-S3. CAUTION: Do
not cover the antenna façade with any object containing metal and/or
electromagnetic wave absorption material such as: screwdrivers, pens,
watches, floppy diskettes, CDs and metal wires, aluminum foil and
metal-coated plastic bags, water or liquids, and/or carbon paper.
Antennae Facade Area
Power Jack
The power jack enables you to connect the receiver to the charger and re-charge
the Lithium-ion battery. The mini-S3 may be used while plugged into a power
source and at the same time charge the battery.
CAUTION: Use only EMTAC branded chargers with the mini-S3 to charge
the receiver.
WARNING: Use of other chargers can result in failure of the unit and/or
its lithium-ion battery.
Power Jack
Charger Plug
7
Charger
The charger connects the mini-S3 Receiver to a power source so the battery can be
re-charged. The mini-USB plug of the charging cord connects to the mini-S3 via
the power jack while the large end of the charger connects to the power source.
The mini-S3 may be used while plugged into a power source while charging.
CAUTION: Use only EMTAC branded chargers with the mini-S3 to charge
the receiver.
WARNING: Use of other chargers can result in failure of the unit and/or
its lithium-ion battery.
Battery
The mini-S3 contains a removable, rechargeable Lithium-ion battery which supplies
the power for the operation of the GPS and Bluetooth circuits inside the receiver. It
is a low consumption battery with a minimum of 8 hours of continuous use after
fully charged. The battery can be recharged using the EMTAC branded charger
which came with the mini-S3. The mini-S3 may be used while the battery is being
charged.
To remove the battery, slide the battery cover away from the device, then remove
the battery.
CAUTION: Use only EMTAC branded chargers with the mini-S3 to charge
the receiver.
WARNING: Use of other chargers can result in failure of the unit and/or
its lithium-ion battery.
WARNING: Do not open the unit other than to replace the battery. There
are no serviceable parts inside.
WARNING: Exposure to temperatures greater than 60°C (140°F) will
damage the battery and poses a risk of explosion.
See WARNINGS on pages 22 - 23 for more extensive safety information on
the battery.
8
