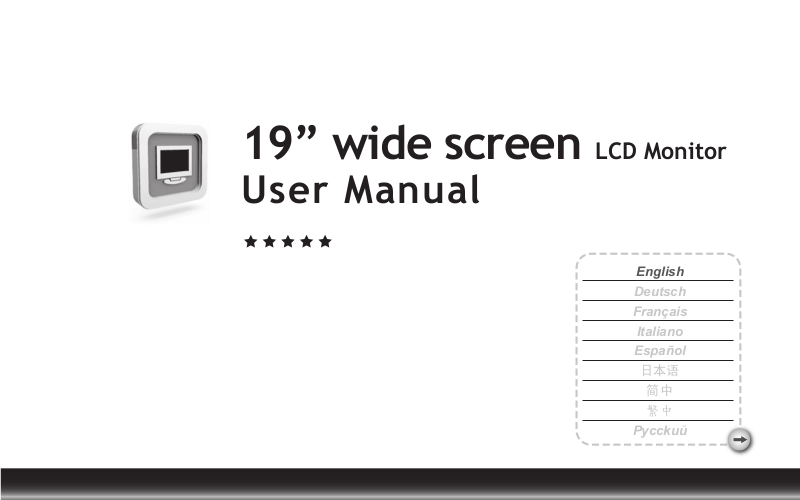

19” wide screen LCD Monitor

User Manual

English

Deutsch

Français

Italiano

Español

Pycckuu

日本语

简中

繁中

PRECAUTIONS

Information for users applicable in European Union countries 1
Information for users applicable in United States of America 1
Installation 1
Power connection 1
Maintenance 1
Transporting the monitor 1

GETTING STARTED

Package contents 2
Monitor installation 2
Identifying parts and controls 3
Functions of the buttons and indicator: 3
Customizing your Monitor 3
Working with OSD Group 3
Introduction to Hotkeys 4
OSD icon list 5

Troubleshooting 6

Technical Features and Specifications

Interface Frequency 7

Addendum

Advanced Power Saving Mode 8
FCC compliance 9

Congratulations!

The display you have just purchased carries the
TCO’03 Displays label. This means that your
display is designed, manufactured and tested
according to some of the strictest quality and

environmental requirements in the world. This
makers for a high performance product, designed with the user in focus that also
minimizes the impact on our natural environment.

Some of the features of the TCO’03 Display requirements:

Ergonomics

Good visual ergonomics and image quality in order to improve the working
environment for the user and to reduce sight and strain problems. Important
parameters are luminance, contrast, resolution, reflectance, color rendition and
image stability.

Energy

Energy-saving mode after a certain time – beneficial both for the user and the
environment

Electrical safety

Emissions

Electromagnetic fields

Noise emissions

Ecology

The product must be prepared for recycling and the manufacturer must have a
certified environmental management system such as EMSA or ISO 14001

Restrictions on

○ chlorinated and brominated flame retardants and polymers

○ heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO
Development in cooperation with scientists, experts, users as manufacturers all
over the world. Since the end of the 1980s TCO has been involved in influencing
the development of IT equipment in a more user-friendly direction. Our labeling
system started with displays in 1992 and is now requested by users and
IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

PRECAUTIONS

“ The display unit is an electric device which may contain hazardous materials/

components and that needs to be taken care of at end of life according to a procedure.”

For detailed recycling procedure, please visit

www.innolux.com

Information for users applicable in European Union countries

The symbol on the product or its packaging signifies that this product has to be
disposed separately from ordinary household wastes at its end of life. Please
kindly be aware that this is your responsibility to dispose electronic equipment
at recycling centers so as to help conserve natural resources. Each country in
the European Union should have its collection centers for electrical and
electronic equipment recycling. For information about your recycling drop off
area, please contact your local related electrical and electronic equipment
waste management authority or the retailer where you bought the product.

Information for users applicable in United States of America

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE
RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR
FEDERAL LAWS. FOR MORE INFORMATION, CONTACT THE ELECTRONIC
INDUSTRIES ALLIANCE AT WWW.EIAE.ORG. FOR LAMP SPECIFIC
DISPOSAL INFORMATION CHECK WWW.LAMPRECYCLE.ORG.

Installation

1. Do not cover or block the ventilation ports on the rear of the monitor.

2. Do not install the monitor close to heat sources such as radiators or air ducts, or in a
location exposed to direct sunlight, excessive dust, mechanical vibration,or shock.

3.The apparatus shall only be used between 5° tilted forward and 20° tilted backward as
normal operation position. If the tilt angle exceeds 20°, it shall be used for wall
mounting or packaging only.

Power connection

1.Use the correct power cord for your local voltage.

2.Use an accessible outlet close to the monitor.

3.Do not allow anything to rest on the power cable.

4.Only use the power adapter attached to the monitor.

5.Disconnect the power cable from the power supply if:

5.1 You will not use the monitor for an extended period.

5.2 The cable is damaged or frayed.

5.3 The monitor has been dropped or the cabinet damaged.

5.4 A distinct change in performance indicates a need for servicing.

Maintenance

1.Clean the cabinet and controls with a soft cloth lightly moistened with a mild detergent
solution. Do not use any abrasive materials or solvents such as alcohol or benzene.

2.Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as
pens or screwdrivers, as the screen may scratch.

3.Do not insert objects or spill liquids into the ventilation ports on the monitor’s rear, as
fire, electric shock, and / or unit failure may result.

Transporting the monitor

1.When transporting the monitor for repair or shipment, first detach the base from the
monitor by pressing the “release tabs” located under the base and then pull the base
away from the monitor.Then wrap the monitor and its attachments with the original
carton and packing materials.

- 1 -
