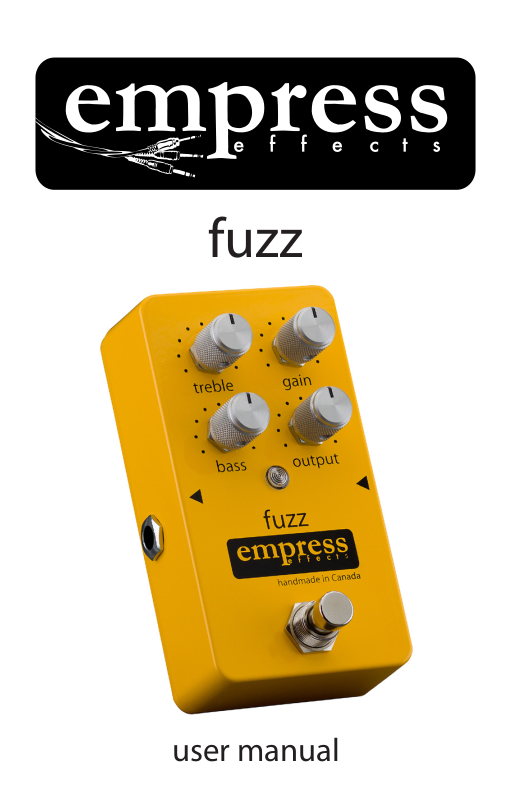

Empress Effects Fuzz User Manual

fuzz

user manual

Introduction

This classic sounding fuzz offers
smooth, rich sustain with great note
definition. A tighter low end makes it
ideal for full chords as well as sustaining
single notes.

The empress fuzz is true bypass and has
gain control, two bands of EQ and
output control to fully tailor your
sound.

For more information including some
demo videos, check out:

www.empresseffects.com

Enjoy!

- Steve Bragg

Sample Settings

This medium gain fuzz has a nice heavy
chunk to it, without losing control. It
maintains a tight low end and great
note definition.

treble: controls the amount of
high frequency content in the
output signal. It is a gentle high
shelf lter starting around 3 kHz.
The 12 o’clock setting is 0 dB, no
boost or cut, and the extreme
boost and cut is about 10 dB.

bass: controls the amount of
low frequency content in the
output signal. It is a low shelf
lter starting around 150 Hz. The
12 o’clock setting is 0 dB, no
boost or cut, and the extreme
boost and cut is about 10 dB.

bypass: When the LED is shining,
the eect is applied to the signal.
When o, the fuzz is being
bypassed (true bypass).

Controls at a Glance

gain: controls the amount of
break-up. Turning clockwise will
increase the fuzz eects as well as
adding sustain to your signal

+

power: 9V DC negative
tip 2.1mm jack. 30mA or greater

output: controls the output
volume. Unity gain depends on
the gain setting. This can also be
used as a boost if using the pedal
for soloing.

-

Sample Settings (continued)

This classic setting offers smooth, rich
sustain. Lots of gain with a vocal quality
that makes your guitar sing. It’s also a
great setting for generating musical
feedback.

Specifications

Input Impedance:

300kΩ

Output Impedance:

50kΩ

Freq. Response:

20Hz – 20kHz

Input Voltage:

9VDC

Required Current:
Power Connector:
Height:
Length:
Width:
Weight:

30 mA

2.1mm Barrel

2”

2.5”

4.5”

0.5 lbs

www.empresseffects.com

Warranty

Serial # ____________

Empress Effects products come with a two year

warranty against failures resulting from

defective parts and/or faulty workmanship. The

warranty can be extended to 4 years for free by

registering online at:

www.empresseffects.com/register

The warranty applies only to the original owner

of the product. While a product is under

warranty, Empress Effects will repair the product

free of charge. We reserve the right to cancel
the warranty should the product be tampered

with, modified, damaged through misuse, or

damaged through failure to follow the operating

instructions. Empress Effects liability is limited

only to repair and replacement of a defective

product. Please contact Empress Effects before

shipping a product to us.
