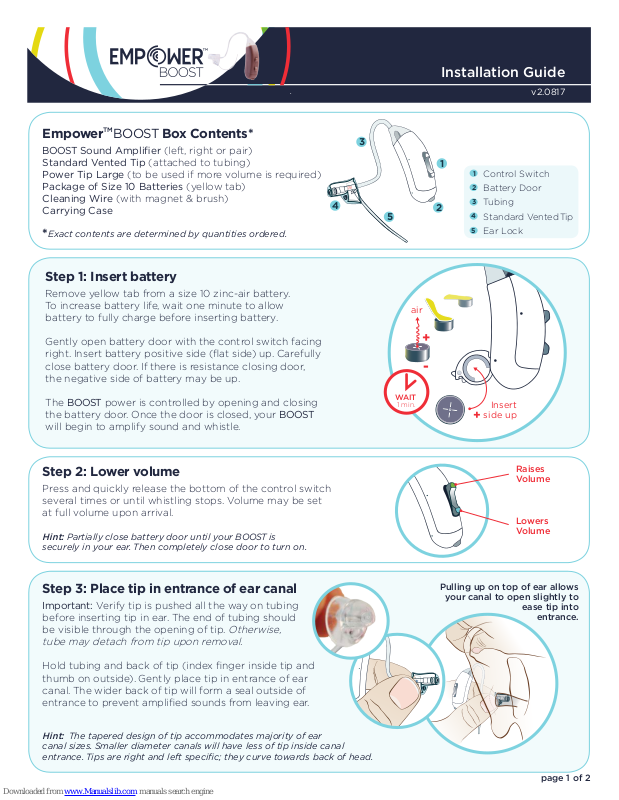

Empower BOOST Installation Manual

2B

2B

Installation Guide

.

v2.0817

EmpowerTMBOOST Box Contents*

BOOST Sound Amplier (left, right or pair)
Standard Vented Tip (attached to tubing)
Power Tip Large (to be used if more volume is required)
Package of Size 10 Batteries (yellow tab)
Cleaning Wire (with magnet & brush)
Carrying Case

Exact contents are determined by quantities ordered.

*

Step 1: Insert battery

Remove yellow tab from a size 10 zinc-air battery.
To increase battery life, wait one minute to allow
battery to fully charge before inserting battery.

Gently open battery door with the control switch facing

right. Insert battery positive side (at side) up. Carefully

close battery door. If there is resistance closing door,
the negative side of battery may be up.

The BOOST power is controlled by opening and closing
the battery door. Once the door is closed, your BOOST
will begin to amplify sound and whistle.

3

1

1

Control Switch

2

Battery Door

3

4

2

5

air

Tubing

4

Standard Vented Tip

5

Ear Lock

+

-

WAIT

1 min.

side up

+

Insert

Step 2: Lower volume

Press and quickly release the bottom of the control switch
several times or until whistling stops. Volume may be set
at full volume upon arrival.

Hint:

Partially close battery door until your BOOST is

securely in your ear. Then completely close door to turn on.

Step 3: Place tip in entrance of ear canal

Important: Verify tip is pushed all the way on tubing

before inserting tip in ear. The end of tubing should
be visible through the opening of tip.

tube may detach from tip upon removal.

Hold tubing and back of tip (index nger inside tip and

thumb on outside). Gently place tip in entrance of ear
canal. The wider back of tip will form a seal outside of

entrance to prevent amplied sounds from leaving ear.

Hint:

The tapered design of tip accommodates majority of ear

canal sizes. Smaller diameter canals will have less of tip inside canal

entrance. Tips are right and left specic; they curve towards back of head.

Otherwise,

Raises
Volume

Lowers
Volume

Pulling up on top of ear allows

your canal to open slightly to

ease tip into

entrance.

page 1 of 2

Step 4: Place BOOST behind ear

2B

2B

2B

2B

2B

BOOST Body

Lift body of BOOST over top of ear. If necessary,
use other hand to hold over tip to secure in place.

Move ear lock into bowl of ear. It may be trimmed
if it is too long for the size of ear.

2B

BOOST Care: Tubing and tips need to be replaced every three months for optimal performance.

To remove tubing:

Rotate tubing 90°and pull o.

To attach tubing:
Push new tubing straight on.

Ear Lock

To remove tip:

Pinch front of tip and pull

straight o tubing.

Replacement Tubes, Tips and Domes

Tube Length:

LONG — 42mm (3B)
STANDARD — 38mm (2B)
SHORT — 34mm (1B)

Tube Conguration:

RIGHT EAR
LEFT EAR

2B

2B

2B

42

38

34

80% of the adult

population t 38mm

To attach tip: Align new tip so vented end is lined up
with ear lock. Push tip over tubing ridges until you

feel tubing ush with opening of tip.

þ

top

vent

ear lock

Hint: The origin of the ear lock will be tucked inside of tip.

Average Ear Canal Large Ear Canal Variety Pack

Natural

Sound

Maximum

Output

All sizes of tubes, tips and domes are available at EmpowerHearing.com

included

Vented Tip

Standard

Power Tip

Standard

bottom

Vented Tip

Large

included

Power Tip

Large

Circular Domes

Open

Circular Domes

Closed

TM

www.EmpowerHearing.com [e-mail]

BOOST

page 2 of 2
