Empire Products BF-10-2, BF-20-2, BF-30-2 User Manual

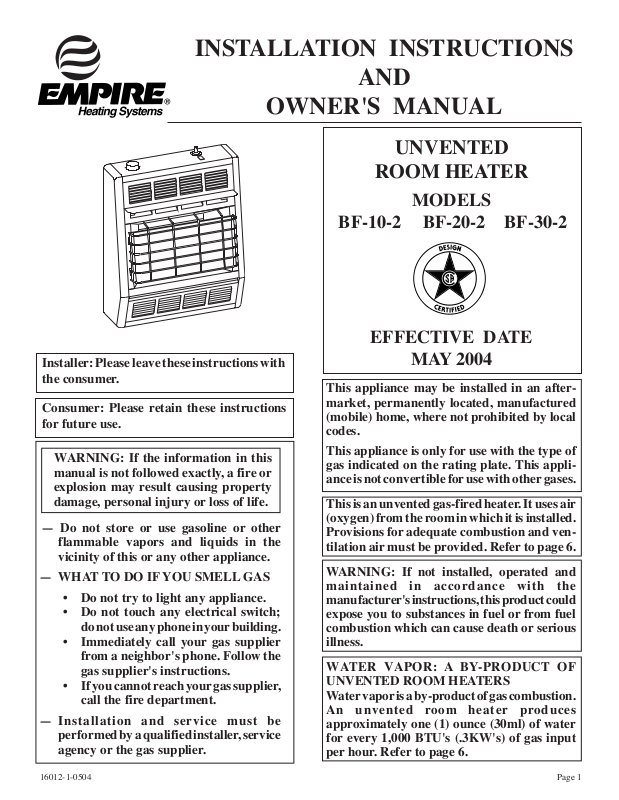

INSTALLATION INSTRUCTIONS
AND
OWNER'S MANUAL
UNVENTED
ROOM HEATER
MODELS
BF-10-2 BF-20-2 BF-30-2
EFFECTIVE DATE
Installer: Please leave these instructions with
the consumer.
Consumer: Please retain these instructions
for future use.
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
— Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
MAY 2004
This appliance may be installed in an aftermarket, permanently located, manufactured
(mobile) home, where not prohibited by local
codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This appliance is not convertible for use with other gases.
This is an unvented gas-fired heater. It uses air
(oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventilation air must be provided. Refer to page 6.
WARNING: If not installed, operated and
maintained in accordance with the
manufacturer's instructions, this product could
expose you to substances in fuel or from fuel
combustion which can cause death or serious
illness.
WATER VAPOR: A BY-PRODUCT OF
UNVENTED ROOM HEATERS
Water vapor is a by-product of gas combustion.
An unvented room heater produces
approximately one (1) ounce (30ml) of water
for every 1,000 BTU's (.3KW's) of gas input
per hour. Refer to page 6.
16012-1-0504 Page 1
TABLE OF CONTENTS
SECTION PAGE
Important Safety Information ..................................................................................................................... 3
Safety Information for Users of LP Gas ..................................................................................................... 4
Introduction ................................................................................................................................................ 5
Specifications ............................................................................................................................................. 5
Water Vapor: A By-Product of Unvented Room Heaters .......................................................................... 6
Provisions for Adequate Combustion and Ventilation Air......................................................................... 6

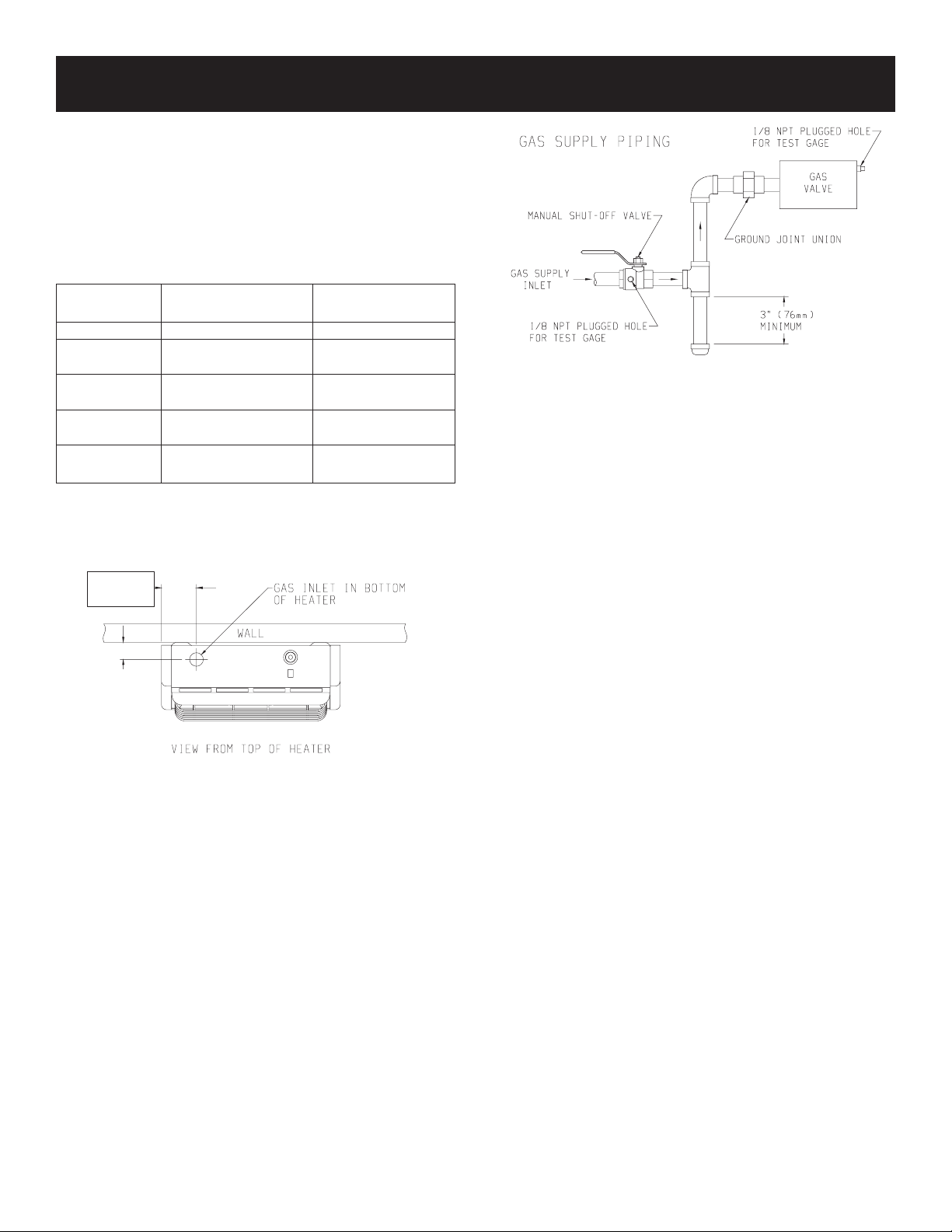

Gas Supply.................................................................................................................................................. 7
Clearances................................................................................................................................................... 8
Optional Floor Stand Installation ............................................................................................................... 8
Wall Mount Installation .............................................................................................................................. 9

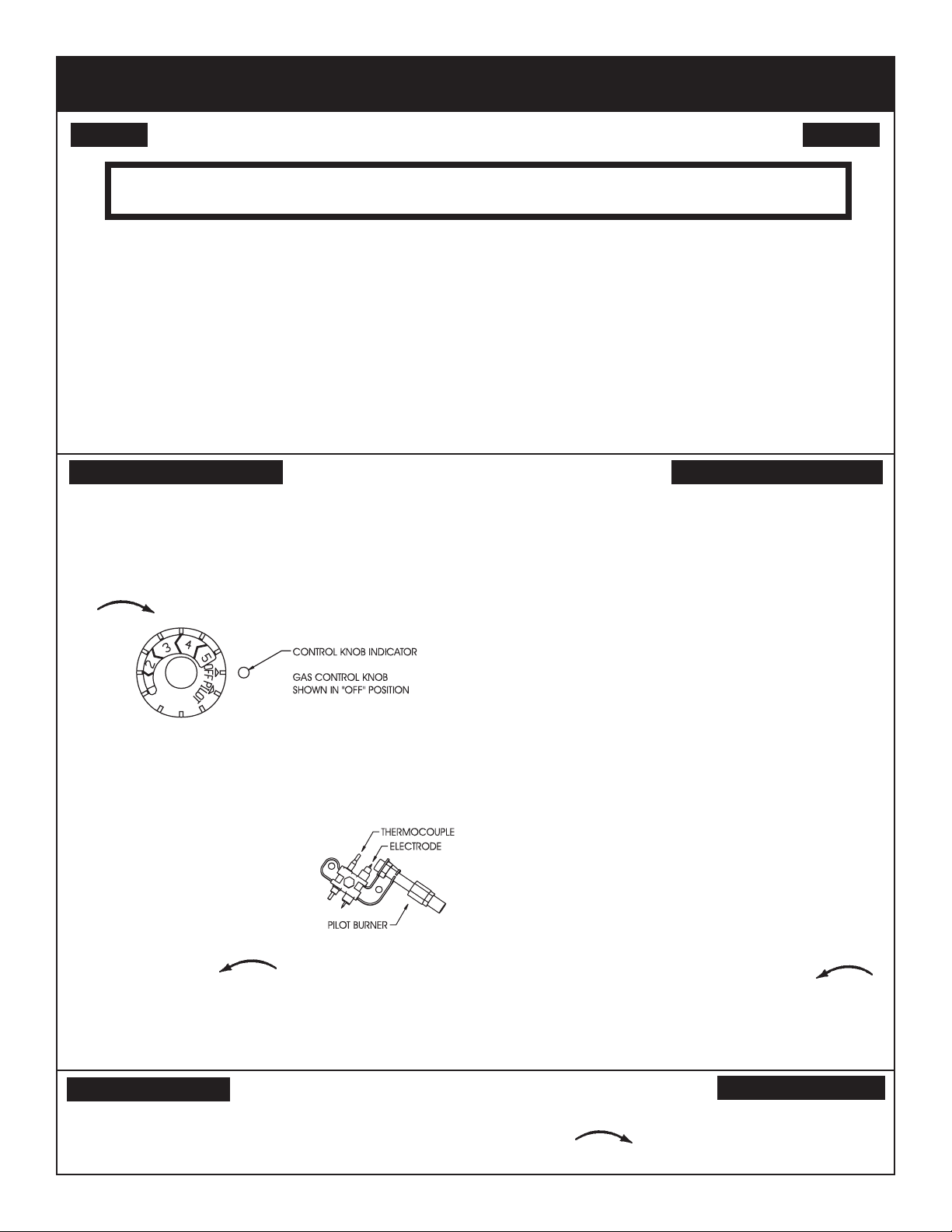

Lighting Instructions ................................................................................................................................ 10

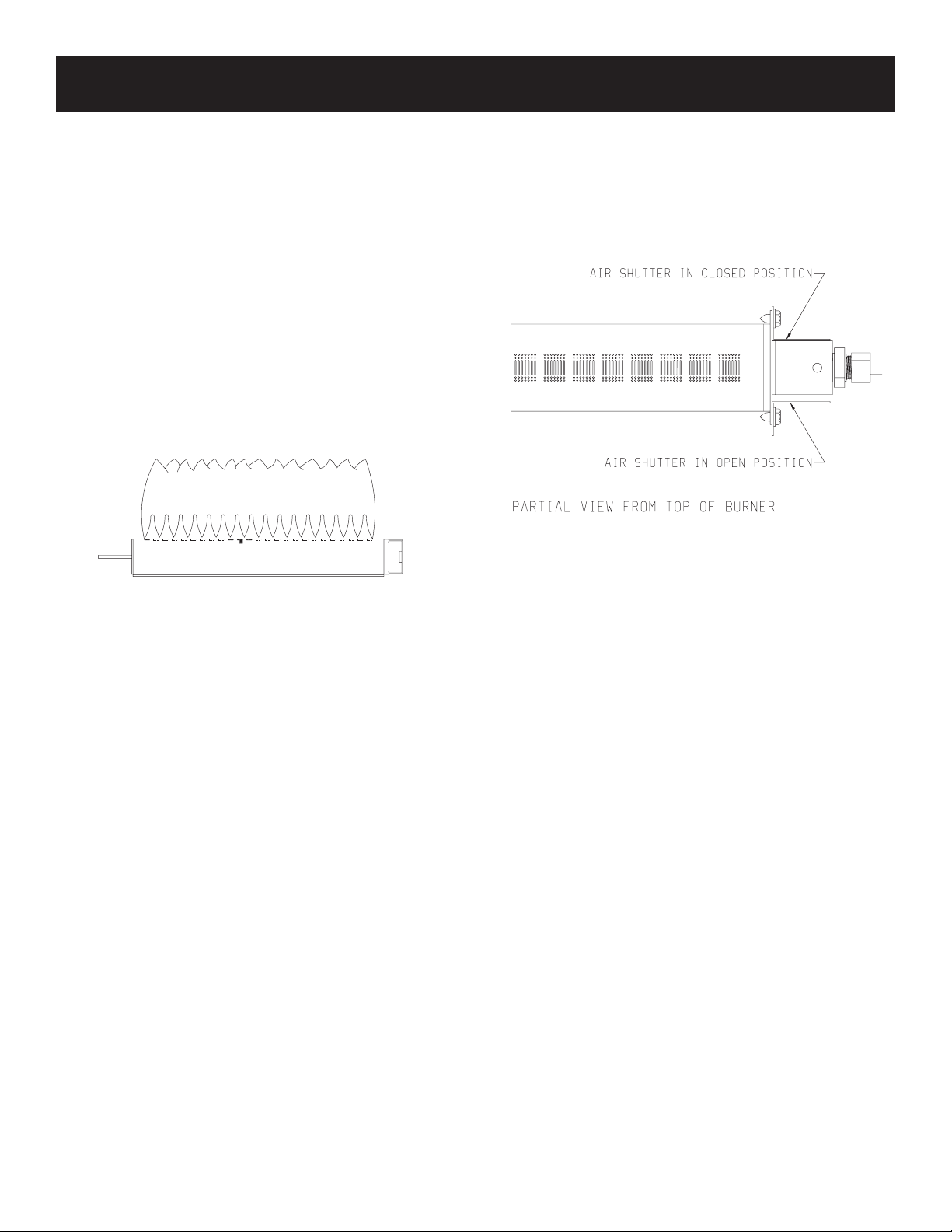

Main Burner Flame Characteristics .......................................................................................................... 11
Pilot Flame Characteristics ....................................................................................................................... 12
Thermostat Operation ............................................................................................................................... 12
Appliance Maintenance ............................................................................................................................ 13
Troubleshooting ........................................................................................................................................ 14
Parts List ................................................................................................................................................... 15
How to Order Repair Parts ....................................................................................................................... 15

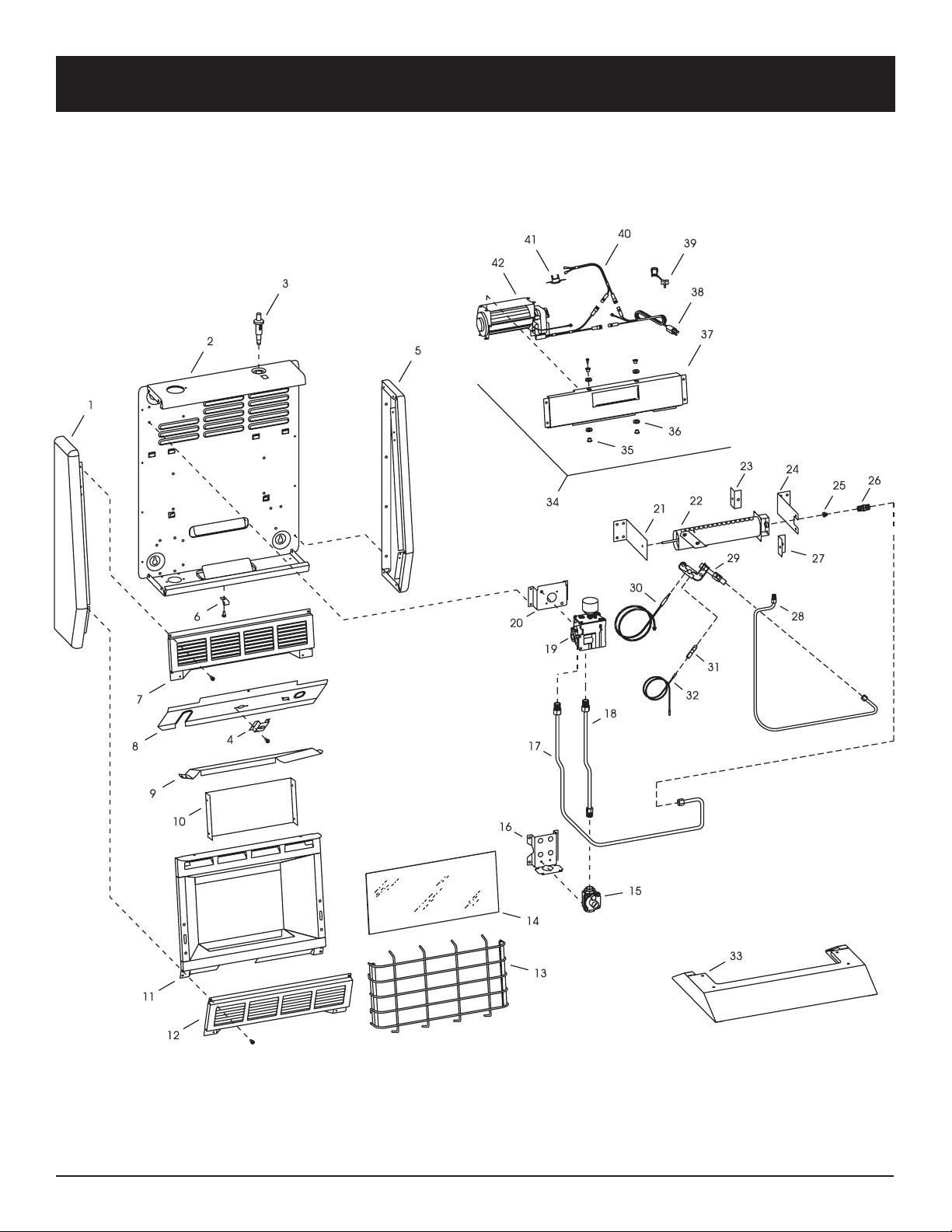

Parts View ................................................................................................................................................ 16

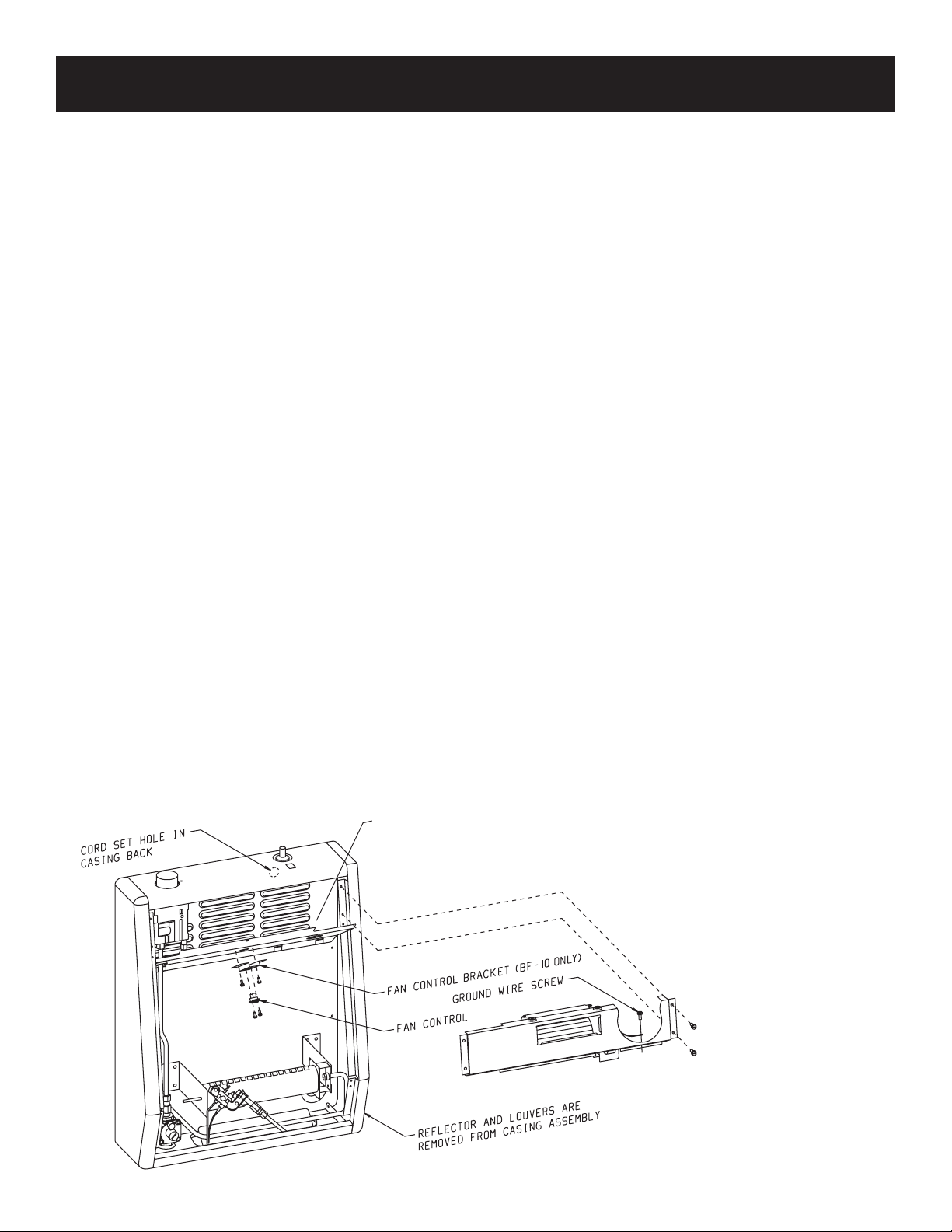

Optional Blower Installation Instructions............................................................................................ 17-18
Service Notes ............................................................................................................................................ 19
Page 2 16012-1-0504
IMPORTANT SAFETY INFORMATION
THIS IS A HEATING APPLIANCE
DO NOT OPERATE THIS APPLIANCE WITHOUT FRONT PANEL INSTALLED.
• An unvented room heater having an input rating of more
than 6,000 Btu per hour shall not be installed in a
bathroom.
• An unvented room heater having an input rating of more
than 10,000 Btu per hour shall not be installed in a
bedroom or bathroom.
• Due to high temperatures, the appliance should be
located out of traffic and away from furniture and
draperies.
• Children and adults should be alerted to the hazard of
high surface temperature and should stay away to avoid
burns or clothing ignition.
• Young children should be carefully supervised when they
are in the same room with the appliance.
• Do not place clothing or other flammable material on or
near the appliance.
• Due to high surface temperatures, keep children, clothing
and furniture away.
• WARNING: Do not use a blower insert, heat exchanger
insert or other accessory not approved for use with
heater.
• Installation and repair should be done by a QUALIFIED
SERVICE PERSON. The appliance should be inspected
before use and at least annually by a professional service
person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding materials, etc. It is
imperative that control compartments, burners and
circulating air passageways of the appliance be kept clean.
• DO NOT use this room heater if any part has been under
water. Immediately call a qualified service technician to
inspect the room heater and to replace any part of the
control system and any gas control which has been under
water.
• Keep appliance area clear and free from combustible
materials, gasoline and other flammable vapors and liquids.
• WARNING: ANY CHANGE TO THIS HEATER OR ITS
CONTROLS CAN BE DANGEROUS.
Any safety screen or guard removed for servicing an
appliance must be replaced prior to operating the heater.
• WARNING: Failure to keep the primary air opening(s) of
the burner(s) clean may result in sooting and property
damage.
WARNING
When used without adequate combustion and ventilation
air, heater may give off CARBON MONOXIDE, an odorless, poisonous gas.
Do not install heater until all necessary provisions are
made for combustion and ventilation air. Consult the
written instructions provided with the heater for information concerning combustion and ventilation air. In
the absence of instructions, refer to the National Fuel
Gas Code, ANSI Z223.1, Section 5.3 or applicable local
codes.
This heater is equipped with a PILOT LIGHT SAFETY
SYSTEM designed to turn off the heater if not enough fresh
air is available.
DO NOT TAMPER WITH PILOT LIGHT SAFETY
SYSTEM!
If heater shuts off, do not relight until you provide fresh air.
If heater keeps shutting off, have it serviced. Keep burner
and control compartment clean.
16012-1-0504 Page 3
CARBON MONOXIDE POISONING MAY LEAD TO
DEATH.
Early signs of carbon monoxide poisoning resemble the flu,
with headache, dizziness and/or nausea. If you have these
signs, heater may not be working properly. Get fresh air at
once! Have heater serviced.
Some people — pregnant women, persons with heart or lung
disease, anemia, those under the influence of alcohol , those
at high altitudes — are more affected by carbon monoxide
than others.
The pilot light safety system senses the depletion of oxygen
at its location. If this heater is installed in a structure having
a high vertical dimension, the possibility exists that the
oxygen supply at the higher levels will be less than that at the
heater. In this type of application, a fan to circulate the
structure air will minimize this effect. The use of this fan will
also improve the comfort level in the structure. When a fan
is used to circulate air, it should be located so that the air flow
is not directed at the burner.
SAFETY INFORMATION FOR USERS OF LP-GAS
Propane (LP-Gas) is a flammable gas which can cause fires
and explosions. In its natural state, propane is odorless and
colorless. You may not know all the following safety precautions which can protect both you and your family from an
accident. Read them carefully now, then review them point
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.
That's your signal to go into immediate action!
• Do not operate electric switches, light matches, use your
phone. Do not do anything that could ignite the gas.
• Get everyone out of the building, vehicle, trailer, or area. Do
that IMMEDIATELY.
• Close all gas tank or cylinder supply valves.
• LP-Gas is heavier than air and may settle in low areas such
as basements. When you have reason to suspect a gas leak,
keep out of basements and other low areas. Stay out until
firefighters declare them to be safe.
NO ODOR DETECTED - ODOR FADE
Some people cannot smell well. Some people cannot smell the
odor of the chemical put into the gas. You must find out if you
can smell the odorant in propane. Smoking can decrease your
ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors
in the area mask the gas odor. People may not smell the gas odor
or their minds are on something else. Thinking about smelling a
gas odor can make it easier to smell.
The odorant in LP-gas is colorless, and it can fade under
some circumstances. For example, if there is an underground
leak, the movement of the gas through soil can filter the odorant.
Odorants in LP-Gas also are subject to oxidation. This fading can
by point with the members of your household. Someday
when there may not be a minute to lose, everyone's safety will
depend on knowing exactly what to do. If, after reading the
following information, you feel you still need more information, please contact your gas supplier.
• Use your neighbor's phone and call a trained LP-Gas service
person and the fire department. Even though you may not
continue to smell gas, do not turn on the gas again. Do not reenter the building, vehicle, trailer, or area.
• Finally, let the service man and firefighters check for
escaped gas. Have them air out the area before you return.
Properly trained LP-Gas service people should repair the
leak, then check and relight the gas appliance for you.
occur if there is rust inside the storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or into
walls, masonry and other materials and fabrics in a room. That
will take some of the odorant out of the gas, reducing its odor
intensity.
LP-Gas may stratify in a closed area, and the odor intensity could
vary at different levels. Since it is heavier than air, there may be
more odor at lower levels. Always be sensitive to the slightest
gas odor. If you detect any odor, treat it as a serious leak.
Immediately go into action as instructed earlier.
SOME POINTS TO REMEMBER
• Learn to recognize the odor of LP-gas. Your local LP-Gas
Dealer can give you a "Scratch and Sniff" pamphlet. Use it to
find out what the propane odor smells like. If you suspect that
your LP-Gas has a weak or abnormal odor, call your LP-Gas
Dealer.
• If you are not qualified, do not light pilot lights, perform
service, or make adjustments to appliances on the LP-Gas
system. If you are qualified, consciously think about the odor
of LP-Gas prior to and while lighting pilot lights or performing service or making adjustments.
• Sometimes a basement or a closed-up house has a musty
smell that can cover up the LP-Gas odor. Do not try to light
pilot lights, perform service, or make adjustments in an area
where the conditions are such that you may not detect the
odor if there has been a leak of LP-Gas.
• Odor fade, due to oxidation by rust or adsorption on walls of
new cylinders and tanks, is possible. Therefore, people
should be particularly alert and careful when new tanks or
cylinders are placed in service. Odor fade can occur in new
tanks, or reinstalled old tanks, if they are filled and allowed
Page 4 16012-1-0504
to set too long before refilling. Cylinders and tanks which
have been out of service for a time may develop internal rust
which will cause odor fade. If such conditions are suspected
to exist, a periodic sniff test of the gas is advisable. If you
have any question about the gas odor, call your LP-gas
dealer. A periodic sniff test of the LP-gas is a good safety
measure under any condition.
• If, at any time, you do not smell the LP-Gas odorant and you
think you should, assume you have a leak. Then take the same
immediate action recommended above for the occasion when
you do detect the odorized LP-Gas.
• If you experience a complete "gas out," (the container is
under no vapor pressure), turn the tank valve off immediately. If the container valve is left on, the container may draw
in some air through openings such as pilot light orifices. If
this occurs, some new internal rusting could occur. If the
valve is left open, then treat the container as a new tank.
Always be sure your container is under vapor pressure by
turning it off at the container before it goes completely empty
or having it refilled before it is completely empty.
INTRODUCTION
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installer must have owner fill out and mail warranty card
supplied with unvented room heater.
3. Installer should show owner how to start and operate unvented
room heater.
Always consult your local Building Department regarding regulations, codes or ordinances which apply to the installation of an
unvented room heater.
This appliance may be installed in an aftermarket* permanently
located, manufactured (mobile) home, where not prohibited by
state or local codes.
*Aftermarket: Completion of sale, not for purpose of resale, from
the manufacturer.
This appliance is only for use with the type of gas indicated on the
rating plate. This appliance is not convertible for use with other
gases.
General Information
This BF-10, BF-20 and BF-30 are design certified in accordance
with American National Standards Institute Z21.11.2 by the
Canadian Standards Association as an Unvented Room Heater
and should be installed according to these instructions.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not shown
on the rating plate is the responsibility of the person and
company making the change.
WARNING: This appliance is equipped for (natural gas or
propane) gas. Field conversion is not permitted.
Important
All correspondence should refer to complete Model Number,
Serial Number and type of gas.
Qualified Installing Agency
Installation and replacement of gas piping, gas utilization equipment or accessories and repair and servicing of equipment shall
be performed only by a qualified agency. The term "qualified
agency" means any individual, firm, corporation, or company that
either in person or through a representative is engaged in and is
responsible for (a) the installation, testing, or replacement of gas
piping or (b) the connection, installation, testing, repair, or servicing of equipment; that is experienced in such work; that is familiar
with all precautions required, and that has complied with all the
requirements of the authority having jurisdiction.
The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code, ANSI Z223.1/
NFPA54.*
*Available from the American National Standards Institute, Inc., 11 West 42nd
St., New York, N.Y. 10036.
High Altitudes
For altitudes/elevations above 2,000 feet (610m), ratings should
be reduced at the rate of 4 percent for each 1,000 (305m) feet
above sea level. Contact the manufacturer or your gas company before changing spud/orifice size.
Well Head Gas Installations
Some natural gas utilities use "well head" gas. This may affect the
Btu output of the unit. Contact the gas company for the heating
value. Contact the manufacturer or your gas company before
changing spud/orifice size.
SPECIFICATIONS
Specifications
Model BF-10 BF-20 BF-30
Input BTU/HR (KW/H) (LP) 10,000 (2.9) 20,000 (5.8) 30,000 (8.8)
Input BTU/HR (KW/H) (NAT) 10,000 (2.9) 18,000 (5.3) 30,000 (8.8)
Height 22" (559mm) 22" (559mm) 22" (559mm)
Width 18" (457mm) 18" (457mm) 24 1/8" (536mm)
Depth 6 1/2" (165mm) 6 1/2" (165mm) 61/2" (165mm)
Gas Inlet 3/8" (10mm) 3/8" (10mm) 3/8" (10mm)
Accessories
Blower SRB-18T SRB-18T SRB-30T
Floor Stand SRS-18* SRS-18 SRS-30
*SRS-18 floor stand can not be used in a bedroom installation.
BF-10 must be wall mounted in a bedroom installation.
The bedroom must be an unconfined space. ANSI Z223.1/NFPA 54 defines an unconfined space as "a space whose volume is not less
than 50 cubic feet per 1,000 Btu per hour (4.8m3 per kw) of the aggregate input rating of all appliances installed in that space."
16012-1-0504 Page 5
WATER VAPOR: A BY-PRODUCT OF UNVENTED ROOM HEATERS
Water vapor is a by-product of gas combustion. An unvented
room heater produces approximately one (1) ounce (30ml) of
water for every 1,000 BTU's (.3KW's) of gas input per hour.
Unvented room heaters must be used as supplemental heat (a
room) rather than a primary heat source (an entire house). In most
supplemental heat applications, the water vapor does not create a
problem. In most applications, the water vapor enhances the low
humidity atmosphere experienced during cold weather.
The following steps will help insure that water vapor does not
become a problem.
1. Be sure the heater is sized properly for the application, including
ample combustion air and circulation air.
2. If high humidity is experienced, a dehumidifier may be used to
help lower the water vapor content of the air.
3. Do not use an unvented room heater as the primary heat source
(an entire house).
PROVISIONS FOR ADEQUATE COMBUSTION & VENTILATION AIR
This heater shall not be installed in a confined space or unusually
tight construction unless provisions are provided for adequate
combustion and ventilation air.
The National Fuel Gas Code, ANSI Z223.1 defines a confined
space as a space whose volume is less than 50 cubic feet per 1,000
Btu per hour (4.8m3 per kw) of the aggregate input rating of all
appliances installed in that space and an unconfined space as a
space whose volume is not less than 50 cubic feet per 1,000 Btu per
hour (4.8m3 per kw) of the aggregate input rating of all appliances
installed in that space. Rooms communicating directly with the
space in which the appliances are installed, through openings not
furnished with doors, are considered a part of the unconfined
space.
The following example is for determining the volume of a typical
area in which the BF-20 may be located and for determining if this
area fits the definition of an unconfined space.
The input of the BF-20 is 20,000 Btu per hour. Based on the 50
cubic feet per 1,000 Btu per hour formula, the minimum area that
is an unconfined space for installation of the BF-20 is 1,000 cubic
feet, 50 cubic feet x 20 = 1,000 cubic feet. To determine the cubic
feet of the area in which the BF-20 is to be installed, measure the
length, width and height of the area. Example: The area measures
16 feet in length, 8 feet in width and 8 feet in height, the area is
1,024 cubic feet. The BF-20 can be installed in this unconfined
space with no requirement to provide additional combustion and
ventilation air.
Warning: If the area in which the heater may be operated is
smaller than that defined as an unconfined space or if the building
is of unusually tight construction, provide adequate combustion
and ventilation air by one of the methods described in the National
Fuel Gas Code, ANSI Z223.1, Section 5.3 or applicable local
codes.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough
fresh air for combustion and ventilation. However, in buildings of
unusually tight construction, you must provide additional fresh
air.
Unusually tight construction is defined as construction
where:
a. Walls and ceilings exposed to the outside atmosphere have
a continuous water vapor retarder with a rating of one perm
or less with openings gasketed or sealed, and
b. Weatherstripping has been added on openable windows
and doors, and
c. Caulking or sealants are applied to areas such as joints
around window and door frames, between sole plates and
floors, between wall-ceiling joints, between wall panels, at
penetrations for plumbing, electrical, and gas lines, and at
other openings.
If the heater is installed in a building of unusually tight construction, adequate air for combustion, ventilation and dilution of flue
gases shall be provided in accordance with ANSI Z223.1/NFPA54.
Page 6 16012-1-0504
Loading...
