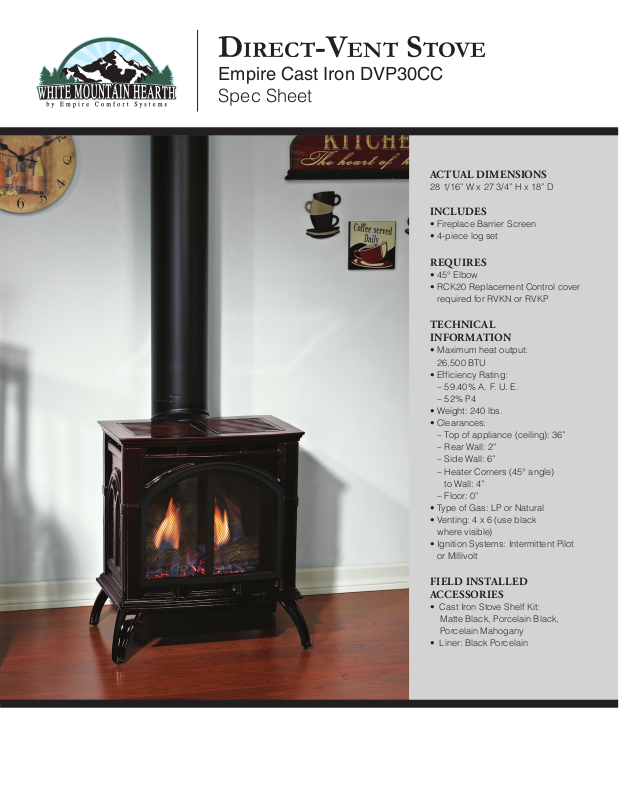

Direct-Vent StoVe
Empire Cast Iron DVP30CC
Spec Sheet
ACTUAL DIMENSIONS
28 1/16” W x 27 3/4” H x 18” D
INCLUDES
• Fireplace Barrier Screen
• 4-piece log set
REQUIRES
• 45° Elbow
• RCK20 Replacement Control cover
required for RVKN or RVKP
TECHNICAL
INFORMATION
• Maximum heat output:
26,500 BTU
• Efficiency Rating:
– 59.40% A. F. U. E.
– 52% P4
• Weight: 240 lbs.

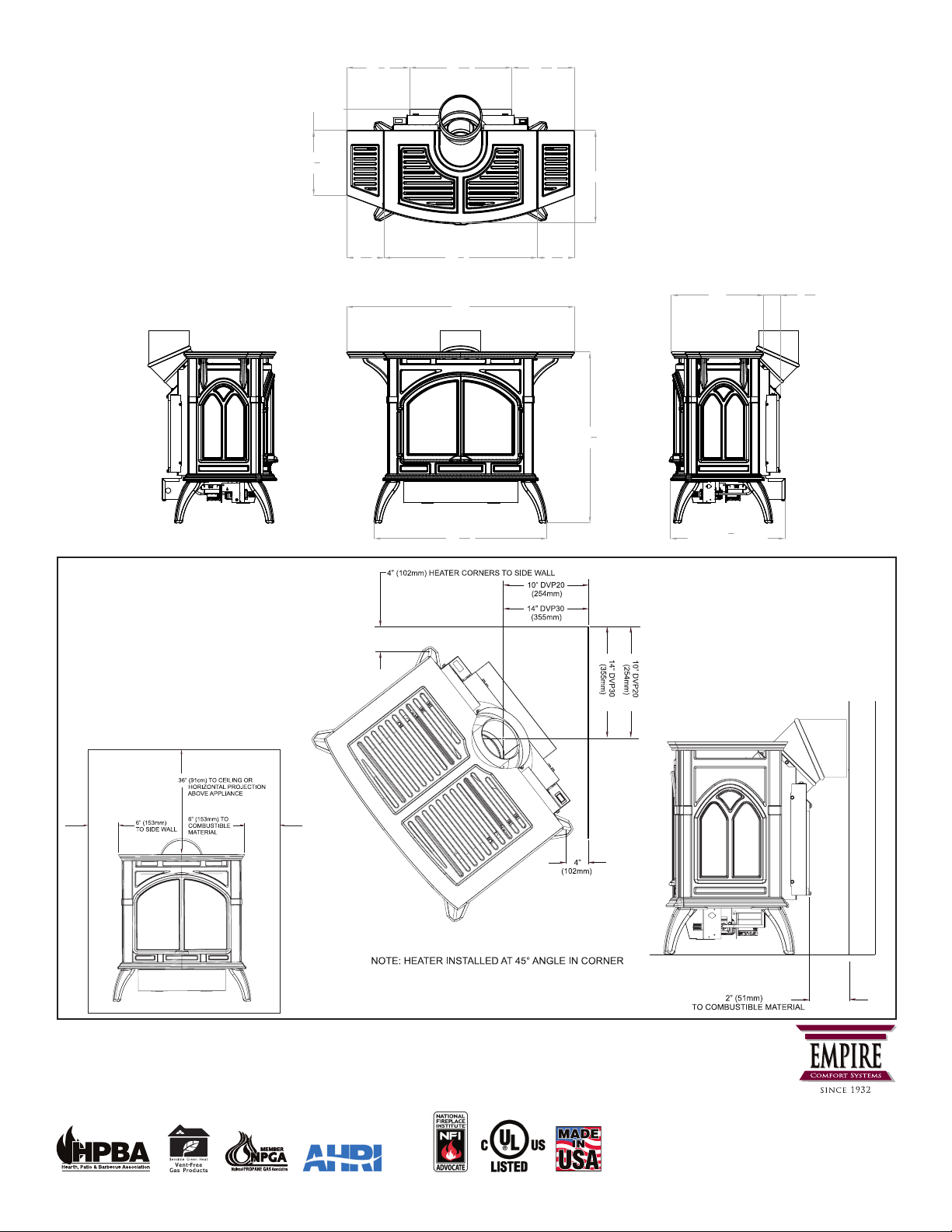

• Clearances:
– Top of appliance (ceiling): 36”
– Rear Wall: 2”
– Side Wall: 6”
– Heater Corners (45° angle)
to Wall: 4”
– Floor: 0”
• Type of Gas: LP or Natural
• Venting: 4 x 6 (use black
where visible)
• Ignition Systems: Intermittent Pilot
or Millivolt
FIELD INSTALLED
ACCESSORIES
• Cast Iron Stove Shelf Kit:
Matte Black, Porcelain Black,
Porcelain Mahogany
• Liner: Black Porcelain
Page 2
1
3
9
DVP30CC
"
10
4
7
3
"
16
1
10
"
2
16
"
16
10
"
16
15"
1
6
"
16
7
24
"
8
37"
281"
1
6
"
16
15"
3
"
27
4
5
18
"
8
11
2
"
16
Empire is commit ted to continuous product improvement; specificatio ns are subj ect to change witho ut notice. Dimensions in this brochure a re approximate; read and
follow th e framing dimension s in the owners ma nual supplied with yo ur Empire product. Flame size, shape, and color will vary from photos. Our m antels feature natural
veneers and hand- rubbed finishes – wood grain and colo r will var y. Adjust light levels and use “natu ral light” incandes cent bulbs to enhance the dram atic look for your
wooden mantel.
Member of the following
industry associations:
This appliance is design-certified
to the A NSI standard by:
The Empire Comfort Systems and White Mountain Hearth names and logos are registered U.S. trademarks.
Empire Comfort Systems Inc.
918 Freeburg Ave.
Belleville, IL 62220 -2623
[email protected]
01/18
