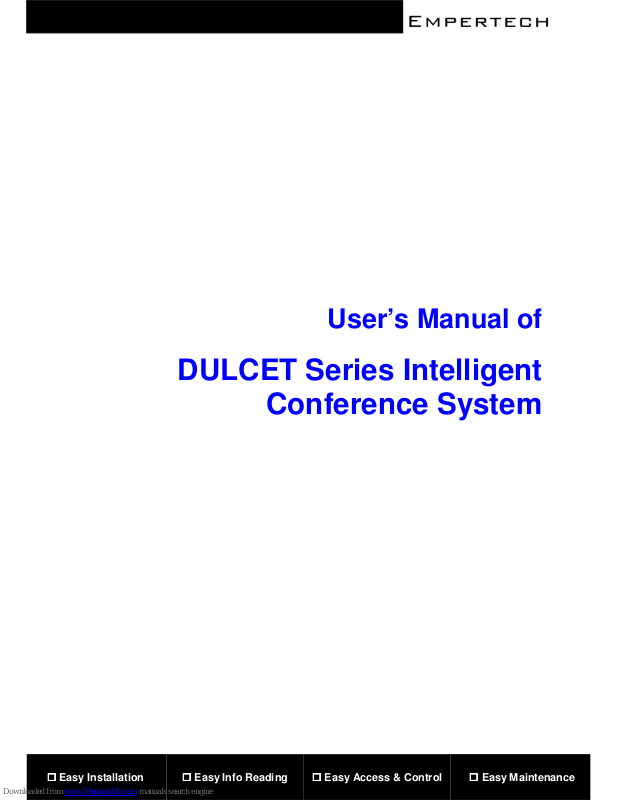

User’s Manual of
DULCET Series Intelligent
Conference System
Easy Installation Easy Info Reading Easy Access & Control
Easy Maintenance
Caution：：：：
This Manual is used for user operation guide only, rather than the purpose of
maintenance service. Since the date of release, should there is any function or
parameter alteration,
additional instruction will be provided. For details, please
refer to device manufacturer.
The copyright of this manual is owned by manufacturer. Without permiting, any
organization or individual is forbidden to take total or part of the content of the
manual for business purpose.
!
Safety Operation Guide
To en
sure reliable use of the device and the safety of staff, please comply with the following
instructions:
When installing the device, please be sure that earth wire is well-
grounded. DO NOT use
two-
core plug. And please ensure the voltage of input power is the same as the stated
voltage in the main frame.
With AC 100V to 240V high-voltage components, please DO NOT
open the case on your
own, for avoiding electric shock.
DO NOT place the device at the place over cold or over hot.
Good environmental ventilation must be maintained when the device power is working,
for avoiding damage by overheating.
Under rainy or humid weather, or when it is not used for a long term, please shut down
the main switch of the device.
Before the following operation, be sure to plug off the power cable from AC power
supply:
Take off or reinstall any component of the device.
Break off or reconnect any electric plug or other connection to the
device.
Without permit from the professional, please DO NOT try to
dismantle
device. DO NOT try to fix it on your own, for avoiding any accidence or making it damaged
more seriously.
Do not spray any corrosive chemical power or liquid on or around the device.
the case of
。
Index
1
Introduction ................................................................
................................
Product Profile ................................................................
................................
ET-CS-M128 The central control unit ................................
................................
Front Panel Instruction................................................................
................................
Rear Panel Instruction ................................................................
................................
Functions and Features ................................................................
................................
ET-CS-EMH01 Extended main host ................................
................................
Front Panel Instruction................................................................
................................
Rear Panel Instruction ................................................................
................................
Functions and Features ................................................................
................................
Technical Parameters ................................................................
................................
onnection Illustration ................................................................
................................
Conference Unit ID Setting ................................................................
...............................
2
Speech Unit ................................................................
................................
ET-CS-DV01，ET-CS-DV02 vote, discuss and speech unit
................................
Function and features ................................................................
................................
Connection Illustration ................................................................
................................
ET-CS-D01，ET-CS-D02 Sheer Discussion and Speech Unit
................................
Function Description ................................................................
................................
Functions and Features ................................................................
...............................
Connection Illustration ................................................................
................................
Technical Parameters ................................................................
................................
3
Camera Tracing ................................................................
................................
Products and Devices ................................................................
................................
ET-CS-TMH01 Camera track mixed host ................................
................................
Panel Functions ................................................................
................................
Functions and Features ................................................................
...............................
Technical Parameters ................................................................
................................
ET-CS-WV01/ET-CS-CV01 High-speed Camera ................................
..............................
Functions and Features ................................................................
...............................
........ 2
.................... 2
.................. 2
... 2
... 3
. 4
................... 7
... 7
... 7
. 8
......... 8
......... 10
10
....... 12
............. 12
.. 14
. 15
.......... 16
.... 16
17
. 18
....... 18
20
....... 20
.......... 20
........... 20
22
.. 22
24
24
Technical Parameters ................................................................
................................
System Connection Illustration ................................
................................
4
Accessories ................................................................
................................
ET-CS-HE01 Head earphone（Without MIC） ................................
................................
Functions Description ................................................................
................................
Technical Parameters ................................................................
................................
Installing Cable ................................................................
................................
ET-CS-GMS 415mm Gooseneck Microphone Stem
................................
ET-CS-TI T-shaped Interface ................................
................................
ET-CS-BR Conference Board receptacle ................................
................................
ET-CS-GR Pop-up Ground receptacle ................................
................................
ET-CS-AI 8-core Aviation Interface ................................
................................
ET-CS-EP01 Extension Power ................................
................................
.. 25
......................... 27
...... 28
28
.. 28
.. 28
................. 29
......................... 30
........................... 30
.......... 30
.............. 30
.................. 31
......................... 31
2
1 Introduction
Product Profile
◆
ET-CS-M128 The central control unit
◆
The extended main host
ET-CS-M128 The central control unit
Front Panel Instruction
①
Power switch
②
MODE ——Analogue setting
◆
FIFO mode, when a certain number of machines are on, the earliest initiated
speech unit will be shut down by the latter one.
◆
NORMAL mode, when a certain number of machines are on, a new delegate with
speech request will be automatically added into the speech line.
3
◆
FREE mode, allowing 20 delegate speech units are on simultaneously , unlimited
by the number of mainframe speakers. A new delegate with speech request will be
automatically added into the speech line.
◆
APPLY mode, delegate unit must be authorized by chairman unit or operator
before delivering a speech.
③
Number of speakers limit, adjustable for 1/2/4/6 sets of delegate speech unit
simultaneously.
④
BASS ——Output bass volume adjustment.
⑤
TREBLE ——Output treble volume adjustment.
⑥
VOLUME ——Output volume adjustment.
Rear Panel Instruction
①
IN ——Audio line input, such as background music or output terminal of remote
telephone conference.
4
OUT ——Connect to amplifying system or recording device, including conference
audio and audio line input.
②
OUTPUTS ——11+1 channels audio output, connecting to infrared transmitting
main frame.
③
Grounding pole
④
Power input, support AC100V~240V 50/60Hz input
⑤
INTERPRET ——Connect to interpreter machines up to 36 units, realizing 11+1
languages simultaneous interpretation, with hand-in-hand series connection among
interpreter machines.
ROUTE ——Connect to extension main frame, with multiple main frames in hand-
in-hand series connection.
⑥
DELEGATES ——Connect to speech unit.
⑦
CONTROL SYSTEM ——Connect to the main frame of central control system or
camera tracing main frame, realizing the function of automatic camera tracing.
PC ——Connect to serial port at PC, realizing software conference management
function.
SET ID ——Conference unit ID switch
Functions and Features
◆
The central control unit is for connecting up to 128 conference units. With
extended main host, a set of conference system can connect up to 4098 sets of
conference unit;
5
◆
For connecting up to 36 interpreter units, realizing 11+1 languages simultaneous
interpretation；
◆
Adopt dedicated 8-core aviation Interface；
◆
Hand-in-hand series connection mode；
◆
With audio input port；
◆
With multiple acoustic channels output；
◆
Speakers number limit: number of speech units 1/2/4/6 adjustable, chairman units
are not limited；
◆
Support multiple conference modes of FIFO, NORMAL, FREE and APPLY；
◆
Support automatic camera tracing function；
◆
Along with phone coupling devices, you may hold remote telephone conference ；
◆
Support sign-in, voting and data management function；
◆
Main frame is for installed onto a 19-inch standard cabinet.
NOTICE
1，CONTROL SYSTEM COM Pin Functions Description：
Pin Signal Description
1 — —
6
Control System
2 — —
3 TXD Transmit data
4 — —
5 GND Signal ground
6 — —
7 — —
8 — —
2，PC COM Pin Function Description：
PC
Pin Signal Description
1 — —
2 TXD Transmit data
3 RXD Receive data
4 — —
5 GND Signal ground
6 — —
7 — —
8 — —
7
ET-CS-EMH01 Extended main host
Front Panel Instruction
①
POWER ——Power switch
②
ACTIVE ——Working indicator
③
NETWORK ——Network indicator
④
COMMUNICATION ——Communication indicator
Rear Panel Instruction
⑤
ID ——For setting the network ID of extension main frame.
⑥
UNIT ——3 ways of speech unit port.
8
⑦
ROUTE ——Cascade connection port. A connects to forestage device; B connect
to rear stage device.
⑧
Ground pole
⑨
Power input, support AC100V~240V 50/60Hz input
Functions and Features
◆
Adopt dedicated 8—core aviation plug for connection；
◆
Along with conference control main frame, for extended connection of speech
units；
◆
Under high pressure resistance （3500V）test，in comply with safety standard；
◆
The main frame adopts metal case, with 8000V anti-static ability ；
◆
The main frame is for installation onto a 19-inch standard cabinet.
Technical Parameters
Technical
Parameters
System main frame System extension main
frame
Power Power switch 110V / 220V Power switch 110V / 220V
Static power
consumption 10W 10W
Max power 350W 350W
Output power
≤
110W/24V each way
≤
110W/24V each way
9
Audio output
Impedance：100Ω Mode
：
Unbalanced
Impedance：100Ω Mode
：
Unbalanced
MIC Input
Impedance：100kΩ
Electric level：-60 dB
Mode：unbalanced
Impedance：100kΩ
Electric level：-60 dB
Mode：unbalanced
Frequency
response
60－8kHz 60－8kHz
S/N
>
80dB
>
80dB
THD
<
0.5%
<
0.5%
Carrier distortion
<
1%
<
1%
Crosstalk
attenuation
（
1kHz）
>
50dB
>
50dB
Weight About 6.5KG About 6KG
Dimension 483L x 275W x88H (mm) 483L x 275W x88H (mm)
Color Grey Grey
10
Connection Illustration
Conference Unit ID Setting
1. In terms of conference unit ID setting, it is about allocating a system unique
address to each conference unit (including interpretation unit and speech unit) for
identification by the mainframe.
2. To setting conference unit, please turn on the power of conference mainframe
when finishing conference system connection, turn “SET ID” switch to “ON”, and
turn on speech units and interpretation units, until all conference units are on. You
11
can see the ring indicators on MIC will be on. Turn “SET ID” switch to “OFF” to see
all ring indicators for MIC in conference units turn off. Then the system will access
to normal use mode.
12
2 Speech Unit
ET-CS-DV01，，，，ET-CS-DV02 vote, discuss and speech unit
ET-CS-DV01 ET-CS-DV02 ET-CS-DV01/02
6
6
7
8
Top view Top view Side view
①
Speaker
②
MIC port
③
LCD Monitor
④
Multi-functional voting button indicator
⑤
Multi-functional voting button：
——Conference voting, numbers 2, 3 and 4 respectively for agree, abstention and
objection.
——Conference election, numbers 1－5 stand for different candidates.
13
——Conference evaluation, numbers 1－5 respectively stand for level
－－,－
, 0,＋,
＋＋
NOTICE
Press and hold chairman unit number key “1” for 3 seconds to launch voting. And it
accesses to voting mode. The last vote is valid. Speech unit is with memory function
for remembering last key pressing. Voting result is displayed by indicator. Press and
hold chairman number key “5” for 3 seconds to stop voting. Press the “5” key again to
return to conference mode.
Pre-conference sign in
Press and hold chairman number key “2” for 3 seconds to launch a sign-in and access
to sign-in mode. Press “MIC Switch” key to sign in.
Press and hold chairman number key “5” for 3 seconds to exit to sign-in mode.
Processing application for speech
Press chairman unit number key “3” to approve speech application. Press once to
approve the speech application from one delegate unit, in comply with the principle of
“first in, first out”.
⑥
MIC switch, chairman unit is with priority.
14
Priority function
Shutdown function---press and hold the MIC switch key of chairman unit for 3 seconds
to shut down all delegate speech units.
⑦
Headset port
⑧
Volume adjustment knob
Function and features
◆
Integrated with speech, voting and key sign-in functions;
◆
Adopting dedicated 8-core high-density aviation port;
◆
Heart-shaped directional condenser pickup, with dual colors indicator, it is in red
when delivering speech；
◆
2m connection cable attached；
◆
Adopting knob plugging MIC stand ；
◆
With magnetic speaker, headset port and volume adjustment knob；
◆
Chairman unit is with function of approving delegate’s speech application；
◆
Chairman unit is not limited by the number of speakers；
◆
Chairman unit is with priority function to manage conference order as a whole；
◆
The connection position of chairman unit is not limited ；
◆
The units are passive components, with power supply from system main frame,
and input voltage of 24V；
15
◆
With feedback suppressing mode, when the MIC is on, the speaker will be
automatically shut down；
◆
T-shaped connection mode.
Connection Illustration
16
ET-CS-D01，，，，ET-CS-D02 Sheer Discussion and Speech Unit
Function Description
Top View of ET-CS-D01/D02 Speech Unit Side View of ET-CS-D01/D02 Speech Unit
3
4
5
1
2
1
①
Speaker
②
MIC port
③
MIC switch, chairman is with priority
Priority Function
Shutdown function---press and hold the priority key in chairman unit for 3 seconds to
shut down all delegate speech units.
④
Head earphone port
⑤
Volume adjustment knob
17
Functions and Features
◆
Integrated with speech and key sign-in functions ；
◆
Adopting dedicated 8-core high-density aviation port；
◆
Heart-shaped directional condenser pickup, with dual colors indicator, it is in red
when delivering speech;
◆
2m connection cable attached；
◆
Adopting knob plugging MIC stand ；
◆
With magnetic speaker, headset port and volume adjustment knob；
◆
Chairman unit is with function of approving delegate’s speech application；
◆
Chairman unit is not limited by the number of speakers；
◆
Chairman unit is with priority function to manage conference order as a whole；
◆
The connection position of chairman unit is not limited ；
◆
The units are passive components, with power supply from system main frame,
and input voltage of 24V；
◆
With feedback suppressing mode, when the MIC is on, the speaker will be
automatically shut down for preventing from feedback；
◆
T-shaped connection mode.
18
Connection Illustration
Technical Parameters
Parameters ET-CS-DV01 ET-CS-DV02 ET-CS-D01 ET-CS-D02
Power DC24V(power supply from the central control unit)
Unit port 8-core aviation port
Power
consumption
3W 3W 3W 3W
Headset
output
9dBu，8－32Ω，3.5mm mini jack
Speaker
power
2W 2W 2W 2W
MIC type Capacitive
Directional
Heart-shaped
19
characteristi
c
S/N
>
80dB
Crosstalk
attenuation
>
80dB
Distortion
<
0.10%
Frequency
response
60－8kHz
Equivalent
noise
≈20dB SPL
Max SPL
105dB（3% thread hold）
Sensitivity
－
22dBv/Pa
Dimension( 230LX130WX45H
20
3 Camera Tracing
Products and Devices
◆
ET-CS-TMH01 Camera track mixed host
◆
ET-CS-WV01/CV01 High-speed camera
ET-CS-TMH01 Camera track mixed host
Panel Functions
Front panel:
Rear panel
：：：：
AC100- 240V 50/60Hz
C1 C2 C3 C4 C5 C6 VCC GND
VIDEO INPUTS VIDEO OUTPUTS KEY BOARD
PROJECTOR1 P ROJECTOR2 PROJECTOR3
CODE
1 2 3 4 5 6 7 8
VCC GND
CAMERA NET
ON
1
2
3 4 5
6
7
8
Front panel instruction:
①
LCD monitor——
for displaying the operation information of the main frame.
②
POWER——Power indicator
③
ACTIVE——
signal indicator, flashing when the mainframe is sending code or
receiving signal
④
1~6——C
orresponding to the signal channels of cameras 1 to 6, in combination
with △/SAVE
,▽/
RECALL for appointing the corresponding address codes of high
speed camera under control
⑤ △/
SAVE
▽/
RECALL——use in combination
with key 1 to 6, for storing and
recalling the preset position of high-speed camera.
Rear panel instruction:
①
VIDEO INPUTS ——
Connect to the video signal input of 6 ways of camera video
signal.
②
VIDEO OUTPUTS ——Output RCA, BNC and VGA---
3 ways of camera video
signal.
③
CAMERA NET——For the control over high-
speed camera RS485.
④
KEY BOARD——
For connecting to the control keyboard of high
⑤
CODE ——Switch of protocol and baud rate setting
（
Not support the protocols of
other manufacturers so far）
⑥
CONFERENCE SYSTEM ——Conne
ct to conference control mainframe.
21
-
-speed camera.
22
⑦
CONTROL SYSTEM——Connect to the mainframe of central control system.
⑧
Power input, support AC100-240V input
Functions and Features
◆
Support 6 ways of video signal input, 3 ways of RCA, BNC and VGA video signal
output;
◆
With built-in upscaler, for converting Video signal to VGA signal to output,
supporting 3 resolutions of 800x600，1024x768 and 1280x1024;
◆
LCD monitor can display current status and setting parameters etc.;
◆
Keys on front panel can be used for configuring the camera ID of every channel.
Technical Parameters
Model ET-CS-TMH01
Video
Gain 0 dB
Bandwidth
150MHz (-3dB), full-loaded
0 -10MHz:≤+/- 0.1dB
0 -30MHz:≤+/- 0.5dB
Multi-channel vs. one
channel crosstalk
-50dB @ 5 MHz, -45dB @ 10 MHz
Differential phase I/0S
<
1.28 degree，3.58MHz
Differential phase error 0.1%, 3.58-4.43MHz
DG error 0.1 degree, 3.58-4.43MHz
Max transferring delay 5nS(±1nS)
Switching speed 200 ns(longest time)
Signal type Composite video signal
Video input
Port 6 ways of BNC female port
Min/Max level
Analogue signal: 0.5V ～ 2.0V p-p
Impedance 75 Ω
Return loss -30dB@5MHz
Genlock 0.3V-0.4Vp-p
Max. DC bias error 15mV
Video output
Port
1 way BNC female port； 1 way RCA
female port
Min/Max level
Analogue signal: 0.5V ～ 2.0V p-p
Impedance 75 Ω
Return loss -30dB@5MHz
DC bias Max.±5mV
Converting type Vertical separation
Port 15-pin HD female port
Min/Max level 2.0V p-p
Impedance 75 Ω
Return loss
<
-40dB@5MHz
DC bias Max.±5mV
Sync signal
I/O type
NTSC 3.58，NTSC4.43，PAL
，
SECAM
Control types
Serial control port RS-232, 9-pin female D-shaped port
23
；
24
Baud rate and protocol
Baud rate：9600, data bit：8-bit, stop bit：1, no parity
check bit
Specification
Power
100VAC ～ 240VAC, 50/60 Hz, Universal self-adaptive
power
Temperature
Storage and use temp: -20°～ +70°C
Humidity
Storage and use temp:10% ～ 90%
Case dimension 485(L)X245(W)X45mm(H)
Weight About 1.5kg
ET-CS-WV01/ET-CS-CV01 High-speed Camera
Functions and Features
In DULCET conference system, there are two types of high-speed cameras for hanging
on wall and ceiling, based on actual need. On-wall high-speed camera can be directly
fixed onto wall by screws, while the ceiling type can be directly attached onto the
ceiling. These two cameras are actually the same but with
difference in appearance, for adapting to a variety of installation
needs.
◆
With multi-functional quality digital DSP design, working
with stability；
◆
Memory won’t lose when power is off；
◆
Integrated design as a whole, with compact structure and high reliability；
◆
64 presets for free storage, with accurate positioning；
◆
Auto-pilot monitoring；
◆
Adopt RS-485 BUS control；
◆
Adopt DC machine, stably running at low speed；
◆
High-precise machine driving, stably running
, sensitive response
◆
Horizontal 360° continuous
rotating, without monitoring blind zone
◆
Auto-adjusting rotating speed according to lens alteration；
◆
Vertically realizing180°auto-reversing continuous monitoring
；
◆
Auto iris, auto focusing, auto white balance;
◆
Backlight compensation
, all objects are visible in background with strong light
sources；
◆
Night view function, auto-changing CC
D illumination according to the change of
environmental light.
Technical Parameters
Specification
Image sensor 1/4″ color CCD
Effective pixel
752H×582V（440000pixels） PAL
Sync system Internal sync
Video output Composite signal 1.0Vp-p/75Ω
White balance Auto/manual
Power AC24V±10% 1.25A
Consumption 30VA
Weight 4Kg
Installation Indoor ceiling, indoor on-wall
Relative humidity
10-75%（incohesive condition）
Operation
temperature
0 ~40
℃ ℃（Normal range）
Scan system 15.625KHz(H) 50Hz(V)
Camera function
25
；
；
26
Horizontal resolution 480 TV lines
S/N
>
48dB
Electronic shutter
1/3～1/10000 second
Lowest illumination
0.01～1Lux(F1.6)
Len parameters
Zoom range 18 times optical and 12 times electronic magnification.
Aperture Auto/manual
Zoom Auto/manual
Basic function of the ball unit
Horizontal rotation
0～300°/s
Up and down
movement
0～60°/s
Presets 128 at maximum
Pilot function Storing 6 pilot tracks at maximum
Line scan speed
0.5～30°/s
Track self-learning 40 s
System Connection Illustration
27
28
4 Accessories
ET-CS-HE01 Head earphone（Without MIC）
Functions Description
◆
For monitoring the units in simultaneous
interpretation conference ；
◆
For the use in conference system, avoiding
the influence from others；
◆
1.5m cable attached；
◆
Hi-Fi quality.
Technical Parameters
Technical Parameters ET-CS-HE01
Unit port 3.5mm stereo jack
Frequency response 80Hz – 2KHz
Sensitivity 90dB
S/N > 80dB
Distortion < 0.1dB
Impedance 32 Ω
Dynamic range > 85 dB
Output power 100mW
Installing Cable
Product Profile
◆
ET-CS-EC02 2 m aviation conference discussion
cable（8-core）
◆
ET-CS-EC05 5m aviation conference discussion
cable（8-core）
◆
ET-CS-EC10 10m aviation conference extended cable（8-
core
◆
ET-CS-EC20 20m aviation conference extended cable（8-
core
◆
ET-CS-EC50 50m aviation conference extended cable（8-
core
◆
ET-CS-EC100 100m aviation conference extended cable（8-
core
Functions and Features
◆
For the extension connection within conference mainframe and
mainframe or conference speech units;
◆
Optional with 2m, 5m, 10m, 20m, 50m and 100m;
◆
8-core cable, with one male and one female ports；
◆
Transmitting distance up to 1000m.
Product Profile
◆
2m T-shaped aviation conference
discussion cable（8-core）
◆
5m T-shaped aviation conference
discussion cable（8-core）
Functions and Features
◆
For branch connection within conference speech units；
◆
Optional with 2m and 5m;
◆
8-core cable, with 1 male and 1 female ports.
29
）
）
）
）
extension
30
ET-CS-GMS 415mm Gooseneck M
icrophone
Product Profile
◆
Heart-shaped directional capacitive MIC;
◆
High-density 5-core aviation port；
◆
Power on indicator；
◆
Speech application indicator
ET-CS-TI T-shaped Interface
Product Profile
◆
For branch connection of conference units；
◆
1 female 8-core high-density aviation port
2 male 8-core high-density aviation ports.
ET-CS-BR Conference Board receptacle
Product Profile
◆
1 way of front-end input unit
◆
2 ways of output：UNIT A and UNIT B connecting speech unit
；
◆
Suitable for desktop and on-wall installation.
ET-CS-GR Pop-up Ground receptacle
Product Profile
◆
1 way of front-end input unit；
◆
2 ways of output：UNIT A and UNIT B connecting
speech unit；
◆
1 way of universal power port;
Stem
◆
Suitable for desktop and floor installation.
ET-CS-AI8 8 core Aviation Interface
Product Profile
◆
One male and one female, screw-type, engineering
agents may weld it on their own.
ET-CS-EP01 Extension Power
Product Profile
◆
For power extension for speech unit and interpreter unit, I
t serves as a relay when
with insufficient power supply from the mainframe.
◆
1 way of power input, AC100～240，50/60hz；
◆
1 way of UNIT input；
◆
4 ways of UNIT output, connecting to speech unit
or interpreter unit.
31
32
Honeywell Audiovisuals Guangzhou
No.257, Junye Road GETDD East 510530
Guangzhou, China
Tel：+86 20 2839 9600
Fax
：
+86 20 2839 8706
Website：www.empertech.com
Dulcet Conference System Product
Manual_EN1.0
Subject to cha
© 2011 Honeyw
Loading...
