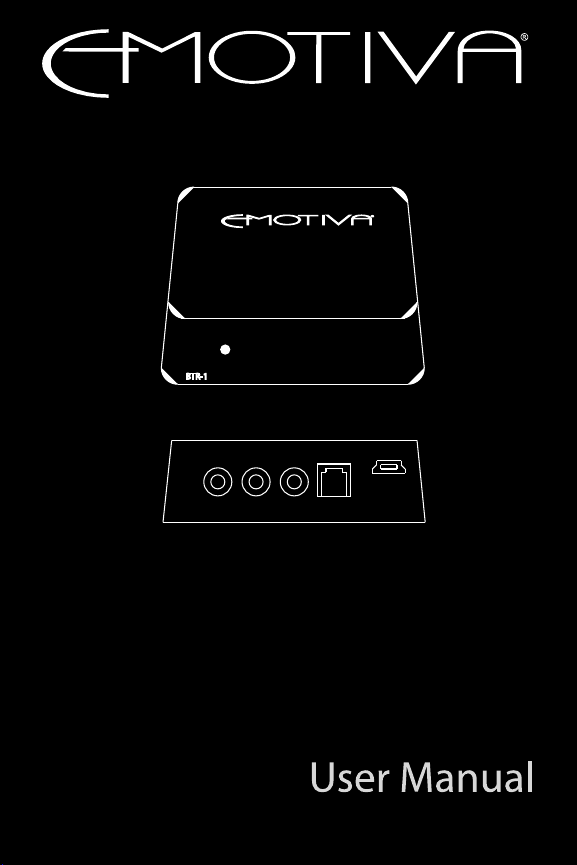

Emotiva BTR-1 User Manual

BTR-1

BTR-1

Bluetooth Receiver

Emotiva BTR-1Bluetooth Receiver

The Emotiva BTR-1 is a high performance Bluetooth
Receiver which can be used to add Bluetooth
functionality to any audio system. The BTR-1 oers a
reliable, stable, long range Bluetooth audio connection,
excellent sound quality, and supports the latest
Bluetooth 4.0 and Apt-X standards. The BTR-1 oers
both analog and digital audio outputs, for compatibility
with the widest possible variety of audio systems.

Features and Specications:

Analog audio outputs:
Stereo, unbalanced, 2V RMS.
Digital audio outputs:
S/PDIF; Toslink (optical) and Coax (electrical).
Bluetooth capabilities:
Fully Bluetooth 4.0 and AptX 3.0 compliant.
AptX 3.0 high quality audio CODEC.
Power requirements:
Standard mini-USB AC adapter; included
(can also be powered by 5v USB power)

High quality TI2134 op-amps used in critical locations.

Internal long range antenna.

Controls and Indicators:

• Analog / Digital Output Selector switch (bottom).

• Power indicator LED - blue (front).

Package Includes:

• BTR-1 Bluetooth receiver.

• AC power adapter (100 - 240 VAC 50 / 60 Hz)

• User Manual.
