Emotiva BasX TA2, BasX PT-2 User guide

Important Safety Precautions and Explanation of Symbols

The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important installation, operation, and service instructions in this manual.

!

The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltages within the enclosure that may be of sucient magnitude to
constitute a risk of electrical shock to the user.

Please read this manual thoroughly before attempting to install, congure, or operate the BasX PT2 Stereo
Preamp/DAC/Tuner or BasX TA2 Stereo Integrated Amp/DAC/Tuner. After successful installation and
conguration of the PT2 or TA2, be sure to retain this manual in a safe place for future reference.

Safety is a key component to a long lasting and trouble free installation. Please read and follow all
instructions and heed all warnings on the PT2 or TA2 and in this manual. The vast majority of the
subsequent safety precautions are common sense. If you are not comfortable with the installation of audio/
video entertainment equipment, you should seek the services of a qualied installation professional or call
us for help.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THE PT2 OR TA2 NEAR
WATER OR IN WET LOCATIONS, DO NOT EXPOSE IT TO RAIN OR MOISTURE, DO NOT EXPOSE IT TO

!

DRIPPING OR SPLASHING FROM OTHER SOURCES, AND ENSURE THAT NO OBJECTS FILLED WITH
LIQUIDS SUCH AS VASES ARE PLACED ON IT. DOING SO MAY RESULT IN DAMAGE TO THE UNIT AND
THE RISK OF ELECTRIC SHOCK, WHICH MAY RESULT IN BODILY INJURY OR DEATH.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER FROM THE
PT1 OR TA1. THERE ARE NO USERSERVICEABLE PARTS INSIDE THE UNIT. REFER ALL SERVICE TO
QUALIFIED SERVICE PERSONNEL.

Do not install the PT2 or TA2 near or above any heat sources such as radiators, heating vents, or other
apparatus’ that produce heat. Do not block any ventilation openings or heat sinks. Avoid installing the
unit directly above other heat-producing equipment unless sucient ventilation or forced-air cooling is
provided.

Do not install the PT2 or TA2 in locations without proper ventilation. The PT2 or TA2 should not be operated
on a bed, sofa, rug, or similar surface that may block vents. The unit should not be installed in an enclosed
location such as a bookcase, cabinet, or closed equipment rack unless sucient forced-air ventilation is
provided.

Always install your PT2 or TA2 according to the manufacturer’s instructions and only use attachments or
accessories specied by the manufacturer.

Do not install the PT2 or TA2 on any stand, shelf, or other piece of furniture that is unable to support its
weight. If a cart is used to move the unit, use caution to avoid injury from tip-over.

Connect the PT2 or TA2 only to power sources of the correct voltage (as shown in this manual and on the
PT2 or TA2 unit).

Protect power supply cables from being pinched, walked on, or otherwise damaged. Be especially careful
where the power cable enters the power outlet and the unit.

Only connect the PT2 or TA2 to an electrical outlet or extension cord of appropriate type and rating.
DO NOT defeat the safety purpose of a grounding or polarized plug by removing ground pins or using

unsafe adapters. A polarized plug has two blades - one wider than the other. A grounding plug has a
third ground prong in addition to the two main conductors. The wide blade or third groundling prong is
provided for your safety. If the provided plug does not t your outlet, consult an electrician to replace your
obsolete outlet. If you replace the power cord, only use one of similar type and equal or greater current
rating.

The power cable for the PT2 or TA2 should be unplugged from the outlet during severe electrical storms, or when
unused for a long period of time.

Only replace the fuse(s) in the PT2 or TA2 with fuse(s) of proper value and voltage rating.

The PT2 or TA2 should only be cleaned as directed in the manual. Avoid spraying liquids directly onto the unit

!

and NEVER spray liquids into the vents. Care should be taken so that small objects do not fall into the inside of the
unit.

You should seek service for your PT2 or TA2 by qualied service personnel if any of the following occur:

!

1. The power-supply cord or the plug has been damaged.

2. Objects or liquid have fallen or spilled into the vents.

3. The unit has been exposed to rain.

4. The unit exhibits a marked change in performance.

5. The unit has been dropped, or its enclosure or chassis is damaged.

NOTE: TO COMPLETELY DISCONNECT THE PT2 OR TA2 FROM THE AC POWER MAINS, DISCONNECT THE AC
POWER CORD FROM THE AC RECEPTACLE.

NOTE: THE POWER CORD ON THE PT2 OR TA2 MUST REMAIN READILY ACCESSIBLE AT ALL TIMES.

CAUTION

CAUTION: TO REDUCE THE RISK

OF ELECTRICAL SHOCK, DO

NOT REMOVE COVER. NO USER

SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

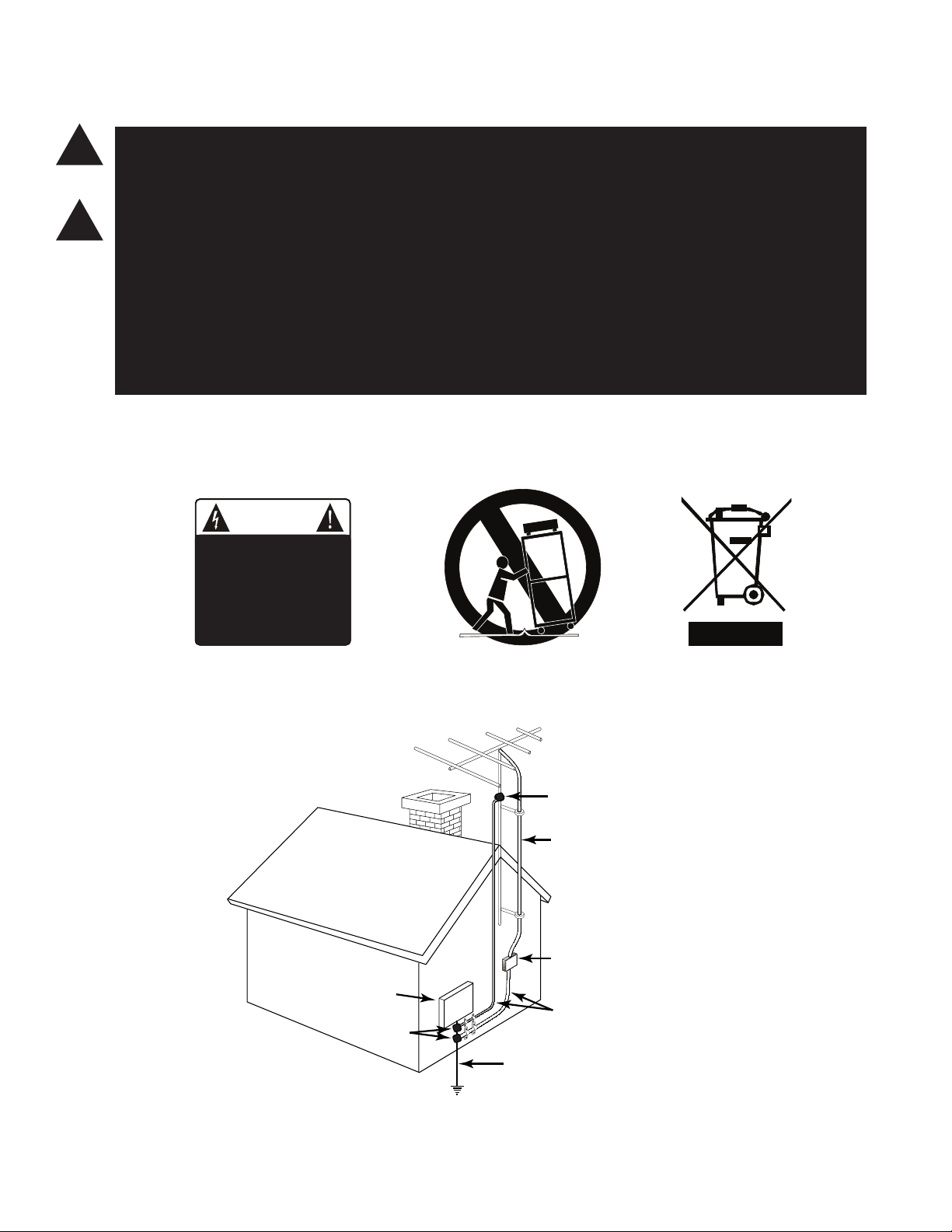

NEC - National Electrical Code

Electric service
equipment

Ground clamps

Ground clamp

Antenna lead-in wire

Antenna discharge unit
(NEC section 810-20)

Grounding conductors
(NEC section 810-20)

Power service grounding
electrode system
(NEC art 250, part H)

FCC Statement

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause

undesired operation.

2. Changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.

• Consult the dealer or an experienced radio/TV technician for help.

Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance of
20 cm between the radiator & your body.

BasX PT2 and BasX TA2

BasX PT2 and BasX TA2

Contents

Important Safety Precautions and Explanation of Symbols
FCC Statement

BasX PT2 and BasX TA2 .................................................................................................. 1

Introduction ......................................................................................................................3

About This Manual .......................................................................................................... 4

Features ..............................................................................................................................5

Unpacking ..........................................................................................................................7

Quick Start .........................................................................................................................8

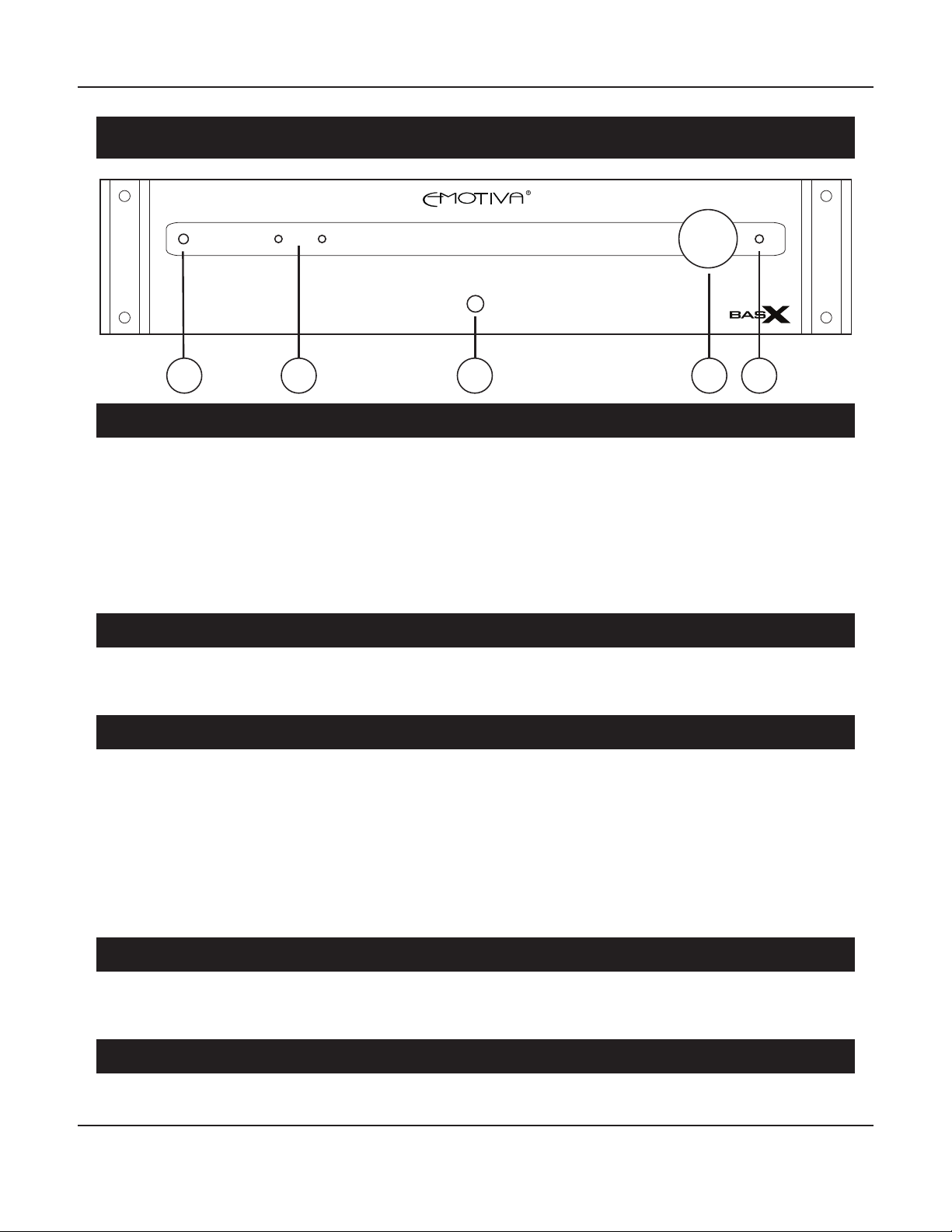

BasX PT2 and BasX TA2 Front Panel ..........................................................................9

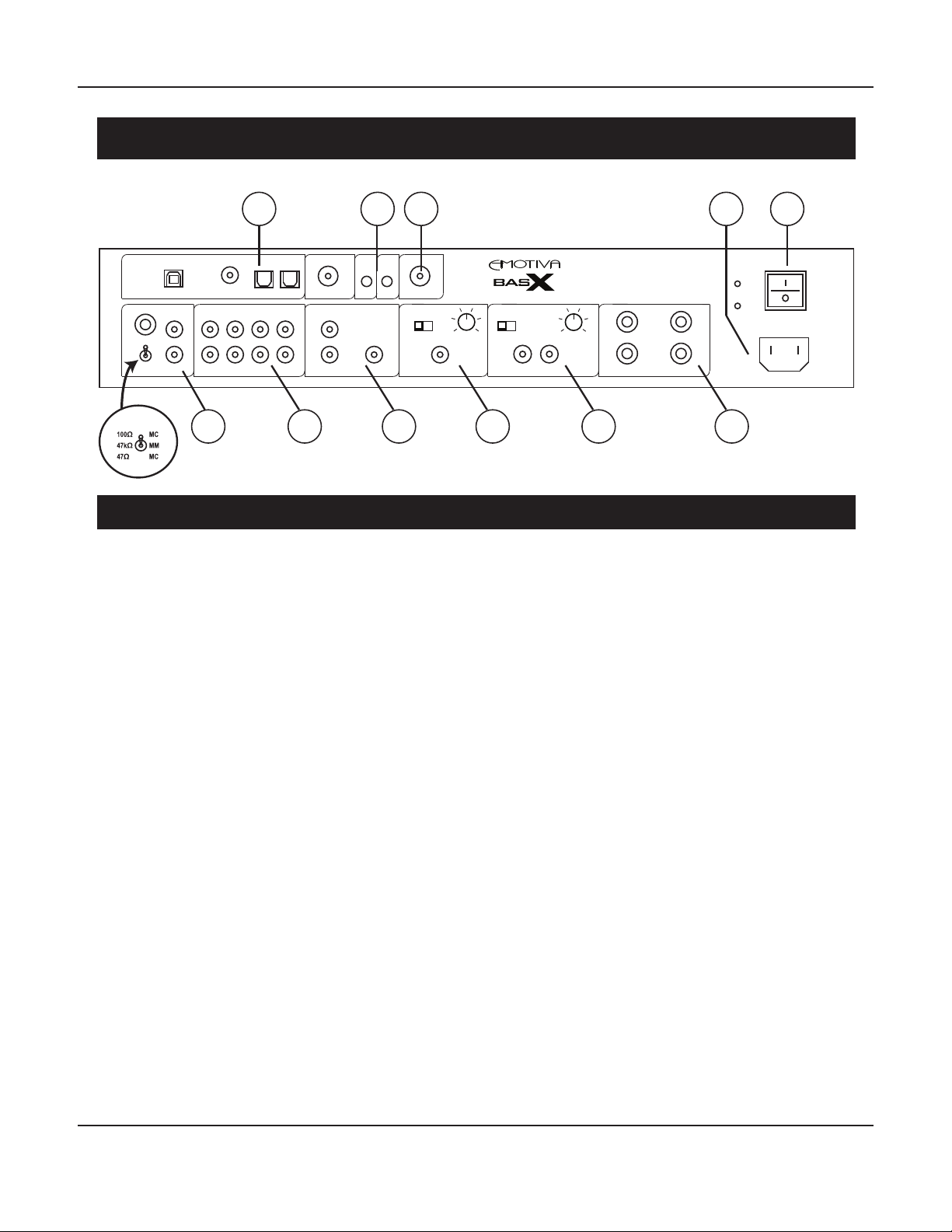

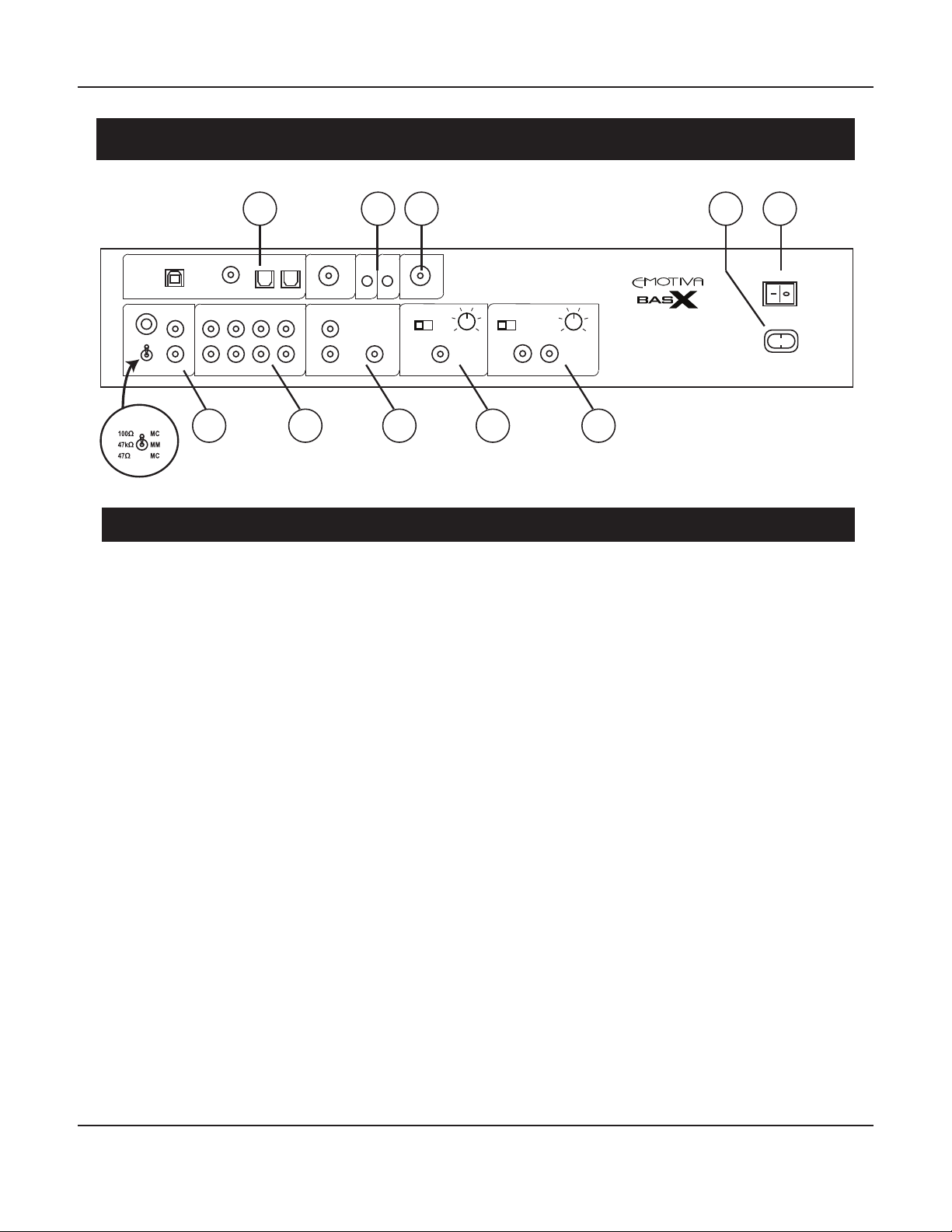

BasX PT2 Rear Panel .................................................................................................... 10

BasX TA2 Rear Panel .....................................................................................................13

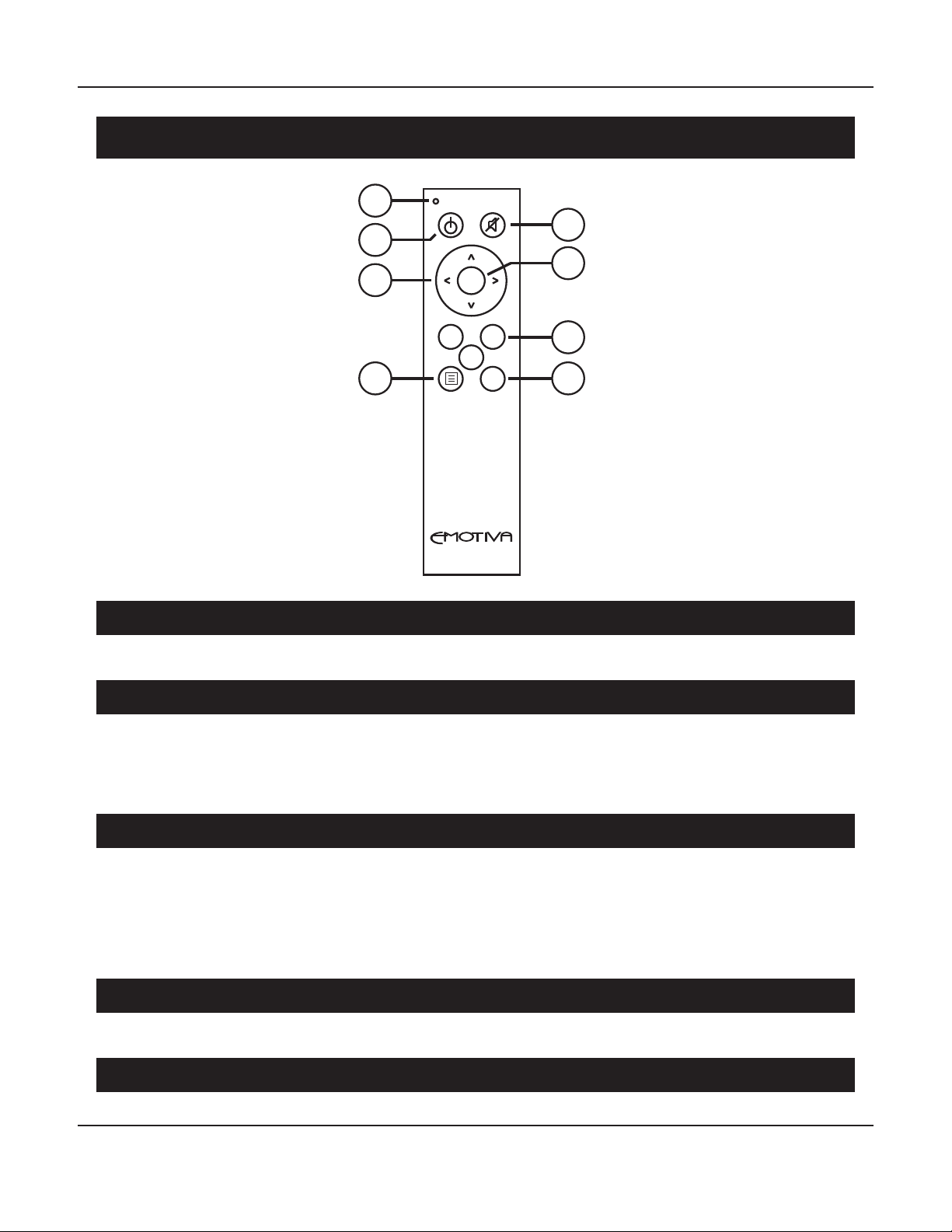

BasX PT2 and BasX TA2 Remote Control .............................................................. 16

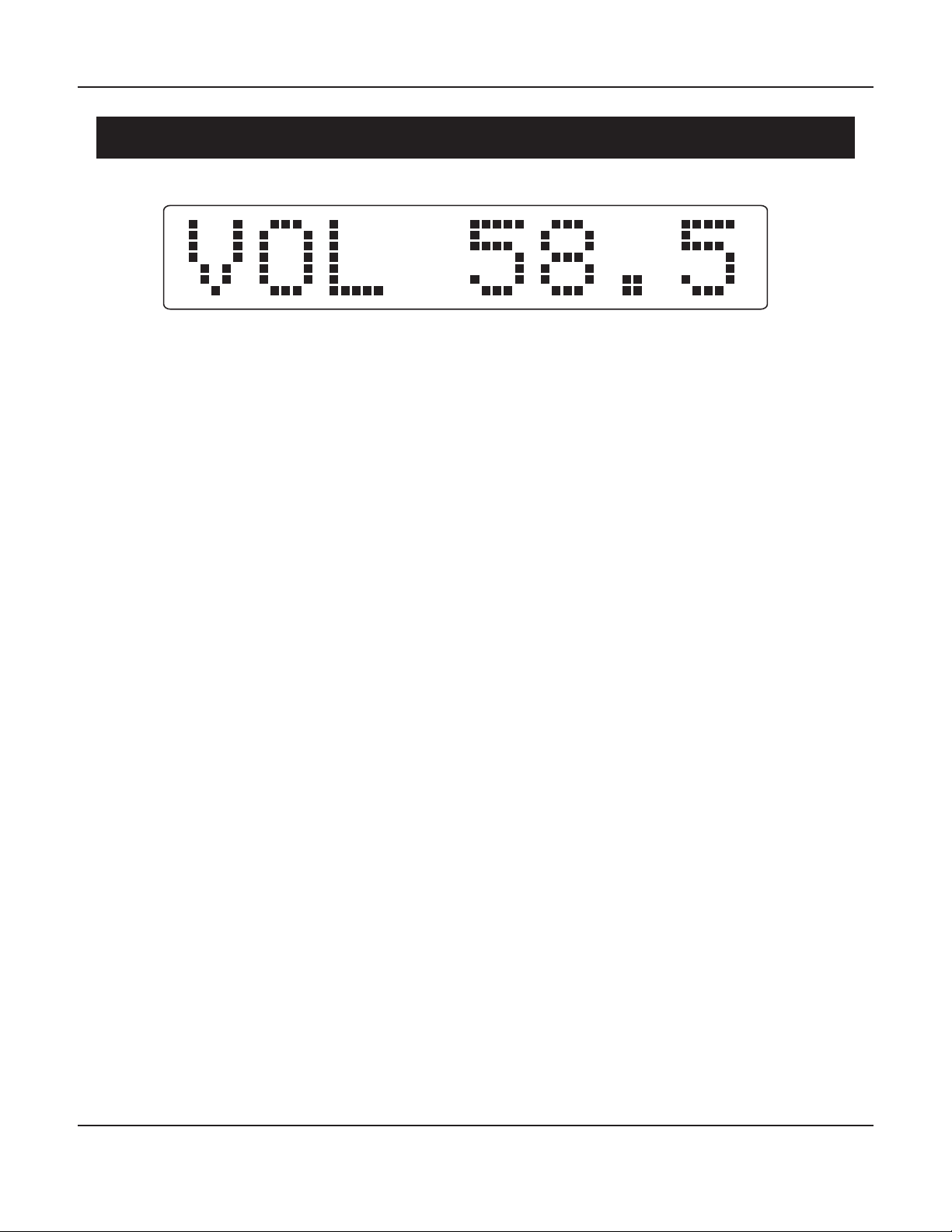

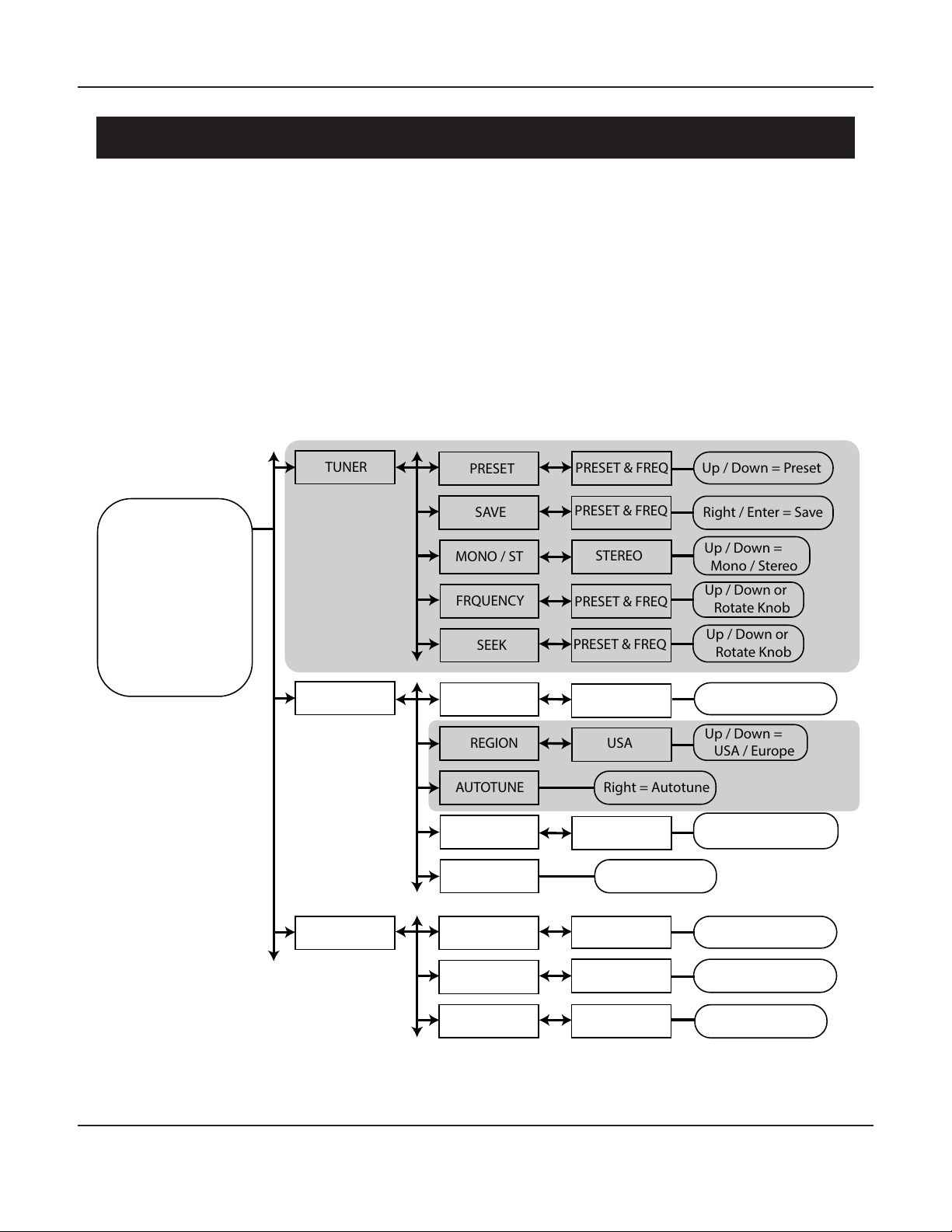

BasX PT2 and BasX TA2 Display and Menu System ..........................................18

Basic Controls and Operation .................................................................................. 19

The BasX PT2 and TA2 Menu .................................................................................... 20

Connections ................................................................................................................... 25

Care and Maintenance ............................................................................................... 28

Specications For Both PT2 and TA2 ..................................................................... 29

Emotiva Audio Corporation Three-Year Limited Warranty ............................ 32

Notes ................................................................................................................................. 35

Page 1

BasX PT2 and BasX TA2

Introduction

Thank you for purchasing your new BasX PT2 or TA2.
Our BasX product line is dedicated to the philosophy that high-quality products that deliver true

audiophile sound quality don’t need to be expensive to buy or complicated to congure and enjoy.
Every model in the BasX product line oers all of the essential features you need to maximize your
listening enjoyment.

The BasX PT2 is a high performance stereo preamplier that includes an internal stereo FM tuner
and plenty of inputs for all of your other analog and digital sources. Analog inputs include four
line level inputs for sources like CD players, and a high performance phono preamp that supports
both moving magnet and moving coil cartridges. Digital audio inputs, which are converted into
analog by the high performance internal DAC in the PT2, include a high-resolution asynchronous
USB input, two Toslink optical inputs, one coax electrical S/PDIF input, and a built-in AptX capable
Bluetooth receiver. The PT2 can be operated via the simple front panel controls, or by the included
infrared remote control. The intuitive menu system makes the PT2 simple to congure and operate,
and the large bright blue VFD display on the front panel is easy to read, and shows you exactly
what’s going on at all times. You can connect the output of the PT2 to a power amp to run a pair
of high-quality full range speakers, or a pair of powered loudspeakers, or utilize the built-in Bass
Management to add a powered subwoofer.

The TA2 oers the same performance, advanced features, and menu system as the PT2, but adds a
powerful internal Class A/B audiophile quality stereo amplier. Simply connect a pair of high quality
loudspeakers to the TA2 for a great sounding stereo system, or use the internal Bass Management
to add a powered subwoofer, and create an even more powerful 2.1 channel system. And, like the
PT2, the TA2 also has a line level main output so you can use it as a preamp, or connect an external
power amp for a second zone.

Of course, like every product in the BasX series, the BasX PT2 and TA2 include one critical feature
that you won’t nd in most other components in their price range: really great sound. The BasX PT2
and TA2 are true audiophile components, designed and built by audiophiles, to deliver the kind of
great sound quality that both audiophiles and music lovers expect in a high-end audio system.

Happy listening!
The Emotiva Team

Page 3

BasX PT2 and BasX TA2

About This Manual

This manual will provide you with all the information you need to get started enjoying your
BasX PT2 or BasX TA2.

We suggest that you read through the entire manual; we kept things as short and direct as
possible. Even if you’re an expert user, you will probably nd some interesting information and
useful suggestions.

If you’re really in a hurry to get started, please read the Quick Start section (on page 8); you may
then read the remainder of the manual at your leisure.

You may wish to keep a copy of this manual with your records, and record serial numbers or other
purchase information on the Notes page at the back.

Page 4

BasX PT2 and BasX TA2

Features

The BasX PT2 is a high performance stereo preamplier that includes an internal stereo FM tuner,
inputs for four line level analog sources, full analog Bass Management, a built-in high quality DAC
with plenty of digital inputs for all of your digital audio sources, a built-in Bluetooth input, and a
high performance phono preamp that supports both moving magnet and moving coil cartridges.
The BasX TA2 has the same features and performance as the PT2, but adds a powerful audiophile
quality stereo amplier.

Features of the BasX PT2 and BasX TA2:

• Top quality parts and construction - Double sided FR4 circuit boards with plated through
holes, SMD construction, and high quality parts throughout, ensure that your BasX PT2 or TA2
will deliver years of reliable service.

• Highly optimized circuit layout – ensures the best possible sound quality, with low
distortion, wide bandwidth, and a virtually silent noise oor.

• Sensitive FM tuner – features RDS support, 15 station presets, and a Mono mode to help
make even weak stations listenable.

• High performance phono preamp – The built-in phono preamp delivers excellent
performance, and sounds superb, with both Moving Magnet and Moving Coil cartridges.

• Plenty of line level analog inputs for all of your analog sources. Both the PT2 and TA2
include four line level inputs you can use for analog sources like streamers and CD players.

• A full complement of digital inputs – including one 24/192k asynchronous USB input, one
24/192 coax input, two optical S/PDIF inputs, and a built-in Bluetooth receiver.

• Pure analog signal path for analog inputs – Analog inputs on the BasX PT2 and TA2 follow
a pure analog signal path and are never converted into the digital domain. All switching and
Volume and Tone control is accomplished in the analog domain. Bass Management is also
done purely in the analog domain.

• Home theater bypass – Relay controlled home theater bypass option allows you to route
the left, right, and subwoofer channels from a second audio or home theater system directly
to the Preamp Outputs on the PT2 and TA2, and to the ampliers powering the left and right
speaker outputs on the TA2.

• Precision digital conversion – Digital inputs are routed through the legendary Analog
Devices AD1955 24/192 DAC for conversion into the analog domain for accurate and great
sounding digital audio performance.

• Bass, Treble, and Balance Controls – Bass and Treble controls provide a familiar way
to adjust your system to sound just the way you like it. And our unique balance control
simultaneously adjusts the levels of both channels so the overall sound level in your room
remains constant.

• Large blue VFD display and exible menu system – The large blue VFD display is easy to
read, gives you all the information you need about how your PT2 or TA2 is congured, and
can be fully dimmed for intimate listening. The exible menu system oers easy access to all
important features and makes menu navigation a breeze.

Page 5

BasX PT2 and BasX TA2

• Mute control – allows you to mute the audio output on your system, and then return
precisely to your previous listening level, at the push of a knob or the click of a button.

• Separate headphone output with intelligent headphone level control – A separate,
high current, direct coupled headphone amplier provides a high quality signal to drive
your favorite headphones for personal listening. The intelligent level feature independently
remembers the levels you set for your headphones and your main outputs.

• Full analog Bass Management – Both the PT2 and TA2 include full Bass Management,
featuring switchable active 12 dB/octave Linkwitz-Riley high-pass and low-pass lters, with
independently adjustable frequencies.

• Full function remote control – lets you operate all of the controls without getting out of
your favorite listening seat. Quick access buttons allow you to quickly switch between the FM
Tuner and your last used digital and analog inputs.

• Heavy steel 2RU chassis with milled aluminum face plate - provides strength and rugged
good looks.

• Universal AC line voltage operation - The BasX PT2 has a universal-voltage power supply
that can operate on anything from 100 VAC to 240 VAC. The BasX TA-2 has a powerful linear
main power supply, which is designed to operate on either 115 VAC or 230 VAC at 50/60 Hz,
and automatically detects and congures itself to operate with your local line voltage.

• Full three year warranty - ensures that you’ll be able to enjoy your BasX PT2 or TA2 for years
to come.

Features unique to the BasX TA2:

• Powerful audiophile quality Class A/B amplier – The powerful audiophile quality Class
A/B amplier in the BasX TA2 delivers 135 watts/channel into 8 Ohms, or 200 watts/channel
into 4 Ohms, with vanishingly low distortion, at frequency response, and an excellent S/N
ratio.

• Separate preamp output – Even though the BasX TA2 includes its own internal ampliers, it
also provides preamp outputs, which can be used at the same time as the internal ampliers.
This allows you to use the TA2 as a preamp and control center with a separate external power
amplier. (You can also operate both an external amplier and the internal ampliers in the
TA2 at the same time to power multiple zones or multiple sets of speakers in your main zone.)

• Full active bass management – Both the PT2 and TA2 oer full active analog Bass
Management. When the Bass Management High Pass lter on the TA2 is enabled, it is applied
to both the Preamp Output, and the internal ampliers in the TA2. The Subwoofer Output can
be congured to send either a summed full range signal, or a Bass Managed Low Pass ltered
signal, to your subwoofer. This allows you to transform the BasX TA2 into a 2.1 channel system,
with full active Bass Management, by simply adding a powered subwoofer.

You can nd more information about the BasX PT2, the BasX TA2, and the entire BasX line of
products, on our website at:

www.emotiva.com.

Page 6

BasX PT2 and BasX TA2

Unpacking

Your BasX PT2 or TA2 was carefully packed and should reach you in perfect condition. If you notice
any shipping damage or other issues when you unpack it, please contact Emotiva immediately.

Gently remove your BasX unit from the packing carton and remove all wrappings and shipping
material.

It is important to save the box and all packing materials in case your BasX unit ever needs to be
moved or shipped back to the factory for service.

We truly value customer feedback and would like to hear from you.

Page 7

BasX PT2 and BasX TA2

Quick Start

To get the most from your BasX PT2 or BasX TA2 we urge you to read the entire manual. If you just
can’t wait to listen to it, this section will cover the basics you need to get started.

• Find a secure location for your BasX PT2 or TA2.

• Connect your BasX PT2 to a set of speakers and an amplier and / or subwoofer, or connect
your BasX TA2 to a set of speakers, and add a separate powered subwoofer if you like.
(Refer to the Connections section of the manual for details. If you are not using a subwoofer
then be sure to set both Low Pass and High Pass lters to O.)

• If you’re setting up a 2.1 channel system be sure to read the appropriate sections of the
manual about how to congure your Bass Management crossover settings.

• Find some music you really like to listen to.

• Turn on the AC Power switch and turn up the volume a bit!

• Enjoy!

While you’re enjoying your BasX PT2 or TA2, it would be a great time to read the rest of the manual
to learn more about it.

Page 8

BasX PT2 and BasX TA2

BasX PT2 and BasX TA2 Front Panel

1. Headphone Jack

Use this jack to connect a pair of high-quality headphones.

Note: The Main Outputs are muted when headphones are inserted.

4 51 32

Note: The intelligent level control on the PT2 and TA2 independently stores and remembers the
levels for your Main Outputs and your Headphones. When you unplug your headphones, your
speakers will return to their previous level, and when you reconnect your headphones, they will
return to their previous level.

2. Input Buttons

In normal operation, these buttons are used to select which Input to listen to. (They perform
dierent functions when you’re in the Setup Menu; see the Setup Menu section for details.)

3. Power / Standby Button

This button is used to toggle the PT2 and TA2 between Standby and On modes. When the unit is
fully O nothing on the front panel will be illuminated. When the unit is in Standby the Standby
LED will be lit amber. When the unit is On, the Standby LED will be dark, the VFD will be lit, and
small blue legends beside the Headphone Jack and Input Buttons will be illuminated.

Note: The PT2 and TA2 will only operate when the AC Power Switch on the rear panel is On.
When the AC Power Switch is turned On, the Standby Indicator will light amber; at which point
pressing the Standby button will turn the unit On.

4. Volume Knob

In normal operation, this knob is used to control the Volume on the unit. (It performs slightly
dierent functions when you’re in the Setup Menu; see the Setup Menu section for details.)

5. Standby LED

When the unit is in Standby the Standby LED will be lit amber. When the unit is fully O, or when
the unit is On, the Standby LED will not be lit.

Page 9

BasX PT2 and BasX TA2

BasX PT2 Rear Panel

1 2 3 5

DIGITAL INPUTS BT TR-IN TR-OT FM

USB COAX OPT1 OPT2

GROUND AN1 AN2 AN3 AN4

L L

R R

PHONO INPUT ANALOG INPUTS HT BYPASS SUB OUTPUT PRE OUTPUT

LOADING / TYPE

6 10987

LOW PASS HIGH PASS

SUB

OFF ON OFF ON

40 200 40 200

SUB

R L

STEREO PREAMPLIFIER

MODEL PT-2

4

POWER

AC INPUT

1. Digital Audio Inputs

The PT2 provides several dierent digital audio inputs to accommodate a variety of digital audio
sources.

• The asynchronous USB input accepts digital audio from a computer or other digital audio
source that supports an external USB audio device. It supports standard stereo PCM digital
audio up to 24/192k.

• The Coax input accepts PCM electrical S/PDIF digital audio signals up to 24/192k. This input
is often used to connect the digital audio output from a CD player or Blu-Ray disc player. This
input ONLY accepts STEREO PCM audio signals.

• The Optical inputs accept PCM optical S/PDIF digital audio signals, often referred to as Toslink,
up to 24/192k. This input is used to connect the Toslink output from a TV, disc player, or media
player. This input ONLY accepts STEREO PCM audio signals.

• The Bluetooth input (antenna) accepts audio from a Bluetooth enabled smart phone or other
Bluetooth source device.

Note: The USB audio input on the PT2 utilizes an asynchronous USB Audio Class 2 type input,
which can be connected directly to Windows 10 computers, and to Apple computers with
standard USB audio outputs. In order to use this input with a Windows 10 computer you will
need to download and install our free USB audio driver - which you can download from the
Emotiva Lounge (our Forum). You will not need to install a driver to use this input with Apple
computers that oer standard USB audio outputs. However, some Apple devices, including
most that use IOS, will reauire the use of a special Apple USB hardware adapter.

Page 10

BasX PT2 and BasX TA2

2. Trigger Input and Output

A 12 VDC signal is sent from the Trigger Output of the PT2 to turn on other devices when the PT2
is turned on. This signal can be used to turn on other trigger-enabled audio equipment such as a
power amplier.

The PT2 will turn on when it receives a trigger signal from another trigger enabled device. The
PT2 will accept trigger signals between 5V and 12V AC or DC. (Most devices use a 12 VDC trigger
signal.)

Note: A trigger signal will only turn on the PT2 if the PT2 is in Standby mode - with the rear
panel AC Power Switch in the On position.

3. FM Antenna Input

Connect an FM radio antenna to this input to receive FM radio.

Note: Your BasX PT2 was supplied with a simple wire FM antenna. You will get the best
reception if this wire is stretched vertically and above any metal obstructions. For better
reception, especially in fringe reception areas, this can be replaced with a more powerful
directional antenna.

4. Power Cord Receptacle

Use this receptacle to attach the included power cable for the PT2.

5. AC Power Switch

Switches the main AC power to the PT2 On and O. When this switch is O, no controls operate,
and the PT2 cannot be turned On from the front panel Standby Button or remote control.

6. Phono Input

Connect the Left and Right outputs from your turntable to the Phono Inputs on the PT2. If your
turntable provides a separate ground connection connect it to the Ground lug.

Set the Loading / Type Switch to the appropriate setting for your phono cartridge.
For Moving Coil cartridges you may select a load impedance of either 47 Ohms or 100 Ohms.
For Moving Magnet cartridges the load impedance is xed at the standard 47k Ohms.

Note: Some turntables may not provide a separate ground lead. You may also nd that, even
on some turntables that provide a ground lead, you get less hum when it is disconnected.

Note: The Phono Input is intended to accept the low-level output from a moving magnet or
moving coil phono cartridge, and includes RIAA phono equalization. DO NOT connect a line
level source to this input or the sound will be distorted and you may damage the Phono Input.
If your turntable has a built-in phono preamp, and provides a line level output, then you should
connect it to an Analog Input instead.

Note: The manufacturers of some phono cartridges may instruct you to set the gain switch to
MM for a “high output moving coil cartridge”; always follow manufacturer’s recommendations.

Page 11

BasX PT2 and BasX TA2

7. Analog Inputs (Line Level Stereo Inputs)

The Analog Inputs on the PT2 will accept unbalanced line level inputs from CD players, streamers,
and other line level stereo analog sources.

8. Home Theater Bypass Analog Input

The Home Theater Bypass input on PT2 accepts a 2.1 channel line level analog input. When Home
Theater Bypass is selected from the PT2 menu this signal is routed directly to the Sub Output and
Preamp Output on the PT2.

Note: Even though the incoming signal is routed via a relay, and does not pass through any
active audio circuitry, the HT Bypass signal is only routed to the output when the PT2 is On.

Note: The Home Theater Bypass inputs on the BasX PT2 are routed directly to the outputs and
BYPASS BOTH THE VOLUME CONTROL AND BASS MANAGEMENT ON THE PT2.

9. Summed Subwoofer Output (With Active Low-Pass Filter)

This output allows you to connect a powered subwoofer to the PT2. When the Low Pass switch
is set to O a full range summed signal is sent directly to the Subwoofer Output. Setting this
switch to On engages an analog 12 dB/octave low-pass lter whose rollo frequency can be set to
anywhere between 40 Hz and 200 Hz.

10. Preamp Output (With Optional High Pass Filter)

This is the main line level Preamp Output which you will connect to the power amp that powers
your main left and right speakers. When the High Pass switch is set to O this output delivers a
full range stereo signal. Use this option if you don’t have a subwoofer.

Setting this switch to On engages an analog 12 dB/octave high-pass lter whose cuto frequency
can be set to anywhere between 40 Hz and 200 Hz.

Note: If your sub has a Phase control or switch, it should be set for THE MOST BASS at or near
the crossover point, as heard from your main listening position. (This should NOT produce a
lump in the bass response if you set the Bass Management on the PT2 correctly.)

Note: In most cases, if you plan to use a powered subwoofer, the best option is to allow the
PT2 to handle Bass Management, which is done by setting both the Low Pass and High Pass
Switches to On, and the Frequency controls on both to the same frequency. In this case you will
want to bypass any Bass Management options on the subwoofer itself. (If your sub has an LFE
input then use that; if there is an option to bypass its internal crossover choose that; if there is
no option to bypass the internal crossover then set it to its highest frequency.)

Note: If you prefer to use the Bass Management controls on your sub to match it to your main
speakers then you should set the Low-Pass switch on the PT2 to O.

Page 12

BasX PT2 and BasX TA2

BasX TA2 Rear Panel

1 2 3 5

DIGITAL INPUTS BT TR-IN TR-OT FM

USB COAX OPT1 OPT2

GROUND AN1 AN2 AN3 AN4

L L

R R

PHONO INPUT ANALOG INPUTS HT BYPASS SUB OUTPUT PRE OUTPUT SPEAKER OUTPUTS

LOADING / TYPE

6 1110987

LOW PASS HIGH PASS

SUB

OFF ON OFF ON

40 200 40 200

SUB

R L

STEREO INTEGRATED AMPLIFIER

R L

MODEL TA-2

+

_

4

115V

POWER

230V

AC INPUT

POWER

1. Digital Audio Inputs

The TA2 provides several dierent digital audio inputs to accommodate a variety of digital audio
sources.

• The asynchronous USB input accepts digital audio from a computer or other digital audio
source that supports an external USB audio device. It supports standard stereo PCM digital
audio up to 24/192k.

• The Coax input accepts PCM electrical S/PDIF digital audio signals up to 24/192k. This input
is often used to connect the digital audio output from a CD player or Blu-Ray disc player. This
input ONLY accepts STEREO PCM audio signals.

• The Optical inputs accept PCM optical S/PDIF digital audio signals, often referred to as Toslink,
up to 24/192k. This input is used to connect the Toslink output from a TV, disc player, or media
player. This input ONLY accepts STEREO PCM audio signals.

• The Bluetooth input (antenna) accepts audio from a Bluetooth enabled smart phone or other
Bluetooth source device.

Note: The USB audio input on the TA2 utilizes an asynchronous USB Audio Class 2 type input,
which can be connected directly to Windows 10 computers, and to Apple computers with
standard USB audio outputs. In order to use this input with a Windows 10 computer you will
need to download and install our free USB audio driver - which you can download from the
Emotiva Lounge (our Forum). You will not need to install a driver to use this input with Apple
computers that oer standard USB audio outputs. However, some Apple devices, including
most that use IOS, will reauire the use of a special Apple USB hardware adapter.

Page 13

BasX PT2 and BasX TA2

2. Trigger Input and Output

A 12 VDC signal is sent from the Trigger Output of the TA2 to turn on other devices when the TA2
is turned on. This signal can be used to turn on other trigger-enabled audio equipment such as a
power amplier.

The TA2 will turn on when it receives a trigger signal from another trigger enabled device. The
TA2 will accept trigger signals between 5V and 12V AC or DC. (Most devices use a 12 VDC trigger
signal.)

Note: A trigger signal will only turn on the TA2 if the TA2 is in Standby mode - with the rear
panel AC Power Switch in the On position.

3. FM Antenna Input

Connect an FM radio antenna to this input to receive FM radio.

Note: Your BasX TA2 was supplied with a simple wire FM antenna. You will get the best
reception if this wire is stretched vertically and above any metal obstructions. For better
reception, especially in fringe reception areas, this can be replaced with a more powerful
directional antenna.

4. Power Cord Receptacle

Use this receptacle to attach the included power cable for the TA2.

5. AC Power Switch

Switches the main AC power to the TA2 On and O. When this switch is O, no controls operate,
and the TA2 cannot be turned On from the front panel Standby Button or remote control.

6. Phono Input

Connect the Left and Right outputs from your turntable to the Phono Inputs on the TA2. If your
turntable provides a separate ground connection connect it to the Ground lug.

Set the Loading / Type Switch to the appropriate setting for your phono cartridge.
For Moving Coil cartridges you may select a load impedance of either 47 Ohms or 100 Ohms.
For Moving Magnet cartridges the load impedance is xed at the standard 47k Ohms.

Note: Some turntables may not provide a separate ground lead. You may also nd that, even
on some turntables that provide a ground lead, you get less hum when it is disconnected.

Note: The Phono Input is intended to accept the low-level output from a moving magnet or
moving coil phono cartridge, and includes RIAA phono equalization. DO NOT connect a line
level source to this input or the sound will be distorted and you may damage the Phono Input.
If your turntable has a built-in phono preamp, and provides a line level output, then you should
connect it to an Analog Input instead.

Note: The manufacturers of some phono cartridges may instruct you to set the gain switch to
MM for a “high output moving coil cartridge”; always follow manufacturer’s recommendations.

Page 14

BasX PT2 and BasX TA2

7. Analog Inputs (Line Level Stereo Inputs)

The Analog Inputs on the TA2 will accept unbalanced line level inputs from CD players, streamers,
and other line level stereo analog sources.

8. Home Theater Bypass Analog Input

The Home Theater Bypass input on TA2 accepts a 2.1 channel line level analog input. When Home
Theater Bypass is selected from the TA2 menu this signal is routed directly to the Sub Output and
Preamp Output on the TA2 as well as to the input of the amplier section in the TA2.

Note: Even though the incoming signal is routed via a relay, and does not pass through any
active audio circuitry, the HT Bypass signal is only routed to the output when the TA2 is On.

Note: The Home Theater Bypass inputs on the BasX TA2 are routed directly to the outputs and
BYPASS BOTH THE VOLUME CONTROL AND BASS MANAGEMENT ON THE TA2.

9. Subwoofer Output (With Active Low-Pass Filter)

This output allows you to connect a powered subwoofer to the TA2. When the Low Pass switch
is set to O a full range summed signal is sent directly to the Subwoofer Output. Setting this
switch to On engages an analog 12 dB/octave low-pass lter whose rollo frequency can be set to
anywhere between 40 Hz and 200 Hz.

10. Preamp Output (With Optional Active High-Pass Filter)

This is a line level Preamp Output which you can connect to a separate power amp to power your
main left and right speakers. This output carries the same preamp signal that is used to drive the
internal power ampliers in the TA2.

When the High Pass switch is set to O this output delivers a full range stereo signal. Use this
option if you don’t have a subwoofer. Setting this switch to On engages an analog 12 dB/octave
high-pass lter whose cuto frequency can be set to anywhere between 40 Hz and 200 Hz.

11. Speaker Outputs

This is the main output you will use to connect a pair of speakers to the power amplier outputs
on the TA2. Although this output is always active, if you wish to use the TA2 as a preamp, you are
not required to connect speakers.

Note: THE HIGH-PASS FILTER FOR THE PREAMP OUTPUT ALSO CONTROLS THE AUDIO SIGNAL
BEING SENT TO THE MAIN AMPLIFIER SECTION OF THE TA2. IF THE HIGH-PASS SWITCH IS SET TO
ON THEN THE SAME 12 DB/OCTAVE HIGH-PASS FILTER WILL BE APPLIED TO THE SIGNAL BEING
SENT TO THE MAIN AMPLIFIERS.

Note: If you plan to use the power amps in the TA2 to power your main speakers, and connect
a powered subwoofer to the Subwoofer Output, and you plan to allow the TA2 to control Bass
Management, you will typically want both the Low Pass and High-Pass Switches set to On, and
the Frequency controls on both set to the same frequency.

Page 15

BasX PT2 and BasX TA2

BasX PT2 and BasX TA2 Remote Control

1

2

3

ENTER

5

6

DIGI ANA

FM

4

DIM

7

8

1. Transmit LED

This LED will ash red whenever a button on the remote control is pressed.

2. Power Button

This button is used to toggle the PT2 or TA2 between Standby and On modes.

Note: The Remote Control will only operate when the AC Power Switch on the rear panel of the
unit is in the On position.

3. Navigation Ring / Buttons

In normal operation, pressing the Left and Right arrows will switch Inputs, and the Up and Down
arrows will raise and lower the Volume.

Note: When the Setup Menu is engaged, the arrows are used for menu navigation.

Note: WHen the Tuner Input is selected the Left and Right arrows are used for tuning.

4. Menu Button

This button toggles the Setup Menu on and o.

5. Mute Button

Press this button to mute the audio output; press it again to return the audio to its previous level.

Page 16

BasX PT2 and BasX TA2

6. Enter Button

This button is used for menu navigation.

7. Input Select Buttons

Digi - The rst time this button is pressed it selects the last used Digital Input. Each time you press
it after that will sequence through the available Digital Inputs.

Ana - The rst time this button is pressed it selects the last used Analog Input. Each time you press
it after that will sequence through the available Analog Inputs.

FM - The rst time this button is pressed it selects the FM Tuner and the last FM Preset that was
used. Each time you press it after that will sequence through the available FM Presets.

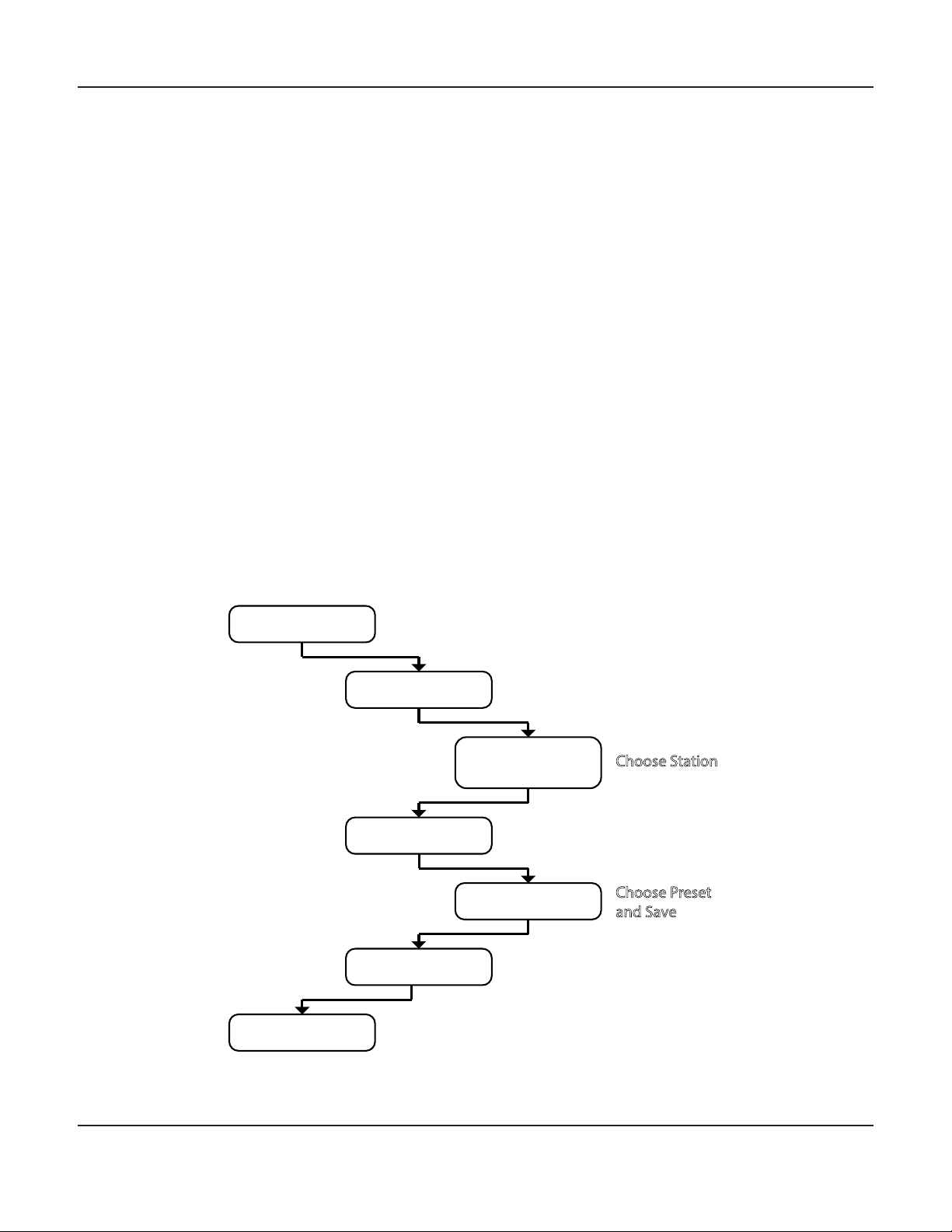

SPECIAL NOTE: Tuning FM Stations and Setting FM Presets Using the Remote Control

The BasX PT2 and TA2 have a special feature that allows you to directly tune FM stations, and
to easily assign stations to FM Presets, using the remote control. This feature is activated when
you use the FM BUTTON on the remote control to switch to the Tuner input.

Once you have selected the Tuner Input by pressing the FM BUTTON on the remote control...

- Pressing the FM Button repeatedly will sequence through the available FM Presets.

- Pressing the Left navigation button will cause the Tuner to seek DOWN to the next station.

- Pressing the Right navigation button will cause the Tuner to seek UP to the next station.

- Pressing the ENTER button on the remote control will cause the currently tuned station to

be saved to the currently selected FM Preset.

Note: THIS FEATURE CAN ONLY BE ACCESSED BY USING THE REMOTE CONTROL.
The Volume control and Mute function on the remote control and the front panel,
and the Input buttons on the front panel, will all continue to function normally.

8. Dim Button

This button sets the brightness of the display by sequencing through the available steps.
(Steps are 0%, 20%, 40%, 60%, 80%, 100%.)

WARNING: The PT2 and TA2 remote control uses some codes which conict with the control
codes used by our XMC and RMC processors. Using a PT2 or TA2 remote control within
operating range of an XMC or RMC processor, or using a processor remote control within range
of a PT2 or TA2, may result in unexpected responses from the other unit.

Page 17

BasX PT2 and BasX TA2

BasX PT2 and BasX TA2 Display and Menu System

The BasX PT2 and TA2 feature a large, bright, easy to read VFD (vacuum uorescent display) which
keeps you informed of the current status at all times.

In normal operation, this display shows the currently selected Input.
When you change the Volume setting, the display switches to display the Volume setting for

several seconds, then returns to showing the currently selected Input. The display also sometimes
momentarily displays other useful information - like the sample rate of the signal coming into a
digital input when you select it.

When the PT2 or TA2 is turned on, it always returns to same Input and Volume setting as when it
was turned o. The only exception to this is that, as a safety feature, if the unit is turned o while
set to a very high Volume setting, it will restart at a maximum Volume level of 62. If you turn the
PT2 or TA2 o while it’s in the Setup Menu, when you turn it on it will start up in normal operating
mode.

When you turn the unit on, the display will show a welcome message, then briey display the
Volume setting that was current when the unit was turned o. The Volume setting will then return
to zero and ramp up to the previous Volume setting that was shown.

The BasX PT2 and TA2 also have a Setup Menu, which is used to congure various system options,
like the brightness of the display, to congure and access the Tuner Presets, and to adjust the
Bass, Treble, and Balance settings. The Setup Menu is accessed by pressing and holding the
Volume knob on the front panel, or by pressing the Menu Button on the remote control. Pressing
the Volume knob briey, or pressing the Mute button on the remote control, toggles the Mute
function on and o.

Note: THE SETUP MENU WILL OFFER DIFFERENT OPTIONS DEPENDING ON WHICH INPUT IS
SELECTED WHEN YOU ENTER THE MENU SYSTEM. TUNER OPTIONS will ONLY appear in the
Setup Menu if the Tuner Input is selected when you enter the Menu System.

Page 18

BasX PT2 and BasX TA2

Basic Controls and Operation

Refer to pages 9 - 17 for the location of the controls and buttons on the BasX PT2 and BasX TA2
and details about how each control operates..

The rst thing to do after connecting your BasX PT2 or TA2 is to turn the rear panel Power switch
On. Once you turn on the Power switch, the Standby LED will illuminate amber to indicate that
your unit is now in Standby mode.

Once your unit is in Standby mode you may turn it fully On by pressing the Power button on the
remote control or the Power / Standby button on the front panel. When you press either button
the unit will go through its startup sequence:

- the Standby LED will extinguish

- the front panel VFD display will rst display the Emotiva logo

- the VFD will then display the name of the unit

- the VFD will then display the currently selected input

- the VFD will then display the Volume setting that was stored when it was turned O

- the Volume display will then reset to 0 and then ramp up to the stored Volume setting

- nally the VFD display will return to displaying the name of the currently seleted Input

The lowest Volume setting on the BasX PT2 and BasX TA2 is 00.0
The maximum Volume setting on the BasX PT2 and BasX TA2 is 80.0
The Volume control moves in steps of 0.5 (21.0, 21.5, 22.0, etc.)

The BasX PT2 and TA2 have a safety limit on the initial Volume ramp up.
If the stored Volume setting is above 62.0 the ramp up will stop at a setting of 62.0

Once the unit has completed its power up sequence you may select which input to listen to by:

- using the Left / Right Input Buttons on the front panel

- using the Left / Right navigation buttons on the remote control

- using the Analog, Digital, and FM direct access buttons on the remote control

You may turn the Volume Up or Down on your BasX PT2 and TA2 by using either the front panel
Volume knob or the Up and Down navigation buttons on the remote control. As you change the
Volume the current Volume setting will be displayed on the front panel VFD. The VFD will return
to displaying the currently selected Input a few seconds after the Volume stops changing. If the
front panel VFD is fully dimmed, it will illuminate to display the Volume or Input when you change
them, then switch o again after a few seconds.

The BasX PT2 and TA2 also have an audio Mute function. Press the Volume knob or the Mute
button on the remote control to temporarily mute the audio. The VFD will ash “mute” to indicate
that the unit is muted. When the unit is muted, pressing either the Volume knob or button again
will toggle the Mute mode o.

To return the unit to Standby mode simply press the Power button on the remote control or the
Power / Standby button on the front panel.

Note: It’s OK to turn the unit o using the Power switch without rst going to Standby mode.

Page 19

BasX PT2 and BasX TA2

PT1 & TA1 Setup Menu

The BasX PT2 and TA2 Menu

The Menu system in the BasX PT2 and TA2 may be entered either by pressing the Menu Button
on the remote control or by pressing and holding the Volume knob. The options available in the
Menu will be dierent depending on whether the FM Tuner Input is selected when you enter the
Menu system.

The following Menu Tree shows all of the Setup Menu options.
The options in the areas shown with a shaded background will ONLY be visible if you enter the

Menu System while the Tuner Input is selected.

NOTE: Selections shown with grey background are ONLY visible if
you enter the Setup Menu when the TUNER INPUT is selected !

To enter Menu press
and hold Volume Knob
or press Menu Button
on remote control.
To move between
Main Menu items
rotate Volume Knob
on front panel or use
Up / Down buttons on
remote control.

NOTE:
In most situations the
Left / Right Buttons on
the front panel do the
same thing as the
Left / Right nav buttons
on the remote control.

NOTE:
In most situations the
Up / Down Buttons on
the remote control do
the same thing as the
Volume Knob on the
front panel.

TUNER

SETUP

TRIMS

MONO / ST

FRQUENCY

AUTOTUNE

PRESET

SAVE

SEEK

DIM

REGION

RESET

VERSION

BASS

TREBLE

BALANCE

PRESET & FREQ

PRESET & FREQ

STEREO

PRESET & FREQ

PRESET & FREQ

DIM 100%

USA

Right = Autotune

Conrm?

Firmware Version

BASS 00

TREBLE 00

BALANCE 00

Up / Down = Preset

Right / Enter = Save

Up / Down =
Mono / Stereo

Up / Down or
Rotate Knob

Up / Down or
Rotate Knob

Up / Down 0 - 100%

Up / Down =
USA / Europe

Up / Right = conrm
Down / Left = cancel

Up / Down -10 / +10

Up / Down -10 / +10

Left / Rt L20 - R20

Page 20

BasX PT2 and BasX TA2

Refer to the Menu Tree on page 20 while reading the following section.
To use the Menu System with the remote control:

- enter the Menu System by pressing the Menu button

- navigate the Menu System using the Up / Down / Left / Right buttons on the Navigation Ring

- press the Menu button again to exit the menu

- (you can also exit the Menu System using the Left navigation button)

To use the Menu System with the front panel controls:

- enter the Menu System by pressing and holding the Volume knob for several seconds

- navigate the Menu System using the Left / Right Input buttons for left / right movement

and using the Volume knob for up / down movement

- exit the Menu System by pressing and holding the Volume knob for several seconds

- (you can also exit the Menu System using the Left Input button)

- (there is also an automatic timeout that will exit the Menu System after several seconds)

Note: You will have dierent menu choices depending on which Input is selected when you
enter the Menu System. The Tuner Section of the top menu, and the Region and Autotune
Options in the Setup Section of the menu, will ONLY be visible if you enter the Menu System
while the TUNER INPUT is selected.

The Trims Section

The Trims Section of the Menu System gives you access to the Bass, Treble, and Balance trims.
Once you enter the Trims Section you may select either Bass, Treble, or Balance.

Once the item you wish to view or change is selected:

- press the Right button to display the current setting for that item

- once the current value is displayed you may adjust it

- adjust the item by using either the Up / Down arrow buttons or the Volume knob

- when you have completed your adjustment return to the Trims Section using the Left arrow

- (your new setting will be retained when you return to the Trims Section)

Bass and Treble values range from -10 to +10.
Balance - Allows you to adjust the Balance settings range from L20 to R20.

The Setup Section

The Setup Section of the Menu System gives you access to the Dim, Reset, and Version options.
In addition the Setup Section also includes the Region and Autotune tuner options.
(These options will only be visible if the Tuner Input was selected when you entered the Menu.)

Once you enter the Setup Section you may select the item you wish to view or adjust.
Once the item you wish to view or change is selected:

- press the Right button to display the current setting for that item

- once the current value is displayed you may adjust it

- adjust the item by using either the Up / Down arrow buttons or the Volume knob

- when you have completed your adjustment return to the Setup Section using the Left arrow

- (your new setting will be retained when you return to the Setup Section)

Page 21

BasX PT2 and BasX TA2

Dim - Allows you to congure the brightness of the front panel VFD display.
(Options include 0%, 20%, 40%, 60%, 80%, and 100%.)

Reset - Resets all conguration settings and Tuner Presets to their factory default settings.
(After selecting this option you will be prompted to conrm your choice.)

Version - Displays the current rmware version.
Region - Congures the FM tuner for use in the USA or European region.

(Pre-emphasis and de-emphasis are applied to the FM audio signal to reduce noise. There are two
standards, and you will get the most accurate sound reproduction if you pick the correct one for
your area. For the USA and Canada, select USA; the Europe setting is correct for most other areas...
or just select the one that sounds the best to you.)

Autotune - When you select this option the FM Tuner in your unit will scan through the FM
frequency band and preload as many strong stations as it can detect into the FM tuner’s 15
station presets. After pressing the Right button to start the Autotune process, it will proceed and
complete automatically.

Note: Using Autotune will ERASE your current FM Station Presets and replace them with the
stations found by the signal scan.

The Tuner Section

The Tuner Section of the Menu System gives you access to the functions necessary to program
and congure the FM Tuner Presets. (The entire Tuner Section will ONLY be visible if the Tuner
Input was selected when you entered the Menu System.)

Preset - Allows you to choose which Tuner Preset station to listen to.
Press the Right button to see the currently selected Preset; use the Volume knob or Up / Down

arrow buttons to change to a dierent Preset; use the Left Button to exit when you’re done.
Save - Allows you to save the currently selected frequency to a Tuner Preset.
Press the Right button to select Save; the current Frequency and Preset will be shown. Use the

Volume knob or Up / Down buttons to select the Preset you wish to save; the currently selected
combination of Frequency and Preset will be continuously displayed. Press the Right button to
save the displayed Frequency to the displayed Preset.

Mono/St - Instructs the tuner to play a weak FM station in monaural.
Because of the way FM broadcasts are encoded, stereo FM broadcasts often exhibit an

unacceptably high amount of background noise if the signal is too weak. If this occurs, switching
the decoder to monaural mode will often improve the signal quality signicantly. This may enable
you to receive more stations in “listenable quality”.

Press the Right button to enter the Menu item, use the Up / Down buttons or Volume knob to
select Mono or Stereo; use the Left Button to exit when you’re done.

Note: The Mono/St setting ONLY aects stereo FM broadcasts. It has no eect on monaural FM
boradcasts and does NOT convert other types of stereo audio inputs to monaural.

Page 22

BasX PT2 and BasX TA2

Frequency - Allows you to manually tune your favorite FM station.
Press the Right button to select Frquency; the current Frequency and Preset will be shown.

Use the Volume knob or Up / Down buttons to select the Frequency; the currently selected
combination of Frequency and Preset will be continuously displayed.

Seek - Instructs the FM Tuner to scan the FM band looking for the next strong station.
Press the Right button to select the Seek function; then use the Up / Down buttons, or rotate

the Volume knob to the left or right, to command the FM Tuner to seek up or down to the next
strong station. The Tuner will stop at the next strong station it detects.

Using The FM AutoTune Feature

When you select this option the FM Tuner in your unit will scan through the FM frequency band
and preload as many strong stations as it can detect into the FM tuner’s 15 station presets.
After pressing the Right button to start the Autotune process, it will proceed and complete
automatically.

Note: Using Autotune will ERASE your current FM Station Presets and replace them with the
stations found by the signal scan.

Conguring FM Station Presets

SETUP MENU

TUNER MENU

TUNER MENU

TUNER MENU

SEEK or FREQ
MENU

SAVE MENU

Choose Station

Choose Preset
and Save

SETUP MENU

Page 23

BasX PT2 and BasX TA2

The procedure to congure FM Tuner Presets on the BasX PT2 and BasX TA2 is relatively
straightforward.

1) Enter the Tuner Section of the Setup Menu.

2) Select the FM station you wish to program (using either the Frequency or Seek option).

- select Frequency and manually tune the Frequency of the station you wish to program

- select Seek and allow the Seek function to nd a strong station for you

- return to the Tuner Section of the Menu after selecting your station

3) Select the St/Mono option (if you have chosen a weak noisy station).

- set the St / Mono option to Mono to set the station you chose to monaural reception

4) Select the Save option.

- press the Right arrow or Right button to display the current Frequency and Preset

- use the Volume knob or Up / Down arrows to select the FM Preset you wish to save

- press the Right arrow again to SAVE the currently shown Preset and Frequency combination

The following info-graphic explains the process in more detail...

SELECT TUNER INPUT.

- use Left / Right buttons on front panel

1

- use Left / Right buttons on remote control

ENTER SETUP MENU.

- press and hold Volume knob

2

- press Menu button on remote control

ENTER TUNER SETUP OPTIONS MENU.

- press Right button on front panel

3

- press Right button on remote control

SELECT SEEK FROM THE TUNER SETUP OPTIONS MENU TO AUTOMATICALLY FIND A STATION.

- use the Up / Down buttons or the Volume knob to select the SEEK option

4a

- press the Right button on the front panel or remote control to activate SEEK

- turn the Volume knob to the Right or press the Up button on the remote control to SEEK UP

- turn the Volume knob to the Left or press the Down button on the remote control to SEEK DOWN

- the display will show frequency and stop at the next strong station

- when the desired station is shown press the Left button to return to the Tuner Setup Options Menu

Display shows current
PRESET and FREQUENCY

Display shows
TUNER

Display shows PRESET
(Tuner Setup Options Menu)

Display shows SEEK

Display changes to show
PRESET and FREQUENCY

OR

SELECT FREQUENCY FROM THE TUNER SETUP OPTIONS MENU TO MANUALLY TUNE TO A STATION.

- use the Up / Down buttons or the Volume knob to select the FREQUENCY option

4b

- press the right Button on the front panel or remote control to activate MANUAL TUNING

- use the Volume knob or the Up / Down buttons on the remote control to manually tune a station

- the display will show the currently tuned frequency

- when the desired station is shown press the Left button to return to the Tuner Setup Options Menu

SELECT MONO/STEREO MODE FROM THE TUNER SETUP OPTIONS MENU.

4c

(this step is optional - the default mode is Stereo)

- use the Volume knob or the Up / Down buttons to select the MONO/ST option

- press the Right button on the front panel or remote control to activate MONO/STEREO mode

- use the Volume knob or the Up / Down buttons on the remote control to select Mono or Stereo

- the display will show the currently selected mode

- press the Left button to select the mode currently displayed and return to the Tuner Setup Options Menu

SELECT SAVE FROM THE TUNER SETUP OPTIONS MENU TO SAVE YOUR STATION TO A PRESET.

- use the Up / Down buttons or the Volume knob to select the SAVE option

5

- press the Right button on the front panel or remote control to activate the SAVE option

- use the Volume knob or the Up / Down buttons on the remote control to select a PRESET

- press the Right button on the front panel or remote control to SAVE the displayed FREQUENCY and PRESET

- use the Left button to return to the Tuner Setup Options Menu

NOTE: Choices must be entered promptly.
There are time-outs that will return you to the Main Menu if you hesitate too long between choices.
NOTE: The TUNER SETUP OPTIONS MENU will ONLY appear if you enter the SETUP MENU while the TUNER is the selected Input.
NOTE: The MONO/ST option allows you to force weak stereo stations to play in monaural - which may improve the S/N ratio on some weak stations.

Display shows FREQUENCY

Display changes to show
PRESET and FREQUENCY

Display shows MONO/ST

Display changes to show
Mono or Stereo during set
operation.

Display shows
PRESET and FREQUENCY

Page 24

BasX PT2 and BasX TA2

Connections

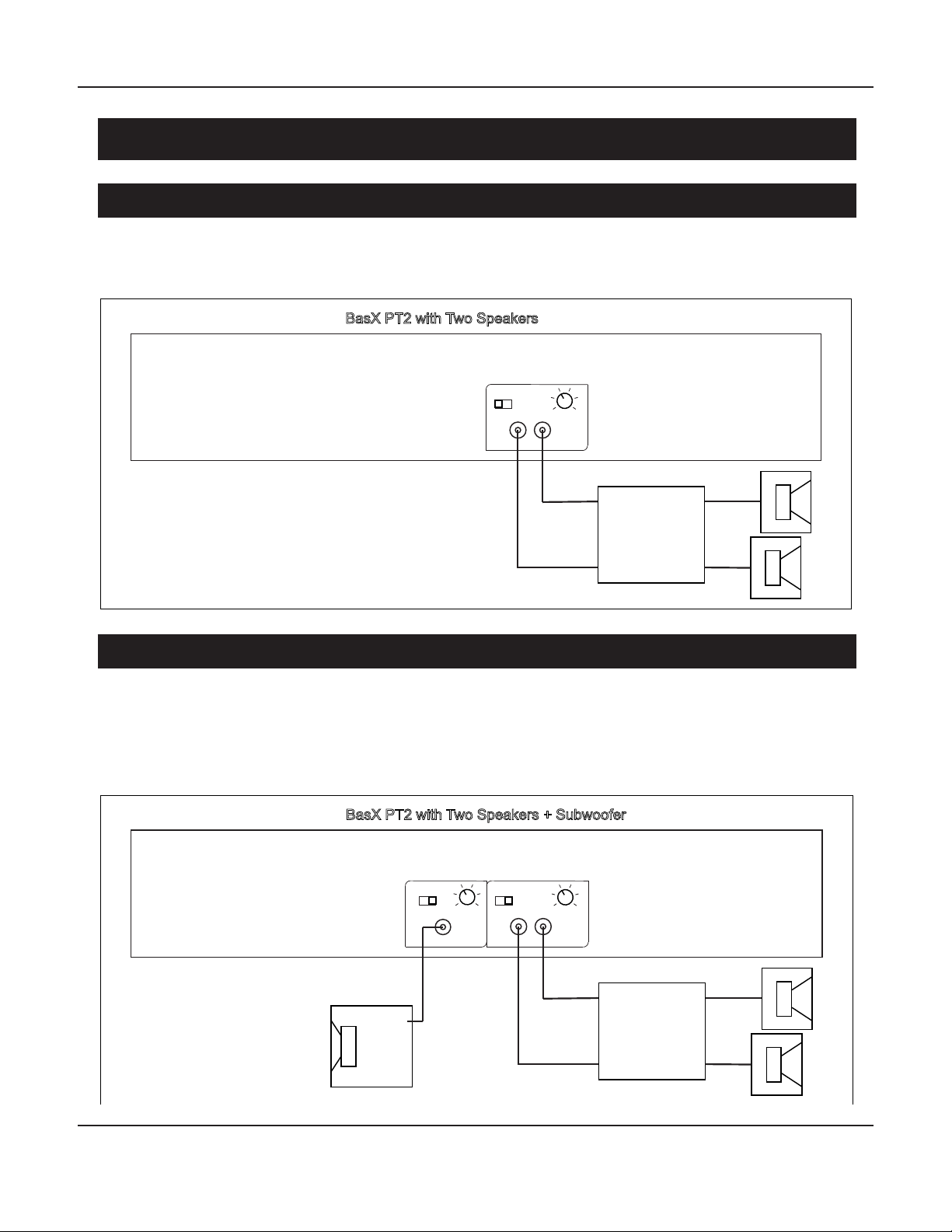

Connecting an amplier and speakers to your BasX PT2

To connect your PT2 to a separate power amplier connect the Left and Right Preamp Outputs
on the PT2 to the unbalanced inputs on your power amplier using good quality audio
interconnects.

BasX PT2 with Two Speakers

BasX PT2

High Pass filter set to OFF.
Frequeny settings don’t matter.

HIGH PASS

OFF ON

L R

PRE OUTPUT

40 200

Right
In

POWER AMP

Left
In

Right

Out

Left
Out

Connecting an amplier and subwoofer to your BasX PT2

To connect your PT2 to a separate power amplier and subwoofer, connect the Left and Right
Preamp Outputs on the PT2 to the unbalanced inputs on your power amplier, and connect the
Subwoofer Output to the input on your powered subwoofer. If your subwoofer has an LFE input
then use that. If not, then use a normal input, and set the crossover frequency on your sub to its
highest setting. Set both the Low Pass and High Pass lters On and to the same frequency.

BasX PT2 with Two Speakers + Subwoofer

Both Low Pass and High Pass set to ON.
Both Frequencies set to 80 Hz.
(80 Hz is industry standard for Home Theater.)

POWERED
SUBWOOFER

LOW PASS HIGH PASS

40 200 40 200

OFF ON OFF ON

SUB

SUB OUTPUT PRE OUTPUT

Page 25

L R

Right
In

POWER AMP

Left
In

Right

Out

Left
Out

BasX PT2

BasX PT2 and BasX TA2

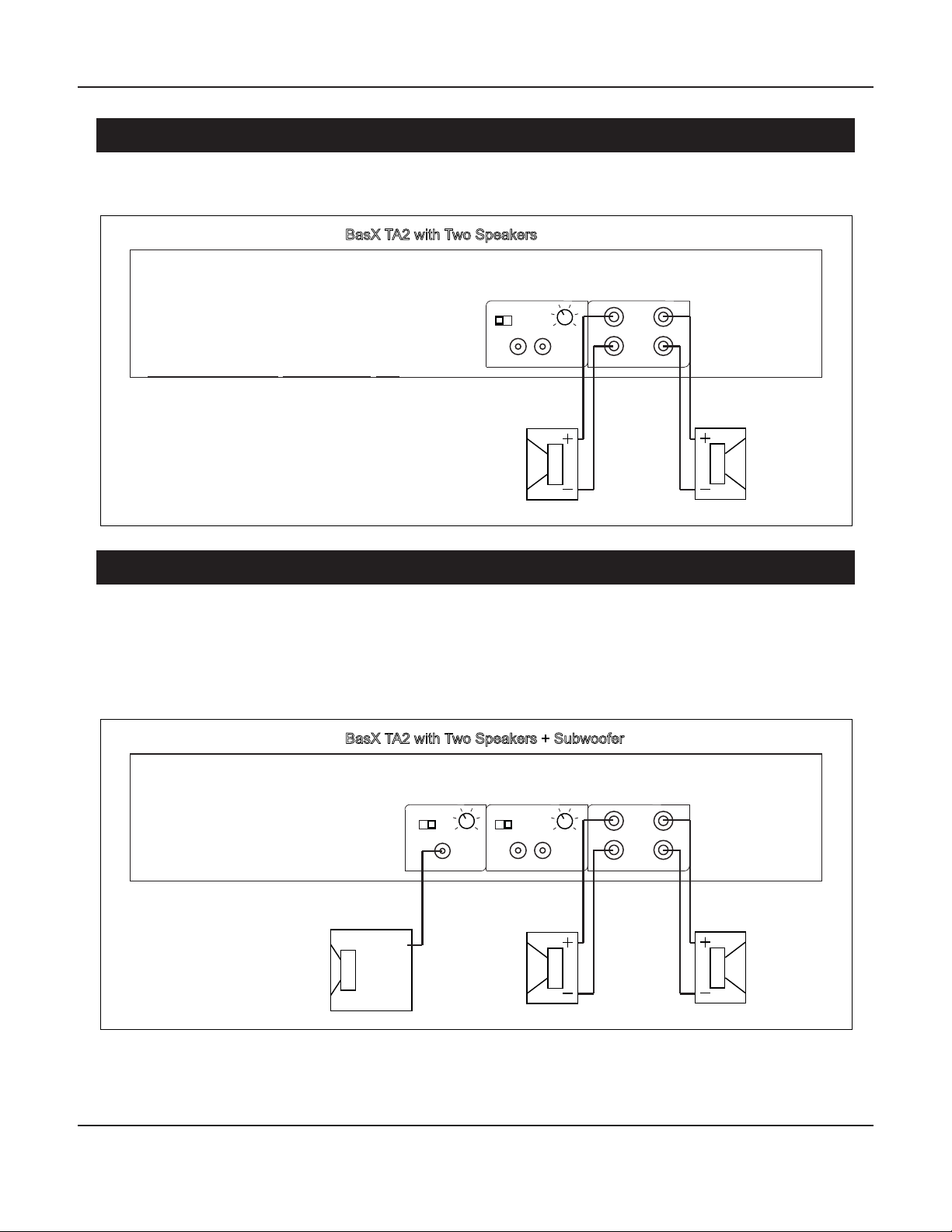

Connecting speakers to your BasX TA2

To connect your TA2 to a pair of speakers simply connect the speakers to the Left and Right
Speaker Outputs on the TA2. Set the High Pass switch on the TA2 to O.

BasX TA2 with Two Speakers

BasX TA2

High Pass set to OFF.
Frequency setting doesn’t matter.

HIGH PASS

OFF ON

40 200

L R

PRE OUTPUT SPEAKER OUTPUTS

R L

+

_

Connecting speakers and a subwoofer to your BasX TA2

To connect your TA2 to a pair of speakers and a subwoofer, connect the speakers to the Left and
Right Speaker Outputs on the TA2, and connect the Subwoofer Output to the input on your
powered subwoofer. If your subwoofer has an LFE input then use that. If not, then use a normal
input, and set the crossover frequency on your sub to its highest setting. Set both the Low Pass
and High Pass lters On and to the same frequency.

BasX TA2 with Two Speakers + Subwoofer

BasX TA2

Both Low Pass and High Pass set to ON.
Both Frequencies set to 80 Hz.
(80 Hz is industry standard for Home Theater.)

POWERED
SUBWOOFER

LOW PASS HIGH PASS

40 200 40 200

OFF ON OFF ON

SUB

SUB OUTPUT PRE OUTPUT SPEAKER OUTPUTS

L R

R L

+

_

Note: The active Bass Management High Pass lter is applied to both the Preamp Output and
the signal fed to the internal amplier in the TA2 when the High Pass switch is set to On.

Page 26

BasX PT2 and BasX TA2

Connecting digital audio sources to your PT2 or TA2

Connect your digital audio sources to the appropriate inputs.

Note: The digital inputs are designed to accept STEREO digital audio signals, and will not work
with encoded digital surround sound audio signals. Some of your source devices may require
you to congure them to deliver a stereo signal.

Connecting analog line level audio sources to your PT2 or TA2

Connect each of your stereo analog line level sources to one of the four Analog Inputs on the
PT2 or TA2.

Connecting a turntable to your BasX PT2 or TA2

If you have a turntable with a direct output, then it should be connected to the Phono Input on
the PT2 or TA2, and the Phono Input Loading / Type Switch should be set for the type of cartridge
you have. A standard load of 47 kOhms is used for moving magnet cartridges. A load impedance
of either 47 Ohms or 100 Ohms may be selected for moving coil cartridges. If your turntable has a
separate ground wire, connect it to the Phono Input Ground Lug.

Note: Most moving coil cartridges will deliver the most accurate sound when you use the
impedance that is recommended by the manufacturer. However, each setting will sound
slightly dierent, so feel free to choose the one you prefer. If your turntable has a separate
ground wire, connect it to the Phono Input Ground Lug.

Note: The manufacturers of some cartridges may specically instruct you to use unusual
settings; for example, some moving coil cartridges may specify that you use the “moving
magnet” setting for proper output level. Always follow the manufacturer’s recommendations.

Note: Some turntables have a built-in phono preamp and a line-level output. If so, then their
line level output should be connected to a line level input on the BasX PT2 or TA2.

Connecting a trigger-enabled device to your BasX PT2 or TA2

You can use the Trigger Output on the PT2 or TA2 to turn on another trigger-enabled device, like a
power amp, and you can use the Trigger Input on the PT2 or TA2 to allow it to be turned on by the
trigger signal from a trigger-enabled source device.

Note: The PT2 or TA2 must be in Standby mode if you wish another device to be able to turn it
on with a trigger signal.

Line Voltage

Both the BasX PT2 and BasX TA2 have circuitry that enables them to automatically detect the
proper line voltage and congure themselves automatically when you plug them in. Both will
operate on either 115 VAC or 230 VAC at 50 Hz or 60 Hz.

Page 27

BasX PT2 and BasX TA2

Care and Maintenance

Periodic Maintenance

Your BasX PT2 or BasX TA2 requires no periodic maintenance or calibration.

Cleaning your PT2 or TA2

• If necessary, the PT2 or TA2 should be cleaned gently with a soft rag.

• If something sticky gets on the front panel or case of the PT2 or TA2, it should be cleaned with

a mild cleaning solution applied to a soft rag, followed by wiping with a clean rag dampened
with plain water and drying with a soft dry rag or cloth.

Note: DO NOT spray water or cleaning solution directly onto the PT2 or TA2 or into the vents.

Page 28

BasX PT2 and BasX TA2

Specications For Both PT2 and TA2

Analog Inputs (both)

4 pairs – stereo analog line level inputs (Analog 1 thru Analog 4).
1 pair – stereo phono inputs (switchable; moving magnet or moving coil).
1 tuner – FM (RDS enabled; with external antenna input; 15 station presets).

Digital Inputs (both)

1 – digital coax (S/PDIF); stereo; 24/192k.
2 – digital optical (Toslink); stereo; 24/192k.
1 – digital USB (DAC input); stereo; 24/192k.
1 – Bluetooth receiver; Bluetooth 5, AptX and AAC (antenna included).

Preamp Outputs (both)

1 pair – stereo line level Preamp Outputs, which can be congured to be either full range or
Bass Managed, with an analog 12 dB/octave high-pass lter, whose cuto frequency can be
set to anywhere between 40 Hz and 200 Hz.
1 – line level summed Subwoofer Output, which can be congured to be either full range or
Bass Managed, with an analog 12 dB/octave low-pass lter, whose cuto frequency can be set
to anywhere between 40 Hz and 200 Hz.
1 – stereo headphone output (front panel).

Speaker Outputs (TA2)

1 pair - speaker outputs, which are fed from the same audio signal as the line level
Preamp Outputs, and so can also be either full range or Bass Managed, with an analog
12 dB/octave high-pass lter, whose cutoo frequency can be set to anywhere between
40 Hz and 200 Hz.

Controls and Indicators

Power – rocker switch; rear panel.
Standby – one front panel push button.
Two front panel push-buttons – Input Select; menu operation.
Front panel digital encoder knob – Volume; Tuning; menu operation.
VFD Display – high visibility blue alphanumeric VFD display (dimmable).
LEDs – amber Standby LED; blue illuminated legends for Input buttons and Headphone output.

Remote Control

Compact full-function infrared remote control.

Page 29

BasX PT2 and BasX TA2

Trigger Input and Output (both)

1 - 12 VDC Trigger Output – delivers 12VDC trigger signal when unit is On.
1 - Trigger Input – accepts inputs between 5V and 12V AC or DC.

Line Level Analog Performance (both)

Maximum output level: 4 VRMS.
Frequency response: 5 Hz to 50 kHz +/- 0.04 dB.
THD+noise: < 0.001% (A-weighted).
IMD: < 0.004% (SMPTE).
S/N ratio: > 120 dB.
Crosstalk: < 90 dB.

Phono Input Analog Performance (both)

Frequency response (moving magnet and moving coil): 20 Hz to 20 kHz; ref standard RIAA curve.
THD+noise: < 0.015% (moving magnet; A-weighted); < 0.06% (moving coil; A-weighted).
Gain (ref unity gain on main inputs; at 1 kHz): 44 dB (moving magnet); 55 dB (moving coil)
S/N ratio: > 78 dB (ref 5 mV; moving magnet); > 58 dB (ref 0.5 mV; moving coil).
Load Impedance: 47 kOhms (moving magnet); 47 Ohms or 100 Ohms (moving coil)

Digital Performance (both)

Frequency response: 5 Hz to 20 kHz +/- 0.15 dB (44k sample rate).
Frequency response: 5 Hz to 80 kHz +/- 0.25 dB (192k sample rate).
THD+noise: < 0.003% (A-weighted; all sample rates).
IMD: < 0.007% (SMPTE).
S/N ratio: > 110 dB.

Amplier Performance (TA2 only)

135 watts RMS / channel; into 8 Ohms, both channels driven, 20 Hz - 20 kHz, THD < 0.02%.
200 watts RMS / channel; into 4 Ohms, both channels driven, at 1 kHz, THD < 1%.
Minimum load impedance: 4 Ohms; Rated impedance: 8 Ohms.
Frequency response: 20 Hz to 20 kHz +/- 0.15 dB; 5 Hz to 80 kHz +0 / -1.8 dB.
S/N ratio: 116 dB.
Gain: 29 dB.

Page 30

BasX PT2 and BasX TA2

Power Requirements

115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected).
The BasX PT1 has a universal SMPS power supply which accepts from 100 VAC to 240 VAC.
The BasX TA1 has a linear main power supply that accepts either 115 VAC or 230 VAC.

Dimensions

PT2: 17” wide x 3-3/8” high (without feet) x 13-1/2” deep (without connectors).
PT2: 17” wide x 4” high (including feet) x 13-1/2” deep (without connectors).
TA2: 17” wide x 3-3/8” high (without feet) x 15-1/2” deep (without connectors).
TA2: 17” wide x 4” high (including feet) x 15-1/2” deep (without connectors).

Weight

PT2: 12 lbs (unboxed).
TA2: 25 lbs (unboxed).
Add 6 lbs for boxed weight on each.

Page 31

BasX PT2 and BasX TA2

Emotiva Audio Corporation Three-Year Limited Warranty

What does this warranty cover?

Emotiva Audio Corporation (Emotiva) warrants its products against defects in materials and
workmanship. This warranty, and all rights provided hereunder, is limited to the original owner.
In the event the original owner transfers ownership of the Product prior to the expiration of the
applicable term described below, this Warranty shall terminate immediately upon such transfer of
ownership.

This Warranty only applies to Products purchased directly from Emotiva or any of its Authorized
Dealers or International Distributors.

Emotiva warrants any replacement product or part furnished hereunder against defects in
materials and workmanship for the longer of the following: (i) the amount of time remaining
under the original warranty, or (ii) 120 days from your receipt of the repaired or replaced product.
The duration described in this paragraph is hereinafter referred to as the “Term”.

TO THE FULLEST EXTENT PERMITTED BY LAW, ALL IMPLIED WARRANTIES RELATED TO THE
ORIGINAL PRODUCT AND ANY REPLACEMENT PRODUCT OR PARTS (INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE EXPRESSLY
LIMITED TO THE TERM OF THIS LIMITED WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS
ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO
YOU.

The original owner must make a claim within the Term of the Warranty. A claim shall not be valid
(and Emotiva has no obligation related to the claim) if it is not made within the Term and if it is not
made in strict compliance with the requirements of the “How do you get service?” section.

How long does this coverage last?

This warranty commences on the date of retail purchase by the original retail purchaser and
runs for a period of three years thereafter, with the exception of accessories, cables, and remote
controls*. This warranty is non-transferable to any person that owns the warranted product during
the Term. Emotiva warrants any replacement product or part furnished hereunder against defects
in materials and workmanship for the longer of the following: (i) the amount of time remaining
under the original warranty, or (ii) 120 days from your receipt of the repaired or replaced product.
The duration described in this paragraph is hereinafter referred to as the “Term”.

*Accessories, cables, and remote controls have a one-year warranty to the original owner.

Page 32

BasX PT2 and BasX TA2

What will Emotiva do?

Emotiva will, at its option, either: (i) repair the product, or (ii) replace the product with a new
consumer product which is identical or reasonably equivalent (in Warrantor’s sole discretion) to
the product. In the event Warrantor, in its sole discretion, is unable to replace or repair the Product
or it is not commercially practicable to do so, then: (i) if the claim was submitted during the rst
365 days of the Term, Warrantor shall refund to you the purchase price that you paid for the
Product; and (ii) if the claim was submitted after the rst 365 days of the Term, Emotiva shall issue
you a credit equal to the purchase price that you paid for the product. The credit may only be
used for the purchase of merchandise from Emotiva, and cannot be used for freight charges.

When a Product or part is repaired or replaced, any replacement item becomes your property
and the replaced item becomes Emotiva’s property. When a refund or credit is given, the Product
for which the refund or credit is provided must be returned to Emotiva and becomes Emotiva’s
property.

What is not covered by this warranty?
This warranty does not apply: (i) to damage caused by use with products not manufactured

by Emotiva, where the non-Emotiva product is the cause of the damage; (ii) to damage caused
by service or maintenance performed by anyone who is not a representative of Emotiva; (iii) to
damage caused by accident, abuse, misuse, ood, re, earthquake or other external causes; (iv) to
a product or part that has been modied after its retail purchase, where the modication caused
or contributed to the damage; (v) to consumable parts, such as batteries or failure of or damage
to the Product caused by batteries; (vi) if any Emotiva serial number has been removed or defaced
on the product; (vii) glass or plastic panels, cabinetry, trim or other appearance items; (viii)
cosmetic wear or damage to remote controls by user.

EMOTIVA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING
FROM OR RELATED TO ANY DEFECTS IN OR DAMAGES TO ITS PRODUCTS. SOME STATES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

How do you get service?
In order to make a claim under the Warranty, you must:

1. Call or e-mail a customer service representative at 1-877-EMO-TECH (1-877-366-8324) or

[email protected]. You must provide a description of your problem, the serial number of the
Product for which the warranty claim is being made, and the original purchase date.

2. Then, you will be provided with a warranty service authorization number (“WS”).

Page 33

BasX PT2 and BasX TA2

3. Next, you must ship the Product to the following address, with the WS written in large, bold
numbers on the outside of the box, and with the letters “WS” written before the number, for
example: WS1234. Parcels arriving without a WS number on the outside of the box will be refused.
The customer pays for the shipping to Warrantor. Warrantor pays for the shipping back to the
customer within the continental United States only. Customer is responsible for shipping charges
on all other warranty claims.

Emotiva Audio Corporation
Attn: Repair Department
139 Southeast Parkway Court

Franklin, TN 37064

Units will be refused by Emotiva for the following:
Product was sent without the WS#

Product was sent with inadequate packaging.
Product was damaged in transit.
Product was shipped collect for shipping charges.

How does state law apply?
This warranty gives you specic legal rights, and you may also have other rights which vary from

state to state.

What if my product is damaged on the way to you?

Emotiva is not liable for damages that may incur while an item is in transport to us. Please
purchase insurance when you ship your item. If your Product was not adequately packaged, we
will refuse receipt and the damaged package will be returned to you at your cost. If you do not
have the original Emotiva Audio packaging, please check with our sales department to purchase
replacement-shipping cartons.

How does the Warranty and service apply to international orders?

The Product Warranty is only valid in the country where the Emotiva product was originally
shipped via an authorized dealer, distributor, or direct from the Emotiva factory. The Warranty is
subject to change at any time depending on the laws and regulations within your specic country.
Please check with your distributor for a complete understanding of the warranty in your county.

If you purchased your Emotiva Product outside of the USA and wish to have it serviced at the
factory, all freight charges are your responsibility. If you do not have an authorized distributor
or repair center in your country, your Product must come back to the Emotiva USA factory for
warranty service.

Page 34

Notes

BasX PT2 and BasX TA2

All information contained in this manual is accurate to the best of our knowledge at the
time of publication. In keeping with our policy of ongoing product improvement, we reserve the
right to make changes to the design and features of our products without prior notice.

BasX PT2 and BasX TA2 User Manual Revision 1.1 March 2022

Page 35
